Accelerating BGP Convergence: A Practical Approach Using Ghost Flushing

The paper addresses the lengthy convergence time of BGP (Border Gateway Protocol), which can take up to 15 minutes. We present the Ghost Flushing technique that reduces the worst-case convergence time from minutes to mere seconds. This technique tackles the issue of "ghost information," where outdated routing information persists and proliferates within a network. By implementing the Ghost Buster and Ghost Flushing rules, we demonstrate how to effectively streamline BGP convergence, supported by simulation results that illustrate significant performance improvements.

michi
Télécharger la présentation

Accelerating BGP Convergence: A Practical Approach Using Ghost Flushing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Improved BGP convergence via Ghost Flushing Yehuda Afek Anat Bremler-Barr ShemerSchwarzd המרכז הבינתחומי הרצליה

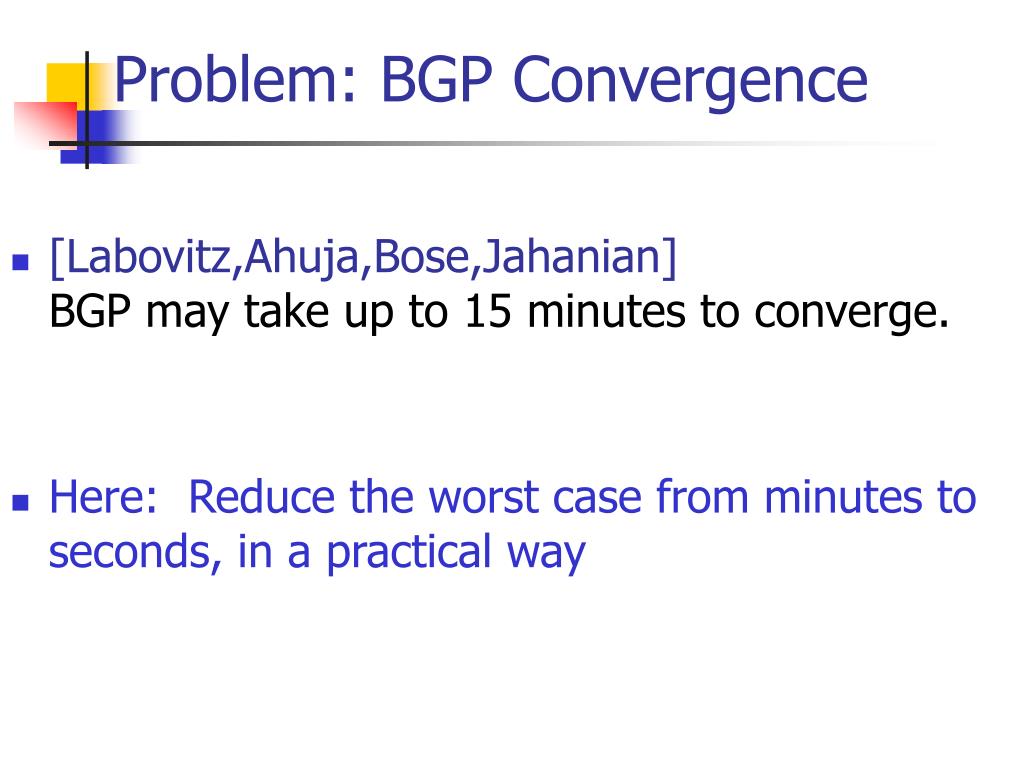

  2. Problem: BGP Convergence • [Labovitz,Ahuja,Bose,Jahanian] BGP may take up to 15 minutes to converge. • Here: Reduce the worst case from minutes to seconds, in a practical way

  3. Problem: BGP Convergence • [Labovitz,Ahuja,Bose,Jahanian] Events Time (sec’s, minRouteAdver=30) • E-Down 30•n n  10,000, up to 15 minutes • E-Up 30•d d  30, d=diameter • E-Longer 2•30•l l == path length • E-Shorter 30•d • Here: E-down = l time units (unit = link delay) • E-Longer = 30•d

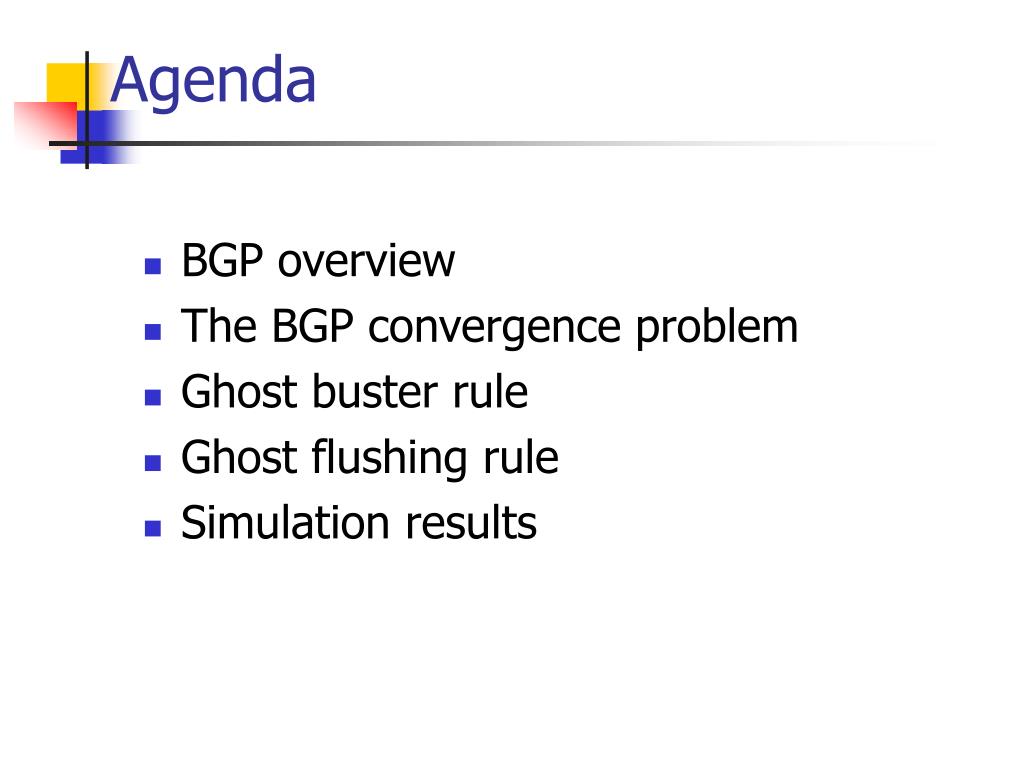

  4. Agenda • BGP overview • The BGP convergence problem • Ghost buster rule • Ghost flushing rule • Simulation results

  5. BGP protocol • Distance (Path) vector protocol • Receive AS-path from the neighbors • Chooses the best one (shortest) • Eliminates Routing loops using the AS-path • Two kinds of messages: Announcements and Withdrawal

  6. Problem: Ghost information One Ghost (old information) makes many, and in the network it continues recursively dst: 0 dst: 0 2 4 1 3 dst: 0 dst: 0 withdraw 0 dst: 0 t=0 dst

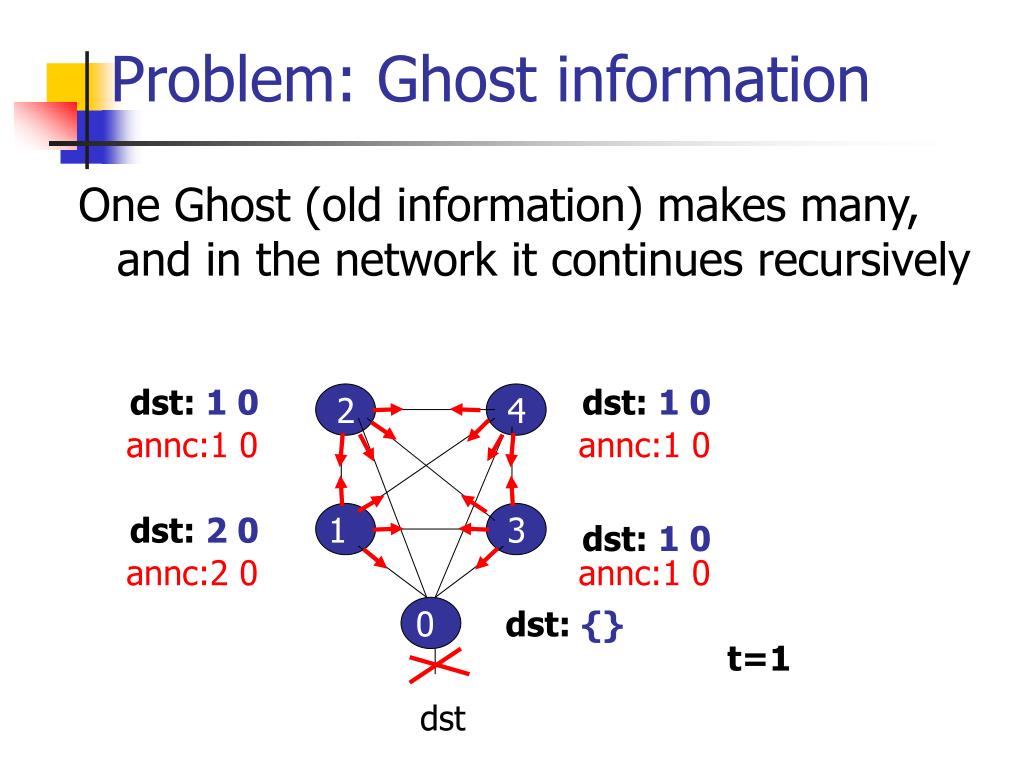

  7. Problem: Ghost information One Ghost (old information) makes many, and in the network it continues recursively dst: 1 0 dst: 1 0 2 4 annc:1 0 annc:1 0 dst: 2 0 1 3 dst: 1 0 annc:2 0 annc:1 0 0 dst: {} t=1 dst

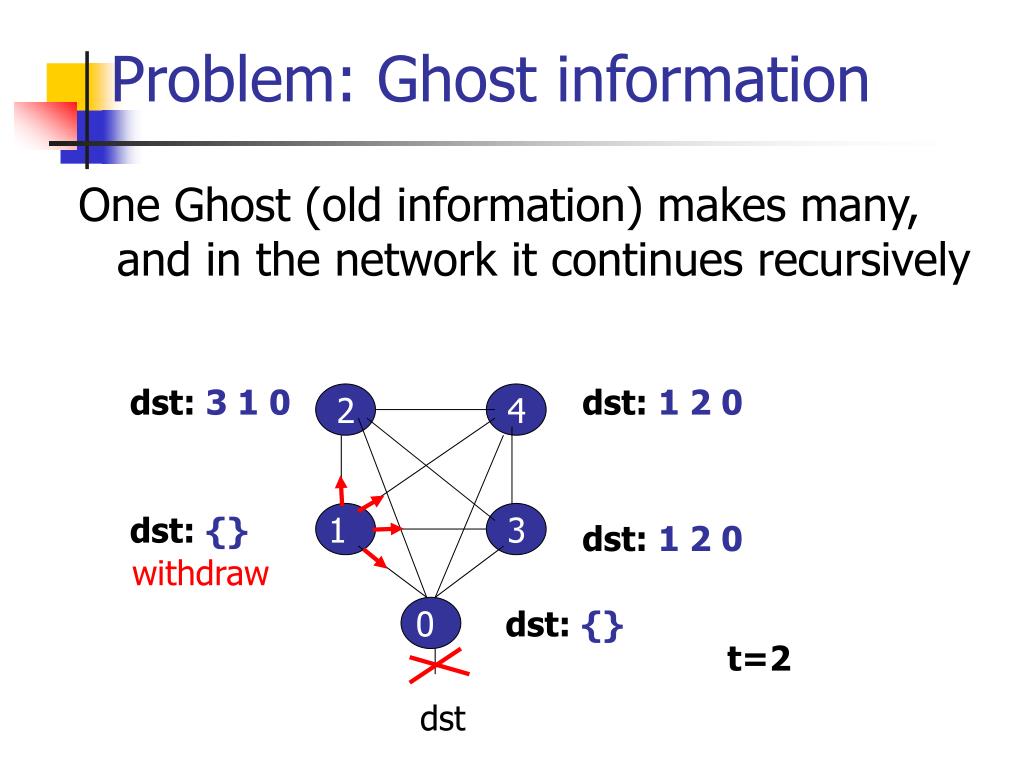

  8. Problem: Ghost information One Ghost (old information) makes many, and in the network it continues recursively dst: 3 1 0 dst: 1 2 0 2 4 dst: {} 1 3 dst: 1 2 0 withdraw 0 dst: {} t=2 dst

  9. Problem: Ghost information minRouteAdver: Wait 30 sec’s before sending the next announcement (BGP) annc: 3 1 0 annc: 2 1 0 annc: 2 1 0 One Ghost (old information) makes many, and in the network it continues recursively dst: 3 1 0 dst: 2 1 0 2 4 dst: {} 1 3 dst: 2 1 0 0 dst: {} t=17 t=3 t=4 t=5 t=6 t=28 t=24 t=20 t=31 t=16 t=14 t=11 t=10 t=8 t=7 t=27 t=22 dst

  10. E_Down convergence In the clique (size 4) example the scenario ends after 62 sec (= 30(n-2) )

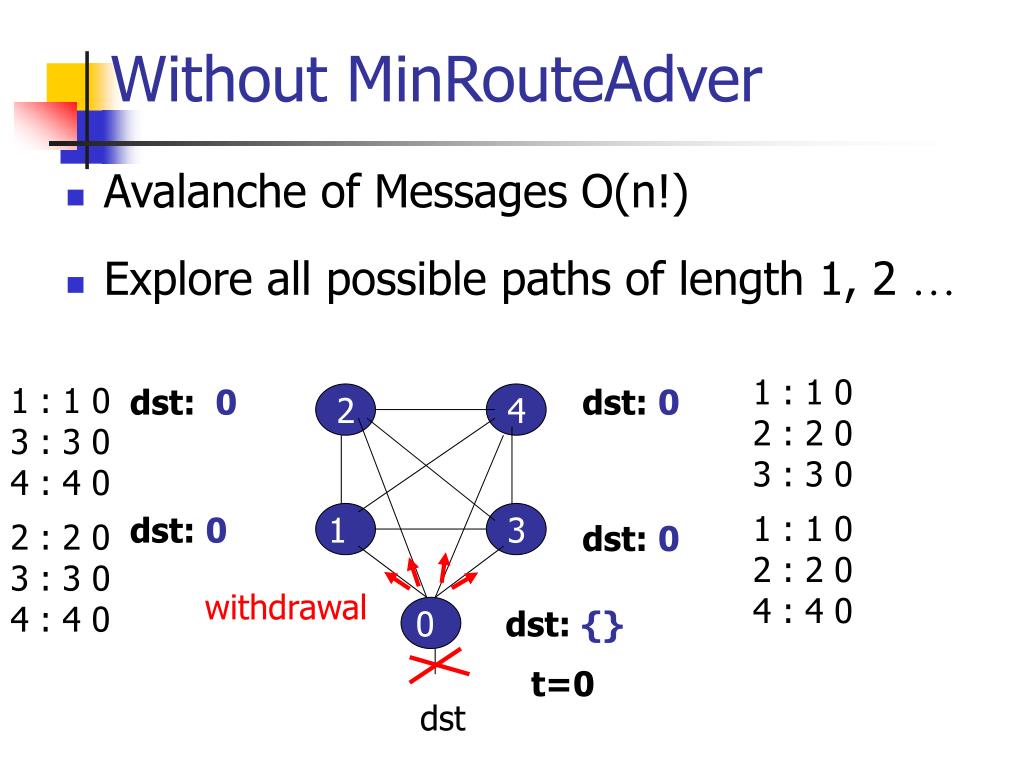

  11. Without MinRouteAdver • Avalanche of Messages O(n!) • Explore all possible paths of length 1, 2 … dst: 0 dst: 0 2 4 1 : 1 0 2 : 2 0 3 : 3 0 1 : 1 0 3 : 3 0 4 : 4 0 dst: 0 1 3 dst: 0 1 : 1 0 2 : 2 0 4 : 4 0 2 : 2 0 3 : 3 0 4 : 4 0 withdrawal 0 dst: {} t=0 dst

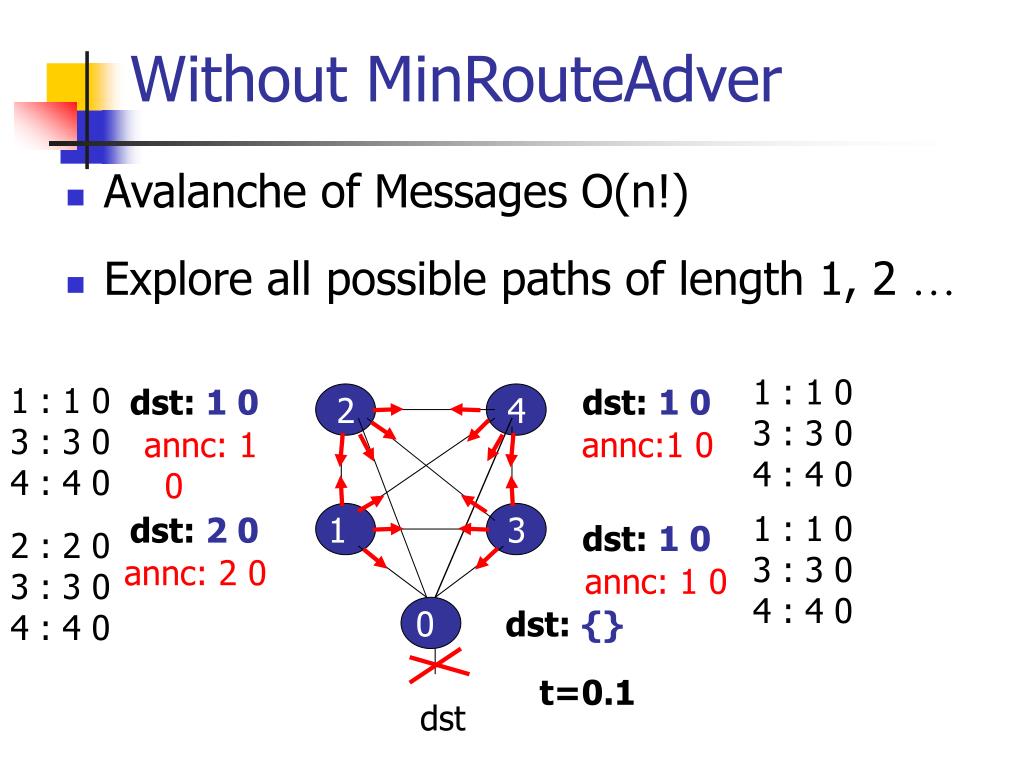

  12. Without MinRouteAdver • Avalanche of Messages O(n!) • Explore all possible paths of length 1, 2 … dst: 1 0 dst: 1 0 2 4 1 : 1 0 3 : 3 0 4 : 4 0 1 : 1 0 3 : 3 0 4 : 4 0 annc: 1 0 annc:1 0 dst: 2 0 1 3 dst: 1 0 1 : 1 0 3 : 3 0 4 : 4 0 2 : 2 0 3 : 3 0 4 : 4 0 annc: 2 0 annc: 1 0 0 dst: {} t=0.1 dst

  13. Without MinRouteAdver • Avalanche of Messages O(n!) • Explore all possible paths of length 1, 2 … dst: 3 0 dst: 2 0 2 4 1 : 1 2 0 2 : 2 0 3 : 3 0 1 : 1 2 0 3 : 3 0 4 : 4 0 annc:2 0 annc:3 0 dst: 20 1 3 dst: 2 0 annc: 2 0 annc:2 0 1 : 1 2 0 2 : 2 0 4 : 4 0 2 : 2 0 3 : 3 0 4 : 4 0 0 dst: {} t=0.2 dst

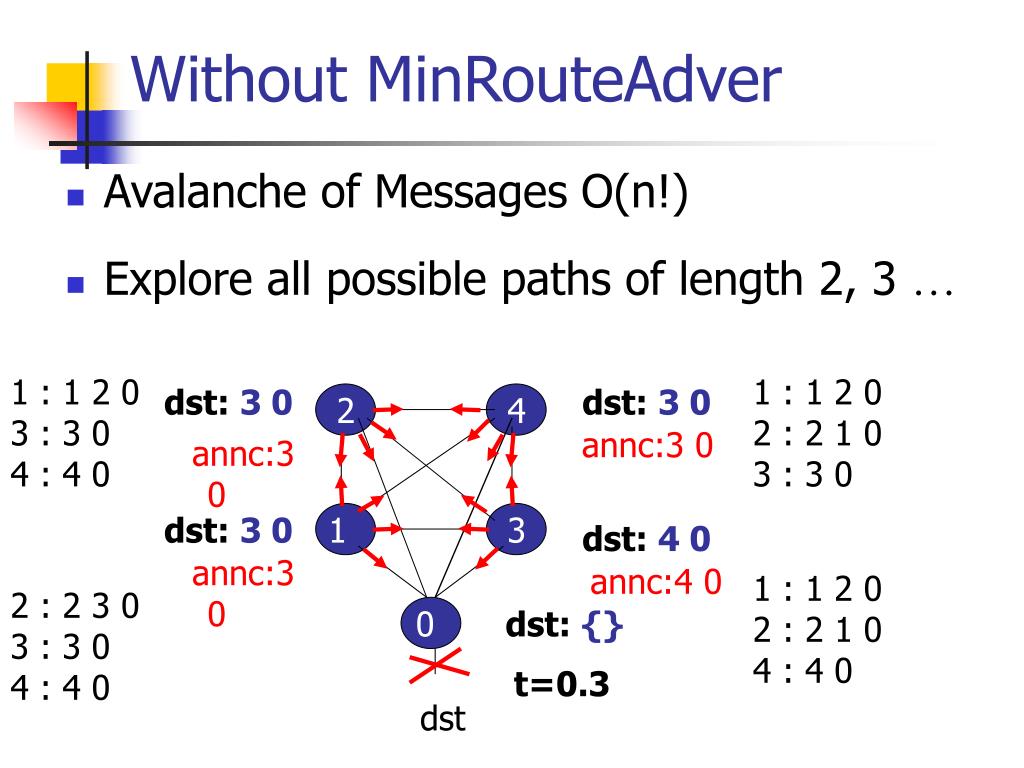

  14. Without MinRouteAdver • Avalanche of Messages O(n!) • Explore all possible paths of length 2, 3 … dst: 3 0 dst: 3 0 1 : 1 2 0 3 : 3 0 4 : 4 0 2 4 1 : 1 2 0 2 : 2 1 0 3 : 3 0 annc:3 0 annc:3 0 dst: 3 0 1 3 dst: 4 0 annc:3 0 annc:4 0 1 : 1 2 0 2 : 2 1 0 4 : 4 0 2 : 2 3 0 3 : 3 0 4 : 4 0 0 dst: {} t=0.3 dst

  15. Without MinRouteAdver • Avalanche of Messages O(n!) • Explore all possible paths of length 2, 3 … dst: 4 0 dst: 1 2 0 1 : 1 2 0 3 : 3 1 0 4 : 4 0 2 4 1 : 1 2 0 2 : 2 1 0 3 : 3 1 0 annc: 1 2 0 annc:4 0 dst: 4 0 1 3 dst: 4 0 annc:4 0 annc:4 0 1 : 1 2 0 2 : 2 1 0 4 : 4 0 2 : 2 3 0 3 : 3 1 0 4 : 4 0 0 dst: {} t=0.4 dst

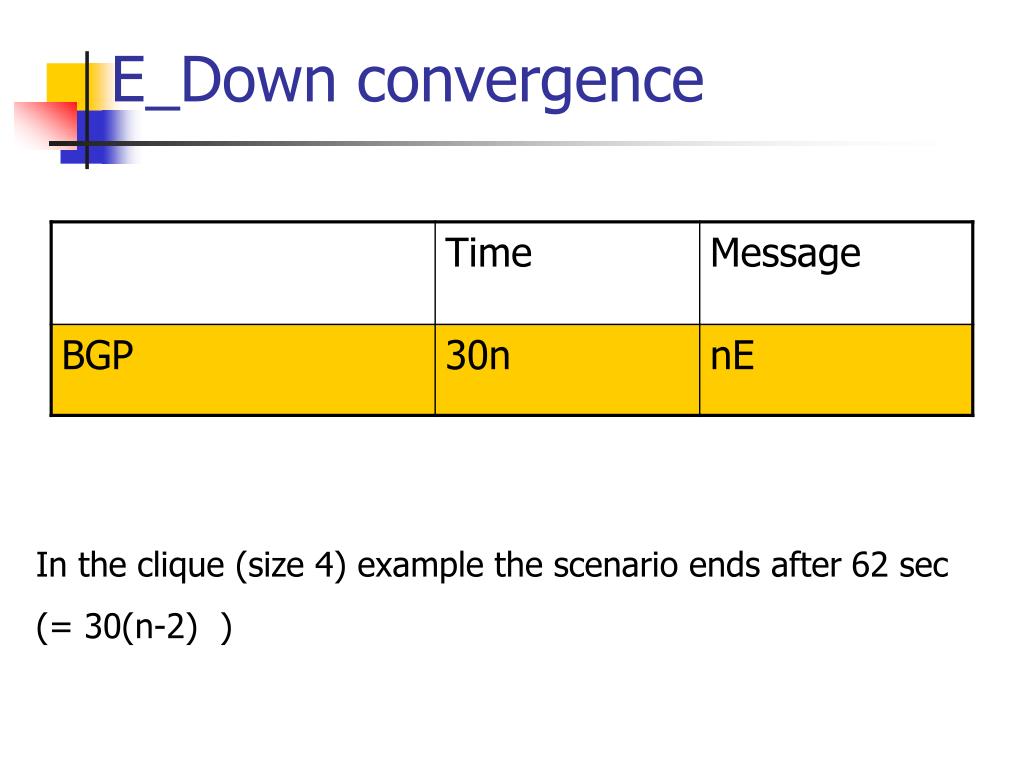

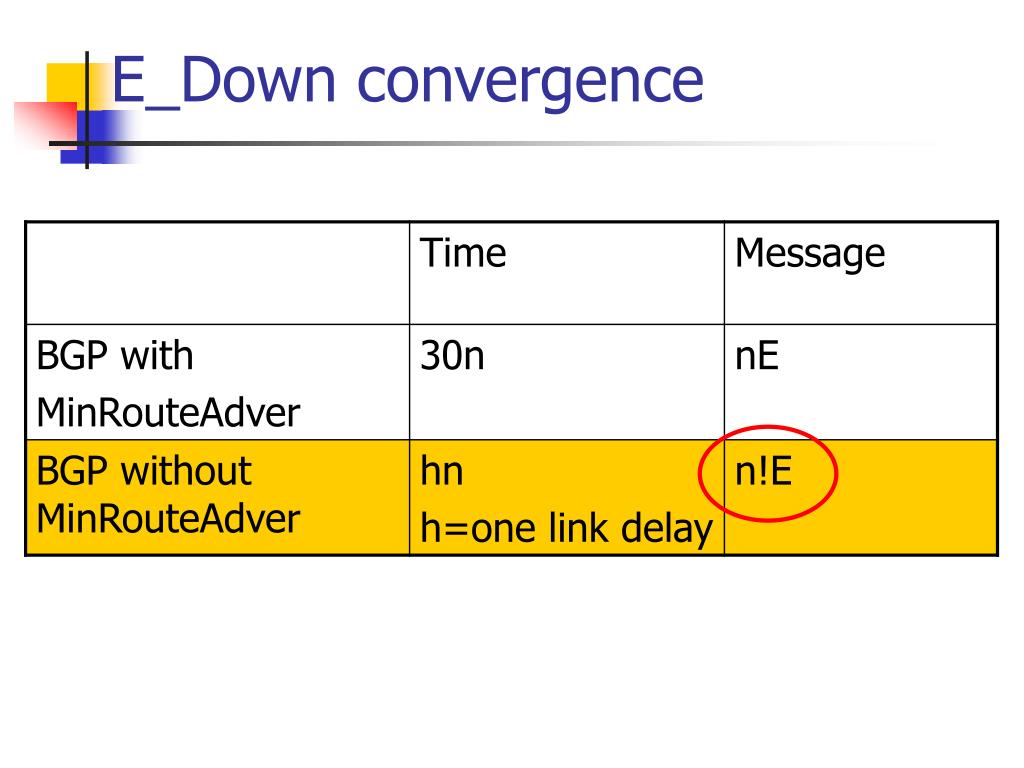

  16. E_Down convergence

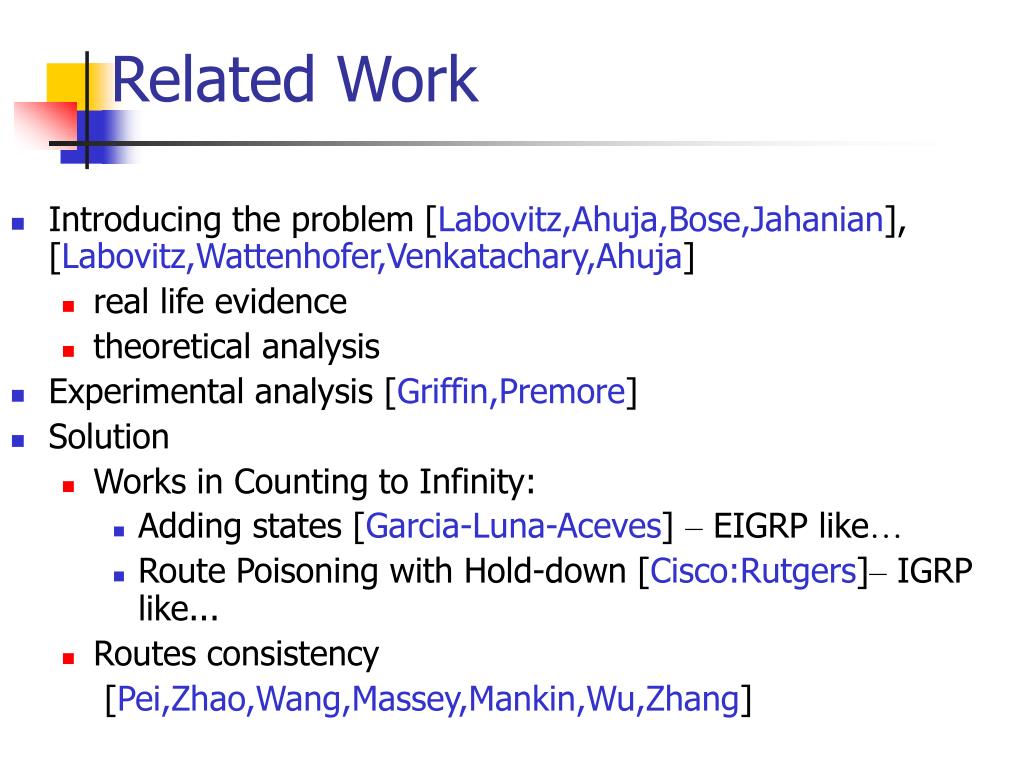

  17. Related Work • Introducing the problem [Labovitz,Ahuja,Bose,Jahanian], [Labovitz,Wattenhofer,Venkatachary,Ahuja] • real life evidence • theoretical analysis • Experimental analysis [Griffin,Premore] • Solution • Works in Counting to Infinity: • Adding states [Garcia-Luna-Aceves] – EIGRP like… • Route Poisoning with Hold-down [Cisco:Rutgers]– IGRP like... • Routes consistency [Pei,Zhao,Wang,Massey,Mankin,Wu,Zhang]

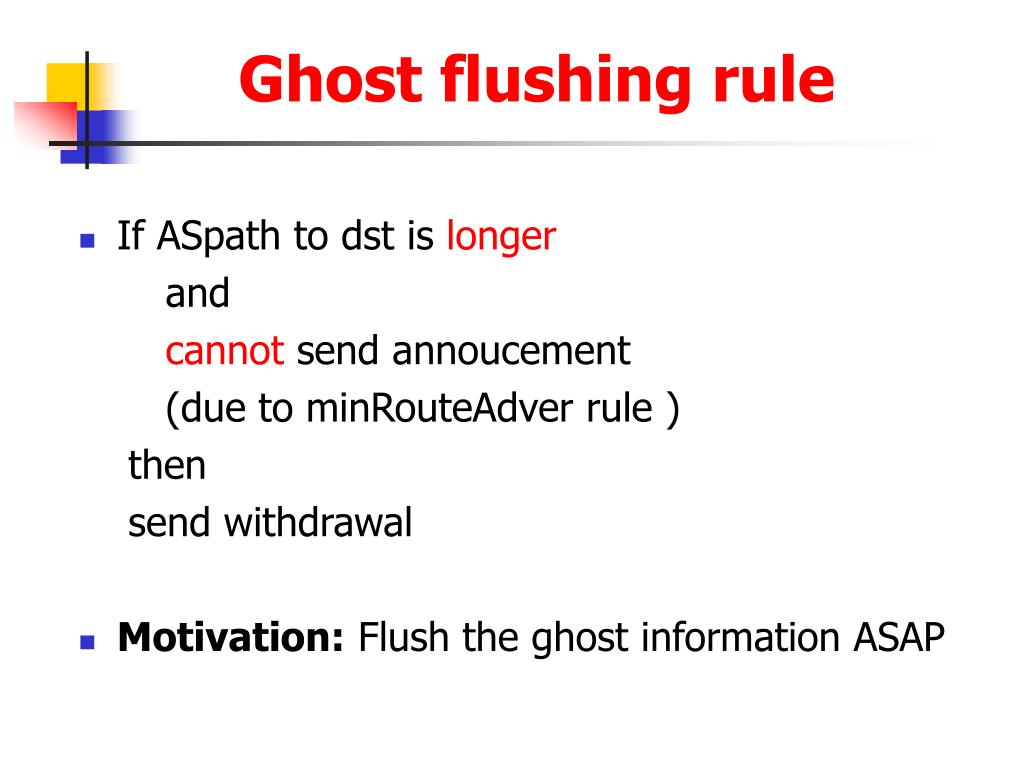

  18. Ghost flushing rule • If ASpath to dst is longer and cannot send annoucement (due to minRouteAdver rule ) then send withdrawal • Motivation: Flush the ghost information ASAP

  19. Ghost Flushing example dst: 0 dst: 0 2 4 1 3 dst: 0 dst: 0 withdraw 0 dst: 0 t=0 dst

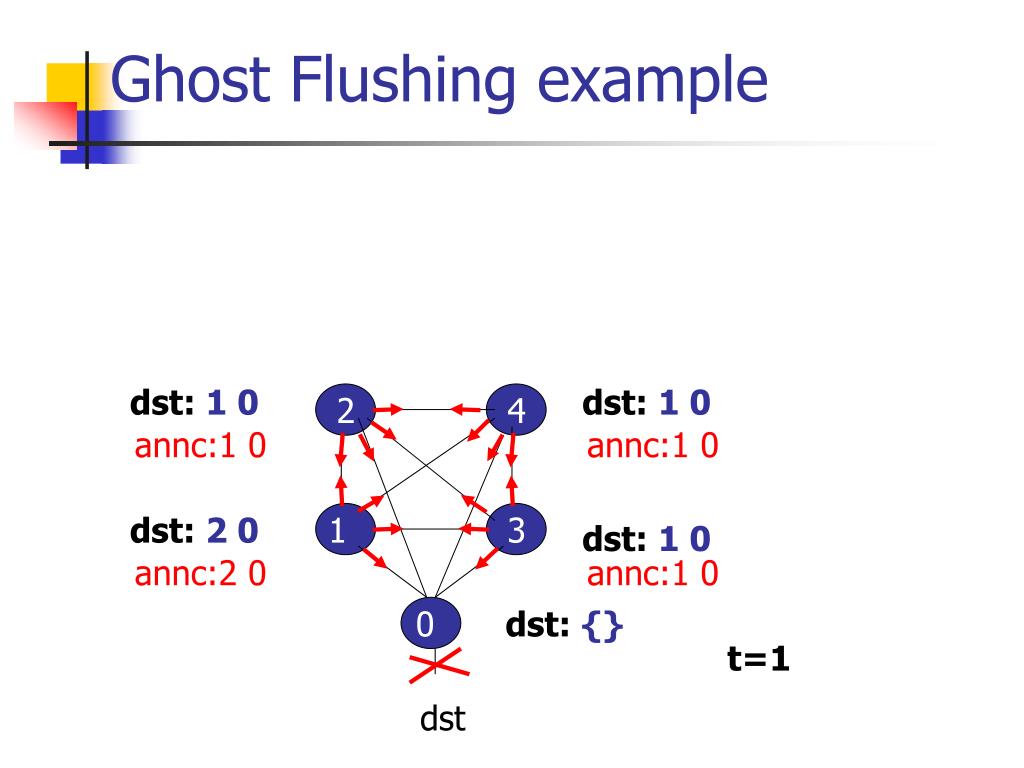

  20. Ghost Flushing example dst: 1 0 dst: 1 0 2 4 annc:1 0 annc:1 0 dst: 2 0 1 3 dst: 1 0 annc:2 0 annc:1 0 0 dst: {} t=1 dst

  21. Ghost Flushing example withdraw withdraw withdraw Longer ASpath & minRouteAdver timer  Send “flushing” withdrawal dst: 3 1 0 dst: 1 2 0 2 4 dst: {} 1 3 dst: 1 2 0 withdraw 0 dst: {} t=2 dst

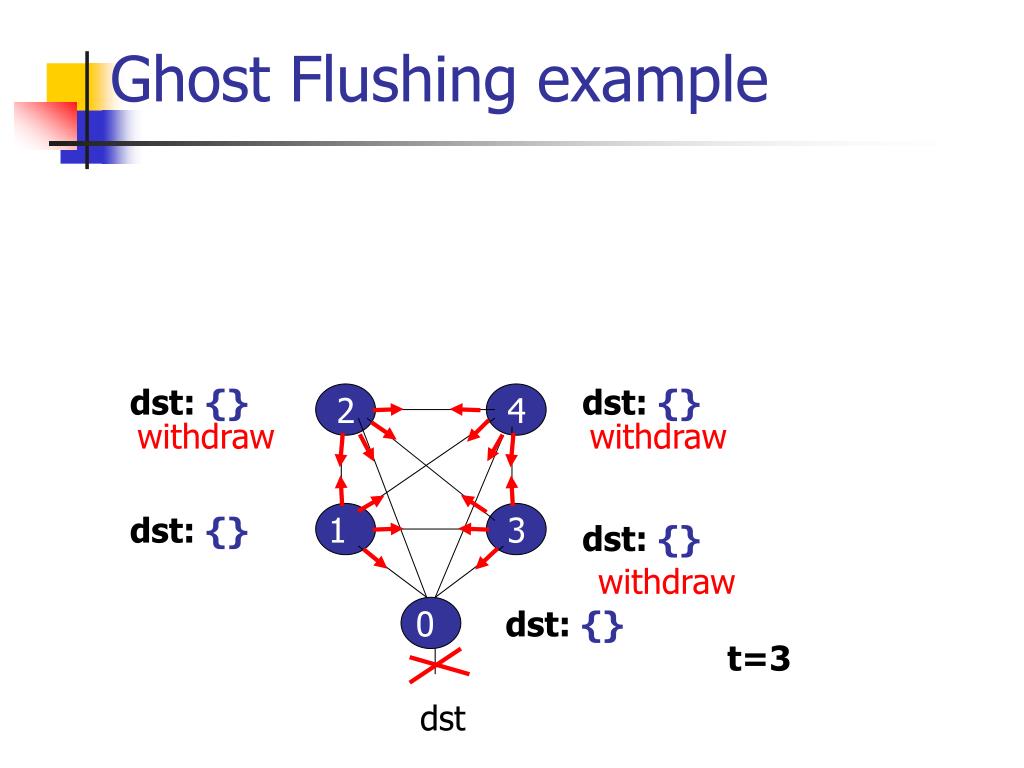

  22. Ghost Flushing example dst: {} dst: {} 2 4 withdraw withdraw dst: {} 1 3 dst: {} withdraw 0 dst: {} t=3 dst

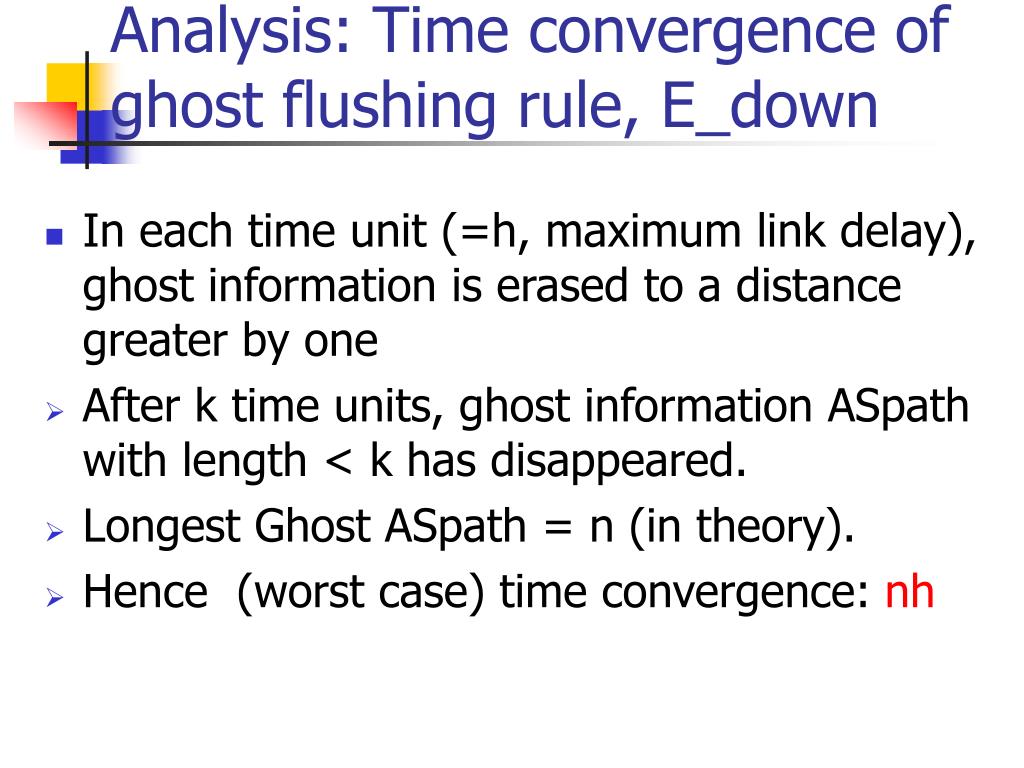

  23. Analysis: Time convergence of ghost flushing rule, E_down • In each time unit (=h, maximum link delay), ghost information is erased to a distance greater by one • After k time units, ghost information ASpath with length < k has disappeared. • Longest Ghost ASpath = n (in theory). • Hence (worst case) time convergence: nh

  24. E_Down convergence

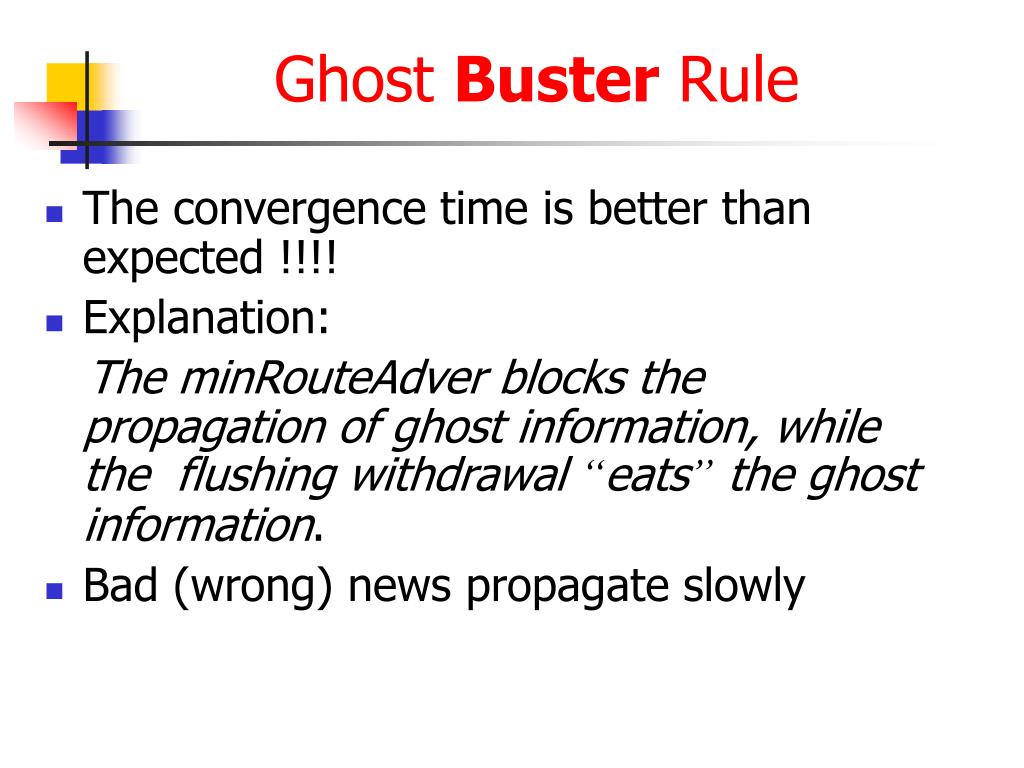

  25. Ghost Buster Rule • The convergence time is better than expected !!!! • Explanation: The minRouteAdver blocks the propagation of ghost information, while the flushing withdrawal “eats” the ghost information. • Bad (wrong) news propagate slowly

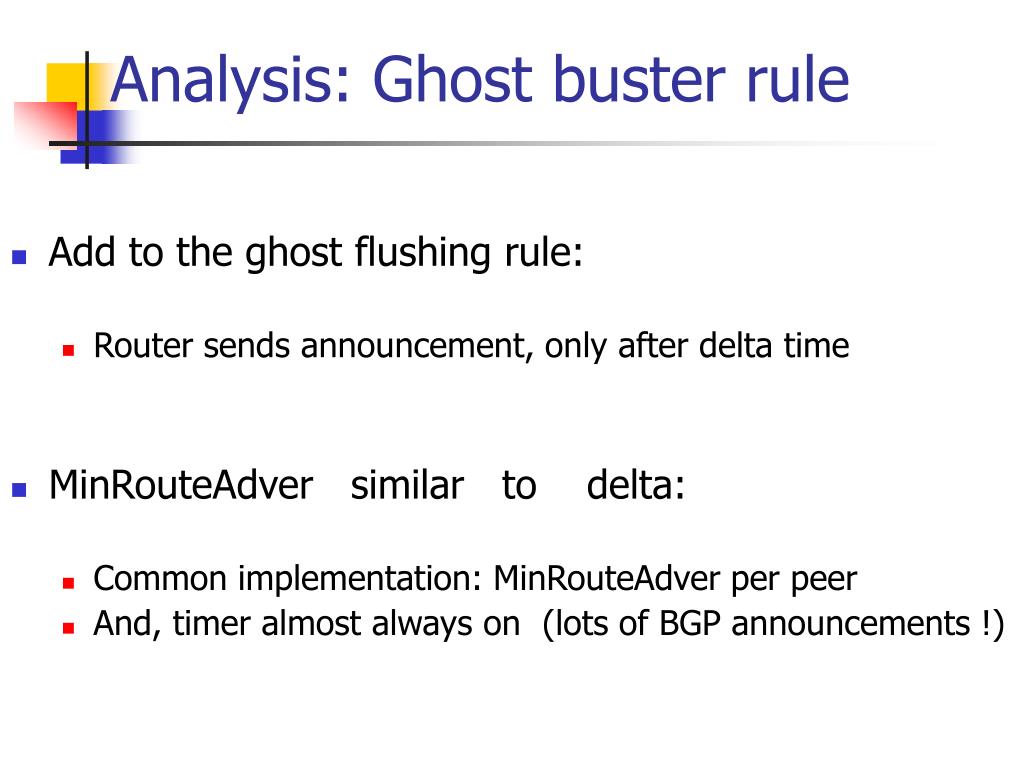

  26. Analysis: Ghost buster rule • Add to the ghost flushing rule: • Router sends announcement, only after delta time • MinRouteAdver similar to delta: • Common implementation: MinRouteAdver per peer • And, timer almost always on (lots of BGP announcements !)

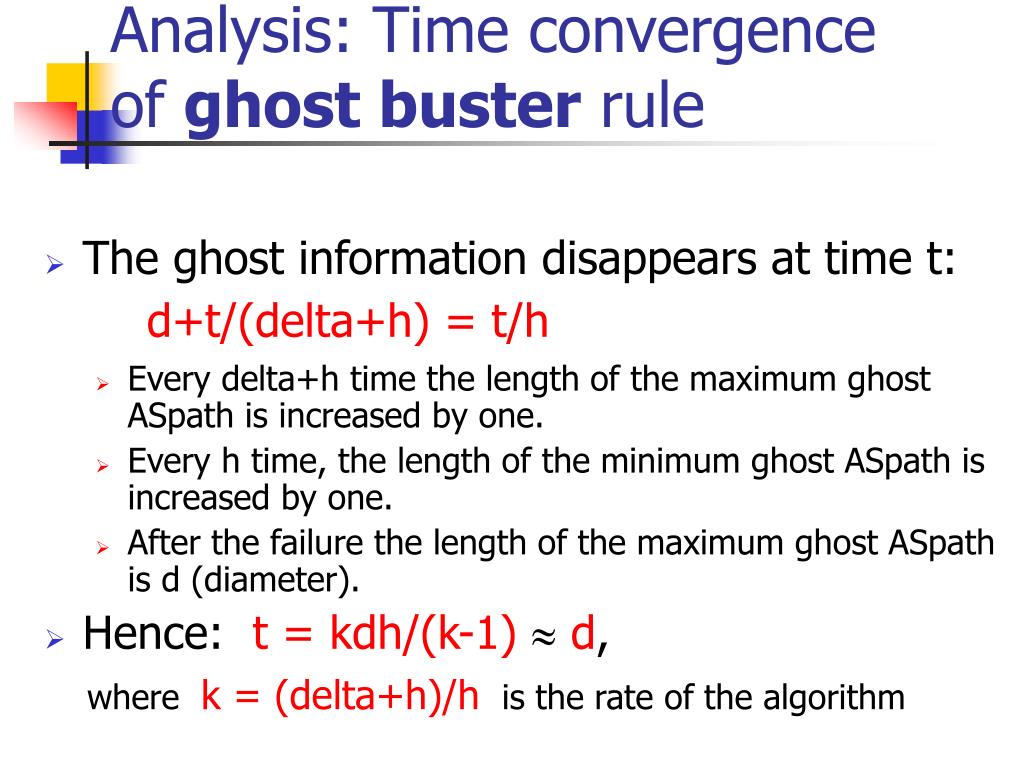

  27. Analysis: Time convergence of ghost buster rule • The ghost information disappears at time t: d+t/(delta+h) = t/h • Every delta+h time the length of the maximum ghost ASpath is increased by one. • Every h time, the length of the minimum ghost ASpath is increased by one. • After the failure the length of the maximum ghost ASpath is d (diameter). • Hence: t = kdh/(k-1)  d, where k = (delta+h)/h is the rate of the algorithm

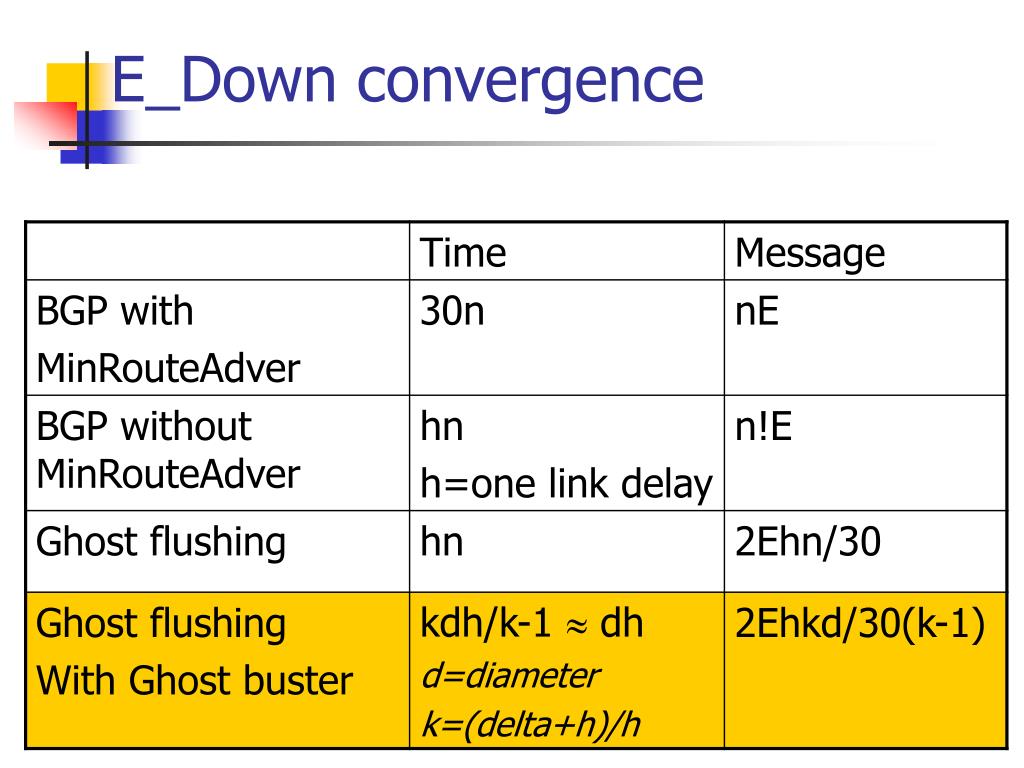

  28. E_Down convergence

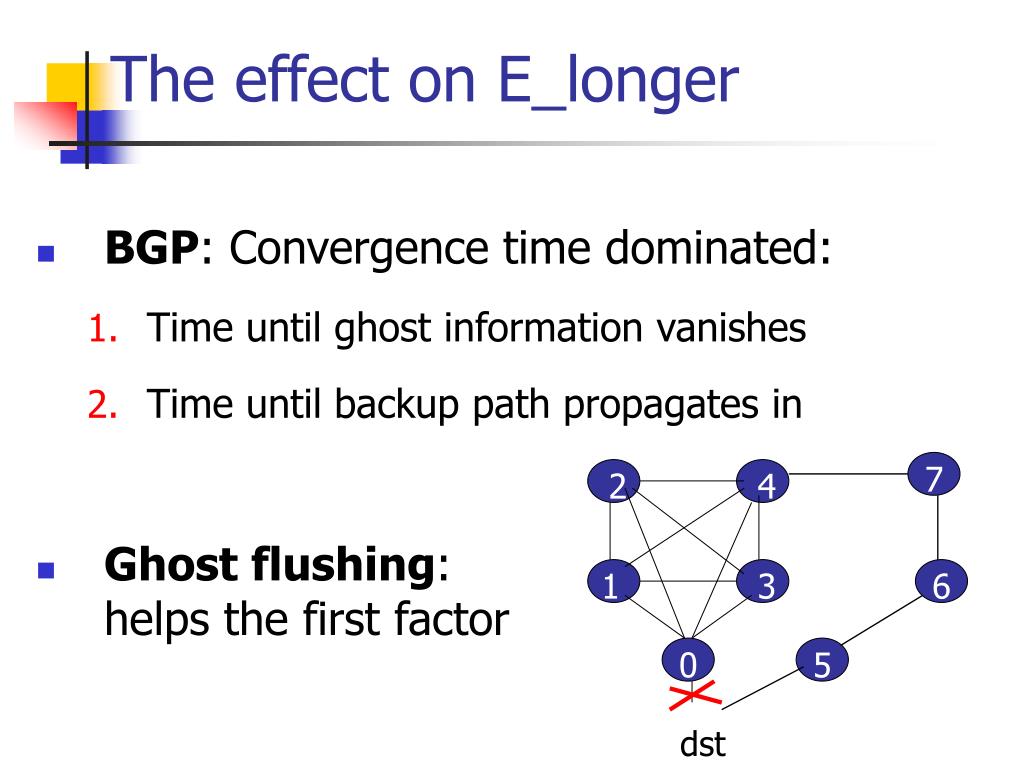

  29. The effect on E_longer 7 2 4 1 3 6 0 5 dst • BGP: Convergence time dominated: • Time until ghost information vanishes • Time until backup path propagates in • Ghost flushing: helps the first factor

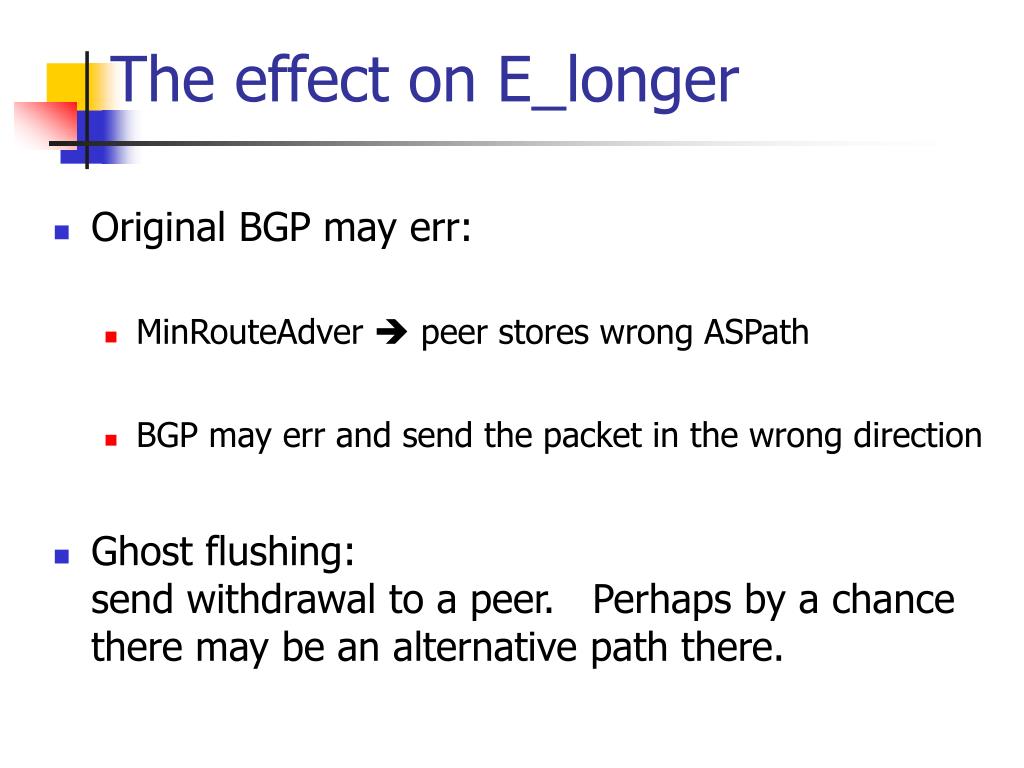

  30. The effect on E_longer • Original BGP may err: • MinRouteAdver  peer stores wrong ASPath • BGP may err and send the packet in the wrong direction • Ghost flushing: send withdrawal to a peer. Perhaps by a chance there may be an alternative path there.

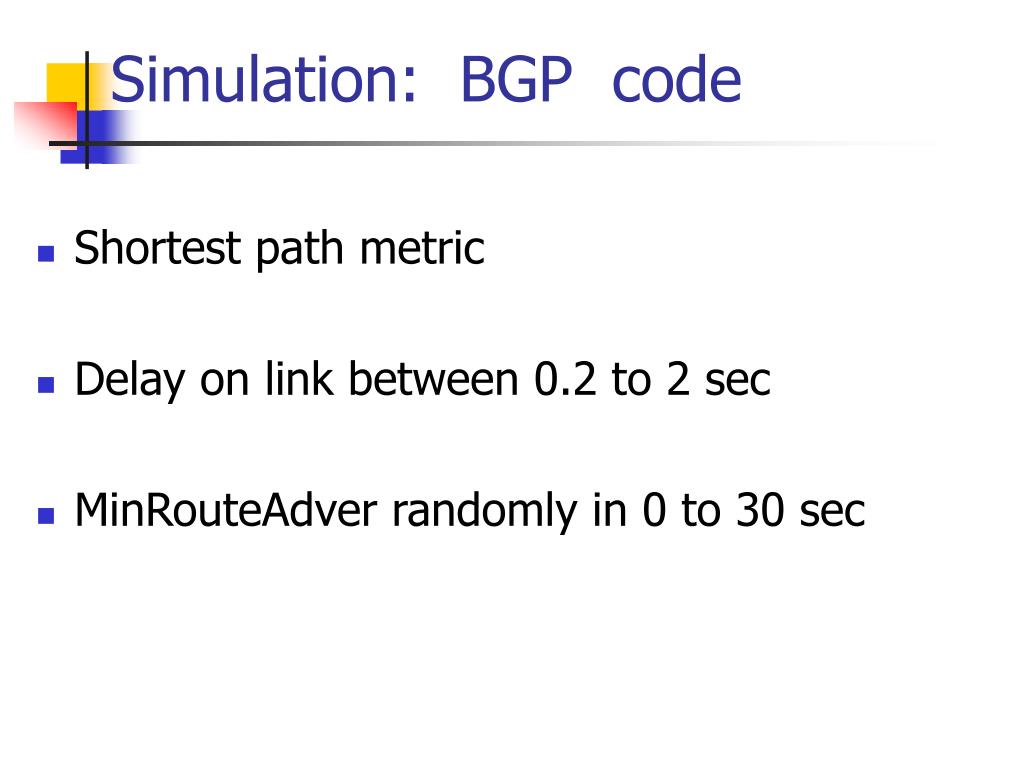

  31. Simulation: BGP code • Shortest path metric • Delay on link between 0.2 to 2 sec • MinRouteAdver randomly in 0 to 30 sec

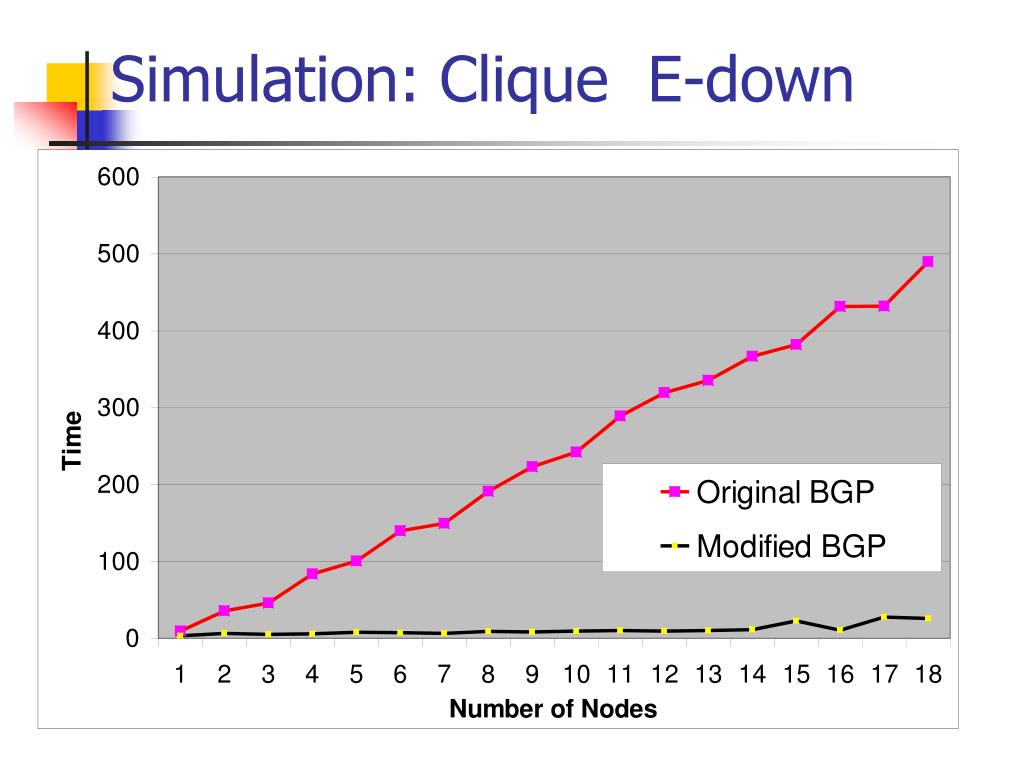

  32. Simulation: Clique E-down

  33. Simulation: ISP topology 9 4 8 5 1 7 3 dst

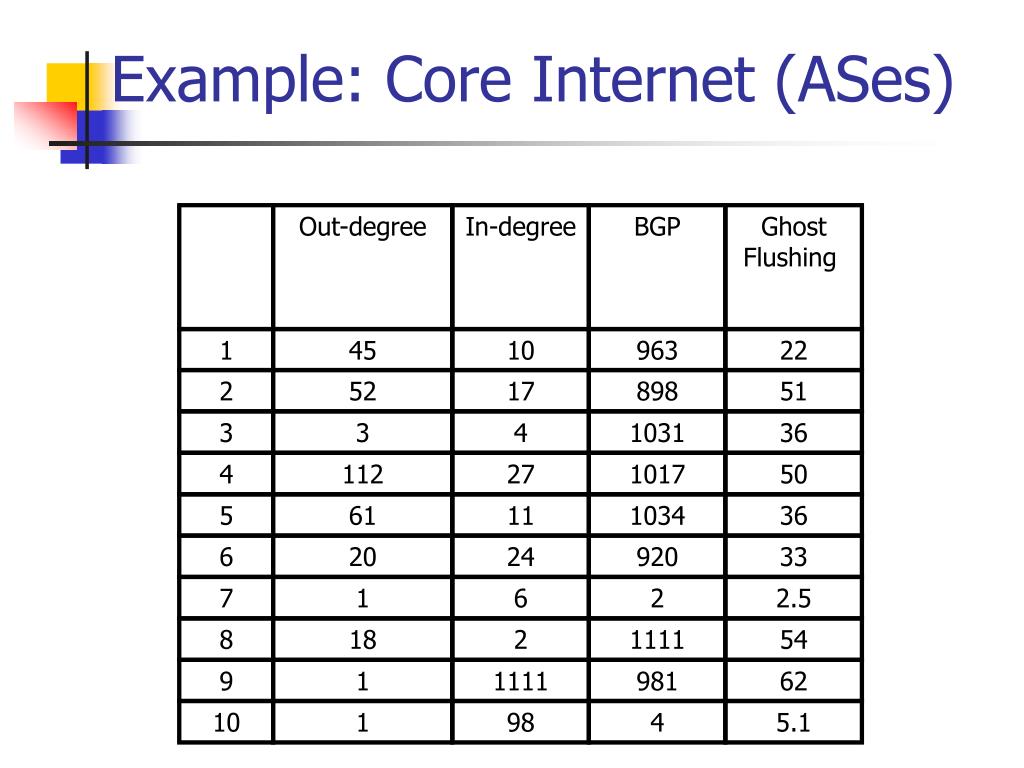

  34. Example: Core Internet (ASes) Out-degree In-degree BGP Ghost Flushing 1 45 10 963 22 2 52 17 898 51 3 3 4 1031 36 4 112 27 1017 50 5 61 11 1034 36 6 20 24 920 33 7 1 6 2 2.5 8 18 2 1111 54 9 1 1111 981 62 10 1 98 4 5.1

  35. E_longer: Convergence Time 7 2 4 1 3 6 0 5 dst

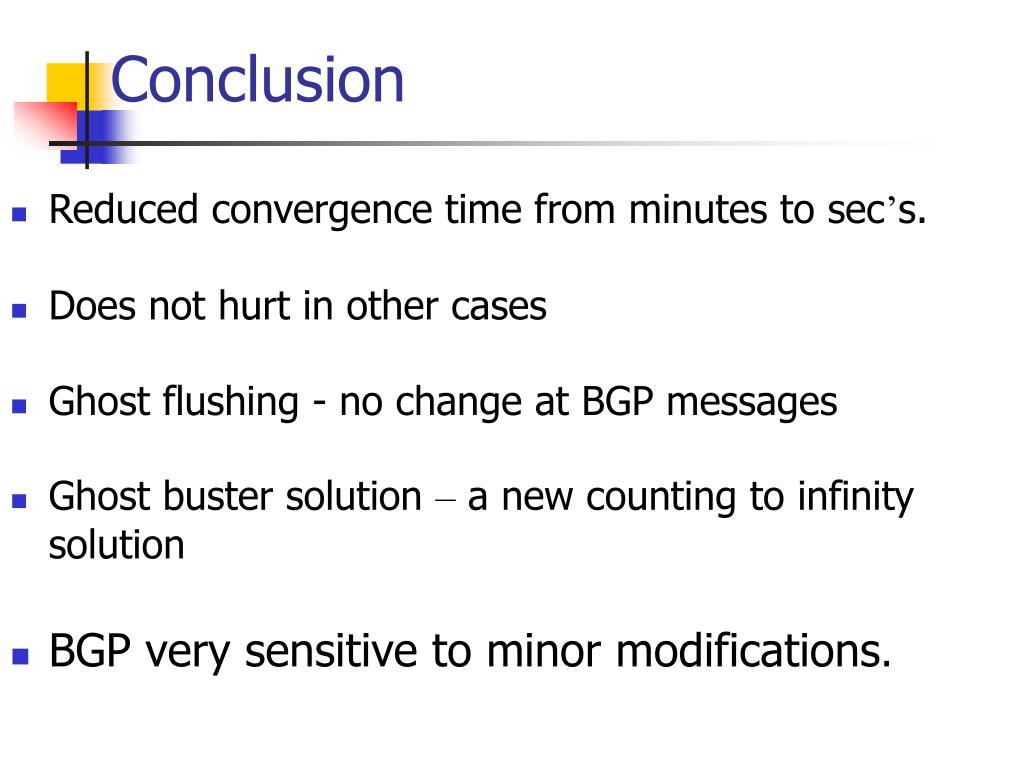

  36. Conclusion • Reduced convergence time from minutes to sec’s. • Does not hurt in other cases • Ghost flushing - no change at BGP messages • Ghost buster solution – a new counting to infinity solution • BGP very sensitive to minor modifications.
