  1. EMB - 145 Limitations Updated: 06/07/05 Send comments/suggestions to cvaleri@valeriaviation.com

  2. Required Crew 2 Pilots

  3. The EMB-145 is certified in the transport category in the following conditions: Day, Night, Visual, Instrument, Icing.

  4. Operational temperature limits: -54ºC, 52ºC

  5. Takeoffs and Landings are limited to: Paved runway surfaces

  6. Max temperature for aircraft is: ISA + 35º C

  7. Minimum takeoff pressure altitude. -1000

  8. Maximum takeoff & landing pressure altitude (ER/LR). 8000

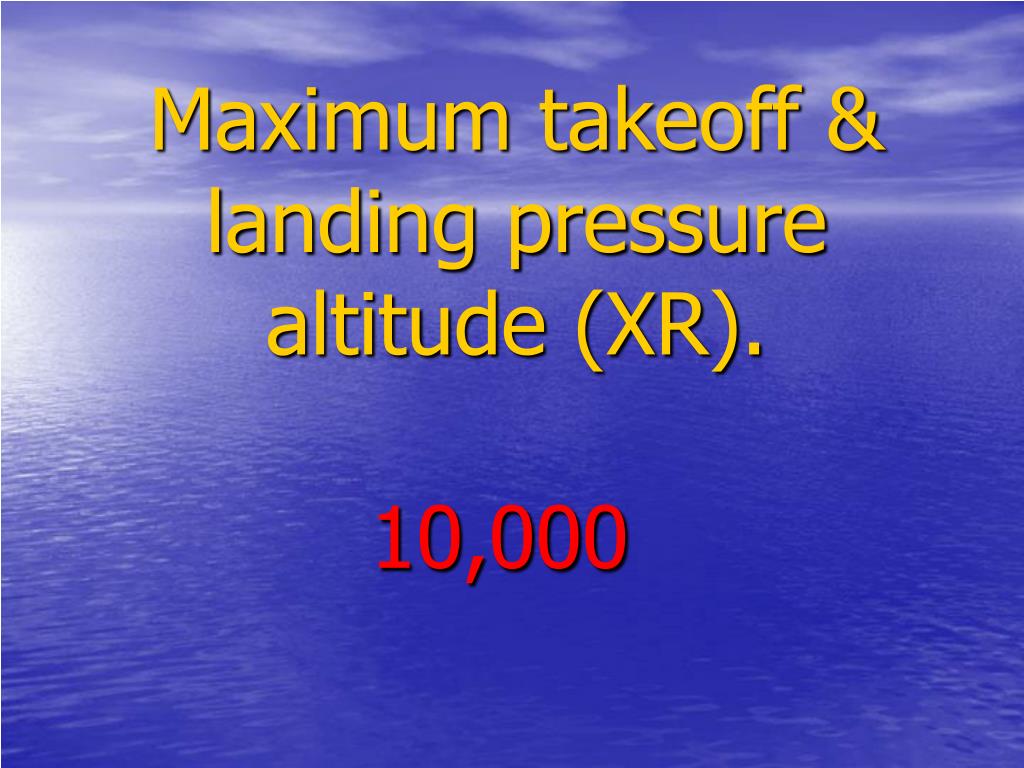

  9. Maximum takeoff & landing pressure altitude (XR). 10,000

  10. Min/Max. SAT at FL370 -65ºC, -21.5ºC

  11. Min/Max. SAT for takeoff: -40ºC, 52ºC

  12. Max runway slope: ± 2% of runway length

  13. Max. tailwind: 10 Kts

  14. TAT above FL 250 is limited to: - 45º C

  15. MX inspection needed when landing below: - 40º C

  16. Vlo for retraction/extension 200 KIAS / 250 KIAS

  17. Vle: 250 KIAS

  18. Va: 200 KIAS

  19. Max flap ext. speed for flaps 9: 250 KIAS

  20. Max flap ext. speed for flaps 18: 200 KIAS

  21. Max flap ext. speed for flaps 22: 200 KIAS

  22. Max flap ext. speed for flaps 45: 145 KIAS

  23. Max flap ext. speed for flaps 45 XR: 160 KIAS

  24. When flaps are fully extended to 45 degrees, momentary airspeed deviations up to ___ are allowed: 155 Kt

  25. Above 10,000’ with YD disengaged, max speed for flaps 22 (XR) 180 KIAS

  26. Above 10,000’ with YD disengaged, max speed for flaps 45 (XR) 145 KIAS

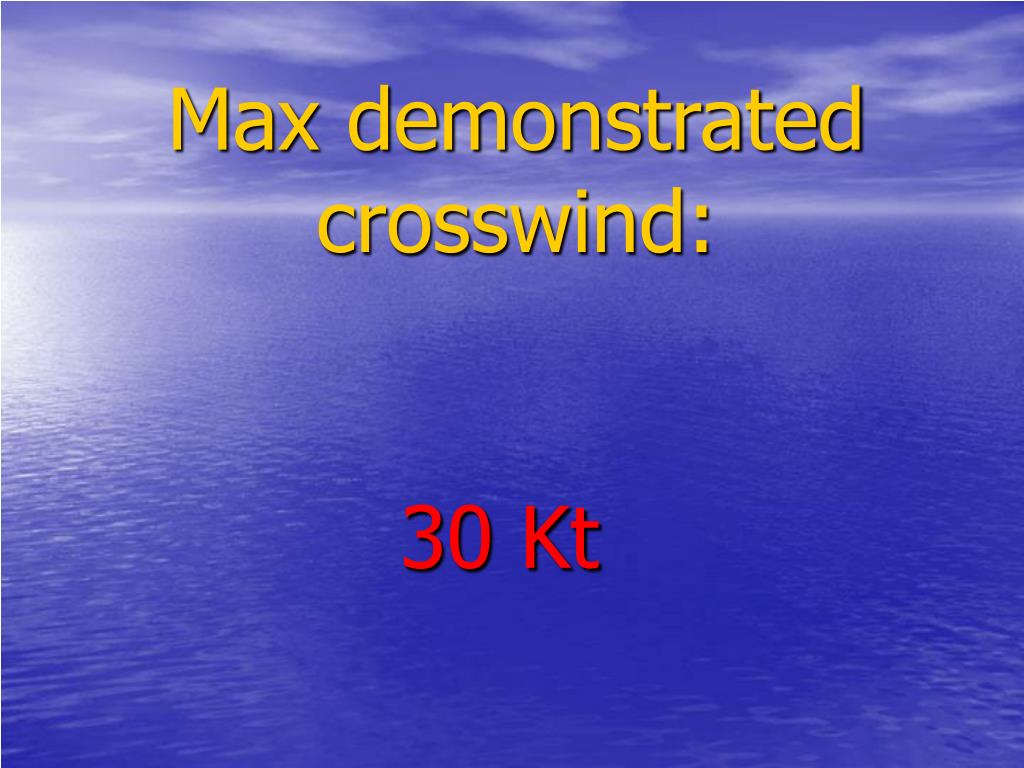

  27. Max demonstrated crosswind: 30 Kt

  28. Max. airspeed after takeoff/climb without retriming: 160 KIAS

  29. Max airspeed for turbulent air penetration below 10,000’ 200 KIAS

  30. Max airspeed for turbulent air penetration below 10,000’ 200 KIAS and above 10,000’: 250 KIAS or M .63 whichever is lower

  31. Max. windshield wiper operating speed: 170 KIAS

  32. Do not operate windshield wiper: On a dry windshield

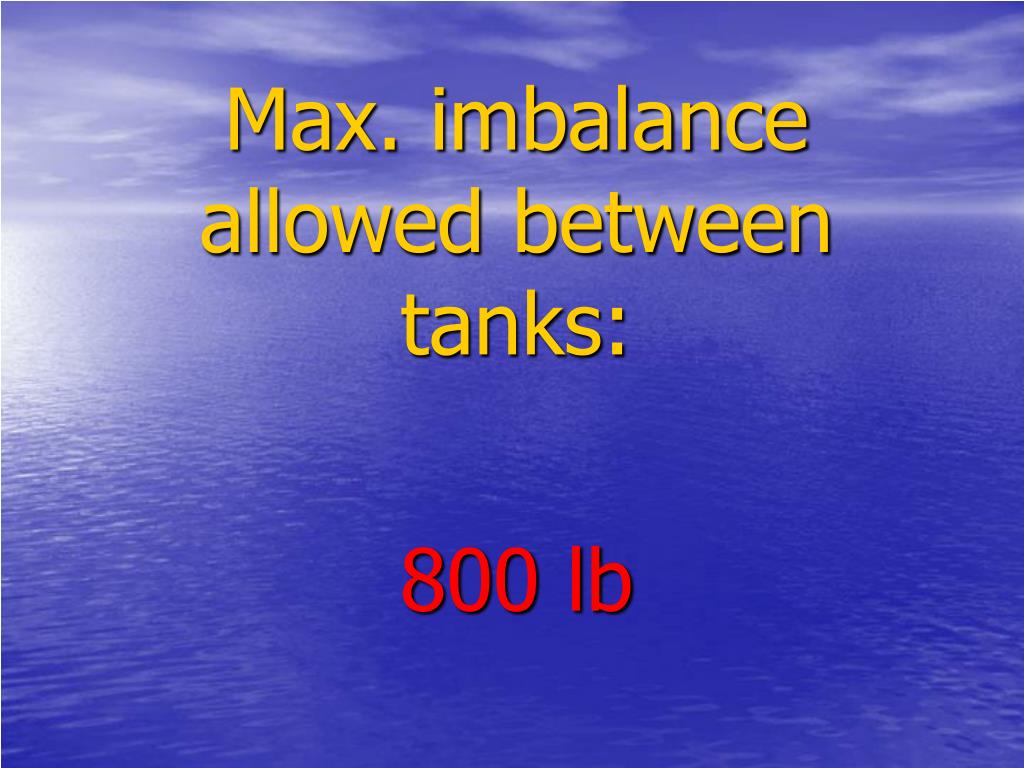

  33. Max. imbalance allowed between tanks: 800 lb

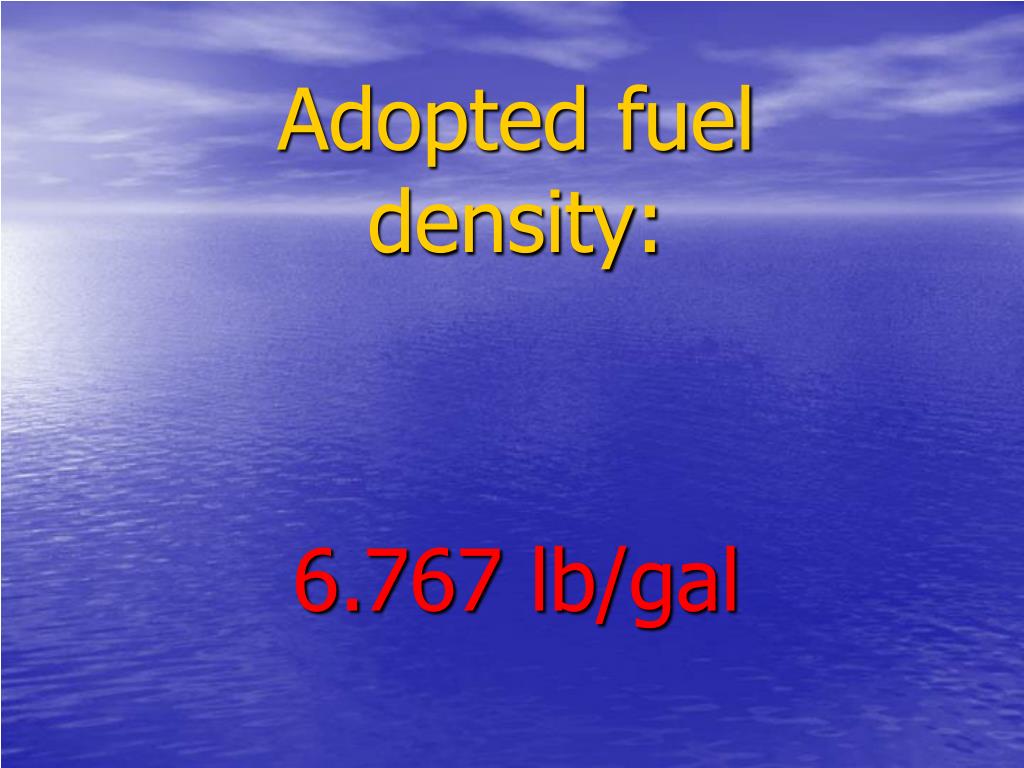

  34. Adopted fuel density: 6.767 lb/gal

  35. The Min/Max fuel tank temperature is: -40ºC, 52ºC

  36. Max N1 100%

  37. Min and Max N2 (ER/LR) 57%, 102.5%

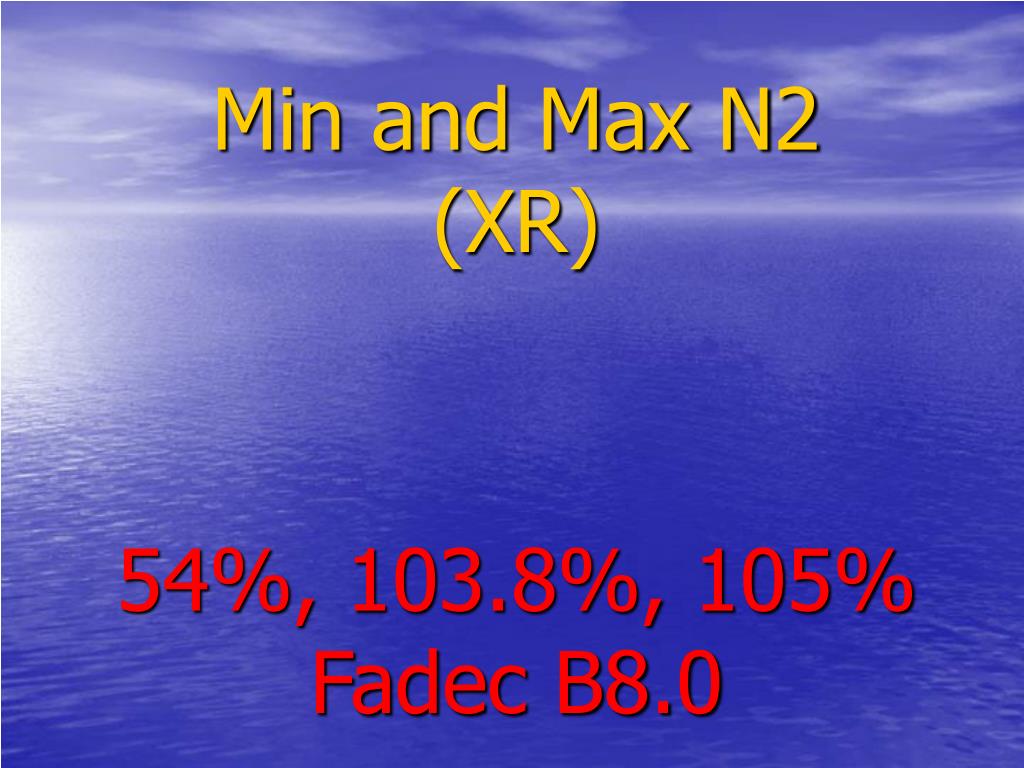

  38. Min and Max N2 (XR) 54%, 103.8%, 105% Fadec B8.0

  39. Min and Max Oil Pressure (< 88%) N2) pre Fadec B7.6: 34, 95 psi

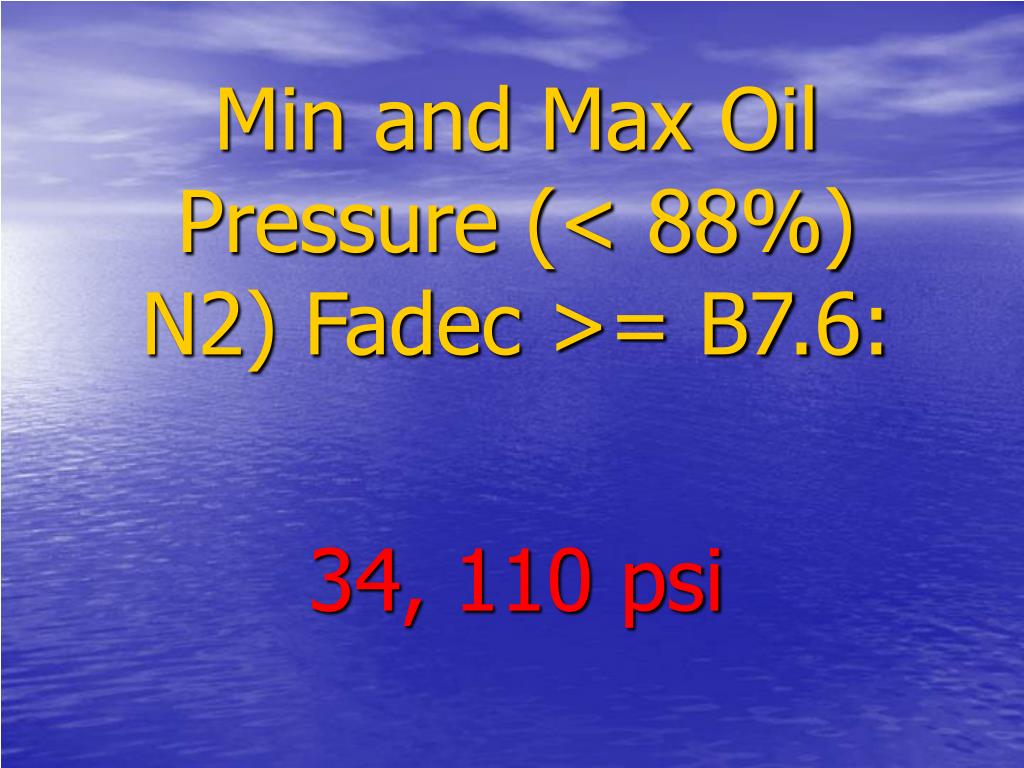

  40. Min and Max Oil Pressure (< 88%) N2) Fadec >= B7.6: 34, 110 psi

  41. Max oil pressure all operating modes: 115 psi

  42. Max oil pressure all operating modes 115 psi for up to: 5 minutes

  43. Max oil pressure all operating modes 115 psi for up to 5 minutes and __: 155 psi

  44. Max oil pressure all operating modes 115 psi for up to 5 minutes and 155 psi up to : 2 mintes

  45. The Min and Max Oil Pressure (< 88%) N2, may be exceeded during starts so long as the engine remains at idle and the oil temp is below: 21º C

  46. The engine must remain at ____ until the oil pressure is less than __ PSI for Fadec < B7.6. Idle

  47. The engine must remain at Idle until the oil pressure is less than __ PSI for Fadec < B7.6. 95

  48. The engine must remain at Idle until the oil pressure is less than __ PSI for Fadec=> B7.6. 110

  49. Min/Max Oil Pressure (=> 88% N2) ER/LR: 50, 95 psi/110psi(>B7.6)

  50. Min/Max Oil Pressure (=> 88% N2) XR: 48, 95 psi/110psi(>B7.6)
