REQUIREMENTS ENGINEERING and SYSTEMS ANALYSIS

This guide explores the vital components of Software Requirements Specification (SRS) and requirements engineering. It covers essential elements such as problem analysis, product description, and the different levels of software requirements—including business and user needs. Key activities in requirements engineering are discussed, providing insights into techniques for elicitation, validation, and management. Moreover, it outlines the standards for an effective SRS and the importance of clarity, consistency, and completeness in documentation, which are crucial for successful system design and implementation.

mikayla-maldonado
Télécharger la présentation

REQUIREMENTS ENGINEERING and SYSTEMS ANALYSIS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. REQUIREMENTS ENGINEERINGandSYSTEMS ANALYSIS Elements and Definitions

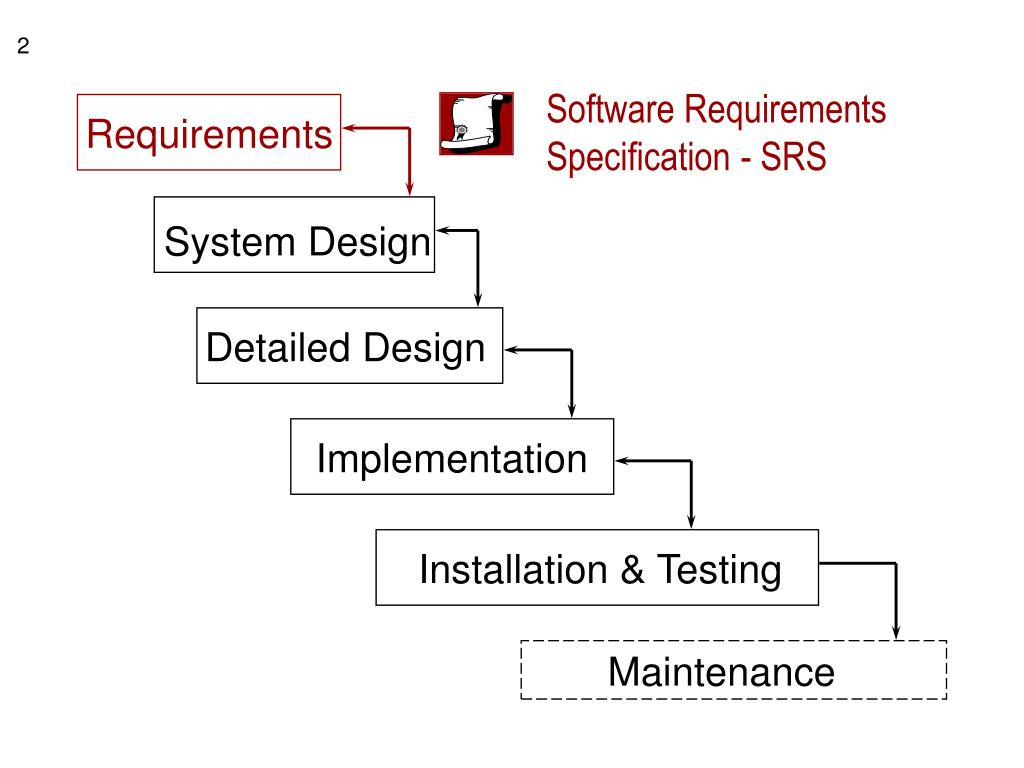

  2. Software Requirements Specification - SRS Requirements System Design Detailed Design Implementation Installation & Testing Maintenance

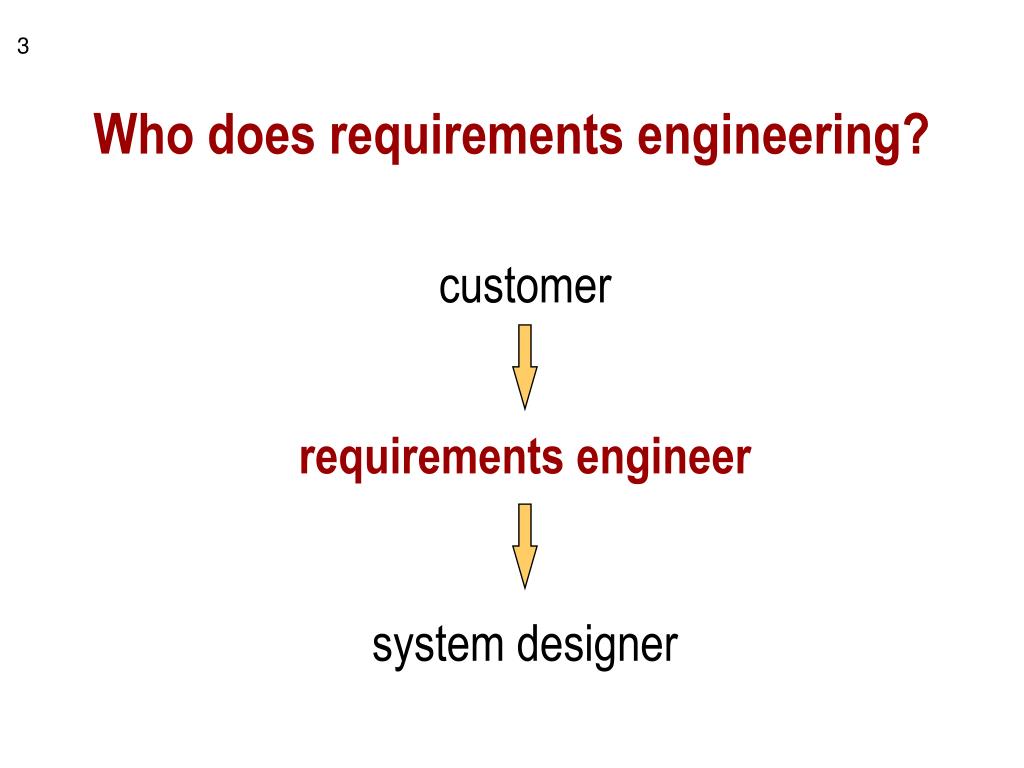

  3. Who does requirements engineering? customer requirements engineer system designer

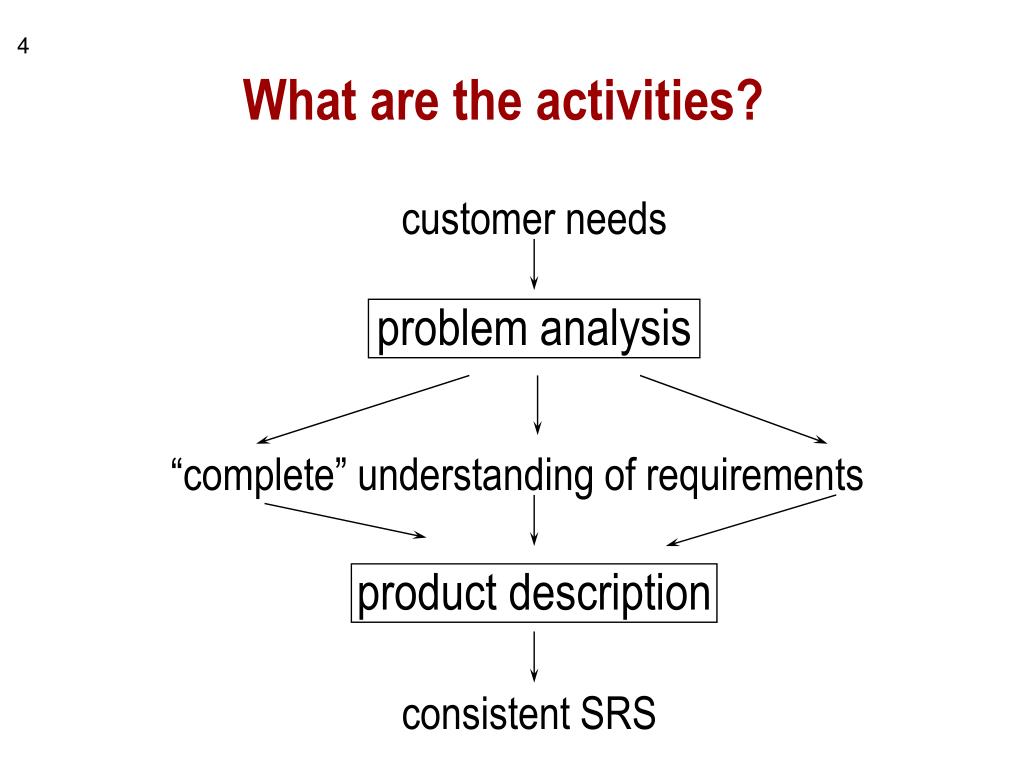

  4. What are the activities? customer needs problem analysis “complete” understanding of requirements product description consistent SRS

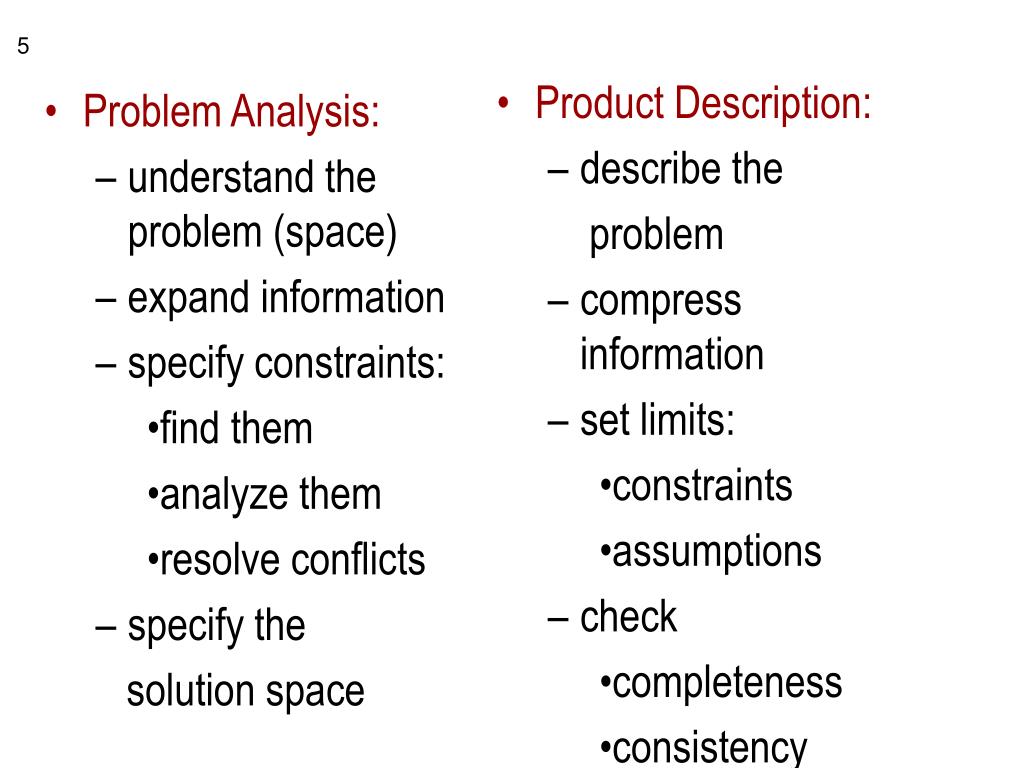

  5. Problem Analysis: understand the problem (space) expand information specify constraints: find them analyze them resolve conflicts specify the solution space Product Description: describe the problem compress information set limits: constraints assumptions check completeness consistency

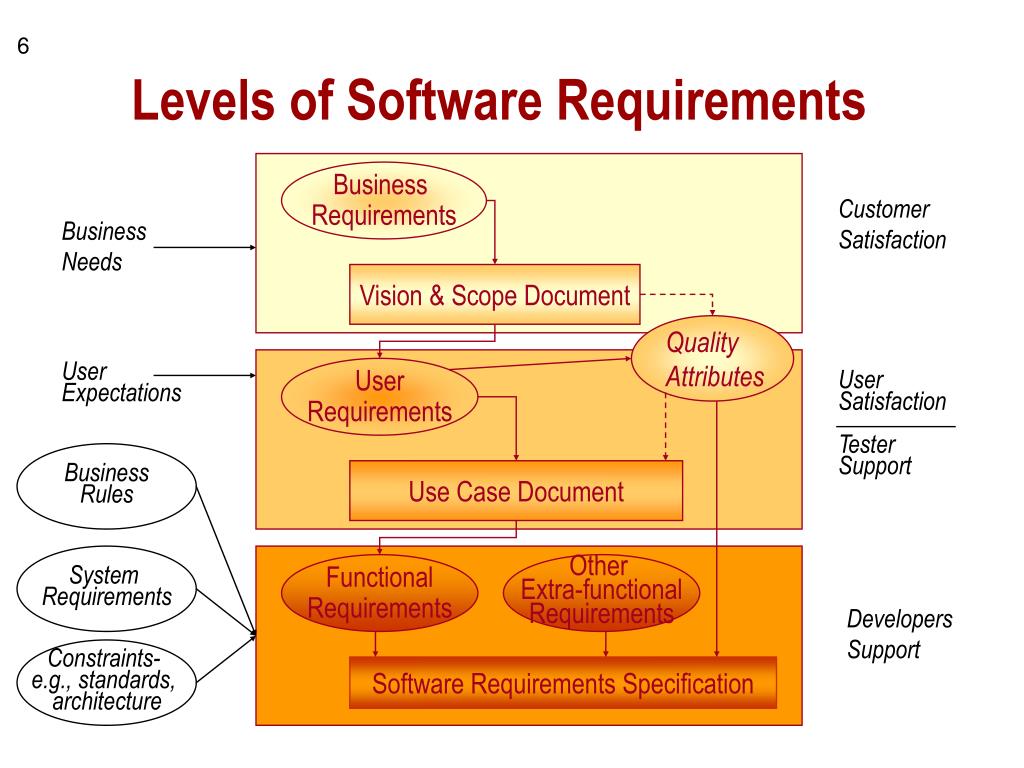

  6. Levels of Software Requirements Business Requirements Customer Satisfaction Business Needs Vision & Scope Document Quality Attributes User Expectations User Requirements User Satisfaction Tester Support Business Rules Use Case Document System Requirements Functional Requirements Other Extra-functional Requirements Developers Support Constraints- e.g., standards, architecture Software Requirements Specification

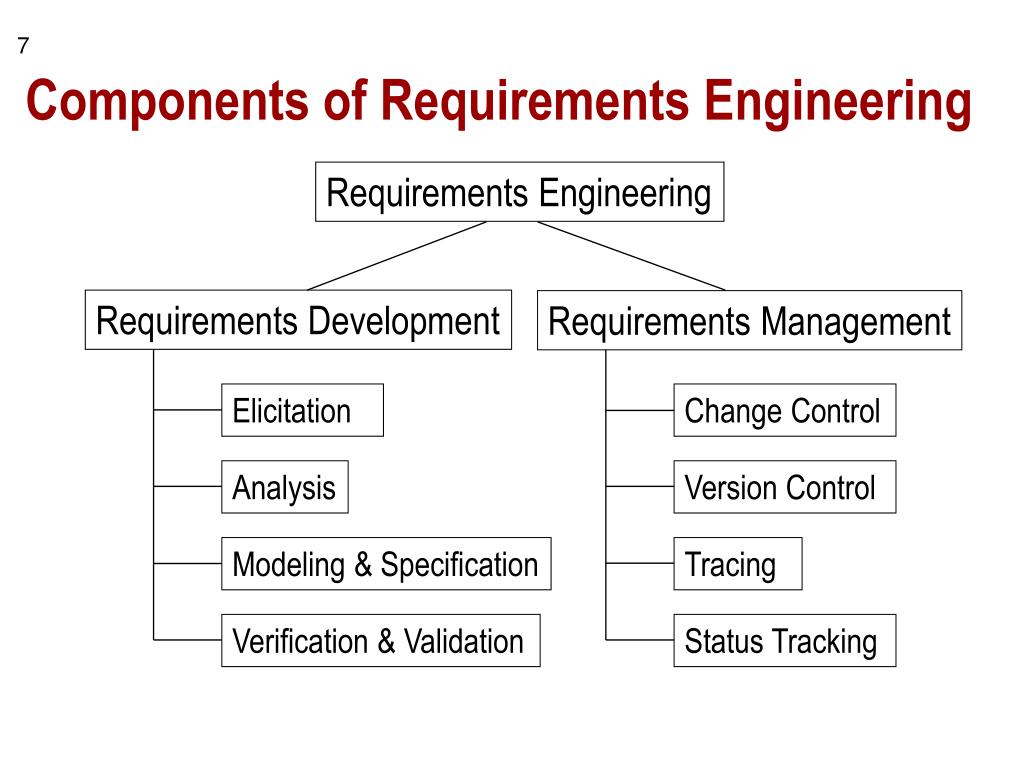

  7. Elicitation Change Control Analysis Version Control Modeling & Specification Tracing Verification & Validation Status Tracking Components of Requirements Engineering Requirements Engineering Requirements Development Requirements Management

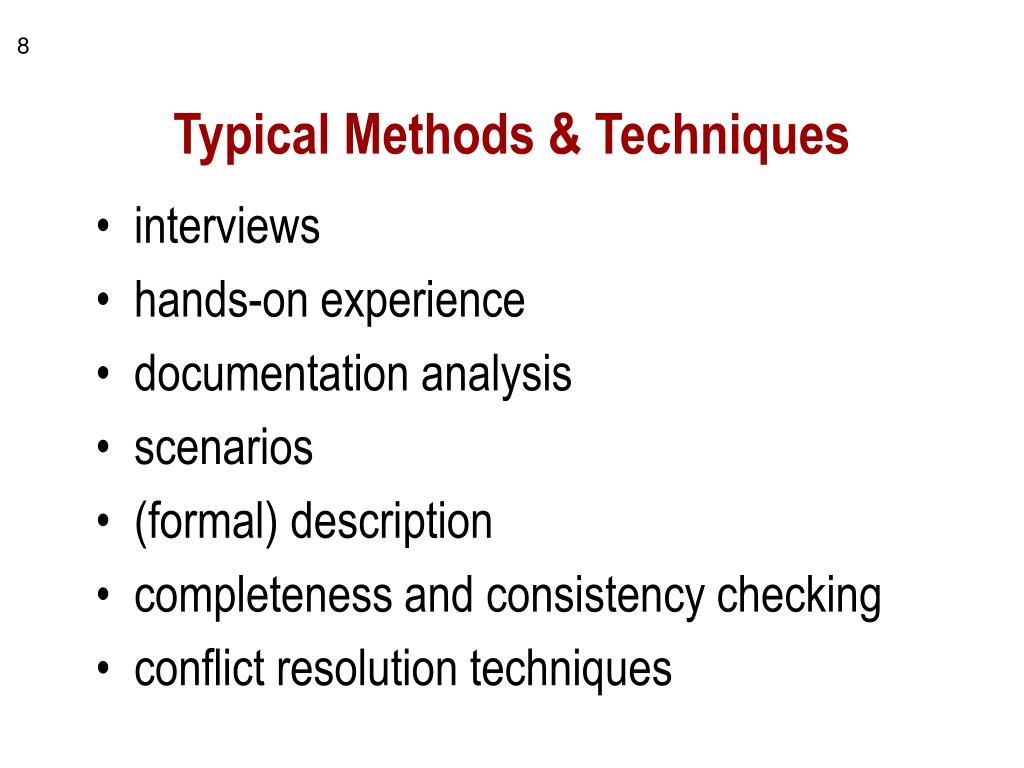

  8. Typical Methods & Techniques • interviews • hands-on experience • documentation analysis • scenarios • (formal) description • completeness and consistency checking • conflict resolution techniques

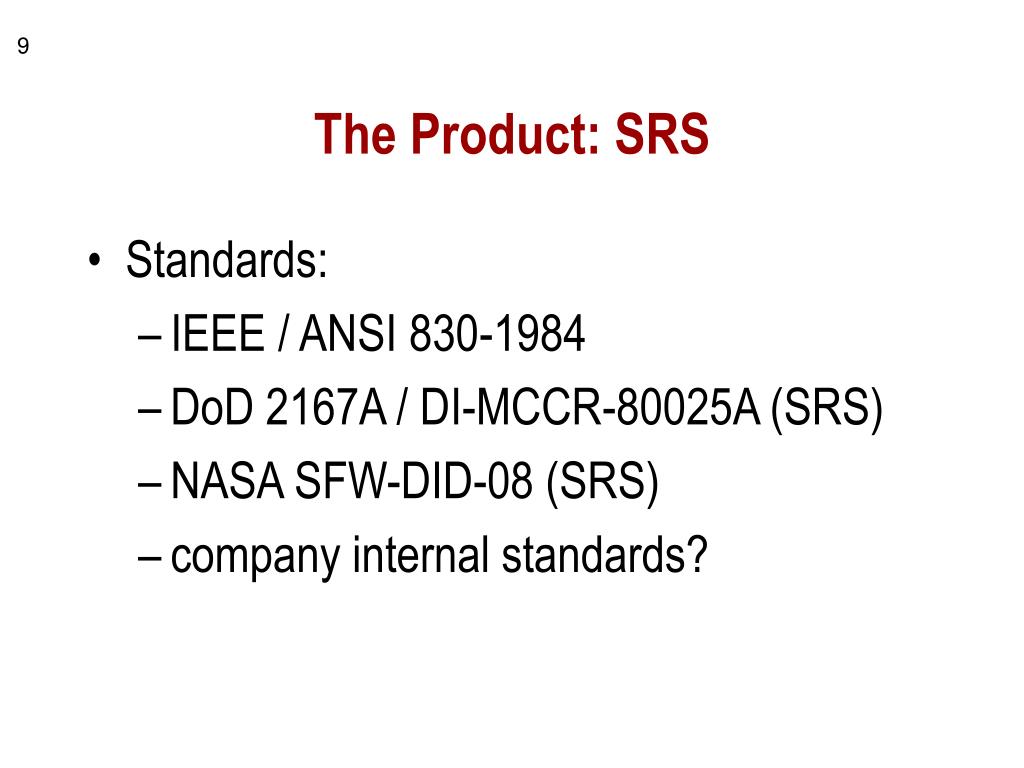

  9. The Product: SRS • Standards: • IEEE / ANSI 830-1984 • DoD 2167A / DI-MCCR-80025A (SRS) • NASA SFW-DID-08 (SRS) • company internal standards?

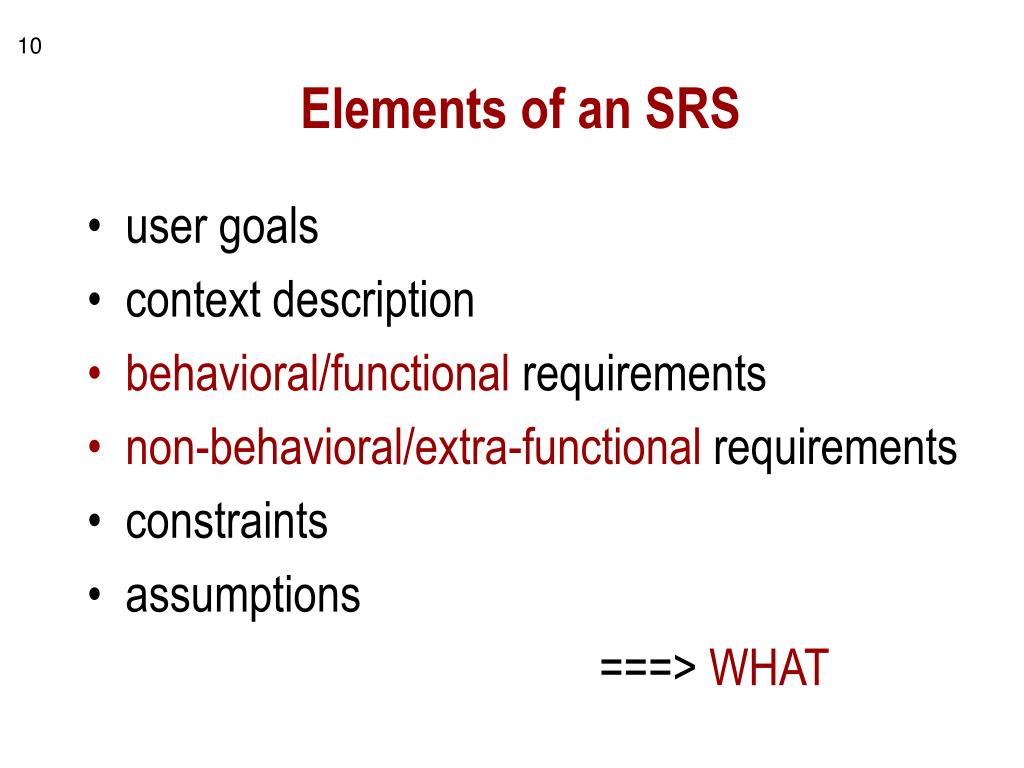

  10. Elements of an SRS • user goals • context description • behavioral/functional requirements • non-behavioral/extra-functional requirements • constraints • assumptions ===> WHAT

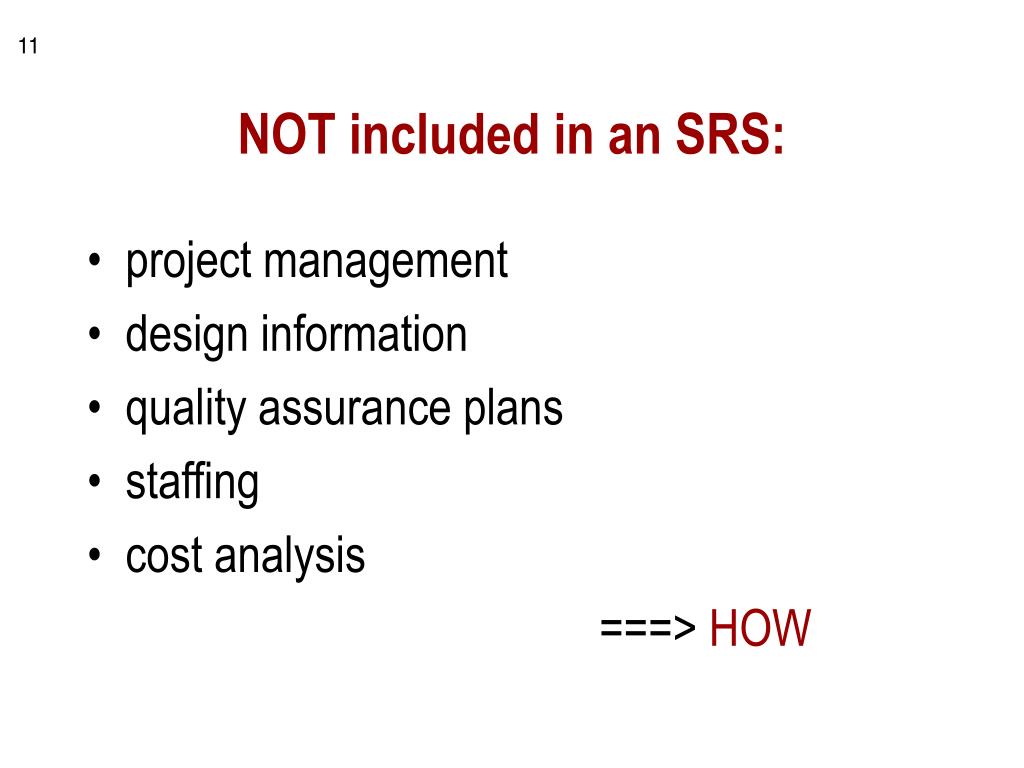

  11. NOT included in an SRS: • project management • design information • quality assurance plans • staffing • cost analysis ===> HOW

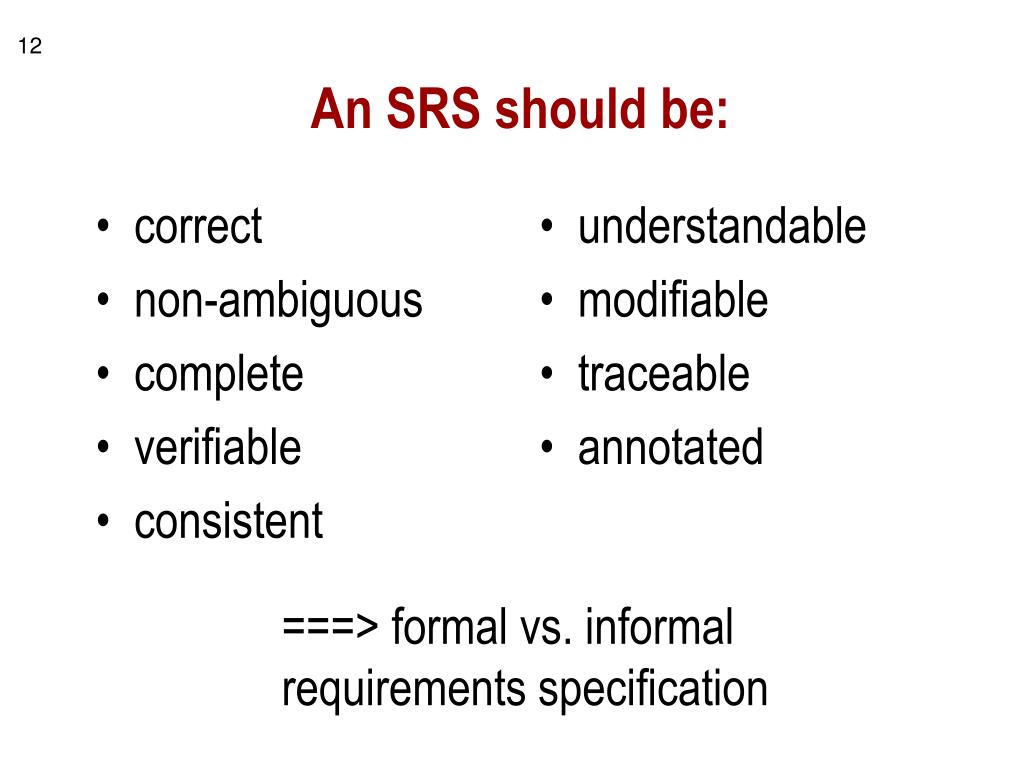

  12. An SRS should be: • understandable • modifiable • traceable • annotated • correct • non-ambiguous • complete • verifiable • consistent ===> formal vs. informal requirements specification

  13. IEEE Std 830-1984 1. Introduction 1.1 Purpose of SRS 1.2 Scope of product 1.3 Definitions, acronyms, abbreviations 1.4 Overview

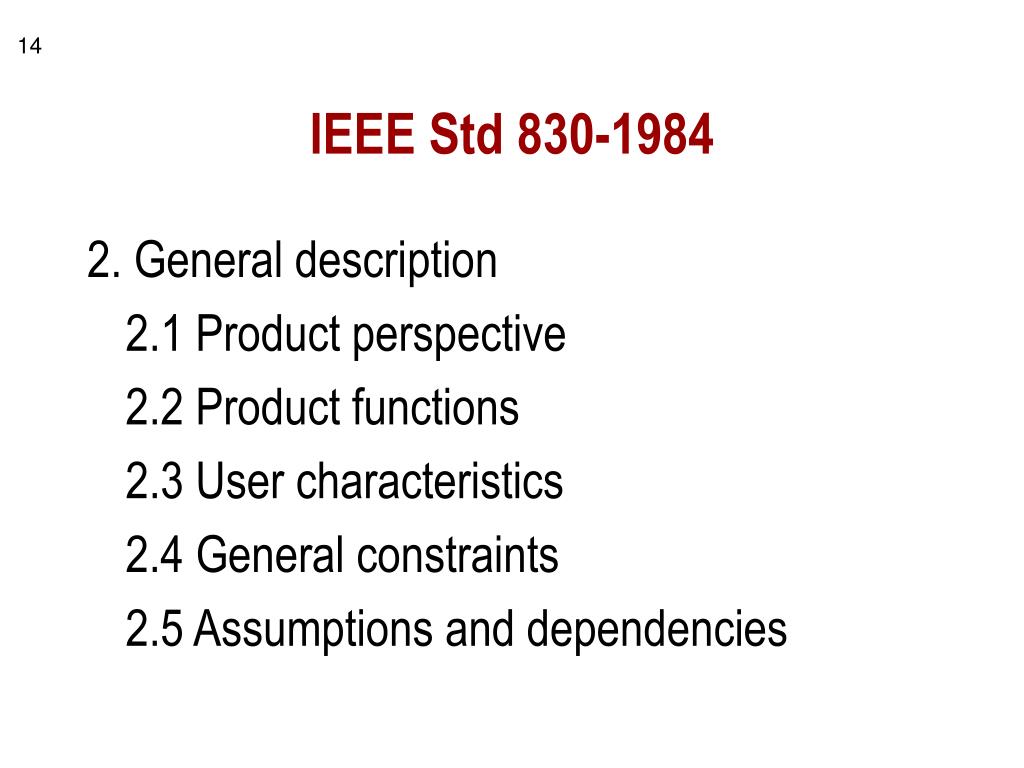

  14. IEEE Std 830-1984 2. General description 2.1 Product perspective 2.2 Product functions 2.3 User characteristics 2.4 General constraints 2.5 Assumptions and dependencies

  15. IEEE Std 830-1984 3. Specific requirements 3.1 Functional requirements 3.2 External interface requirements 3.3 Performance requirements 3.4 Design constraints 3.5 Attributes 3.6 Other requirements Alternatives!

  16. End of Section 2a coming up: Data Flow Diagrams
