  1. 3D Photography(Image-based Model Acquisition) Funky Image Goes Here Deepak Bandyopadhyay / UNC Chapel Hill

  2. “Analog” 3D photography ! • “3D stereoscopic imaging” • been around as long as cameras have • Use camera with 2 or more lenses (or stereo attachment) • Use stereo viewer to create impression of 3D Deepak Bandyopadhyay / 258 / 3D Photography

  3. Motivation • Digitizing real world objects • Getting realistic models places objects humans Deepak Bandyopadhyay / 258 / 3D Photography

  4. 3D Photography : Definition • Sometimes called “3D Scanning” • Use cameras and light to capture the shape & appearance of real objects • Shape == geometry (point sampling + surface reconstruction + fairing) • Appearance == surface attributes (color/texture, material properties, reflectance) • Final result = richly detailed model Deepak Bandyopadhyay / 258 / 3D Photography

  5. Applications in Industry • Human body / head / face scans • Avatar creation for virtual worlds • 3d conferencing • medical applications • product design • Platforms: • Cyberware RD3030 • Others (Geomagic, Metacreations, Cyrax, Geometrix…) Deepak Bandyopadhyay / 258 / 3D Photography

  6. More applications • Historical preservation, dissemination of museum artifacts (Digital Michelangelo, Monticello, …) • CAD/CAM (eg. Legacy motorcycle parts scanned by Geomagic for Harley-Davidson). • Marketing (models of products on the web) • 3D games & simulation • Reverse engineering Deepak Bandyopadhyay / 258 / 3D Photography

  7. Technology Overview • The Imaging Pipeline • Real World • Optics • Recorder • Digitizer • Vision & Graphics Deepak Bandyopadhyay / 258 / 3D Photography

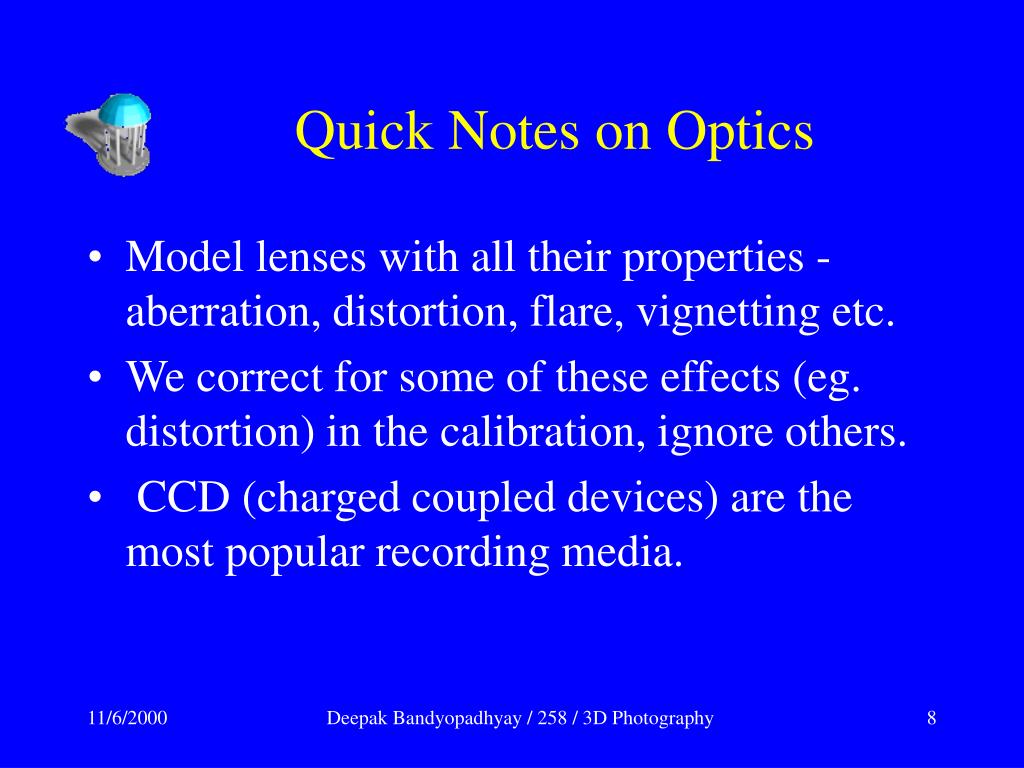

  8. Quick Notes on Optics • Model lenses with all their properties - aberration, distortion, flare, vignetting etc. • We correct for some of these effects (eg. distortion) in the calibration, ignore others. • CCD (charged coupled devices) are the most popular recording media. Deepak Bandyopadhyay / 258 / 3D Photography

  9. Theory : Passive Methods • Stereo pair matching • Structure from motion • Shape from shading • Photometric stereo Deepak Bandyopadhyay / 258 / 3D Photography

  10. Stereo Matching • Stereo Matching Basics • Needs two images, like stereoscopy • Given correspondence betweenpoints in 2 views, we can find depth by triangulation • But correspondence is hard prob! • A lot of literature on solving it… • Stereo Matching output • 3D point cloud • Remove outliers and pass through surface reconstructor Deepak Bandyopadhyay / 258 / 3D Photography

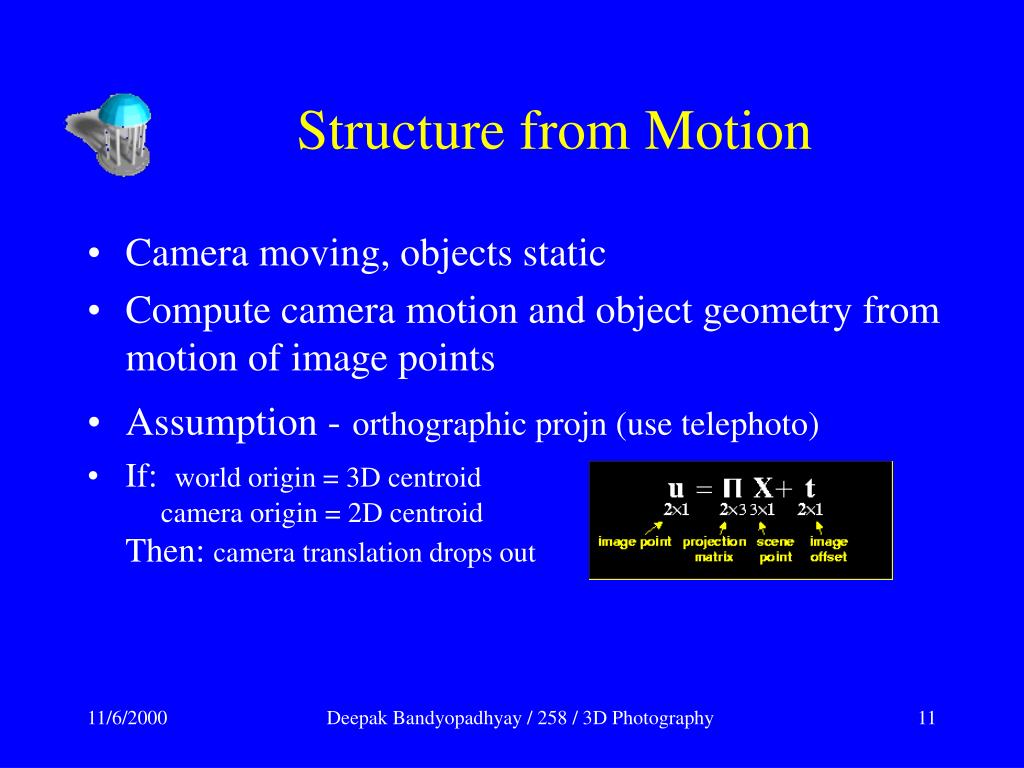

  11. Structure from Motion • Camera moving, objects static • Compute camera motion and object geometry from motion of image points • Assumption -orthographic projn (use telephoto) • If: world origin = 3D centroid camera origin = 2D centroidThen: camera translation drops out Deepak Bandyopadhyay / 258 / 3D Photography

  12. Structure from Motion • Camera moving, objects static • Compute camera motion and object geometry from motion of image points Deepak Bandyopadhyay / 258 / 3D Photography

  13. Structure from Motion • Factorization [Tomasi & Kanade, 92] • Find M, S using Singular Value Decomposition of W. SVD gives: S’S modulo linear transform A. Solve for A using constraints on M. Deepak Bandyopadhyay / 258 / 3D Photography

  14. More methods • Shape from shading, [Horn] • Invert Lambert’s Law (L=I k cos )knowing the intensity at image pointto solve for normal • Photometric stereo [Woodham] • An extension of the above • Two or more images under different illumination conditions. • Each image provides one normal • Three images provide unique solution for a pixel. Deepak Bandyopadhyay / 258 / 3D Photography

  15. Active Sensing • Passive methods (eg. stereo matching) suffer from ambiguities - many similar regions in an image correspond to a point in the other. • Project known / regular pattern (“structured light”) into scene to disambiguate • get precise reconstruction by combining views • Laser rangefinder • Projectors and imperceptible structured light Deepak Bandyopadhyay / 258 / 3D Photography

  16. Desktop 3D PhotographyJean-Yves Bouguet, Pietro Perona • An active sensing technique using “weak structured lighting” • Need: camera, lamp, chessboard, pencil, stick • Idea: • Light object with lamp & aim camera at it • Move stick around & capture shadow sequence • Use image of deformed shadow to calc 3D shape Deepak Bandyopadhyay / 258 / 3D Photography

  17. Desktop 3D PhotographyJean-Yves Bouguet, Pietro Perona • Computation of 3d position from the plane of light source, stick and shadow Deepak Bandyopadhyay / 258 / 3D Photography

  18. Volumetric MethodsChevette Project, Debevec, 1991 Deepak Bandyopadhyay / 258 / 3D Photography

  19. Voxel Models from Images • When there are 2 colors in the image - use volume intersection [Szeliski 1993] • Back-project silhouettes from camera views & intersect Deepak Bandyopadhyay / 258 / 3D Photography

  20. Voxel Models from Images • With more colors but constrained viewpoints, we use voxel coloring [Seitz & Dyer, 1997] • Choose a voxel & project to it from all views • Color if enough matches • Prob - determining visibilityof a point from a view • Solution - depth orderedtraversal using a “view indep.d.o.” (dist from separating plane) Deepak Bandyopadhyay / 258 / 3D Photography

  21. Voxel Models from Images • A view-independent depth order may not exist (for some configuration of viewpoints / scene geometry). • Use Space Carving [Kutulakos & Seitz, 1998] • Computes 3D (voxel) shape from multiple color photos • Computes “maximally photo-consistent shape” • maximal superset of all 3D shapes that produce the given photos Deepak Bandyopadhyay / 258 / 3D Photography

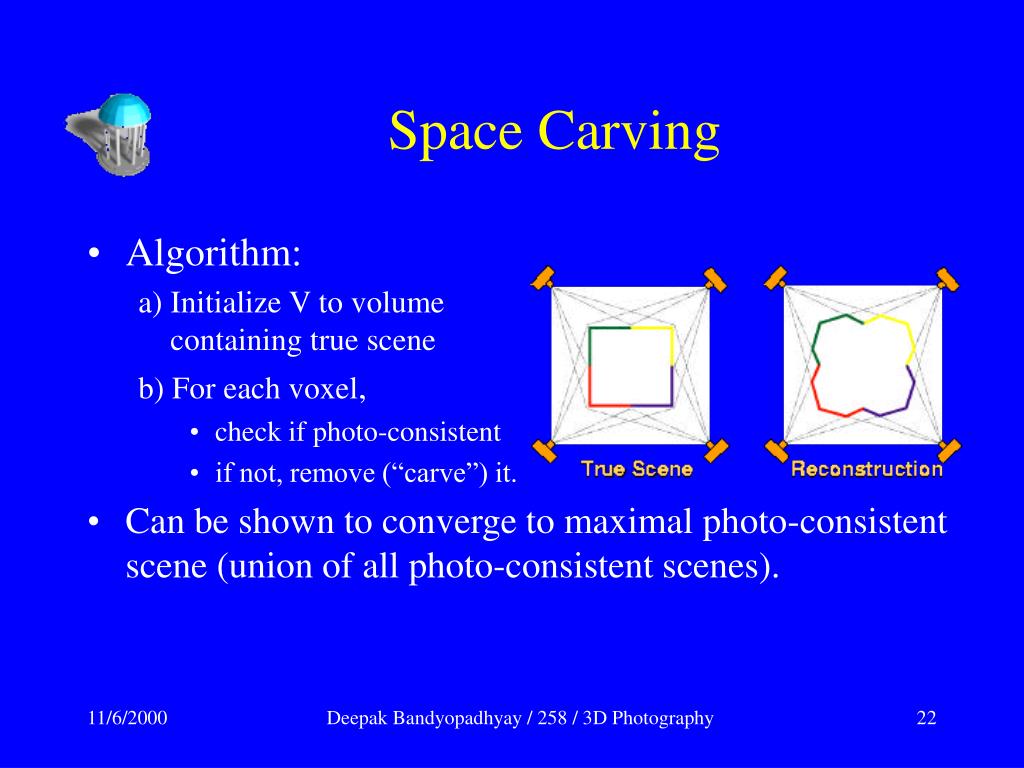

  22. Space Carving • Algorithm: a) Initialize V to volume containing true scene b) For each voxel, • check if photo-consistent • if not, remove (“carve”) it. • Can be shown to converge to maximal photo-consistent scene (union of all photo-consistent scenes). Deepak Bandyopadhyay / 258 / 3D Photography

  23. Space Carving : Results • House walkthru - 24 rendered input views • Results best as seen from one of the original views Deepak Bandyopadhyay / 258 / 3D Photography

  24. Modeling from a single view(Criminisi et al, 1999) • Compute 3D affine measurements of the scene from single perspective image • Use minimal geom info • vanishing line for a pencil ofplanes || to reference plane • vanishing point of parallellines along a directionoutside reference plane Deepak Bandyopadhyay / 258 / 3D Photography

  25. Modeling from a single view(Criminisi et al, 1999) • Compute “ratio of parallel distances” • Creating a 3D model from a photograph • horizontal lines used to compute vanishing line • parallel vertical lines used to compute vanishing point • Can generate geometrically correct model from a Renaissance painting (with correct perspective) Deepak Bandyopadhyay / 258 / 3D Photography

  26. Extracting color, reflectance • Photographs have lighting/shading effects that we estimate (reflectance function) and compensate for (specular highlight removal) or change (relighting) • Work of Paul Debevec & others at Berkeley (acquiring reflectance field) • Wood et al at U. Washington (surface light lield for 3D photography) Deepak Bandyopadhyay / 258 / 3D Photography

  27. Surface Light Field[Wood et al, 2000] • A 4D function on the surface - at surface parameter (u,v), for every direction (,), stores the color. • Fixed illumination conditions. • Photographs taken from a lot of different directions sample the surface light field. • Continuous function (piecewise linear over ,) estimated by pointwise fairing. Deepak Bandyopadhyay / 258 / 3D Photography

  28. Reflectance from Photographs (Yu, Debevec et al, 1999) • Estimating reflectance for entire scenes • Too general a problem, parameterize thus: • Assume surface can be divided into patches • Diffuse reflectance function (albedo), varies across a patch • Specular reflectance function taken as const across a region • Assume known lighting, calib, geometry known • Approach - Inverse Global Illumination • Estimate BRDF for direct illumination - f(u,v,,) Deepak Bandyopadhyay / 258 / 3D Photography

  29. Reflectance from Photographs (Yu, Debevec et al, 1999) • Inverse Global Illumination • Known Li (measure), Ii (calc fm known light sources) at every pixel • Estimate BRDF for direct illumination - f(u,v,i,i,r,r) • Write BRDF as a constant diffuse term and a specular term which is a function of incoming & outgoing  and roughness. • Solve for the constants(d, s,) • For indirect illumination - estimate the parameters (and indirect illumination coeffs with other patches) iteratively Deepak Bandyopadhyay / 258 / 3D Photography

  30. Case study - FaçadeDebevec, Taylor & Malik, 1996 • Modeling architectural scenes from photographs • Not fully automatic (user inputs blocky 3D model) • Using blocks leads to fewer params in architectural models • User marks corresponding features on photo • Computer solves for block size, scale, camera rotation by minimizing error of corresponding features • Reprojects textures from the photographs onto the reconstructed model Deepak Bandyopadhyay / 258 / 3D Photography

  31. Arches andSurfaces of Revolution Taj Mahal modeled from one photograph Deepak Bandyopadhyay / 258 / 3D Photography

  32. Case study - Digital Michelangelo Project • 3D scanning of large statues (SIGGRAPH 00) • Separate geometry and color scans • custom rig : laser scanner & camera mounted concurrently • Range scan post-processing • Combine range scans from different positions • Use volumetric modeling methods (Curless, Levoy 1996) • Fill holes using space carving Deepak Bandyopadhyay / 258 / 3D Photography

  33. Case study - Digital Michelangelo Project • Color scan processing • Compensate for ambient lighting • subtract image with & without spotlight • Subtract out shadows & specularities • find surface orientation (inverse lighting computation) • convert color to RGB reflectance (acquire light field) • Using estimated BRDF of marble • modeling subsurface scattering Deepak Bandyopadhyay / 258 / 3D Photography

  34. calibrated motions pitch (yellow) pan (blue) horizontal translation (orange) uncalibrated motions vertical translation remounting the scan head moving the entire gantry Digital MichelangeloScanning a large object Deepak Bandyopadhyay / 258 / 3D Photography

  35. References • [Bouguet98] Bouguet, J.-Y., P. Perona. 3D Photography on your Desk. In Proc. ICCV 1998 • [Bouguet00] Bouguet, J.-Y. Presentation on Desktop 3D Photography, in SIGGRAPH course notes on 3D Photography, 2000 • [Criminisi99] Criminisi, A., I. Reid and A. Zisserman. Single View Metrology. In Proc. ICCV, pp 434-442, September 1999 • [Curless96] Curless, B. and M. Levoy. A Volumetric Method for Building Complex Models from Range Images. In Proc. SIGGRAPH 1996 • [Debevec96] Debevec, P., C. Taylor and J. Malik. Façade - Modeling and Rendering Architectural Scenes from Photographs. In Proc. SIGGRAPH 1996 • [Debevec00a] Debevec, P. Presentation on the Façade, from SIGGRAPH course notes on 3D Photography, 1999, 2000. • [Debevec00b] Debevec, P., T. Hawkins, C. Tchou, H.P.Duiker, W. Sarokin and M. Sagar. Acquiring the Reflectance Field of a Human Face. In Proc. SIGGRAPH 2000. Deepak Bandyopadhyay / 258 / 3D Photography

  36. More References • [Horn70] Horn, B.K.P. Shape from Shading : A Method for Obtaining the Shape of a Smooth Opaque Object from One View. Ph.D. Thesis, Dept of EE, MIT, 1970. • [Kutulakos98] Kutulakos, K. N. and S. Seitz. A Theory of Shape by Space Carving. URCS TR#692, May 1998, appeared in Proc. ICCV 1999. • [Levoy96] Levoy, M. and P. Hanrahan. Light Field Rendering. In Proc. SIGGRAPH 1996. • [Levoy00a] Levoy, M., Pulli, K., Curless, B. et al. The Digital Michelangelo Project - 3D Scanning of Large Statues. In Proc. SIGGRAPH 2000. • [Levoy00b] Levoy, M. Presentation on the Digital Michelangelo Project, in SIGGRAPH course notes on 3D Photography, 2000. • [Seitz97] Seitz & Dyer. Photorealistic Scene Reconstruction by Voxel Coloring. In Proc. CVPR 1997, pp. 1067-1073. Deepak Bandyopadhyay / 258 / 3D Photography
