Expandable Vertical Array Series EVA-2082S: Premium Dual 8" Woofer Line Array System

The Expandable Vertical Array Series EVA-2082S features a dual 8” woofer design paired with quad HF drivers mounted on dual Hydra plane wave generators. This modular system offers true vertical line array coverage, making it ideal for demanding professional venues. With options for various horizontal and vertical angles, six different finishes, and the capability to construct arrays using multiple modules, the EVA-2082S ensures outstanding performance and aesthetics. It supports the configuration of up to 8 modules powered by a single amplifier channel, delivering high-quality sound for any event.

mikel
Télécharger la présentation

Expandable Vertical Array Series EVA-2082S: Premium Dual 8" Woofer Line Array System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Expandable Vertical Array Series Overview

  2. Expandable Vertical Array Series EVA-2082S Dual 8” woofer with quad HF driver on two dual Hydras plane wave generators, modular design for true vertical line array coverage and performance. Professional aesthetics for the most demanding venues. Best in class passive line array system.

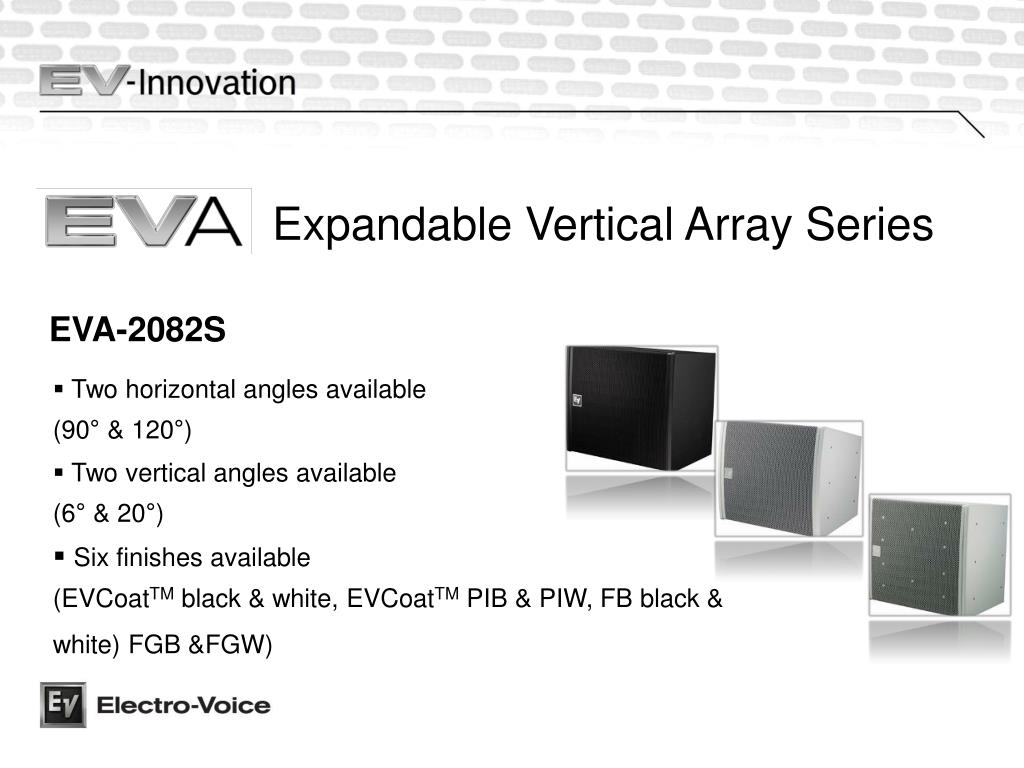

  3. Expandable Vertical Array Series EVA-2082S • Two horizontal angles available • (90° & 120°) • Two vertical angles available • (6° & 20°) • Six finishes available • (EVCoatTM black & white, EVCoatTM PIB & PIW, FB black & white) FGB &FGW)

  4. The unique acoustics, internal network and integrated rigging design allows for 8 modules {16 elements (16 woofers & 32 HF drivers)} vertical array to be built using a combination of modules from the entire EVA Series • These same uniqueness also allows for 6 modules to be powered by a single amplifier channel. 8 modules if bottom two modules have EVA-AM installed)

  5. Expandable Vertical Array Series • Each module consist of two elements • Each 2-way elements containing an 8” woofer and two compression drivers mounted on a hydra/waveguide combination 1 2 • Each 2-way element’s HF Section can be attenuated 3 dB by using the attenuation selection card on the input panel (Only one element per module)

  6. Accessories • EVA-AM (Attenuation Module) for lowering the overall level of the entire module • EVA-AM Label • included with module

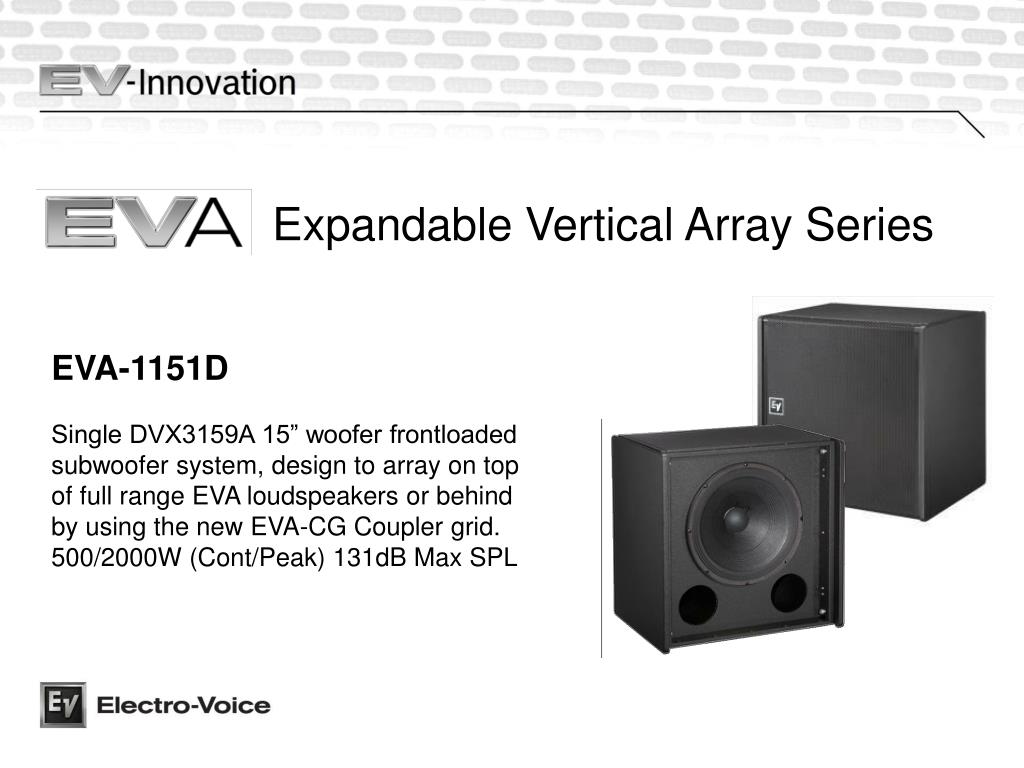

  7. Expandable Vertical Array Series EVA-1151D Single DVX3159A 15” woofer frontloaded subwoofer system, design to array on top of full range EVA loudspeakers or behind by using the new EVA-CG Coupler grid. 500/2000W (Cont/Peak) 131dB Max SPL

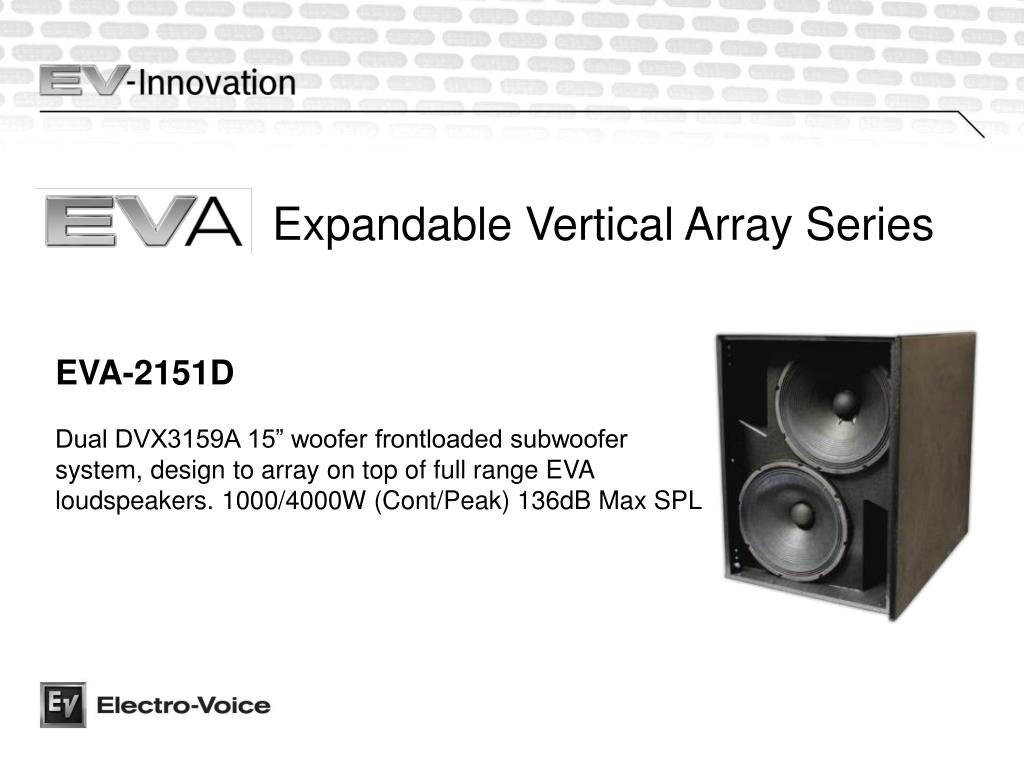

  8. Expandable Vertical Array Series EVA-2151D Dual DVX3159A 15” woofer frontloaded subwoofer system, design to array on top of full range EVA loudspeakers. 1000/4000W (Cont/Peak) 136dB Max SPL

  9. Expandable Vertical Array Series • New EVA-SG2 • Standard grid for EVA full-Range systems and EVA-1151D • Allows for 0 and 5 degree splay between grid and subwoofer • New EVA-EG2 • Extended grid for EVA full-Range systems, EVA-1151D and EVA-2151D • Allows for 0 and 5 degree splay between grid and subwoofer • Allows for extreme angles of speaker arrays • New EVA-CG • Coupler grid for EVA full-Range systems and EVA-1151D • Allows for EVA-1151D to be flown behind full-range cabinets

  10. Expandable Vertical Array Series
