Implementation of The National Map Road Database

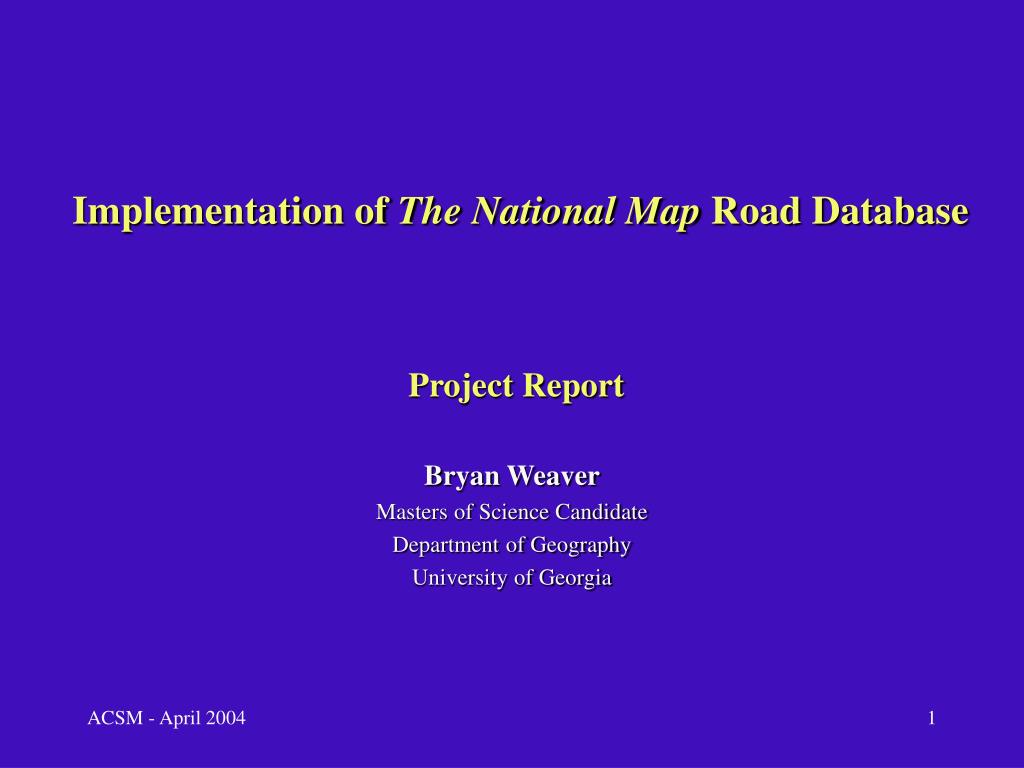

1. Implementation of The National Map Road Database Project Report Bryan Weaver Masters of Science Candidate Department of Geography University of Georgia

2. Project Report Internship – Summer 2003 U.S. Geological Survey Mid-Continent Mapping Center Rolla, Missouri This report was funded by a grant from the U.S. Geological Survey to the University of Georgia

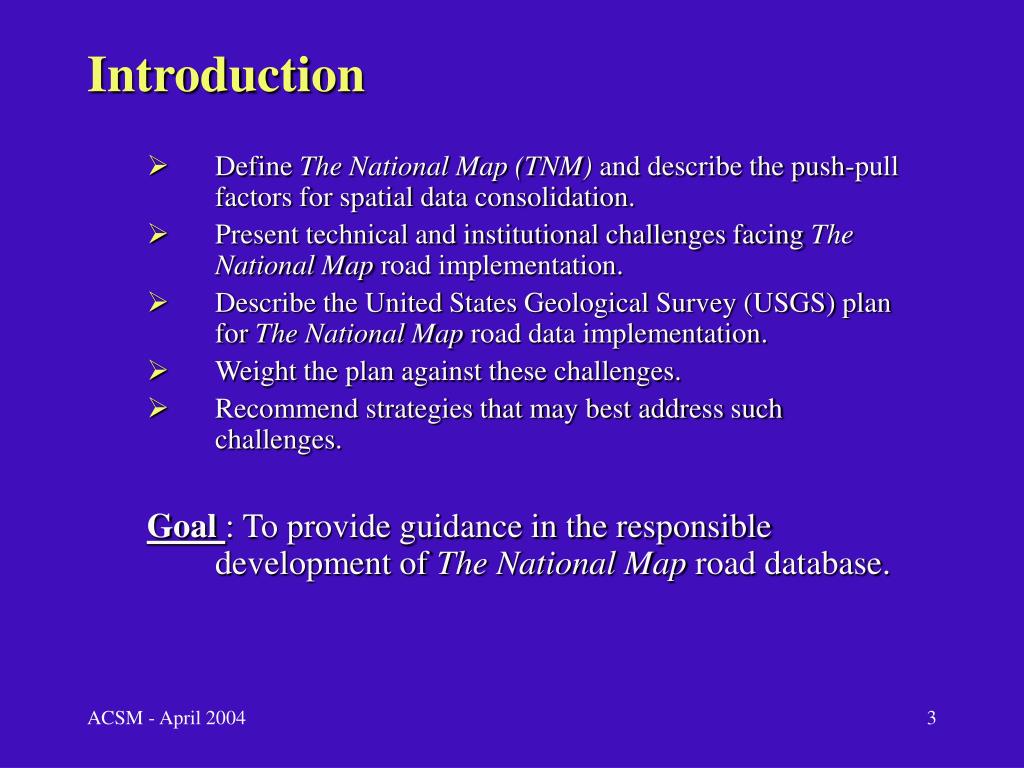

3. Introduction Define The National Map (TNM) and describe the push-pull factors for spatial data consolidation. Present technical and institutional challenges facing The National Map road implementation. Describe the United States Geological Survey (USGS) plan for The National Map road data implementation. Weight the plan against these challenges. Recommend strategies that may best address such challenges. Goal : To provide guidance in the responsible development of The National Map road database.

4. Methodology • Professional Interaction with TNM personnel and literature review of TNM and push/pull factors to spatial information partnering. • Visual analysis of road data from various government entities. • Assumptional analysis of TNM road data alternative implementation strategies. Three basic methods for developing a recommended implementation strategy.

5. TNM will be a seamless, geographically complete, and continuously maintained set of geographic base information for the entire nation. It will rely on the collaboration of multiple government (federal, state, and local) and private mapping organizations. The National Map - Defined http://erg.usgs.gov/isb/pubs/factsheets/

6. The National Map - Defined Geographical data themes: • High-resolution digital orthorectified imagery • High-resolution surface elevation data • Vector feature data for transportation (roads, railways, and waterways), hydrography (rivers and water bodies), structures, government unit boundaries, and publicly owned lands boundaries. • Geographic names for physical and cultural features • Land cover data

7. The Need for Spatial Data ConsolidationRise of Spatial Information Redundancy • Rapid adoption of GIS • Organizational isolation. • Lack of coordination between and within public and private entities. • Distinct missions and budgets. • Legacy spatial information systems and data models. In sum, rapid, independent, and ubiquitous adoption of GIS yields spatial information redundancy.

8. The Need for Spatial Data Consolidation Existing Public Road Databases: • USGS: Digital Line Graphs (DLG), and Digital Raster Graphics (DRG) • U.S. Bureau of Census: Topologically Integrated Geographic Encoding and Referencing System (TIGER) • U.S. Bureau of Transportation Statistics: National Transportation Atlas Database • State, regional, county, and city road databases

9. Federal Initiatives to Reduce Redundancy • USGS: The National Map (TNM) • USGS next generation topographic mapping via distributed partner-based content structure. • U.S. Bureau of Census: TIGER Enhancement Program • Spatial and a-spatial road data enhancement ($200 million with Harris Corp.) • FGDC: Geospatial-One-Stop • Federal geospatial data portal - “Two clicks to Data”

10. Integrating Disparate Networks Conceptual Data Flow: Federated Database design – Local schemas mapped to a global schema for attribute conflation and maintenance. Physical Integration Processes: Vertical Integration = Cross-thematic topological integrity Horizontal Integration = Same-theme edge-matching

11. Integration of TNM Road Data

12. Challenges Facing TNM: Technical Most public datasets are Outdated and inaccurate:

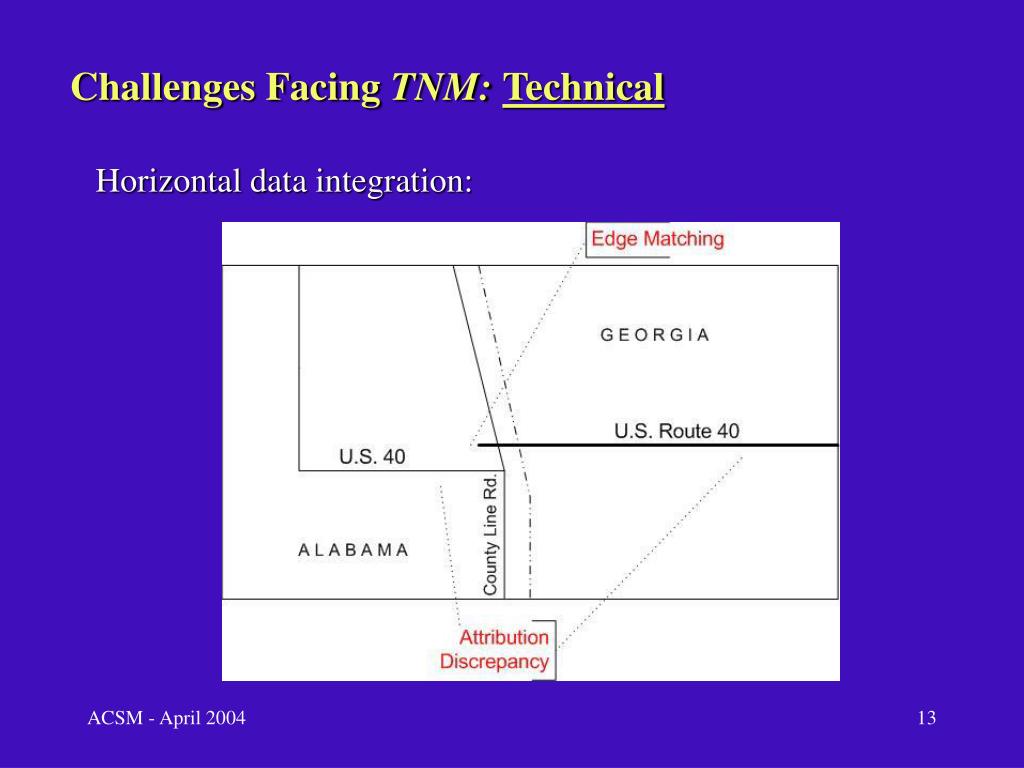

13. Challenges Facing TNM: Technical Horizontal data integration:

14. Challenges Facing TNM:Multi-Institutional GIS Development • Integration in a heterogeneous environment; • Institutional and technical impediments will contribute to the complexity of implementation; • How will these factors influence the requirements and expectations of TNM?

15. Challenges Facing TNM: Institutional Masser and Campbell (1995) • Variation in participant priorities; • Variation in GIS experience among participants; • Differences in spatial data handling; • Disagreements among participants regarding data openness, leadership, standards, and cost sharing.

16. Challenges Facing TNM: Institutional continued… The more participants in a data sharing program, the greater organizational complexity (Meredith, 1995; Fountain, 2001). TNM may have thousandsof participants. Azad et al. (1995) found an inverse relationship between the interdependency of participants and the likelihood of program success. Who will rely on who for what and how frequently?

17. Technical Factors Complicating Integration: • Total length of coincident participant boundaries; • Road network feature density at the participant boundaries; • Complexity (attribute precision) of the global schema; • The number of participant schemas to be unified to The National Map global schema; • Degree of participant interdependency.

18. TNM Road Implementation PlanUSGS - U.S. Census Bureau Partnership USGS and U.S. Census have designated the enhanced TIGER database as the primary provider of road data for The National Map. Schedule completion of positional accuracy enhancement is 2008. Let’s take a closer look at the MAF/TIGER Enhancement

19. The USGS / U.S. Census Bureau PartnershipMAF/TIGER Enhancement Objectives: Improve TIGER Positional accuracy and implement automated change detection; Implement a new processing environment; Expand and encourage geographic partnerships; Launch the Community Address Updating System; Implement periodic evaluation activities.

20. The USGS / U.S. Census Bureau PartnershipMAF/TIGER Enhancement Objectives 1 - Improve TIGER Positional accuracy and implement automated change detection. • Completion date of 2008 by way of contract with Harris Corp. includes TIGER roads, boundary information. • A 7.6 meter, or better, positional accuracy requirement. This is well within TNM accuracy standards.

21. The USGS / U.S. Census Bureau PartnershipMAF/TIGER Enhancement Fred Broom et al. (2003) in PERS October, 2003 “The USGS’ list of desired features was more extensive than that needed by the Census Bureau.” The Census Bureau agreed to provide a location within its DB structure for State / Local attributes that may be of interest to The National Map. However… “…The Census Bureau (stated that they) would not actively solicit or extract such features.”

22. The USGS / U.S. Census Bureau PartnershipMAF/TIGER Enhancement Thus, the USGS will need to collect and integrate “best available data” to meet its current demand for additional a-spatial attributes. This IS NOT simply resolved via attribute conflation from local datasets to a federated schema.

23. Attribute Translation from Local to Global

24. TNM Recommendation Road data integration: • Need for an Overarching NSDI authority above USGS for successful coordination of geospatial data management. • Coordinate data solicitation • Coordinate and prioritize research • Budget Authority • Requirements study inclusive of all, major stakeholder communities across all political levels of government. • What minimum set of road attributes are needed across all levels? • How might these be standardized to avoid an under-bound participant community? • Participant accrediting?

25. TNM Recommendation (cont.) Private Networks to $ Subscribers
