  1. Scanning 2012 BackTrack Workshop Upstate ISSA Chapter

  2. Agenda • Passive “Scanning” • Active Scanning

  3. Passive “Scanning” • Wireshark • tcpdump • Lanmap • EtherApe

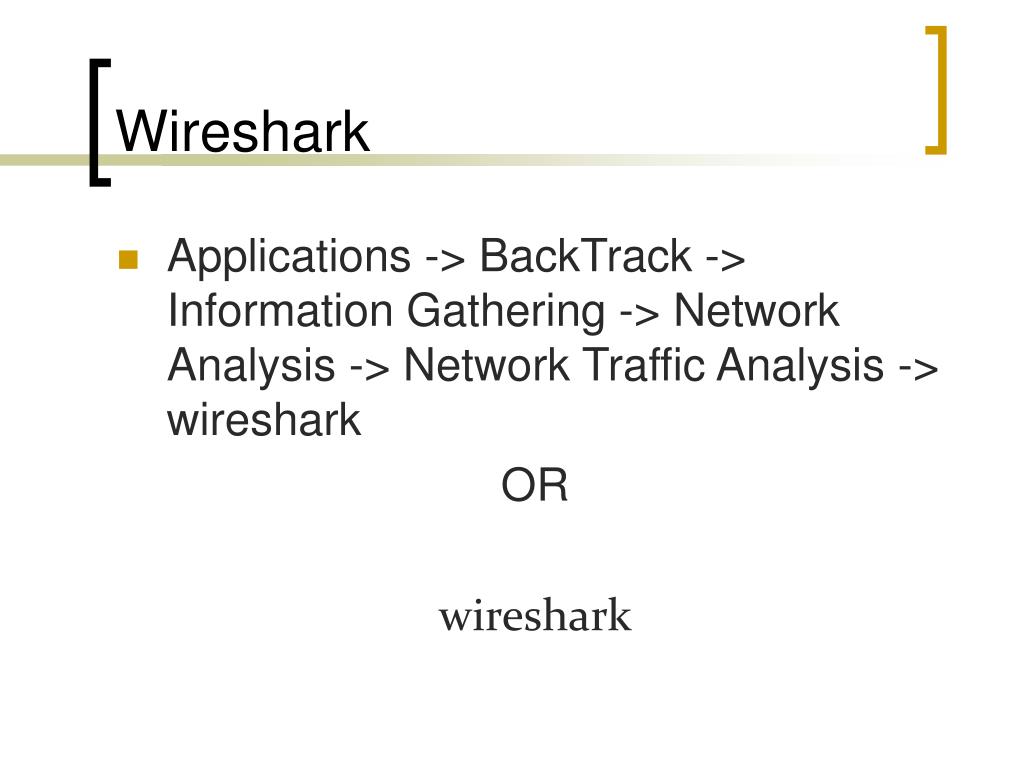

  4. Wireshark • Applications -> BackTrack -> Information Gathering -> Network Analysis -> Network Traffic Analysis -> wireshark OR wireshark

  5. Wireshark

  6. tcpdump • Simple packet capture from eth0 tcpdump –i eth0 • Limit number of packets capture tcpdump –c 2 –i eth0 • Display packets in ASCII tcpdump –A –i eth0 • And Hex… tcpdump –XX –i eth0

  7. tcpdump tcpdump –i eth0

  8. Lanmap

  9. Lanmap

  10. Lanmap

  11. EtherApe

  12. Active Scanning • Hack Naked • Ping Sweeps • Discovering Open Ports • Service Enumeration • SNMP Walking • VPN Detection

  13. Hack Naked • Conduct testing without security controls such as firewalls, IPS and AV

  14. Ping Sweeps • Nmap • Zenmap • fping • hping2

  15. Nmap (Ping Sweep) nmap 192.168.1.0/24 -sP

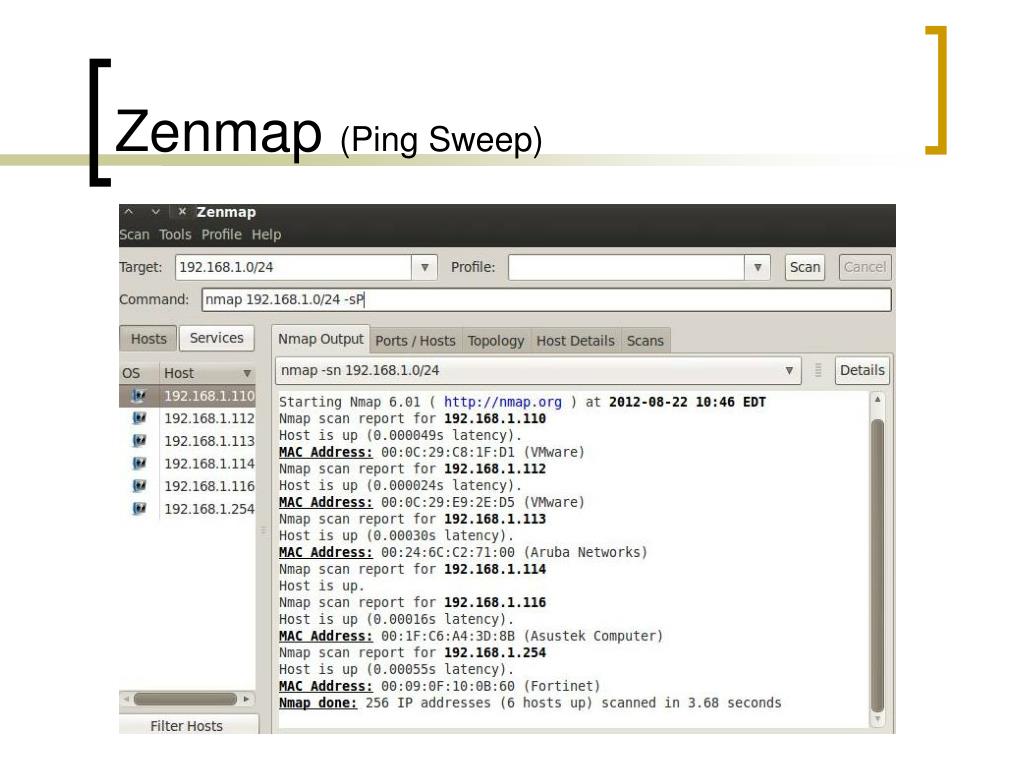

  16. Zenmap (Ping Sweep)

  17. fping fping –g 192.168.1.0/24

  18. Fping (Wireshark capture)

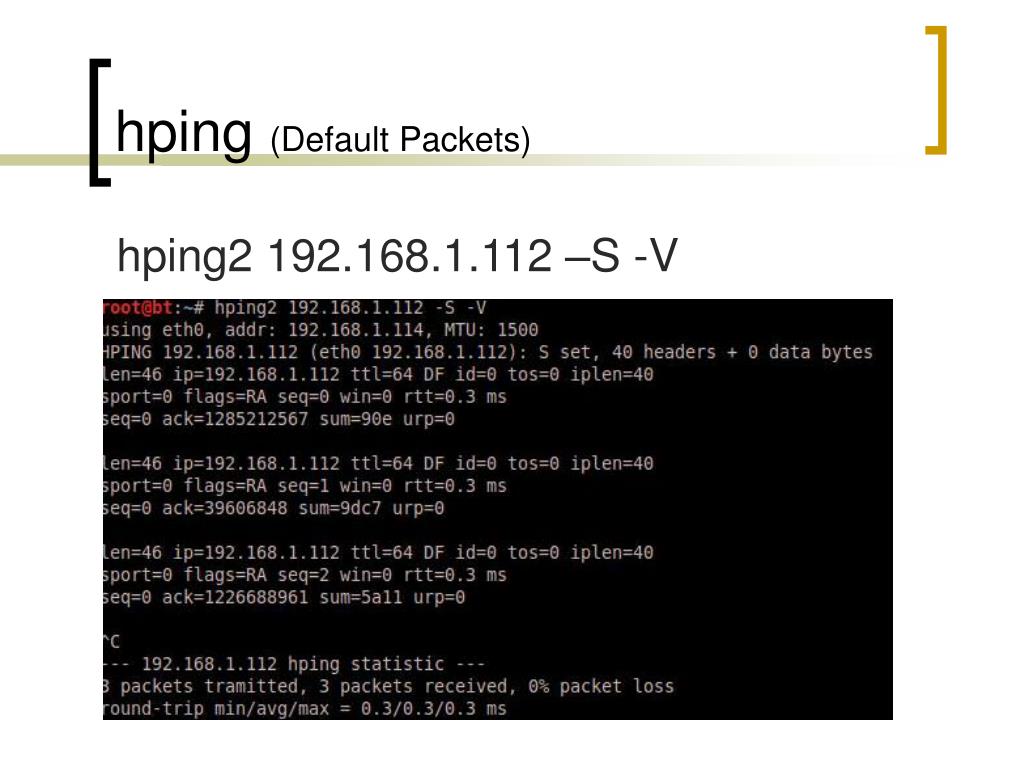

  19. hping (Default Packets) hping2 192.168.1.112 –S -V

  20. Discovering Open Ports • Nmap Default Scan • Scanning All Ports

  21. Nmap Default Scan

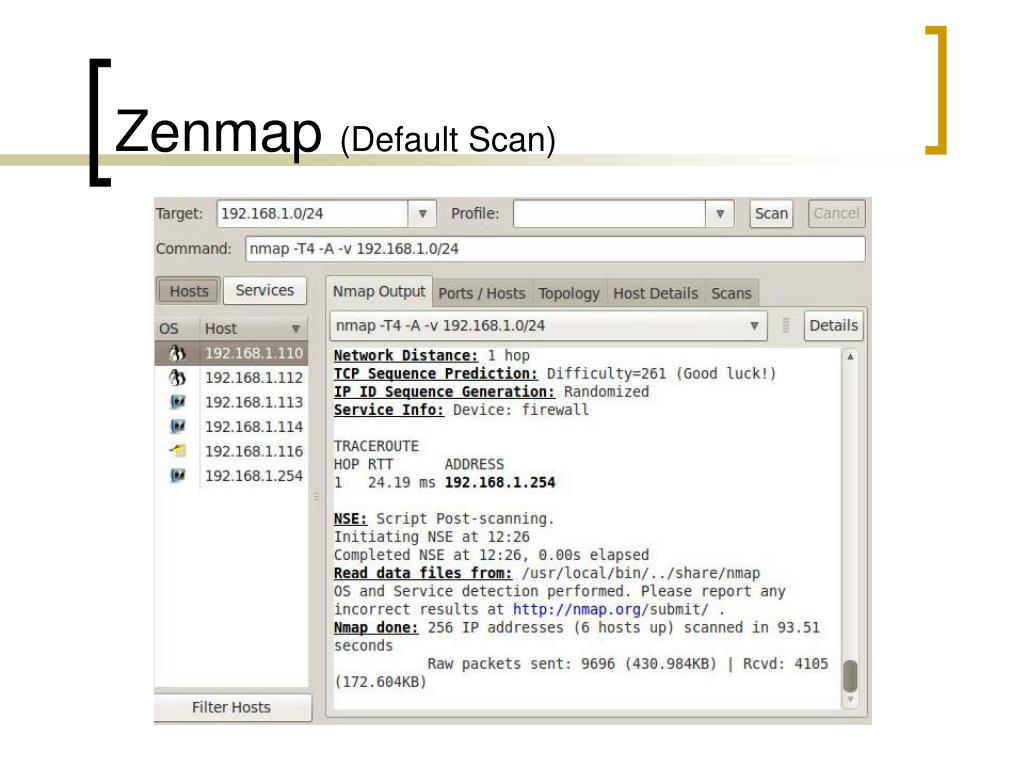

  22. Zenmap (Default Scan)

  23. Service Enumeration • Nmap Service Detection • NSE (Nmap Scripting Engine)

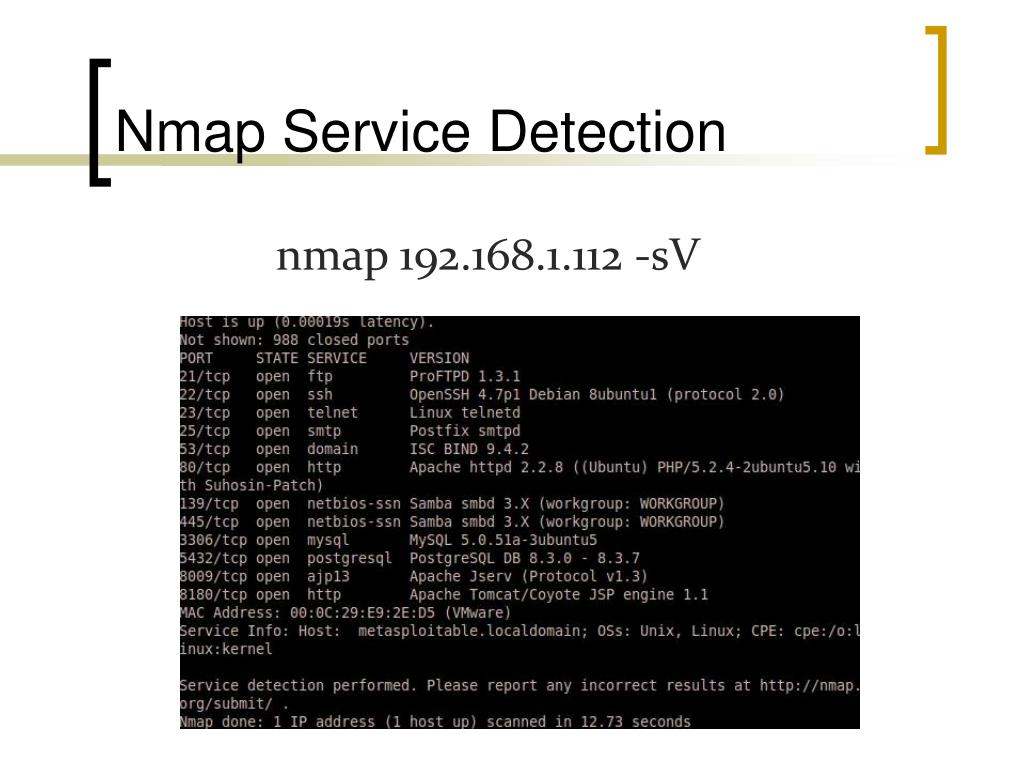

  24. Nmap Service Detection nmap 192.168.1.112 -sV

  25. NSE (Nessus Scripting Engine) nmap 192.168.1.112 -sC

  26. SNMP Walking

  27. Cisco SNMP Exploit

  28. Cisco Config Download

  29. Cisco Router SNMP Merge
