  1. Daejun Park, ROPAS, SNU Lightweight Static Analysis for Buffer Overrun Errors of C programs Lsa

  2. Example, pointer analysis int foo () { int arr[10]; int ret; ret = bar(arr, 10) return arr[ret]; } int bar (int *p, int x) { int i; i = 0; while1 (i < x) { p[i] = i; i = i + 1; } p[i] = i; return i; } R(0) = {lret} P(lp) = {l0} R(1) = {li,l0} R(0) = {li,l0}

  3. Example, summary of bar lp -> (l0,f,s), l0 -> p, lx -> x int bar (int *p, int x) { int i; i = 0; while1 (i < x) { p[i] = i; i = i + 1; } p[i] = i; return i; } lp -> (l0,f,s), l0 -> p, lx -> x li -> 0 lp -> (l0,f,s), l0 -> p, lx -> x li -> 0 l0 -> p U 0 li -> 1 f + 0 < s

  4. Example, summary of bar lp -> (l0,f,s), l0 -> p, lx -> x int bar (int *p, int x) { int i; i = 0; while1 (i < x) { p[i] = i; i = i + 1; } p[i] = i; return i; } lp -> (l0,f,s), l0 -> p, lx -> x li -> 0 lp -> (l0,f,s), lx -> x l0 -> T, li -> T, li -> x - 1 f + (x – 1) < s lp -> (l0,f,s), lx -> x l0 -> T li -> x - 1 + 1 lp -> (l0,f,s), lx -> x l0 -> T li -> x - 1 + 1 lr -> x - 1 + 1 f + (x – 1 + 1) < s

  5. Example, summary of bar(cont) lp -> (l0,f,s) l0 -> p lx -> x int bar (int *p, int x) { int i; i = 0; while1 (i < x) { p[i] = i; i = i + 1; } p[i] = i; return i; } f + 0 < s summary f + (x – 1) < s f + (x – 1 + 1) < s lr -> x - 1 + 1 l0 -> T

  6. Example, summary of foo I larr -> (l’arr, 0, 10) int foo () { int arr[10]; int ret; ret = bar(arr, 10) return arr[ret]; } larr -> (l’arr, 0, 10) lret -> 10 - 1 + 1 l’arr -> T lr -> T 0 + 10 < 10 lp -> (l0,f,s) l0 -> p lx -> x lr -> x - 1 + 1 l0 -> T f + 0 < s f + (x - 1) < s f + (x - 1 + 1) < s lp -> (l’arr,0,10) l’arr -> ㅗ lx -> 10 lr -> 10 - 1 + 1 l’arr -> T 0 + 0 < 10 0 + (10 - 1) < 10 0 + (10 - 1 + 1) < 10

  7. Example, summary of foo I larr -> (l’arr, 0, 10) int foo () { int arr[10]; int ret; ret = bar(arr, 10) return arr[ret]; } larr -> (l’arr, 0, 10) lret -> 10 - 1 + 1 l’arr -> T lr -> T 0 + 10 < 10 lp -> (l0,f,s) l0 -> p lx -> x lr -> x - 1 + 1 l0 -> T f + 0 < s f + (x - 1) < s f + (x - 1 + 1) < s lp -> (l’arr,0,10) l’arr -> ㅗ lx -> 10 lr -> 10 - 1 + 1 l’arr -> T 0 + 0 < 10 0 + (10 - 1) < 10 0 + (10 - 1 + 1) < 10

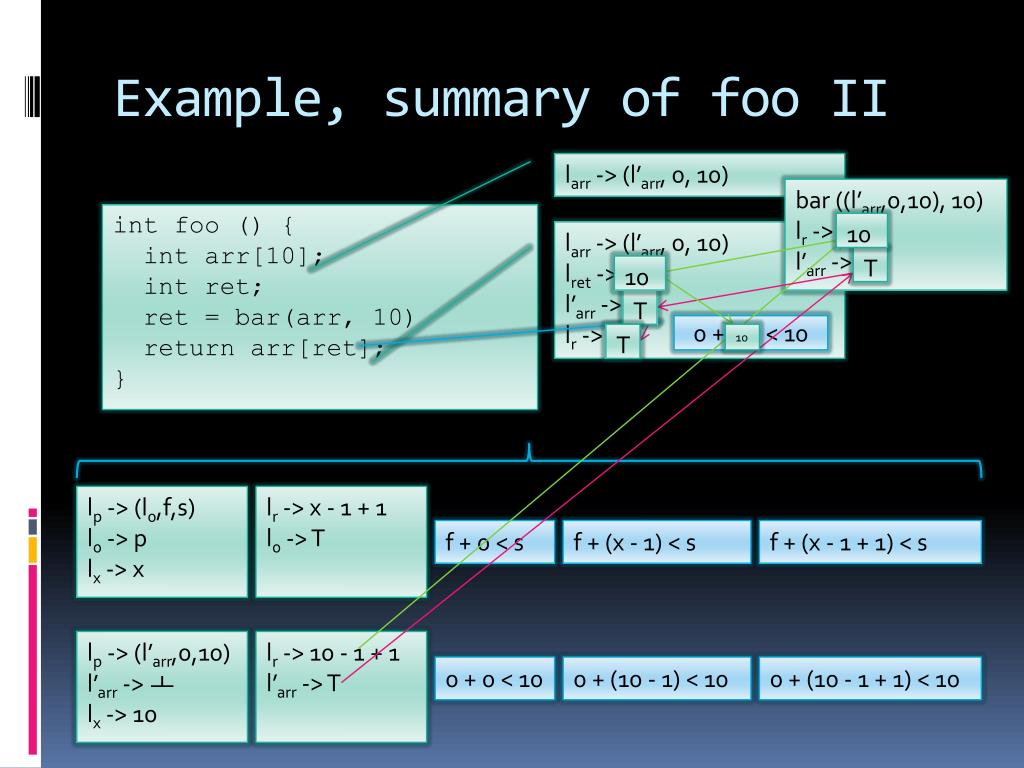

  8. Example, summary of foo II larr -> (l’arr, 0, 10) bar ((l’arr,0,10), 10) lr -> ret l’arr -> arr int foo () { int arr[10]; int ret; ret = bar(arr, 10) return arr[ret]; } larr -> (l’arr, 0, 10) lret -> ret l’arr -> arr lr -> arr 0 + ret < 10 lp -> (l0,f,s) l0 -> p lx -> x lr -> x - 1 + 1 l0 -> T f + 0 < s f + (x - 1) < s f + (x - 1 + 1) < s lp -> (l’arr,0,10) l’arr -> ㅗ lx -> 10 lr -> 10 - 1 + 1 l’arr -> T 0 + 0 < 10 0 + (10 - 1) < 10 0 + (10 - 1 + 1) < 10

  9. Example, summary of foo II larr -> (l’arr, 0, 10) bar ((l’arr,0,10), 10) lr -> ret l’arr -> arr int foo () { int arr[10]; int ret; ret = bar(arr, 10) return arr[ret]; } 10 larr -> (l’arr, 0, 10) lret -> ret l’arr -> arr lr -> arr T 10 T 0 + ret < 10 T 10 lp -> (l0,f,s) l0 -> p lx -> x lr -> x - 1 + 1 l0 -> T f + 0 < s f + (x - 1) < s f + (x - 1 + 1) < s lp -> (l’arr,0,10) l’arr -> ㅗ lx -> 10 lr -> 10 - 1 + 1 l’arr -> T 0 + 0 < 10 0 + (10 - 1) < 10 0 + (10 - 1 + 1) < 10

  10. Design decisions • inter-procedural analysis • function summary • return-value & side-effects over parameters • global static array • complex loop vs. simple loop • symbolic constant expression • bounded abstraction

  11. Inter-procedural analysis • separated analysis • using function summary • return-value dependent on parameters • side-effect loaded with parameters of pointer type • cutting recursive call chain • generating and solving constraints for non-summarized functions

  12. Global static array • global array initialized with constant expression • elements of global static array are not aggregated • assumption: global static array is not modified in whole program • used as constant value

  13. Complex vs. simple loop • loop satisfying following conditions is simple • for (i = c; i < c; i++) { stmt } • ‘stmt’ does not modify ‘i’ • narrowing only simple loop • low-cost widening using point-to analysis

  14. Symbolic constant expression • using scalar-variable as constant • comparison between SCEs • mostly, n < n+1 • values of parameters are set to arbitrary scalar-variable • return value and side-effects of non-summarized function are same • generating constraints over SCEs

  15. Bounded abstraction • abstraction for set • restricting number of elements of set • for location and SCE

  16. References • L. Andersen, “Program Analysis and Specialization for the C Programming Language”, Ph.D. thesis, DIKU report 94/19, 1994 • N. Heintze and O. Tardieu, “Ultra-fast Aliasing Analysis using CLA: A Million Lines of C Code in a Second”, PLDI, 2001
