Screenmilker : How to Milk Your Android Screen for Secrets

1. 2014 Network and Distributed System Security (NDSS) Symposium Screenmilker: How to Milk Your Android Screen for Secrets Chia-Chi Lin1, Hongyang Li1, Xiaoyong Zhou2, XiaoFengWang2 1University of Illinois at Urbana-Champaign 2Indiana University at Bloomington 左昌國 2014/01/07 Seminar @ ADLab, CSIE, NCU

2. Outline • Introduction • Programmatic Screenshot on Android • Design and Implementation • Evaluation • Mitigation • Conclusions

3. Introduction • Demanded functions in Android • Wireless tethering • System backup • New font adding • Screenshot • Android Debug Bridge (ADB) (link) • A tool to communicate emulators or Android devices with development machine • A service can be invoked in emulators or Android devices with privileges. • Apps can communicate with this service process to acquire the resources the Android APIs do not provide. • This is legitimate.

4. Introduction • Screenshot (no-root) • Signature-level permission • Hardware mechanism (4.0+) • Power + Volume-Down • ADB • https://play.google.com/store/apps/details?id=com.edwardkim.android.screenshotitfullnoroot

5. Introduction • This paper implements a malicious app, Screenmilker, that collects user secrets through ADB channel. • INTERNET permission only • Demo http://www.youtube.com/watch?v=5I04HvvLx-g • Contributions • Understanding of the security risks of the ADB workaround and the local-socket channel • New techniques for targeted, stealthy and real-time collection of sensitive information from screenshots • The evaluation is effective.

6. Programmatic Screenshot on Android • No programmable interface for screenshot • Root, or • Leveraging an native executable as a proxy to access ADB’s capabilities • Permissions • Normal level (e.g., setting an alarm) • Dangerous level (e.g., opening network sockets) • Signature level (e.g., accessing the frame buffer) • ADB has a set of unique capabilities (signature-level) specified under the Android permission system.

7. Programmatic Screenshot on Android

8. Programmatic Screenshot on Android • The ADB workaround • Run a customized Android native executable through ADB. (with desired permissions) • Establish a communication channel between the executable and a 3rd-party app to access “protected resources with the permissions.” Screenshots Internet Local socket App ADB installs a native executable Native Executable Device

9. Programmatic Screenshot on Android • The problem is… • No protection on the local socket channel • Any app can request service from the ADB proxy at any time without any restriction. • If you know the protocol • A malicious app could utilize the existing ADB proxy to perform malicious activities. • Required INTERNET permission only • Generality of the problem • Sync and backup apps • USB tethering apps

10. Programmatic Screenshot on Android

11. Design and Implementation • Some challenges • The screenshot file size is too big. • Data usage • Storage usage • The malicious app can not take screenshot all the day. • The right chance to take a screenshot is important.

12. Design and Implementation • Adversary model • The adversary can disguise Screenmilker into another genuine app to trick users to install it. • The malicious app only needs the INTERNET permission. • The target device has one no-root screenshot apps installed. • The device owner pays attention to mobile-data usage and utilizes other tools to discover the problematic behaviors of the apps on the phone

13. Design and Implementation • The architecture overview

14. Design and Implementation - Runtime Situation Detection • Runtime Situation Detection • Detecting the screenshot proxy • Monitoring target apps • Detecting display states • Detecting the screenshot proxy • API PackageManager • Linux command PS • Checking the TCP ports

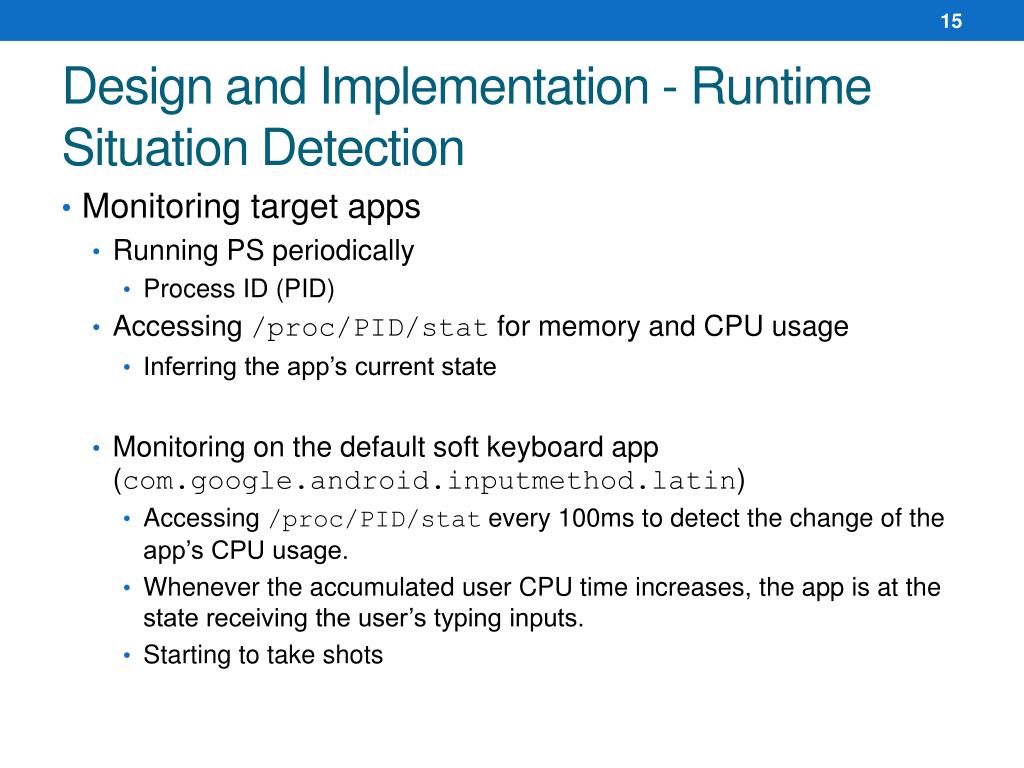

15. Design and Implementation - Runtime Situation Detection • Monitoring target apps • Running PS periodically • Process ID (PID) • Accessing /proc/PID/stat for memory and CPU usage • Inferring the app’s current state • Monitoring on the default soft keyboard app (com.google.android.inputmethod.latin) • Accessing /proc/PID/stat every 100ms to detect the change of the app’s CPU usage. • Whenever the accumulated user CPU time increases, the app is at the state receiving the user’s typing inputs. • Starting to take shots

16. Design and Implementation - Runtime Situation Detection • Detecting display states • The foreground issue • API getRotation • Periodically grabbing screenshots (while the target app is running) • Extracting part of the image to search a set of fingerprints for target app’s activities of interest • Building a hash table to map the CRC32 value of the title bar region of an app’s UI

17. Design and Implementation - Runtime Situation Detection

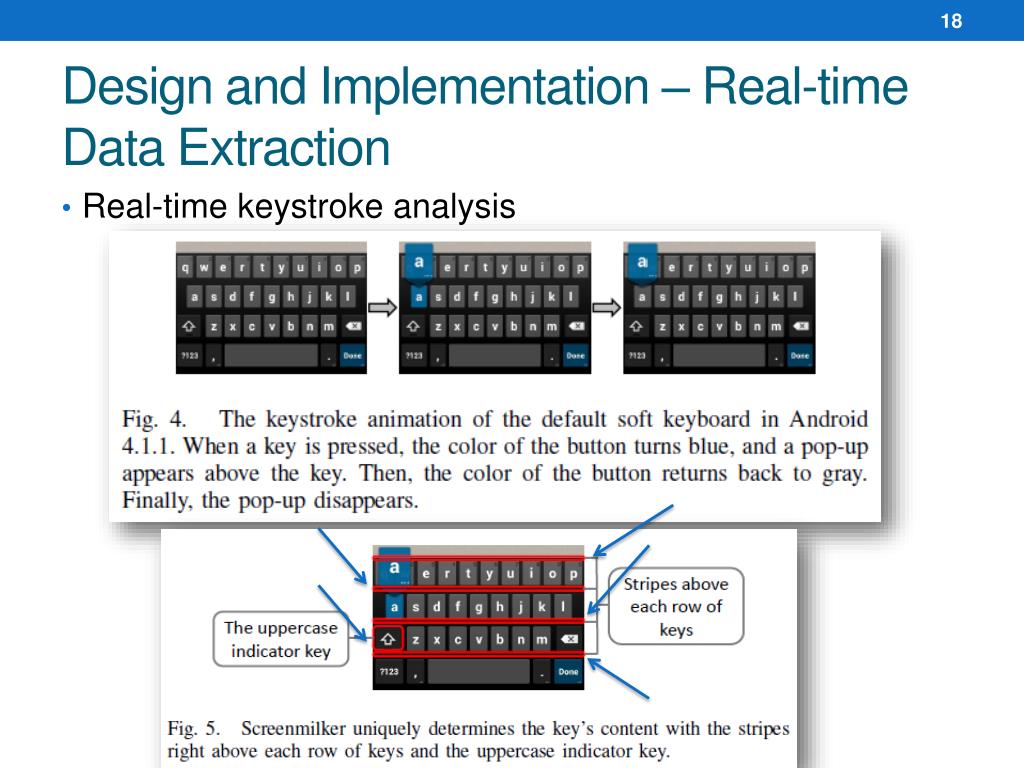

18. Design and Implementation – Real-time Data Extraction • Real-time keystroke analysis

19. Design and Implementation – Real-time Data Extraction

20. Design and Implementation – Real-time Data Extraction • Discussion • A user may press keys in a rate higher than the rage of picture taking • Dictionary • Multiple rounds • Backspace (or moving the cursor) • Multiple rounds • Different soft keyboard • Increasing the hash table

21. Design and Implementation – Real-time Data Extraction • Real-time contact collection

22. Evaluation - Effectiveness • App monitoring • Ten 10-minute typing sessions • Probing /proc/PID/stat every 100ms • Using the API TextWatcher to compare with the recorded log • Display detecting • Five banking apps • American Express US, Citi Mobile, Chase Mobile, Paypal, and Wells Fargo Mobile • Hash fingerprinting on the login title bars • Keystroke logging • Capture ratio • The ratio of keystrokes that Screenmilker was able to get when a user was typing 100 keys

23. Evaluation - Effectiveness The capture ratio of Screenmilker to log a single keystroke.

24. Evaluation - Effectiveness • Password extraction • Running Screenmilker to extract 40 passwords from each target app during multiple rounds • Other apps are running as background noise.

25. Evaluation - Effectiveness • Contact collection • ??

26. Evaluation - Stealthiness • Response time • API TextWatcher • Recording the time interval

27. Evaluation - Stealthiness • Resource consumption • The execution times for individual malware components • Each component was invoked 10,000 times (once every 100ms) • Less than 1ms for every measure (1% CPU overhead)

28. Evaluation - Stealthiness • Memory usages

29. Evaluation - Stealthiness • Power usages

30. Mitigation • Mediating the communication between the ADB proxy and its unprivileged app client • SEAndroid • iptables • Interface suggestions • LOW_RATE_SCREENSHOT • HIGH_RATE_SCREENSHOT

31. Conclusions • Android lacks access control on the local network socket channel • The ADB could be exploited by an adversary to gain unauthorized signature-level permissions • This paper designed and implemented Screenmilker to demonstrate that through lightweight detection and extraction, a malicious app can effectively and stealthily gather confidential information.
