  1. Kaksportid Z1 Z2 Port 1 Port 2 Z3 T - kujulisest aseskeemist on kerge leida Z parameetreid Z1+Z3 Z3 Z3 Z2+Z3 Z=

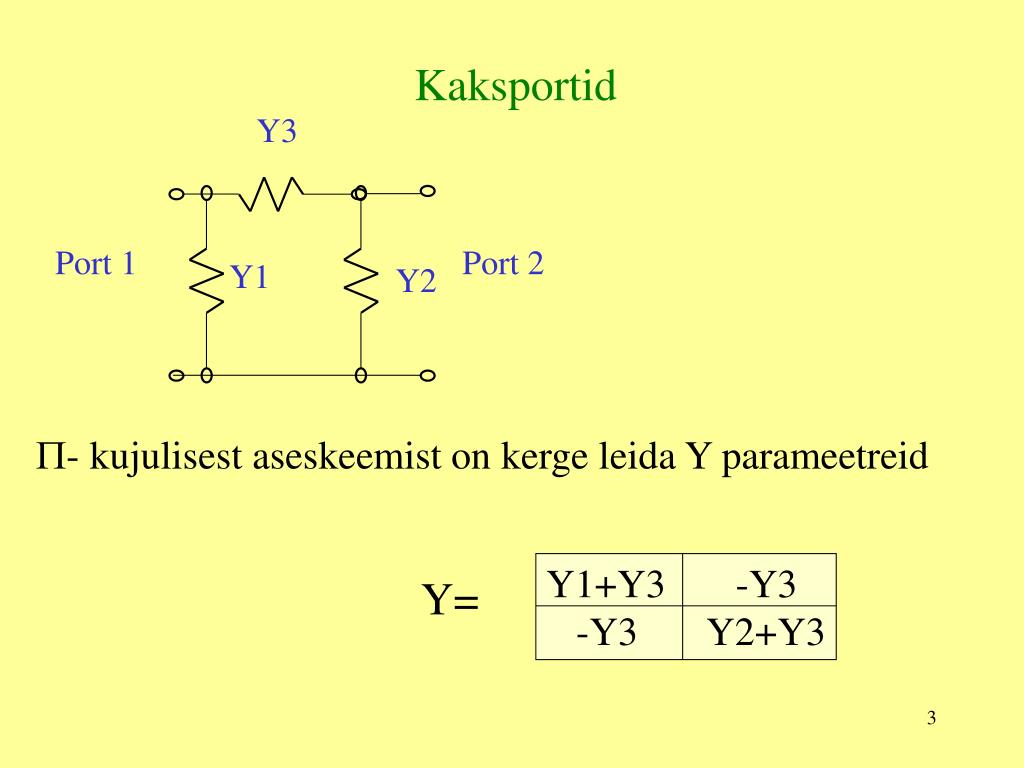

  2. Kaksportid Y3 Port 1 Port 2 Y1 Y2 - kujulisest aseskeemist on kerge leida Y parameetreid Y1+Y3 -Y3 -Y3 Y2+Y3 Y=

  3. Kaksporti parameetrite môôtmine Y Z ABCD

  4. Kaksportid Kaksport 1 1kΩ 1kΩ Port 1 Port 2 1kΩ Leida z-, y- ja ABCD-parameetrid

  5. Kaksportid Kaksport 2 1kΩ Port 1 Port 2 1kΩ 1kΩ Leida z-,y ja ABCD parameetrid

  6. Kaksportide ühendamine Jadaühendus Rööpühendus Kaskaadühendus

  7. Kaksport 2 Kaksport 1 Kaksportid Leida Y parameetrid kasti sees asuvale kaksportile

  8. Kaksport 1 Kaksport 2 Kaksportid Leida ABCD parameetrid kasti sees asuvale kaksportile
