  1. Data Management PC ToolsReview Software • Review Full • Review Lite • Freeware

  2. Review Full • As Review 2.7 plus:- • Assisted Backup/Transfer from removable media • Assisted Transfer from folders • Spreadsheet view of chart data • Automatic Print to specified printer at end of batch • Auto Print to pdf printer at end of batch • Copy Chart to Clipboard

  3. Review Lite • As Review 2.7 plus:- • Assisted Backup/Transfer from removable media • Assisted Transfer from folders • Demo mode Review Full Features • Minus:- • Automatic Print at end of batch, unless installed as upgrade to existing version.

  4. Licensing • Review Lite • Provided free on Tools CDs • Can run Full features in demo mode for 15 minutes, then restart required • Review Full • Provided on separate chargeable CD

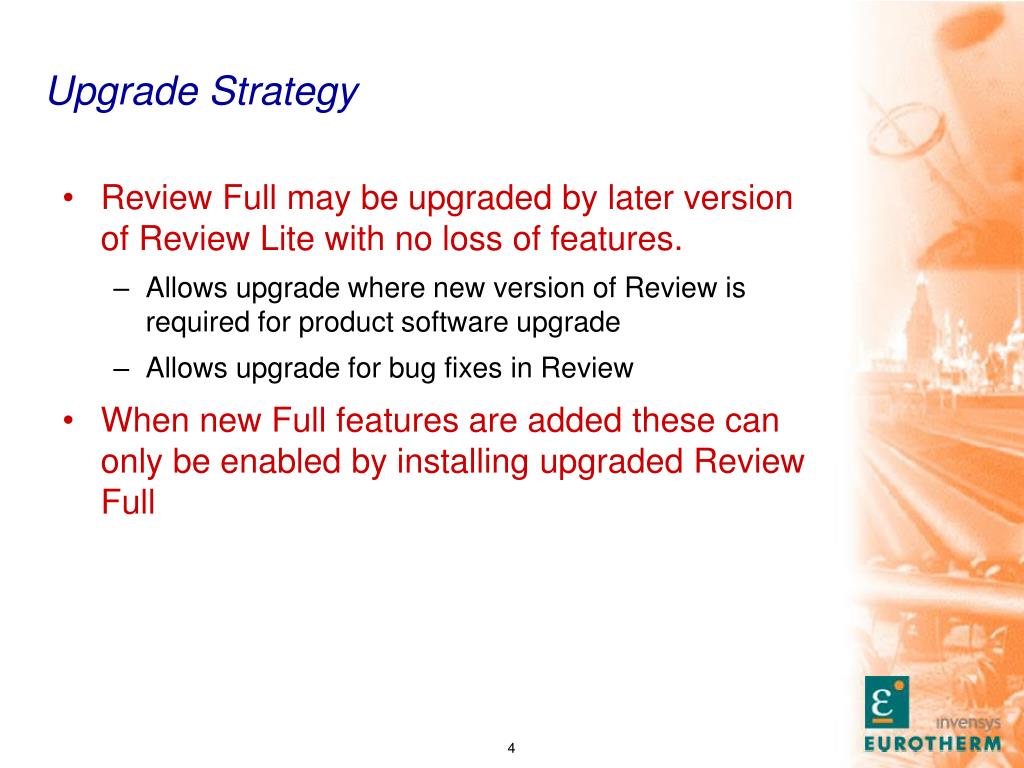

  5. Upgrade Strategy • Review Full may be upgraded by later version of Review Lite with no loss of features. • Allows upgrade where new version of Review is required for product software upgrade • Allows upgrade for bug fixes in Review • When new Full features are added these can only be enabled by installing upgraded Review Full

  6. Review Basics, Data Transfer Transfer UHH/PKD Review Database review.erv If the data must be kept securely for the future then the uhh/pkd files should be backed up so that they can be re-transferred if necessary.

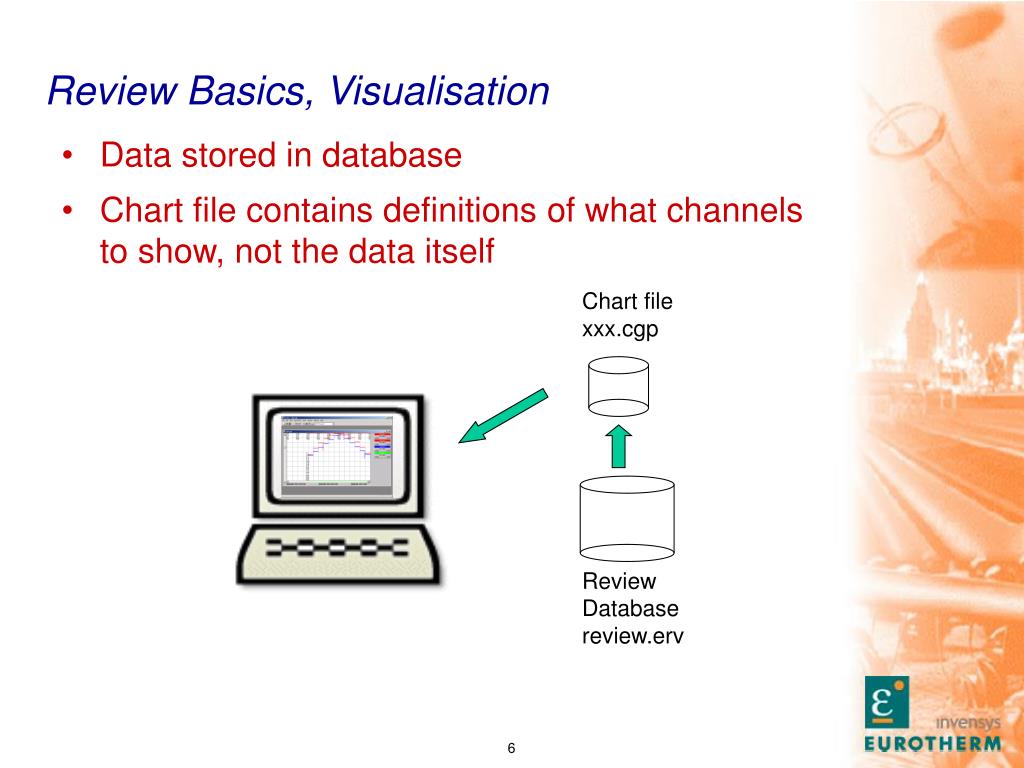

  7. Review Basics, Visualisation • Data stored in database • Chart file contains definitions of what channels to show, not the data itself Chart file xxx.cgp Review Database review.erv

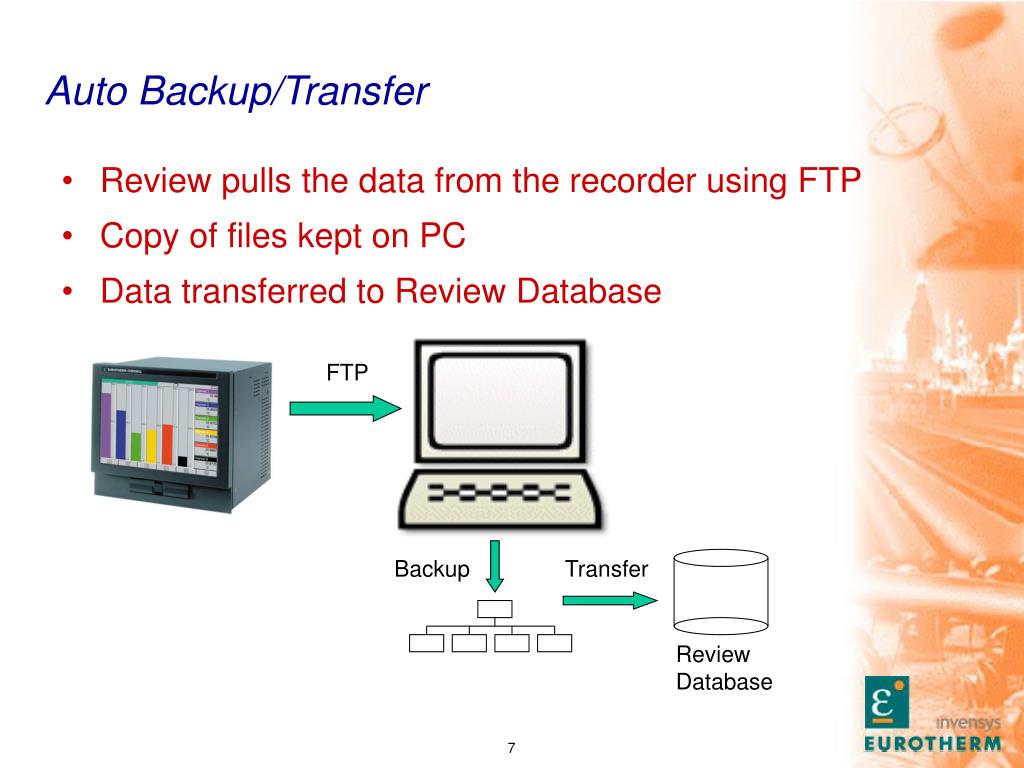

  8. Auto Backup/Transfer • Review pulls the data from the recorder using FTP • Copy of files kept on PC • Data transferred to Review Database FTP Backup Transfer Review Database

  9. Assisted Backup/Transfer from removable media • Copies files to PC (only new files if 5xxx) • Transfers to Database • Optional Delete from media after transfer Backup to Master Archive Folder Transfer Review Database

  10. Assisted Backup/Transfer from folders • Instrument pushes files to Server using FTP • Only new files Backed up/Transferred FTP Backup Transfer Review Database

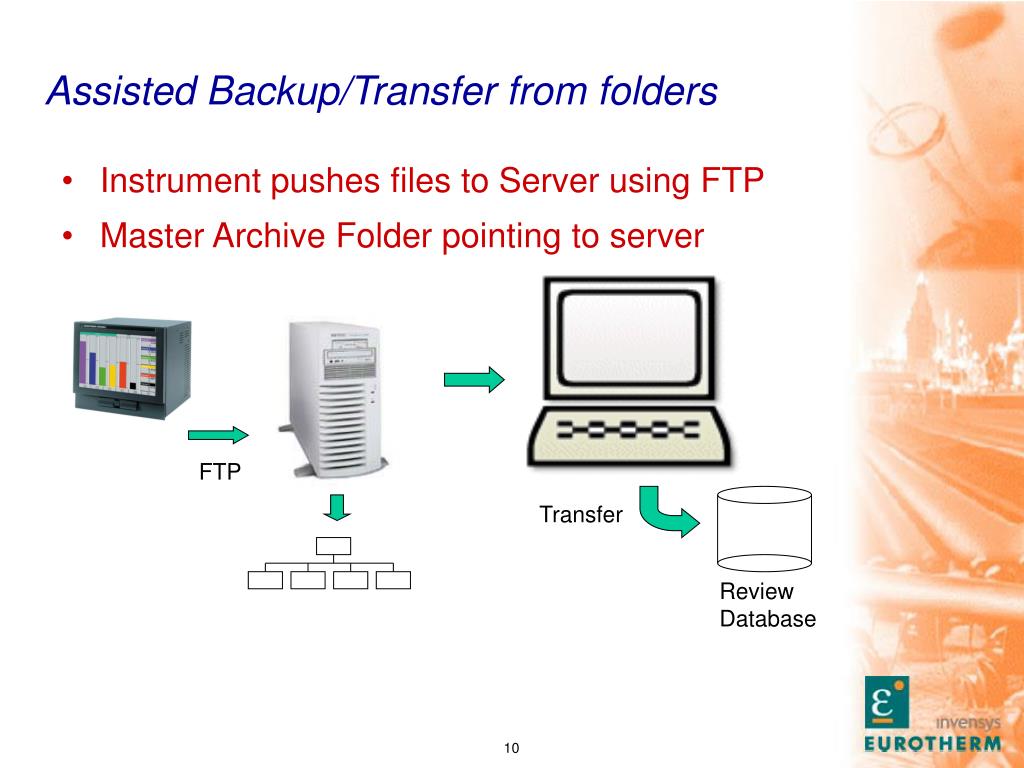

  11. Assisted Backup/Transfer from folders • Instrument pushes files to Server using FTP • Master Archive Folder pointing to server FTP Transfer Review Database

  12. Spreadsheet View

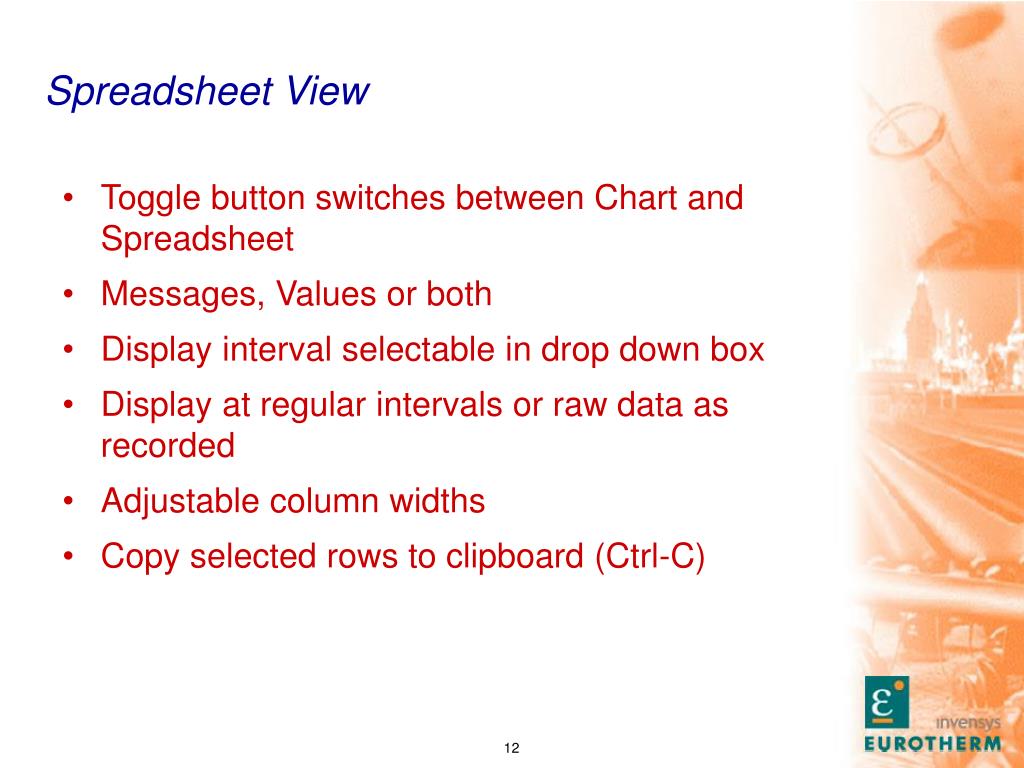

  13. Spreadsheet View • Toggle button switches between Chart and Spreadsheet • Messages, Values or both • Display interval selectable in drop down box • Display at regular intervals or raw data as recorded • Adjustable column widths • Copy selected rows to clipboard (Ctrl-C)

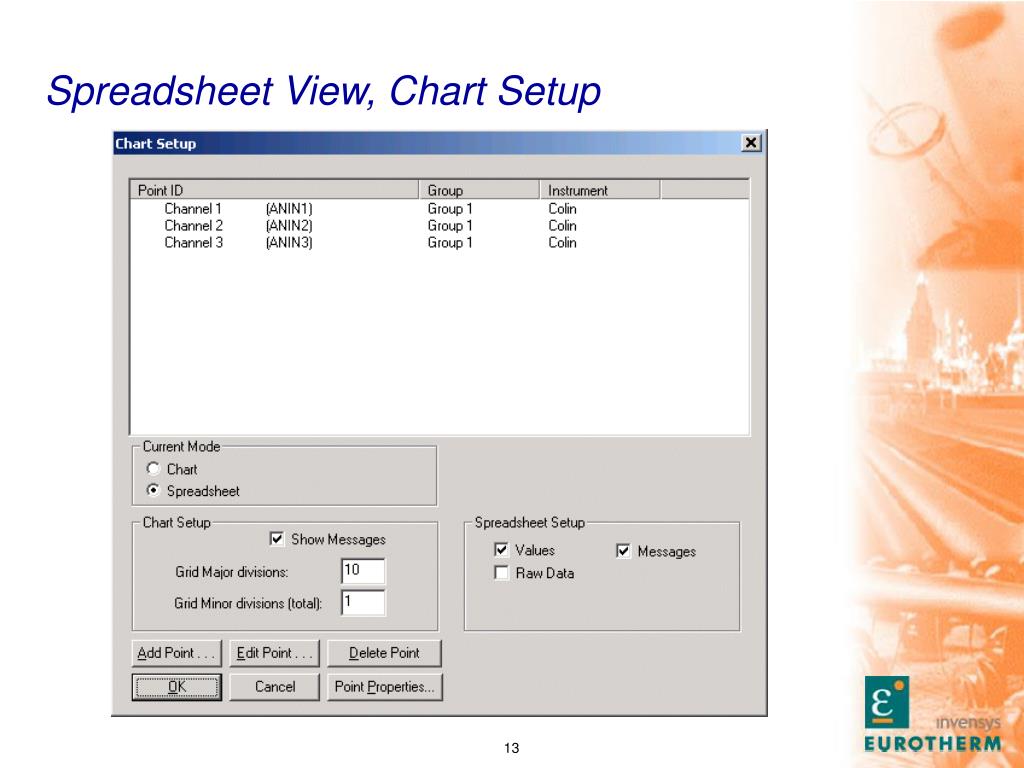

  14. Spreadsheet View, Chart Setup

  15. Printing

  16. Export

  17. Auto Print to Specified Printer • Allows selection of a particular printer in the Automatic Print settings

  18. Automatic Print to PDF File • Uses Acrobat PDFWriter printer driver • A batch may be printed multiple times in different modes or to different “printers”

  19. Copy Chart to Clipboard (Ctrl-C)
