Lec 19, Ch.17, pp.453-461: Sample simple timing problems (Objectives)

Lec 19, Ch.17, pp.453-461: Sample simple timing problems (Objectives). Master the steps of simple signal timing through 4 sample problems in the textbook. What we cover today in class…. Review of the assumptions and steps Sample problem 1 Sample problem 2 Sample problem 3 Sample problem 4.

minor
Télécharger la présentation

Lec 19, Ch.17, pp.453-461: Sample simple timing problems (Objectives)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lec 19, Ch.17, pp.453-461: Sample simple timing problems (Objectives) • Master the steps of simple signal timing through 4 sample problems in the textbook

  2. What we cover today in class… • Review of the assumptions and steps • Sample problem 1 • Sample problem 2 • Sample problem 3 • Sample problem 4

  3. Simple signal timing: getting started This simple method gives you the direction for detailed signal timing. This method uses the formula for the “time budgeting” method as the basis. (Equation 16-11 NOT Equation 17-11 as shown in the text.) • Assumptions: • S = 1900 pcphgpl, but use 85% of it. Hence, s = 0.85x1900 = 1615 pcphgpl (h = 3600/1615 = 2.23 sec/veh) • 12-ft lane width, no parking or local buses, 5% heavy vehicles, +1% grade, a CBD location, and a lost-time of 3 seconds …(Eq. 17-9)

  4. Simple signal timing: getting started (cont) The effect of turning vehicles are included in Vc by multiplying ELT and ERT as shown in Table 17-3 and 17-4 (Note these are different from the ones we use for computing fHV in capacity analysis.)

  5. Simple signal timing: getting started (cont) • Develop a reasonable signal phase plan. Decide how to deal with left-turning vehicles. • Convert all left-turning and right-turning volumes to through car equivalents (tcu’s) using Tabs 17-3 and 17-4. • Establish a reasonable phase plan. Determine the actual sum of critical lane volumes, Vc, using this plan. Check the sum of critical lane volumes in tcu’s for reasonableness. • Using Equation 17-9, determine the desirable cycle length based on a desired v/c ratio (0.85-0.90), the PHF. • Allocate the available effective green time within the cycle in proportion to the critical lane volumes (in tcu’s) for each signal phase. for

  6. Sample Problem 1, p.453 Recommend an appropriate signal timing for the intersection shown below. Solution:

  7. Through car equivalent (tcu) volumes to determine critical lane or lane group (Step 2)

  8. Sample problem 2, p. 455 PHF = 0.85 v/c = 0.85 Pedestrian = modest Solution:

  9. Through car equivalent (tcu) volumes to determine critical lane or lane group (Step 2)

  10. Sample problem 3, p. 457

  11. Through car equivalent (tcu) volumes to determine critical lane or lane group (Step 2)

  12. Sample problem 3, Solution

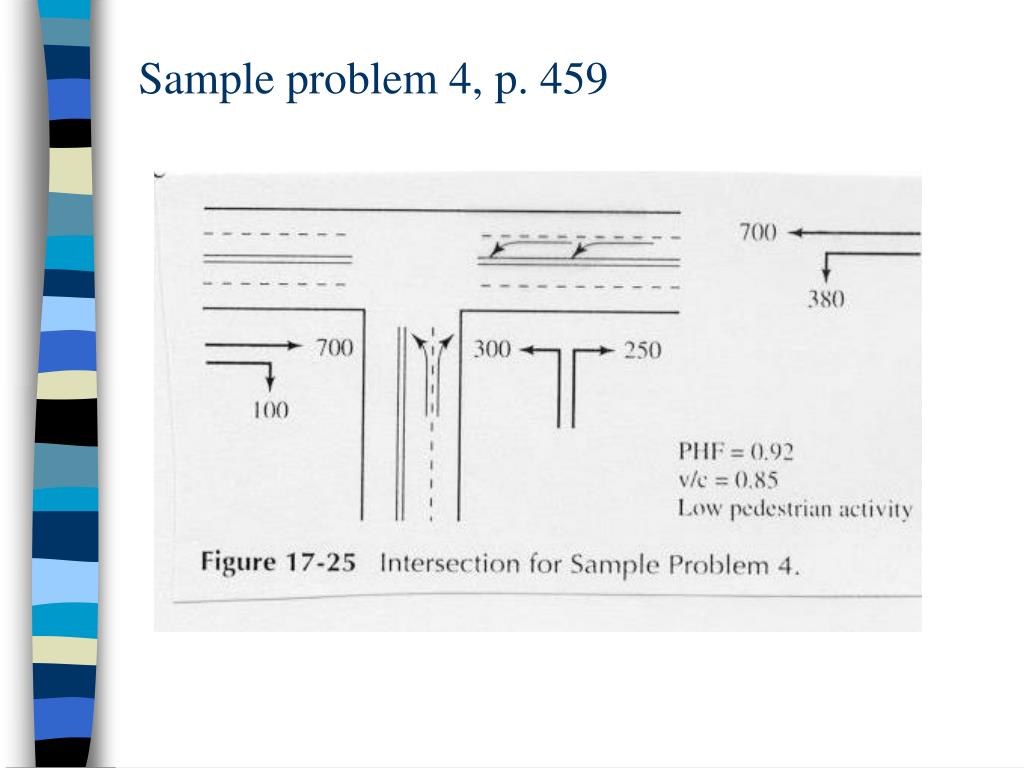

  13. Sample problem 4, p. 459

  14. Through car equivalent (tcu) volumes to determine critical lane or lane group (Step 2)

  15. Sample problem 4, Solution
