Pilot Navigation System

The Pilot Navigation System (PNS), developed by the Maritime University of Szczecin, addresses challenges in navigating constrained waters, such as adverse weather, low visibility, night-time operations, and dense traffic. This system features a prediction subsystem utilizing hydrodynamic models and electronic charts augmented with DGPS for precise positioning. It optimizes information for safe maneuvers, visualizes navigation data effectively, and accommodates both portable and stationary configurations, making it ideal for pilots, ferries, and other vessels operating in restricted areas.

minowa
Télécharger la présentation

Pilot Navigation System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

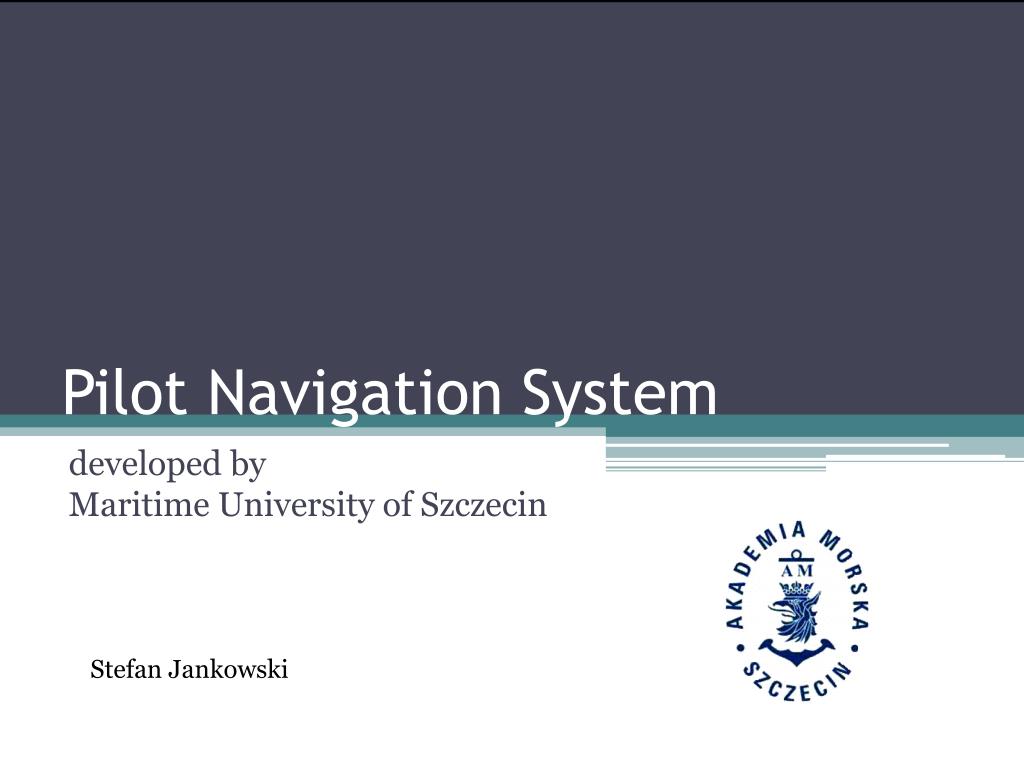

  1. Pilot Navigation System developed by Maritime University of Szczecin Stefan Jankowski
