  1. OpenMP for Task Decomposition Introduction to Parallel Programming – Part 8

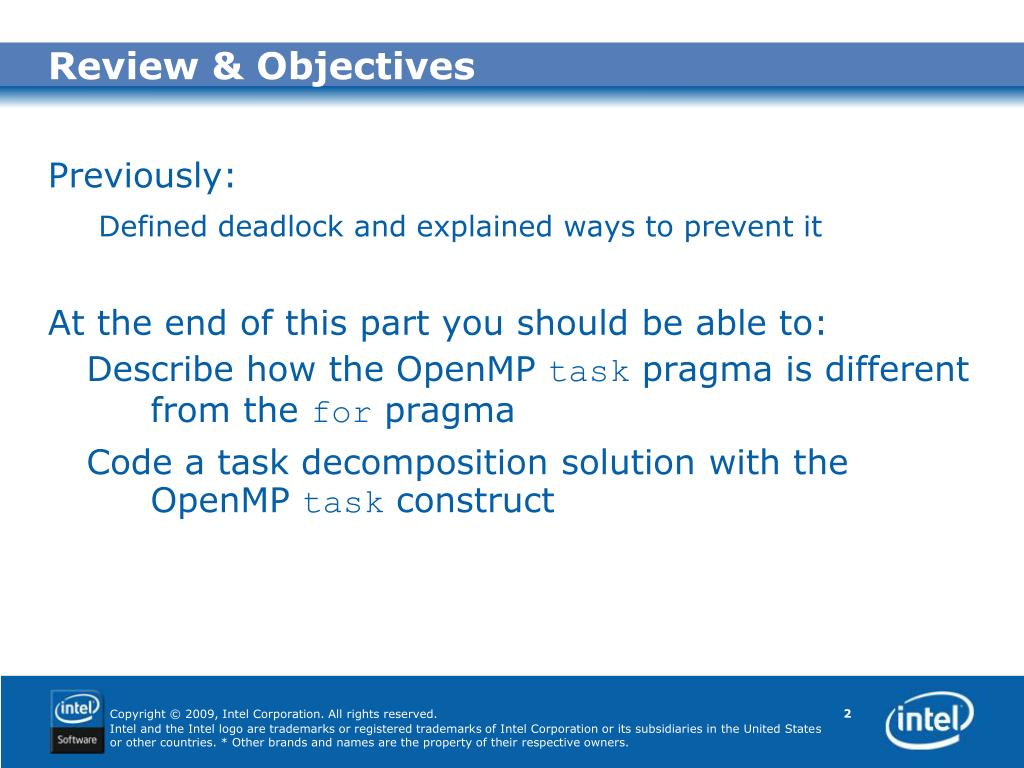

  2. Review & Objectives • Previously: • Defined deadlock and explained ways to prevent it • At the end of this part you should be able to: • Describe how the OpenMP taskpragma is different from the forpragma • Code a task decomposition solution with the OpenMP task construct

  3. Pragma: single • Denotes block of code to be executed by only one thread • First thread to arrive is chosen • Implicit barrier at end #pragmaomp parallel { DoManyThings(); #pragmaomp single { printf(“Many Things done\n”); }// threads wait here for single DoManyMoreThings(); }

  4. New Addition to OpenMP • Tasks – Main change for OpenMP 3.0 • Allows parallelization of irregular problems • unbounded loops • recursive algorithms • producer/consumer

  5. What are tasks? • Tasks are independent units of work • Threads are assigned to perform the work of each task • Tasks may be deferred • Tasks may be executed immediately • The runtime system decides which of the above • Tasks are composed of: • code to execute • data environment • internalcontrol variables (ICV) Serial Parallel

  6. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } head

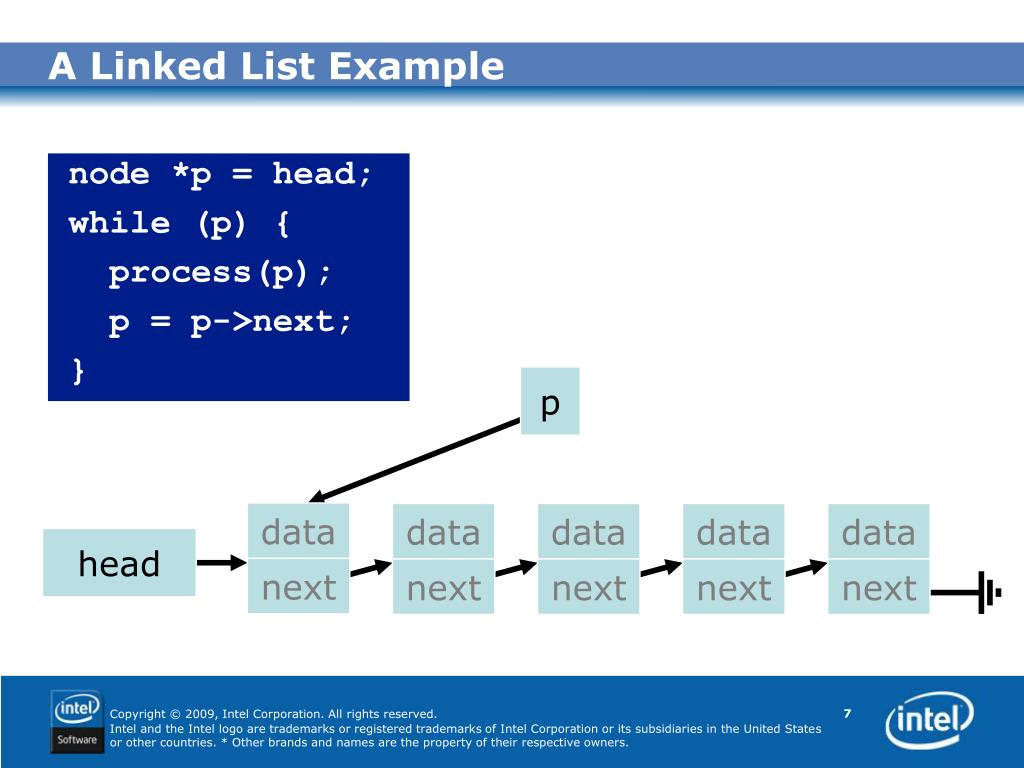

  7. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

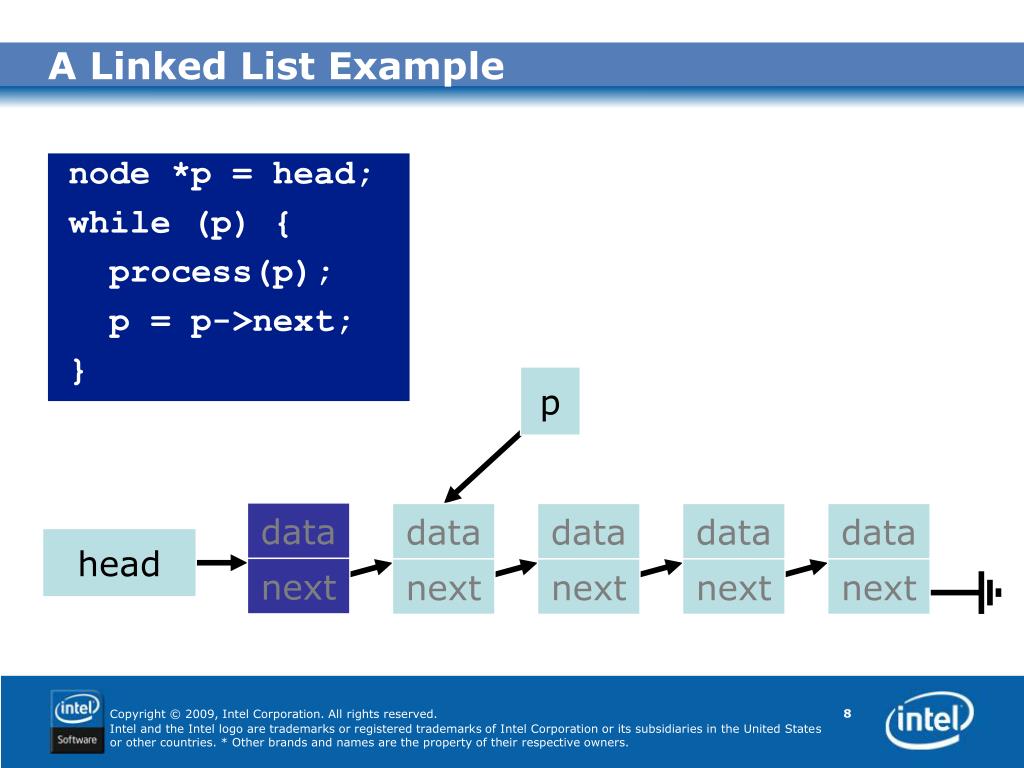

  8. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

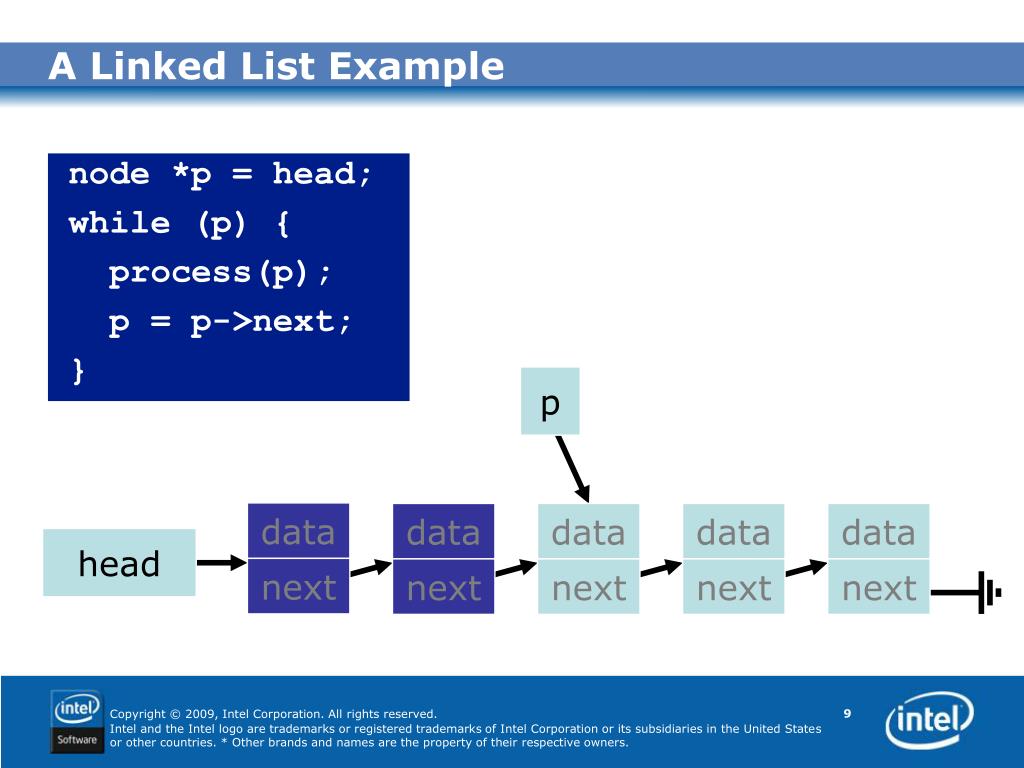

  9. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

  10. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

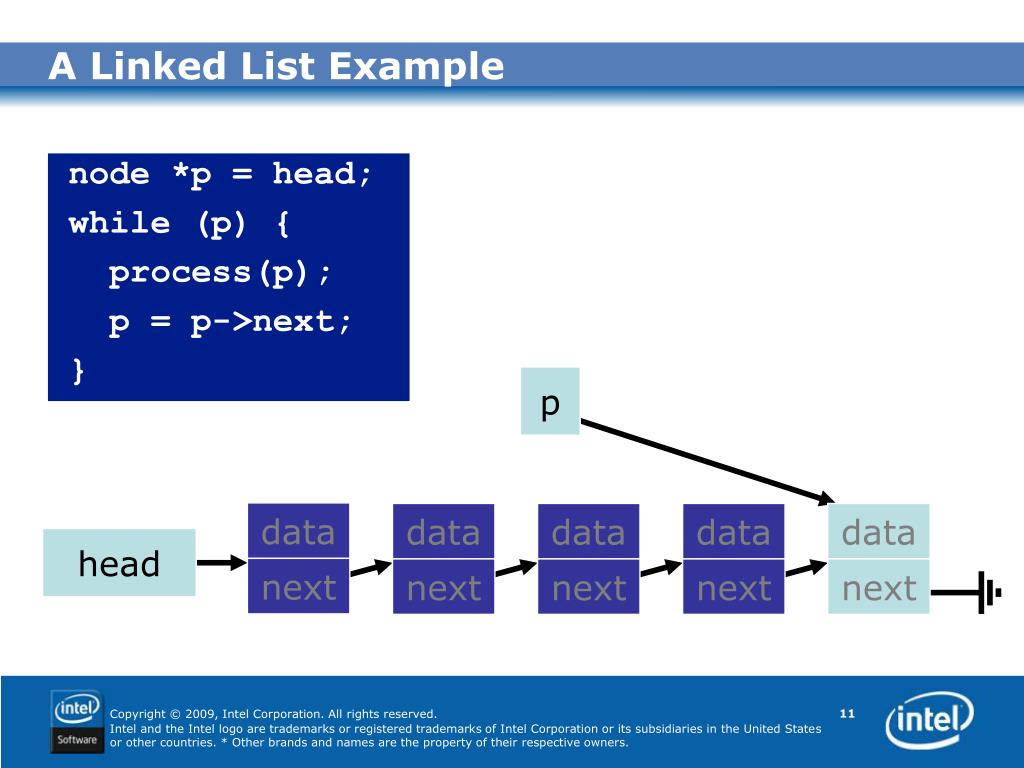

  11. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

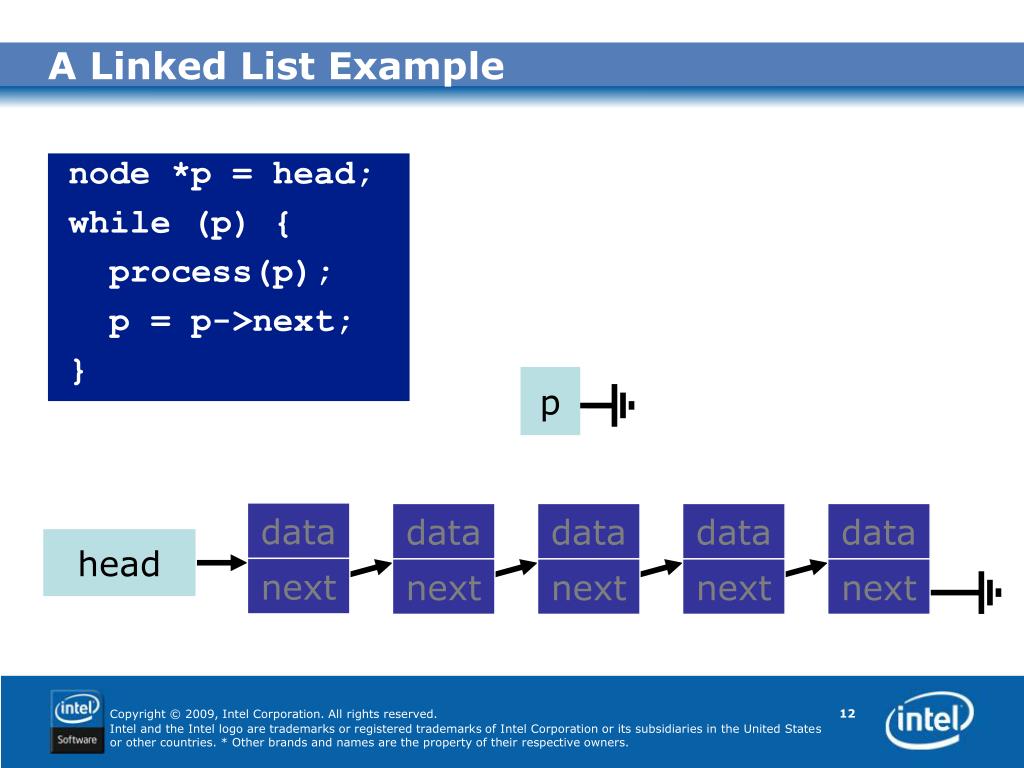

  12. data data data data data next next next next next A Linked List Example node *p = head; while (p) { process(p); p = p->next; } p head

  13. Task Construct – Explicit Task View node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } • A team of threads is forked at the omp parallel construct • A single thread, T0, executes the while loop • Each time T0 crosses the omp task construct it generates a new task • Each task runs in a thread • All tasks complete at the barrier at the end of the parallel region’s single construct

  14. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } p head

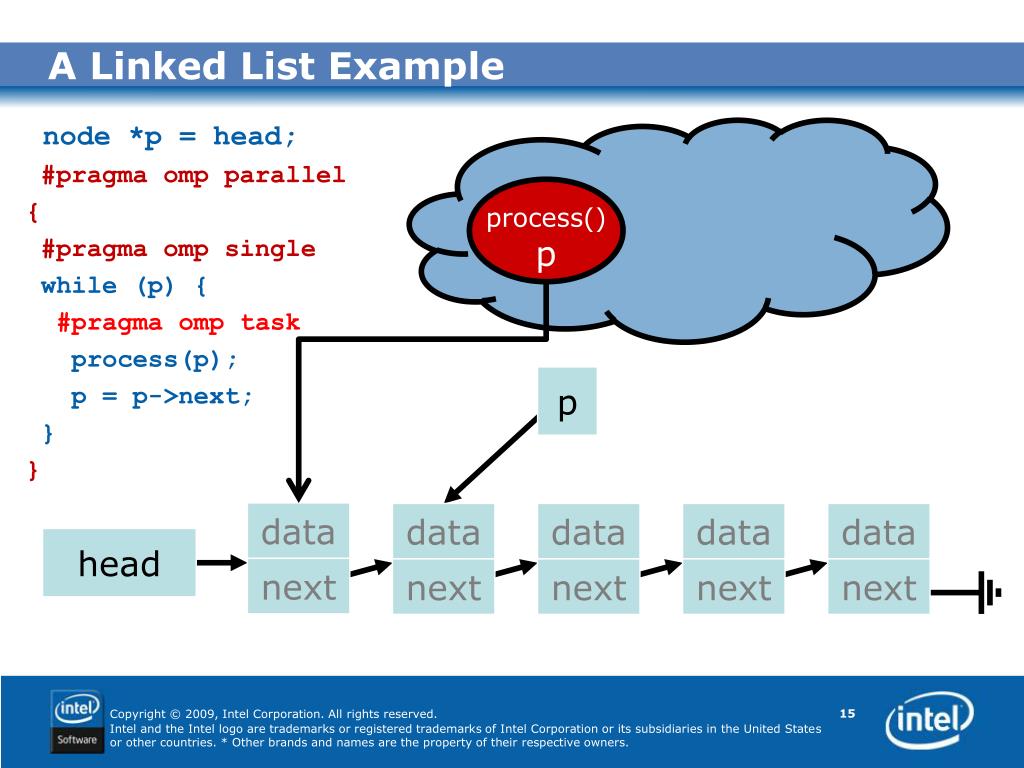

  15. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p p head

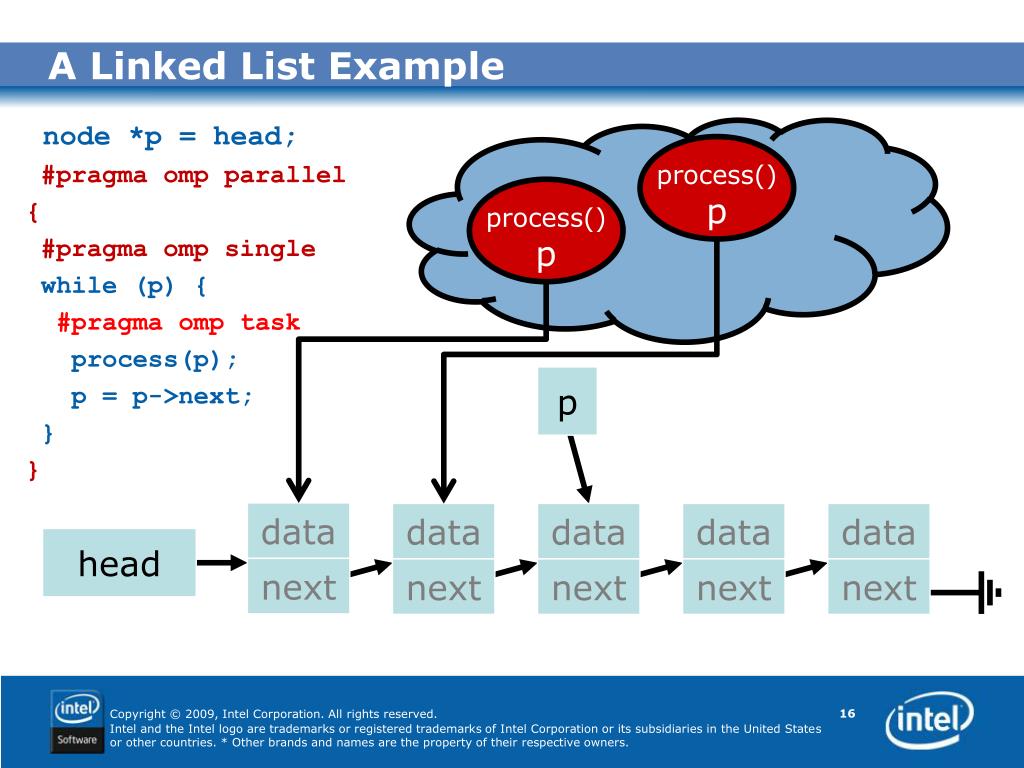

  16. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p process() p p head

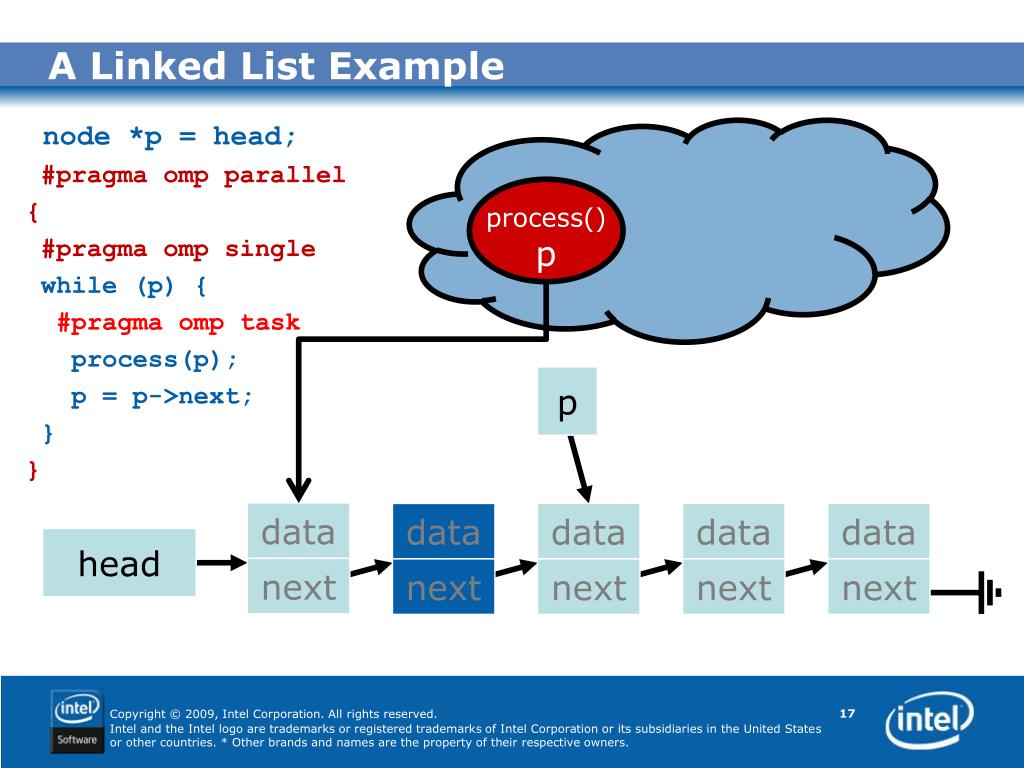

  17. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p p head

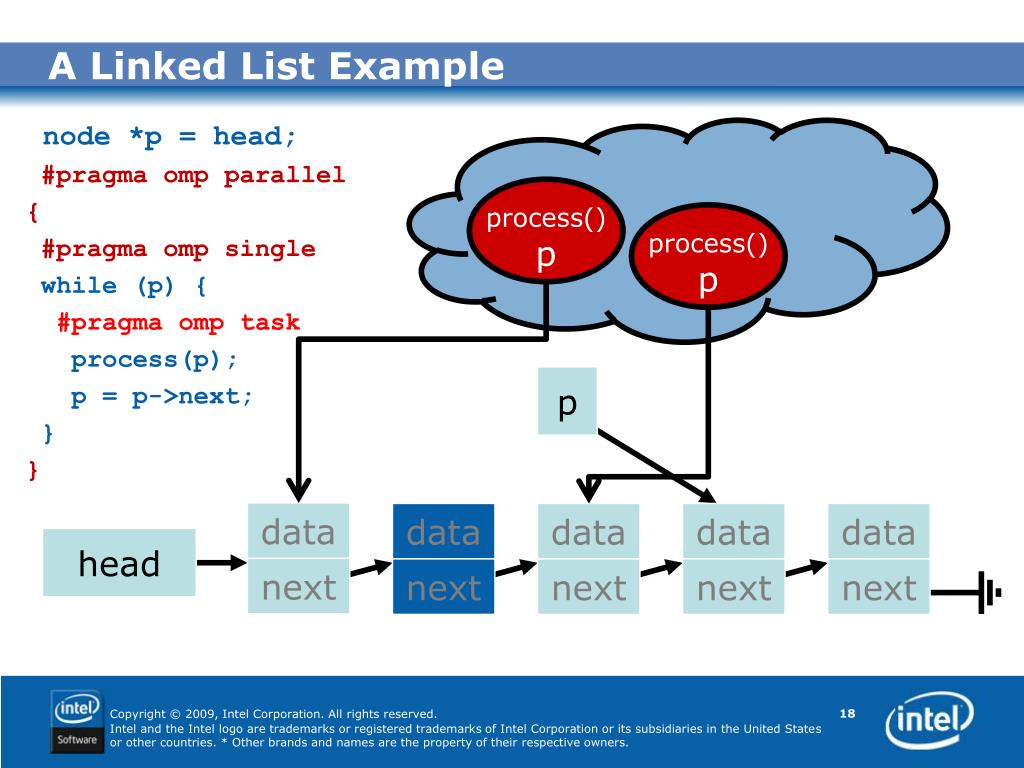

  18. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p process() p p head

  19. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p p head

  20. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p process() p p head

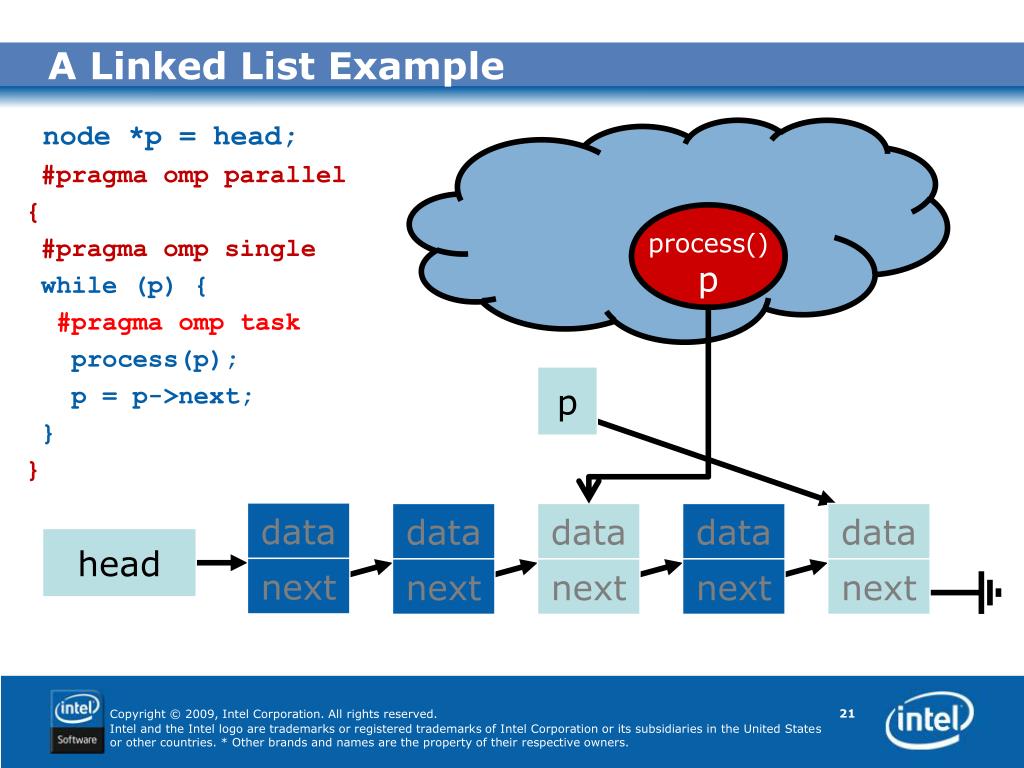

  21. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p p head

  22. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p process() p p head

  23. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } process() p p head

  24. data data data data data next next next next next A Linked List Example node *p = head; #pragmaomp parallel { #pragmaomp single while (p) { #pragmaomp task process(p); p = p->next; } } p head

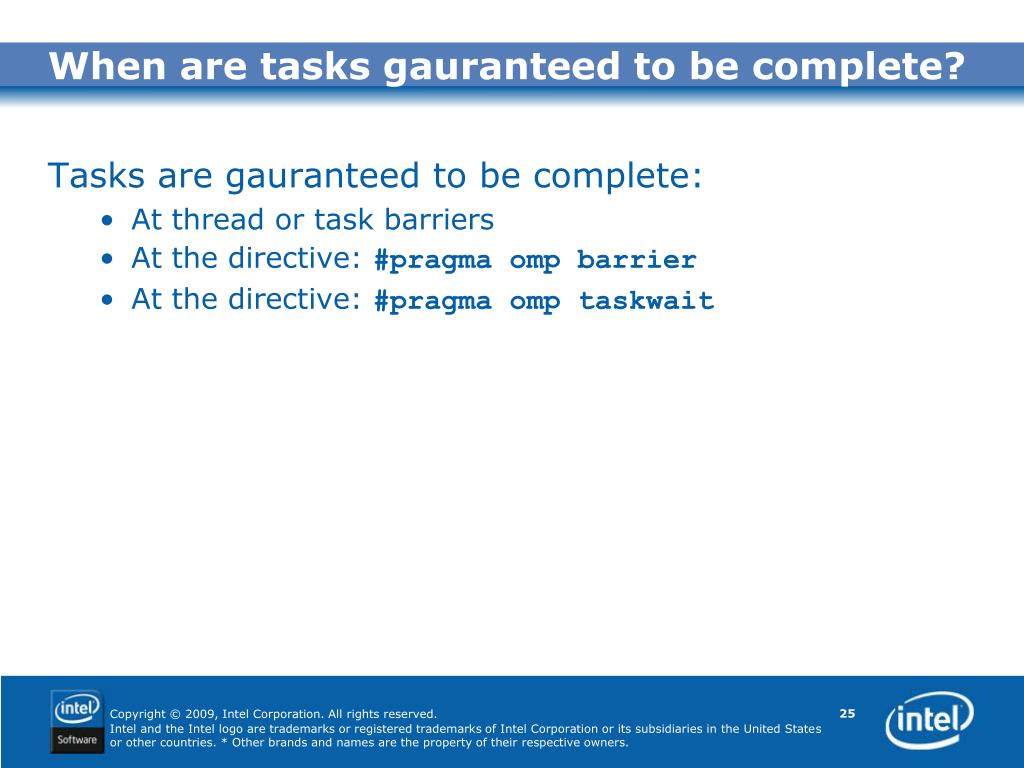

  25. When are tasks gauranteed to be complete? • Tasks are gauranteed to be complete: • At thread or task barriers • At the directive: #pragma omp barrier • At the directive: #pragma omp taskwait

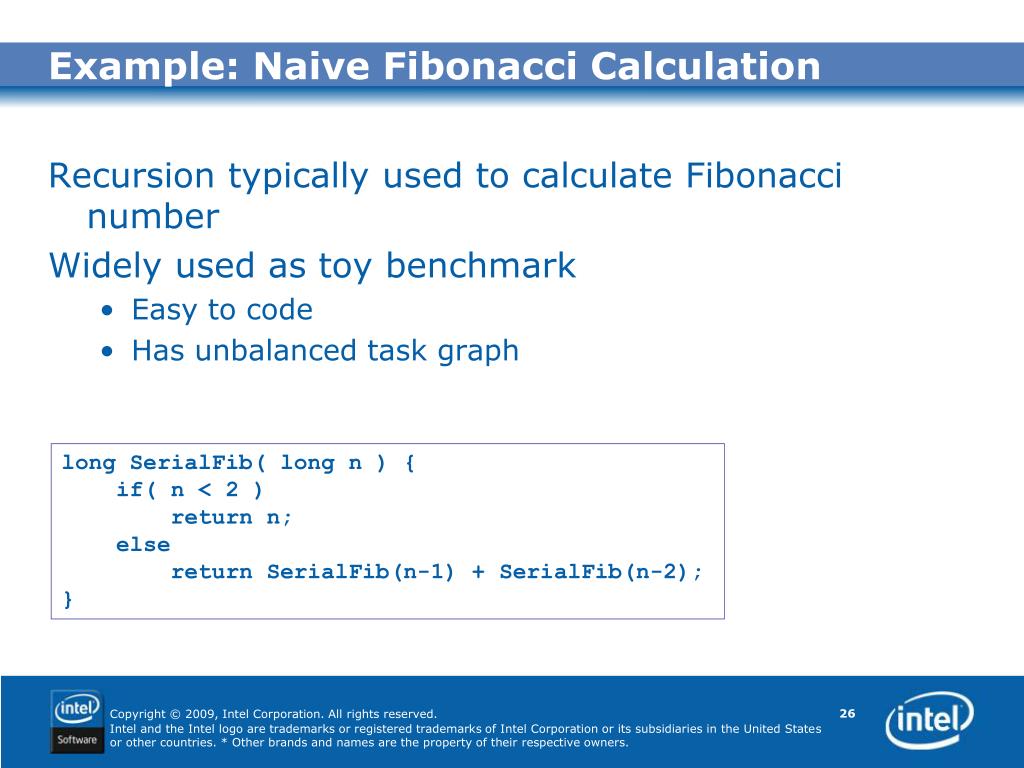

  26. Example: Naive Fibonacci Calculation • Recursion typically used to calculate Fibonacci number • Widely used as toy benchmark • Easy to code • Has unbalanced task graph long SerialFib( long n ) { if( n < 2 ) return n; else return SerialFib(n-1) + SerialFib(n-2); }

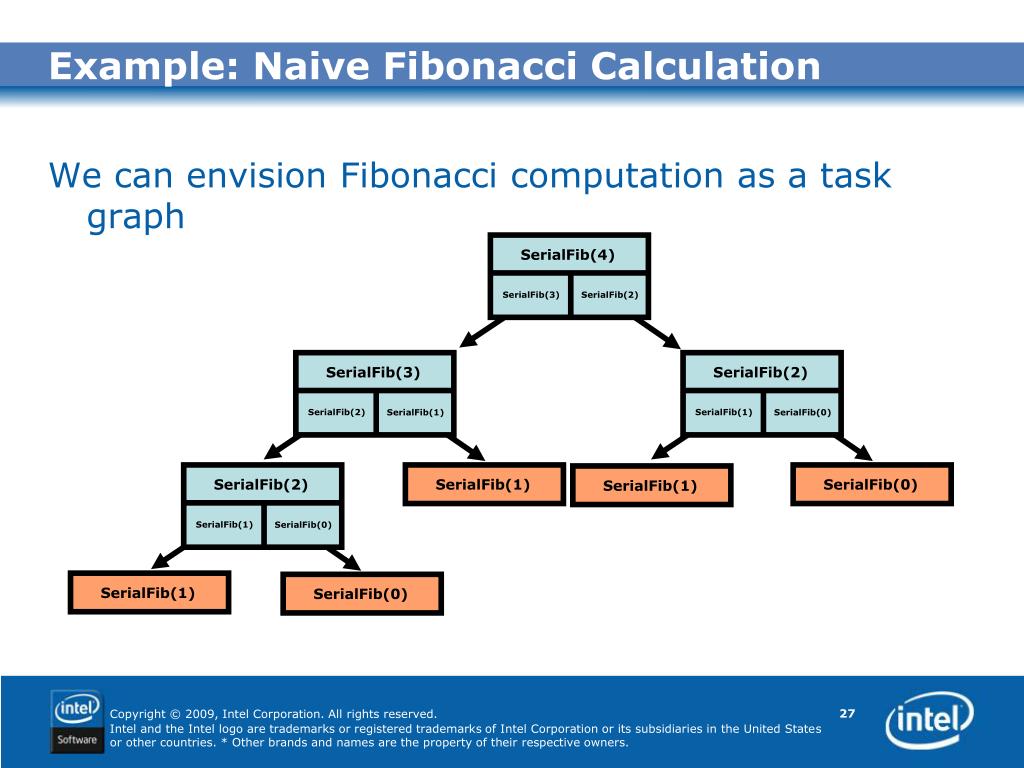

  27. SerialFib(2) SerialFib(4) SerialFib(2) SerialFib(3) SerialFib(3) SerialFib(1) SerialFib(1) SerialFib(2) SerialFib(0) SerialFib(1) SerialFib(0) SerialFib(2) SerialFib(0) SerialFib(1) SerialFib(0) SerialFib(1) SerialFib(1) Example: Naive Fibonacci Calculation • We can envision Fibonacci computation as a task graph

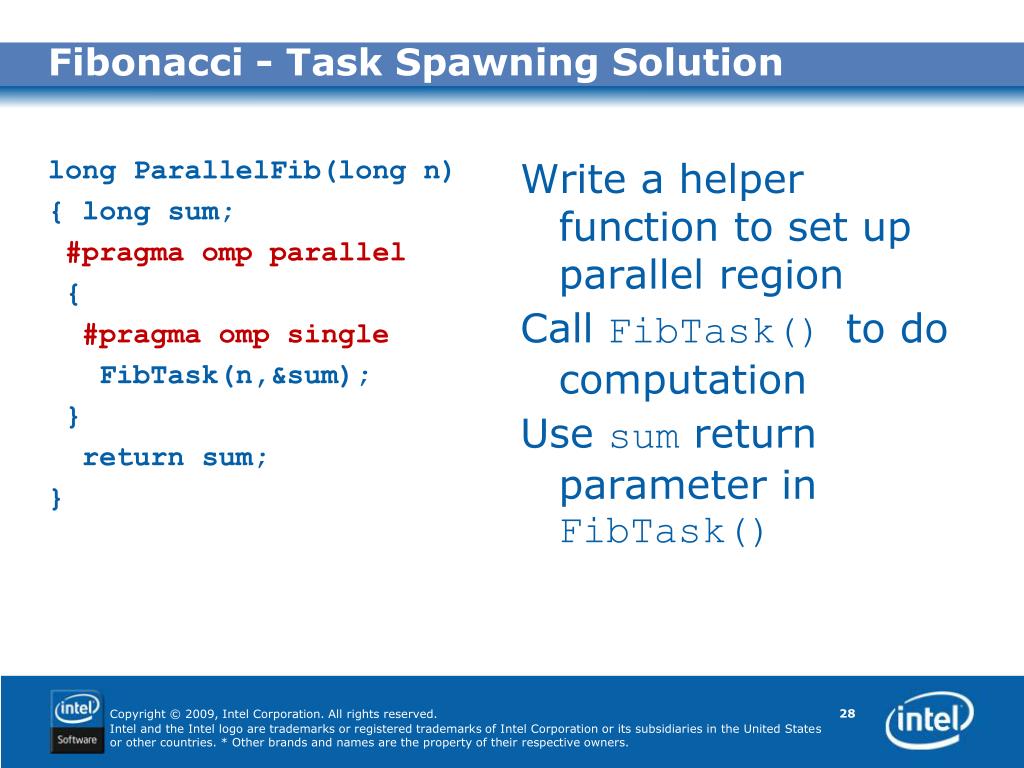

  28. Fibonacci - Task Spawning Solution • long ParallelFib(long n) • { long sum; • #pragmaomp parallel • { • #pragmaomp single • FibTask(n,&sum); • } • return sum; • } • Write a helper function to set up parallel region • Call FibTask() to do computation • Use sum return parameter in FibTask()

  29. Fibonacci - Task Spawning Solution • void FibTask(long n, long* sum) • { • if( n < CutOff ) { • *sum = SerialFib(n); • } • else { • long x, y; • #pragmaomp task • FibTask(n-1,&x); • #pragmaomp task • FibTask(n-2,&y); • #pragmaomptaskwait • *sum = x+y; • } • } • Thread will first check the value of n against CutOff • If the cutoff hasn’t been reached, the thread will create two new tasks • One to compute the n-1 Fib value • One to compute the n-2 Fib value • The computed values for these tasks will be returned through the private variables x and y, respectively • The #pragmaomptaskwaitis required to make sure that the values for x and y have been computed before they are added together into sum

  30. Fibonacci Task Solution Example FibTask(8,*sum) long x, y; FibTask(7,&x); FibTask(6,&y); *sum = x + y;

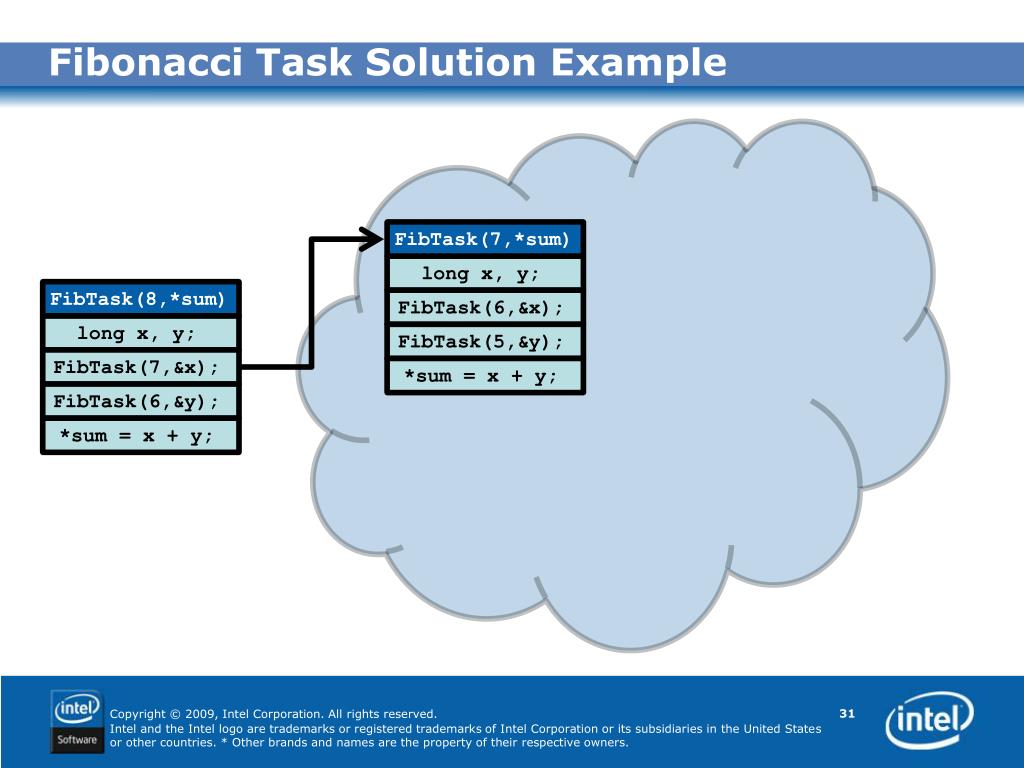

  31. Fibonacci Task Solution Example FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; FibTask(7,&x); FibTask(6,&x); FibTask(6,&y); FibTask(5,&y); *sum = x + y; *sum = x + y;

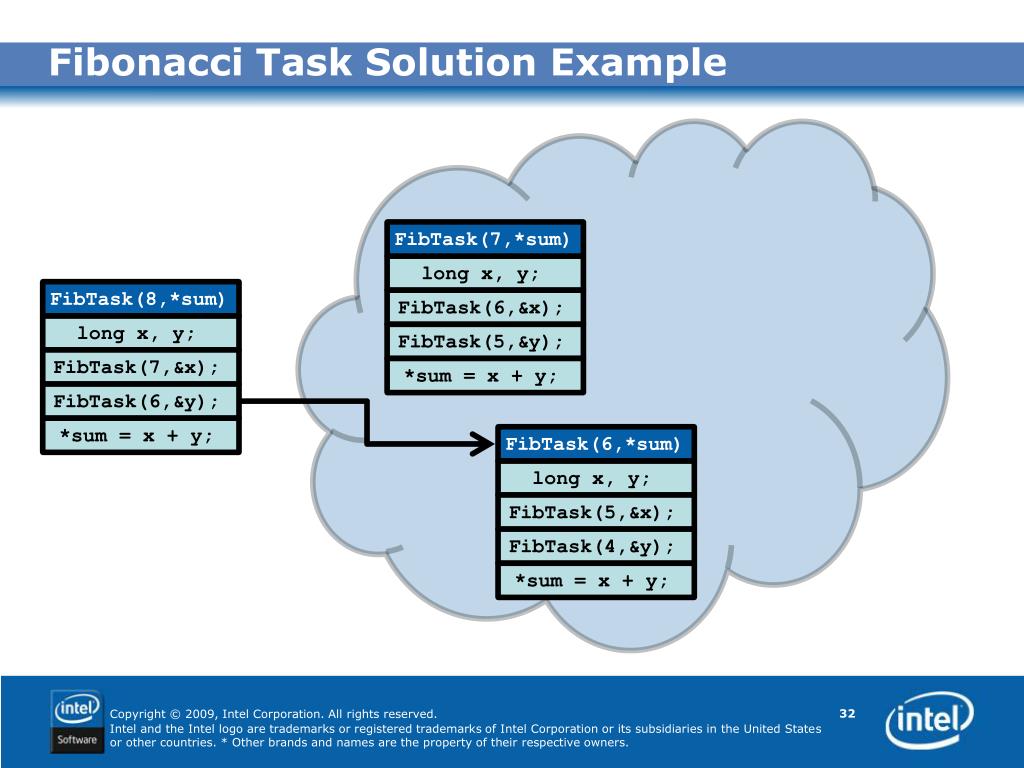

  32. Fibonacci Task Solution Example FibTask(8,*sum) FibTask(7,*sum) FibTask(6,*sum) long x, y; long x, y; long x, y; FibTask(7,&x); FibTask(6,&x); FibTask(5,&x); FibTask(6,&y); FibTask(5,&y); FibTask(4,&y); *sum = x + y; *sum = x + y; *sum = x + y;

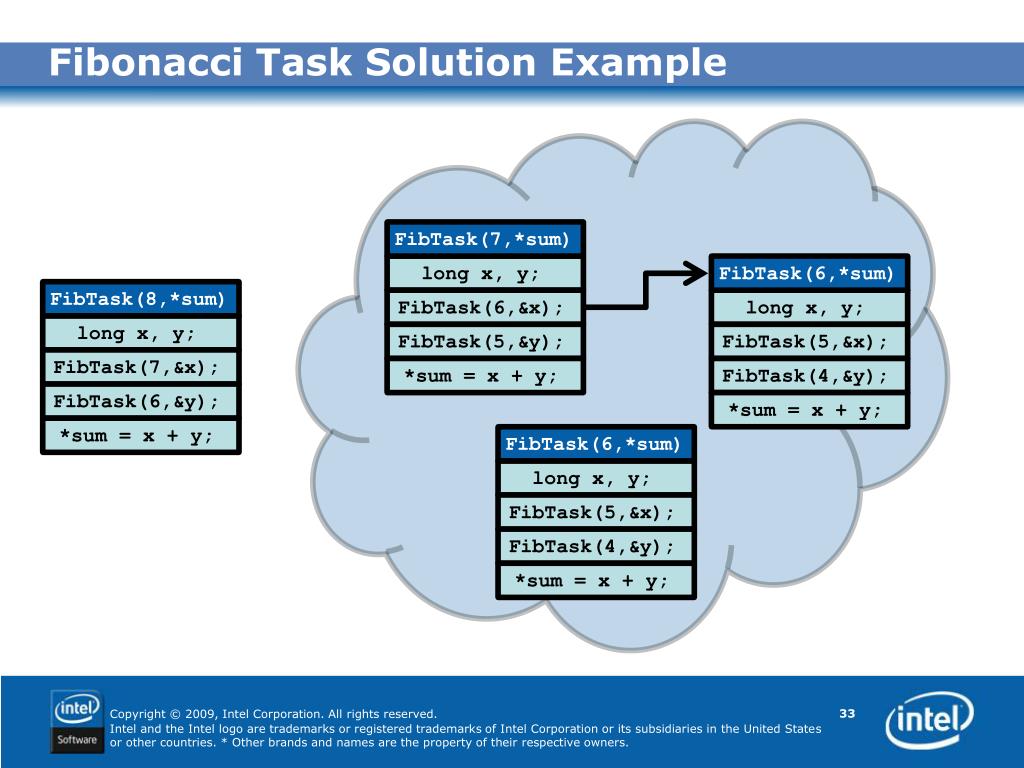

  33. Fibonacci Task Solution Example FibTask(6,*sum) FibTask(6,*sum) FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; long x, y; long x, y; FibTask(5,&x); FibTask(7,&x); FibTask(5,&x); FibTask(6,&x); FibTask(4,&y); FibTask(6,&y); FibTask(4,&y); FibTask(5,&y); *sum = x + y; *sum = x + y; *sum = x + y; *sum = x + y;

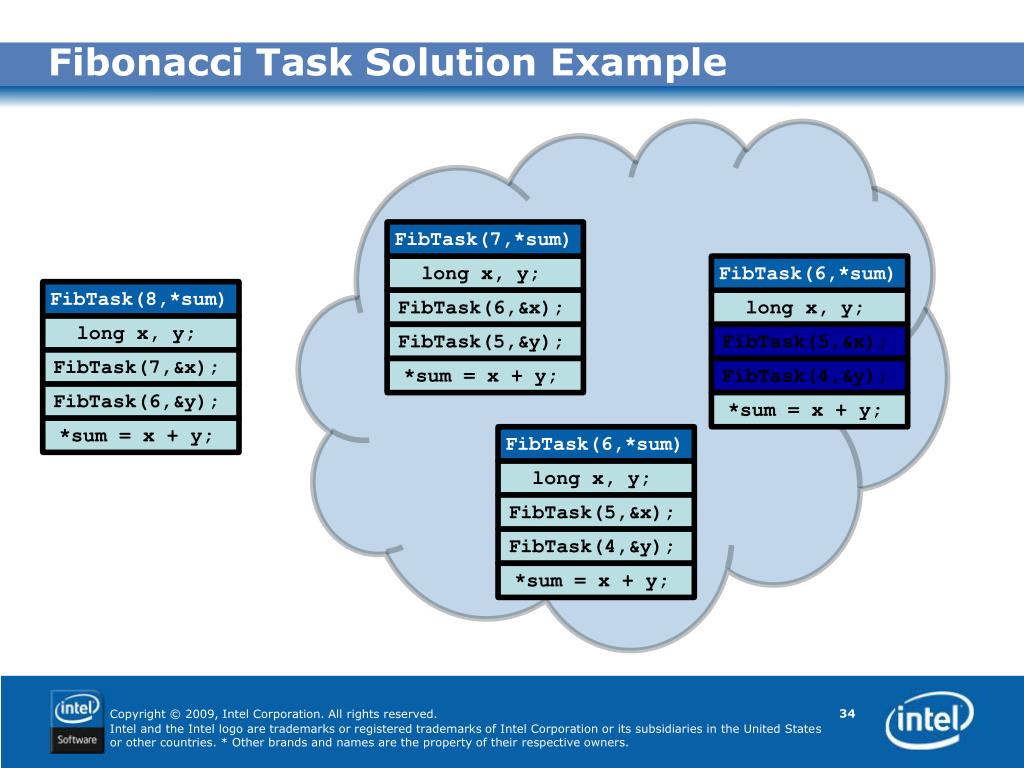

  34. Fibonacci Task Solution Example FibTask(6,*sum) FibTask(6,*sum) FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; long x, y; long x, y; FibTask(5,&x); FibTask(7,&x); FibTask(5,&x); FibTask(6,&x); FibTask(4,&y); FibTask(6,&y); FibTask(4,&y); FibTask(5,&y); *sum = x + y; *sum = x + y; *sum = x + y; *sum = x + y;

  35. Fibonacci Task Solution Example FibTask(6,*sum) FibTask(6,*sum) FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; long x, y; long x, y; FibTask(5,&x); FibTask(7,&x); FibTask(5,&x); FibTask(6,&x); FibTask(4,&y); FibTask(6,&y); FibTask(4,&y); FibTask(5,&y); *sum = x + y; *sum = x + y; *sum = x + y; *sum = x + y;

  36. Fibonacci Task Solution Example FibTask(6,*sum) FibTask(6,*sum) FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; long x, y; long x, y; FibTask(5,&x); FibTask(7,&x); FibTask(5,&x); FibTask(6,&x); FibTask(4,&y); FibTask(6,&y); FibTask(4,&y); FibTask(5,&y); *sum = x + y; *sum = x + y; *sum = x + y; *sum = x + y;

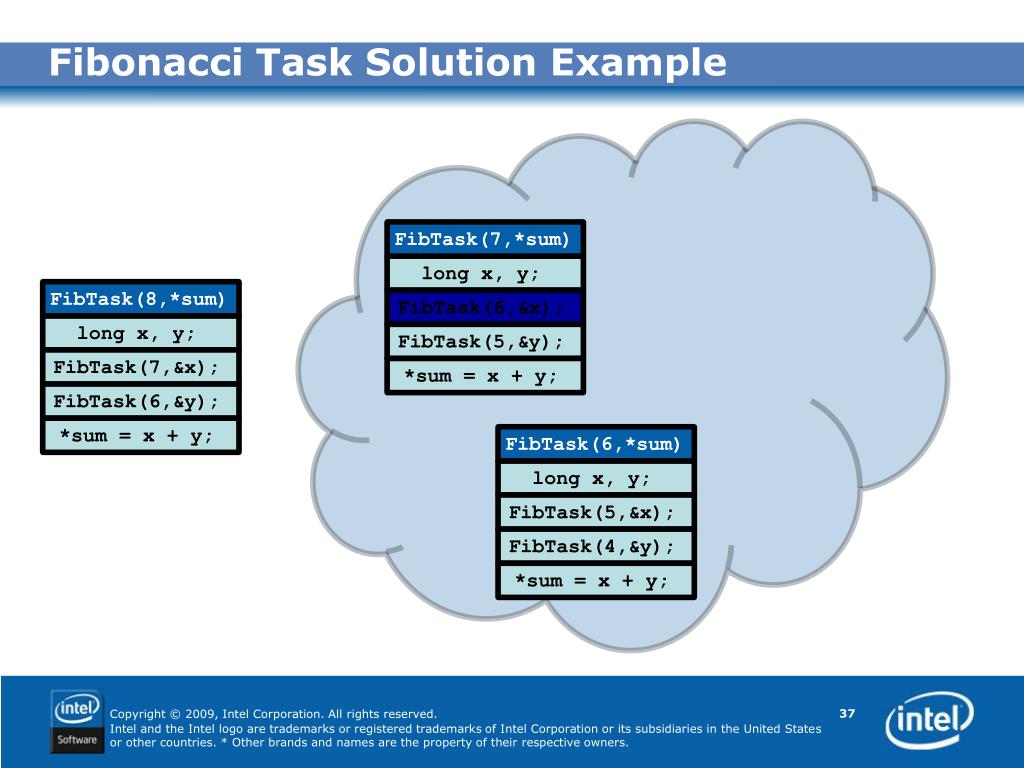

  37. Fibonacci Task Solution Example FibTask(8,*sum) FibTask(7,*sum) FibTask(6,*sum) long x, y; long x, y; long x, y; FibTask(7,&x); FibTask(6,&x); FibTask(5,&x); FibTask(6,&y); FibTask(5,&y); FibTask(4,&y); *sum = x + y; *sum = x + y; *sum = x + y;

  38. Fibonacci Task Solution Example FibTask(8,*sum) FibTask(7,*sum) FibTask(6,*sum) long x, y; long x, y; long x, y; FibTask(7,&x); FibTask(6,&x); FibTask(5,&x); FibTask(6,&y); FibTask(5,&y); FibTask(4,&y); *sum = x + y; *sum = x + y; *sum = x + y;

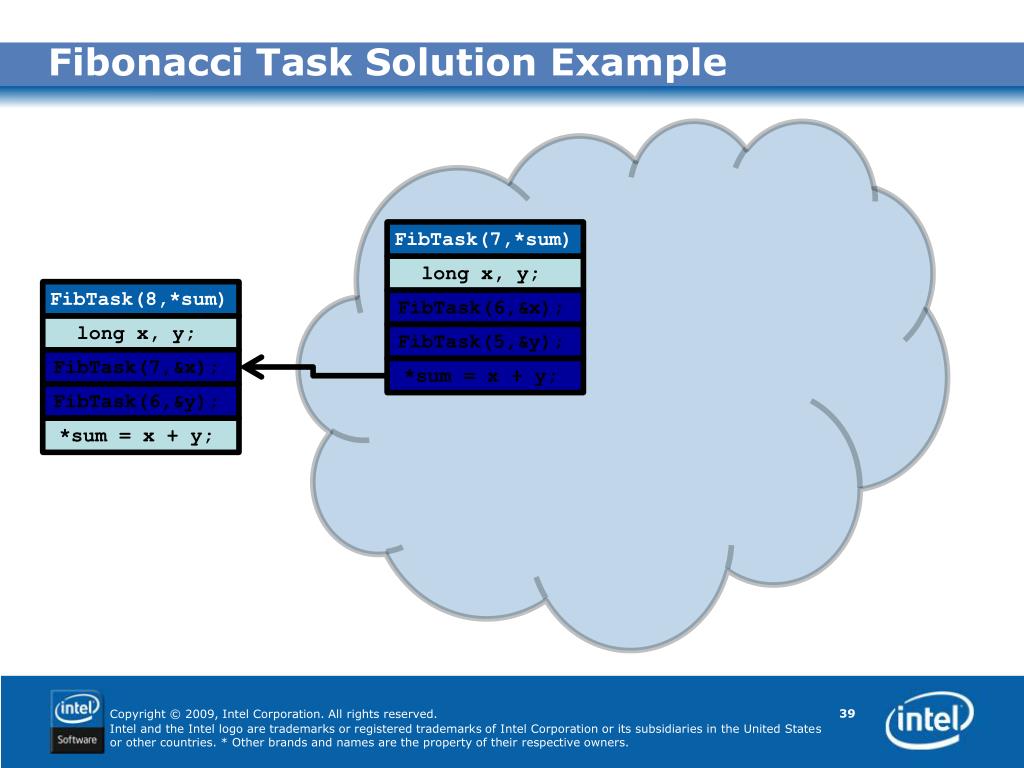

  39. Fibonacci Task Solution Example FibTask(8,*sum) FibTask(7,*sum) long x, y; long x, y; FibTask(7,&x); FibTask(6,&x); FibTask(6,&y); FibTask(5,&y); *sum = x + y; *sum = x + y;

  40. Fibonacci Task Solution Example FibTask(8,*sum) long x, y; FibTask(7,&x); FibTask(6,&y); *sum = x + y;

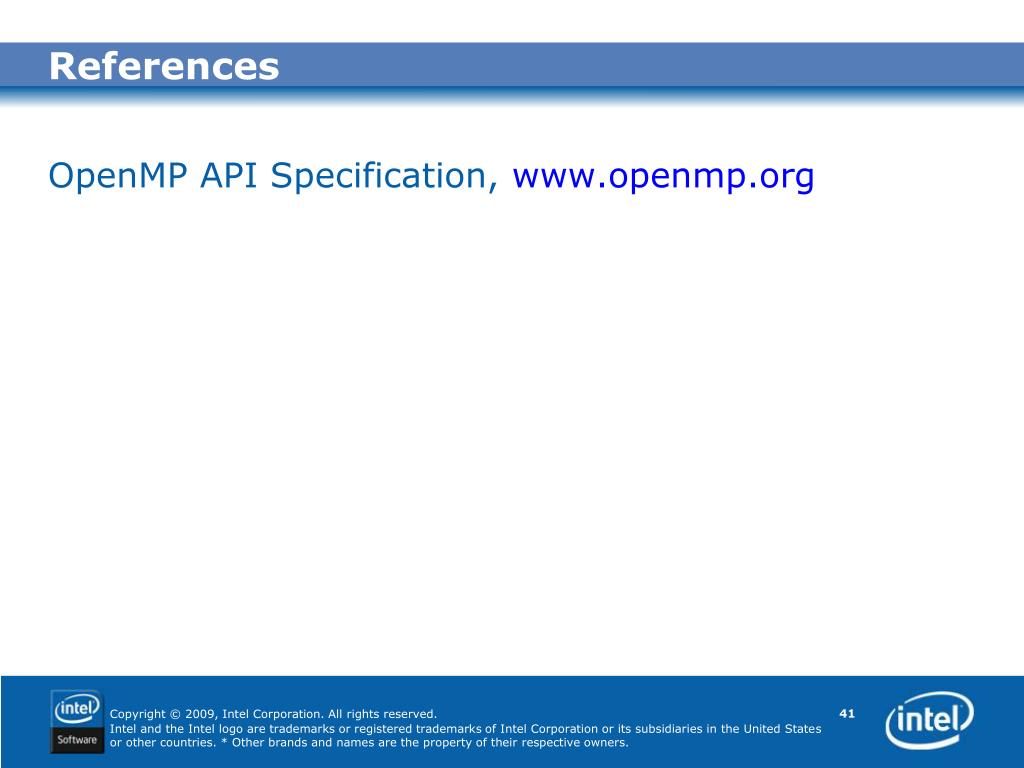

  41. References • OpenMP API Specification, www.openmp.org
