  1. Cladding

  2. Cladding Outline • Product Range • Features • Cost-Effectiveness • Insulation • Selekta Profile • Laying Methods • Technical Specifications • Assembly Instructions • Siding Profile • Laying Methods • Technical Specifications • Assembly Instructions • Colours • Reference Projects Cladding: Outline

  3. Cladding | Product Range Selekta Siding Cladding: Products

  4. Price/Euro Grade Width shrinkage Surface finish Maintenance interval 1 Maintenance interval 2 Maintenance interval 3 69 46 15 Cladding | Cost-Effectiveness Werzalit Colorpan Wood cladding Ready to fit incl. factory-coated surface 100 % maintenance-free with warranty certificate 100 % processable Coat approx. every 4 years Approx. 10 % waste due to warping/knots Surface finish required Cladding: Cost-Effectiveness

  5. Cladding | Selekta Features Selekta Features Horizontal Vertical Diagonal • Option of horizontal, vertical or diagonal installation • Large fixing clearances up tomax. 625 mm • Ready-to-fit tongue-and-groove joints • Pre-punched slots for fixing cladding screws 3.5 mm x 30 mm • Can also be used as weatherboarding in conjunction with T+G weatherboarding hooks • Matching profiles, universal connecting profiles and soffit/fascia profiles available Cladding: Features

  6. Cladding | Selekta Technical Specifications Technical Specifications Cladding profile Selekta 155/1 Selekta 115/1 Coverage width 155 mm (+1/-2) 115 mm (+1/-2) Coverage length 5400 mm max. 5400 mm max. Material requirement/sq m 6.45 running m 8.7 running m Thickness when fitted approx. 19 mm approx. 19 mm Versions B2*, B1** B2* Surface Crepe texture, colours: colorpan/dekopan plus * Standard - normal flammability ** On request - low flammability Cladding: Technical Specifications

  7. Cladding | Selekta Fittings System Start of installation: Horizontal Vertical Cladding: Fittings System

  8. Cladding | Selekta Fittings System Connection at window parapet with Z profile 2 Cladding: Fittings System

  9. Cladding | Selekta Fittings System Connection at window reveal with external corner C or connecting profile F Cladding: Fittings System

  10. Cladding | Siding Fittings System Internal corner transition with joint tape 2 Cladding: Fittings System

  11. Cladding | Selekta Fittings System Connection at window lintel with Z profile 1 Cladding: Fittings System

  12. Cladding | Selekta Fittings System Corner solution with external corner C Cladding: Fittings System

  13. Cladding | Siding Features Siding Features Horizontal Butt joint • Horizontal installation • Butt joint prefabricated and incorporated in profile: overlapping, no open joints • Large fixing clearances possible up to max.625 mm (distance of support battens) • Ready-to-fit tongue-and-groove joints in weatherboarding effect • Pre-punched slots for fixing cladding screws 3.5 mm x 30 mm • Handy profile length (3.66 m) can be fitted by one person • Matching profiles available Cladding: Siding Features

  14. Cladding | Siding Technical Specifications Technical Specifications Cladding profile Siding 152 Coverage width 152 mm (+/-1) Coverage length max. 3600 mm (+2/-1) Material requirement/sq m 6.58 running m Thickness when fitted approx. 20 mm (fitted), 10 mm (tongue), 18 mm (groove) Versions B2*, B1** Surface Flat texture, colours: colorpan * Standard - normal flammability ** On request - low flammability Cladding: Technical Specifications

  15. Cladding | Siding Fittings System Start of installation with starter profile P Cladding: Fittings System

  16. Cladding | Siding Fittings System Window parapet with Z profile 2 Cladding: Fittings System

  17. Cladding | Siding Fittings System Connection at window reveal with external corner C or connecting profile F Cladding: Fittings System

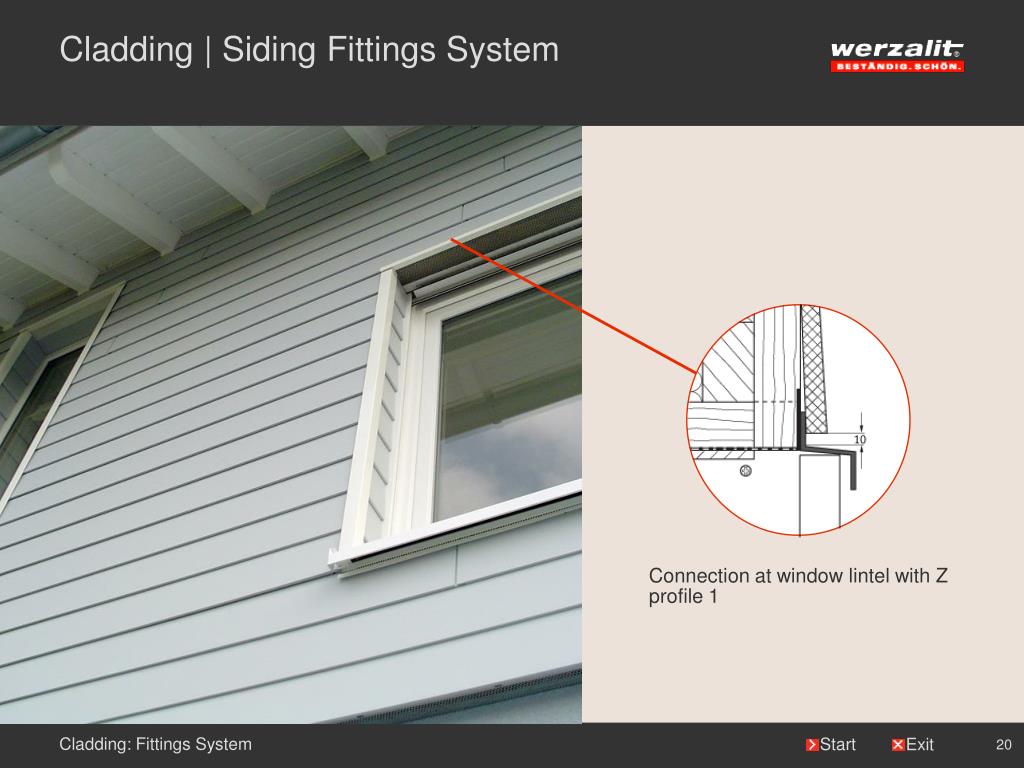

  18. Cladding | Siding Fittings System Connection at window lintel with Z profile 1 Cladding: Fittings System

  19. Cladding | Siding Fittings System External corner Outside profile C with base section and cover Alternatively: Werzalit S 145 profile Cladding: Fittings System

  20. Cladding | Colours & Designs Siding colour chart Selekta colour chart Cladding: Colours & Designs

  21. Cladding | Before/After Cladding: Before/After

  22. Cladding | Reference Projects Cladding: Reference Projects

  23. Cladding | Reference Projects Cladding: Reference Projects

  24. Cladding | Reference Projects Cladding: Reference Projects

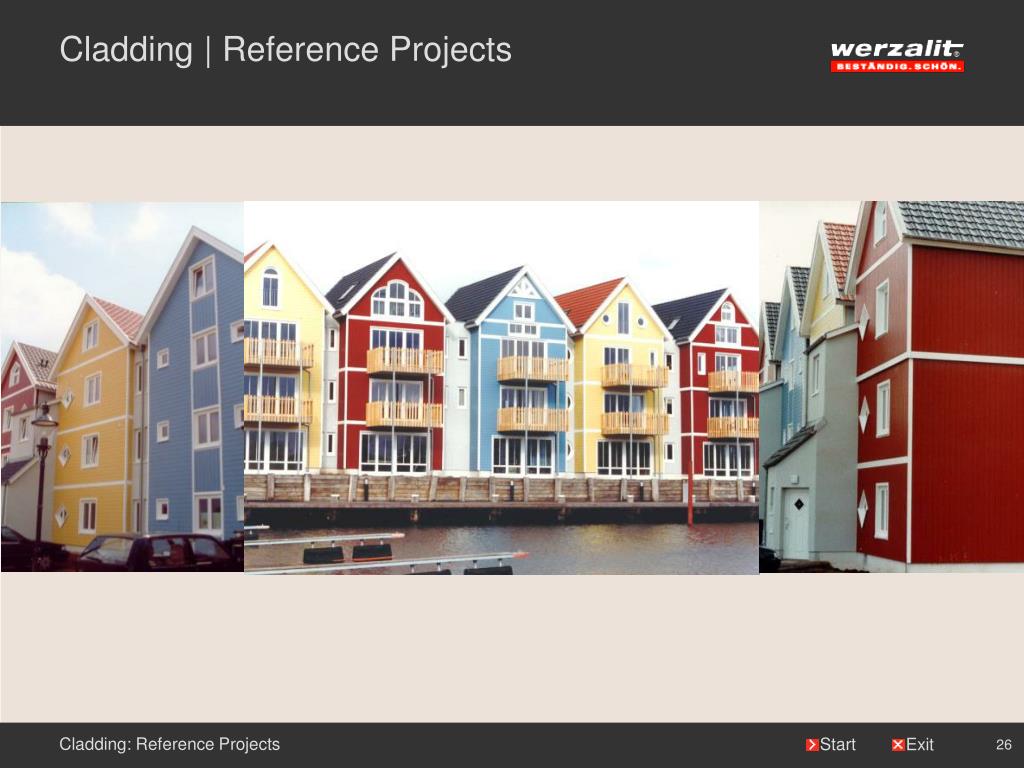

  25. Cladding | Reference Projects Cladding: Reference Projects

  26. Cladding | Reference Projects Cladding: Reference Projects
