  1. Image Processing for Plant Recognition in Mechanical Weeding Applications Fergus Browne ECE 09427091

  2. Project Aim • Develop algorithm to detect plants and ignore weeds using OpenCV • Implement algorithm on Smartphone or other suitable platform

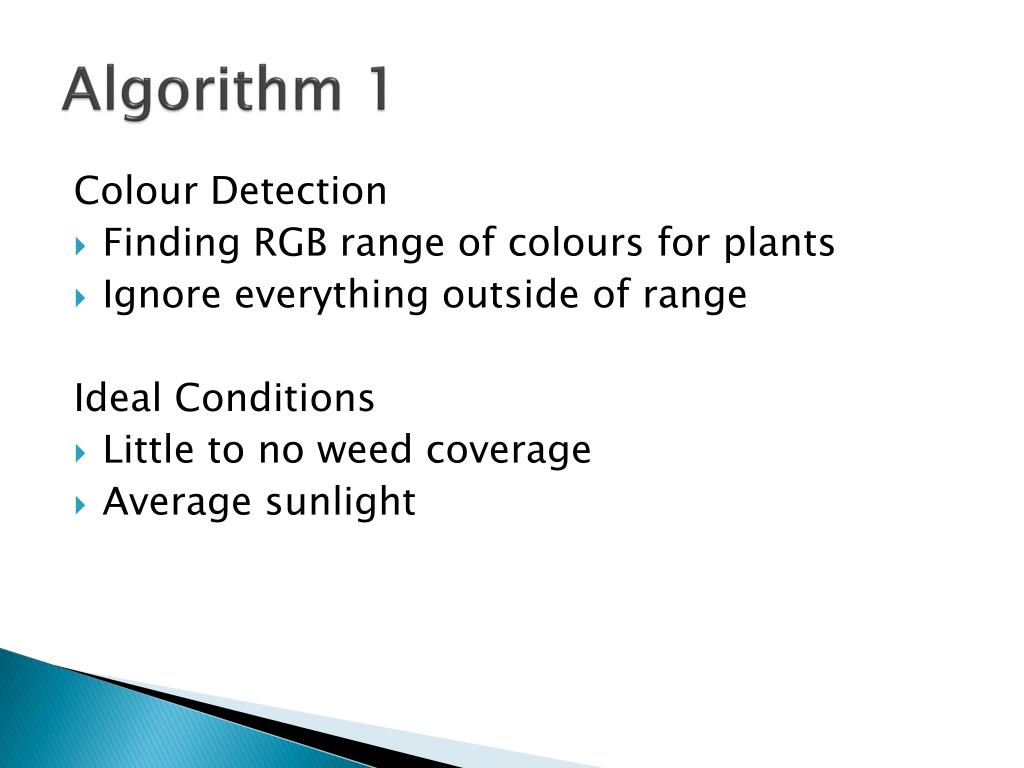

  3. Algorithm 1 Colour Detection • Finding RGB range of colours for plants • Ignore everything outside of range Ideal Conditions • Little to no weed coverage • Average sunlight

  4. Results • Blurring makes shapes inaccurate • Weeds can have very similar colours to plants • 2/12(16.66%) images had successful results

  5. Algorithm 2 Contours and Hough Circles • Search for contours above a specific threshold • Examine contours found, surrounding those likely to be part of a circle in Hough Circle Key Points • Different images require different threshold values • Not all plants have circular shapes

  6. Results • 3/12 (25%) of images had successful results • Large range of threshold values required(manual input!)

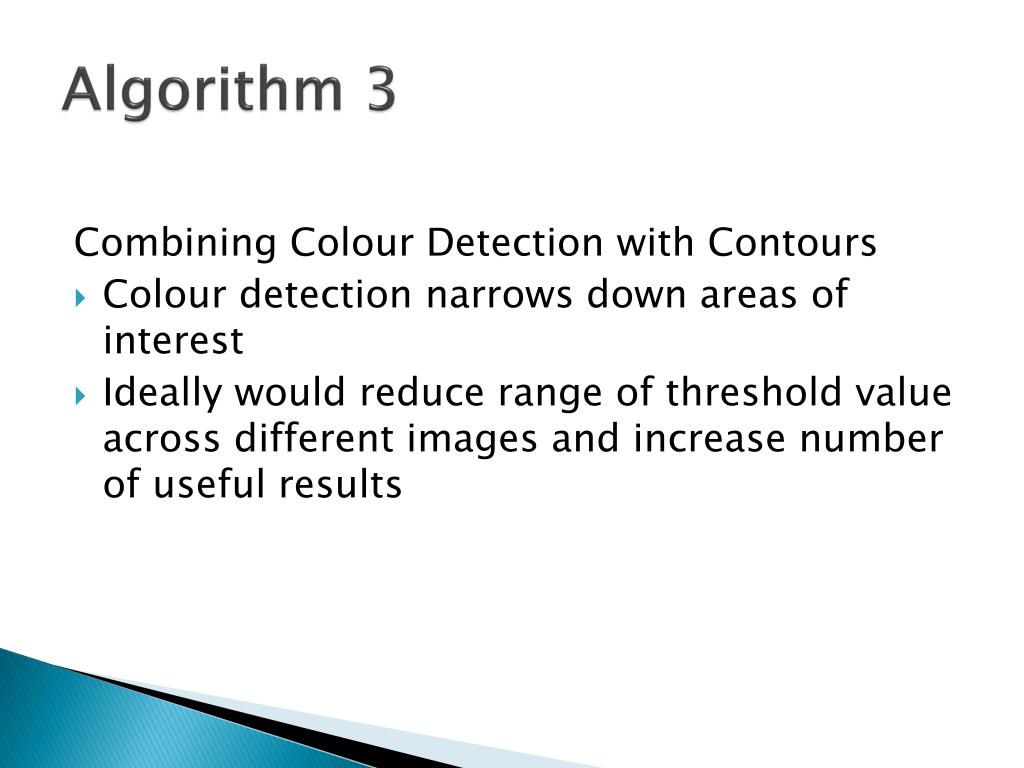

  7. Algorithm 3 Combining Colour Detection with Contours • Colour detection narrows down areas of interest • Ideally would reduce range of threshold value across different images and increase number of useful results

  8. Results • 2/12 (16.66%) images provide useful results. • Threshold range reduced from 151 to 238 (87) and new range ran from 184 to 223(39) • Does not improve on previous algorithm, less successful results

  9. Algorithm 4 Template Matching • Search for image within larger image • Examine template at each point in image, calculate matching coefficient • Draw rectangle at best point

  10. Results

  11. Conclussions • Colour detection unable to narrow down areas of interest sufficiently • Template Matching proving very promising (5/5 successful results)

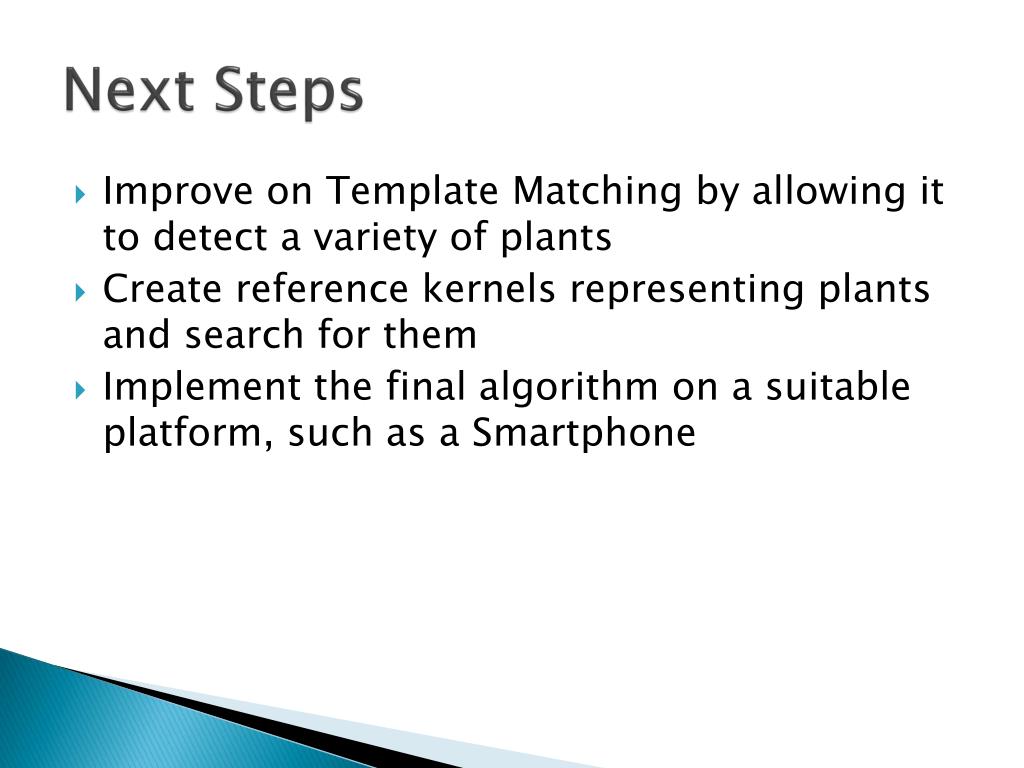

  12. Next Steps • Improve on Template Matching by allowing it to detect a variety of plants • Create reference kernels representing plants and search for them • Implement the final algorithm on a suitable platform, such as a Smartphone
