First ideas for the AT LAS C ontrol R oom design

1. First ideas for the ATLAS Control Room design Outcome of “brainstorming sessions” in a small working group: H. Burckhart, B. Chauchaix, B. Di Girolamo, I. Efthymiopoulos, O. Jonsson, D. Liko, L. Mapelli, G. Mornacchi, M. Nessi Areas we discussed: mandate, functionalities, layout, organization, technologies, software More input after the workshop and today’s discussion … Ilias Efthymiopoulos ATLAS Plenary Meeting February 26, 2004

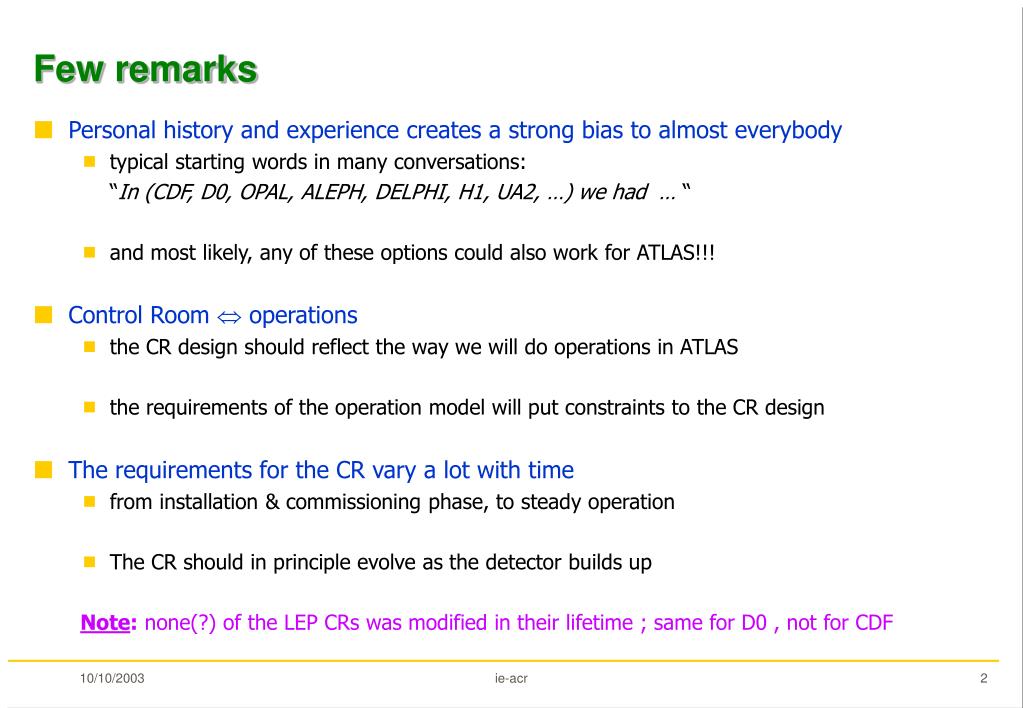

2. Few remarks • Personal history and experience creates a strong bias to almost everybody • typical starting words in many conversations: “In (CDF, D0, OPAL, ALEPH, DELPHI, H1, UA2, …) we had … “ • and most likely, any of these options could also work for ATLAS!!! • Control Room  operations • the CR design should reflect the way we will do operations in ATLAS • the requirements of the operation model will put constraints to the CR design • The requirements for the CR vary a lot with time • from installation & commissioning phase, to steady operation • The CR should in principle evolve as the detector builds up Note: none(?) of the LEP CRs was modified in their lifetime ; same for D0 , not for CDF ie-acr

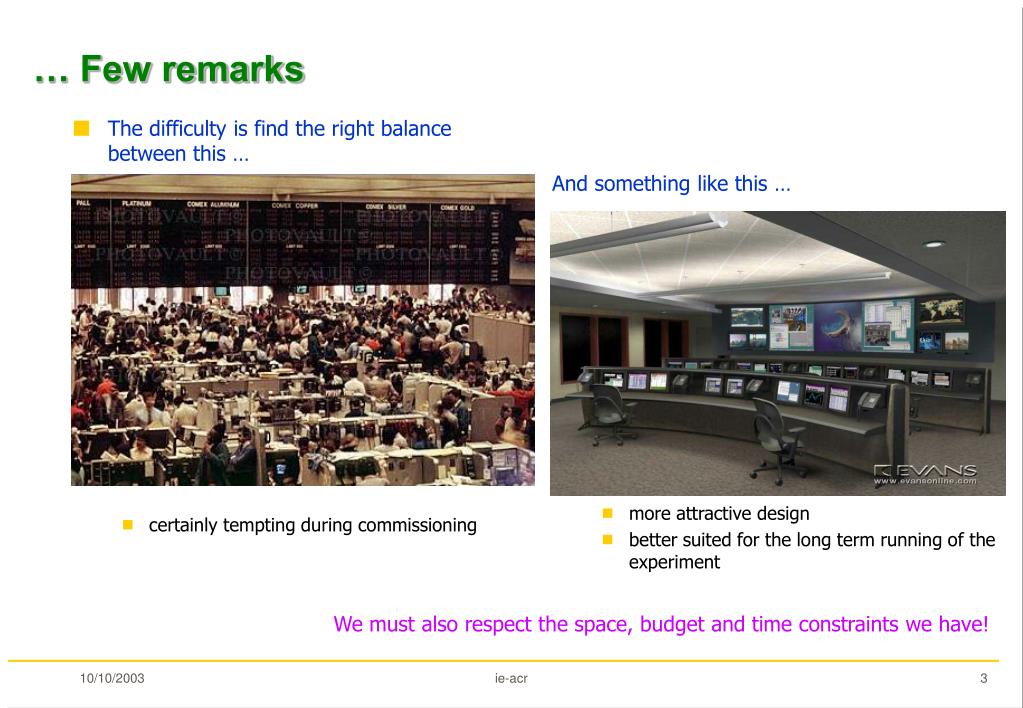

3. … Few remarks • The difficulty is find the right balance between this … • certainly tempting during commissioning And something like this … • more attractive design • better suited for the long term running of the experiment We must also respect the space, budget and time constraints we have! ie-acr

4. ATCR - SCX1 building • 3 floors • ~200 m2 / floor ie-acr

5. Important point to consider: The Globe of innovation will be located just next door! Point-1 / ATLAS and ATCR will be a major visit point for CERN handling visitors is also an important constraint for the design – visitors may come already from startup! … SCX1 building ie-acr

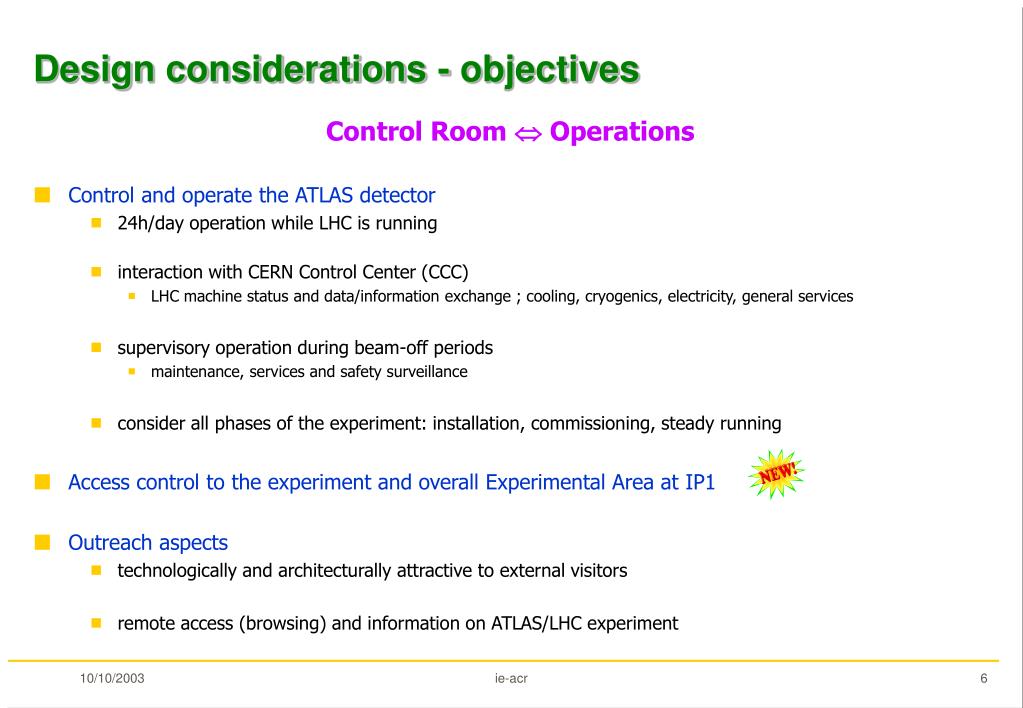

6. Design considerations - objectives Control Room  Operations • Control and operate the ATLAS detector • 24h/day operation while LHC is running • interaction with CERN Control Center (CCC) • LHC machine status and data/information exchange ; cooling, cryogenics, electricity, general services • supervisory operation during beam-off periods • maintenance, services and safety surveillance • consider all phases of the experiment: installation, commissioning, steady running • Access control to the experiment and overall Experimental Area at IP1 • Outreach aspects • technologically and architecturally attractive to external visitors • remote access (browsing) and information on ATLAS/LHC experiment ie-acr

7. Overall layout • Additional space in nearby barracks • and possibly in the 1st floor, if ATLAS Expo would be deferred • Car parking close to the entrance and behind SCX1 Offices – coffee area Conference room – ATLAS Expo Control Room –Visitor gallery Open air ATLAS Expo ie-acr

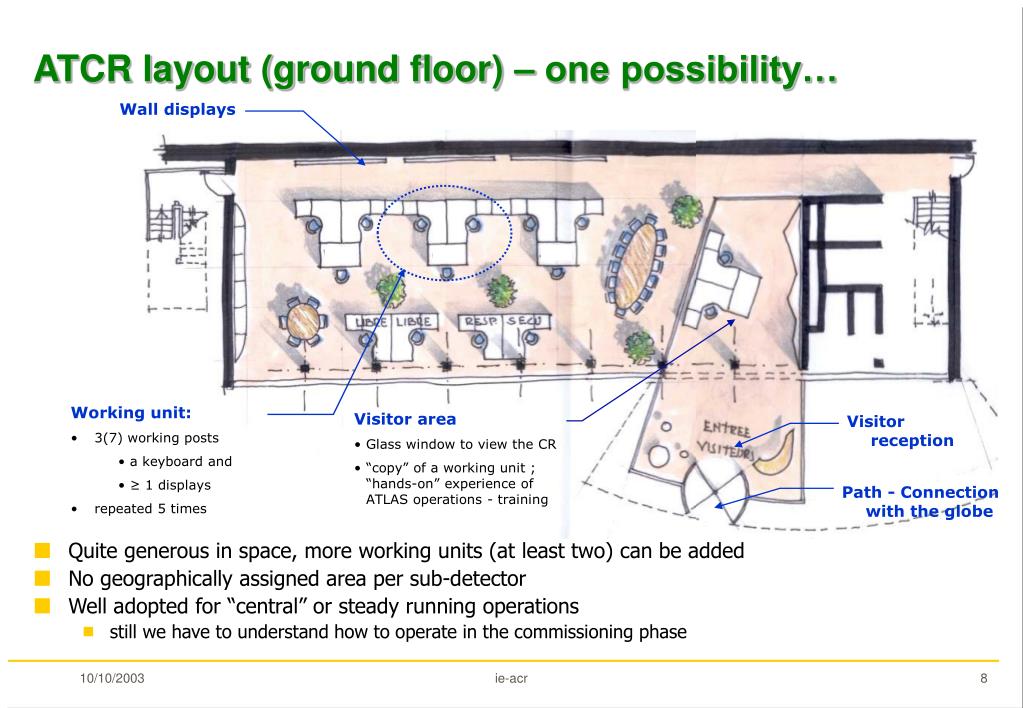

8. ATCR layout (ground floor) – one possibility… Wall displays • Quite generous in space, more working units (at least two) can be added • No geographically assigned area per sub-detector • Well adopted for “central” or steady running operations • still we have to understand how to operate in the commissioning phase • Working unit: • 3(7) working posts • a keyboard and • ≥ 1 displays • repeated 5 times • Visitor area • Glass window to view the CR • “copy” of a working unit ; “hands-on” experience of ATLAS operations - training Visitor reception Path - Connection with the globe ie-acr

9. Key elements Operating model for each sub-detector what is expected from the shift crew? should they intervene to fix problems based on given instructions or just call the first-line experts? try as much as possible to get the shift crew “involved” How much (if at all) of the CR functions can be exported to outside labs? e.g. data quality monitoring security issues? Formal obligations supervising the access to experiment area patrols safety shifts even during shutdown? Gradually form an “operations team” within the collaboration Provide continuity of responsibility authority availability of people Organize training of newcomers training and formation of patrol teams update of documentation Time of “service” to be defined as a member of the operations crews as a member with advanced responsibilities based on acquired experience and training How to organize “operations” in ATLAS? ie-acr

10. Global Interaction with LHC machine Observe and monitor the beam quality Interaction with sub-detector experts organize interventions and maintenance activities Supervise the access control list of people in underground areas Operate the experiment data taking using the DAQ system data quality monitoring alarms and safety status displays interaction with general services (TCR) fill the logbook (electronic) of operations Sub-Detector dependent Monitor status of detector HW Handle detector DCS alarms Allow sub-detectors to: access and operate their hardware e.g. a particular ROD crate via RODCrate DAQ calibrate, debug, commission a sub-detector or one of its partitions Guidelines for ATCR design Global - non sub-detector oriented approach for steady running Space for sub-detector work in the CR but not geographically assigned Avoid hardwired consoles and displays possibility to do everything from any console but fixed consoles and displays for some tasks ATCR Functions – what the CR should do? ie-acr

11. ATCR - Hierarchy of operations • Local access – from ATCR • shift crew and local experts – maximum freedom to access HW • define types of tasks to be performed by shift crew • arrange and project important information in wall displays • Remote access to CR functions • expert access to CR functions and/or export of CR functions to remote centers • upon authorization from shift leader - deliver personal and time limited(?) tokens • network security issues • Remote access to experiment status • inquiry (browse) on experiment status • read-only functionality of specialized equipment • no security restrictions (?) ie-acr

12. ATCR - Manning • Time spans for duty are only indicative • Exact number of shift crews to be defined ie-acr

13. Physical Components consoles wall screens ACR Architecture - software connection to ATLAS (“services”) via a control network CR is cable-less except whatever has to be hardwired for safety CR is remote to experiment - can be done from anywhere: SXC1, USA15, barracks, office, generic consoles hierarchy of consoles in CR(?) console gateway for remote access console console console console ATCR Software architecture and Technologies “Virtual” “Remote” Control Room services External access gateway Control network Control Room configurations ie-acr

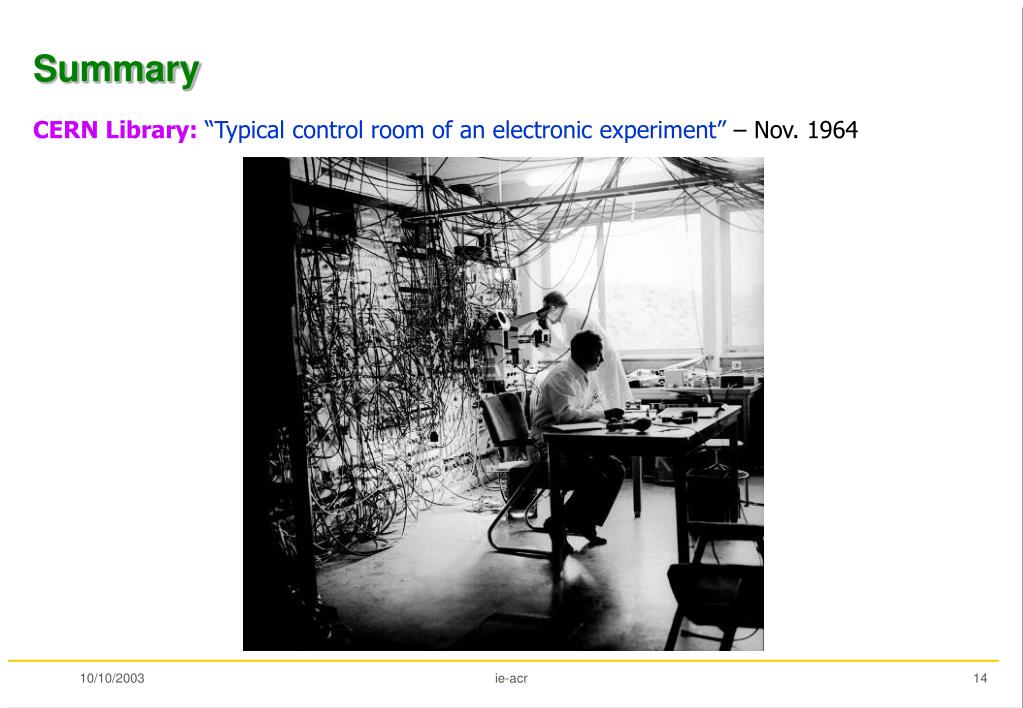

14. Summary CERN Library:“Typical control room of an electronic experiment” – Nov. 1964 ie-acr
