Presentation Transcript

  1. “A R G O N – E” TECHNICAL COMMUNICATION KIT “A R G O N – E”

  2. “ARGON-E” TECHNICAL KIT It is assigned to deploy VHF digital secure radio communication among dismounted and mobile subscribers with a general use network access (GSM, UATS). It providessimultaneous voice and data transmission in the direct mode employing built-in cryptographic protection assets on fixed frequencies and in the software frequency tuning mode. The subscriber position determining system allows designating coordinates of a subscriber, his route via GLONASS, GPS data and displaying them at the monitor in real time. Configuration:portable and mobile radios, GSM-gateway, a radio relay station and other equipment, 65 items in total. Products have a pressurized construction, it enables brief dipping into water at a depth of up to one meter. It can be successfully employedin police elements, counterterrorist forces, rescue (emergency response) operations, on railways, in petroleum companies, guard enterprises and security services of various authorities and organizations.

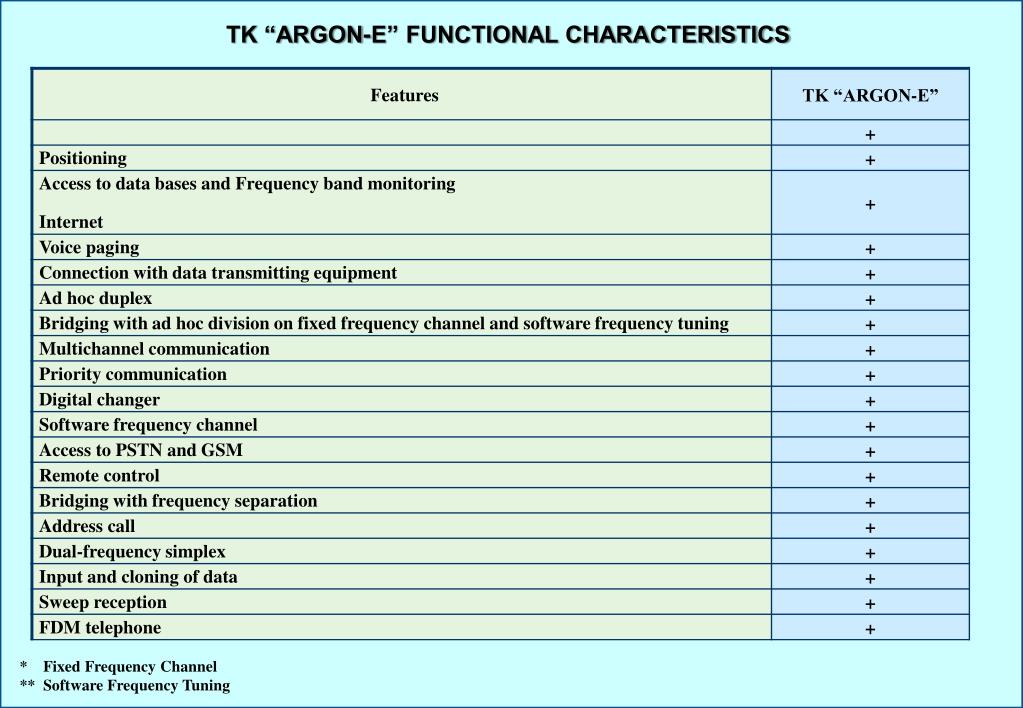

  3. TK “ARGON-E” FUNCTIONAL CHARACTERISTICS * Fixed Frequency Channel ** Software Frequency Tuning

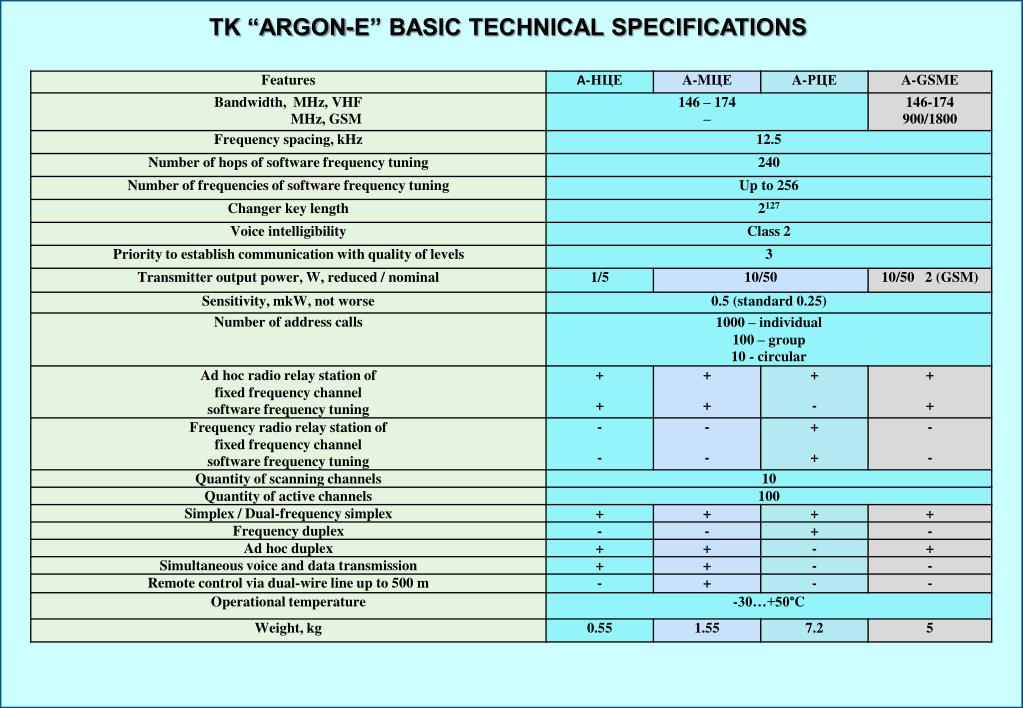

  4. TK “ARGON-E” BASIC TECHNICAL SPECIFICATIONS

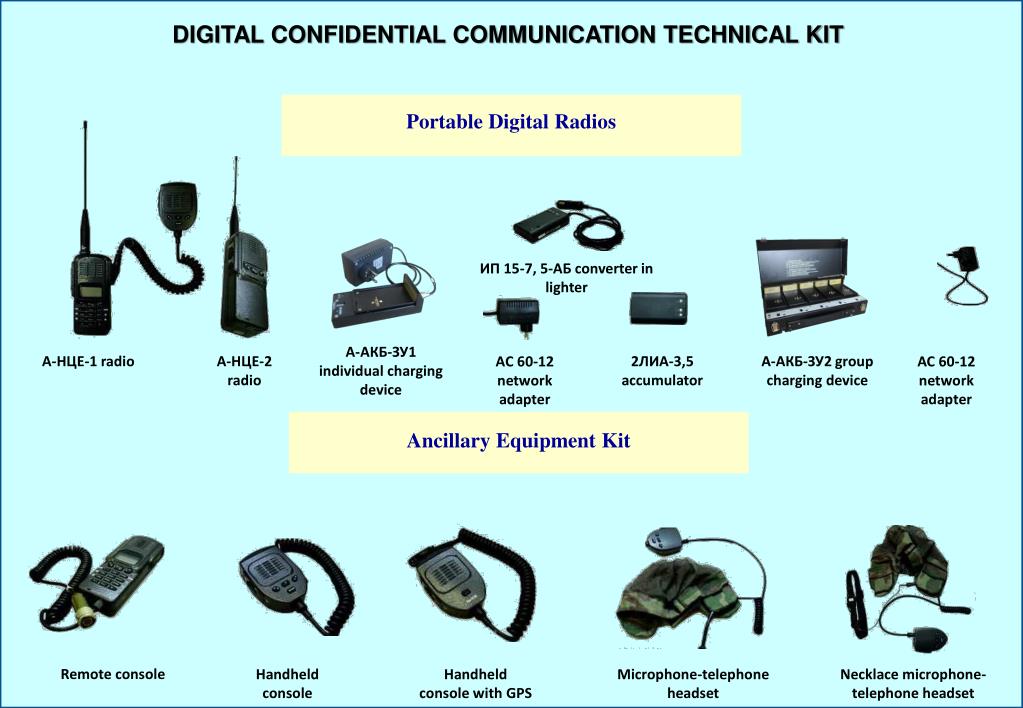

  5. DIGITAL CONFIDENTIAL COMMUNICATION TECHNICAL KIT Portable Digital Radios ИП 15-7, 5-AБ converter in lighter A-АКБ-ЗУ1 individual charging device A-НЦЕ-1 radio A-НЦЕ-2 radio 2ЛИА-3,5 accumulator А-АКБ-ЗУ2 group charging device AС 60-12 network adapter АС 60-12 network adapter Ancillary Equipment Kit Remote console Handheld console Handheld console with GPS Microphone-telephone headset Necklace microphone-telephone headset

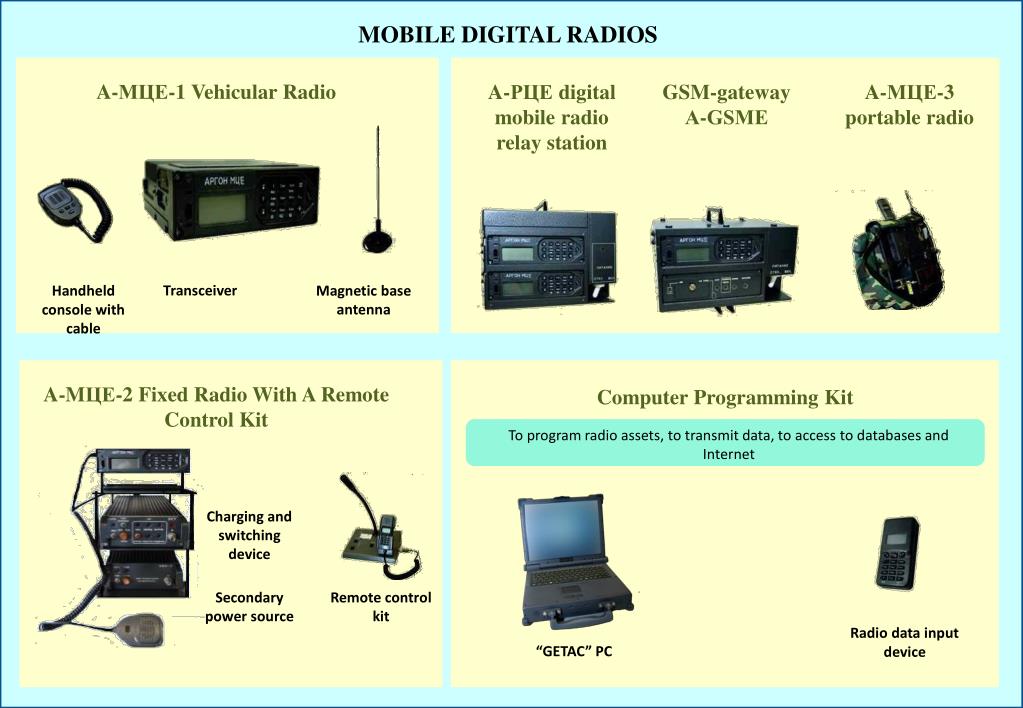

  6. MOBILE DIGITAL RADIOS А-МЦ1 A-МЦЕ-1 Vehicular Radio GSM-gateway А-GSMЕ A-РЦЕ digital mobile radio relay station A-МЦЕ-3 portable radio Handheld console with cable Transceiver Magnetic base antenna A-MЦЕ-2 Fixed Radio With A Remote Control Kit Computer Programming Kit To program radio assets, to transmit data, to access to databases and Internet Charging and switching device Secondary power source Remote control kit Radio data input device “GETAC” PC

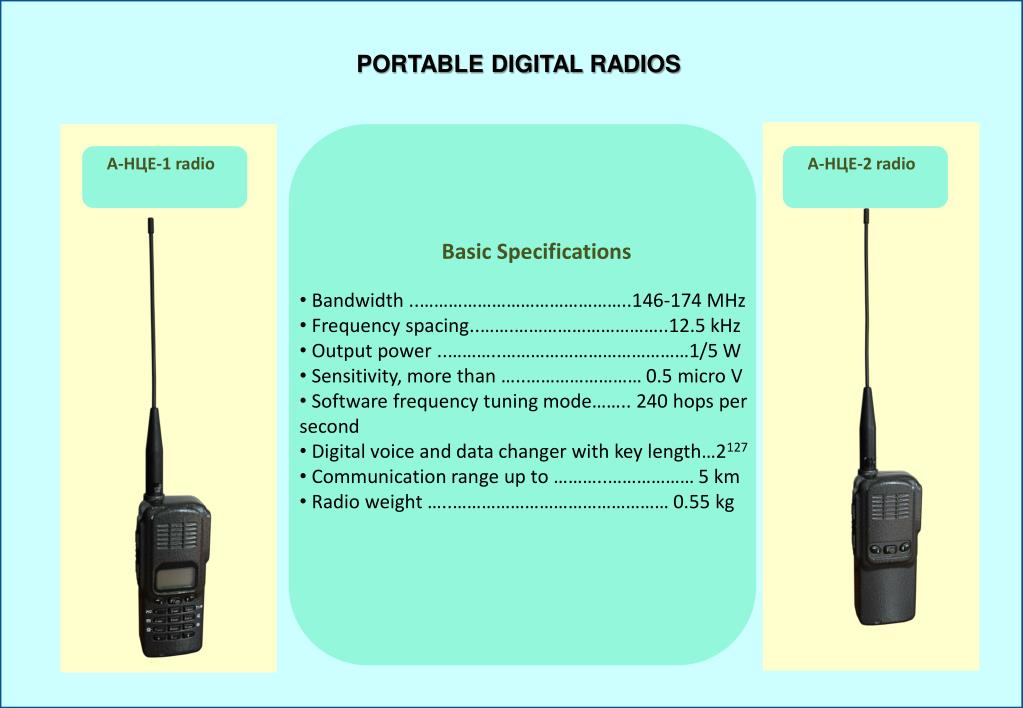

  7. PORTABLE DIGITAL RADIOS А-НЦЕ-1 radio А-НЦЕ-2 radio • Basic Specifications • Bandwidth ..……………………………………..146-174 MHz • Frequency spacing..…….…………………………..12.5 kHz • Output power ..………..…………………………………1/5 W • Sensitivity, more than …..…………………… 0.5 micro V • Software frequency tuning mode…….. 240 hops per second • Digital voice and data changer with key length…2127 • Communication range up to ………..……………… 5 km • Radio weight …..……………………………………… 0.55 kg

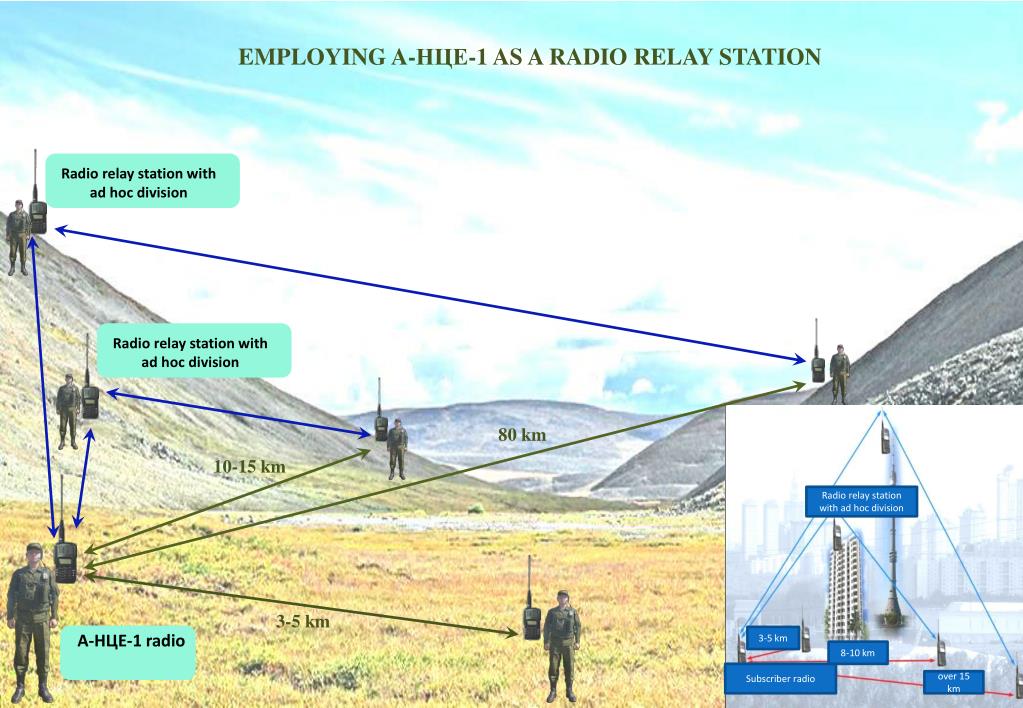

  8. EMPLOYING A-НЦЕ-1 AS A RADIO RELAY STATION Radio relay station with ad hoc division Radio relay station with ad hoc division 80 km 10-15 km Radio relay station with ad hoc division 3-5 km А-НЦЕ-1 radio 3-5 km 8-10 km Subscriber radio over 15 km

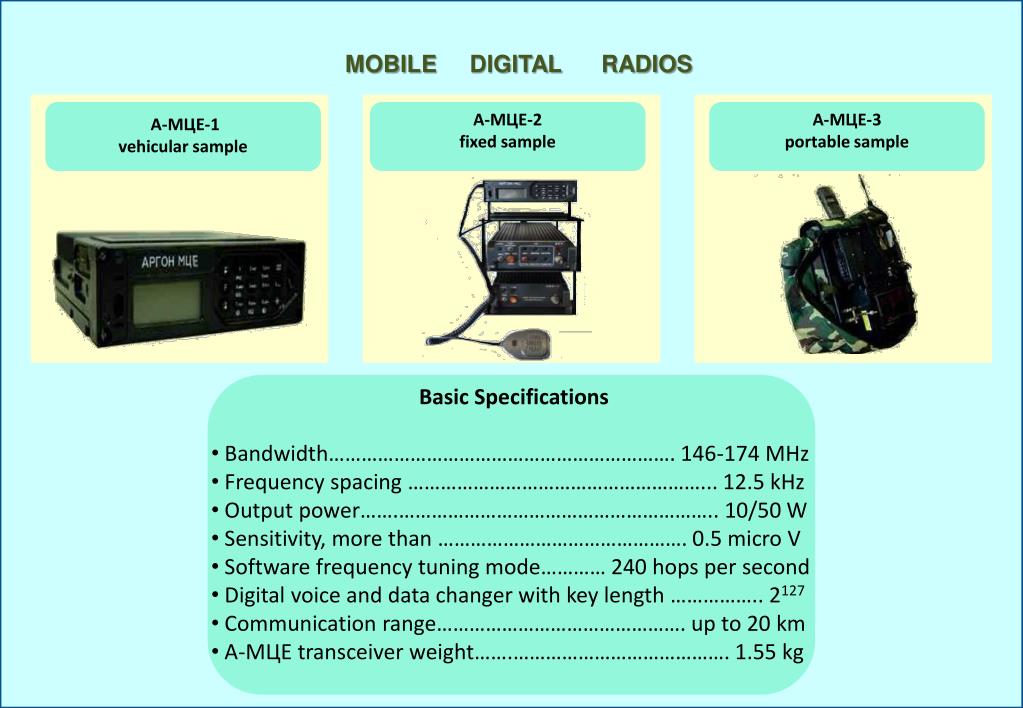

  9. MOBILEDIGITALRADIOS А-МЦЕ-2 fixed sample А-МЦЕ-3 portable sample А-МЦЕ-1 vehicular sample • Basic Specifications • Bandwidth………………………………………………………. 146-174 MHz • Frequency spacing ………………………………………………... 12.5 kHz • Output power…….………………………………………………….. 10/50 W • Sensitivity, more than………………………………………. 0.5 micro V • Software frequency tuning mode………… 240 hops per second • Digital voice and data changer with key length …………….. 2127 • Communication range………………………………………. up to 20 km • A-MЦЕ transceiver weight…….…………………………………. 1.55 kg

  10. MOBILE DIGITAL RADIO RELAY STATION • Basic Characteristics • Bandwidth…………………………………………………………….146-174 MHz • Frequency spacing …….…………………………………………………12.5 kHz • Output power …….………………………………………………………..10/50W • Sensitivity, more than…………………………………………….0.5 micro V • Software frequency tuning mode……………..240 hops per second • Digital voice and data changer with key length ………………….2127 • Radio relay station coverage……………………………..up to 40-50 km • Radio relay station weight……………………………………….7.2 kg А-РЦЕ GSM - GATEWAY • Basic Characteristics • Bandwidth, VHF………………………………………………………146-174 MHz • GSM…………………………………………………….900-1800 MHz • Frequency spacing ……………………………………………………….. 12.5 kHz • Output power, VHF ………………………………………………………. 10/50W • GSM ……..…….……………………………………………….. 2 W • Sensitivity, more than ……………………………………………… 0.5 micro V • Software frequency tuning mode………………. 240 hops per second • Digital voice and data changer with key length ………….……….. 2127 • Radio relay station coverage .……………………………...up to 30-50 km • GSM-gateway weight ………….………………………………………………5 kg A-GSME

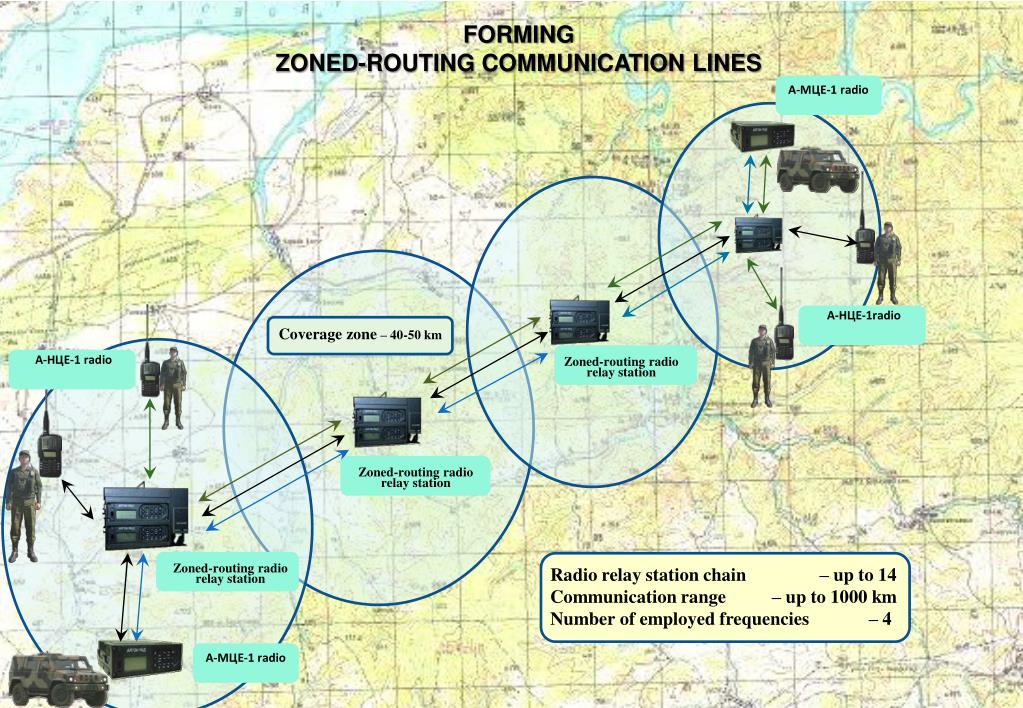

  11. FORMING ZONED-ROUTING COMMUNICATION LINES А-МЦЕ-1 radio А-НЦЕ-1radio Coverage zone – 40-50 km А-НЦЕ-1 radio Zoned-routing radio relay station Zoned-routing radio relay station Radio relay station chain – up to 14 Communication range – up to 1000 km Number of employed frequencies – 4 Zoned-routing radio relay station А-МЦЕ-1 radio

  12. EMPLOYING GSM OPERATOR BASE END STATIONS GSM network subscriber GSM operator base end station Радиостанция А–НЦ 1 А-НЦЕ-1 radio GSM - GATEWAY GSM operator base end station А-НЦЕ-1 radio Coverage zone – 30-50 km GSM - GATEWAY Telephone operator А-МЦЕ-1 radio Telephone operator А-МЦЕ-1 radio

  13. A VARIANT TO EMPLOY THE TK “ARGON-E” IN FIELD CONDITIONS GPS Zoned-routing radio relay station Zoned-routing radio relay station 40-50 km Radio relay station with ad hoc division 8-10 km Radio with GPS receiver 6-8 km 7-10 km 10-15 km 8-10 km 10-15 km 15-25 km 7-10 km 3-5 km 6-8 km Portable А-МЦЕ-3 Displaying objective position on the terrain map 15-20 km 6-8 km Vehicular А-МЦЕ-1 Vehicular А-МЦЕ-1 15-20 km 10-15km 6-8 km GSMgateway Subscriber with GSM - telephone

  14. A VARIANT TO EMPLOY THE TK “ARGON-E” IN URBAN CONDITIONS GPS А-РЦЕ zoned-routing radio relay station To the next radio relay station Fast deployed antenna Subscriber with GSM - telephone 40-50 km GSM - gateway 40-50 km Bridging in the temporary duplex mode 10- 25 km Subscriber with GSM - telephone Vehicular А-МЦ-1 5-10 km Bridging in the temporary duplex mode 3-8 km Fixed А-МЦЕ-2 Vehicular А-МЦЕ-1 Subscriber with А-НЦЕ-1 10- 25 km 10- 25 km Dedicated 2-wire line of up to 500 m 2-3 km 10- 25 km Subscriber with А-НЦЕ-1 Vehicular А-МЦЕ-1 Operator workstation with a RC system Displaying objective position on the terrain map Subscriber with А-НЦЕ-1

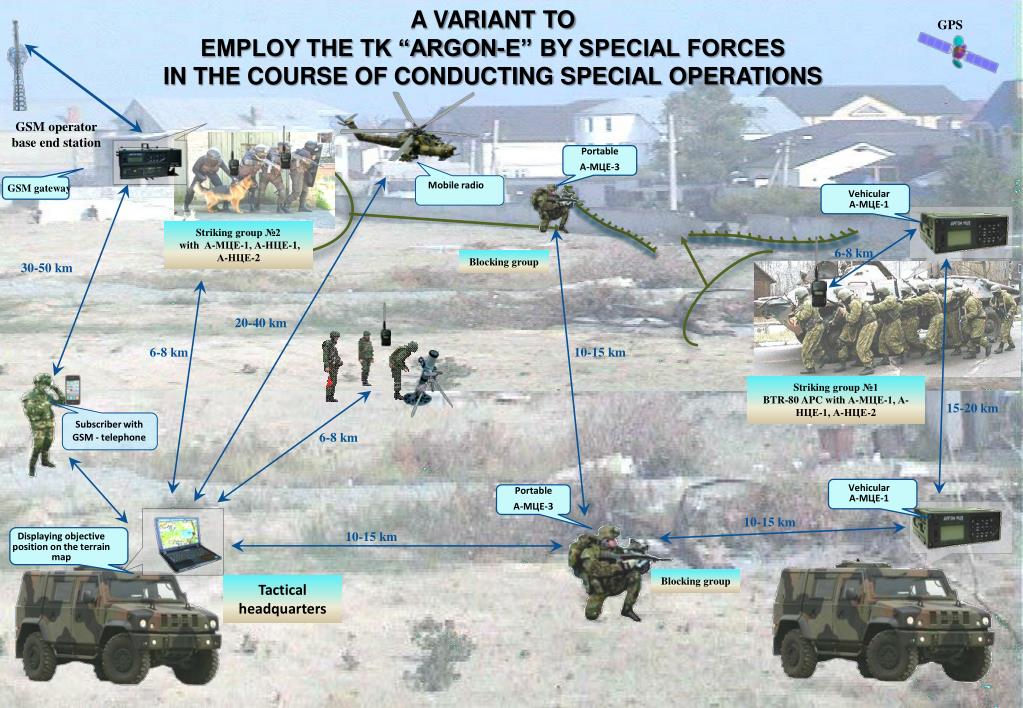

  15. A VARIANT TO EMPLOY THE TK “ARGON-E” BY SPECIAL FORCES IN THE COURSE OF CONDUCTING SPECIAL OPERATIONS GPS GSM operator base end station Portable А-МЦЕ-3 Mobile radio GSMgateway Vehicular А-МЦЕ-1 Striking group №2 with А-МЦЕ-1, А-НЦЕ-1, А-НЦЕ-2 6-8 km Blocking group 30-50 km 20-40 km 6-8 km 10-15 km Striking group №1 BTR-80 APC with А-МЦЕ-1, А-НЦЕ-1, А-НЦЕ-2 15-20 km Subscriber with GSM - telephone 6-8 km Portable А-МЦЕ-3 Vehicular А-МЦЕ-1 10-15 km 10-15 km Displaying objective position on the terrain map Blocking group Tactical headquarters

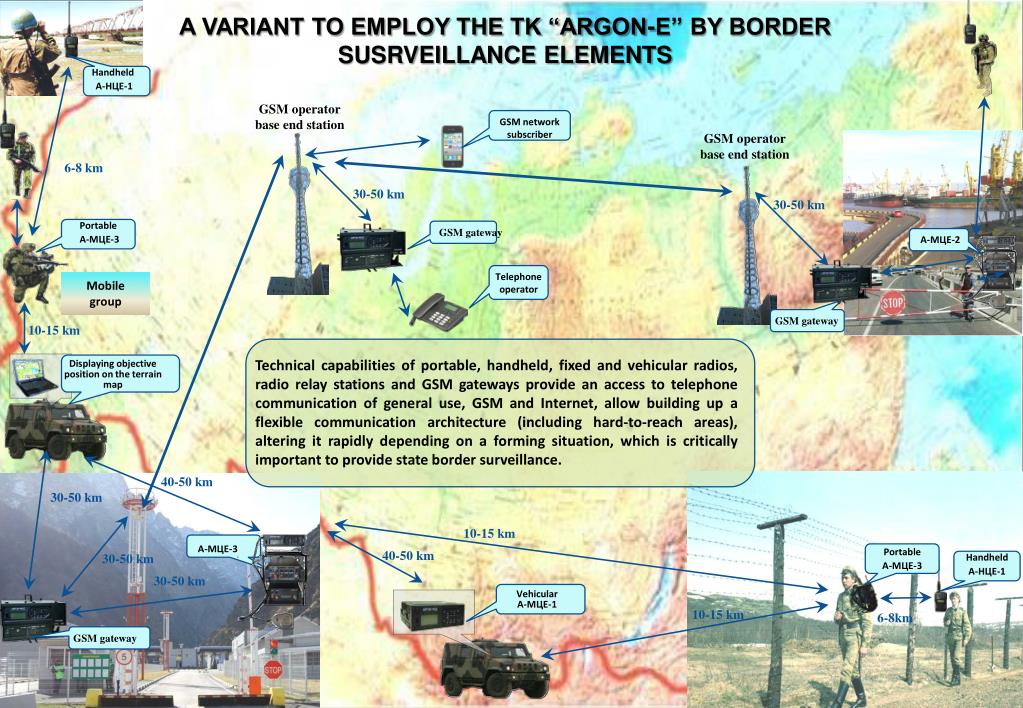

  16. A VARIANT TO EMPLOY THE TK “ARGON-E” BY BORDER SUSRVEILLANCE ELEMENTS Handheld А-НЦЕ-1 GSM operator base end station GSM network subscriber GSM operator base end station 6-8 km 30-50 km 30-50 km Portable А-МЦЕ-3 GSMgateway А-МЦЕ-2 Telephone operator Mobile group GSMgateway 10-15 km Technical capabilities of portable, handheld, fixed and vehicular radios, radio relay stations and GSM gateways provide an access to telephone communication of general use, GSM and Internet, allow building up a flexible communication architecture (including hard-to-reach areas), altering it rapidly depending on a forming situation, which is critically important to provide state border surveillance. Displaying objective position on the terrain map 40-50 km 30-50 km 10-15 km А-МЦЕ-3 Portable А-МЦЕ-3 40-50 km Handheld А-НЦЕ-1 30-50 km 30-50 km Vehicular А-МЦЕ-1 10-15 km 6-8km GSMgateway

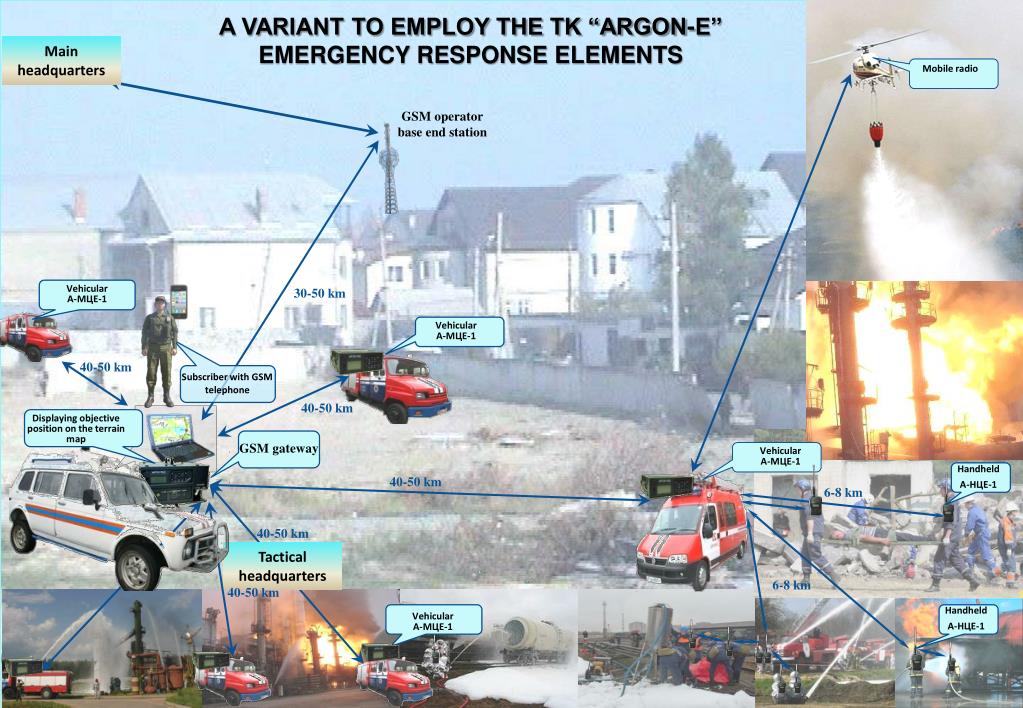

  17. A VARIANT TO EMPLOY THE TK “ARGON-E” EMERGENCY RESPONSE ELEMENTS Main headquarters Mobile radio GSM operator base end station Vehicular А-МЦЕ-1 30-50 km Vehicular А-МЦЕ-1 40-50 km Subscriber with GSM telephone 40-50 km Displaying objective position on the terrain map GSMgateway Vehicular А-МЦЕ-1 Handheld А-НЦЕ-1 40-50 km 6-8 km 40-50 km Tactical headquarters 6-8 km 40-50 km Handheld А-НЦЕ-1 Vehicular А-МЦЕ-1

  18. We hope for the fruitful business cooperation! 14, Plekhanovskaya St, Voronezh, 394018,Russiaphone: (473) 252-10-06; fax: (473) 259-71-62;web: www.sozvezdie.su E-mail: vtfzx@sozvezdie.su
