  1. RADIOSONDES SAMPLING THE UPPER ATMOSPHERE

  2. EARLY MET KITE INCLUDED SENSORS, DATA RECORDER

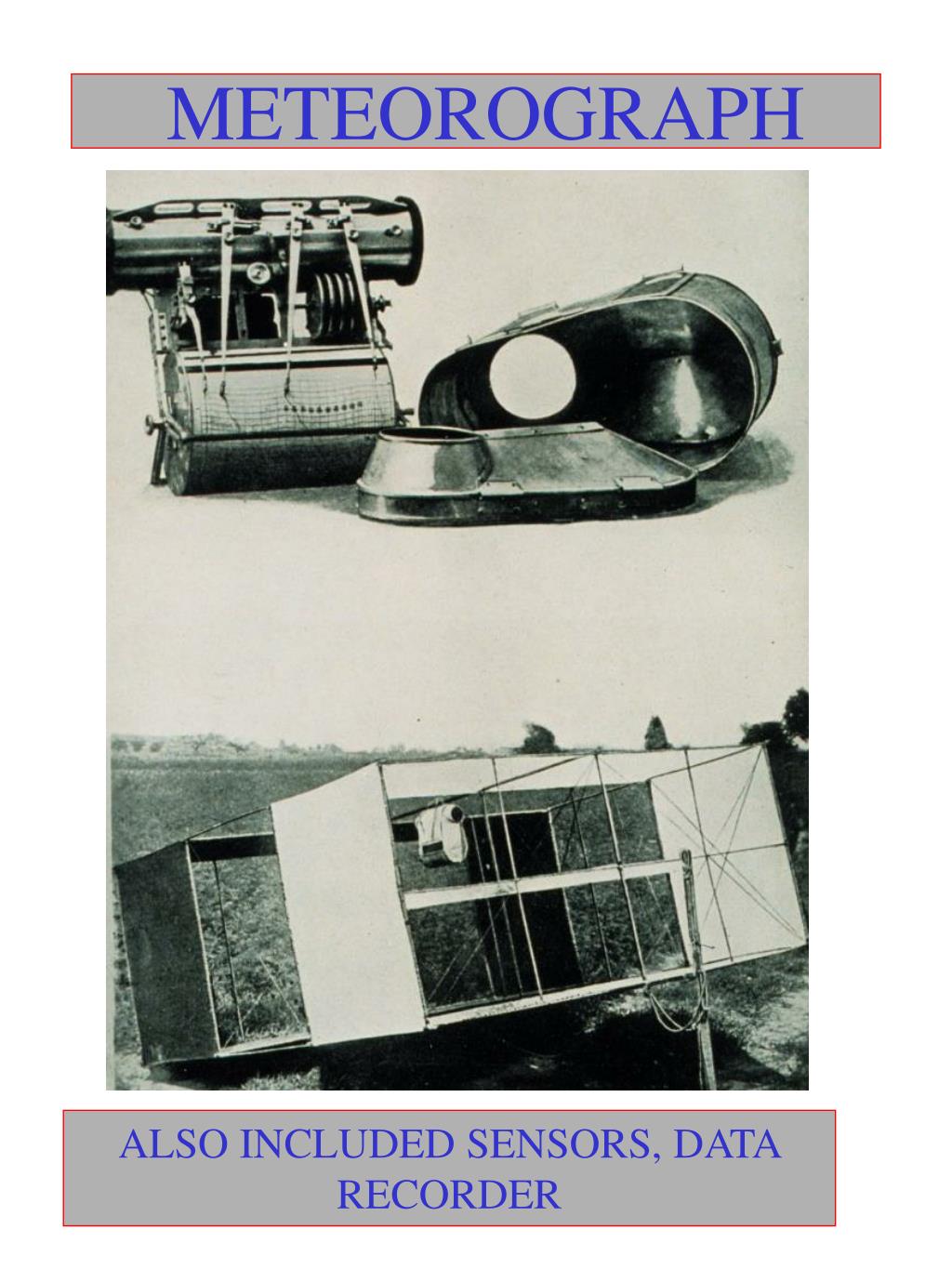

  3. METEOROGRAPH ALSO INCLUDED SENSORS, DATA RECORDER

  4. AIRCRAFT MET 1925 AIRCRAFT INSTRUMENTED WITH MET SENSORS/RECORDER

  5. PILOT BALLOON 1930 PILOT BALLOON RELEASE

  6. 1936 RADIOSONDE NEWLY DEVELOPED TRANSMITTERS ENABLED BALLOON LAUNCHES

  7. EARLY ANTENNA 1955 NWS RADIOSONDE TRACKING ANTENNA SYSTEM

  8. RADIOSONDE PREP PREPARING RADIOSONDE AND BALLOON FOR LAUNCH

  9. RADIOSONDE TYPICAL CURRENT RADIOSONDE

  10. BALLOON LAUNCH RADIOSONDE LAUNCH CAPE CANAVERAL

  11. BALLOON ALOFT RADIOSONDE, BALLOON, AND PARACHUTE ALOFT

  12. JIMSPHERE LAUNCH JIMSPHERE LAUNCH CAPE CANAVERAL

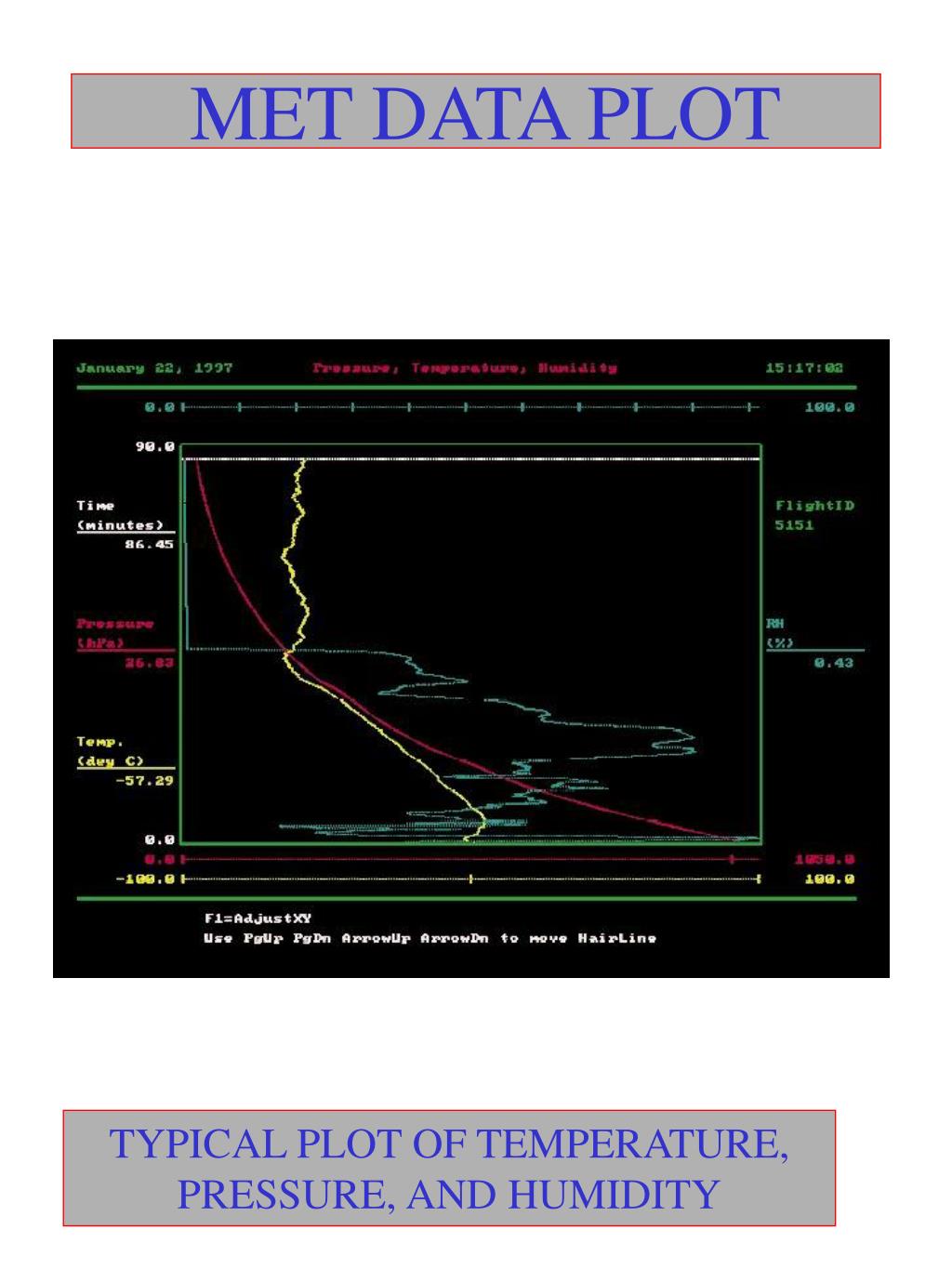

  13. MET DATA PLOT TYPICAL PLOT OF TEMPERATURE, PRESSURE, AND HUMIDITY

  14. WIND DATA PLOT TYPICAL PLOT OF WIND DIRECTION COMPONENTS

  15. TEMP. PLOT TYPICAL PLOT OF TEMPERATURE VERSUS ALTITUDE

  16. HUMIDITY PLOT TYPICAL PLOT OF HUMIDITY VERSUS ALTITUDE

  17. HUMIDITY PLOT TYPICAL PLOT OF HUMIDITY VERSUS ALTITUDE

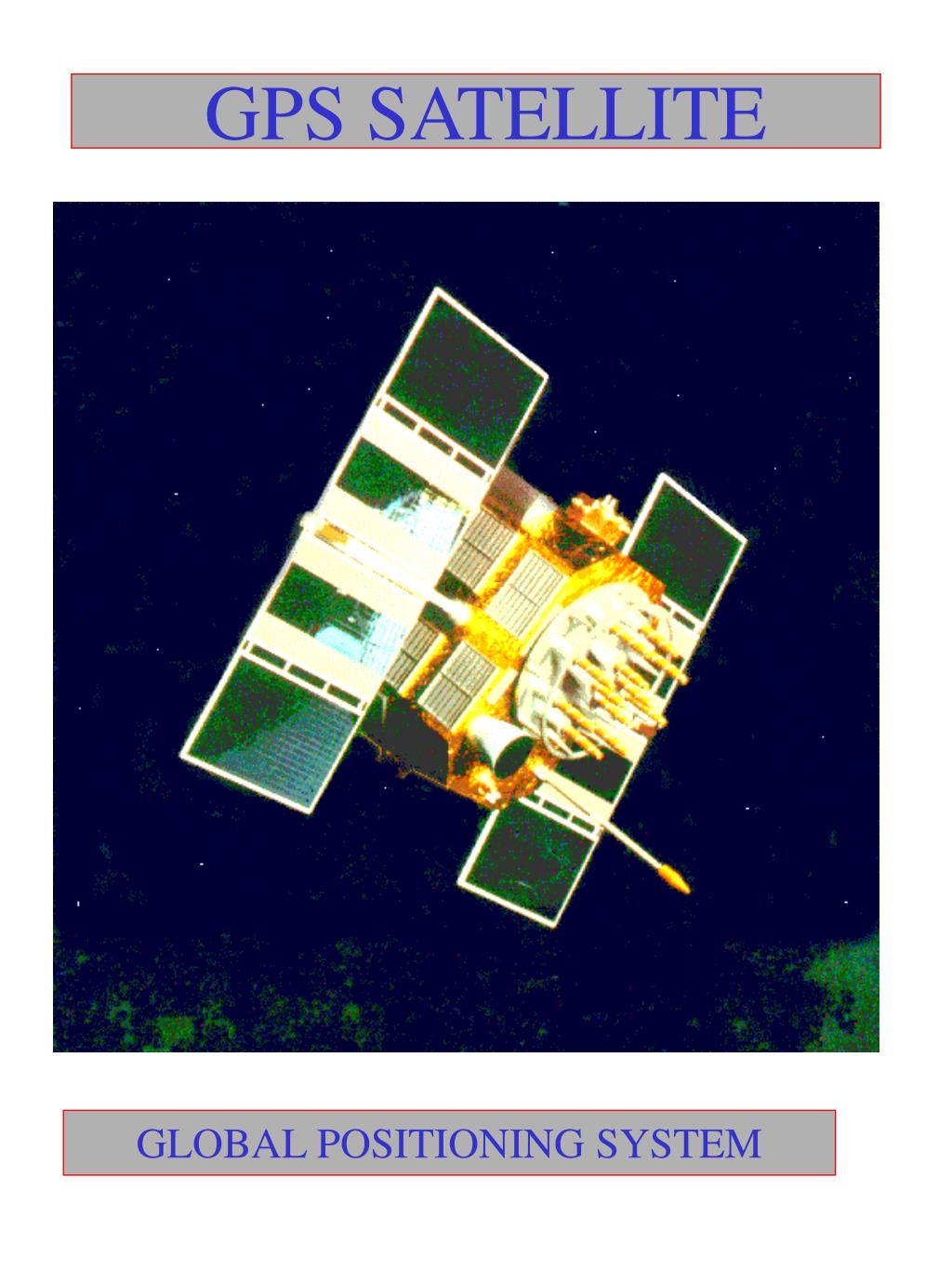

  18. GPS SATELLITE GLOBAL POSITIONING SYSTEM

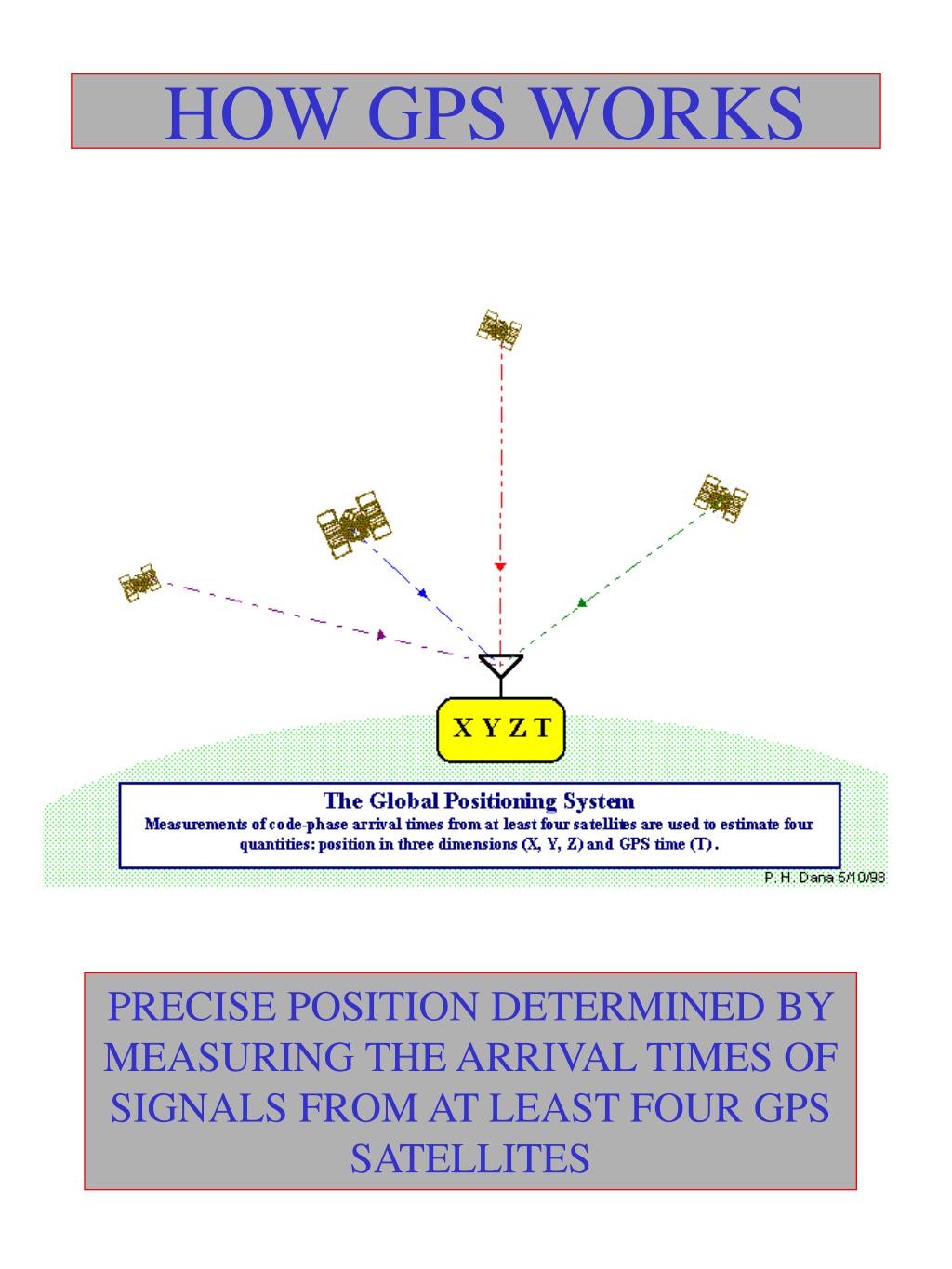

  19. HOW GPS WORKS PRECISE POSITION DETERMINED BY MEASURING THE ARRIVAL TIMES OF SIGNALS FROM AT LEAST FOUR GPS SATELLITES

  20. GPS ORBITS ORBITAL PLANES OF CURRENT 24 SATELLITE GPS CONSTELLATION

  21. XBT EXPENDABLE BATHYTHERMOGRAPH PROBE MEASURES OCEAN TEMPERATURES
