  1. IPFIX Applicability Statement- Update - Tanja Zseby zseby@fokus.fhg.de

  2. Issue 1: Too Many Exotic Examples • Too many exotic examples that require extensions • Should concentrate on IPFIX usage in typical scenarios • More about applicability limits • How addressed • Removed some exotic use cases, shortened some text • Concentrated on target applications from RFC3917 • Usage-based Accounting • Attack/Intrusion Detection • QoS Monitoring • Traffic Profiling • Traffic Engineering • Provided more detailed examples • Examples with IEs • Table about when to use IEs from IPFIX, PSAMP, extensions

  3. Issue 2: IPFIX Limitations for usage-based Billing • IPFIX not compliant to reliability requirements for usage-based billing as stated in [RFC2975] • Record loss: problem if UDP is used • Network or device failures: multiple collectors allowed but not explicitly demanded for fault tolerance • Detection and elimination of duplicate records • Application layer acknowledgements: not supported • Changes in IPFIX-AS: • Added a section (4.2.) on limitations for usage-based billing • Added several warnings • AAA examples not removed but warnings added • Reliability Extensions  draft-bclaise-ipfix-reliability-01.txt

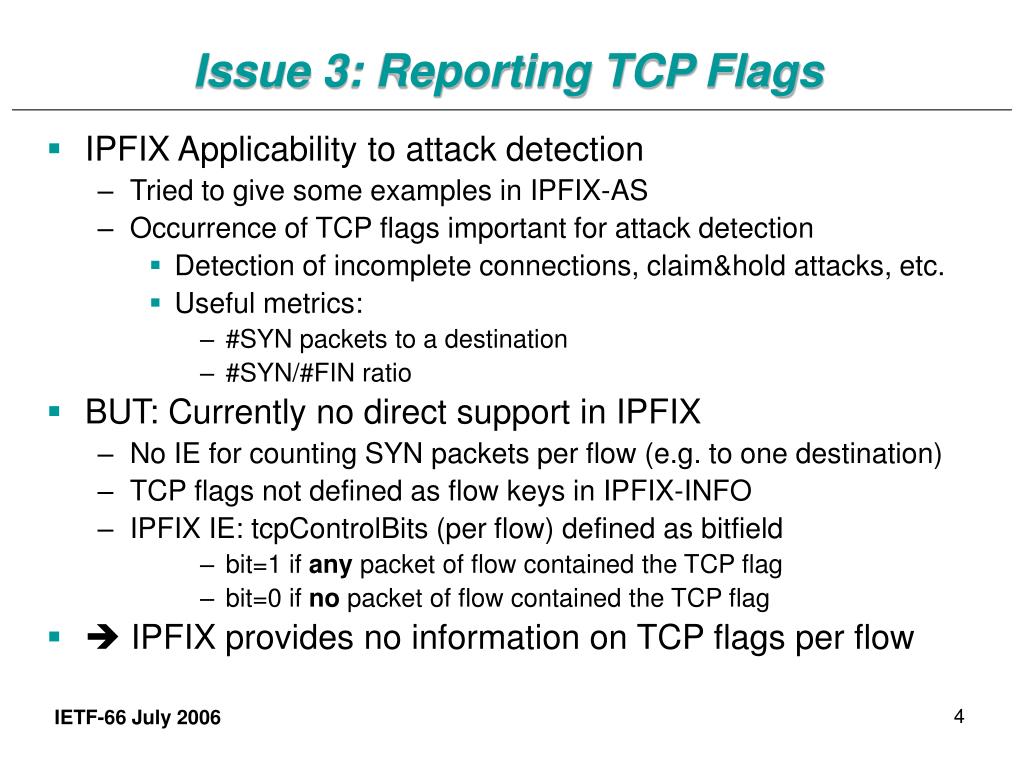

  4. Issue 3: Reporting TCP Flags • IPFIX Applicability to attack detection • Tried to give some examples in IPFIX-AS • Occurrence of TCP flags important for attack detection • Detection of incomplete connections, claim&hold attacks, etc. • Useful metrics: • #SYN packets to a destination • #SYN/#FIN ratio • BUT: Currently no direct support in IPFIX • No IE for counting SYN packets per flow (e.g. to one destination) • TCP flags not defined as flow keys in IPFIX-INFO • IPFIX IE: tcpControlBits (per flow) defined as bitfield • bit=1 if any packet of flow contained the TCP flag • bit=0 if no packet of flow contained the TCP flag •  IPFIX provides no information on TCP flags per flow

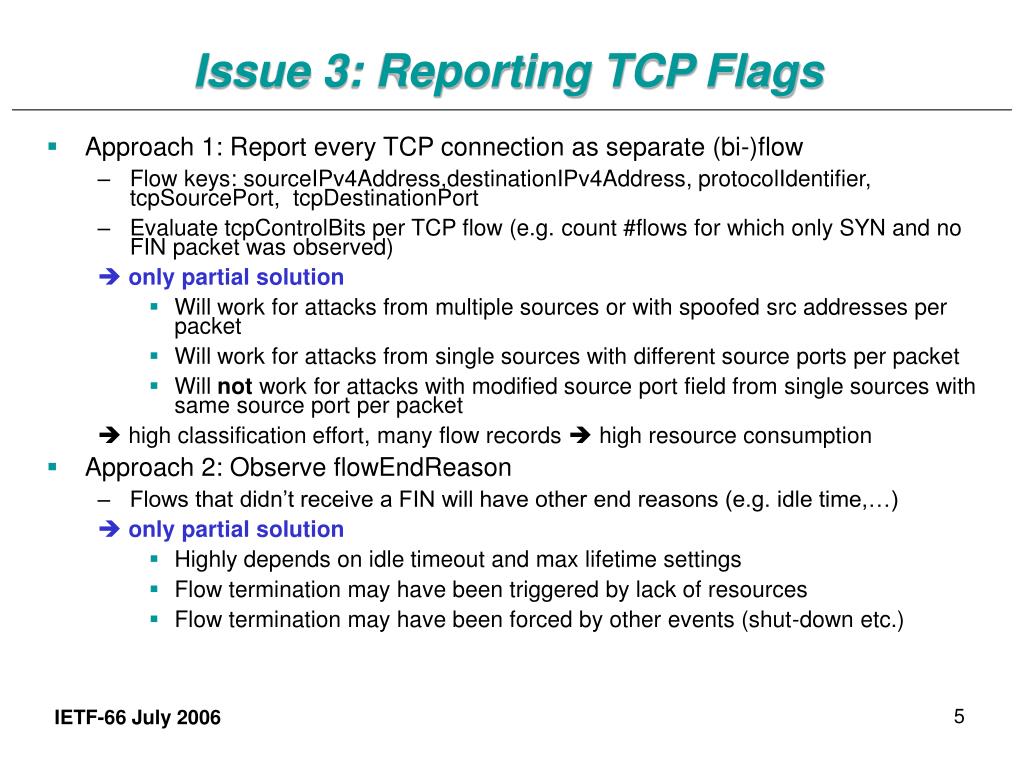

  5. Issue 3: Reporting TCP Flags • Approach 1: Report every TCP connection as separate (bi-)flow • Flow keys: sourceIPv4Address,destinationIPv4Address, protocolIdentifier, tcpSourcePort, tcpDestinationPort • Evaluate tcpControlBits per TCP flow (e.g. count #flows for which only SYN and no FIN packet was observed)  only partial solution • Will work for attacks from multiple sources or with spoofed src addresses per packet • Will work for attacks from single sources with different source ports per packet • Will not work for attacks with modified source port field from single sources with same source port per packet  high classification effort, many flow records  high resource consumption • Approach 2: Observe flowEndReason • Flows that didn’t receive a FIN will have other end reasons (e.g. idle time,…)  only partial solution • Highly depends on idle timeout and max lifetime settings • Flow termination may have been triggered by lack of resources • Flow termination may have been forced by other events (shut-down etc.)

  6. Issue 3: Reporting TCP Flags • Approach 3: Use PSAMP IEs • Report PSAMP IE ipPayloadPacketSection for all packets • Extract flags from packets  full solution, but extremely high effort • information per packet is transferred • post processing of packet reports required • Approach 4: Introduce new IEs • Filling tcpControlBits field requires TCP flags evaluation anyway • 4.a: IE for TCP flags as flow key •  #”FIN flows”, #”SYN flows”  full solution, but many flows, high resource consumption • 4.b.: Introduce TCP flag counters as new IEs  preferred solution • full solution, less resource consumption • Other request/response pairs • Beyond scope of IPIFX • May be added as vendor specific IEs

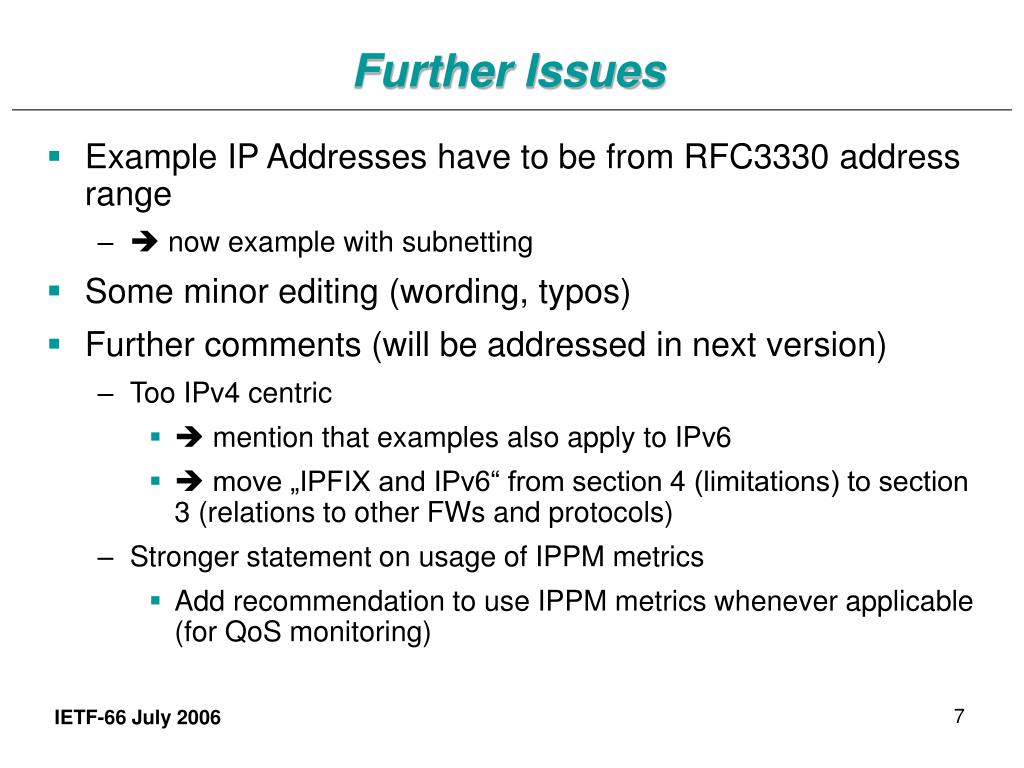

  7. Further Issues • Example IP Addresses have to be from RFC3330 address range •  now example with subnetting • Some minor editing (wording, typos) • Further comments (will be addressed in next version) • Too IPv4 centric •  mention that examples also apply to IPv6 •  move „IPFIX and IPv6“ from section 4 (limitations) to section 3 (relations to other FWs and protocols) • Stronger statement on usage of IPPM metrics • Add recommendation to use IPPM metrics whenever applicable (for QoS monitoring)

  8. My (AS-)biased view… … on the Priority of Future IPFIX Work Items 1. New IEs for TCP flags, flag counters 2. Reporting Bi-Flows (draft-trammell-ipfix-biflow-02.txt) • Desperately needed by security people 3. Configuration of IPFIX exporters and collectors • IPFIX MIB: draft-dietz-ipfix-mib-00.txt • XML Data model: draft-muenz-ipfix-configuration-00.txt • Related: draft-dressler-nsis-metering-nslp-04.txt 4. Reliability Extension (draft-bclaise-ipfix-reliability-01.txt) • Needed to use IPFIX for billing purposes 5. File format (draft-trammell-ipfix-file-01.txt) • Post-incident analysis for network security • Sharing IPFIX data (providers, research community, etc.) • Provide training data for anomaly detection (traces with “normal” behavior)

  9. Thank You
