  1. Database Engines for Bioscience John Corwin Avi Silberschatz Swathi Yadlapalli Yale University

  2. Database Engines for Bioscience • The Yale Center for Medical Informatics, led by Perry Miller, makes extensive use of biomedical and bioscience databases. • Large database projects include • Trial/DB • SenseLab

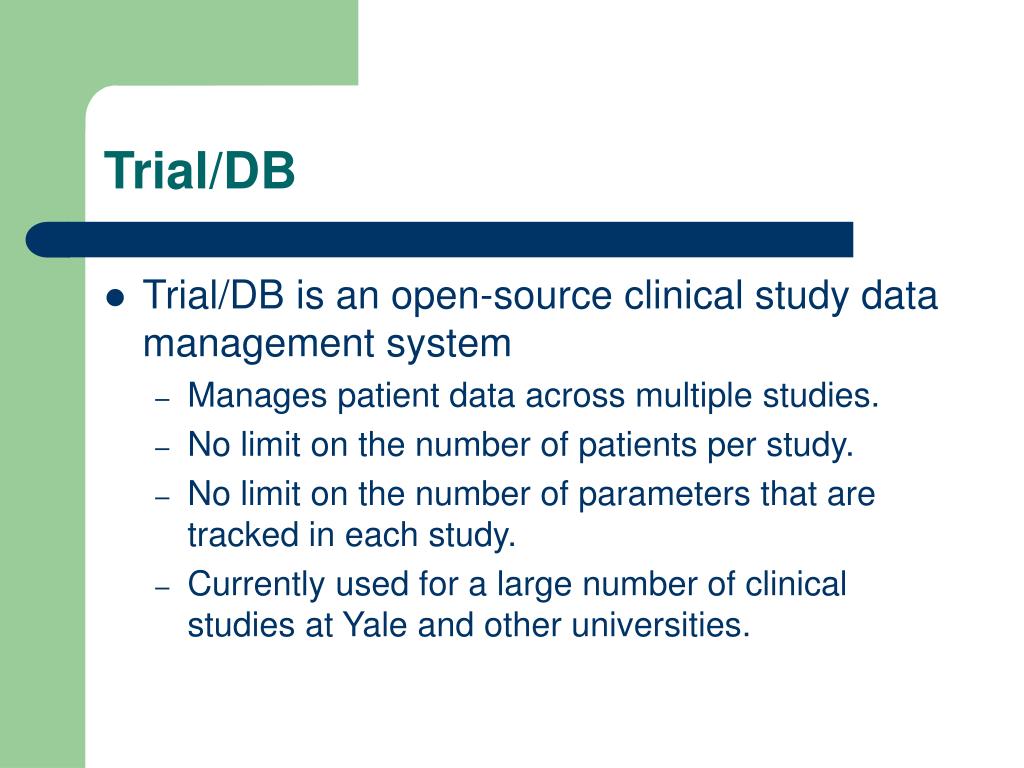

  3. Trial/DB • Trial/DB is an open-source clinical study data management system • Manages patient data across multiple studies. • No limit on the number of patients per study. • No limit on the number of parameters that are tracked in each study. • Currently used for a large number of clinical studies at Yale and other universities.

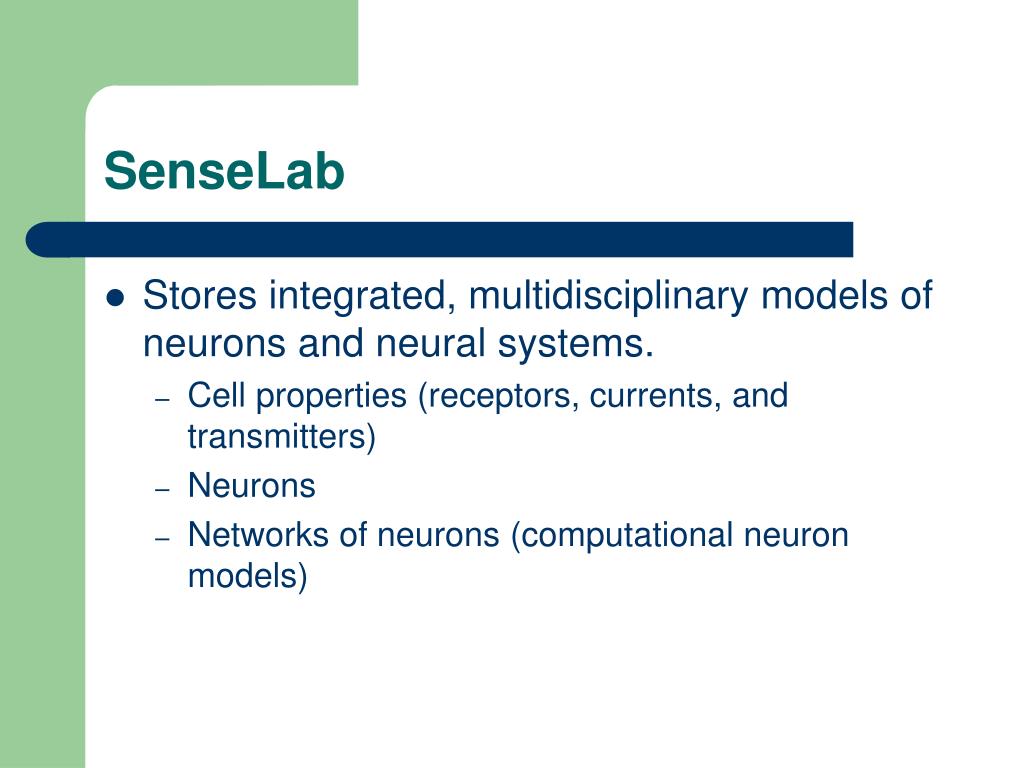

  4. SenseLab • Stores integrated, multidisciplinary models of neurons and neural systems. • Cell properties (receptors, currents, and transmitters) • Neurons • Networks of neurons (computational neuron models)

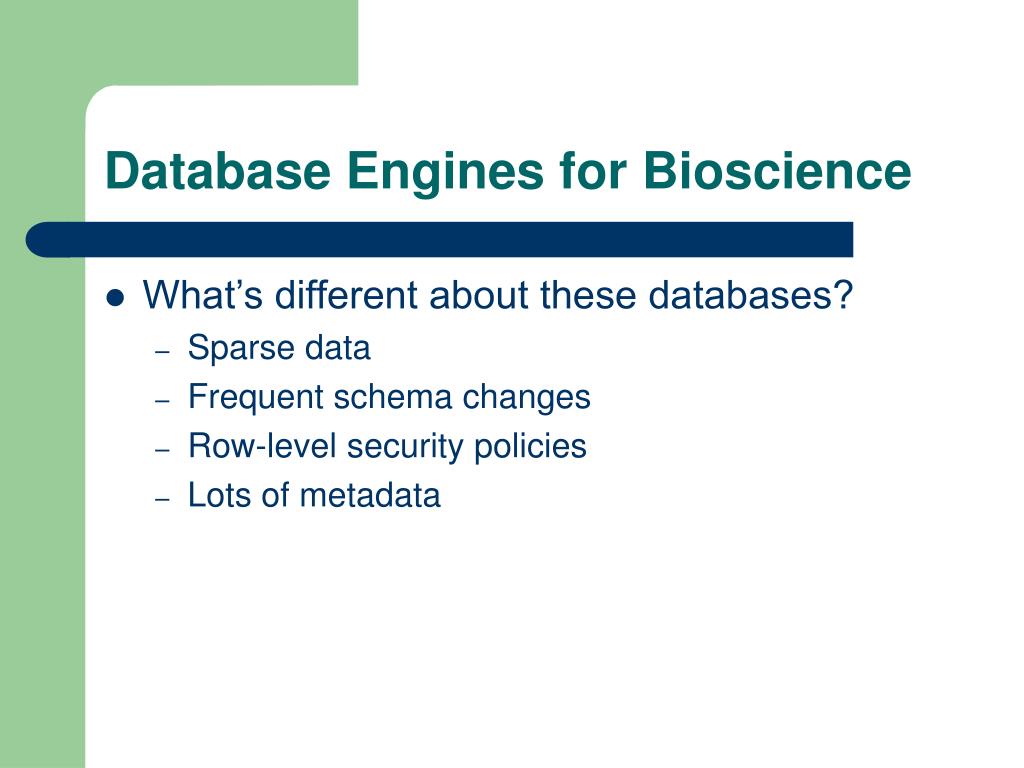

  5. Database Engines for Bioscience • What’s different about these databases? • Sparse data • Frequent schema changes • Row-level security policies • Lots of metadata

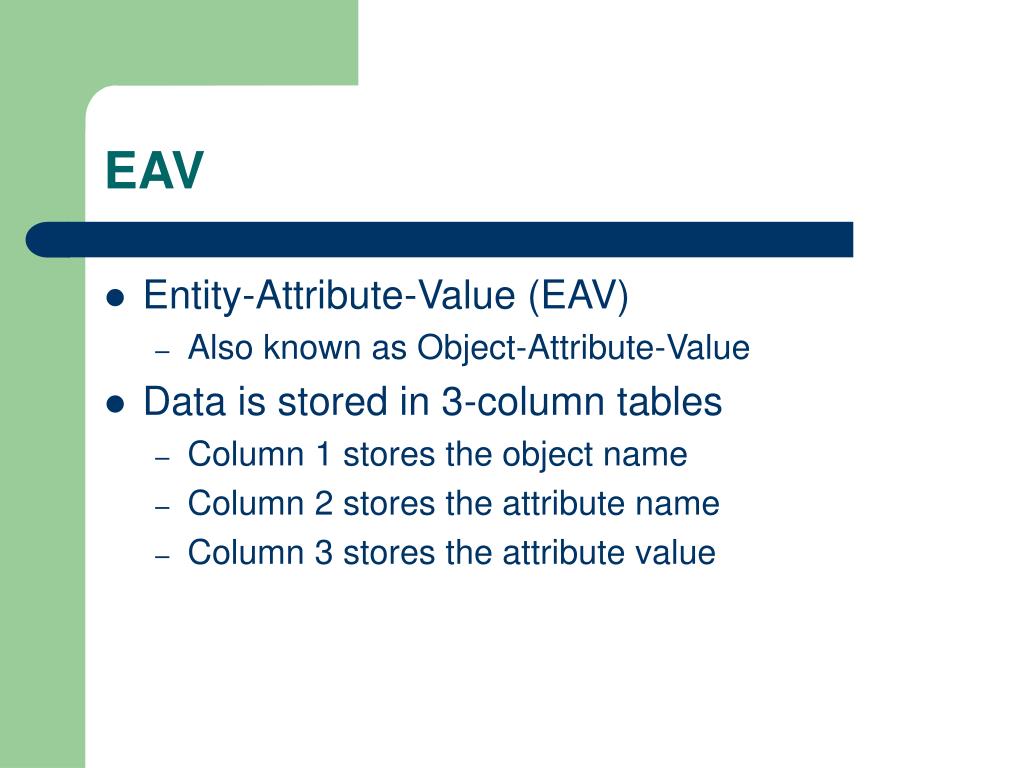

  6. EAV • Entity-Attribute-Value (EAV) • Also known as Object-Attribute-Value • Data is stored in 3-column tables • Column 1 stores the object name • Column 2 stores the attribute name • Column 3 stores the attribute value

  7. EAV – Example • Suppose we’re building a database of fruit types

  8. EAV/CR • EAV/CR: extends EAV with classes and relationships • Classes – the value field in each EAV triple may contain complex, structured data • Relationships – values may refer to other objects in the database, thus relationships in the database are stored explicitly

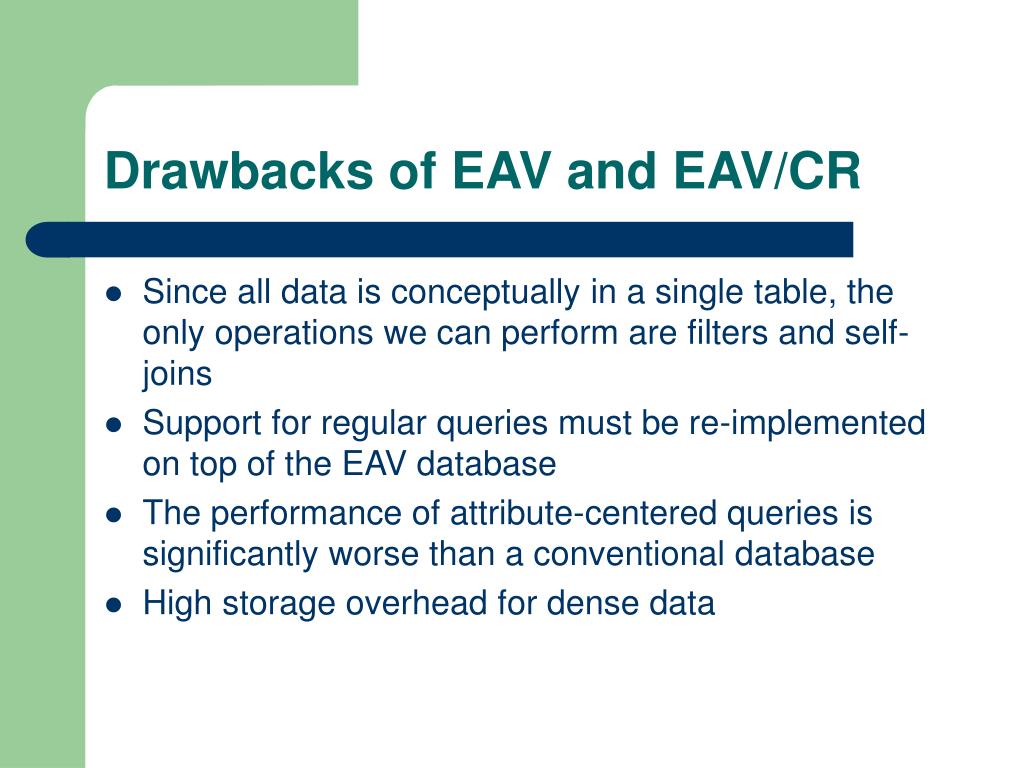

  9. Drawbacks of EAV and EAV/CR • Since all data is conceptually in a single table, the only operations we can perform are filters and self-joins • Support for regular queries must be re-implemented on top of the EAV database • The performance of attribute-centered queries is significantly worse than a conventional database • High storage overhead for dense data

  10. Our work • Extend a conventional database engine to better support the requirements of bioscience databases. • Take advantage of existing tools • Better performance • Better space-efficiency

  11. Schema modification • Use 1-column tables • Each attribute is stored in an individual table • The original table is formed by joining the 1-column tables by tuple index

  12. Schema modification • Adding and Removing attributes • One-column tables can be added and removed without affecting the existing tables

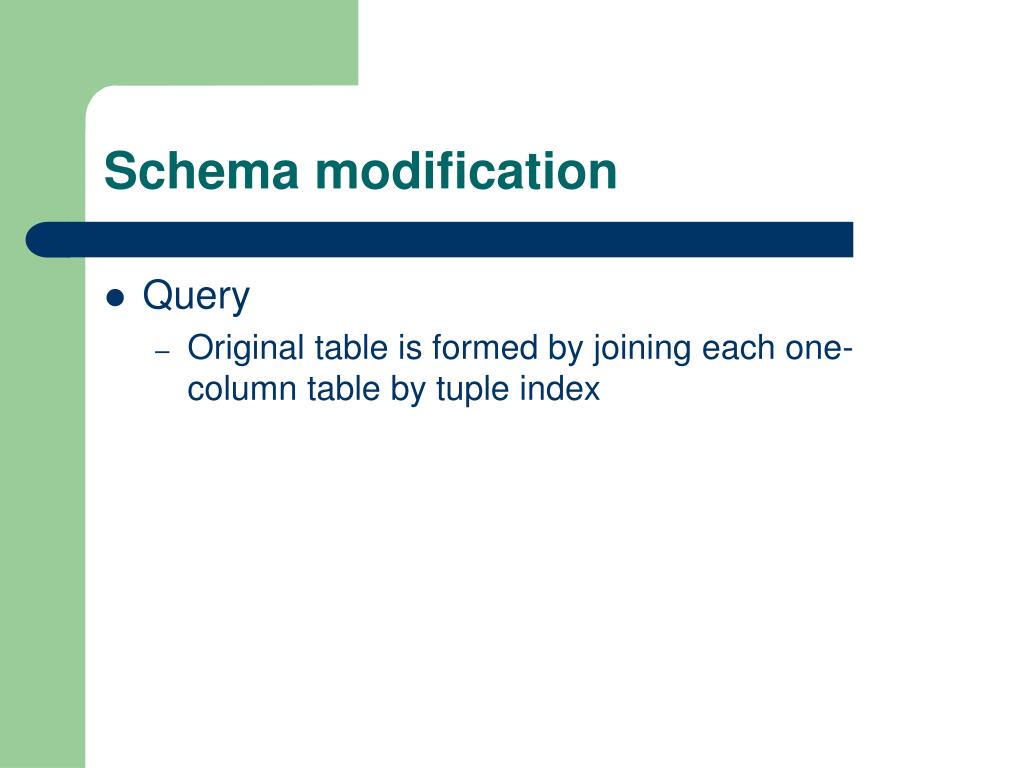

  13. Schema modification • Query • Original table is formed by joining each one-column table by tuple index

  14. Schema modification • To test this new storage mechanism, we implemented it in PostgreSQL • PostgreSQL is an open-source relational database engine • Based on the original Postgres engine developed at Berkeley • Supports modern database features such as complex queries, transactional integrity, and extensible functions and data types • 500,000 lines of C code

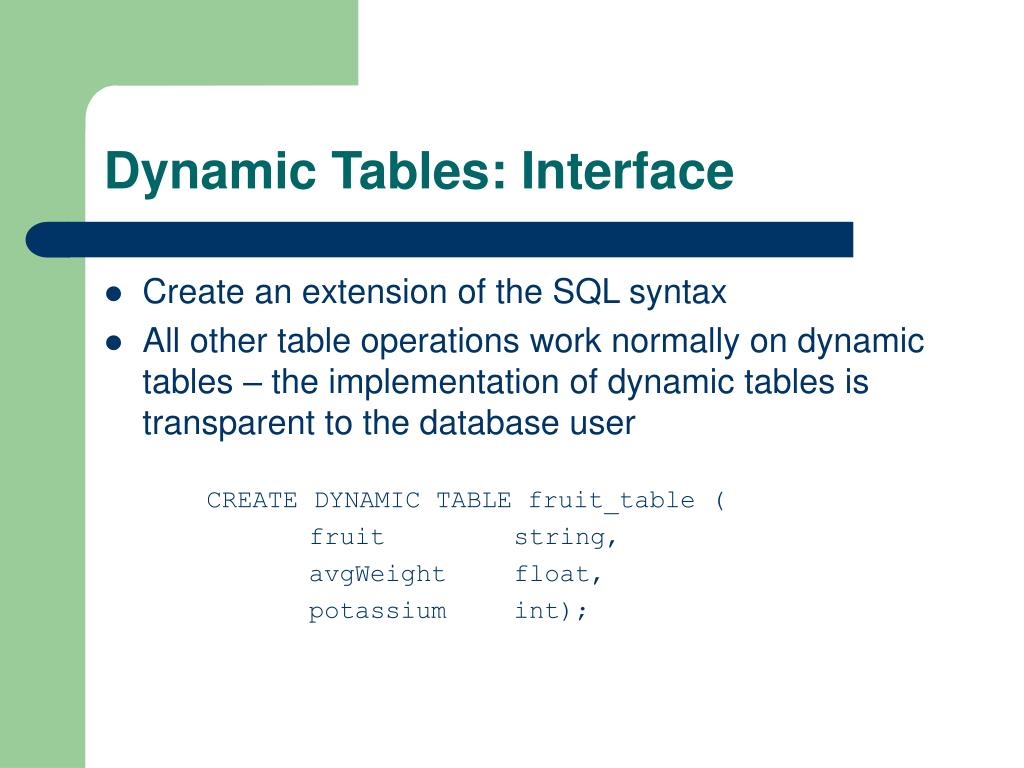

  15. Dynamic Tables: Interface • Create an extension of the SQL syntax • All other table operations work normally on dynamic tables – the implementation of dynamic tables is transparent to the database user CREATE DYNAMIC TABLE fruit_table ( fruit string, avgWeight float, potassium int);

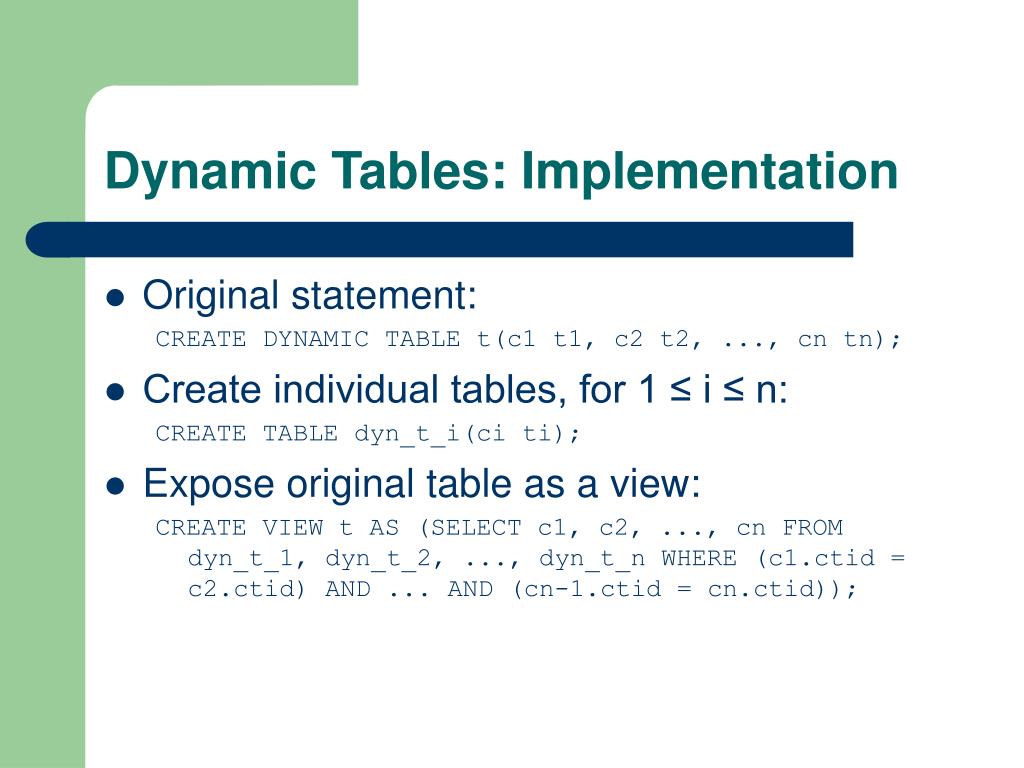

  16. Dynamic Tables: Implementation • Original statement: CREATE DYNAMIC TABLE t(c1 t1, c2 t2, ..., cn tn); • Create individual tables, for 1 ≤ i ≤ n: CREATE TABLE dyn_t_i(ci ti); • Expose original table as a view: CREATE VIEW t AS (SELECT c1, c2, ..., cn FROM dyn_t_1, dyn_t_2, ..., dyn_t_n WHERE (c1.ctid = c2.ctid) AND ... AND (cn-1.ctid = cn.ctid));

  17. Dynamic Tables: Implementation • Override implementation of insert, update, and delete • Insert: Given the query INSERT INTO t VALUES (v1, ..., vn); Translates to INSERT INTO dyn_t_i VALUES (v_i); for 1 ≤ i ≤ n

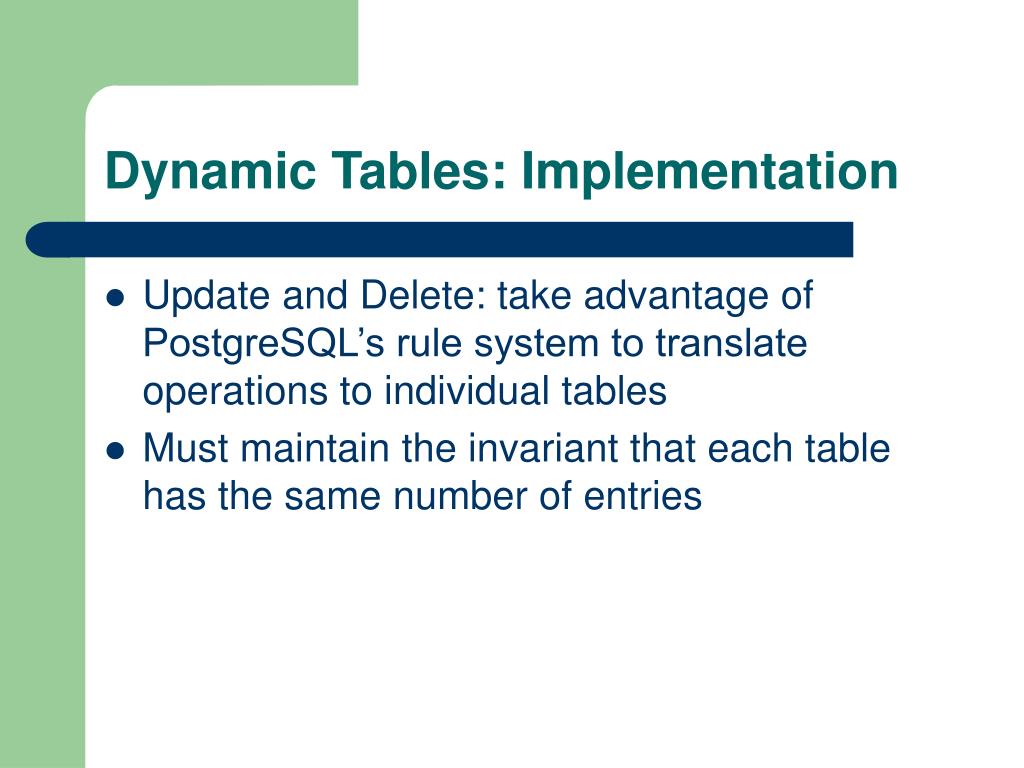

  18. Dynamic Tables: Implementation • Update and Delete: take advantage of PostgreSQL’s rule system to translate operations to individual tables • Must maintain the invariant that each table has the same number of entries

  19. Sparse Data • Make the column index explicit • Change our one-column tables to two-column tables • Column 1: row-index of this tuple • Column 2: data value • Table is exposed by joining sub-tables by explicit row index • Dense and sparse attributes can be mixed within the same relation

  20. Database Engines for Bioscience • Future work: • Row-level security • Metadata • Implement SenseLab database and compare performance

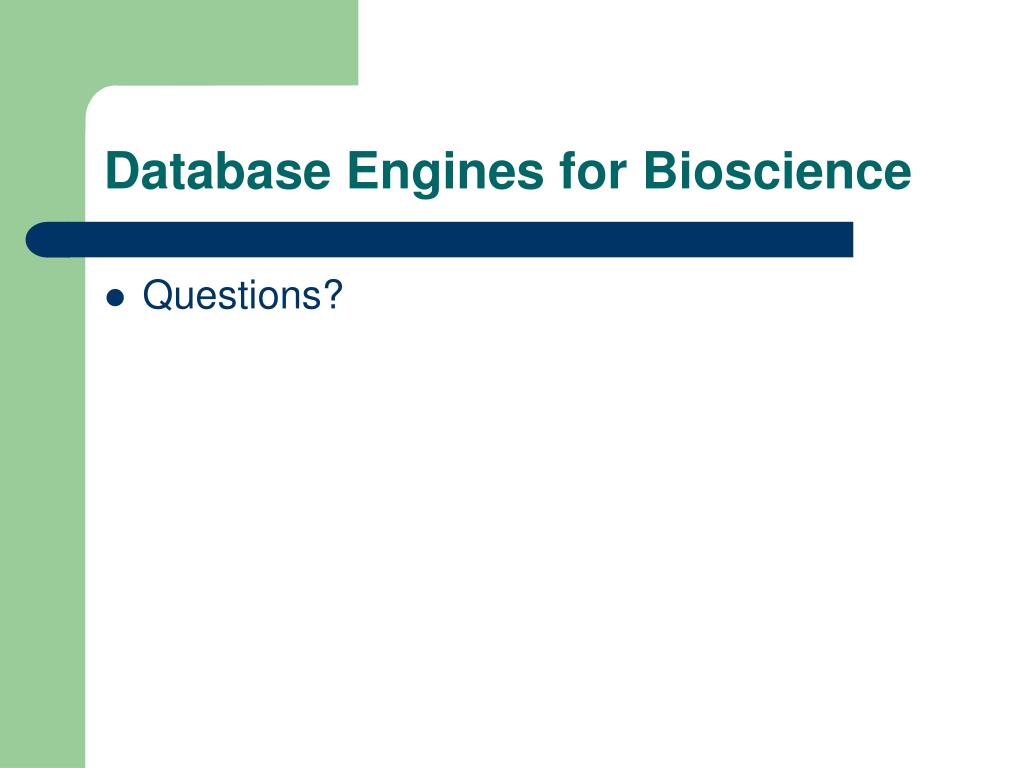

  21. Database Engines for Bioscience • Questions?
