  1. NM Standards: AFG.D.5, AFG.D.6

  2. Slope of a Line The ratio between a line’s vertical rise to it horizontal run. (Ratio – a comparison of two numbers, usually written as a fraction) Slope Formula

  3. Example 3-1a Rise/Run Method is not as accurate as the formula in some instances. Find the slope of the line. From (–3, 7) to (–1, –1), go down 8 units and right 2 units. Answer: –4 Use the formula:

  4. Example 3-1b Let be and be . Find the slope of the line. Use the slope formula. Answer: undefined

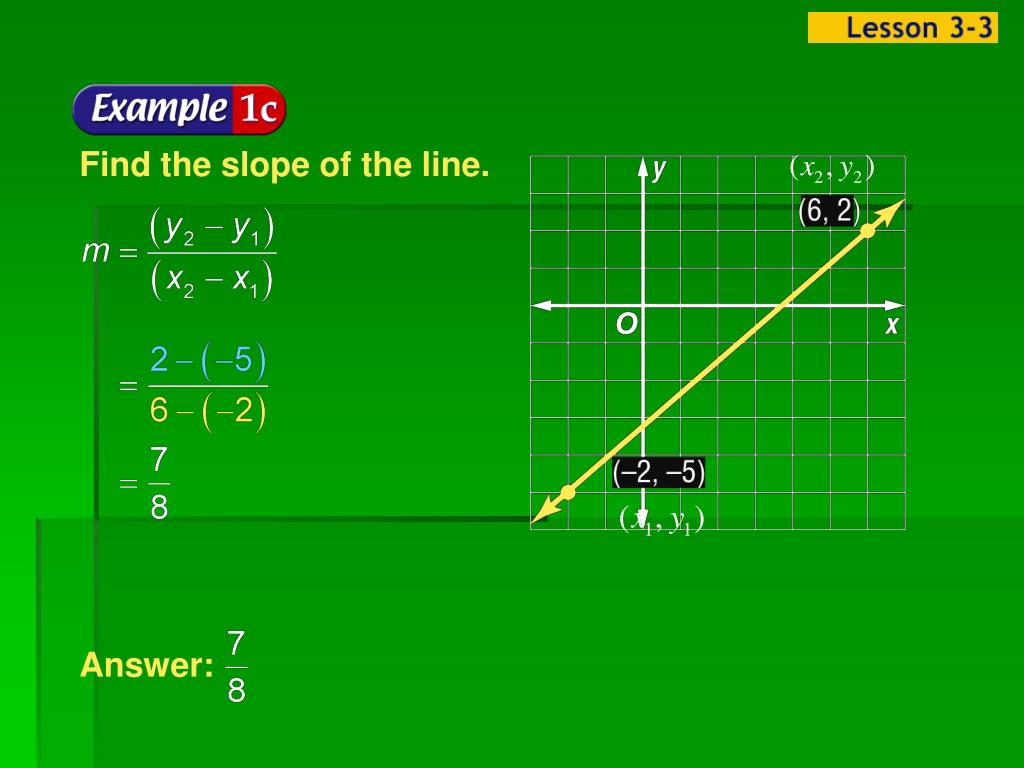

  5. Example 3-1c Find the slope of the line. Answer:

  6. Example 3-1d Find the slope of the line. Answer: 0

  7. d. Find the slope of the line. Answer: Undefined

  8. Rate of Change Another name for slope which describes how a quantity is changing over time.

  9. Example 3-2a RECREATION For one manufacturer of camping equipment, between 1990 and 2000, annual sales increased by $7.4 million per year. In 2000, the total sales were $85.9 million. If sales increase at the same rate, what will be the total sales in 2010? And let (x2, y2) = (85.9, y2) Slope formula

  10. Example 3-2b Simplify. Multiply each side by 10. Add 85.9 to each side. The coordinates of the point representing the sales for 2010 are (2010, 159.9). Answer: The total sales in 2010 will be about $159.9 million.

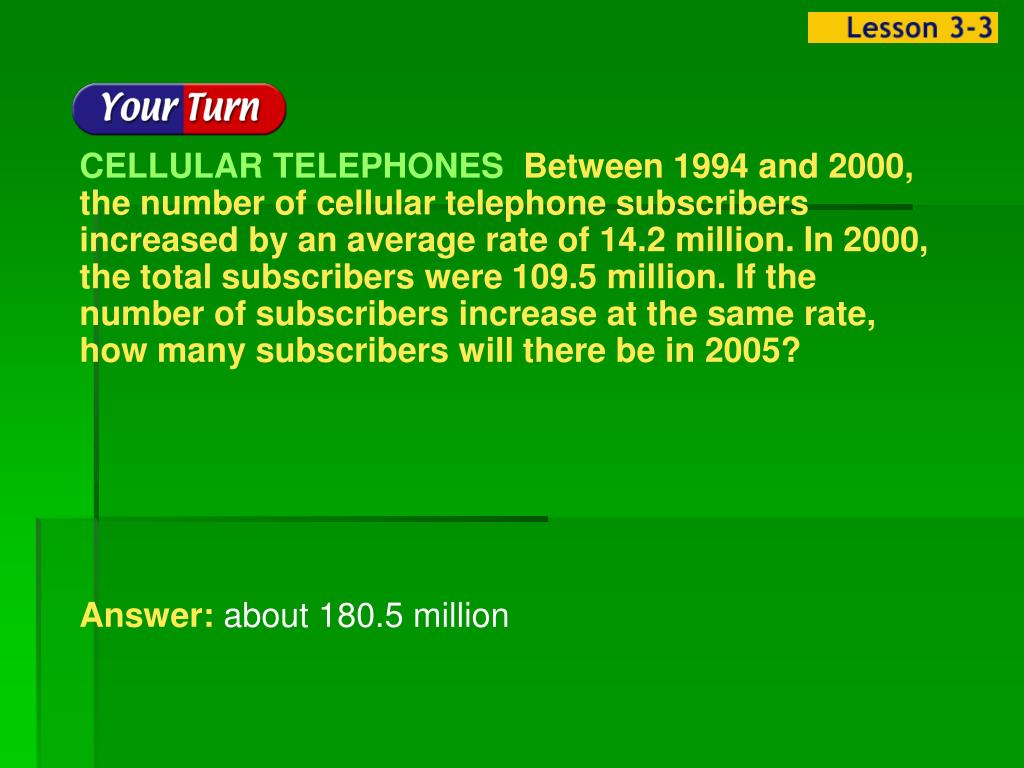

  11. Example 3-2c CELLULAR TELEPHONES Between 1994 and 2000, the number of cellular telephone subscribers increased by an average rate of 14.2 million. In 2000, the total subscribers were 109.5 million. If the number of subscribers increase at the same rate, how many subscribers will there be in 2005? Answer: about 180.5 million

  12. Slope of Parallel & Perpendicular Lines

  13. Postulates (Rules) Two non vertical lines have the same slope if and only if they are parallel. If and only if means the inverse of the postulate is also true, so: If two non vertical lines are parallel, then they have the same slope. Two non vertical lines are perpendicular if and only if the product of their slopes is -1 (or opposite reciprocals of each other) Write the inverse of the postulate: The product of the slope of two lines is -1 if and only if the lines are perpendicular.

  14. Example 3-3a Determine whetherand are parallel, perpendicular, or neither. Answer: The slopes are not the same,The product of the slopes is are neither parallel nor perpendicular.

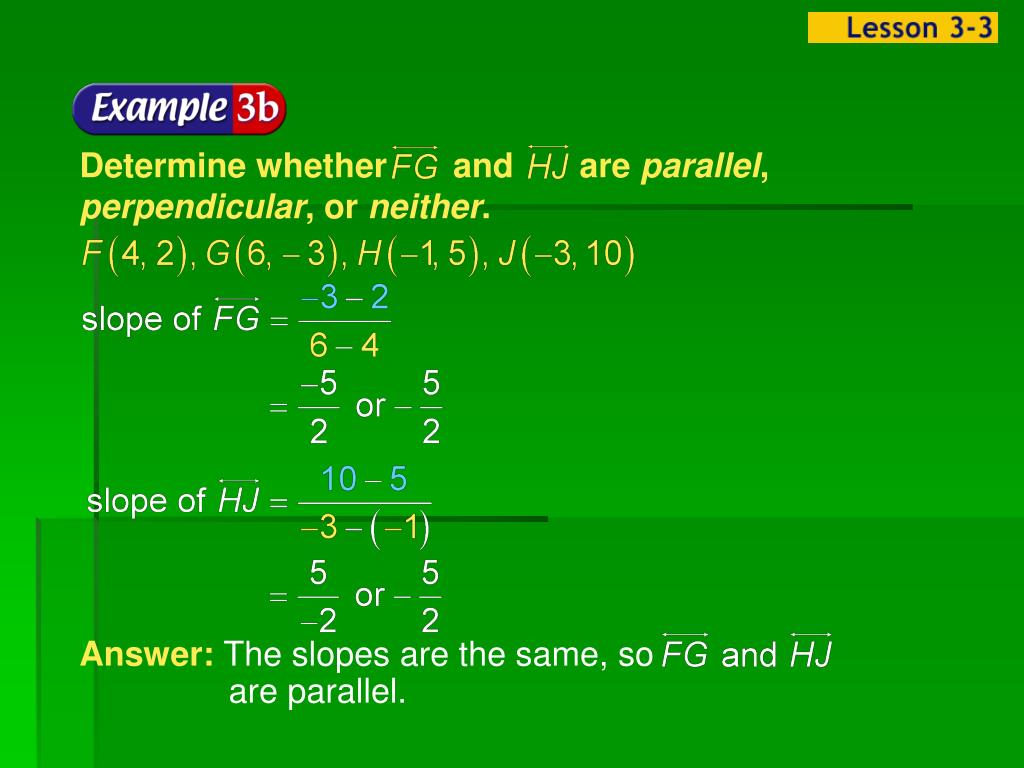

  15. Example 3-3c Determine whetherand are parallel, perpendicular, or neither. Answer: The slopes are the same, so are parallel.

  16. Example 3-4a Graph the line that contains Q(5, 1) and is parallel to with M(–2, 4) and N(2, 1). Slope formula Substitution Simplify.

  17. Example 3-4b The slope of the line parallel to The slopes of two parallel lines are the same. Answer: Graph the line. Start at (5, 1). Move up 3 units and then move left 4 units. Label the point R.

  18. HW #1: Page 142
