  1. Updated status of the PSB impedance model    C. Zannini and G. Rumolo Thanks to: E. Benedetto, N. Biancacci, E. Métral, B. Mikulec, N. Mounet, T. Rijoff, B. Salvant, W. Weterings

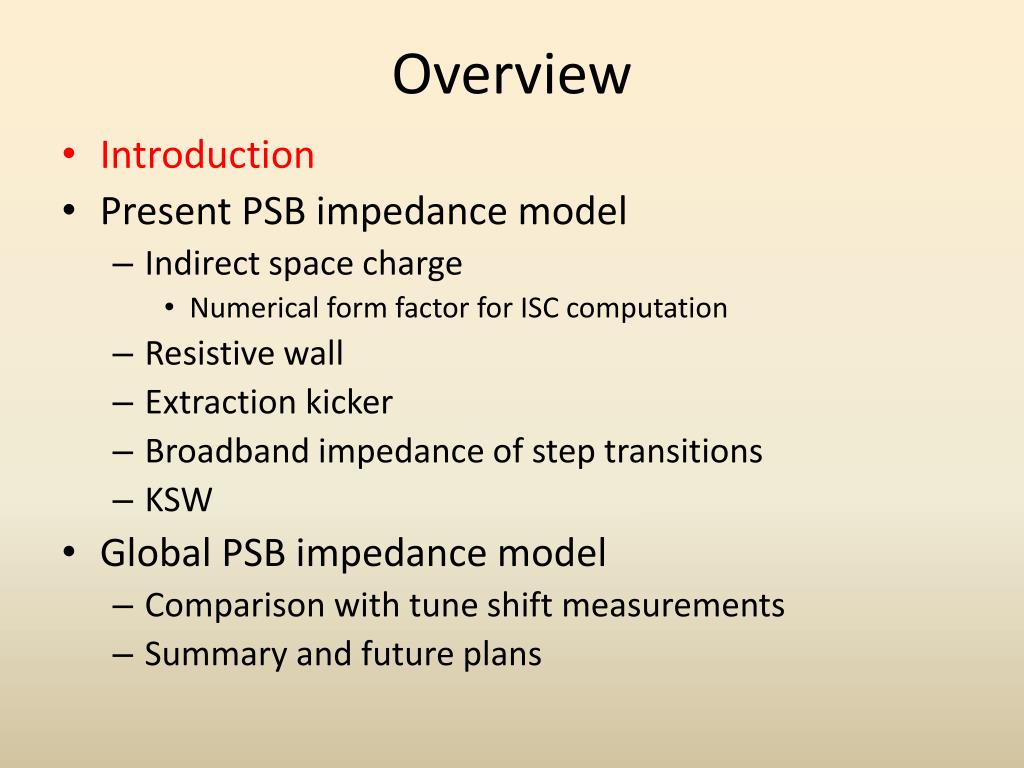

  2. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  3. Impedance calculations for b < 1 Analytical calculation (applies only to simple structures) 3D EM simulations (CST Particle Studio) In the LHC, SPS, PS CST EM simulations are performed in the ultra-relativistic approximation (b = 1) The use of 3D EM simulations for b < 1 is not straightforward at all

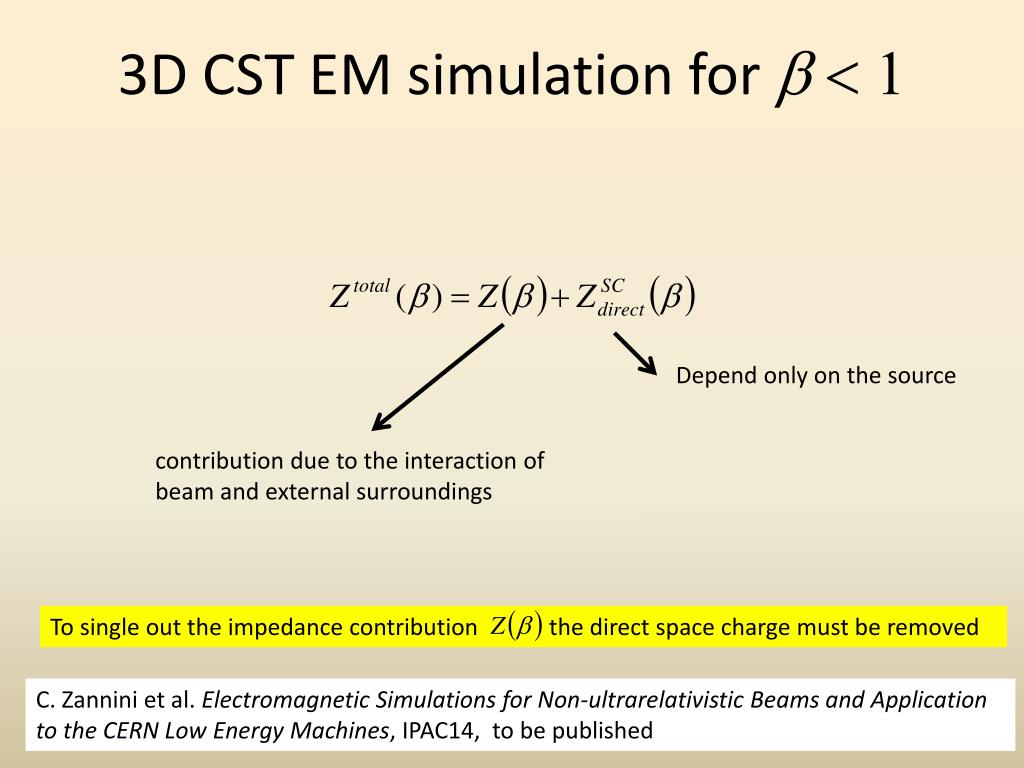

  4. 3D CST EM simulation for b < 1 Depend only on the source contribution due to the interaction of beam and external surroundings • To single out the impedance contribution the direct space charge must be removed C. Zannini et al. Electromagnetic Simulations for Non-ultrarelativistic Beams and Application to the CERN Low Energy Machines, IPAC14, to be published

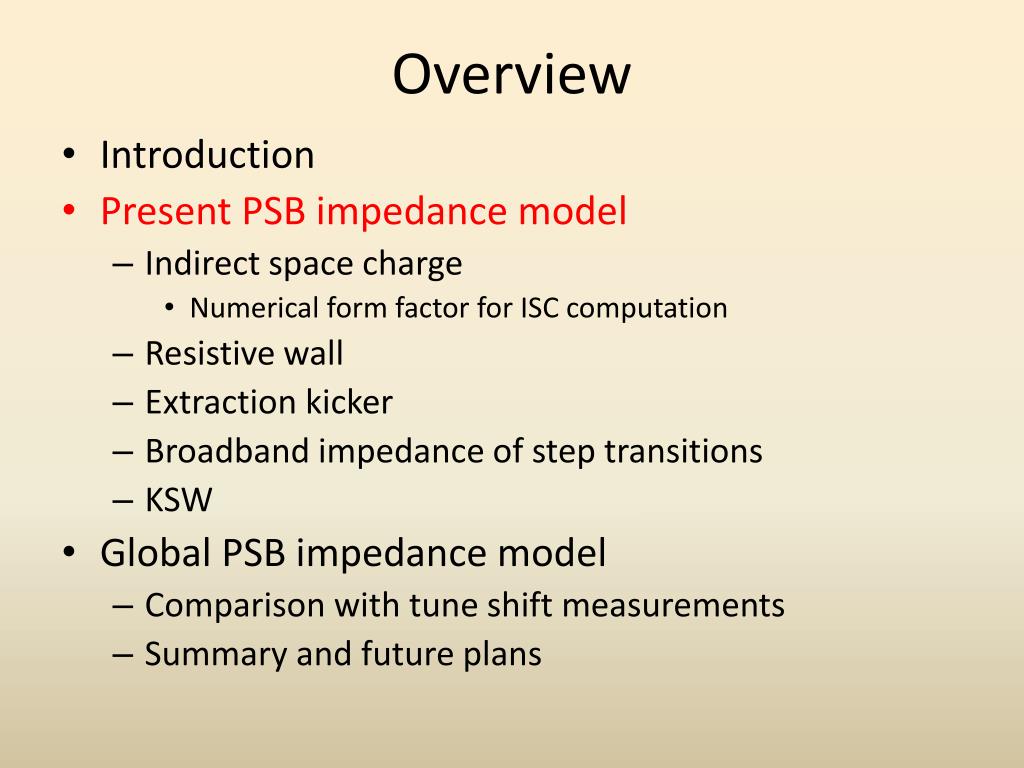

  5. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  6. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account Beam pipe

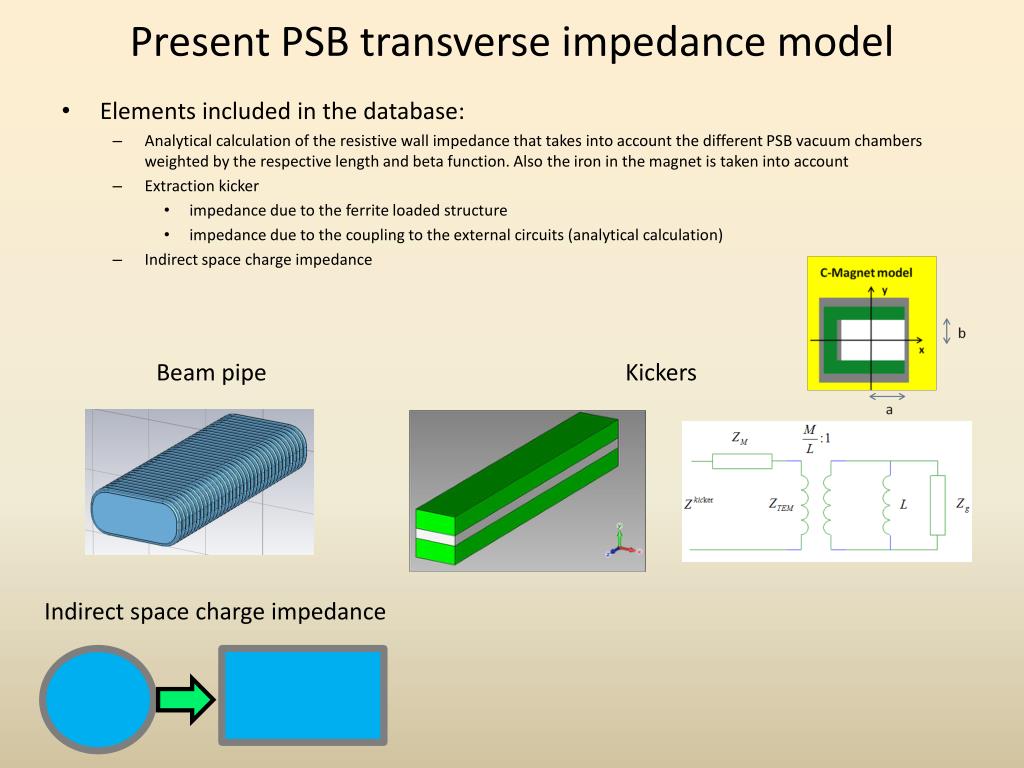

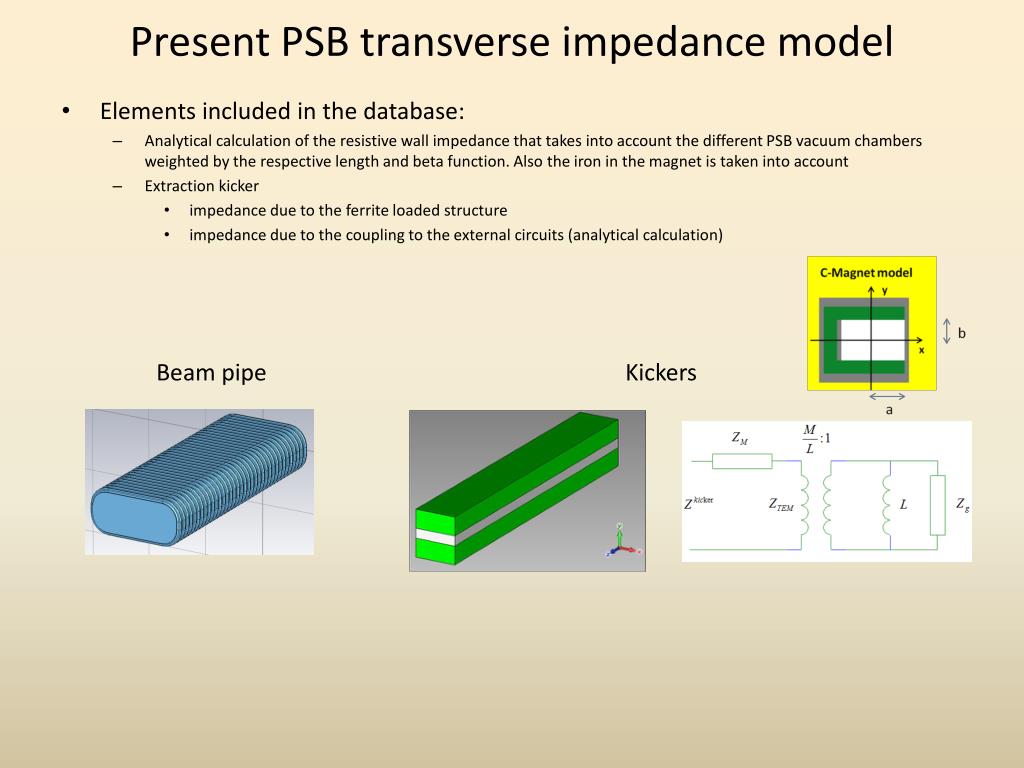

  7. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) Beam pipe Kickers

  8. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance Beam pipe Kickers Indirect space charge impedance

  9. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance Beam pipe Kickers Indirect space charge impedance

  10. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance Beam pipe Kickers Indirect space charge impedance

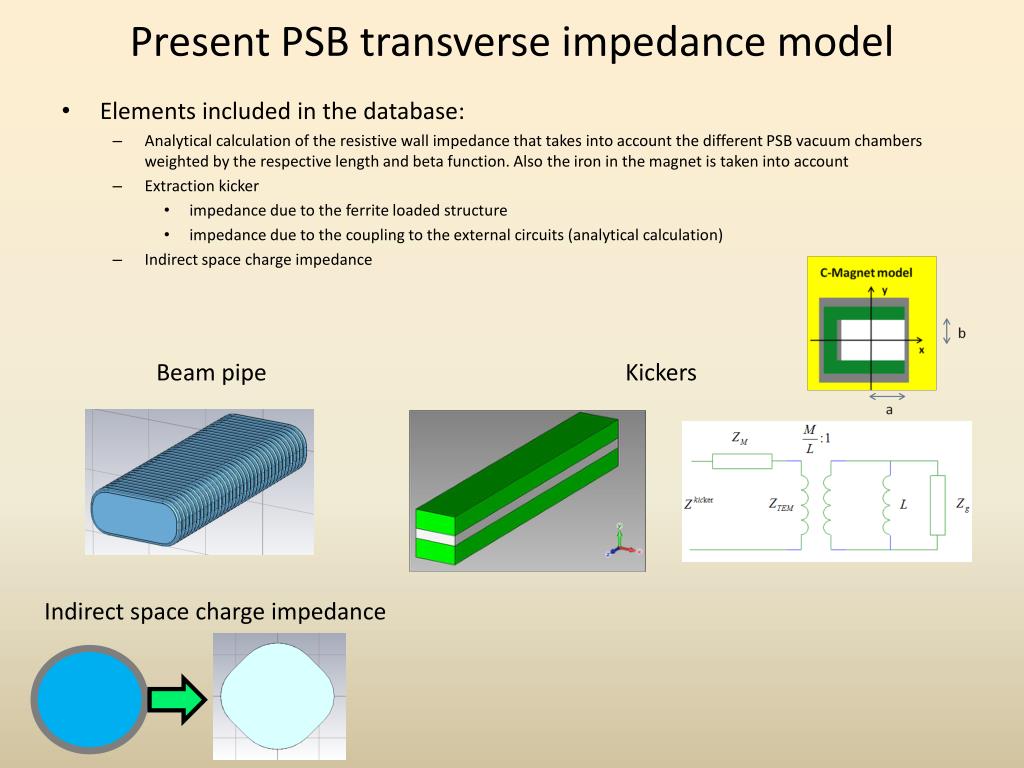

  11. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance Beam pipe Kickers Indirect space charge impedance

  12. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance • Broadband impedance of step transitions Beam pipe Kickers Indirect space charge impedance Step transitions

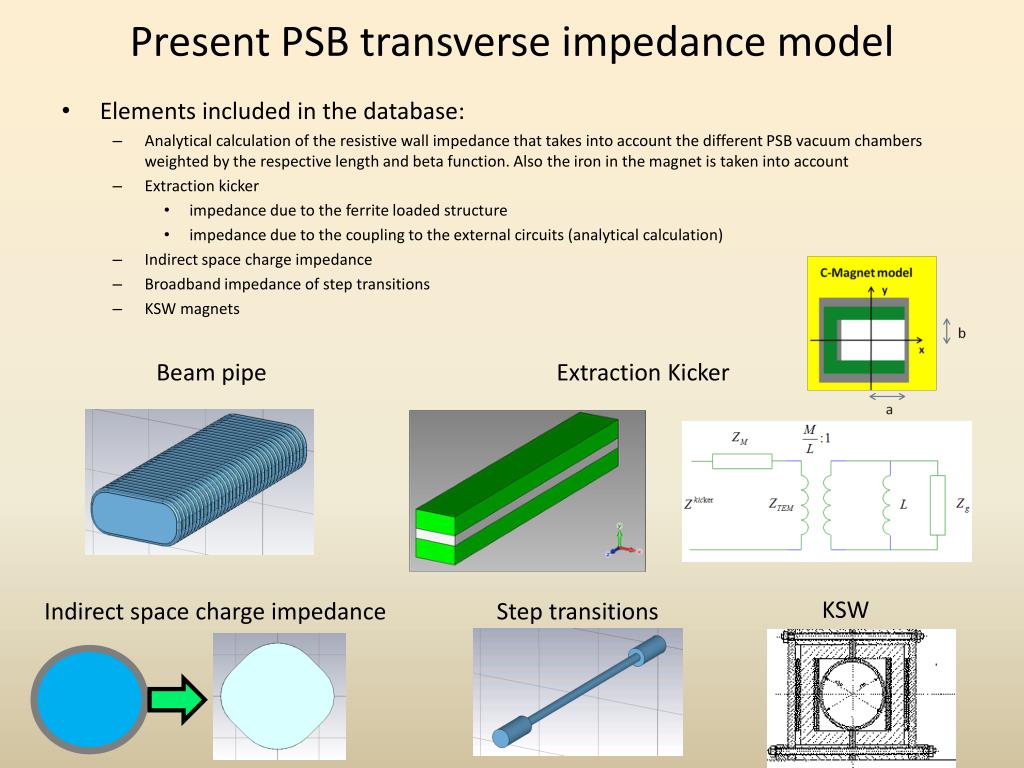

  13. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance • Broadband impedance of step transitions • KSW magnets Beam pipe Extraction Kicker KSW Indirect space charge impedance Step transitions

  14. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  15. Indirect space charge Analytical calculation based on the PSB aperture model (provided by O. Berrig) [a, b, L, βx , βy , Apertype]i Rectangular pipe Circular pipe K. Y. Ng, Space charge impedances of beams with non-uniform transverse distributions Elliptic pipe

  16. PSB: indirect space charge impedance

  17. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

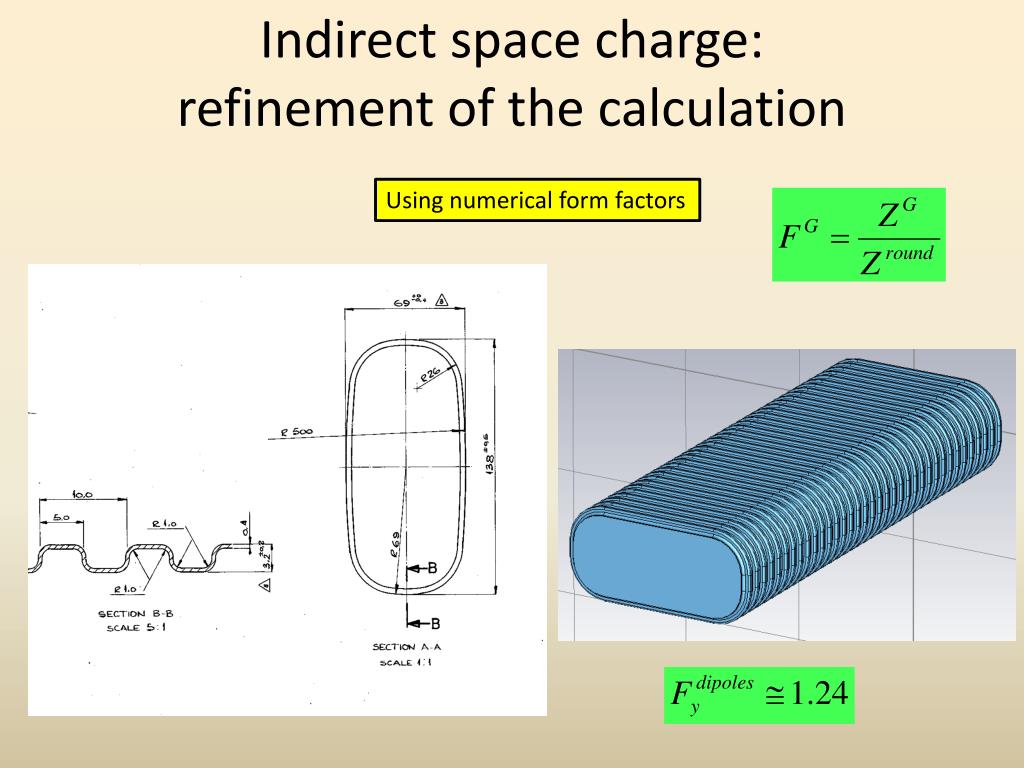

  18. Indirect space charge: refinement of the calculation Using numerical form factors

  19. Indirect space charge: refinement of the calculation Using numerical form factors

  20. PSB: indirect space charge impedance

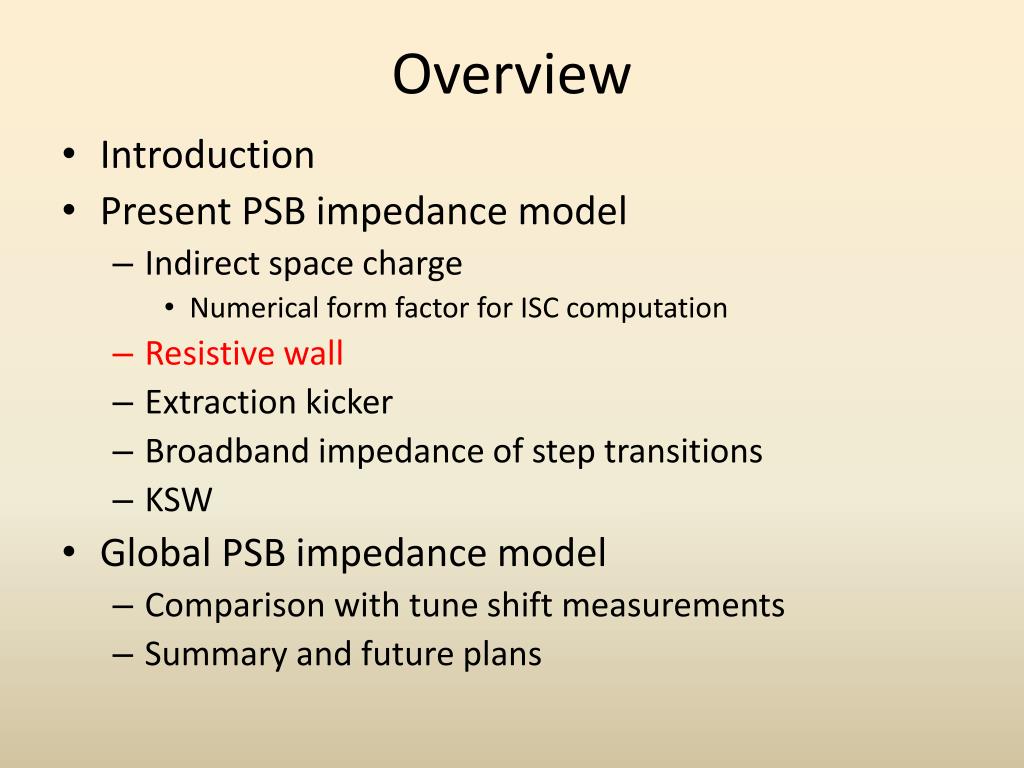

  21. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  22. Resistive wall impedance Analytical calculation based on the PSB aperture model (provided by O. Berrig) [a, b, L, βx , βy , Apertype]i Calculation performed with the TLwall code

  23. Resistive wall impedance Analytical calculation based on the PSB aperture model (provided by O. Berrig) Vertical [a, b, L, βx , βy , Apertype]i Calculation performed with the TLwall code

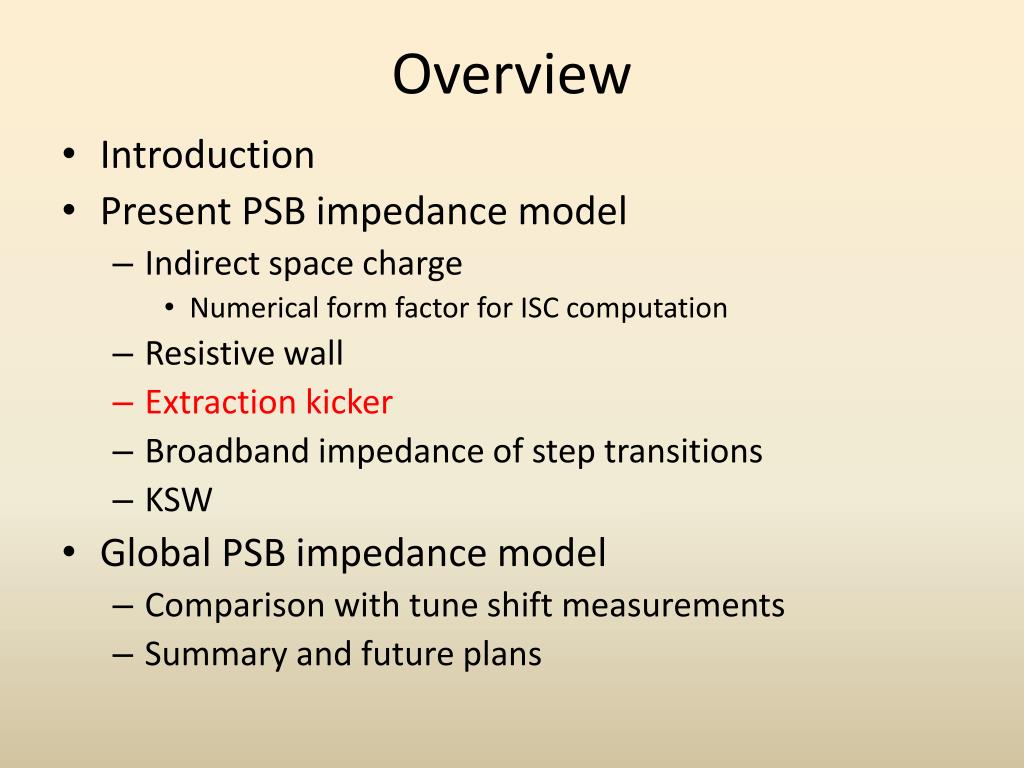

  24. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  25. A theoretical calculation for the C-Magnet model is the impedance calculated using the Tsutsui formalism Constant horizontal impedance

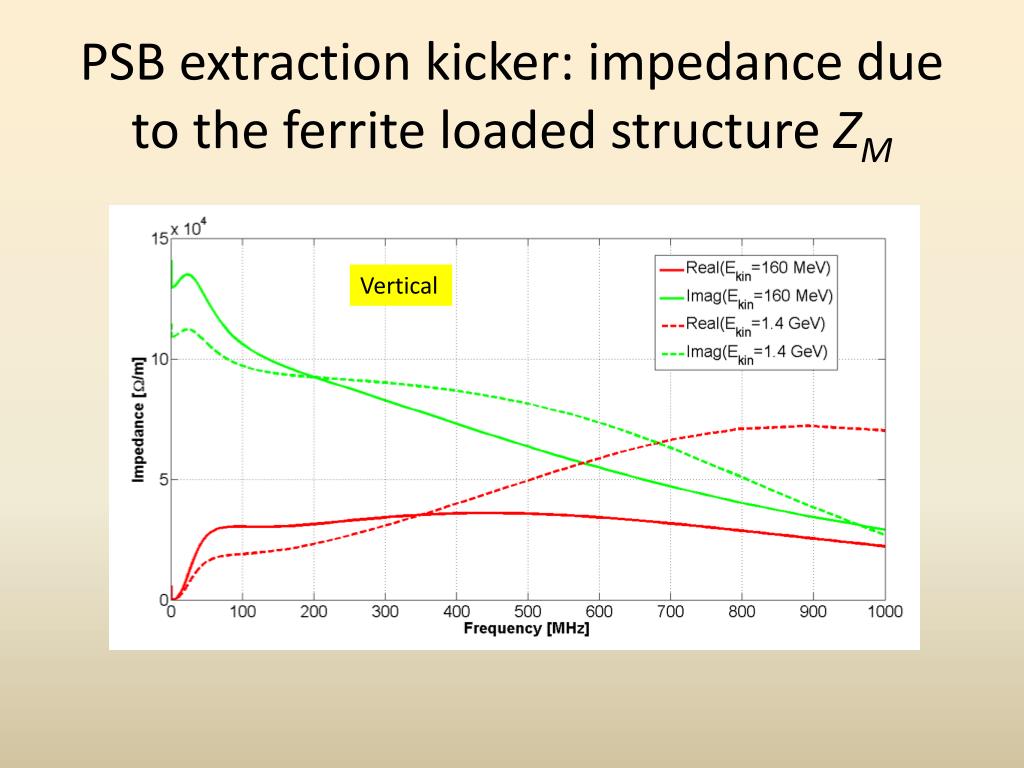

  26. PSB extraction kicker: impedance due to the ferrite loaded structure ZM Vertical

  27. PSB extraction kicker: impedance due to the coupling to the external circuits ZTEM Horizontal Cables in the open-short configuration

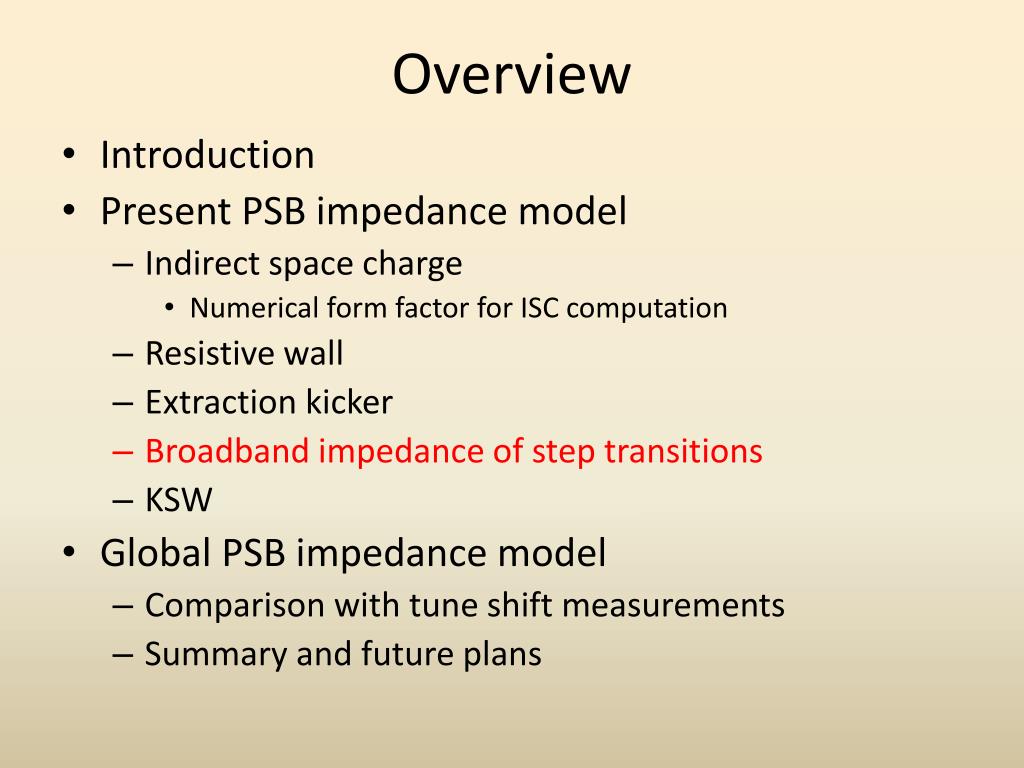

  28. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  29. Broadband impedance of a step transition • Based on the results of 3D EM simulations, the broadband impedance contribution due to an abrupt transition is independent of the relativistic beta. Therefore, based on the aperture model, the generalized broadband impedance of the PSB transitions has been calculated as: C. Zannini, Electromagnetic simulations of CERN accelerator components and experimental applications. PhD thesis, Lausanne, EPFL, 2013. CERN-THESIS-2013-076.

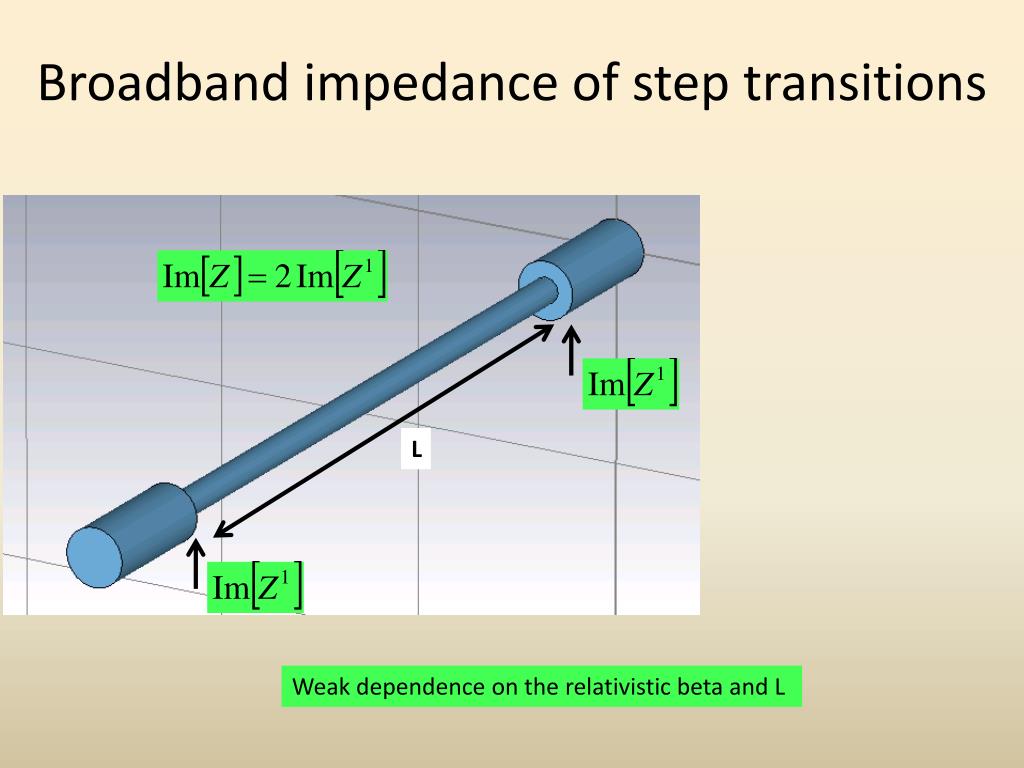

  30. Broadband impedance of step transitions L Weak dependence on the relativistic beta and L

  31. Broadband impedance of step transitions L Weak dependence on the relativistic beta and L

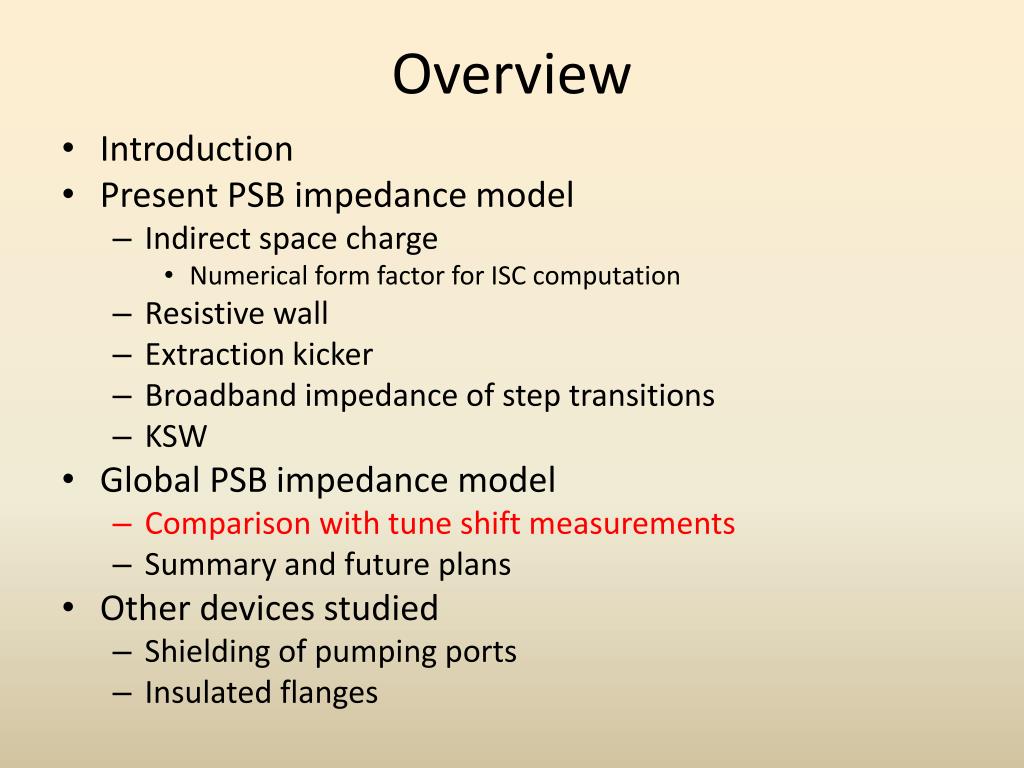

  32. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans

  33. 3D model of the KSW magnet

  34. Coating of the ceramic chamber

  35. Coating of the ceramic chamber

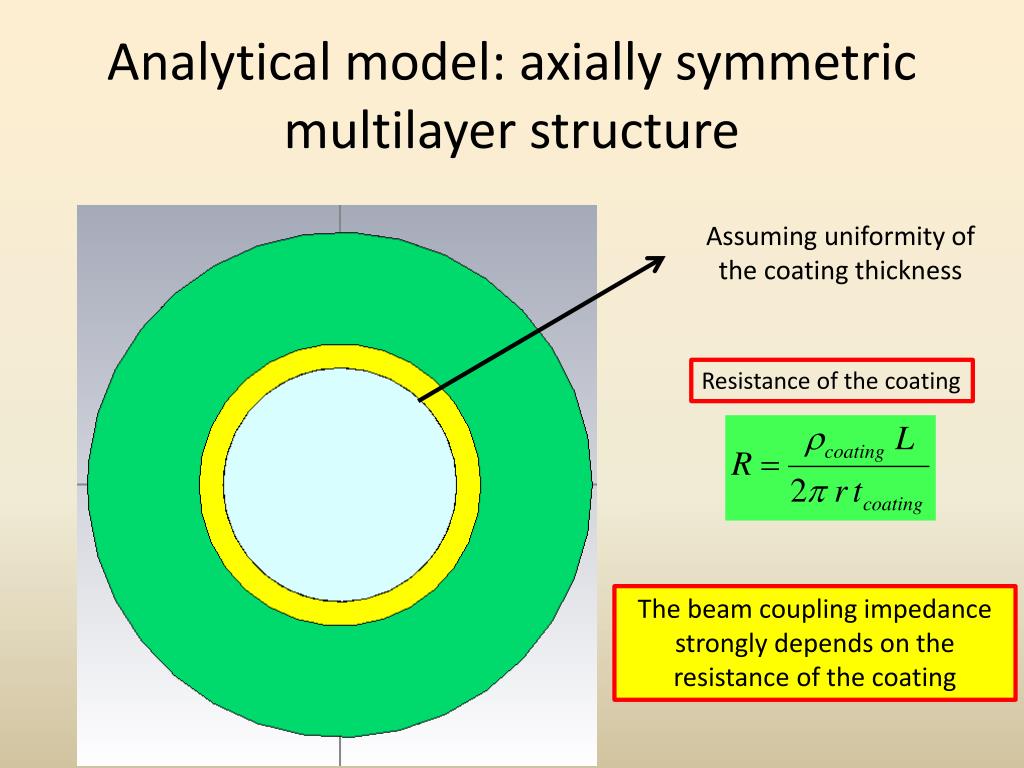

  36. Analytical model: axially symmetric multilayer structure Assuminguniformity of the coatingthickness Resistance of the coating The beamcouplingimpedancestronglydepends on the resistance of the coating

  37. KSW magnets R=8 Ω Vertical

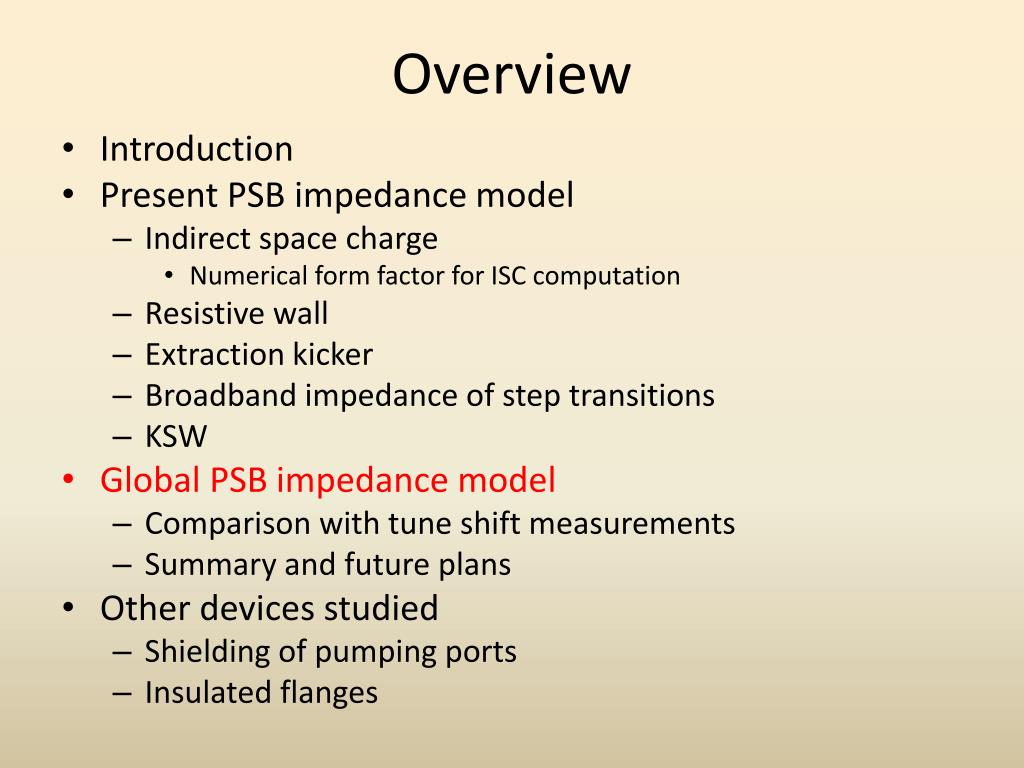

  38. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans • Other devices studied • Shielding of pumping ports • Insulated flanges

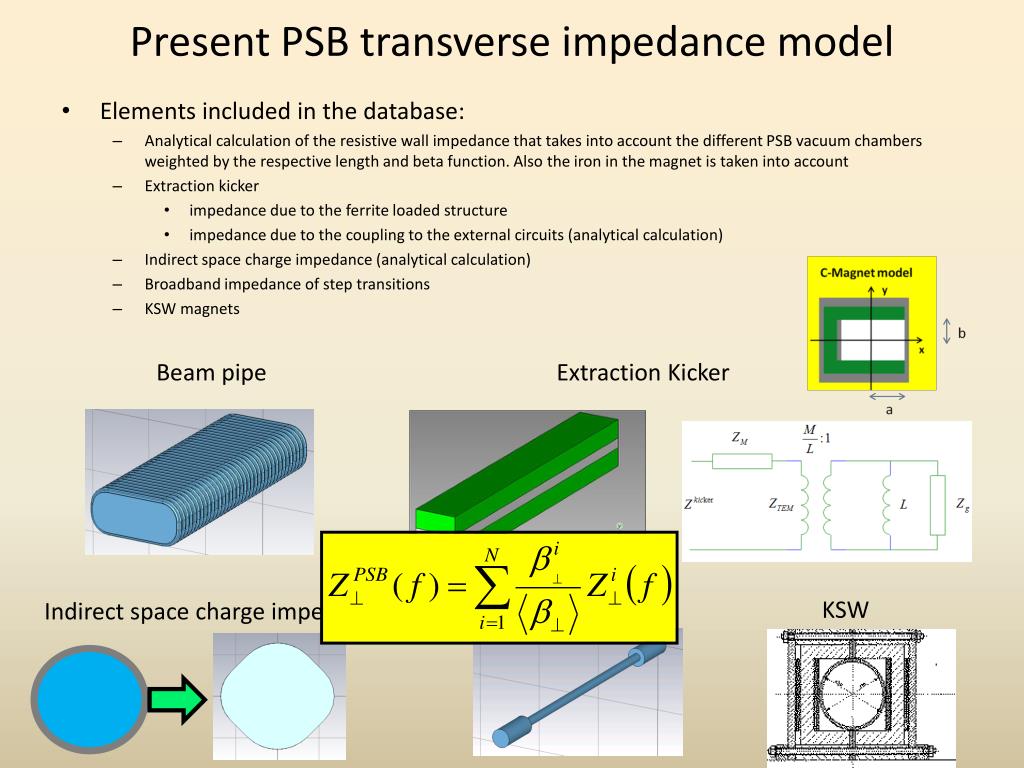

  39. Present PSB transverse impedance model • Elements included in the database: • Analytical calculation of the resistive wall impedance that takes into account the different PSB vacuum chambers weighted by the respective length and beta function. Also the iron in the magnet is taken into account • Extraction kicker • impedance due to the ferrite loaded structure • impedance due to the coupling to the external circuits(analytical calculation) • Indirect space charge impedance (analytical calculation) • Broadband impedance of step transitions • KSW magnets Beam pipe Extraction Kicker KSW Indirect space charge impedance Step transitions

  40. Total horizontal driving impedance of the PSB E E Contributions of the extraction kicker due to the coupling with external circuits

  41. Total vertical driving impedance of the PSB E E

  42. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans • Other devices studied • Shielding of pumping ports • Insulated flanges

  43. Measurement data D. Quatraro, Collective effects for the LHC injectors: non-ultrarelativisticapproaches. PhD thesis, Bologna, University of Bologna, 2011. CERN-THESIS-2011-103.

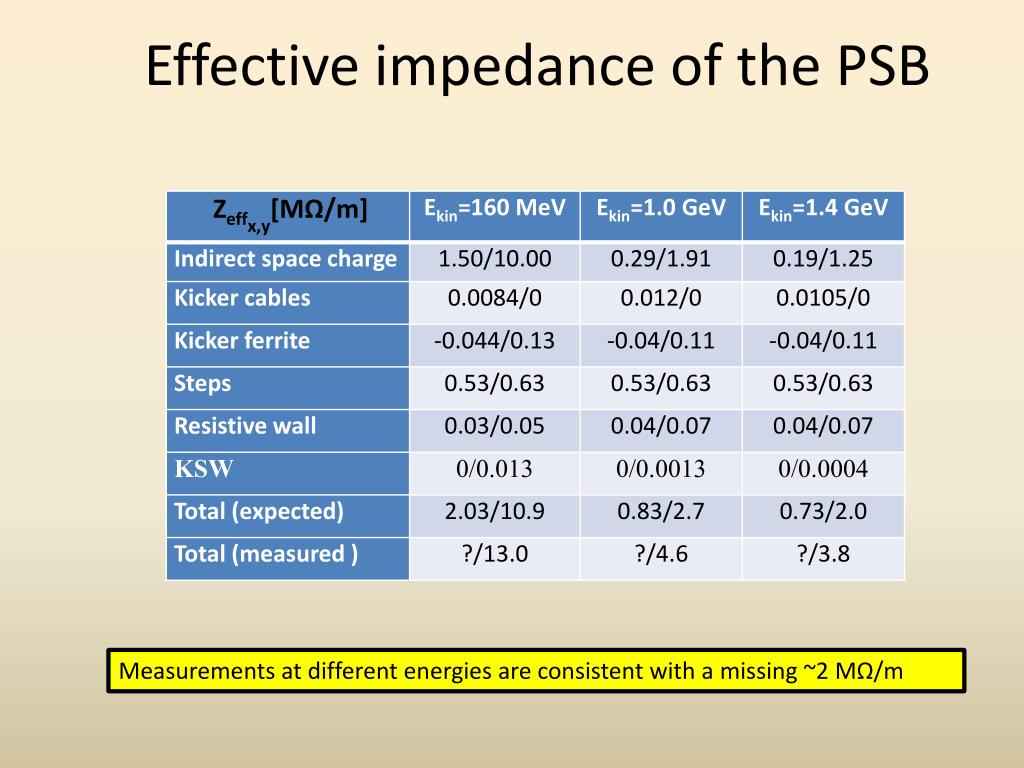

  44. Effective impedance of the PSB Measurements at different energies are consistent with a missing ~2 MΩ/m

  45. Comparison between measurements and model of the vertical coherent tune shifts at different energies

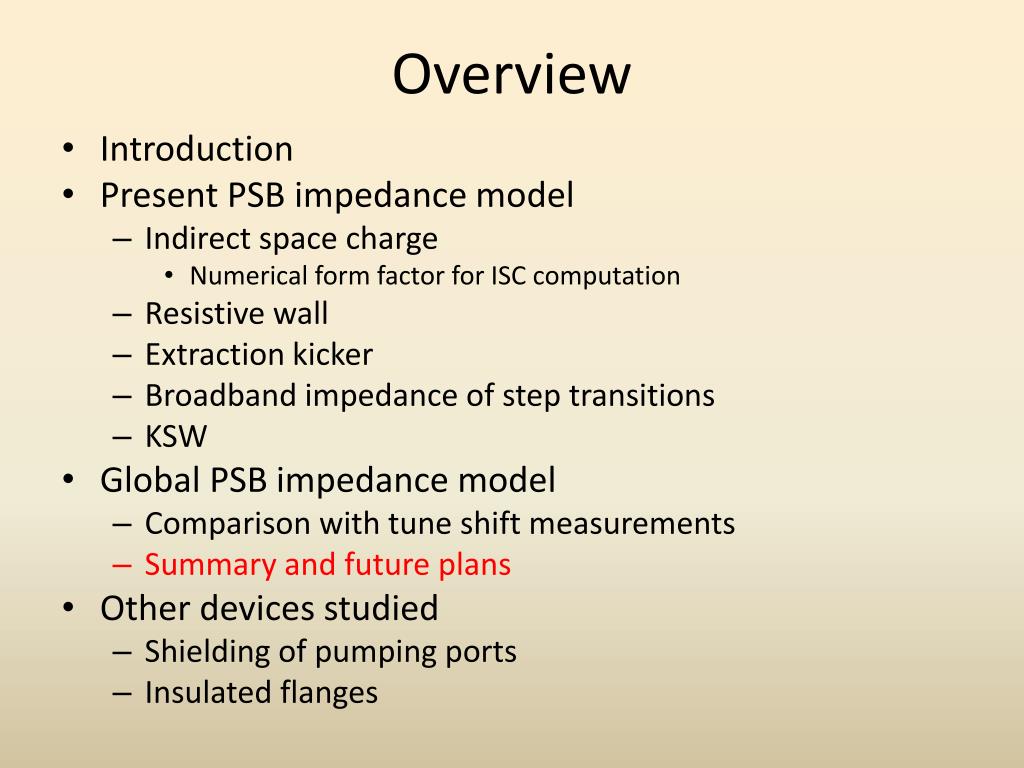

  46. Overview • Introduction • Present PSB impedance model • Indirect space charge • Numerical form factor for ISC computation • Resistive wall • Extraction kicker • Broadband impedance of step transitions • KSW • Global PSB impedance model • Comparison with tune shift measurements • Summary and future plans • Other devices studied • Shielding of pumping ports • Insulated flanges

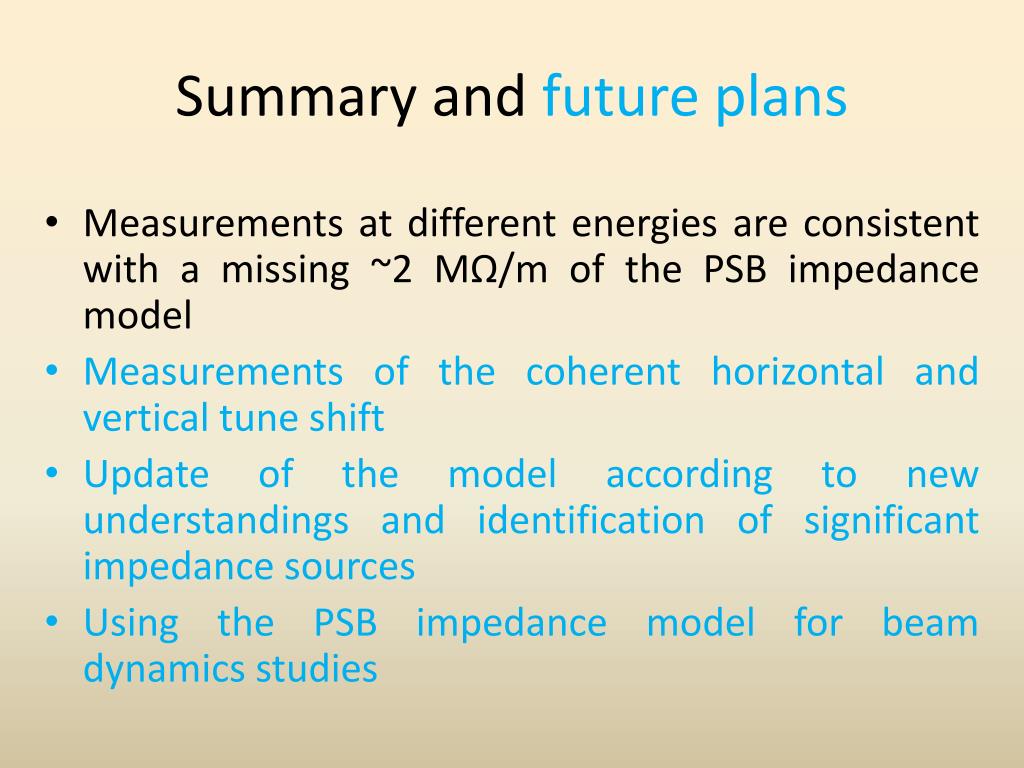

  47. Summary and future plans • Measurements at different energies are consistent with a missing ~2 MΩ/m of the PSB impedance model • Measurements of the coherent horizontal and vertical tune shift • Update of the model according to new understandings and identification of significant impedance sources • Using the PSB impedance model for beam dynamics studies

  48. Additional impedance studies not discussed here • Impedance model of the new H- injection region • Comparison between Inconel undulated chamber and titanium coated ceramic chamber • Pumping ports • Foil section • Finemet cavities • The longitudinal impedance does not depend on the relativistic beta • Impedance of insulated flanges with and without RF bypass

  49. Thank you for your attention

  50. Resistive wall impedance: impact of the iron Resistive wall vertical generalized impedance of the PSB
