  1. FLT3 and NPM1 Testing in Acute Myeloid Leukaemia Louise Stanley Northern Genetics Service April 2010

  2. Acute Myeloid Leukaemia (AML) • Uncontrolled proliferation of immature myeloid cells (blast) • Median age of onset ~60 years • Analysis to look for ACQUIREDabnormalities in leukaemic clone (i.e. not constitutional) • Abnormalities can evolve during disease progression • For diagnosis and prognosis

  3. Prognostic Indicators • Cytogenetic markers and molecularly determined mutation status of FLT3 and NPM1 • Allows a risk-adapted treatment approach

  4. Adaptive Treatment Strategies • Non-specific treatments e.g. BMT, Chemotherapy • Target specific inhibitors – e.g. anti-FLT3 drugs (CEP-701)

  5. Exon 14 Fms-related tyrosine kinase (FLT3) • Encodes a tyrosine kinase receptor (13q12) – involved in regulation of stem cell proliferation • Internal Tandem Duplications (ITDs) cause constitutive activation of receptor • Associated with elevated risk relapse and reduced overall survival • Bad prognostic indicator

  6. NPM1 (nucleophosmin) • Encodes a ubiquitously expressed nuclear protein (5q35) • Involved in nuclear-cytoplasmic shuttling facilitating transport of ribosomal proteins • 4bp insertion in exon 12 of the NPM1 gene • Loss of the nucleolar-localisation signal and gain of a nuclear export signal motif at the C-terminus. Abnormal cytoplasmic accumulation • Good prognostic indicator in AML

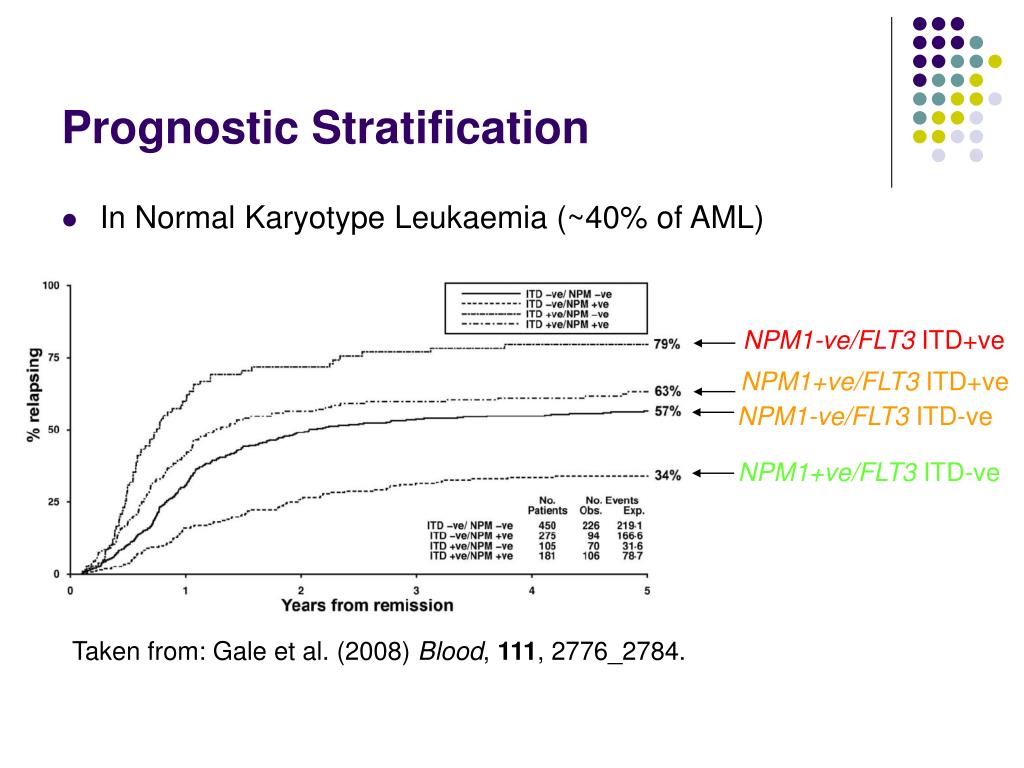

  7. NPM1-ve/FLT3 ITD+ve NPM1+ve/FLT3 ITD+ve NPM1-ve/FLT3 ITD-ve NPM1+ve/FLT3 ITD-ve Prognostic Stratification • In Normal Karyotype Leukaemia (~40% of AML) Taken from: Gale et al. (2008) Blood, 111, 2776_2784.

  8. Testing Strategy • DNA extracted from fixed cell pellets using the automated EZ1 machine (time consuming part of process). • PCR: uniplex reaction examining FLT3 only and multiplex examining FLT3 and NPM1 mutation status • Analysis on the ABI3130 and Genemarker software (Softgenetics) • Information on blast cell count can be important for interpretation

  9. FLT3 results • From January 2007 to February 2010 tested 267 cases for FLT3 ITDs • 40 cases (~15%) positive • ~70 % of FLT3 +ve samples identified in Normal Karyotype Leukaemia • ITD range in size from 17bp to 182bp • Number of ITDs has no significant influence on survival

  10. FLT3 results Single ITD WT allele ITD ~ 72bp

  11. FLT3 results Multiple ITDs WT allele ITDs ~ 20, 23, 48 and 81bp

  12. 4bp insertion WT allele NPM1 results • From September 2008 to February 2010 tested 137 cases for NPM1 status (four base pair insertion) • 27 cases (~20%) positive

  13. NPM1 results • From September 2008 to February 2010 tested 137 cases for NPM1 status (four base pair insertion) • 27 cases (~20%) positive

  14. NPM1 FLT3 WT ITD 13 FLT3 and NPM1 +ve cases 15 FLT3 +ve cases 14 NPM1 +ve cases FLT3 and NPM1 95 FLT3 and NPM1 –ve cases

  15. Presentation vs Relapse

  16. Case 1 – Recurrence of the presentation clone • Presentation – ITD ~ 23bp (NPM1–ve) WT ~23bp ITD

  17. Case 1 – Recurrence of the presentation clone • Relapse – Same 23bp ITD present (NPM1-ve) WT ~23bp ITD

  18. Case 2– importance of detecting low levels of ITD • Presentation – very low levels of ~49bp ITD (NPM1+ve) WT ~49bp ITD

  19. Case 2– importance of detecting low levels of ITD • Relapse - ~49bp ITD and loss of WT allele: usually by acquired UPD of mutated Chr13 (NPM1+ve) WT ~49bp ITD

  20. Case 3– loss of ITD • Presentation – low level ~54bp ITD (NPM1-ve) WT ~54bp ITD

  21. Case 3– loss of ITD • Relapse – No evidence of FLT3 ITD (NPM1-ve) WT

  22. Case 4 – apparent change in ITD size/loss of WT allele • Presentation - ~72bp ITD (NPM1+ve) WT ~72bp ITD

  23. Case 4 – apparent change in ITD size/loss of WT allele • Relapse - ~33bp ITD and loss of WT allele: usually by acquired UPD of mutated Chr13 (NPM1+ve) WT ~33bp ITD ~72bp ITD absent

  24. Conclusions/Future Directions • FLT3 and NPM1 useful prognostic indicators in cases of AML • ITDs in FLT3 and 4bp insertion in NPM1 predominantly identified in patients with normal karyotype leukaemia • Testing of other molecularly determined markers to aid stratification of patients in the “intermediate” prognosis group (e.g. WT1 and CEBPA) • Introduction of assays to assess minimal residual disease

  25. Acknowledgements • Nick Bown – Cytogenetics, Northern Genetics Service (NGS) • Helen Powell • Ruth Sutton • Ottie O’Brien • David Bourn • Dr G Jones – Consultant Haematologist, Freeman Hospital, Newcastle Molecular Genetics (NGS)
