Presentation Transcript

  1. Single-Jeopardy What is High-Dynamic-Range Image? http://en.wikipedia.org/wiki/High-dynamic-range_imaging

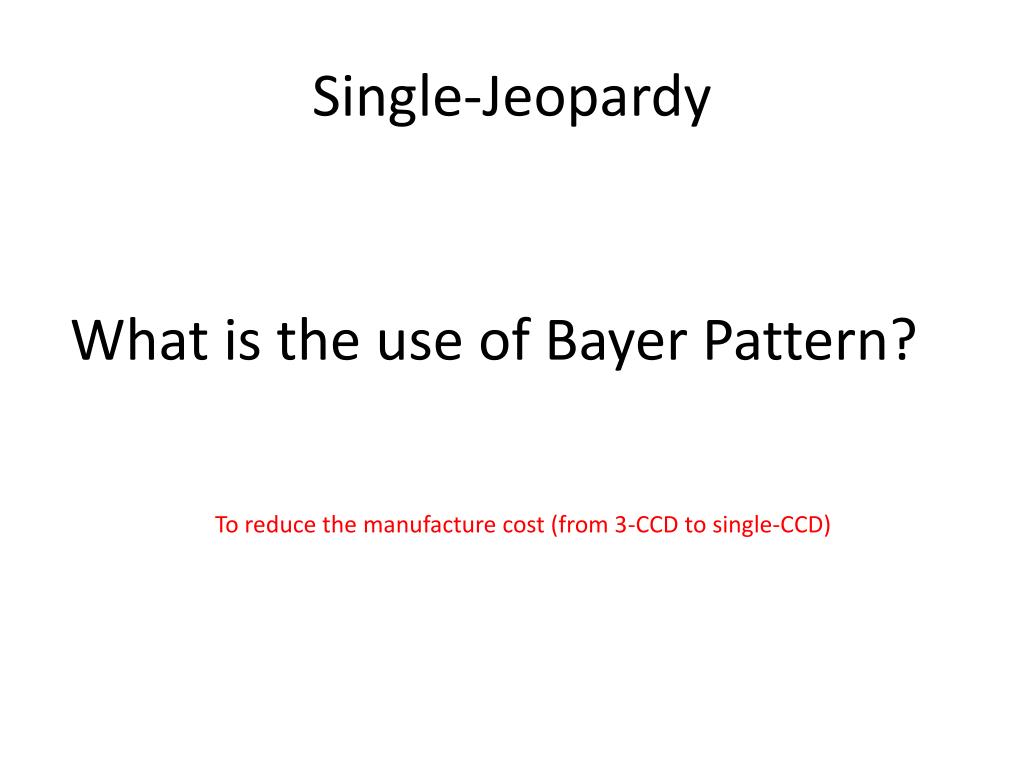

  2. Single-Jeopardy What is the use of Bayer Pattern? To reduce the manufacture cost (from 3-CCD to single-CCD)

  3. Single-Jeopardy What does CCD and CMOS stand for? http://en.wikipedia.org/wiki/Charge-coupled_device Complementary metal–oxide–semiconductor (CMOS) http://en.wikipedia.org/wiki/CMOS

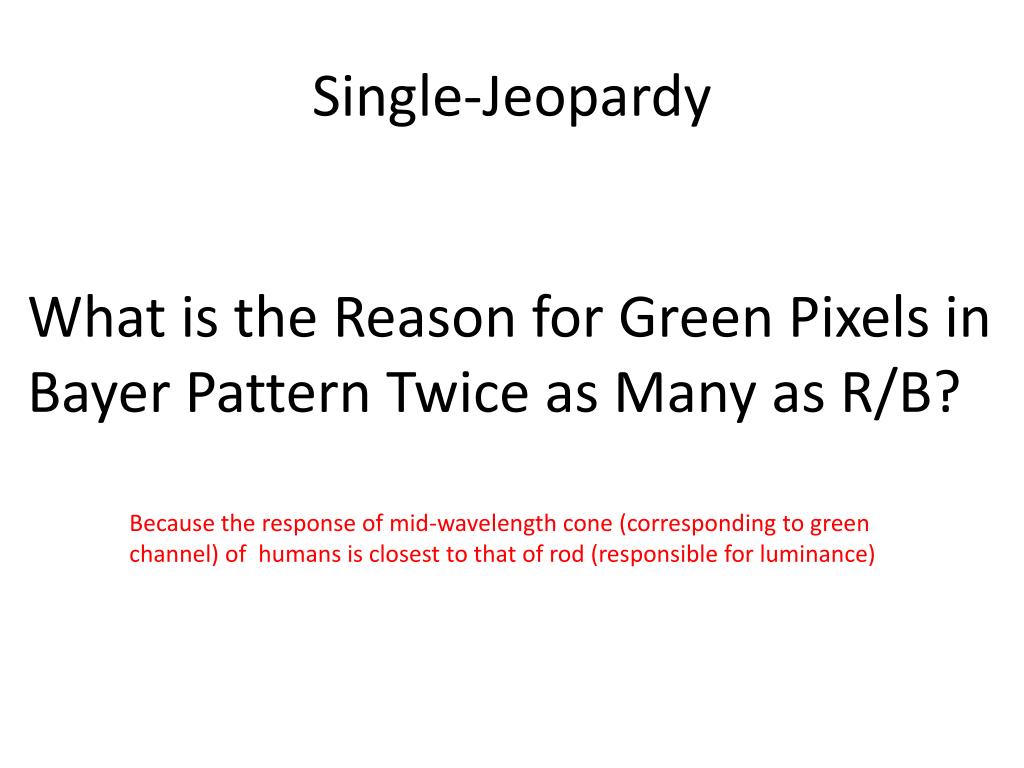

  4. Single-Jeopardy What is the Reason for Green Pixels in Bayer Pattern Twice as Many as R/B? Because the response of mid-wavelength cone (corresponding to green channel) of humans is closest to that of rod (responsible for luminance)

  5. Single-Jeopardy Despite patches p and r have the same luminance, they appear to be associated with dark and bright blocks separately, why? Because the high reflectance of r is compensated by its low illuminance (i.e., in the shadow)

  6. Single-Jeopardy Col n+1 Col n 100 200 row m b a 1-a Y a=0.25 b=0.25 1-b row m+1 100 200 What is Y? 125 Bilinear Interpolation Numerical Example

  7. Single-Jeopardy Name At Least Two Practical Applications of Image Enhancement Techniques. 1) Digital photography; 2) Visual rehabilitation; 3) iris recognition; 4) microarray

  8. Double-Jeopardy What is the mean value of the image cameraman.tif? 118.7245

  9. Double-Jeopardy How Many Pixels in image cameraman.tif have MSB of one? 39059

  10. Double-Jeopardy How Many Pixels in image cameraman.tif have LSB of one (i.e., being odd)? 32598

  11. Double-Jeopardy How many pixels are within the coins in the image coins.png? Around 24,000

  12. Double-Jeopardy How many 137s’ are there in the image cameraman.tif? 406

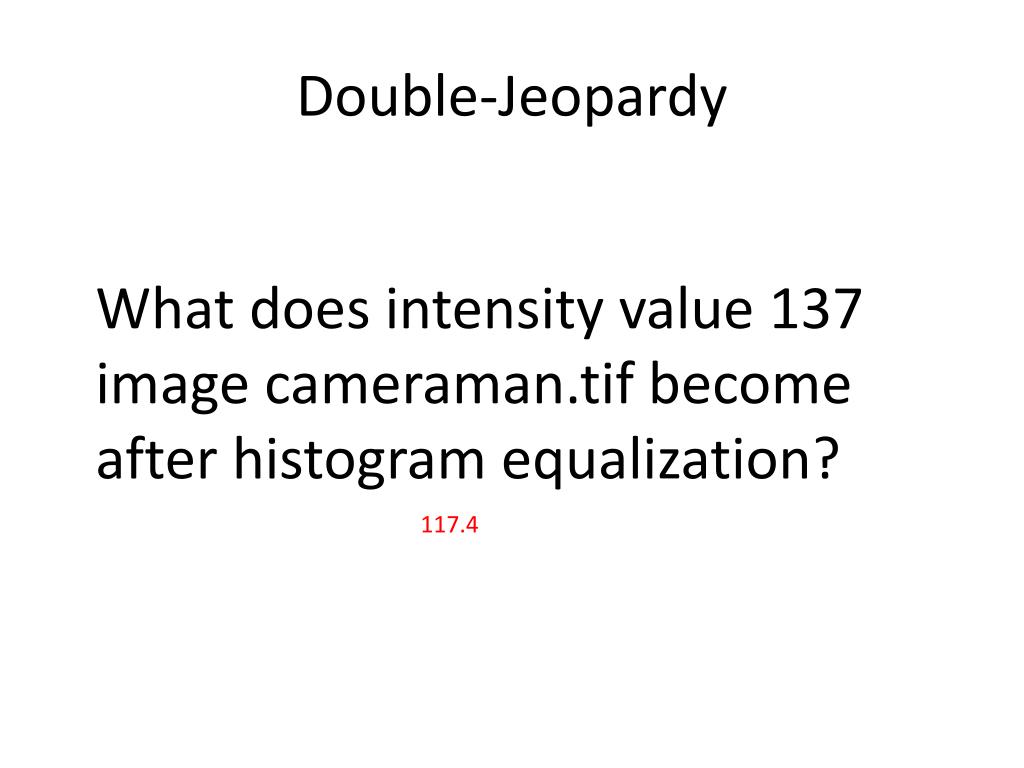

  13. Double-Jeopardy What does intensity value 137 image cameraman.tif become after histogram equalization? 117.4

  14. Final-Jeopardy What are the angles of tripod in the image cameraman.tif?

  15. Final-Jeopardy Process the baby.bmp image in CA5 so you can see baby clearly

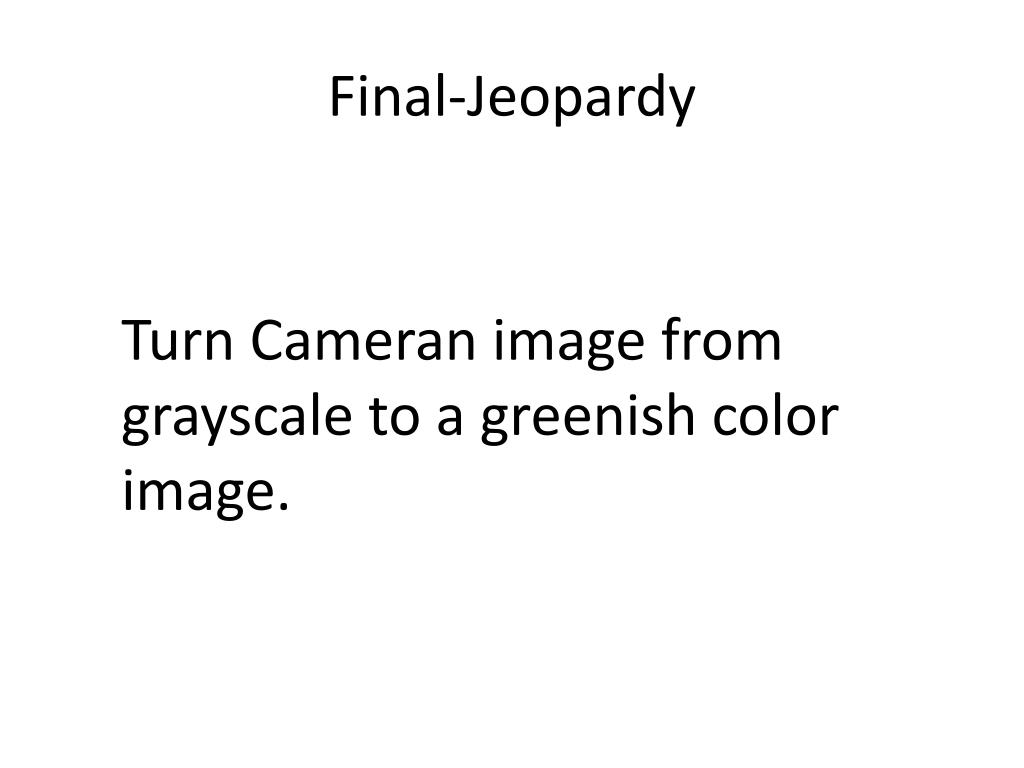

  16. Final-Jeopardy Turn Cameran image from grayscale to a greenish color image.
