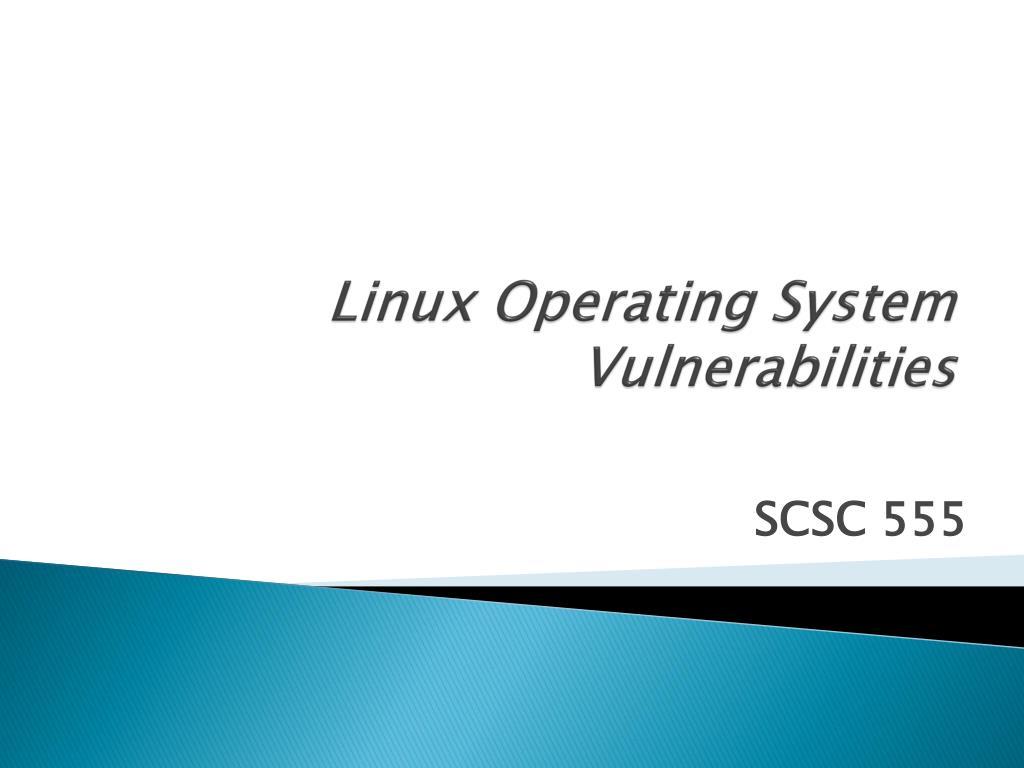

  1. Linux Operating System Vulnerabilities SCSC 555

  2. Objectives • Fundamentals of Linux operating system • Vulnerabilities of Linux operating system • Remote attacks on Linux • Protecting Linux operating system

  3. Linux default directories • Linux file system history • Minix file system • Extended File System (Ext) • Second Extended File System (Ext2fs) • Third Extended File System (Ext3fs) • (read details on text)

  4. Linux File System • File system • Enables directories or folders organization • Establishes a file-naming convention • Includes utilities to compress or encrypt files • Provides for both file and data integrity • Enables error recovery • Stores information about files and folders • File systems store information about files in information nodes (inodes)

  5. Linux File System (continued) • Information stored in an inode • An inode number • Owner of the file • Group the file belongs to • Size of the file • Date the file was created • Date the file was last modified or read • File systems use a fixed number of inodes • mounts a file system as a subfile system of the root file system

  6. Linux File System (continued) • mount command is used to mount file systems

  7. Linux File System (continued) • df command displays the currently mounted file systems

  8. Linux Network Commands

  9. Linux Network Commands

  10. Objectives • Fundamentals of Linux operating system • Vulnerabilities of Linux operating system • Remote attacks on Linux • Protecting Linux operating system

  11. Linux OS Vulnerabilities • UNIX has been around for quite some time • Attackers have had plenty of time to discover vulnerabilities in *NIX systems • Enumeration tools can also be used against Linux systems • Nessus can be used to enumerate Linux systems • Discover vulnerabilities related to SMB and NetBIOS • Enumerate shared resources • Discover the root password

  12. Common known vulnerabilities (CVE)

  13. Objectives • Fundamentals of Linux operating system • Vulnerabilities of Linux operating system • Remote attacks on Linux • Protecting Linux operating system

  14. Linux OS Vulnerabilities (continued) • Differentiate between local attacks and remote attacks • Remote attacks are harder to perform • Attacking a network remotely requires • Knowing what system a remote user is operating • The attacked system’s password and login accounts

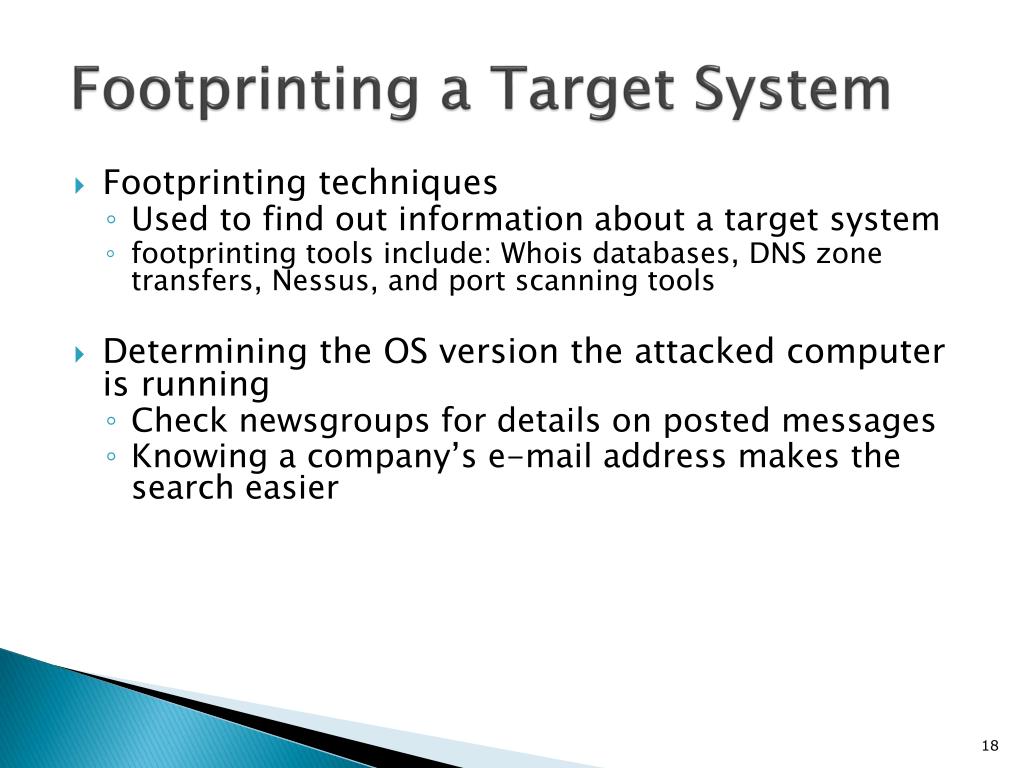

  15. Footprinting a Target System • Footprinting techniques • Used to find out information about a target system • footprinting tools include: Whois databases, DNS zone transfers, Nessus, and port scanning tools • Determining the OS version the attacked computer is running • Check newsgroups for details on posted messages • Knowing a company’s e-mail address makes the search easier

  16. Using Social Engineering to Attack Remote Linux Systems • Goal • To get OS information from company employees • Common techniques • Urgency • Quid pro quo • Status quo • Kindness • Position • Train your employees about social engineering techniques

  17. Installing Trojan Programs • Trojan programs spread as • E-mail attachments • Fake patches or security fixes that can be downloaded from the Internet • Trojan program functions • Allow for remote administration • Create a FTP server on attacked machine • Steal passwords • Log all keys a user enters, and e-mail results to the attacker

  18. Installing Trojan Programs (continued) • Linux Trojan programs disguised as legitimate programs • can use legitimate outbound ports • Firewalls and IDSs cannot identify this traffic as malicious • E.g.: Sheepshank use port 80 FTTP GET (p214) • It is easier to protect systems from already identified Trojan programs • E.g., Trojan.Linux.JBellz, Remote Shell, Dextenea

  19. Rootkits • Rootkits • Contain Trojan binary programs ready to be installed by an intruder with root access to the system • Attacker hide the tools used for later attacks • Replace legitimate commands with Trojan programs • E.g.: LRK5 • Tool to check rootkits • Rootkit Hunter • Chkrootkit

  20. How they gain root? • Scan the system(s) for un-patched code/module • Intruders usually focus on a small number of exploits

  21. Deploy Trojan • Trojan horse is a malicious program that is disguised as legitimate software • Trojan horse programs bundled in the form of “Rootkits”. • Originally written for Sun’s Berkeley flavor of Unix (SunOS 4) "

  22. What is a Rootkit? • A rootkit is a set of tools used by an intruder after cracking a computer system. • help the attacker maintain his or her access to the system and use it for malicious purposes. • Hides data that indicates an intruder has control of your system • Rootkits exist for a variety of operating systems such as Linux, Solaris and Microsoft Windows.

  23. History • Rootkits were first developed for Unix • Back in 1980’s determining what was happening on your Unix box wasn’t too hard • a set of tools “service tools” report status, maintain logs and provide user feedback to the current state of the system.

  24. Service tools Scheduler information Eg: crontab Future User account information Eg: who, last, login, passwd Process/File information Eg: ls, find, du, top, pidof, du Network information Eg:netstat, ifconfig, rshd, telnet Present System/User Logs Eg: /var/log/messages Past

  25. Early Rootkits • Early Rootkits were bundle of program that replaced these service binary with trojans • For example: a binary of “last” with following wrapper script last | awk '$1 !~ /malliciousUserName/ {print $0}'

  26. Traditional Rootkits • Linux RootKit 5 (lrk5) • written by Lord Somer • one of the most full-featured RootKits • includes Trojan versions of the following: • chfn, chsh, crontab, du, find, ifconfig, inetd, killall, login, ls, netstat, passwd, pidof, ps, rshd, syslogd, tcpd, top, sshd, and su

  27. Protection / Prevention mechanism • Get a program to scan /bin/login and see if it has been corrupted • Tools like Tripwrie can check the Integrity of the file if an hash has been generated at install time. • Identify and replace the files that have been modified. • Use md5 checksum to check for the authenticity of the program.

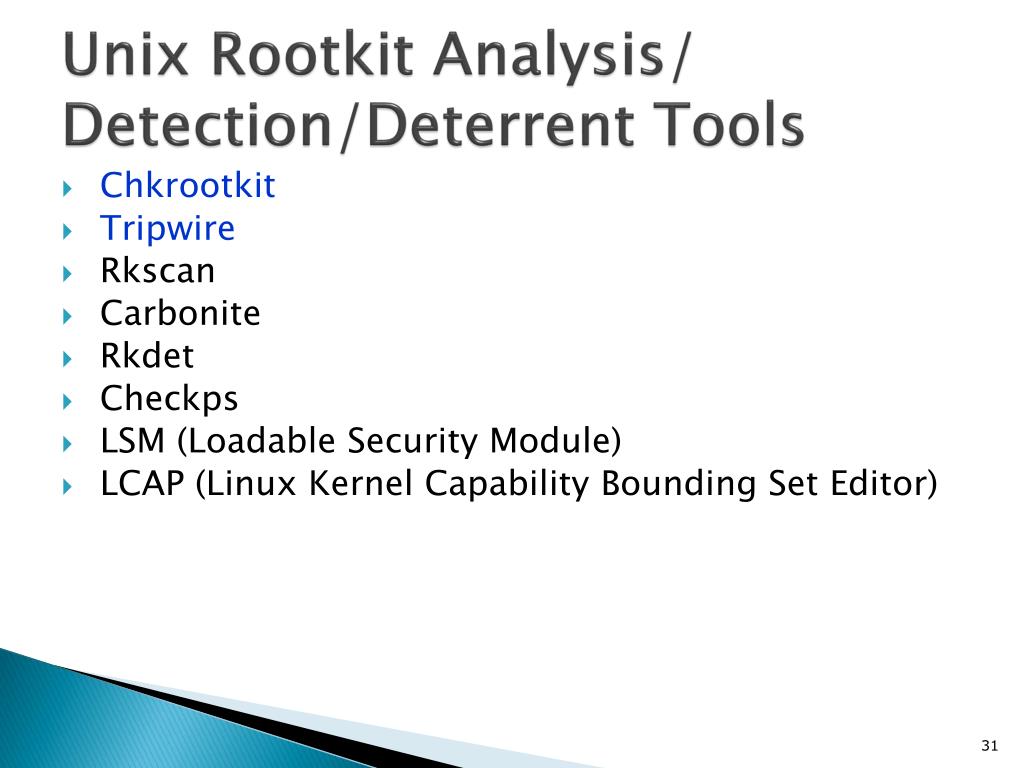

  28. Unix Rootkit Analysis/Detection/Deterrent Tools • Chkrootkit • Tripwire • Rkscan • Carbonite • Rkdet • Checkps • LSM (Loadable Security Module) • LCAP (Linux Kernel Capability Bounding Set Editor)

  29. Chkrootkit Tests

  30. 01. lrk3, lrk4, lrk5, lrk6 (and variants); 02. Solaris rootkit; 03. FreeBSD rootkit; 04. t0rn (and variants); 05. Ambient's Rootkit (ARK); 06. Ramen Worm; 07. rh[67]-shaper; 08. RSHA; 09. Romanian rootkit; 10. RK17; 11. Lion Worm; 12. Adore Worm; 13. LPD Worm; 14. kenny-rk; 15. Adore LKM; 16. ShitC Worm; Chkrootkit Detects These Rootkits, Worms and LKMs • 17. Omega Worm; • 18. Wormkit Worm; • 19. Maniac-RK; • 20. dsc-rootkit; • 21. Ducoci rootkit; • 22. x.c Worm; • 23. RST.b trojan; • 24. duarawkz; • 25. knark LKM; • 26. Monkit; • 27. Hidrootkit; • 28. Bobkit; • 29. Pizdakit; • 30. t0rn v8.0; • 31. Showtee; • 32. Optickit; • 33. T.R.K; • 34. MithRa's Rootkit; • 35. George; • 36. SucKIT; • 37. Scalper; • 38. Slapper A, B, C and D; • 39. OpenBSD rk v1; • 40. Illogic rootkit; • 41. SK rootkit. • 42. sebek LKM; • 43. Romanian rootkit; • 44. LOC rootkit; • 45. shv4 rootkit; • 46. Aquatica rootkit; • 47. ZK rootkit;

  31. Creating Buffer Overflow Programs • Buffer overflows write code to the OS’s memory • Then run some type of program • Can elevate the attacker’s permissions to the level of the owner • A buffer overflow program looks like

  32. Creating Buffer Overflow Programs (continued) • The program compiles, but returns the following error

  33. Creating Buffer Overflow Programs (continued) • Guidelines to help reduce this type of attack • Avoids functions known to have buffer overflow vulnerabilities • strcpy() • strcat() • sprintf() • gets() • Configure OS to not allow code in the stack to run any other executable code in the stack • Use compilers that warn programmers when functions listed in the first bullet are used

  34. Using Sniffers to Gain Access to Remote Linux Systems • Sniffers work by setting a network card adapter in promiscuous mode • NIC accepts all packets that traverse the network cable • Attacker can analyze packets and learn user names and passwords • Avoid using protocols such as Telnet, HTTP, and FTP that send data in clear text • Sniffers • Tcpdump, Ethereal (wireshark)

  35. Objectives • Fundamentals of Linux operating system • Vulnerabilities of Linux operating system • Remote attacks on Linux • Protecting Linux operating system

  36. User awareness training • Users must be told not to reveal information to outsiders • Make customers aware that many exploits can be downloaded from Web sites • Teach users to be suspicious of people asking questions about the system they are using • Verify caller’s identity • Call back technique

  37. Keeping current • Keeping current on new kernel releases and security updates • Installing these fixes is essential to protecting your system • automated tools for updating your systems
