HW (graphs from ws)

moana avatar
moana
34 diapositives · 893 Views · Oct 03, 2014

HW (graphs from ws). Domain Range. HW (graphs from ws). Domain Range. 6 Parent Graphs. Characteristics of a graph (Lots of Vocabulary) Domain, Range, Max, Min, Zero, Y-Intercept, Interval of Increase, and Interval of Decrease. Finding Domain & Range Given:.

HW (graphs from ws) - slide 1
01 / 34HW (graphs from ws)
1 / 17

Télécharger la présentation

HW (graphs from ws)
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. HW (graphs from ws) • Domain • Range

  2. HW (graphs from ws) • Domain • Range

  3. 6 Parent Graphs

  4. Characteristics of a graph(Lots of Vocabulary)Domain, Range, Max, Min, Zero, Y-Intercept, Interval of Increase, and Interval of Decrease

  5. Finding Domain & Range Given: • Discrete graphs – you just LIST the domain and range (don’t repeat and list in order from least to greatest) • Continuous graphs – use interval notation (least, greatest)

  6. Find the Domain and Range

  7. Find the Domain and Range

  8. Set Notation Uses: Is used when there is a open dot or the number is NOT included on the graph. Is used when there is a closed dot or when the number is included on the graph. Is used when one number is excluded.

  9. Domain and Range: Graph

  10. Domain and Range: Graph

  11. Domain and Range: Graph Special case: When there is an open circle and closed circle on the same number – go with the closed circle.

  12. Domain and Range: Graph

  13. Domain and Range: Graph

  14. Domain and Range: Graph

  15. Maximum or Minimum Point • Max. Point – is the HIGHEST on the graph • Min. Point – is the LOWEST on the graph (x, y)

  16. Maximum or Minimum Value?Where? Max. Point (0, 4)

  17. Maximum or Minimum Value?Where? Min. Point (-1, -9)

  18. ZEROSare the same thing as theX-INTERCEPTS. (x, y)

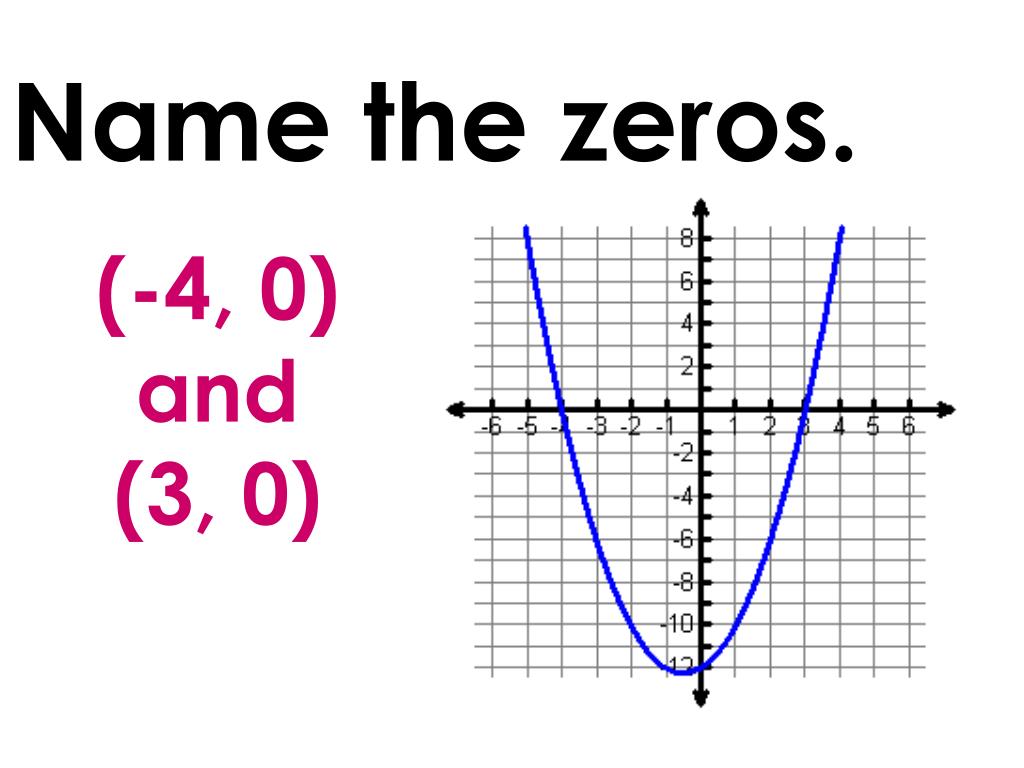

  19. Name the zeros. (-4, 0) and (3, 0)

  20. Name the Y-INTERCEPT. (0, -4)

  21. Interval of Increase, Interval of Decrease, & Constant Graphs To find where the graph is increasing and decreasing, trace the graph with your finger from left to right. Specify the x-values!

  22. Increasing, Decreasing, & Constant: Graphs • If your finger is going up, the graph is increasing. • If your finger is going down, the graph is decreasing. • If your finger goes neither up or down…then the graph is CONSTANT.

  23. Find the interval of decrease. The x-values where the graph is going down. Decreasing

  24. Find the interval of increase The x-values where the graph is going up. Increasing

  25. Interval of increase: Interval of decrease:

  26. Interval of increase: Interval of decrease:

  27. Home Work Characteristics of Functions
