Outdoor LED display installation full process guide

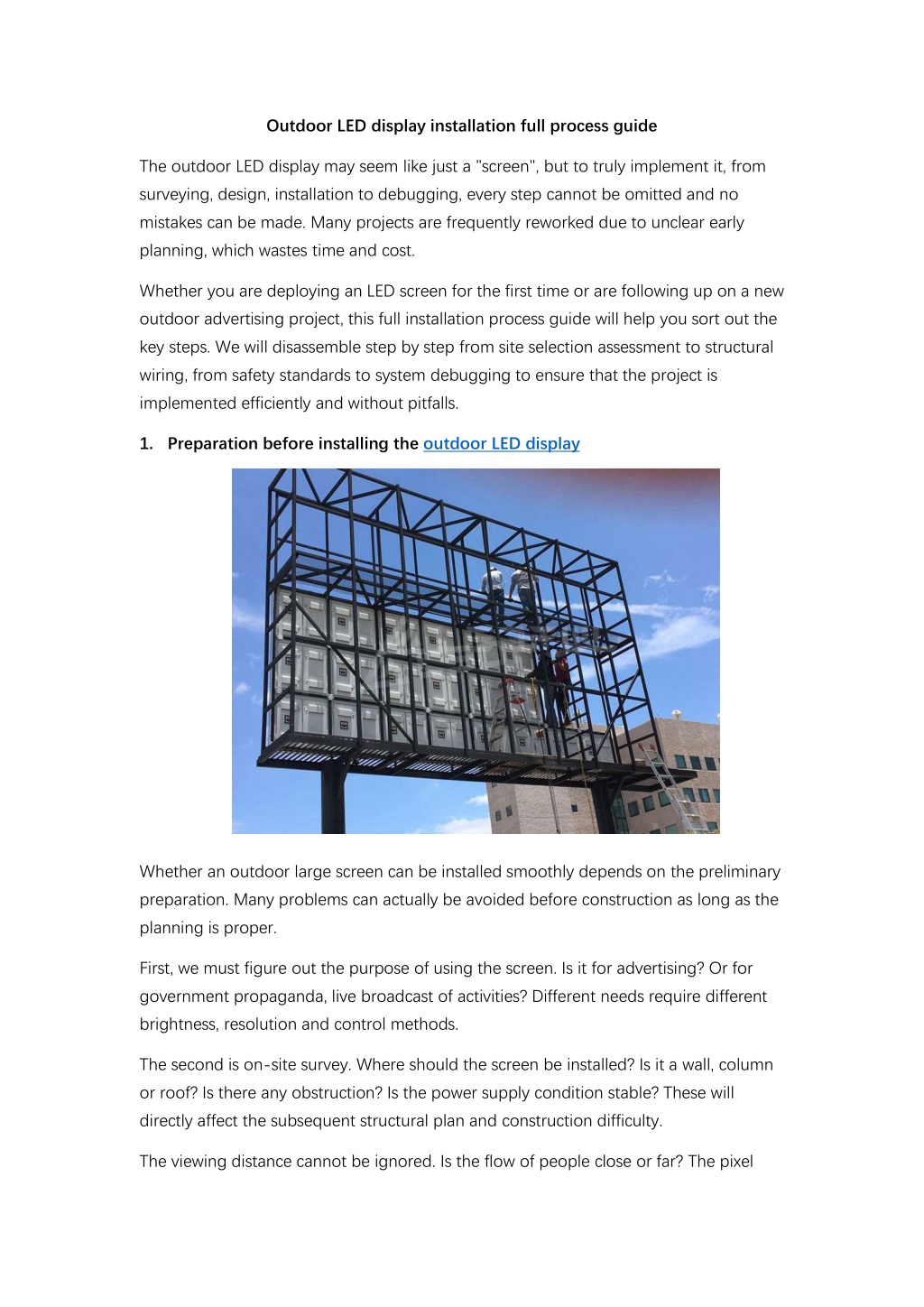

1. Outdoor LED display installation full process guide The outdoor LED display may seem like just a "screen", but to truly implement it, from surveying, design, installation to debugging, every step cannot be omitted and no mistakes can be made. Many projects are frequently reworked due to unclear early planning, which wastes time and cost. Whether you are deploying an LED screen for the first time or are following up on a new outdoor advertising project, this full installation process guide will help you sort out the key steps. We will disassemble step by step from site selection assessment to structural wiring, from safety standards to system debugging to ensure that the project is implemented efficiently and without pitfalls. 1. Preparation before installing the outdoor LED display Whether an outdoor large screen can be installed smoothly depends on the preliminary preparation. Many problems can actually be avoided before construction as long as the planning is proper. First, we must figure out the purpose of using the screen. Is it for advertising? Or for government propaganda, live broadcast of activities? Different needs require different brightness, resolution and control methods. The second is on-site survey. Where should the screen be installed? Is it a wall, column or roof? Is there any obstruction? Is the power supply condition stable? These will directly affect the subsequent structural plan and construction difficulty. The viewing distance cannot be ignored. Is the flow of people close or far? The pixel

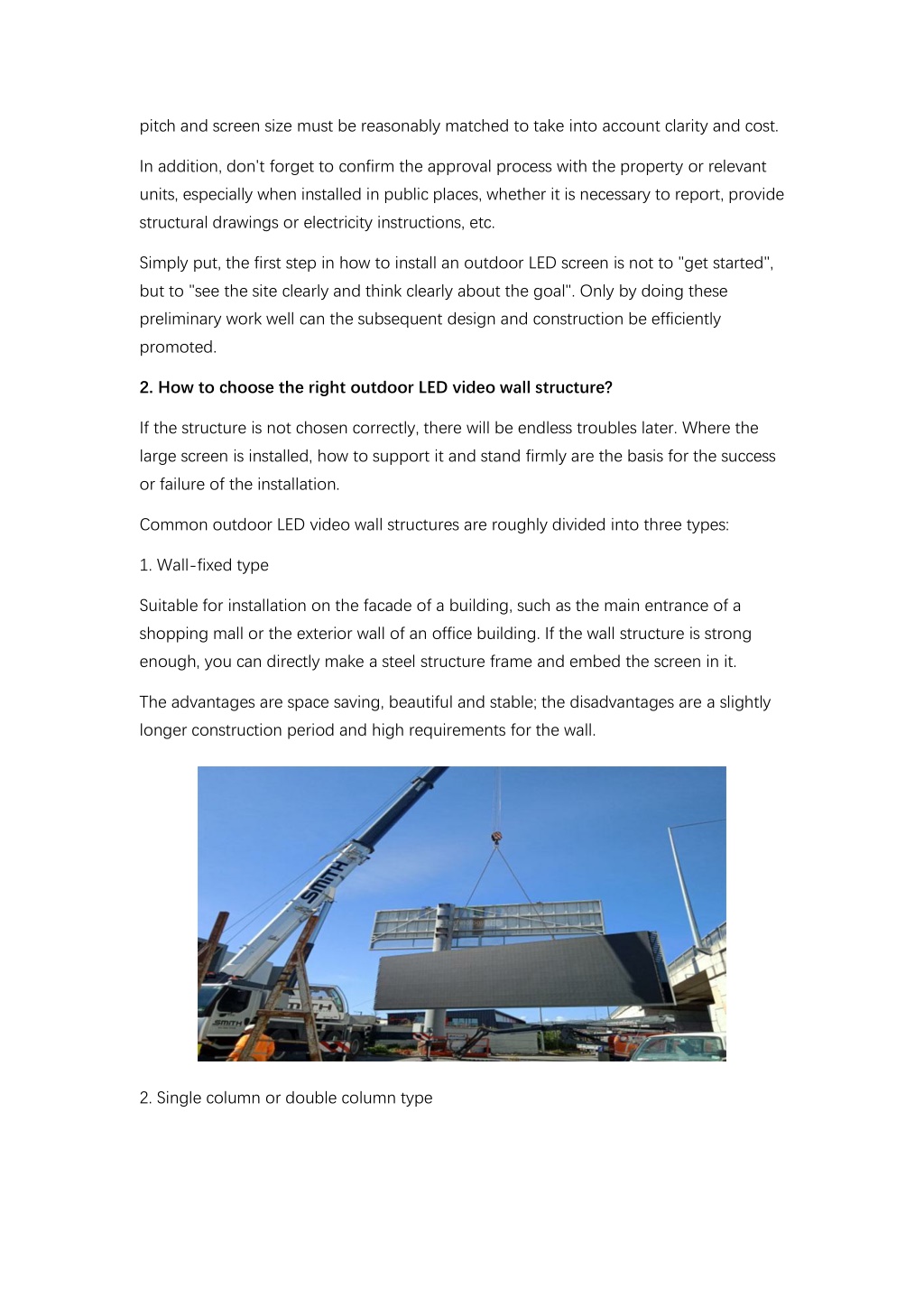

2. pitch and screen size must be reasonably matched to take into account clarity and cost. In addition, don't forget to confirm the approval process with the property or relevant units, especially when installed in public places, whether it is necessary to report, provide structural drawings or electricity instructions, etc. Simply put, the first step in how to install an outdoor LED screen is not to "get started", but to "see the site clearly and think clearly about the goal". Only by doing these preliminary work well can the subsequent design and construction be efficiently promoted. 2. How to choose the right outdoor LED video wall structure? If the structure is not chosen correctly, there will be endless troubles later. Where the large screen is installed, how to support it and stand firmly are the basis for the success or failure of the installation. Common outdoor LED video wall structures are roughly divided into three types: 1. Wall-fixed type Suitable for installation on the facade of a building, such as the main entrance of a shopping mall or the exterior wall of an office building. If the wall structure is strong enough, you can directly make a steel structure frame and embed the screen in it. The advantages are space saving, beautiful and stable; the disadvantages are a slightly longer construction period and high requirements for the wall. 2. Single column or double column type

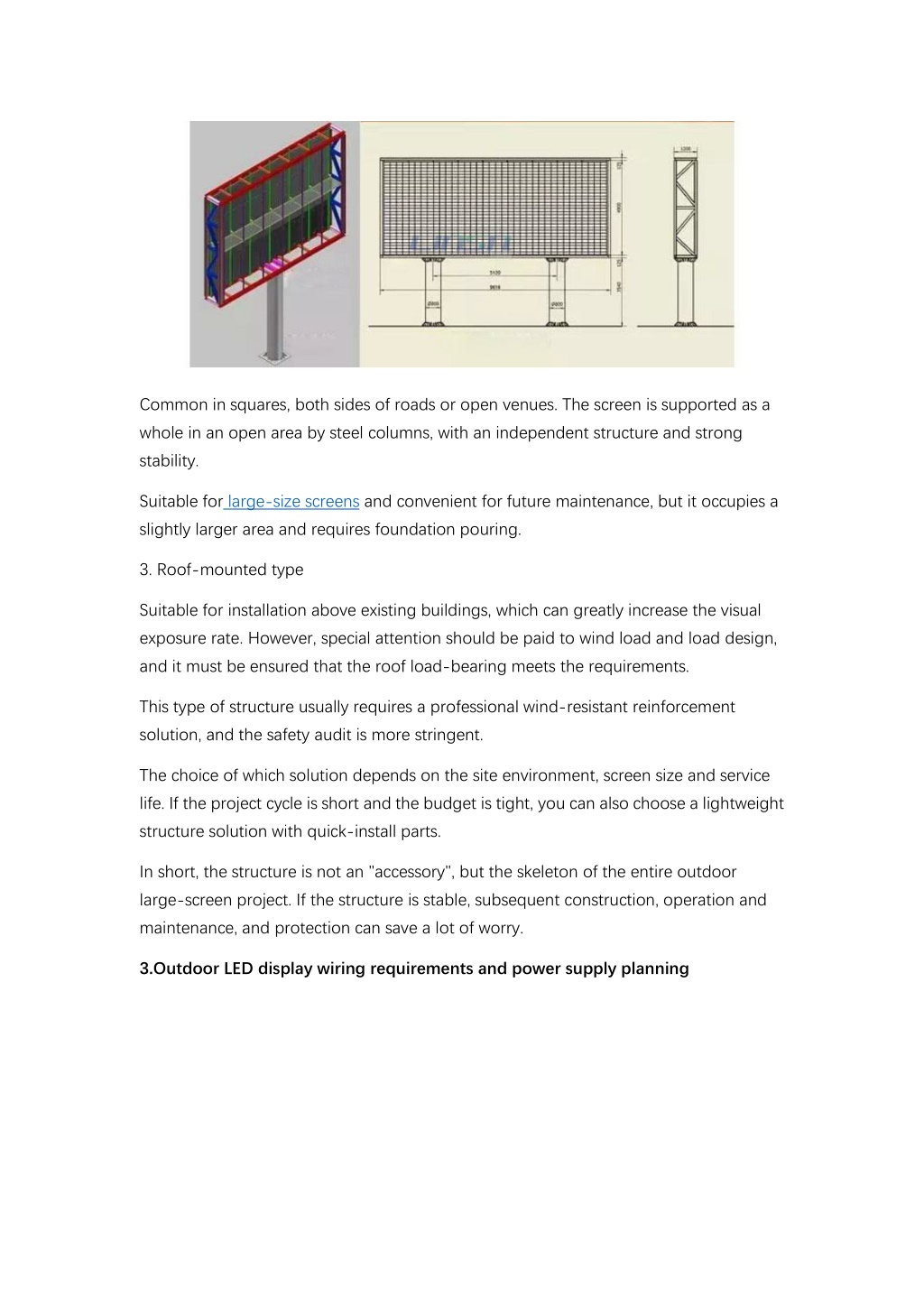

3. Common in squares, both sides of roads or open venues. The screen is supported as a whole in an open area by steel columns, with an independent structure and strong stability. Suitable for large-size screens and convenient for future maintenance, but it occupies a slightly larger area and requires foundation pouring. 3. Roof-mounted type Suitable for installation above existing buildings, which can greatly increase the visual exposure rate. However, special attention should be paid to wind load and load design, and it must be ensured that the roof load-bearing meets the requirements. This type of structure usually requires a professional wind-resistant reinforcement solution, and the safety audit is more stringent. The choice of which solution depends on the site environment, screen size and service life. If the project cycle is short and the budget is tight, you can also choose a lightweight structure solution with quick-install parts. In short, the structure is not an "accessory", but the skeleton of the entire outdoor large-screen project. If the structure is stable, subsequent construction, operation and maintenance, and protection can save a lot of worry. 3.Outdoor LED display wiring requirements and power supply planning

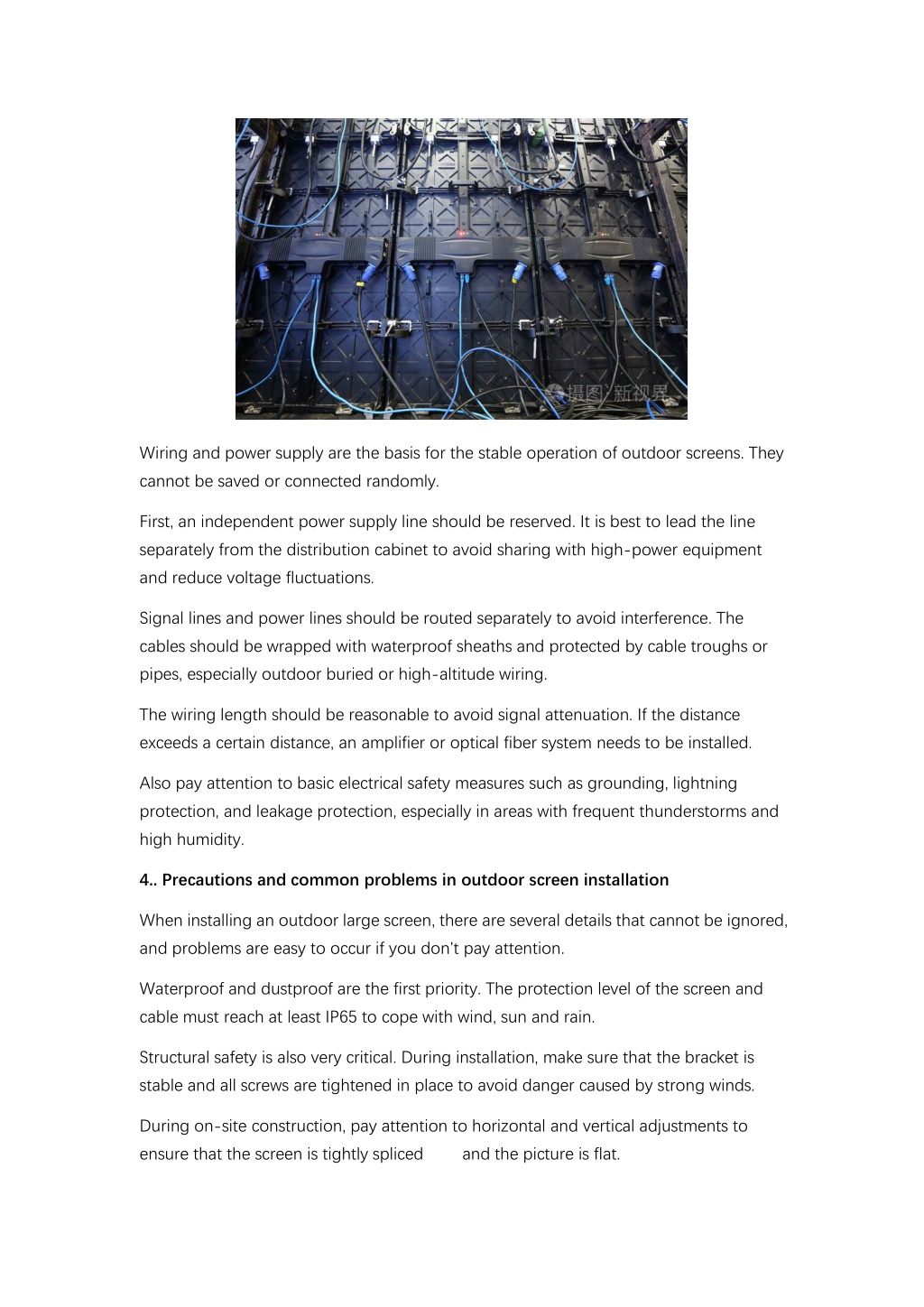

4. Wiring and power supply are the basis for the stable operation of outdoor screens. They cannot be saved or connected randomly. First, an independent power supply line should be reserved. It is best to lead the line separately from the distribution cabinet to avoid sharing with high-power equipment and reduce voltage fluctuations. Signal lines and power lines should be routed separately to avoid interference. The cables should be wrapped with waterproof sheaths and protected by cable troughs or pipes, especially outdoor buried or high-altitude wiring. The wiring length should be reasonable to avoid signal attenuation. If the distance exceeds a certain distance, an amplifier or optical fiber system needs to be installed. Also pay attention to basic electrical safety measures such as grounding, lightning protection, and leakage protection, especially in areas with frequent thunderstorms and high humidity. 4.. Precautions and common problems in outdoor screen installation When installing an outdoor large screen, there are several details that cannot be ignored, and problems are easy to occur if you don't pay attention. Waterproof and dustproof are the first priority. The protection level of the screen and cable must reach at least IP65 to cope with wind, sun and rain. Structural safety is also very critical. During installation, make sure that the bracket is stable and all screws are tightened in place to avoid danger caused by strong winds. During on-site construction, pay attention to horizontal and vertical adjustments to ensure that the screen is tightly spliced ​ ​ and the picture is flat.

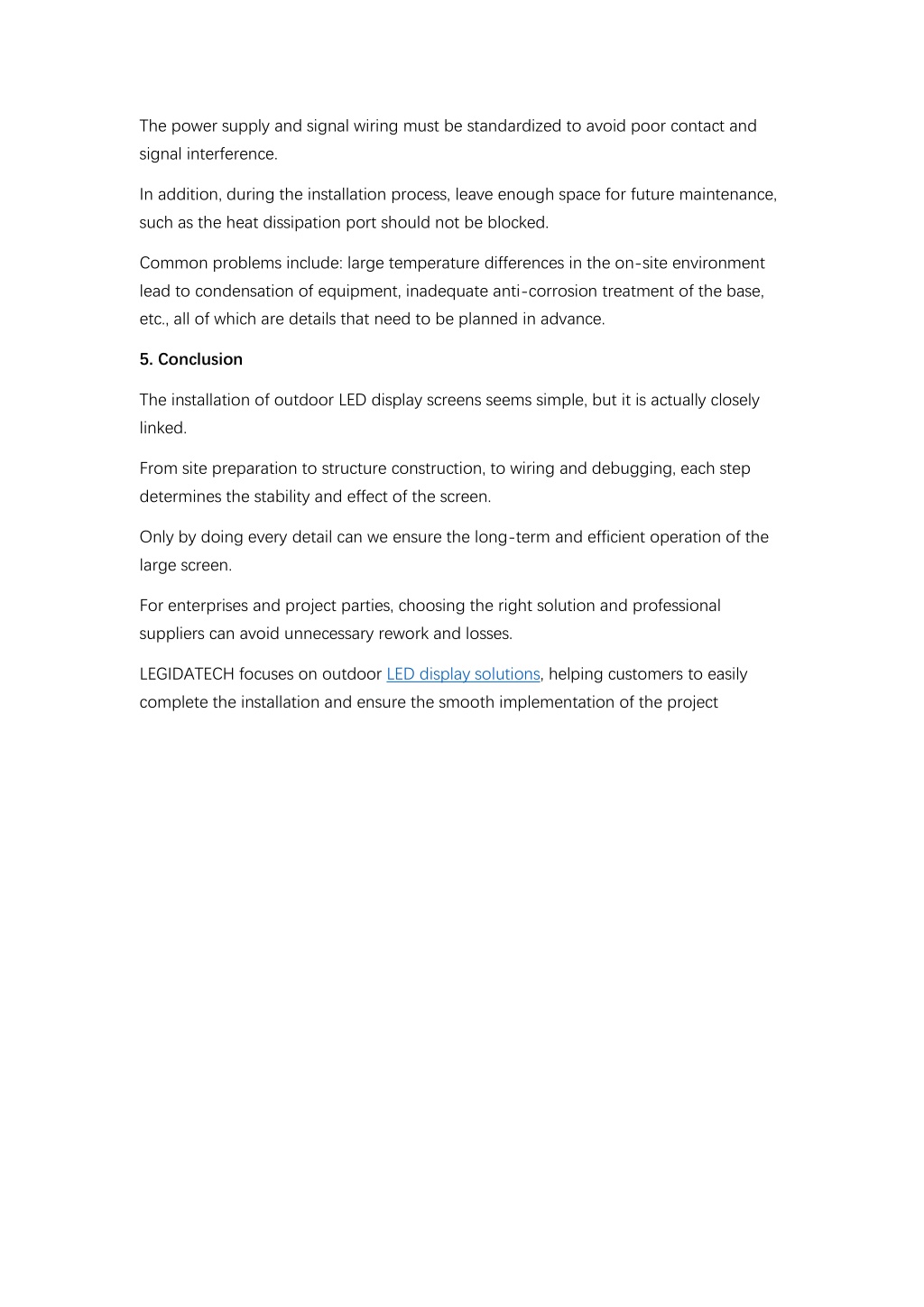

5. The power supply and signal wiring must be standardized to avoid poor contact and signal interference. In addition, during the installation process, leave enough space for future maintenance, such as the heat dissipation port should not be blocked. Common problems include: large temperature differences in the on-site environment lead to condensation of equipment, inadequate anti-corrosion treatment of the base, etc., all of which are details that need to be planned in advance. 5. Conclusion The installation of outdoor LED display screens seems simple, but it is actually closely linked. From site preparation to structure construction, to wiring and debugging, each step determines the stability and effect of the screen. Only by doing every detail can we ensure the long-term and efficient operation of the large screen. For enterprises and project parties, choosing the right solution and professional suppliers can avoid unnecessary rework and losses. LEGIDATECH focuses on outdoor LED display solutions, helping customers to easily complete the installation and ensure the smooth implementation of the project
