  1. Security Lecture 11, May 14, 2003 Mr. Greg Vogl Data Communications and Networks Uganda Martyrs University

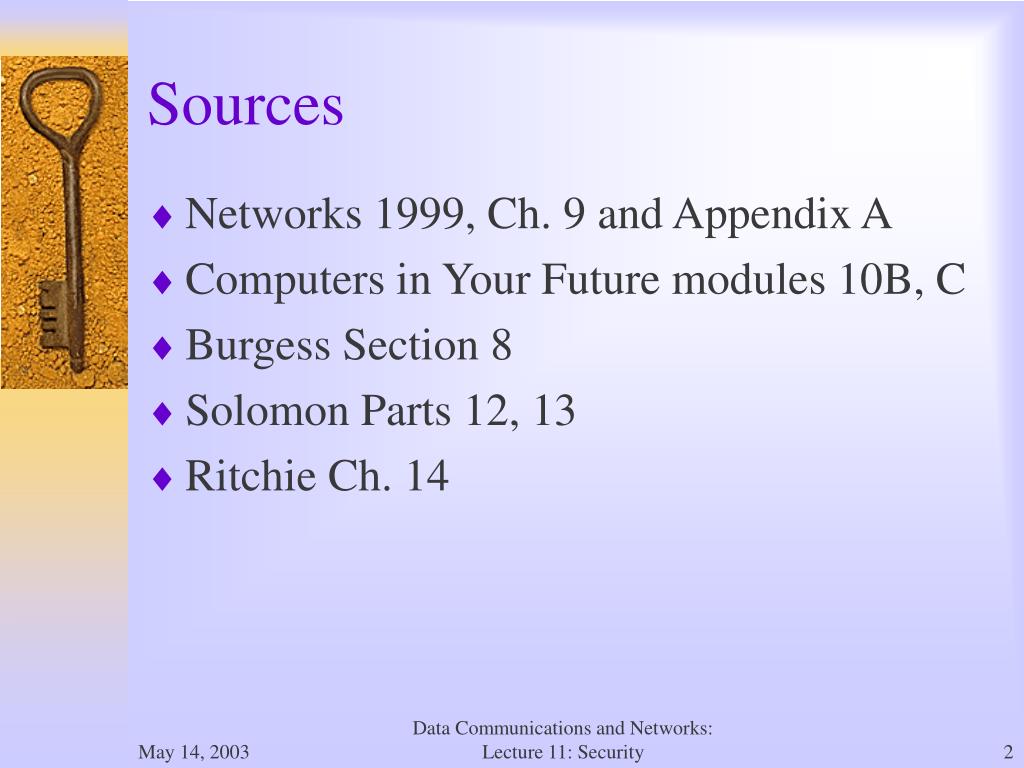

  2. Sources • Networks 1999, Ch. 9 and Appendix A • Computers in Your Future modules 10B, C • Burgess Section 8 • Solomon Parts 12, 13 • Ritchie Ch. 14 Data Communications and Networks: Lecture 11: Security

  3. Overview • Problems and causes • Threats, attackers, responsible people • Prevention and recovery • Physical security, software security, viruses • Data security, long-term storage and retrieval • Disaster recovery • Human security • Authentication and passwords • Encryption Data Communications and Networks: Lecture 11: Security

  4. Threats, damages and costs • Natural disaster (e.g. flood, fire, lightning) • Deliberate sabotage/vandalism (e.g. viruses) • Damaged or stolen hardware • Damaged/deleted/leaked data/information • Net downtime/overload; use of staff time • Lost privacy, confidentiality; public safety • Reputation/appearance of no security/safety Data Communications and Networks: Lecture 11: Security

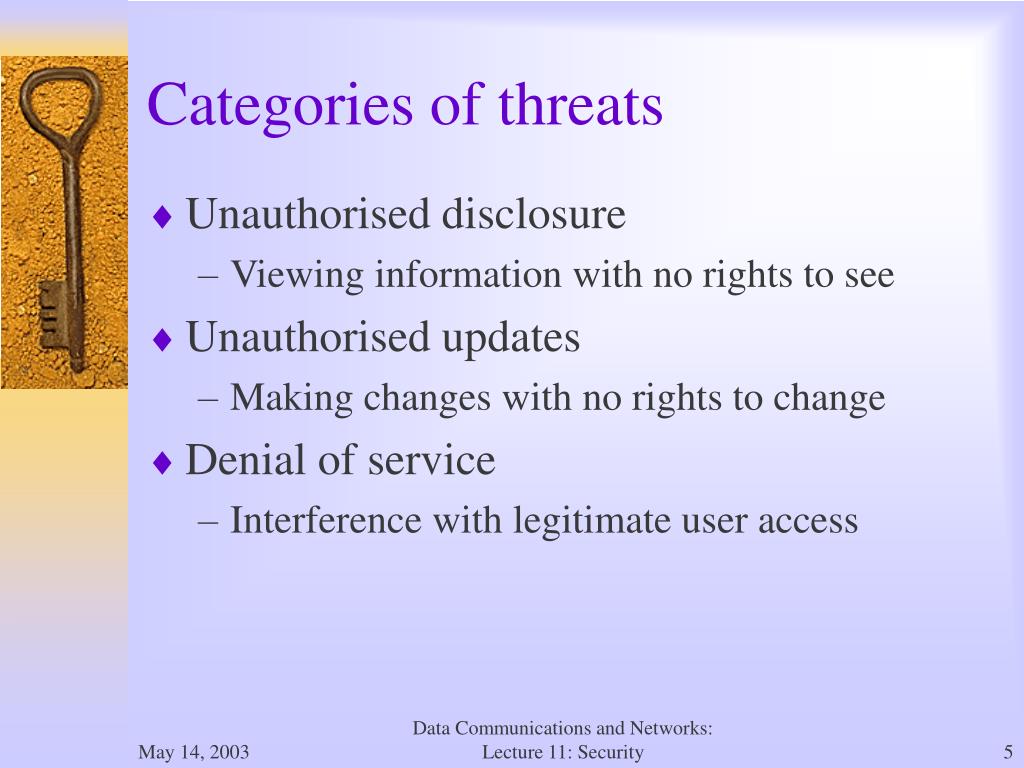

  5. Categories of threats • Unauthorised disclosure • Viewing information with no rights to see • Unauthorised updates • Making changes with no rights to change • Denial of service • Interference with legitimate user access Data Communications and Networks: Lecture 11: Security

  6. Attackers and their motives • Hobbyists: crackers, virus authors, thieves • Challenge, ego, financial gain • Employees: terminated, disgruntled, corrupt • Financial gain, organisational harm/revenge • Corporate spies: competitors • Market competition • Information terrorists • Harm state governments Data Communications and Networks: Lecture 11: Security

  7. Types of attacks • Cracking programs: try passwords • Eavesdropping: watching users, wiretapping • Spoofing: pretending to be a client or server Data Communications and Networks: Lecture 11: Security

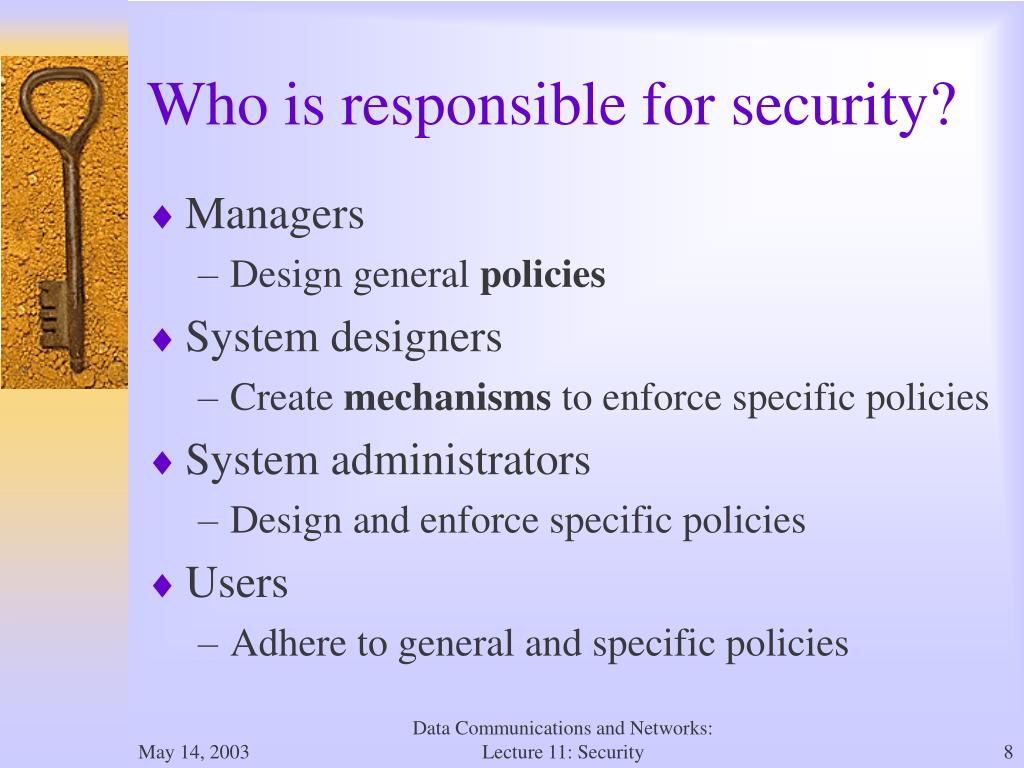

  8. Who is responsible for security? • Managers • Design general policies • System designers • Create mechanisms to enforce specific policies • System administrators • Design and enforce specific policies • Users • Adhere to general and specific policies Data Communications and Networks: Lecture 11: Security

  9. Physical security • Equipment protection, protective equipment • Door locks, burglar bars, armed guards • Dust, AC, surge protector, UPS, standby power • Alarms: temperature, burglar • Physically separate equipment, data • secure and non-secure • Investment appropriate to nature of business Data Communications and Networks: Lecture 11: Security

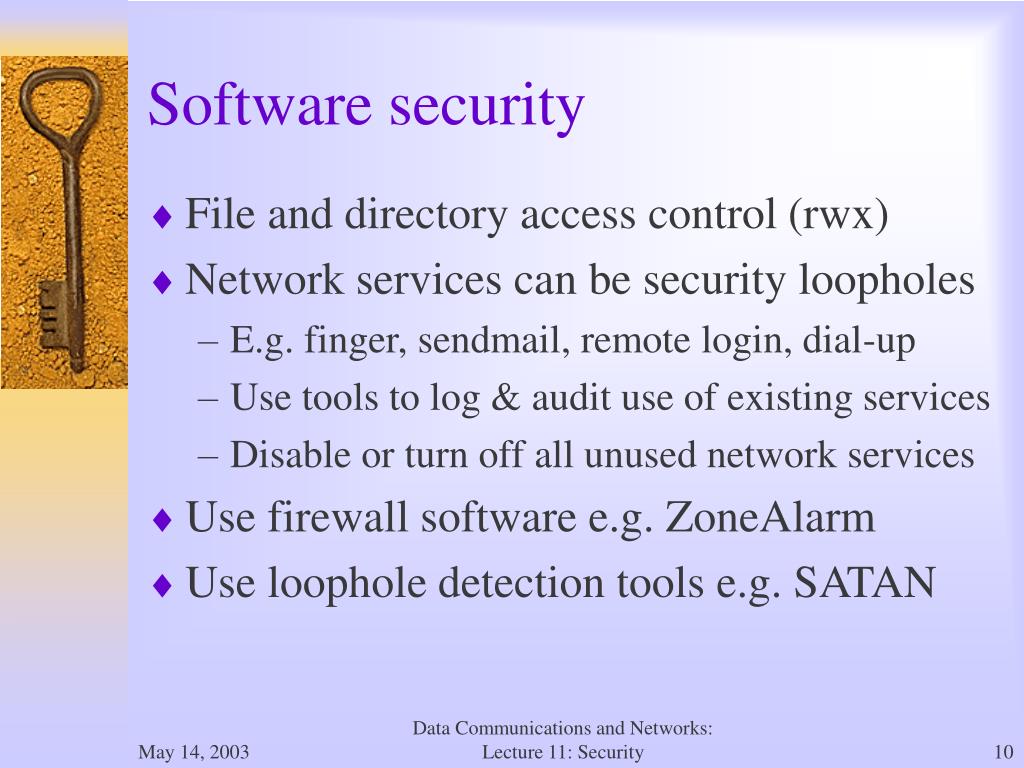

  10. Software security • File and directory access control (rwx) • Network services can be security loopholes • E.g. finger, sendmail, remote login, dial-up • Use tools to log & audit use of existing services • Disable or turn off all unused network services • Use firewall software e.g. ZoneAlarm • Use loophole detection tools e.g. SATAN Data Communications and Networks: Lecture 11: Security

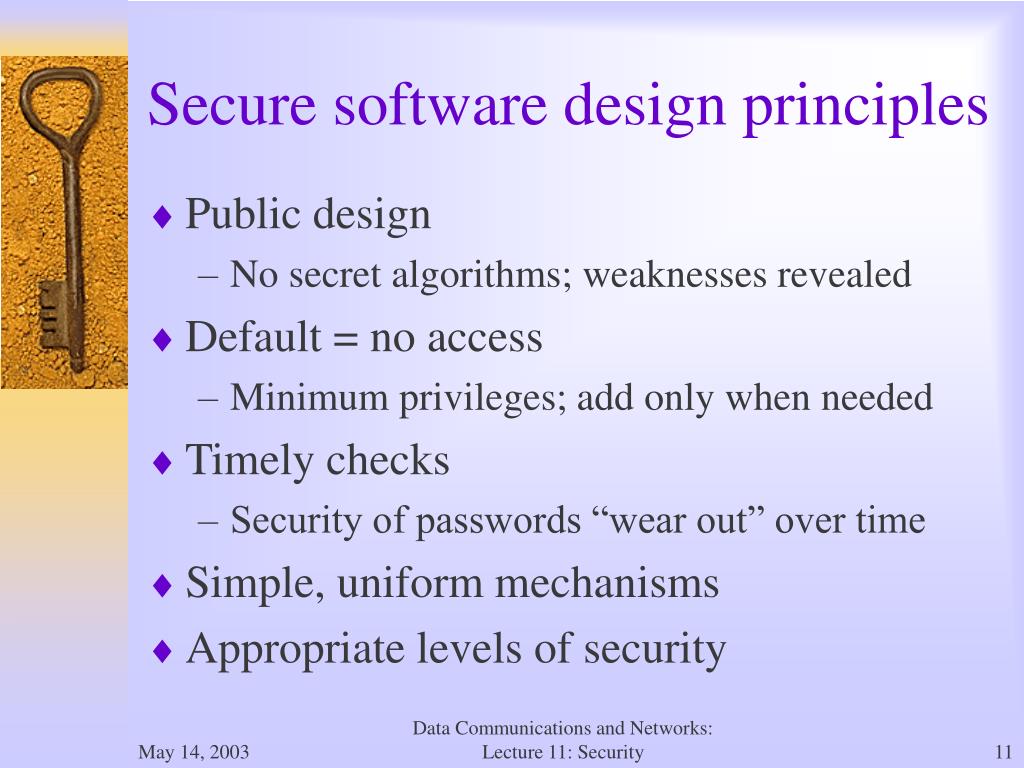

  11. Secure software design principles • Public design • No secret algorithms; weaknesses revealed • Default = no access • Minimum privileges; add only when needed • Timely checks • Security of passwords “wear out” over time • Simple, uniform mechanisms • Appropriate levels of security Data Communications and Networks: Lecture 11: Security

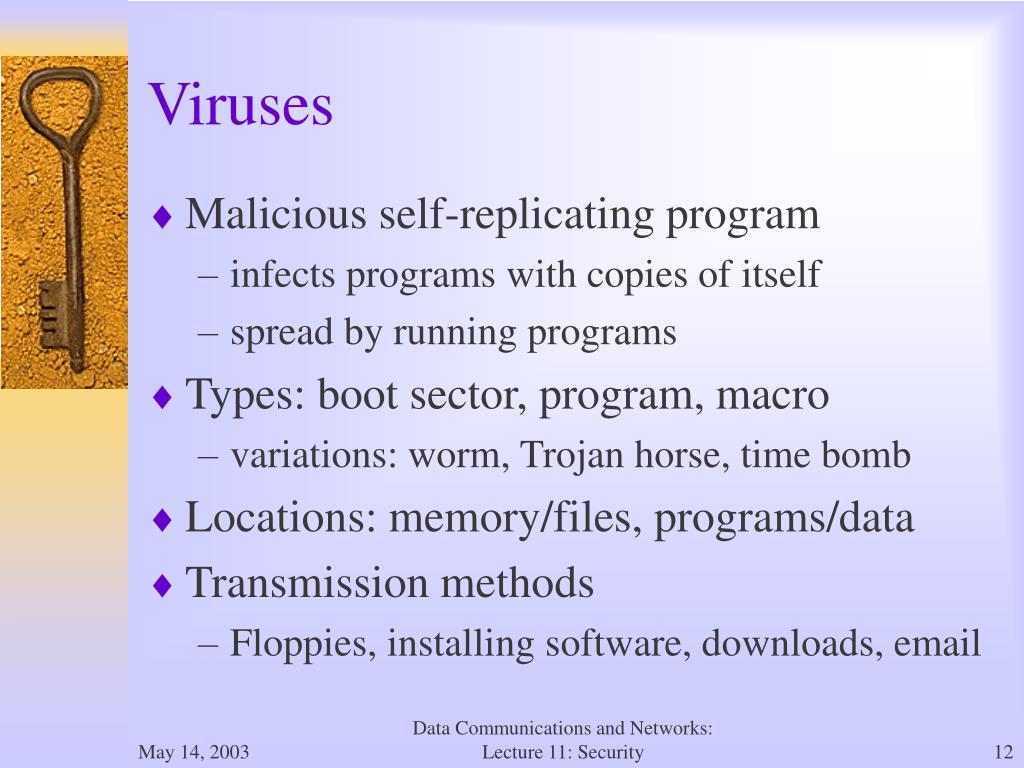

  12. Viruses • Malicious self-replicating program • infects programs with copies of itself • spread by running programs • Types: boot sector, program, macro • variations: worm, Trojan horse, time bomb • Locations: memory/files, programs/data • Transmission methods • Floppies, installing software, downloads, email Data Communications and Networks: Lecture 11: Security

  13. Virus prevention and recovery • Install anti-virus software on all computers • Schedule automatic virus scans • Keep active auto-protect features enabled • Keep virus software and definitions updated • Repair, quarantine or delete infected files • Educate users about viruses • Causes, prevention, removal • Specific, current, serious threats Data Communications and Networks: Lecture 11: Security

  14. Data security • Backups and archiving • Antivirus software • Encryption of sensitive information • Disposal of obsolete, sensitive information • Erase (possibly reformat) disks • Shred paper documents Data Communications and Networks: Lecture 11: Security

  15. Long-term storage and retrieval • Daily backups (and possibly mirroring) • Document info removal/purge procedures • Test equipment & procedures for restoration • Keep storage media physically secure • Store backup copies at remote locations Data Communications and Networks: Lecture 11: Security

  16. Disaster recovery preparation • Create a disaster recovery plan • Discuss, document, communicate, test • List and categorise possible disasters • Minor, major, catastrophic • Prepare for these disasters • Minimum: backup, inventory, net docs • Spares, maintenance contracts, recovery site • Research user needs/tolerances Data Communications and Networks: Lecture 11: Security

  17. Human security • Educate users, receptionists, “gatekeepers” • Encourage securing passwords, accounts • Be careful when giving out information • “Helpful” employees may leak important info • Know who has rights to what info • Be aware of threats and ask questions first • Background checks, ID cards/badges Data Communications and Networks: Lecture 11: Security

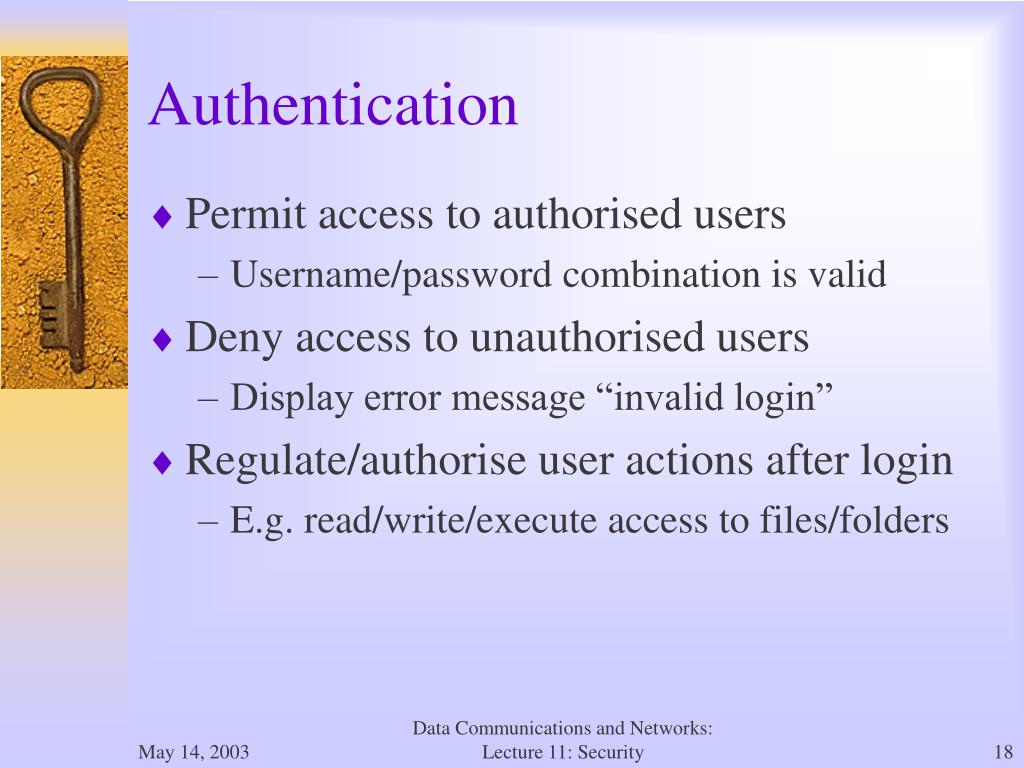

  18. Authentication • Permit access to authorised users • Username/password combination is valid • Deny access to unauthorised users • Display error message “invalid login” • Regulate/authorise user actions after login • E.g. read/write/execute access to files/folders Data Communications and Networks: Lecture 11: Security

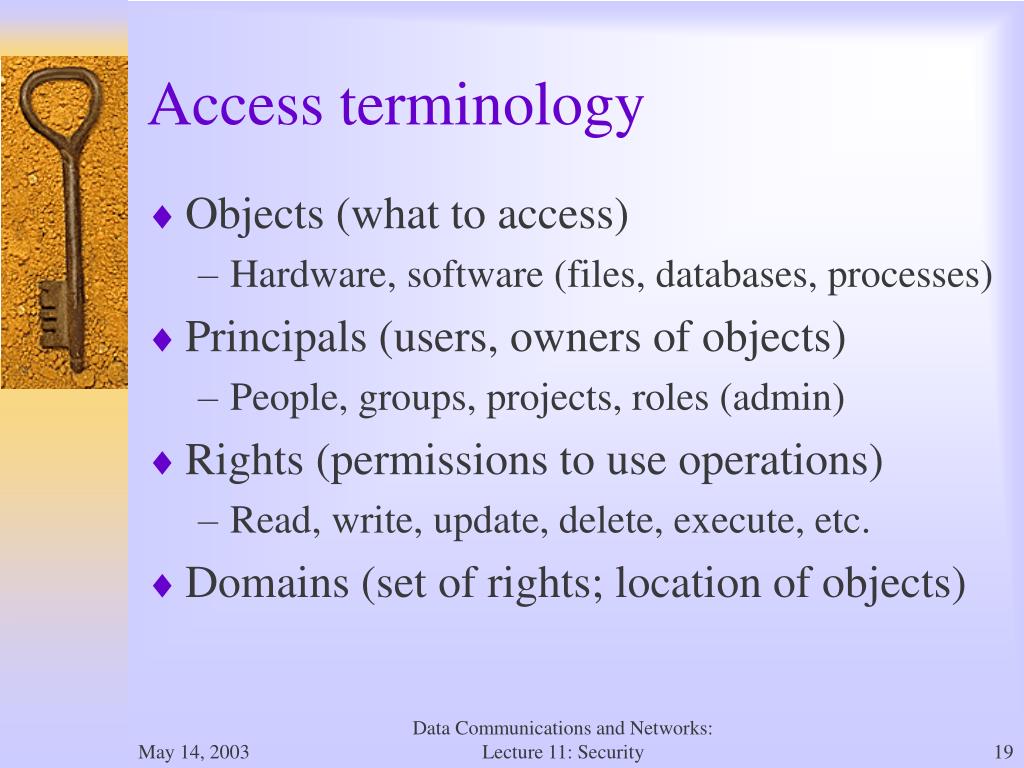

  19. Access terminology • Objects (what to access) • Hardware, software (files, databases, processes) • Principals (users, owners of objects) • People, groups, projects, roles (admin) • Rights (permissions to use operations) • Read, write, update, delete, execute, etc. • Domains (set of rights; location of objects) Data Communications and Networks: Lecture 11: Security

  20. Access matrix Data Communications and Networks: Lecture 11: Security

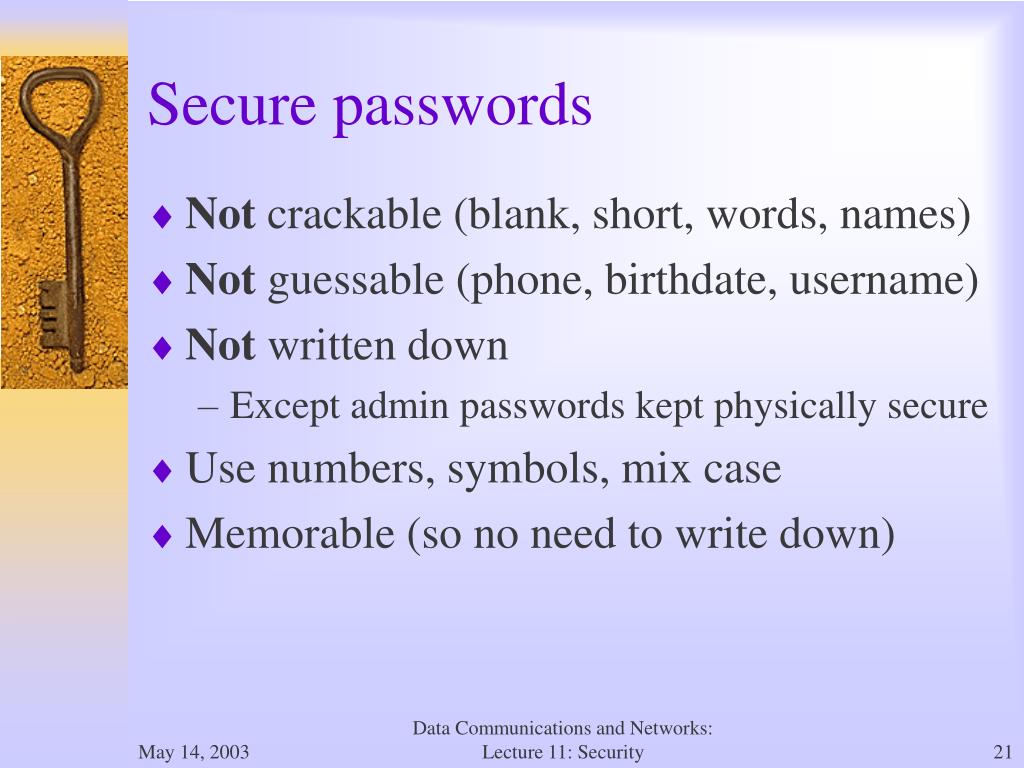

  21. Secure passwords • Not crackable (blank, short, words, names) • Not guessable (phone, birthdate, username) • Not written down • Except admin passwords kept physically secure • Use numbers, symbols, mix case • Memorable (so no need to write down) Data Communications and Networks: Lecture 11: Security

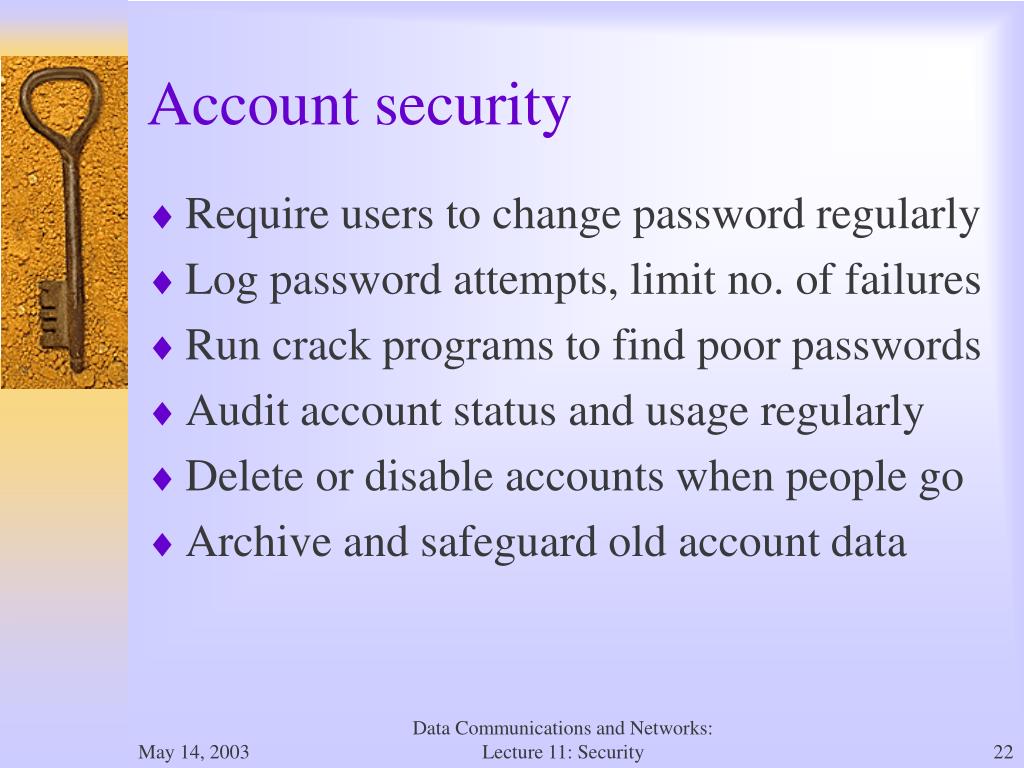

  22. Account security • Require users to change password regularly • Log password attempts, limit no. of failures • Run crack programs to find poor passwords • Audit account status and usage regularly • Delete or disable accounts when people go • Archive and safeguard old account data Data Communications and Networks: Lecture 11: Security

  23. Encryption • The sender encrypts (encodes) a message • Substitute unreadable data, apparently nonsense • Only some receivers can decrypt/decode it • Translate coded data into readable data • Coding and decoding require using keys • Encoding/decoding algorithms plus secret text • Encryption only useful if the key is secure • Anyone who intercepts the key can decrypt Data Communications and Networks: Lecture 11: Security

  24. Password file • User-readable file, but passwords encrypted • /etc/passwd in older UNIX; now /etc/shadow • Data Encryption Standard (DES) • One-way algorithm: key + password  code • Encrypt password attempt, compare with code • If two codes match, login is valid, else not • System holds key; passwords never revealed • Powerful computers can crack passwords • A 56 bit key is unsafe; 128 bits is reasonable Data Communications and Networks: Lecture 11: Security

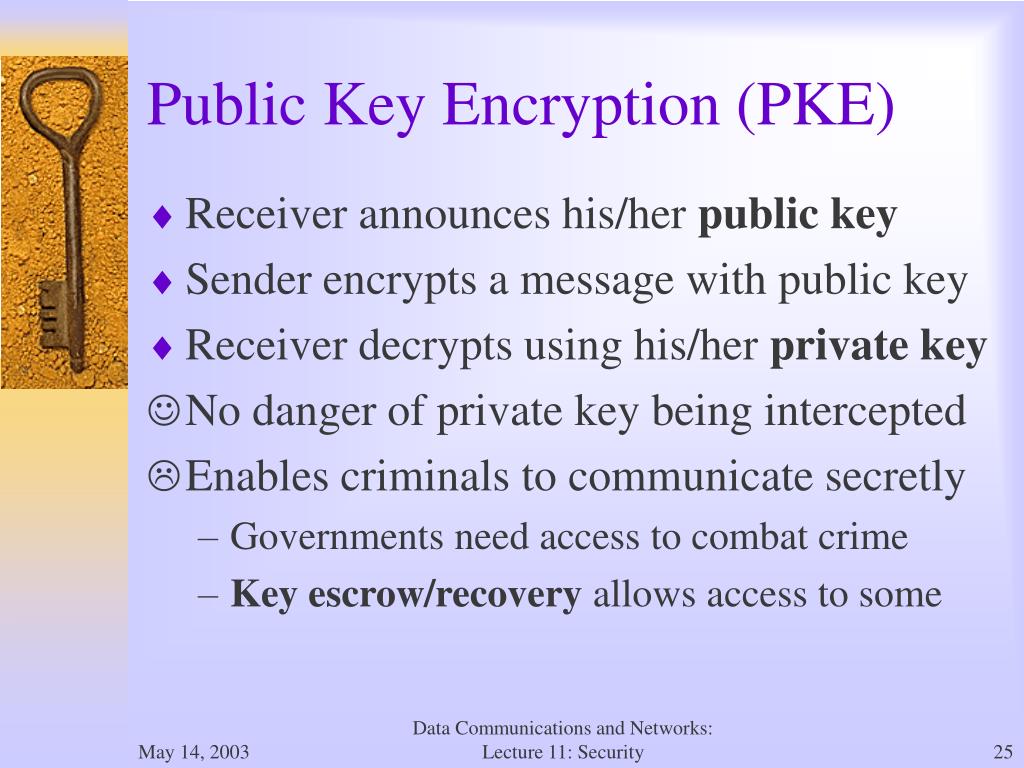

  25. Public Key Encryption (PKE) • Receiver announces his/her public key • Sender encrypts a message with public key • Receiver decrypts using his/her private key • No danger of private key being intercepted • Enables criminals to communicate secretly • Governments need access to combat crime • Key escrow/recovery allows access to some Data Communications and Networks: Lecture 11: Security

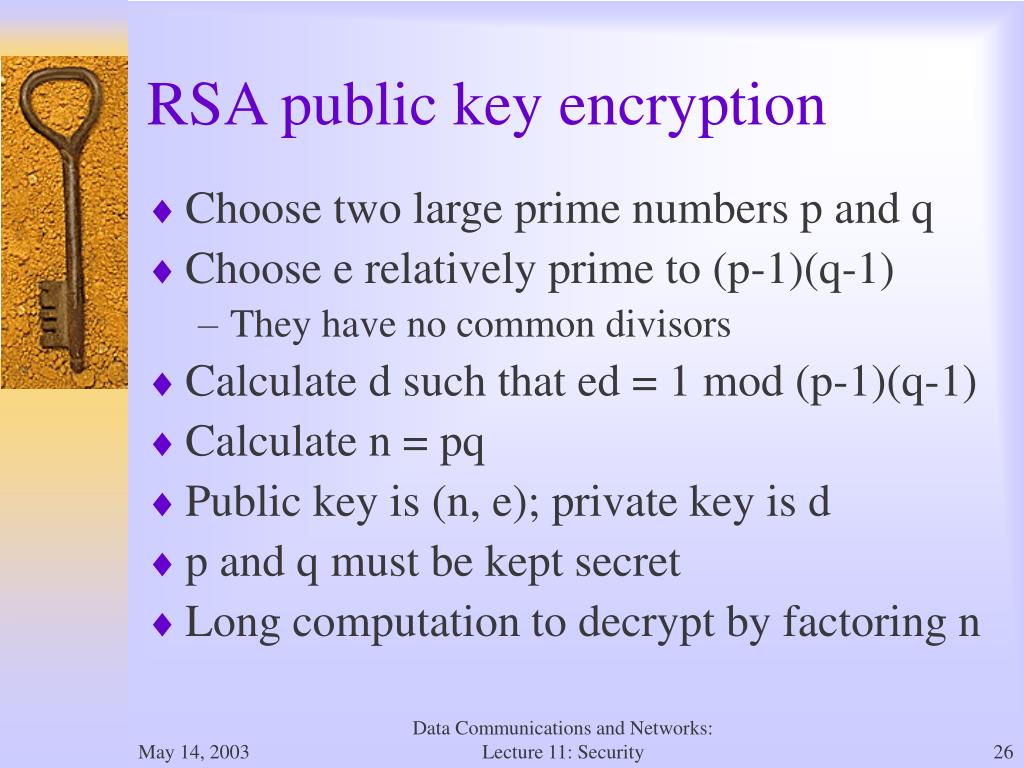

  26. RSA public key encryption • Choose two large prime numbers p and q • Choose e relatively prime to (p-1)(q-1) • They have no common divisors • Calculate d such that ed = 1 mod (p-1)(q-1) • Calculate n = pq • Public key is (n, e); private key is d • p and q must be kept secret • Long computation to decrypt by factoring n Data Communications and Networks: Lecture 11: Security

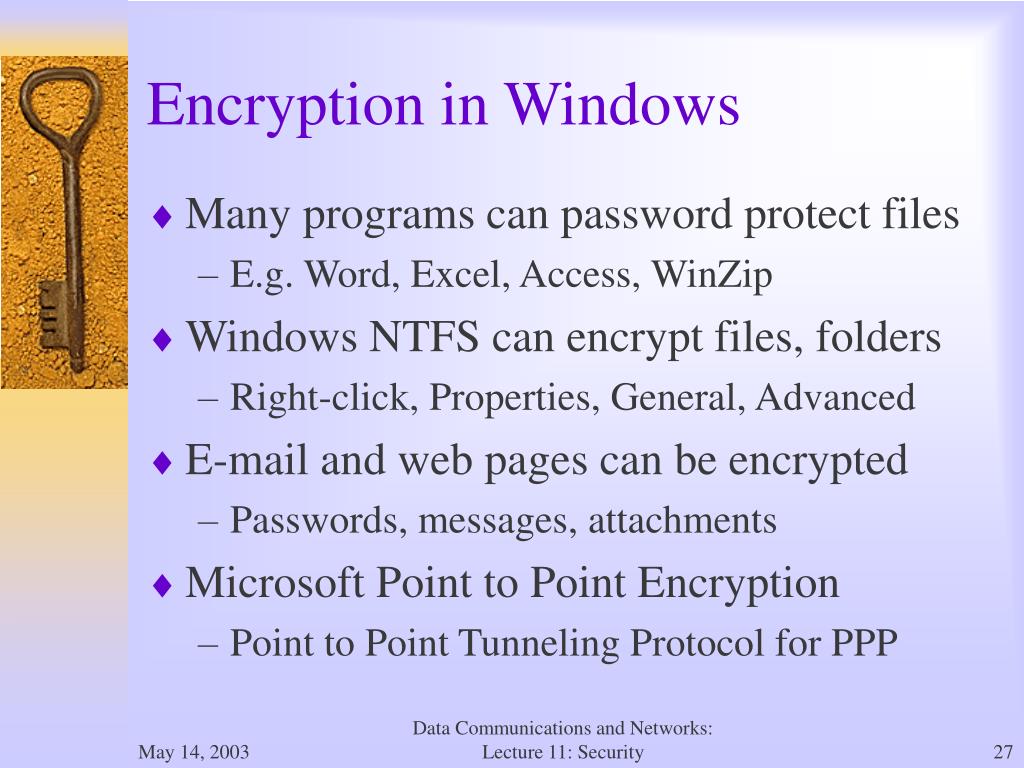

  27. Encryption in Windows • Many programs can password protect files • E.g. Word, Excel, Access, WinZip • Windows NTFS can encrypt files, folders • Right-click, Properties, General, Advanced • E-mail and web pages can be encrypted • Passwords, messages, attachments • Microsoft Point to Point Encryption • Point to Point Tunneling Protocol for PPP Data Communications and Networks: Lecture 11: Security

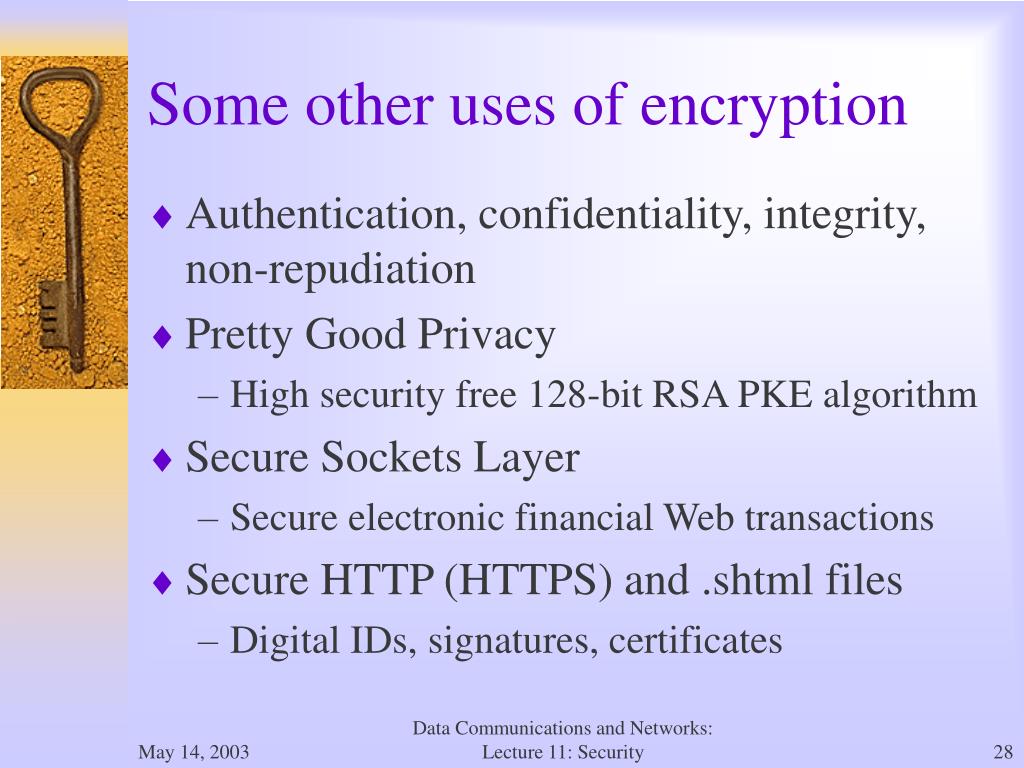

  28. Some other uses of encryption • Authentication, confidentiality, integrity, non-repudiation • Pretty Good Privacy • High security free 128-bit RSA PKE algorithm • Secure Sockets Layer • Secure electronic financial Web transactions • Secure HTTP (HTTPS) and .shtml files • Digital IDs, signatures, certificates Data Communications and Networks: Lecture 11: Security
