Advanced Flat Sensor for Intermediate Spectral Range Applications

This innovative flat sensor addresses critical technical challenges in intermediate spectral range detection, operating between 0.2-40 Hz and up to 0.04-100 Hz. Designed for easy deployment, it is capable of functioning reliably in various geologic and environmental conditions. Its compact instrument package, combined with low self-noise levels beneath the USGS New Low Noise Model, ensures superior performance. With a dynamic range greater than 120 dB, linear response over 60 dB, and a power consumption below 100 mW, this sensor includes ideally three orthogonal components for flexibility and stability in application.

molimo
Télécharger la présentation

Advanced Flat Sensor for Intermediate Spectral Range Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

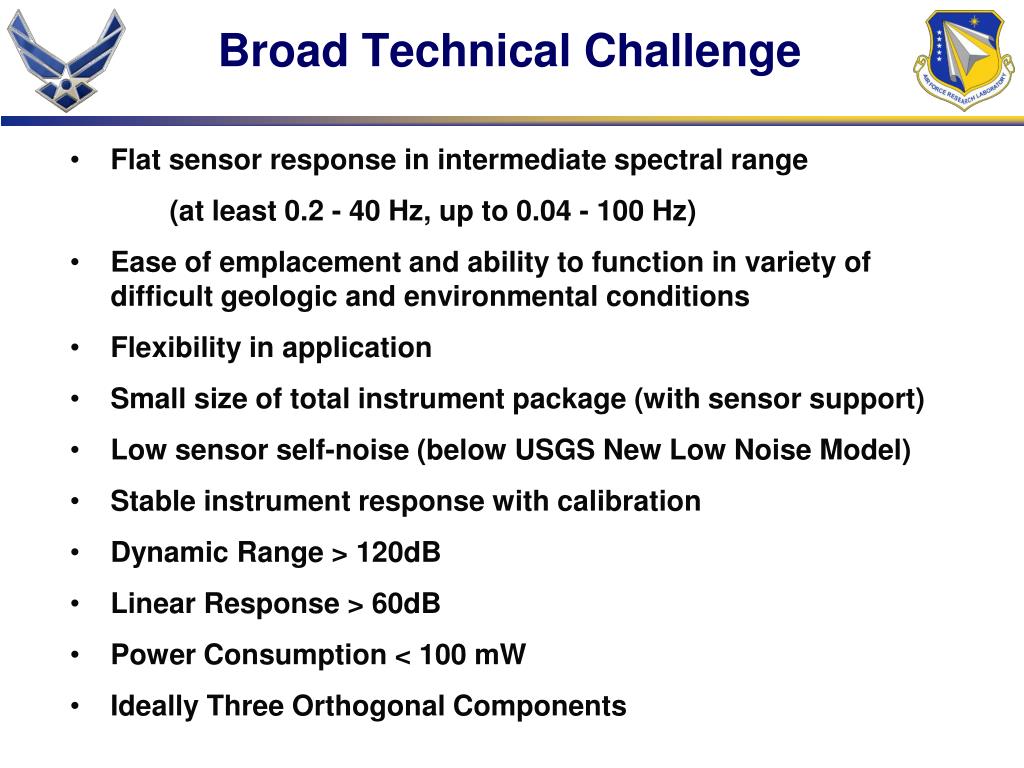

  1. Broad Technical Challenge • Flat sensor response in intermediate spectral range (at least 0.2 - 40 Hz, up to 0.04 - 100 Hz) • Ease of emplacement and ability to function in variety of difficult geologic and environmental conditions • Flexibility in application • Small size of total instrument package (with sensor support) • Low sensor self-noise (below USGS New Low Noise Model) • Stable instrument response with calibration • Dynamic Range > 120dB • Linear Response > 60dB • Power Consumption < 100 mW • Ideally Three Orthogonal Components
