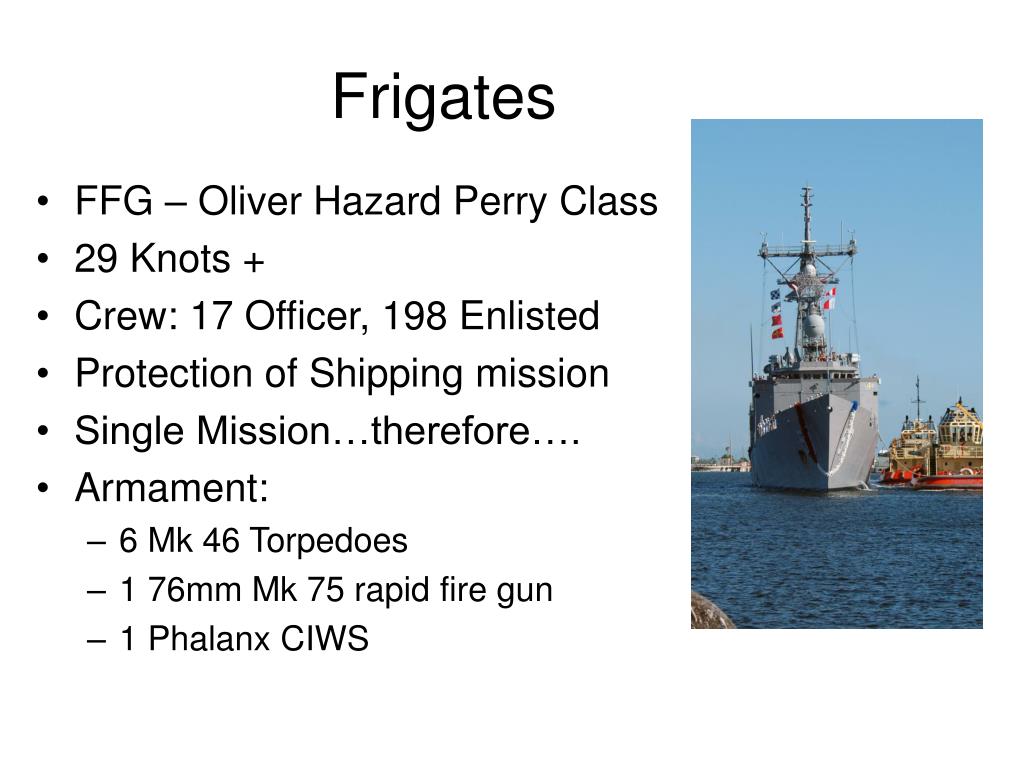

  1. Frigates • FFG – Oliver Hazard Perry Class • 29 Knots + • Crew: 17 Officer, 198 Enlisted • Protection of Shipping mission • Single Mission…therefore…. • Armament: • 6 Mk 46 Torpedoes • 1 76mm Mk 75 rapid fire gun • 1 Phalanx CIWS

  2. Dock Landing Ship • LSD – Harpers Ferry / Whidbey Island Class • 20+ Knots • Amphibious Assault Operations • Crew • Ship Company: 22 O, 397 E • Marine Det: 402 (+102 surge) • Armament • 2 25mm Mk-38 Machine Guns • 2 20mm Phalanx • 6 .50 cal. Machine Guns • Other • 2 LCAC

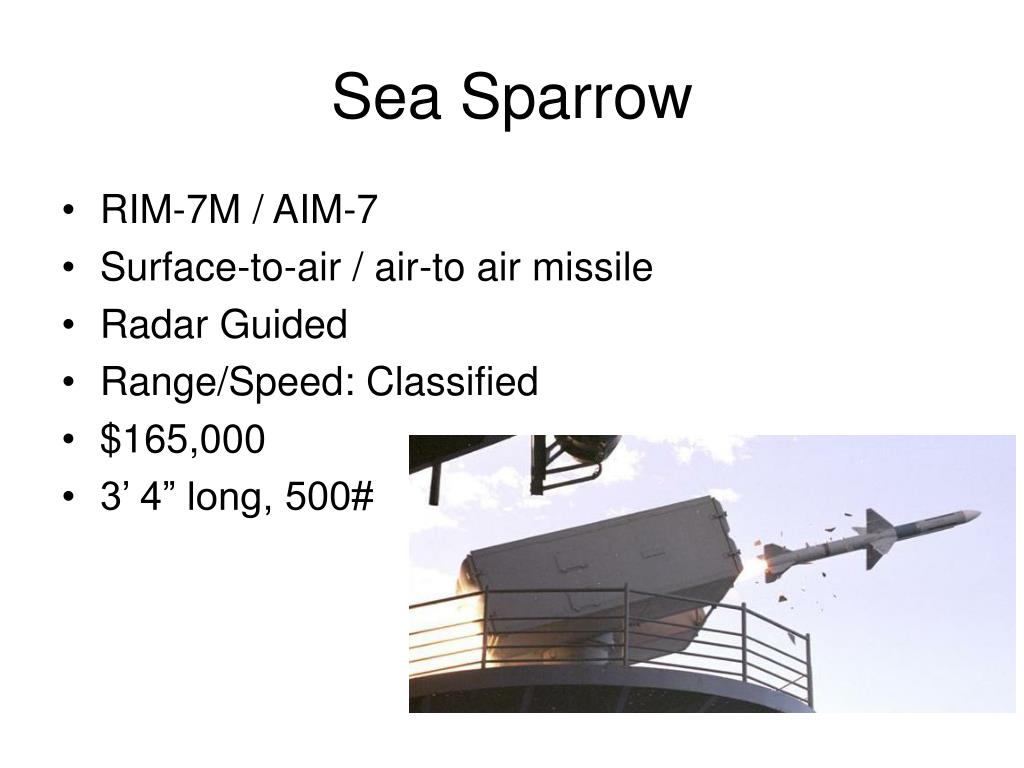

  3. Sea Sparrow • RIM-7M / AIM-7 • Surface-to-air / air-to air missile • Radar Guided • Range/Speed: Classified • $165,000 • 3’ 4” long, 500#

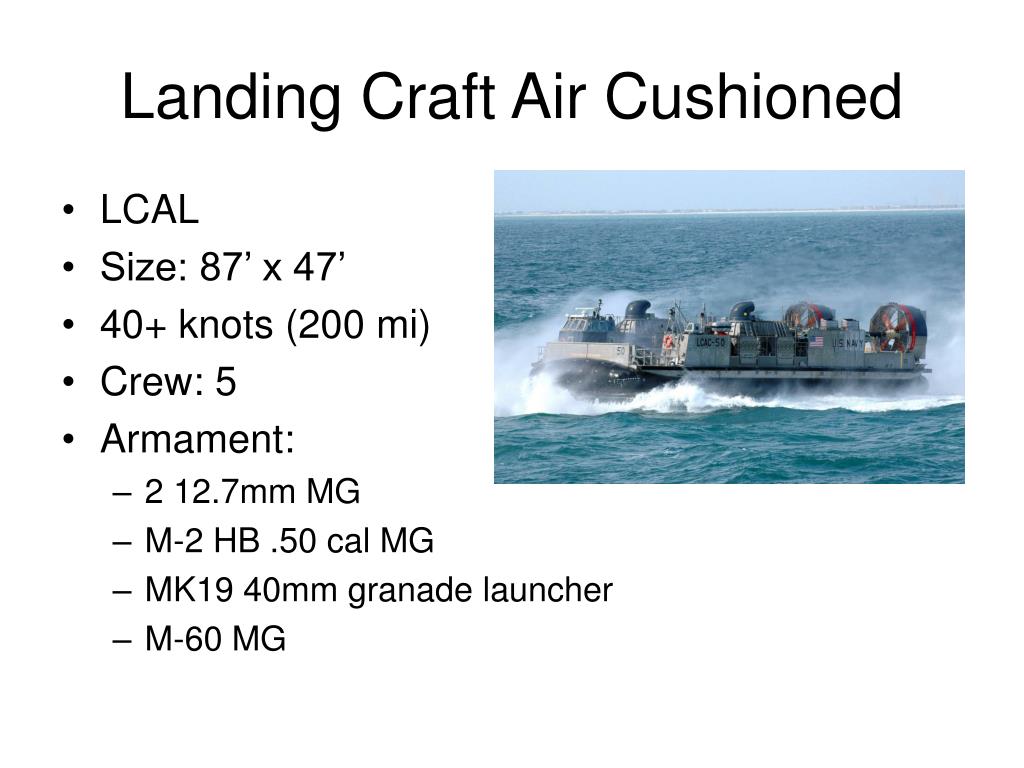

  4. Landing Craft Air Cushioned • LCAL • Size: 87’ x 47’ • 40+ knots (200 mi) • Crew: 5 • Armament: • 2 12.7mm MG • M-2 HB .50 cal MG • MK19 40mm granade launcher • M-60 MG

  5. Super Cobra • AH-1W • Fire Support/security, armed escort • 147knots, 256nm • 18,700’ • Crew: 2 Officers • Armament: • 20mm cannon • 4 external wing stations • $10,700,000

  6. Harrier • AV-8B • V/STOL • 23,000# thrust • 1 Rolls Royce turbofan engine • 7 squadrons w/ 16 aircraft each • $23,700,000

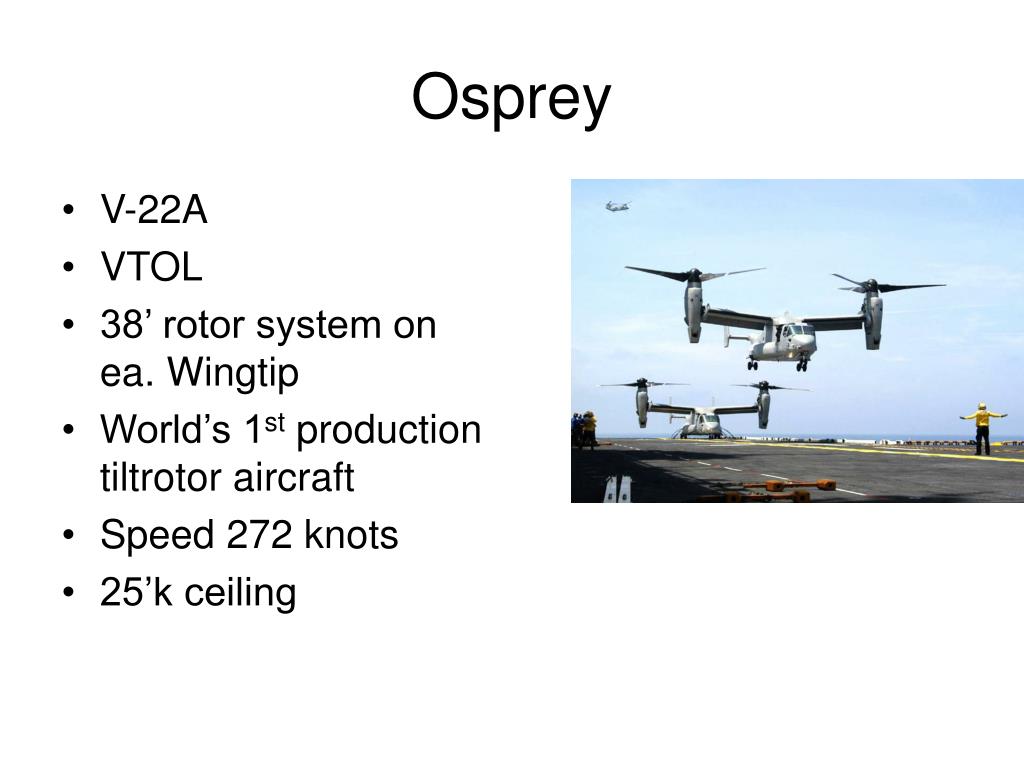

  7. Osprey • V-22A • VTOL • 38’ rotor system on ea. Wingtip • World’s 1st production tiltrotor aircraft • Speed 272 knots • 25’k ceiling

  8. Hornet • F/A-18C/D/E/F • All wx fighter/attack • 45’ wingspan • Speed: Mach 1.8+ • 1,300 NM max range • $57,000,000 ($29 mill) • Armament: • 20mm cannon • AIM-9 • AIM-7 • AIM-120, HARM, SLAM, Maverick, JSOW, SDAM,…

  9. Prowler • EA-6B • Electronic Attack (SEAD) • ALQ-99 pod system • 10,400# thrust • Speed: 500+ knots • Range: 1,000 NM • Crew: 1 pilot, 3 ECMOs
