Weekly Progress Report on LBDS Dry Runs: Weeks 7, 8, and Future Plans

This report outlines the progress and findings from the LBDS Dry Runs conducted over multiple weeks. Week 7 focused on the testing of BI in XPOC acquisition mode, the running of LBDS equipment from the control room, and a series of programmed dumps and system checks. Future dry runs are planned for weeks 15 and 19, where additional systems and full scenarios will be integrated. Key activities include the verification of permit loops, energy tracking, and preparations for reliability running. Findings from these runs will inform further operational decisions.

monet
Télécharger la présentation

Weekly Progress Report on LBDS Dry Runs: Weeks 7, 8, and Future Plans

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LBDS Dry Runs Ioan Kozsar; Julian Lewis; Benjamin Todd; Bruno Puccio; Lars Jensen; Ana Guerrero Ollacarizqueta; Stephane Bart Pedersen; Michael Ludwig; Bernd Dehning; Christos Zamantzas; Jean-Jacques Gras; Jan Uythoven; Etienne Carlier; Nicolas Magnin; Nicolas Voumard; Christophe Chanavat; Marine Gourber-Pace; Ronny Billen; Chris Roderick; Reyes Alemany Fernandez; Vito Baggiolini; Fabio Follin; Markus Albert; Guy Crockford; Marek Misiowiec; Grzegorz Kruk; Jerome Axensalva; Eric Gallet; Brennan Goddard; Mike Lamont; Verena Kain

  2. LBDS Dry Runs http://wikis/display/LHCOP/LBDS+Dry+Runs • Scope week 7: • Test point 6 BI in XPOC acquisition mode • Running LBDS equipment from the control room • Week 8: Sequence (almost) ready for reliability run from CCC • Scope week 11: • Beam dump system beam 1: programmed dumps • Local permit loop • RF simulated revolution frequency • Programmed dumps via timing system to break permit loop • LBDS triggered by broken permit loop • Next dry runs week 15, week 19 • Add beam 2 system, interfaces to other systems (injection, …), full scenarios (I & D, …)

  3. LBDS – programmed dump - normally • Energy Tracking System (BETS) receives energy from 4 arcs to define kicker voltage Programmed Dump Beam 1: • FESA command to BIS: unlink permit loops (sequence) • Timing: suppress post mortem beam 1 (sequence) • Timing: “Dump beam 1 event” is sent out (sequence) • Timing system input to the BIS: removes user permit • BIS: Broken permit loop triggers beam dump for beam 1 • Timing: detects broken permit loop → sends out “beam 1 dumped event” (= required for External Post Operational Check XPOC) • Timing: Enable post mortem beam 1 (sequence)

  4. LBDS Dry Run - week 7 • Scenario: • Beam 1 only • Beam dump (beam 1) triggered by timing event (dump event) • The “beam dumped event” is sent out by operations (sequencer – timing table), not automatically by timing • The BI acquisition is triggered by the “beam dumped event” for the XPOC analysis • The energy input for the BETS comes through a BETS simulator, not through the RB DCCTs in 4 arcs • We test: • Control of LBDS equipment from control room (except TSU) • Arming of LBDS through sequencer, LBDS monitoring GUI • Point 6 BI • XPOC acquisition (BI, LBDS), logging, first analysis and report to sequencer

  5. LBDS Dry Run – week 7 …week 7 Plus all the BLMs in the region, except the direct ones.

  6. BI – week 7 • BPMSE • BPMD • BTVSE • BTVD • BTVDD • BLMs • Missing: direct BLMs, BSRA, BPMSA

  7. Fixed Displays – week 7 Not the final versions – will need to rationalise

  8. Timing Table – week 7 Start table event, payload 17 (Hex 11)

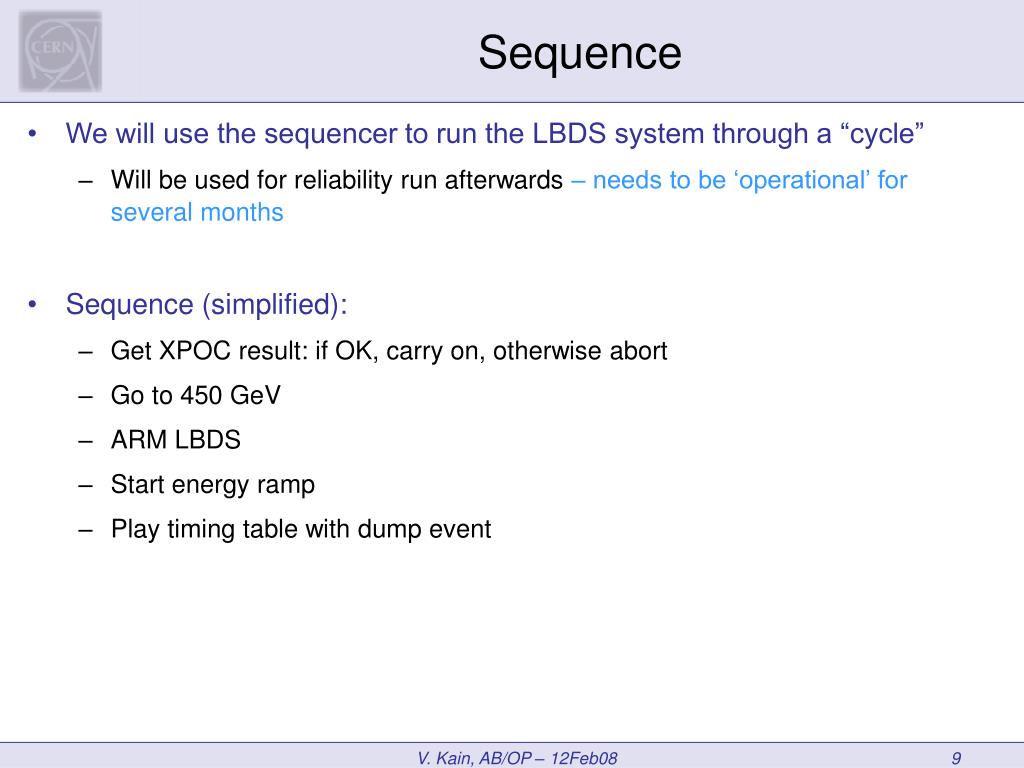

  9. Sequence • We will use the sequencer to run the LBDS system through a “cycle” • Will be used for reliability run afterwards – needs to be ‘operational’ for several months • Sequence (simplified): • Get XPOC result: if OK, carry on, otherwise abort • Go to 450 GeV • ARM LBDS • Start energy ramp • Play timing table with dump event

  10. Conclusions • …after the first dry run…
