  1. Implementing Application and Data Security Presenter Name Job Title Company

  2. Session Prerequisites • Understanding of network security essentials • Hands-on experience with Windows® 2000 Server or Windows Server™ 2003 • Experience with Windows management tools • Hands-on experience with Exchange Server and SQL Server management tools Level 300

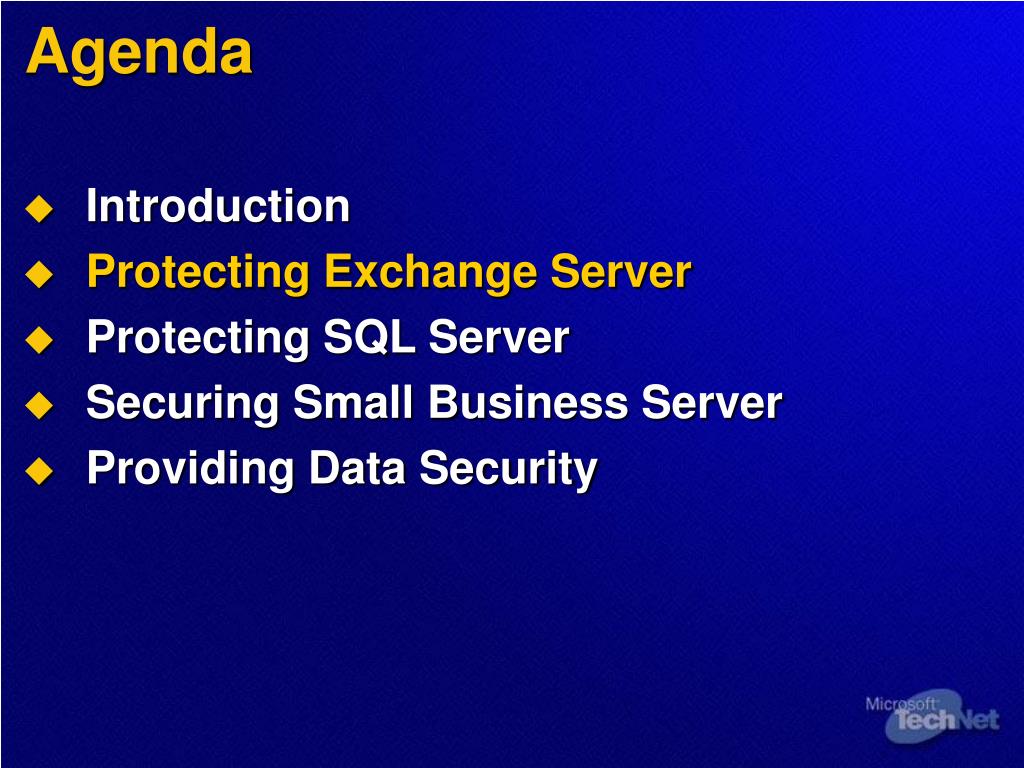

  3. Agenda • Introduction • Protecting Exchange Server • Protecting SQL Server  • Securing Small Business Server • Providing Data Security

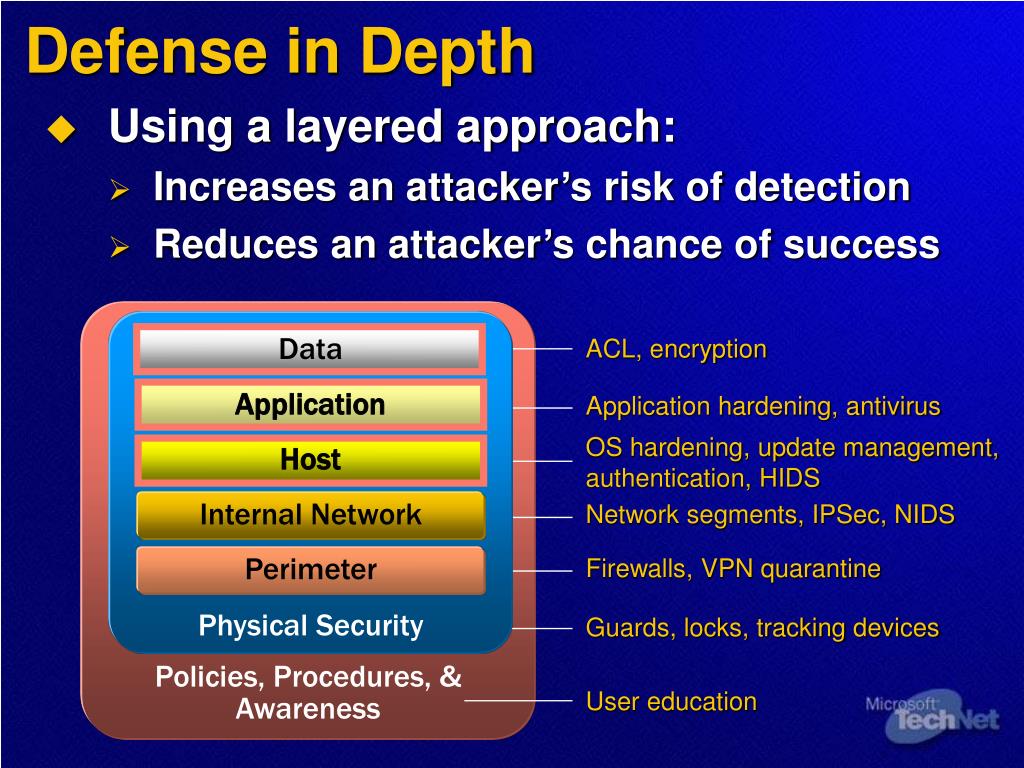

  4. Defense in Depth • Using a layered approach: • Increases an attacker’s risk of detection • Reduces an attacker’s chance of success Policies, Procedures, & Awareness Physical Security ACL, encryption Data Application Application hardening, antivirus OS hardening, update management, authentication, HIDS Host Internal Network Network segments, IPSec, NIDS Firewalls, VPN quarantine Perimeter Guards, locks, tracking devices User education

  5. Why Application Security Matters • Perimeter defenses provide limited protection • Many host-based defenses are not application specific • Most modern attacks occur at the application layer

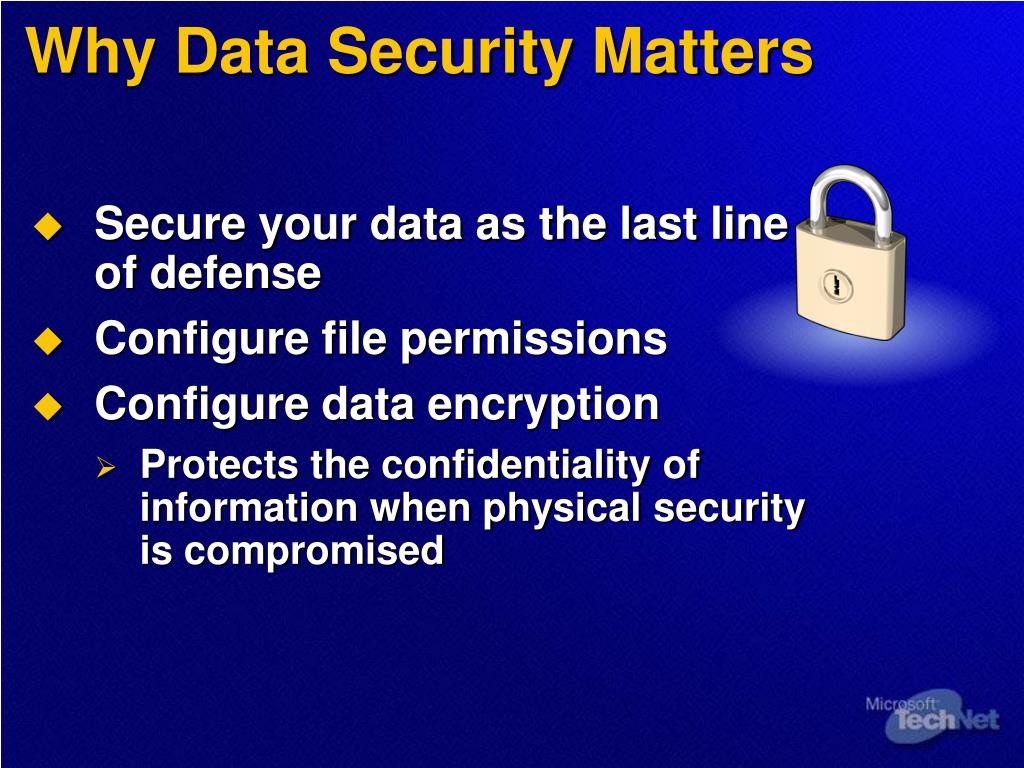

  6. Why Data Security Matters • Secure your data as the last line of defense • Configure file permissions • Configure data encryption • Protects the confidentiality of information when physical security is compromised

  7. Application Server Best Practices Configure security on the base operating system Apply operating system and application service packs and patches Install or enable only those services that are required Assign only those permissions needed to perform required tasks Applications accounts should be assigned with the minimal permissions Apply defense-in-depth principles to increase protection

  8. Agenda • Introduction • Protecting Exchange Server • Protecting SQL Server  • Securing Small Business Server • Providing Data Security

  9. Exchange Security Dependencies • Exchange security is dependent on: • Operating system security • Network security • IIS security (if you use OWA) • Client security (Outlook) • Active Directory security Remember: Defense in Depth

  10. Securing Exchange Servers • Exchange 2000 Back-End Servers • Apply baseline security template and the Exchange back-end incremental template • Exchange 2000 Front-End Servers • Apply baseline security template and the Exchange front-end incremental template • Dismount private and public stores • Exchange 2000 OWA Server • Apply IIS Lockdown, including URLScan • Exchange 2003 Back-End Server • Apply protocol security templates • Exchange 2003 Front-End and OWA Server • IIS Lockdown and URLScan integrated with IIS 6.0 • Use application isolation mode

  11. Aspects of Exchange Server Security • Securing Access to Exchange Server • Blocking unauthorized access • Securing Communications • Blocking and encrypting communications • Blocking Spam • Filtering incoming mail • Relay restrictions: Don’t aid spammers! • Blocking Insecure E-Mail Messages • Virus scanning • Attachment blocking

  12. Configuring Authentication, Part 1 • Secure Outlook client authentication • Configure Exchange & Outlook 2003 to use RPC over HTTPS • Configure SPA to encrypt authentication for Internet protocol clients Remember: Secure authentication does not equal encryption of data

  13. Configuring Authentication, Part 2 • OWA supports several authentication methods:

  14. Securing Communications • Configure RPC encryption • Client side setting • Enforcement with ISA Server FP1 • Firewall blocking • Mail server publishing with ISA Server • Configure HTTPS for OWA • Use S/MIME for message encryption • Outlook 2003 Enhancements • Kerberos authentication • RPC over HTTPS

  15. Encrypting a Message Active Directory Domain Controller 2 Locate Client 2’s public key 6 Client 2’s private key is used to decrypt the shared key, and the shared key is used to decrypt the message 4 Message sent using S/MIME 1 SMTP VS1 SMTP VS 2 New message Message arrives encrypted 5 Message encrypted with a shared key 3 Client 2 Client 1

  16. Demonstration 1Securing ExchangeConfiguring Forms-Based AuthenticationConfiguring RPC EncryptionUsing ISA Server to Publish Exchange

  17. Blocking Spam – Exchange 2000 • Close open relays! • Protect against address spoofing • Prevent Exchange from resolving recipient names to GAL accounts • Configure reverse DNS lookups

  18. Blocking Spam – Exchange 2003 • Use additional features in Exchange Server 2003 • Support for real-time block lists • Global deny and accept lists • Sender and inbound recipient filtering • Improved anti-relaying protection • Integration with Outlook 2003 and third-party junk mail filtering

  19. Demonstration 2 Configuring Exchange Spam ProtectionAnti-Relay Protection

  20. Blocking Insecure Messages • Implement antivirus gateways • Monitor incoming and outgoing messages • Update signatures often • Configure Outlook attachment security • Web browser security determines whether attachments can be opened in OWA • Implement ISA Server • Message Screener can block incoming messages

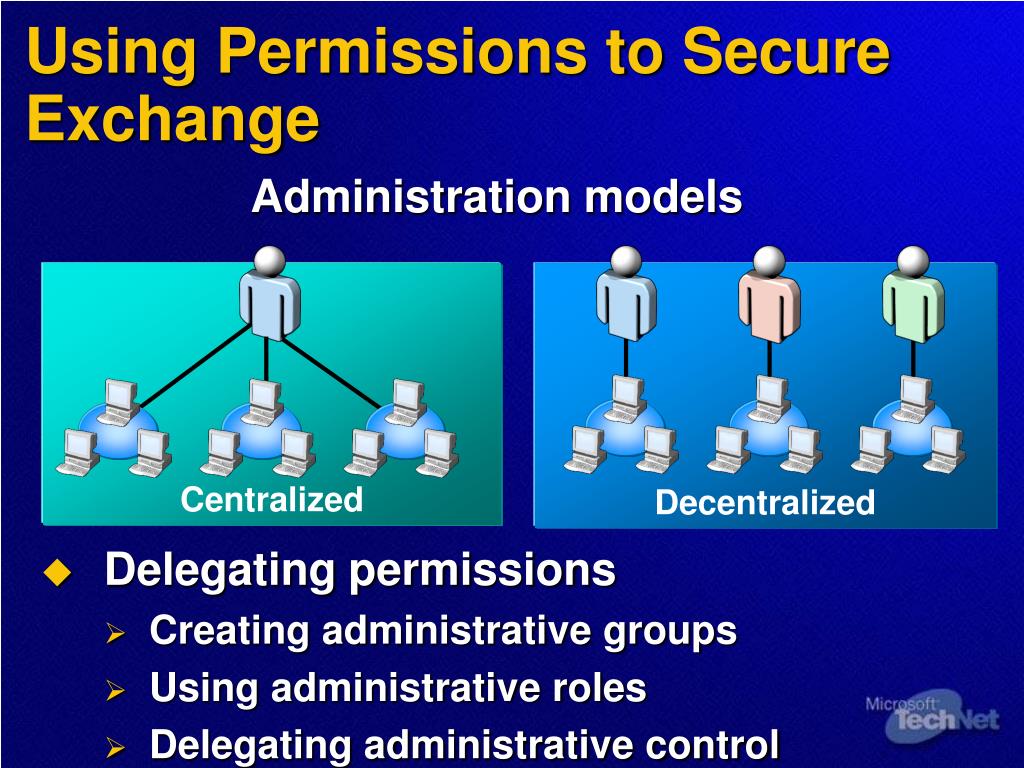

  21. Using Permissions to Secure Exchange Administration models Centralized Decentralized • Delegating permissions • Creating administrative groups • Using administrative roles • Delegating administrative control

  22. Enhancements in Exchange Server 2003 • Many secure-by-default settings • More restrictive permissions • New mail transport features • New Internet Connection Wizard • Cross-forest authentication support

  23. Efficiency Continuity Storage Management Hardware Upgrades Performance Monitoring Performance Tuning Exchange System Policies Capacity Management UPS Recovery Testing Availability Monitoring Availability Management Disaster Recovery Support Antivirus Event Monitoring Change Management Group Policies Backup Security Policies Firewall Issues Exchange System Policies AD Group Membership Security Defense in Depth

  24. Top Ten Things to Secure Exchange 1 Install the latest service pack 2 Install all applicable security patches 3 Run MBSA 4 Check relay settings 5 Disable or secure well-known accounts 6 Use a layered antivirus approach 7 Use a firewall 8 Evaluate ISA Server 9 Secure OWA 10 Implement a backup strategy

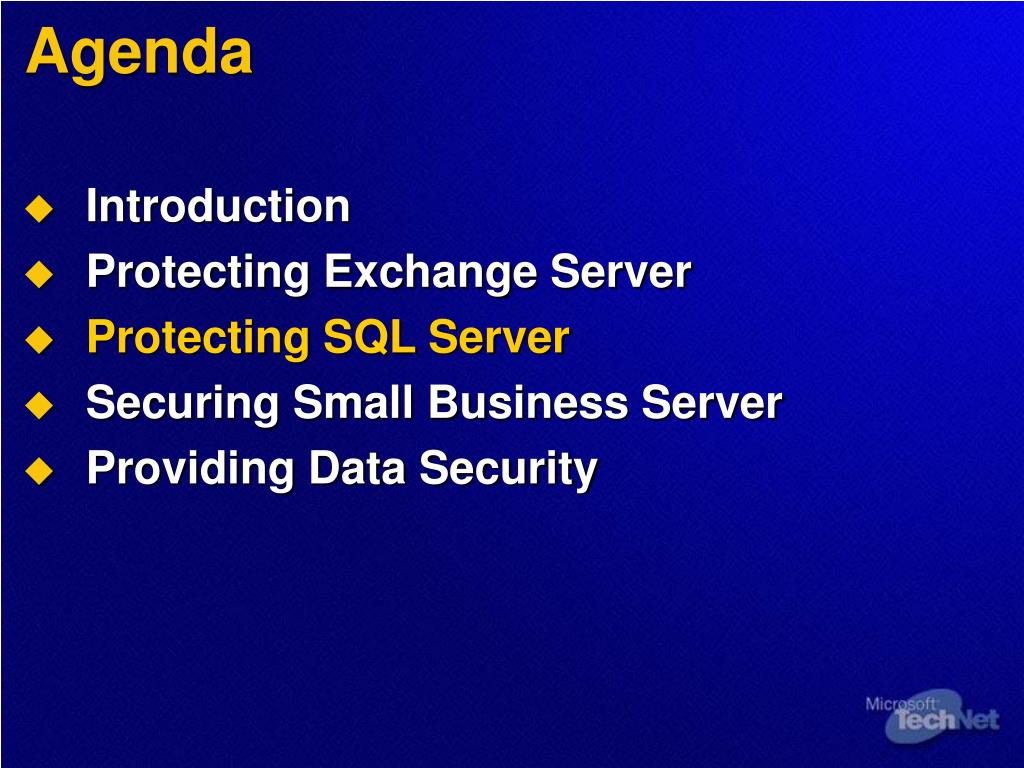

  25. Agenda • Introduction • Protecting Exchange Server • Protecting SQL Server • Securing Small Business Server • Providing Data Security

  26. Basic Security Configuration • Apply service packs and patches • Use MBSA to detect missing SQL updates • Disable unused services • MSSQLSERVER (required) • SQLSERVERAGENT • MSSQLServerADHelper • Microsoft Search • Microsoft DTC

  27. Password Cracking Web App Vulnerabilities Overprivileged accounts Week input validation Network Eavesdropping SQL Injection Perimeter Firewall Internal Firewall SQL Server Web App Browser Unauthorized External Access Network Vulnerabilities Failure to block SQL ports Configuration Vulnerabilities Overprivileged service account Week permissions No certificate Common Database Server Threats and Countermeasures

  28. SQL Server Security SQL Server Logins, Users, and Roles Database Objects Shares Auditing and Logging Patches and Updates Operating System Services Files and Directories Accounts Registry Protocols Ports Network Database Server Security Categories

  29. Network Security • Restrict SQL to TCP/IP • Harden the TCP/IP stack • Restrict ports

  30. Operating System Security • Configure the SQL Server service account with the lowest possible permissions • Delete or disable unused accounts • Secure authentication traffic

  31. Logins, Users, and Roles • Use a strong system administrator (sa) password • Remove the SQL guest user account • Remove the BUILTIN\Administrators server login • Do not grant permissions for the public role

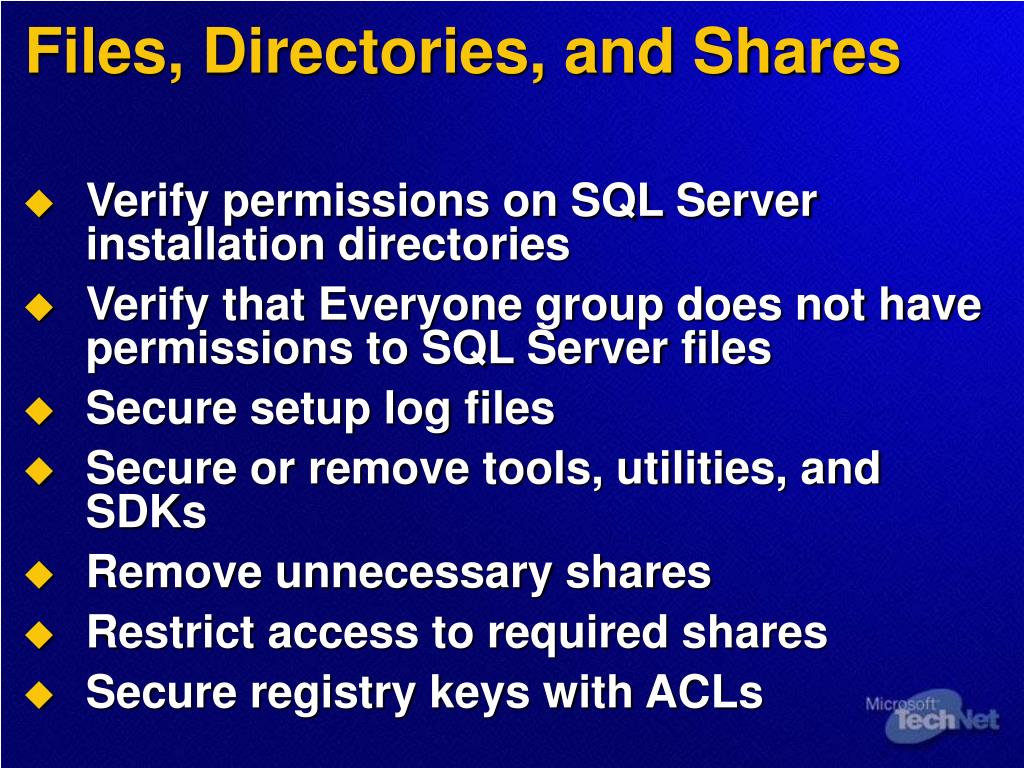

  32. Files, Directories, and Shares • Verify permissions on SQL Server installation directories • Verify that Everyone group does not have permissions to SQL Server files • Secure setup log files • Secure or remove tools, utilities, and SDKs • Remove unnecessary shares • Restrict access to required shares • Secure registry keys with ACLs

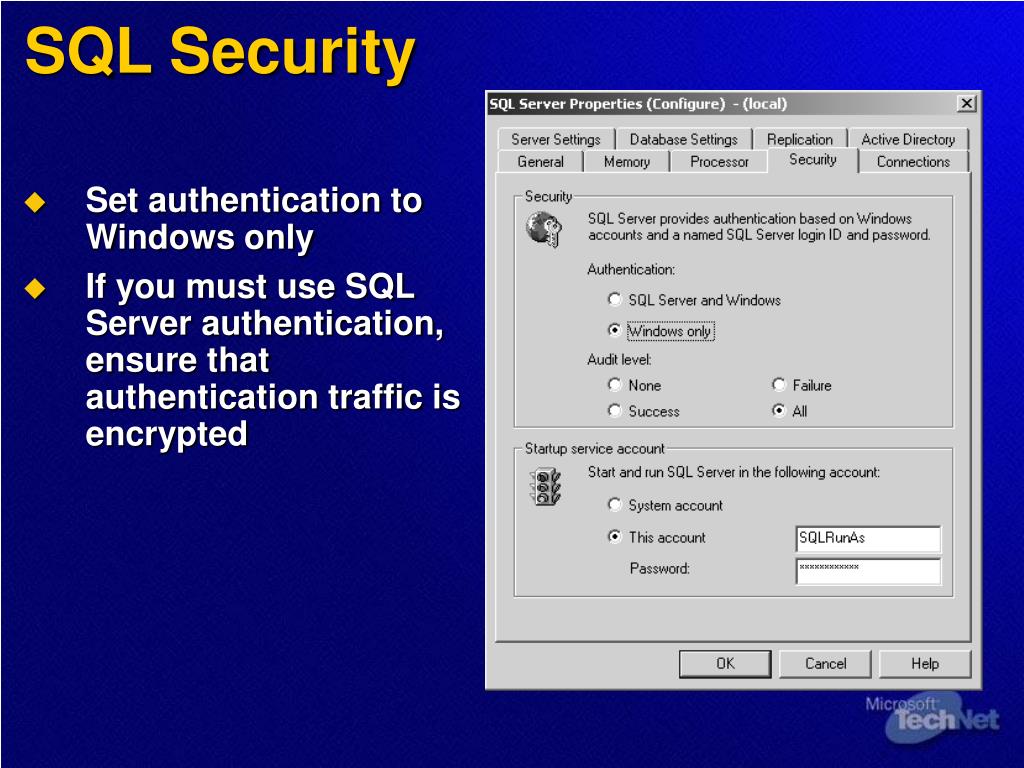

  33. SQL Security • Set authentication to Windows only • If you must use SQL Server authentication, ensure that authentication traffic is encrypted

  34. SQL Auditing • Log all failed Windows login attempts • Log successful and failed actions across the file system • Enable SQL Server login auditing • Enable SQL Server general auditing

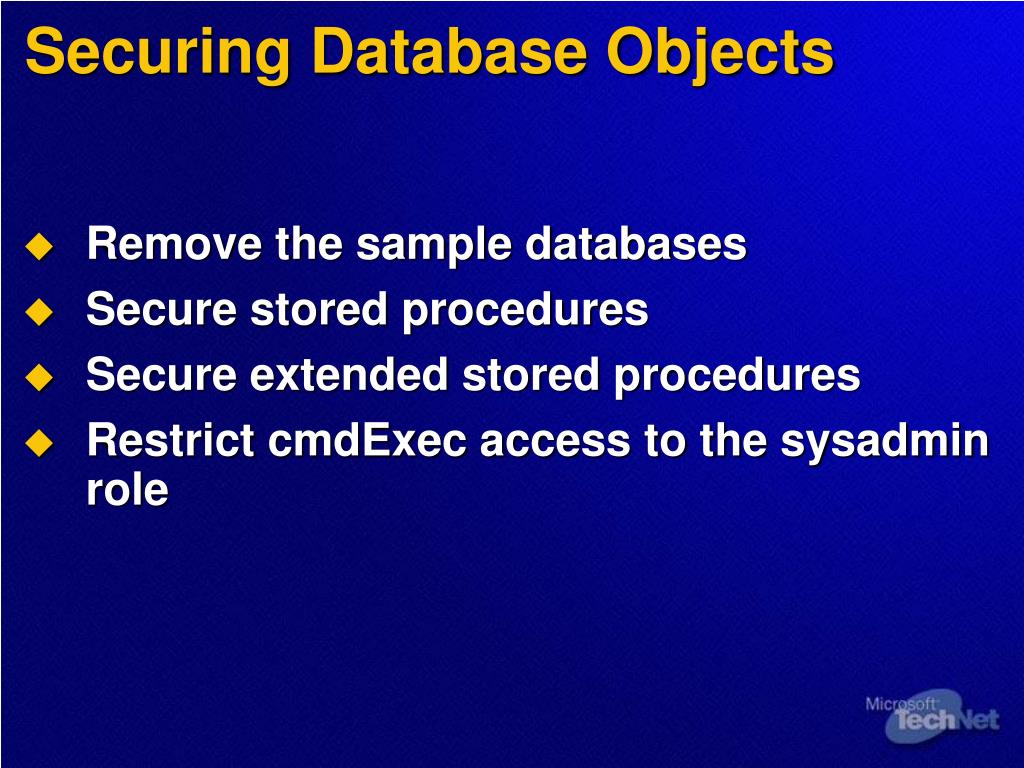

  35. Securing Database Objects • Remove the sample databases • Secure stored procedures • Secure extended stored procedures • Restrict cmdExec access to the sysadmin role

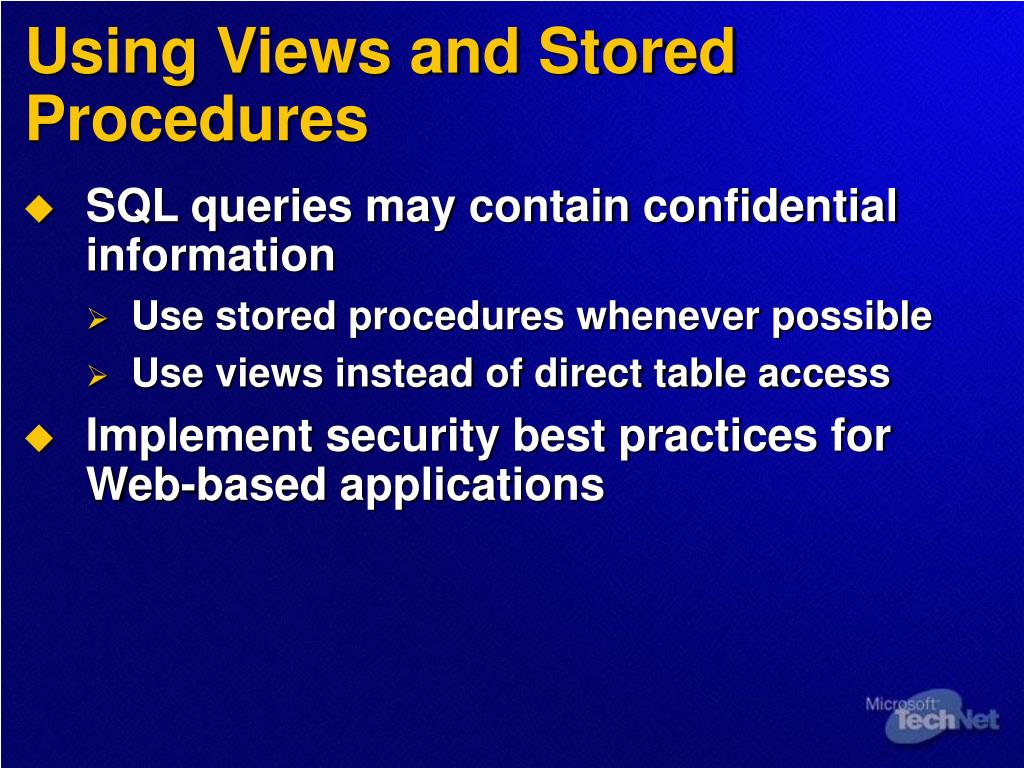

  36. Using Views and Stored Procedures • SQL queries may contain confidential information • Use stored procedures whenever possible • Use views instead of direct table access • Implement security best practices for Web-based applications

  37. Securing Web Applications • Validate all data input • Secure authentication and authorization • Secure sensitive data • Use least-privileged process and service accounts • Configure auditing and logging • Use structured exception handling

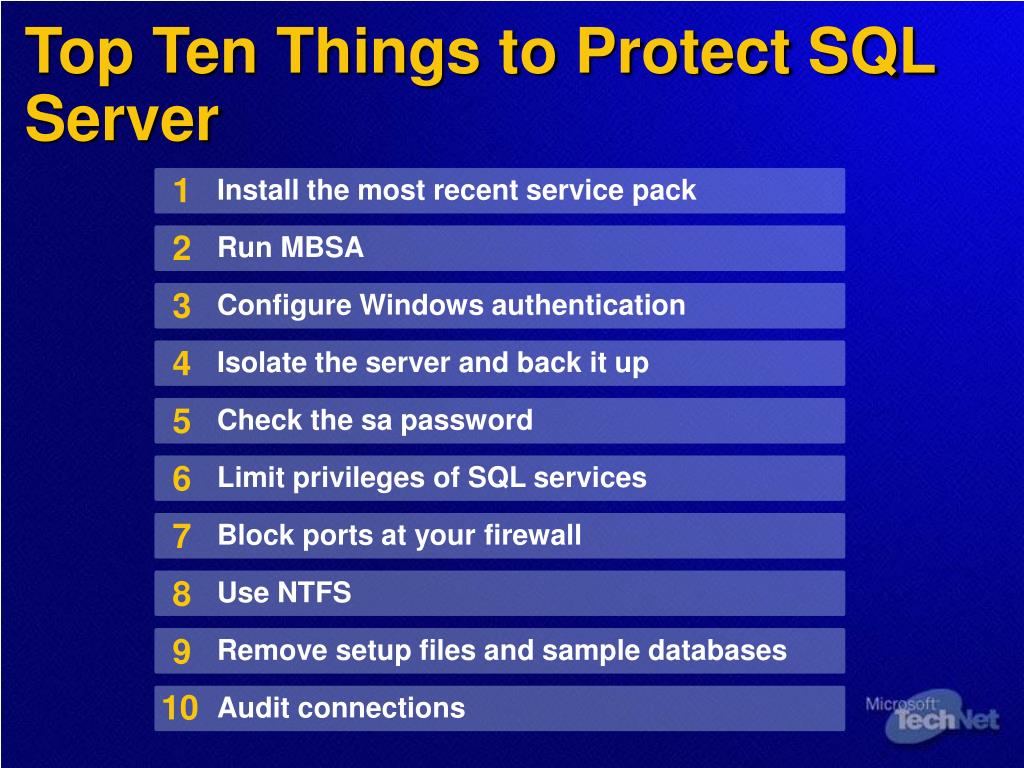

  38. Top Ten Things to Protect SQL Server 1 Install the most recent service pack 2 Run MBSA 3 Configure Windows authentication 4 Isolate the server and back it up 5 Check the sa password 6 Limit privileges of SQL services 7 Block ports at your firewall 8 Use NTFS 9 Remove setup files and sample databases 10 Audit connections

  39. Agenda • Introduction • Protecting Exchange Server • Protecting SQL Server  • Securing Small Business Server • Providing Data Security

  40. Recognizing Threats • Small Business Server plays many server roles • External threats • Small Business Server is often connected to the Internet • Internal threats • All components of Small Business Server must be secured • Many settings secured by default

  41. Protecting Against External Threats • Configure password policies to require complex passwords • Configure secure remote access • Remote Web Workplace • Remote Access • Rename the Administrator account • Implement Exchange and IIS security best practices • Use a firewall

  42. Using a Firewall • Included firewall features: • ISA Server 2000 in SBS 2000 and SBS 2003, Premium Edition • Basic firewall functionality in SBS 2003, Standard Edition • Consider a separate firewall • SBS 2003 can communicate with an external firewall by using UPnP • ISA Server can provide application-layer protection Internet Firewall LAN

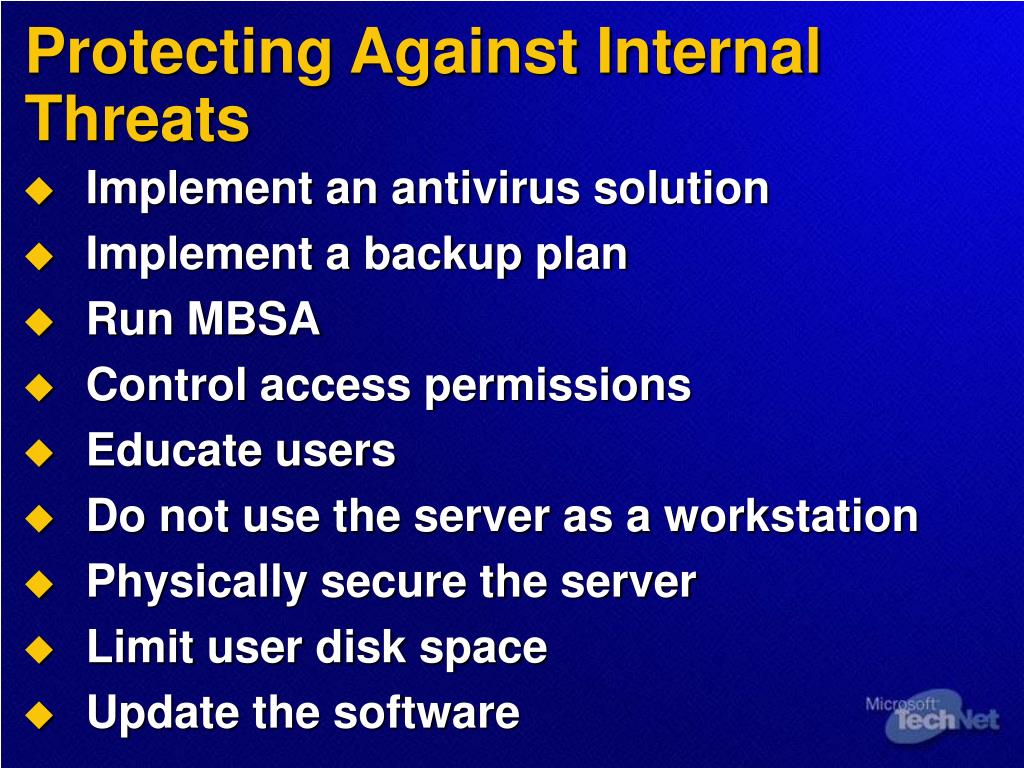

  43. Protecting Against Internal Threats • Implement an antivirus solution • Implement a backup plan • Run MBSA • Control access permissions • Educate users • Do not use the server as a workstation • Physically secure the server • Limit user disk space • Update the software

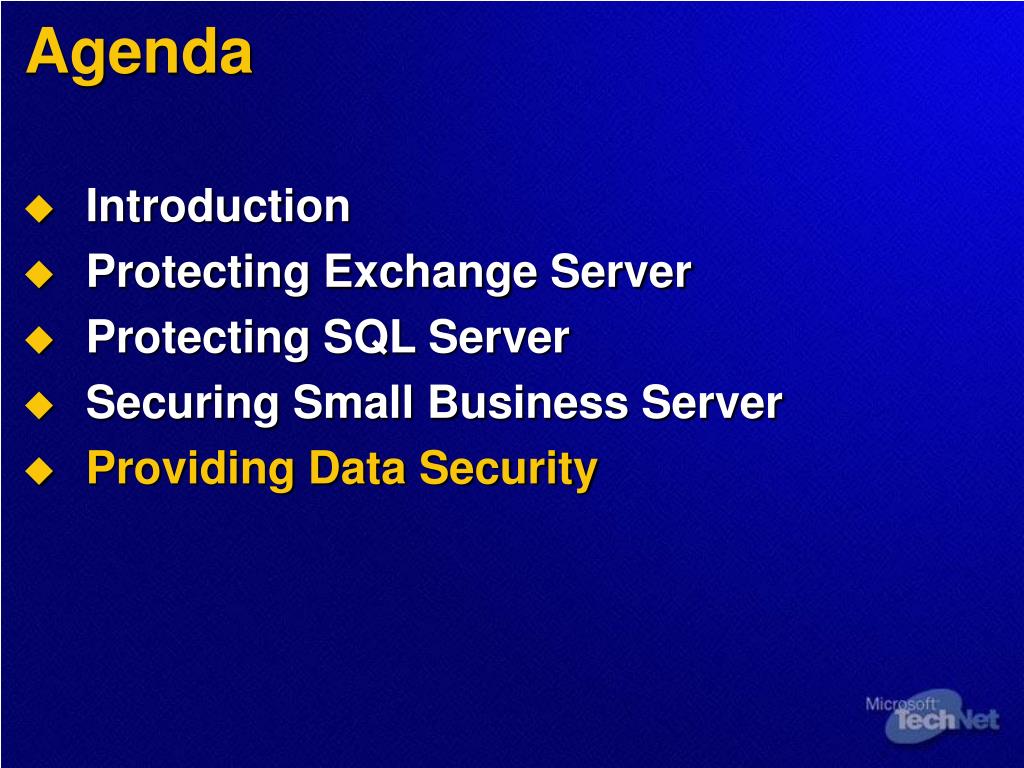

  44. Agenda • Introduction • Protecting Exchange Server • Protecting SQL Server  • Securing Small Business Server • Providing Data Security

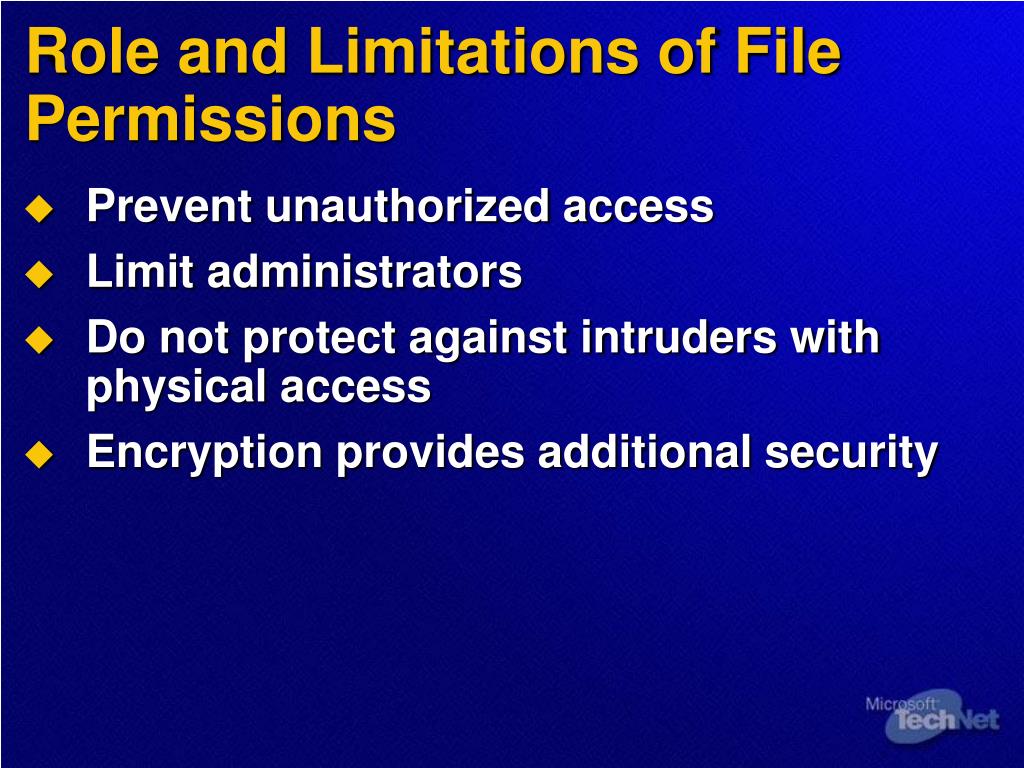

  45. Role and Limitations of File Permissions • Prevent unauthorized access • Limit administrators • Do not protect against intruders with physical access • Encryption provides additional security

  46. Role and Limitations of EFS • Benefit of EFS encryption • Ensures privacy of information • Uses robust public key technology • Danger of encryption • All access to data is lost if the private key is lost • Private keys on client computers • Keys are encrypted with derivative of user’s password • Private keys are only as secure as the password • Private keys are lost when user profile is lost

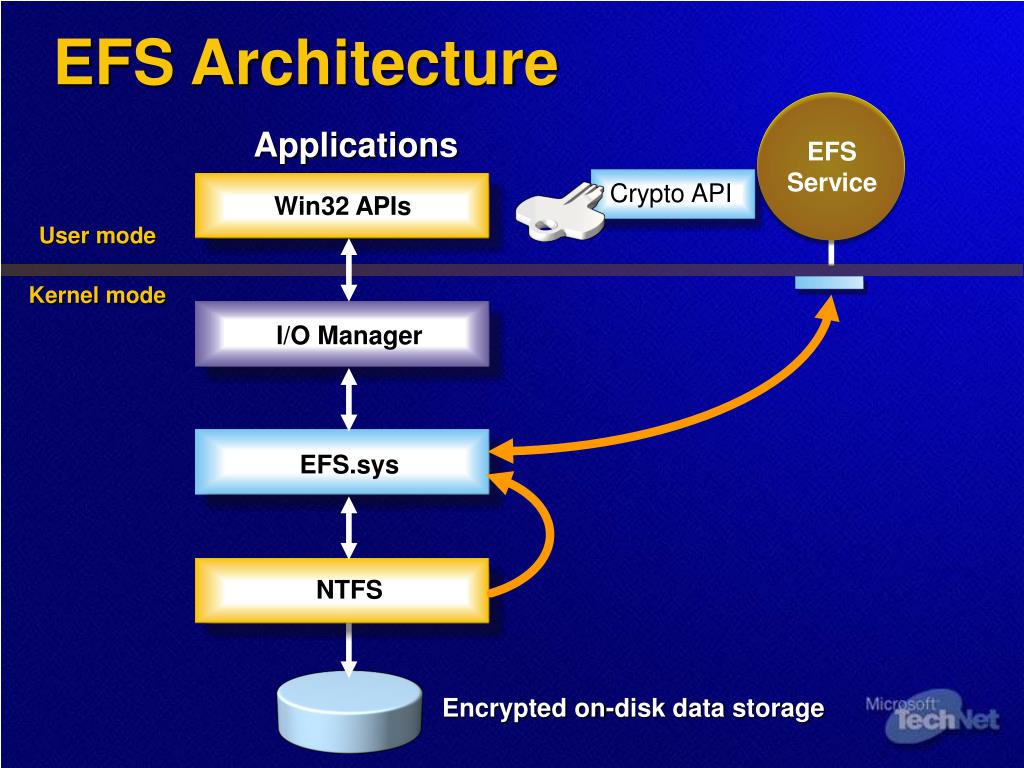

  47. Applications EFS Service Crypto API Win32 APIs User mode Kernel mode I/O Manager EFS.sys NTFS Encrypted on-disk data storage EFS Architecture

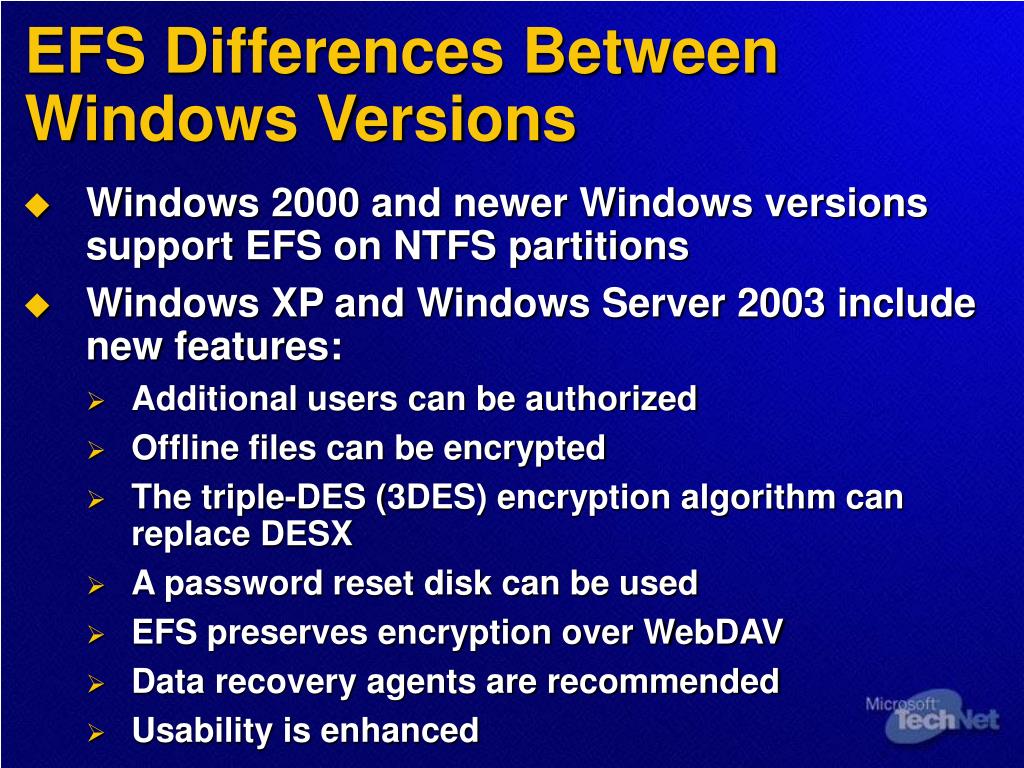

  48. EFS Differences Between Windows Versions • Windows 2000 and newer Windows versions support EFS on NTFS partitions • Windows XP and Windows Server 2003 include new features: • Additional users can be authorized • Offline files can be encrypted • The triple-DES (3DES) encryption algorithm can replace DESX • A password reset disk can be used • EFS preserves encryption over WebDAV • Data recovery agents are recommended • Usability is enhanced

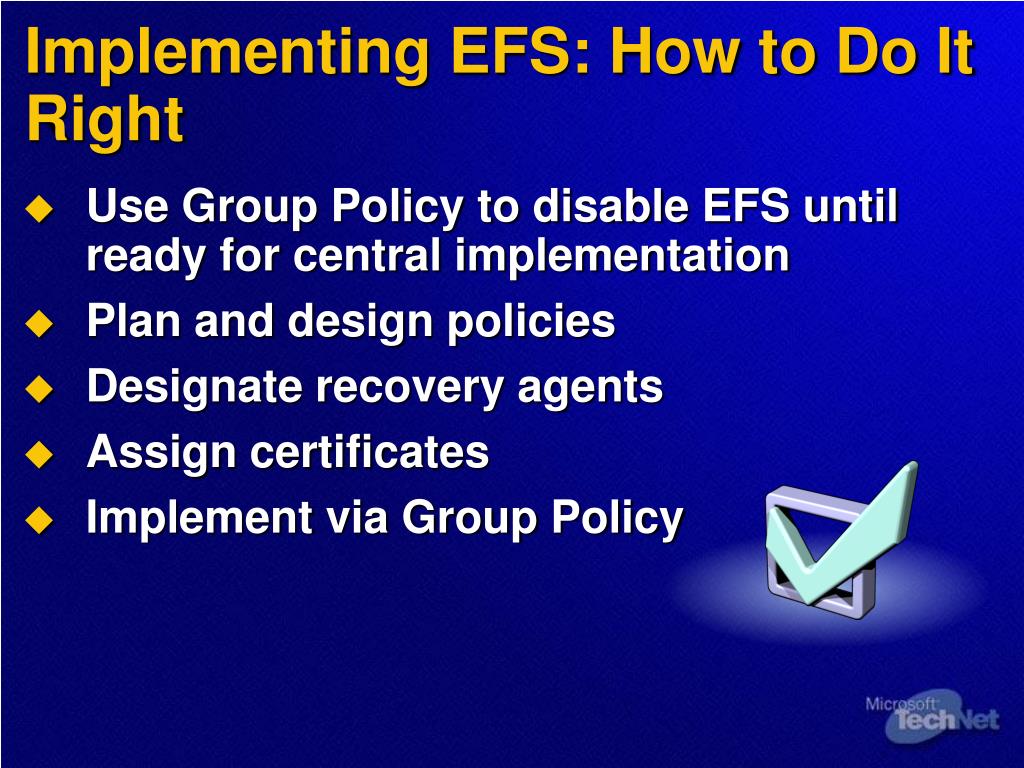

  49. Implementing EFS: How to Do It Right • Use Group Policy to disable EFS until ready for central implementation • Plan and design policies • Designate recovery agents • Assign certificates • Implement via Group Policy
