Building Risk Adjustment Models

1. Building Risk Adjustment Models Andy Auerbach MD MPH

2. Overview • Reminder of what we are talking about • Building your own • Model discrimination • Model calibration • Model validation

3. Risk Adjustment Models • Typically explain only 20-25% of variation in health care utilization • Explaining this amount of variation can be important if remaining variation is extremely random • Example: supports equitable allocation of capitation payments from health plans to providers

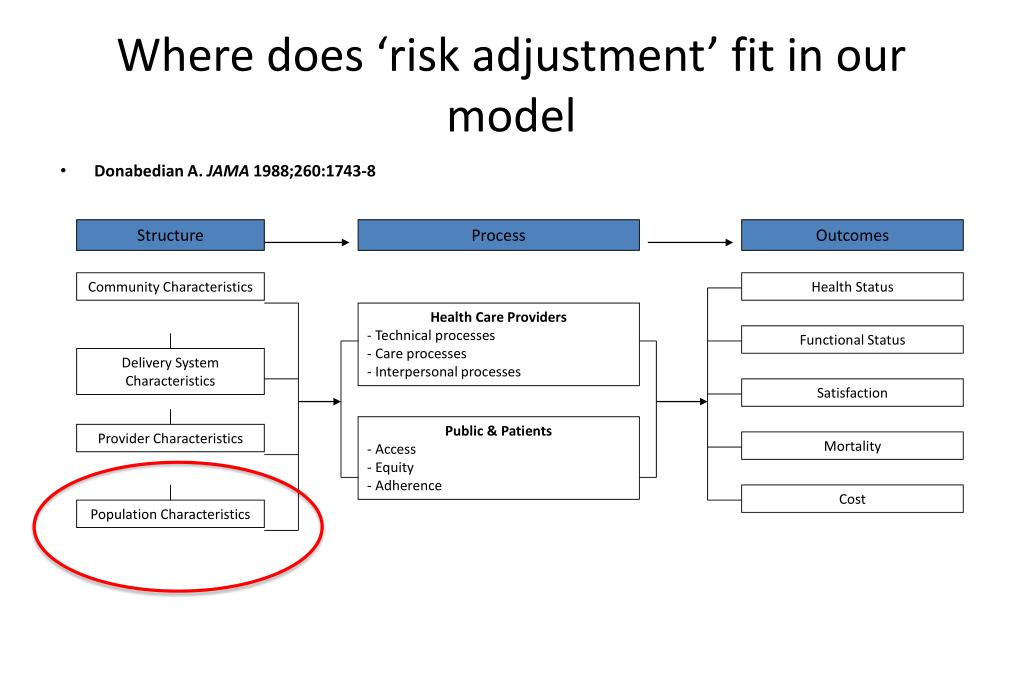

4. Where does ‘risk adjustment’ fit in our model • Donabedian A. JAMA 1988;260:1743-8 Structure Process Outcomes Community Characteristics Health Status Health Care Providers - Technical processes - Care processes - Interpersonal processes Functional Status Delivery System Characteristics Satisfaction Public & Patients - Access - Equity - Adherence Provider Characteristics Mortality Cost Population Characteristics

5. Patient severity of illness is a kind of confounder ? Exposure Outcome Confounding Factor

6. What risk factors are…. • They are…. • Factors that affect the patient’s risk for outcome independent of the treatment • These factors can also be associated with: • Risks for receiving the treatment (allocation bias  propensity scores) • Modification of the effect of treatment (interaction terms)

7. Risk factors are not… • While there may be some in common, risk factors for an outcome given a health condition are not the same as the risk factors for the condition. • Hyperlipidemia is a risk factor for MI but not for survival following an MI

8. Because in the end your analyses will look like this…. Measure = Predictor + confounders + error term Measure = Predictor + risk of outcome + other confounders + error term

9. Building Your Own Risk-Adjustment Model • What population • Generic or disease specific • What time period • Single visit/hospitalization or disease state that includes multiple observations • What outcomes • Must be clearly defined and frequent enough for modeling • What purpose • Implications for how good the model needs to be

10. Inclusion/Exclusion: Hospital Survival for Pneumonia • Include • Primary ICD-9 code 480-487 (viral/bacterial pneumonias) • Secondary ICD-9 code 480-487 and primary of empyema (510), pleurisy (511), pneumothorax (512), lung abscess (513), or respiratory failure (518) • Exclude • Age <18 years old • Admission in prior 10 days • Other diagnoses of acute trauma • HIV, cystic fibrosis, tuberculosis, post operative pneumonia

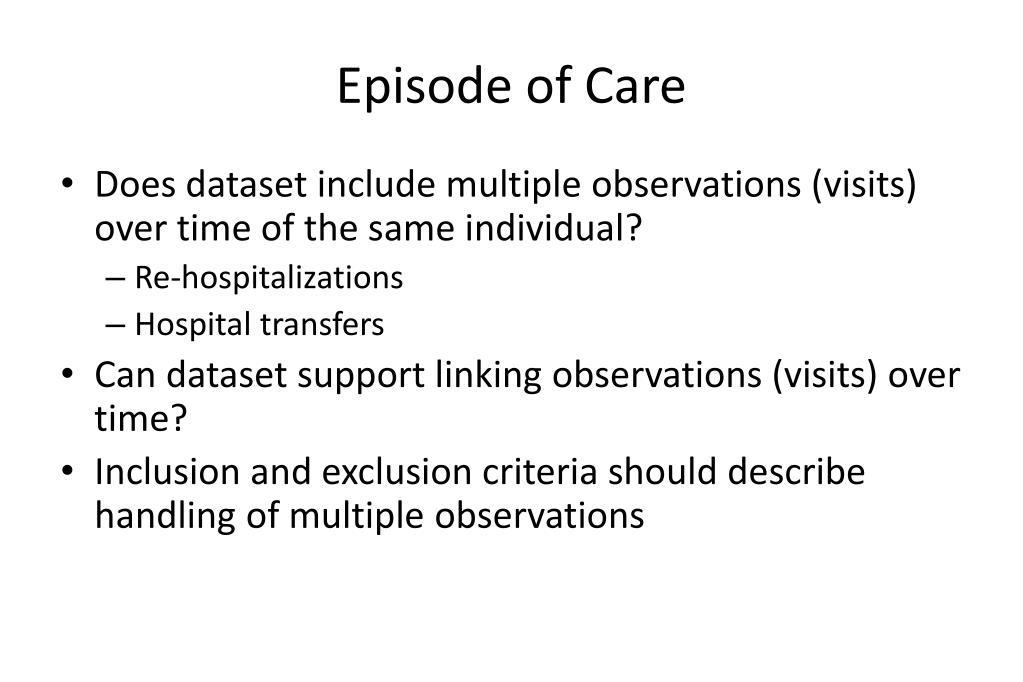

11. Episode of Care • Does dataset include multiple observations (visits) over time of the same individual? • Re-hospitalizations • Hospital transfers • Can dataset support linking observations (visits) over time? • Inclusion and exclusion criteria should describe handling of multiple observations

12. Identifying Risk Factors for Model • Previous literature • Expert opinion/consensus • Data dredging (retrospective)

13. Reliability of Measurement • Is the ascertainment and recording of the variable standardized within and across sites? • Are there audits of the data quality and attempts to correct errors?

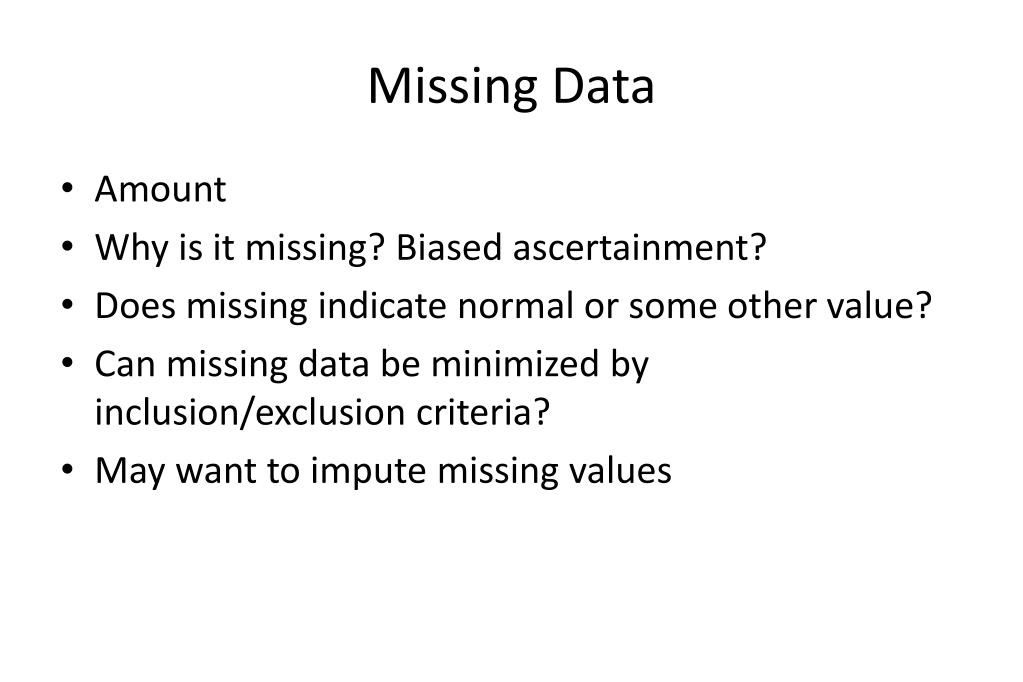

14. Missing Data • Amount • Why is it missing? Biased ascertainment? • Does missing indicate normal or some other value? • Can missing data be minimized by inclusion/exclusion criteria? • May want to impute missing values

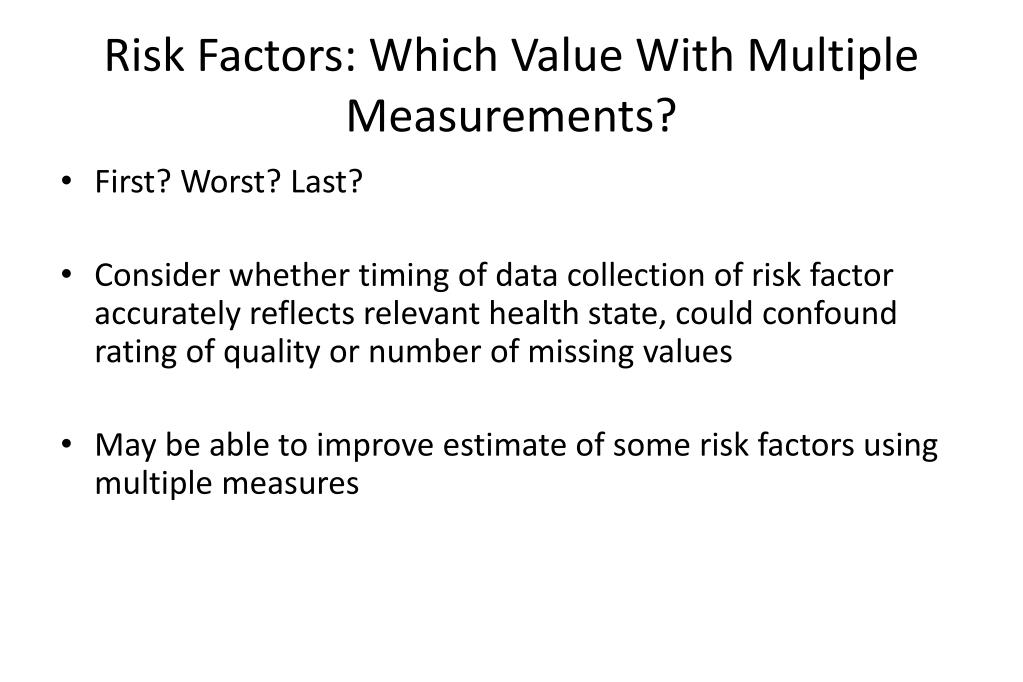

15. Risk Factors: Which Value With Multiple Measurements? • First? Worst? Last? • Consider whether timing of data collection of risk factor accurately reflects relevant health state, could confound rating of quality or number of missing values • May be able to improve estimate of some risk factors using multiple measures

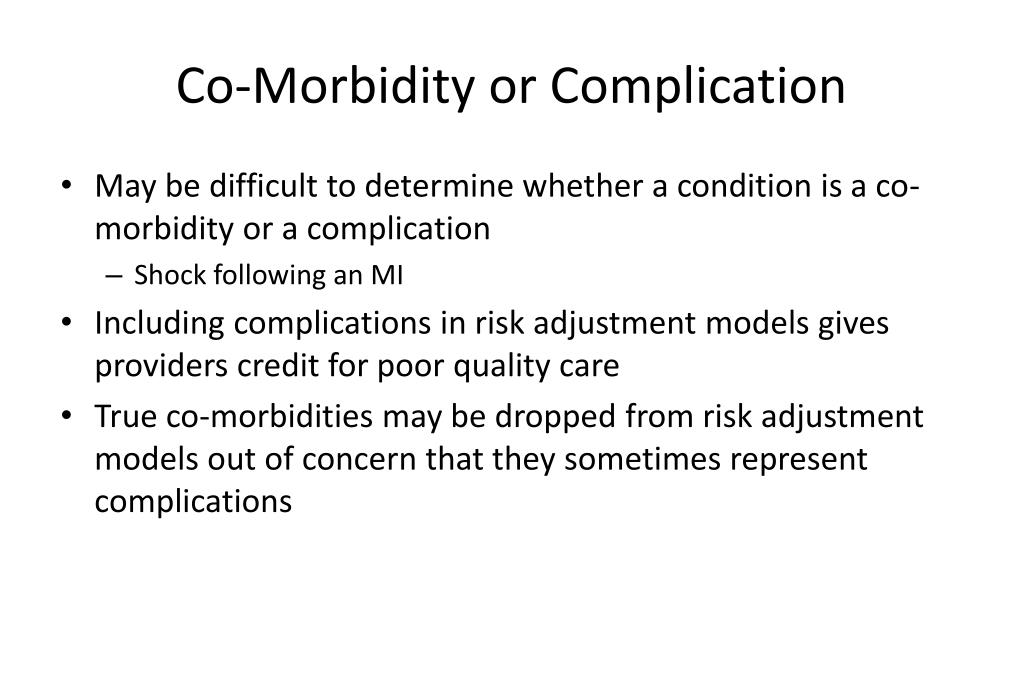

16. Co-Morbidity or Complication • May be difficult to determine whether a condition is a co-morbidity or a complication • Shock following an MI • Including complications in risk adjustment models gives providers credit for poor quality care • True co-morbidities may be dropped from risk adjustment models out of concern that they sometimes represent complications

17. Caveats to risk factors: Gaming • Situation in which the coding of risk factors is influenced by coder’s knowledge or assumptions regarding how the data will be used to create a performance report or to calculate payment • The potential for gaming to alter the results (eg quality comparisons of providers) is related to the degree that it occurs similarly or differently across providers

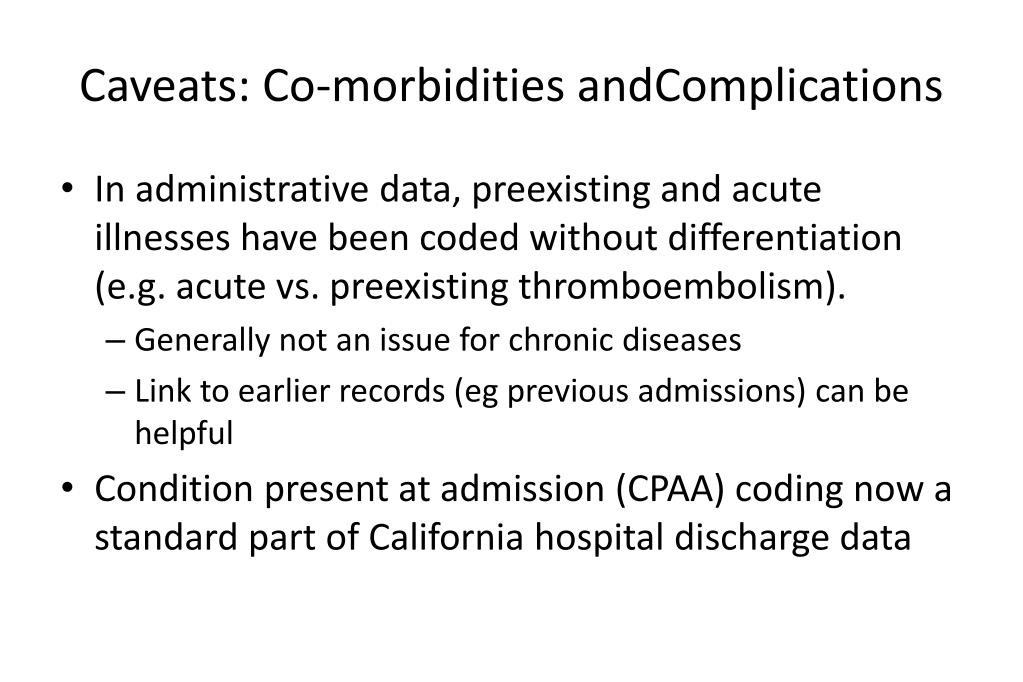

18. Caveats: Co-morbidities andComplications • In administrative data, preexisting and acute illnesses have been coded without differentiation (e.g. acute vs. preexisting thromboembolism). • Generally not an issue for chronic diseases • Link to earlier records (eg previous admissions) can be helpful • Condition present at admission (CPAA) coding now a standard part of California hospital discharge data

19. Risk Factors: Patient Characteristics Not Process of Care • Processes of care can be indicative of severity • However treatments also reflect practice style/quality • Process measures can be explored as a possible mediators as opposed to risk factors for outcomes

20. Coronary Artery Disease: Mortality Rates by Race Age, coronary anatomy, ejection fraction, chf, angina, AMI, mitral regurgitation, periph vasc disease, coexisting illnesses: Peterson et al, NEJM, 1997

21. Building Multivariate Models • Start with conceptual framework from literature and expert opinion • Pre-specify statistical significance for retaining variables

22. Empirical Testing of Risk Factors • Univariate analyses to perform range checks, eliminate invalid values and low frequency factors • Bivariate analyses to identify insignificant or counterintuitive factors • Test variables for linear, exponential, u-shaped, or threshold effects

23. Building Multivariate Models • Stepwise addition (or subtraction) monitoring for: • 20% or more change in predictor parameter estimate • Statistical significance of individual predictors • Test for connections between risk and outcome/predictors • Add interactions between predictor and risk factors (or between risk factors) • Stratified analyses

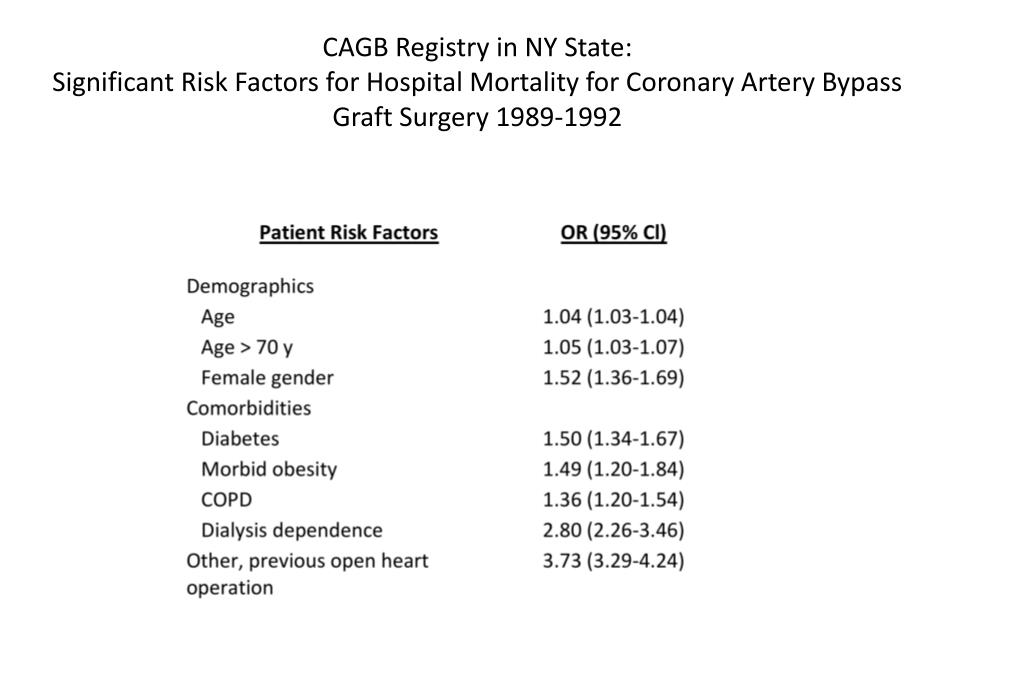

24. CAGB Registry in NY State:Significant Risk Factors for Hospital Mortality for Coronary Artery Bypass Graft Surgery 1989-1992

25. Significant Risk Factors for Hospital Mortality for Coronary Artery Bypass Graft Surgery in New York State, 1989-1992

26. Risk Factors in Large Data Sets: Can you have too much power? • Large datasets prone to finding statistical significance • May want to consider whether statistical significance is clinically significant • May also want to select risk factors based on a clinically relevant prevalence… • Conversely, consider forcing in clinically important predictors even if not statistically significant

27. Counterintuitive findings in risk adjustment • Outcomes of MI treatment • Hypertension is protective - decreased risk of mortality • Perhaps a surrogate for patients on beta blockers • If don’t believe hypertension truly protective then best to drop from model

28. Smaller Models are Preferred • Rule of thumb: 10-30 observations per covariate not generally an issue in large datasets • Smaller models are more comprehensible • Less risk of “overfitting” the data

29. Evaluating Model’s Predictive Power • Linear regression (continuous outcomes) • Logistic regression (dichotomous outcomes)

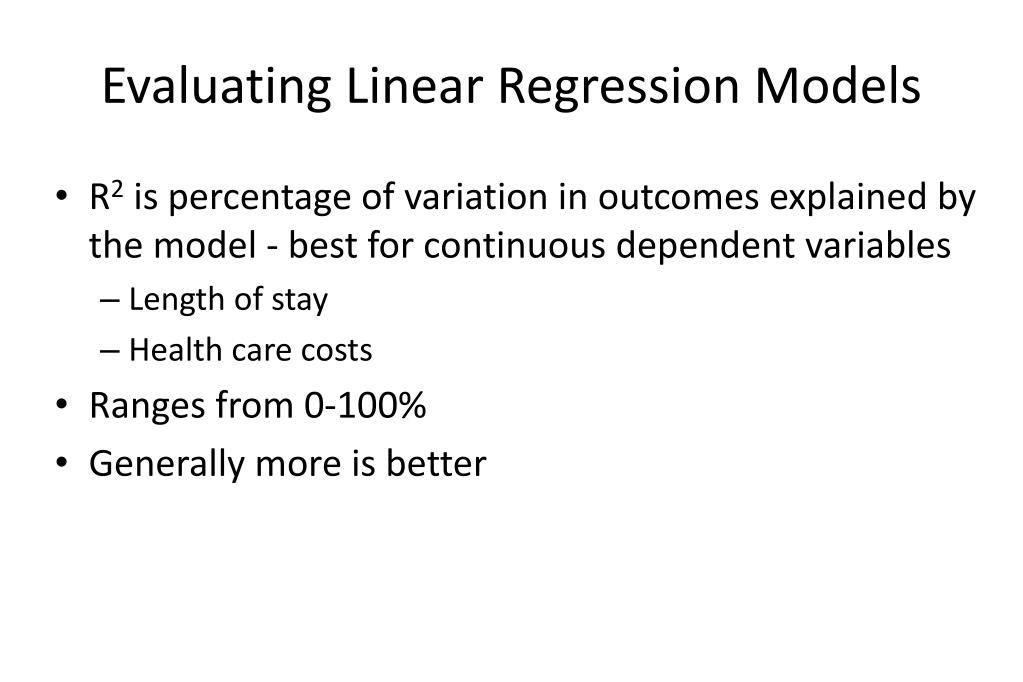

30. Evaluating Linear Regression Models • R2 is percentage of variation in outcomes explained by the model - best for continuous dependent variables • Length of stay • Health care costs • Ranges from 0-100% • Generally more is better

31. More to Modeling than Numbers • R2 biased upward by more predictors • Approach to categorizing outliers can affect R2 as predicting less skewed data gives higher R2 • Model subject to random tendencies of particular dataset

32. Evaluating Logistic Models • Discrimination - accuracy of predicting outcomes among all individuals depending on their characteristics • Calibration - how well prediction works across the range of risk

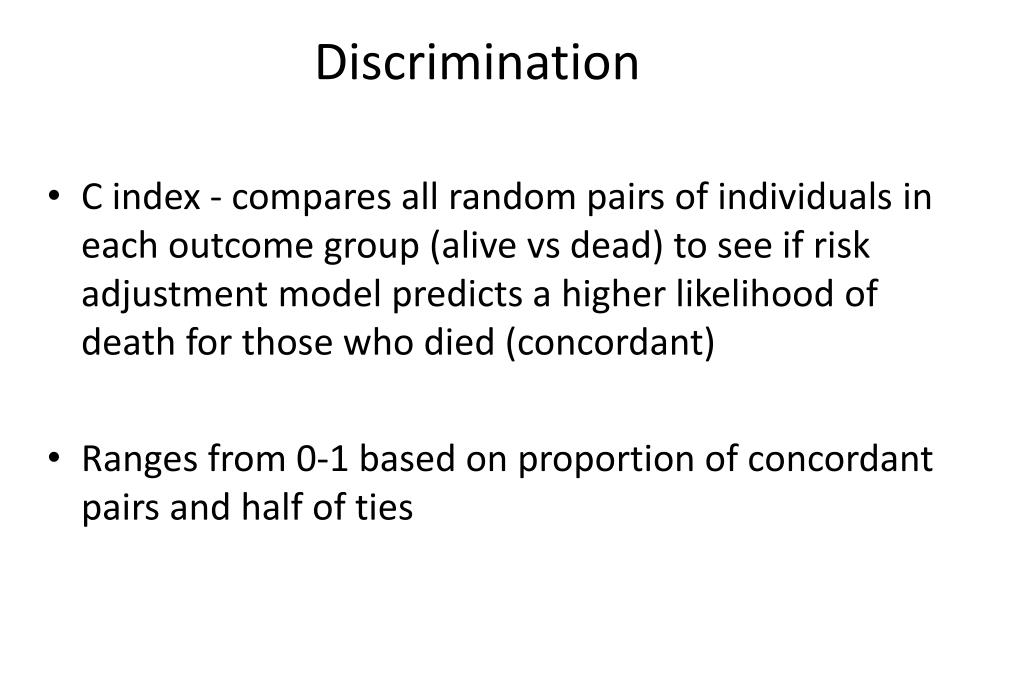

33. Discrimination • C index - compares all random pairs of individuals in each outcome group (alive vs dead) to see if risk adjustment model predicts a higher likelihood of death for those who died (concordant) • Ranges from 0-1 based on proportion of concordant pairs and half of ties

34. Adequacy of Risk Adjustment Models • C index of 0.5 no better than random,1.0 indicates perfect prediction • Typical risk adjustment models 0.7-0.8 • 0.5 SDs better than chance results in c statistic =0.64 • 1.0 SDs better than chance resutls in c statistic = 0.76 • 1.5 SDs better than chance results in c statistic =0.86 • 2.0 SDs better tha chance results in c statistic =0.92

35. Best Model Doesn’t Always Have Biggest C statistic • Adding health conditions that result from complications will raise c statistic of model but not make the model better for predicting quality.

36. Spurious Assessment of Model Performance • Missing values can lead to some patients being dropped from models • Be certain when comparing models that the same group of patients is being used for all models otherwise comparisons may reflect more than model performance

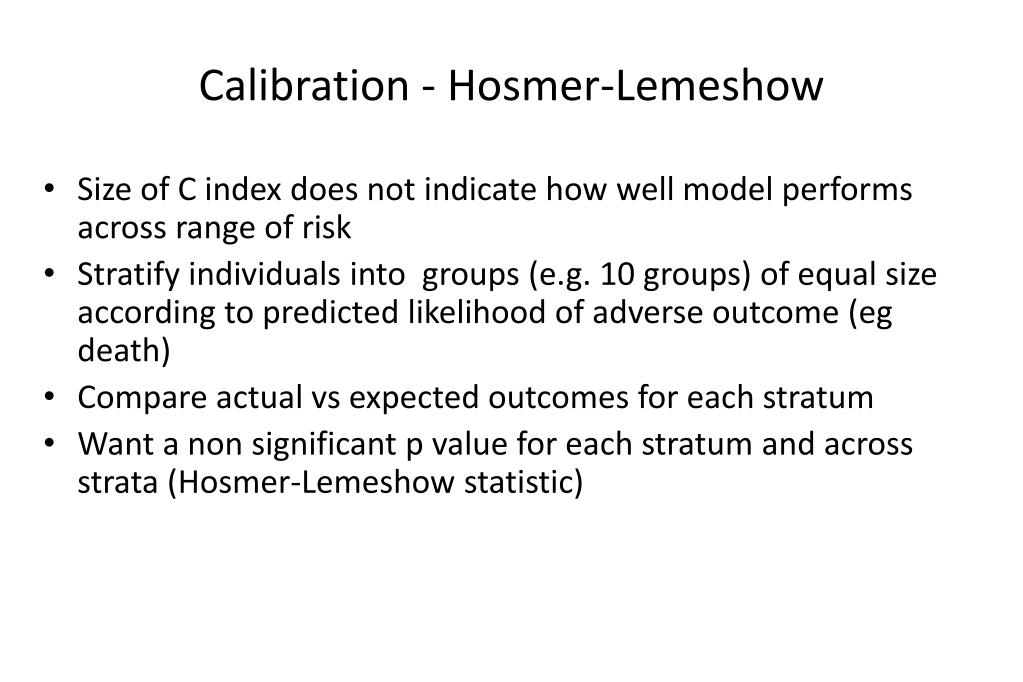

37. Calibration - Hosmer-Lemeshow • Size of C index does not indicate how well model performs across range of risk • Stratify individuals into groups (e.g. 10 groups) of equal size according to predicted likelihood of adverse outcome (eg death) • Compare actual vs expected outcomes for each stratum • Want a non significant p value for each stratum and across strata (Hosmer-Lemeshow statistic)

38. Stratifying by Risk • Hosmer Lemeshow provides a summary statistic of how well model is calibrated • Also useful to look at how well model performs at extremes (high risk and low risk)

39. Hosmer-Lemeshow • For k strata the chi squared has k-2 degrees of freedom • Can obtain false negative (non significant p value) by having too few cases in a stratum

40. Goodness-of-fit tests for AMI mortality models

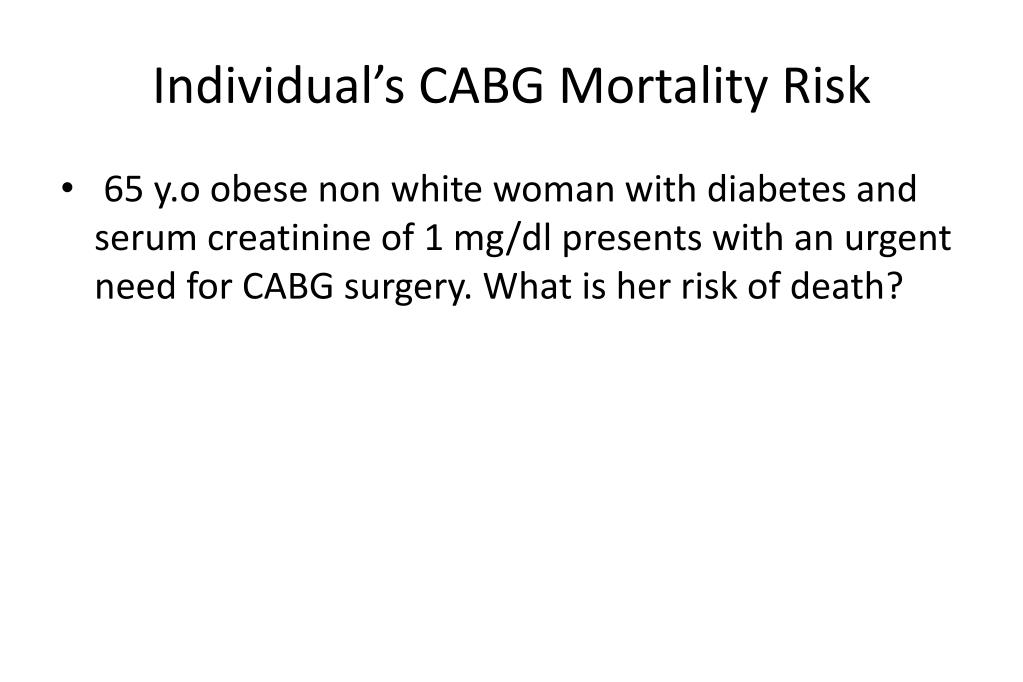

41. Individual’s CABG Mortality Risk • 65 y.o obese non white woman with diabetes and serum creatinine of 1 mg/dl presents with an urgent need for CABG surgery. What is her risk of death?

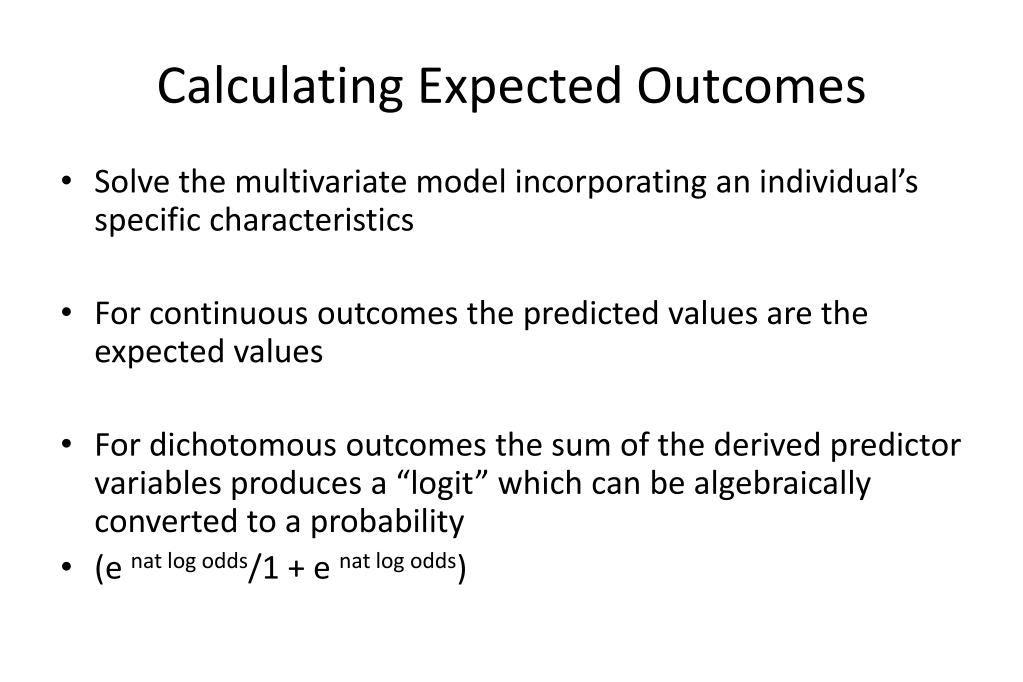

42. Calculating Expected Outcomes • Solve the multivariate model incorporating an individual’s specific characteristics • For continuous outcomes the predicted values are the expected values • For dichotomous outcomes the sum of the derived predictor variables produces a “logit” which can be algebraically converted to a probability • (e nat log odds/1 + e nat log odds)

44. Individual’s Predicted CABG Mortality Risk • 65 y.o obese non white woman with diabetes presents with an urgent need for CABG surgery. What is her risk of death? • Log odds = -9.74 +65(0.06) + 1(.37)+1(.16)+1(.42)+1(.26)+1(1.15) +1(.09) = 3.39 • Probability of death = elnodds/1+elnodds 0.034/1.034=3.3%

45. Observed CABG Mortality Risk • Actual outcome of whether individual lived or died • Observed rate for a group is number of deaths per the number of people in that group

46. Actual and Expected CABG Surgery Mortality Rates by Patient Severity of Illness in New York Chi squared p=.16

47. Validating Model • Eyeball test • Face validity/Content validity • Does empirically derived model correspond to a pre-determined conceptual model? • If not is that because of highly correlated predictors? A dataset limitation? A modeling error? • Internal validation in split sample • Test in a different data set

48. Internal Validation • Take advantage of the large size of administrative datasets • Establish development and validation data sets - Randomly split samples • Samples from different time periods/areas • Determine stability of model’s predicting power • Re-estimate model using all available data

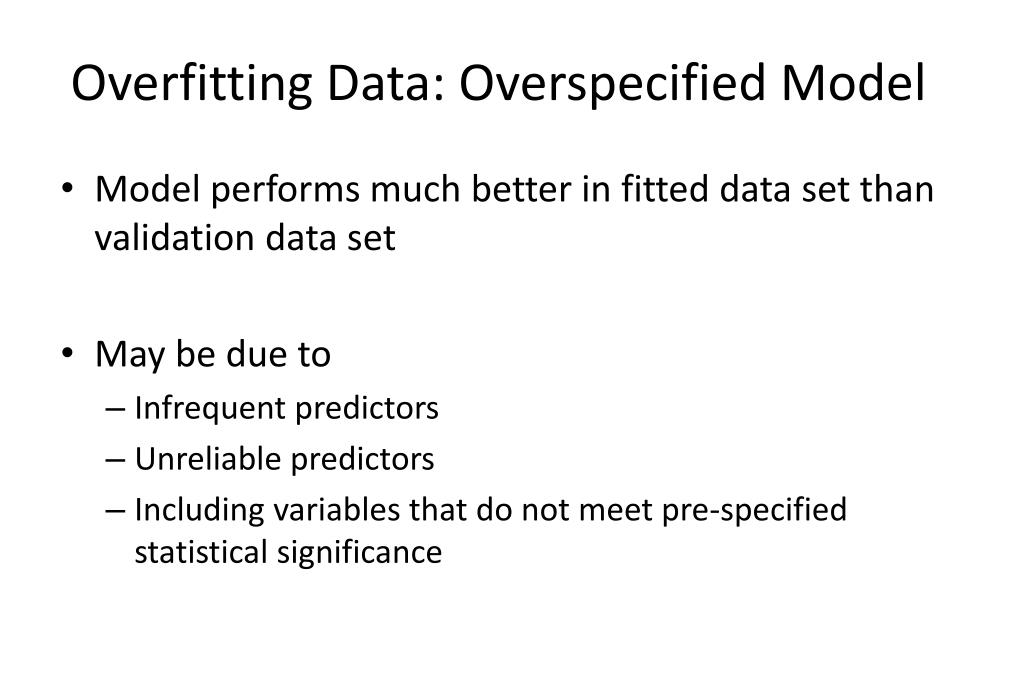

49. Overfitting Data: Overspecified Model • Model performs much better in fitted data set than validation data set • May be due to • Infrequent predictors • Unreliable predictors • Including variables that do not meet pre-specified statistical significance

50. Model Performance for Risk Adjustment (R2)
