Intervertebral Disc Disease and Therapy (Type I)

Intervertebral Disc Disease and Therapy (Type I). Dr Jason B King DVM DACVIM (Neurology) Charleston Veterinary Referral Center 843 614-8387 www.CharlestonVRC.com. The Intervertebral Disc. 2 parts Nucleus pulposus (jelly) Anulus Fibrosus (doughnut). Embryology of the Disc.

monte
Télécharger la présentation

Intervertebral Disc Disease and Therapy (Type I)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Intervertebral Disc Diseaseand Therapy(Type I) Dr Jason B King DVM DACVIM (Neurology) Charleston Veterinary Referral Center 843 614-8387 www.CharlestonVRC.com

  2. The Intervertebral Disc • 2 parts • Nucleus pulposus (jelly) • AnulusFibrosus (doughnut)

  3. Embryology of the Disc • Nucleus is of notochordal origin • Avascular • Immune privileged

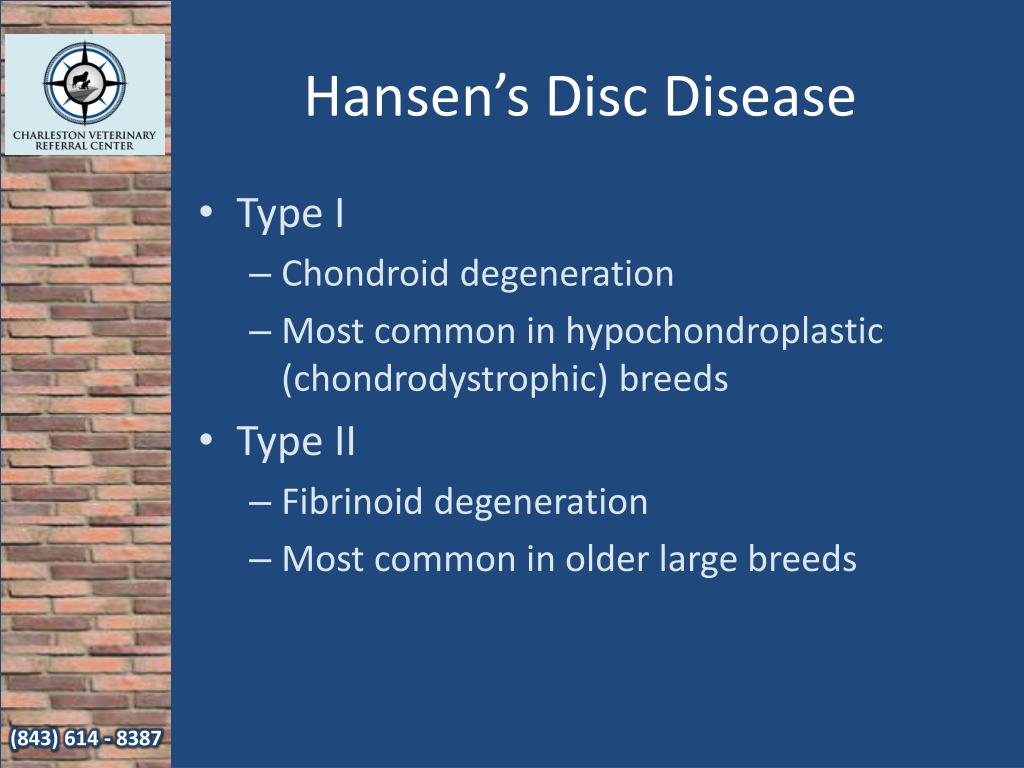

  4. Hansen’s Disc Disease • Type I • Chondroid degeneration • Most common in hypochondroplastic (chondrodystrophic) breeds • Type II • Fibrinoid degeneration • Most common in older large breeds

  5. NOT Hansen’s Disc Disease • Type III • Acute non-compressive disc extrusion • Degeneration (chondroid OR fibrinoid) not necessary • Acute vs Chronic • Type I can become chronic if not treated • Type II can be acute if nucleus extrudes through ‘fracture channels’ in degenerate anulus

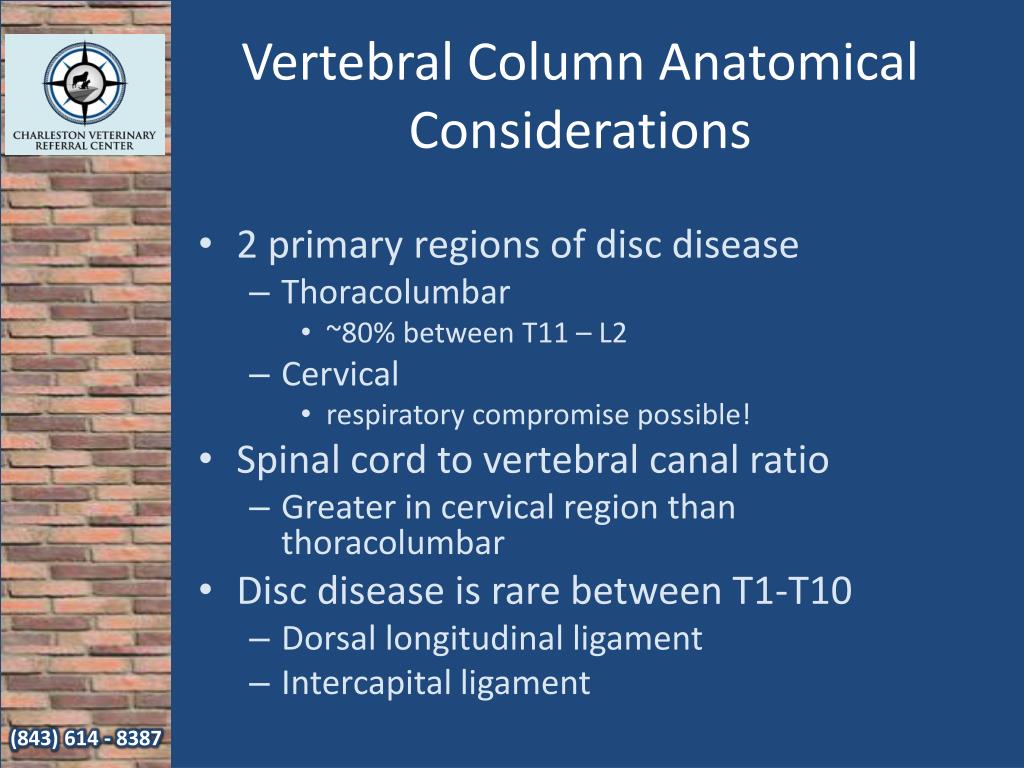

  6. Vertebral Column Anatomical Considerations • 2 primary regions of disc disease • Thoracolumbar • ~80% between T11 – L2 • Cervical • respiratory compromise possible! • Spinal cord to vertebral canal ratio • Greater in cervical region than thoracolumbar • Disc disease is rare between T1-T10 • Dorsal longitudinal ligament • Intercapital ligament

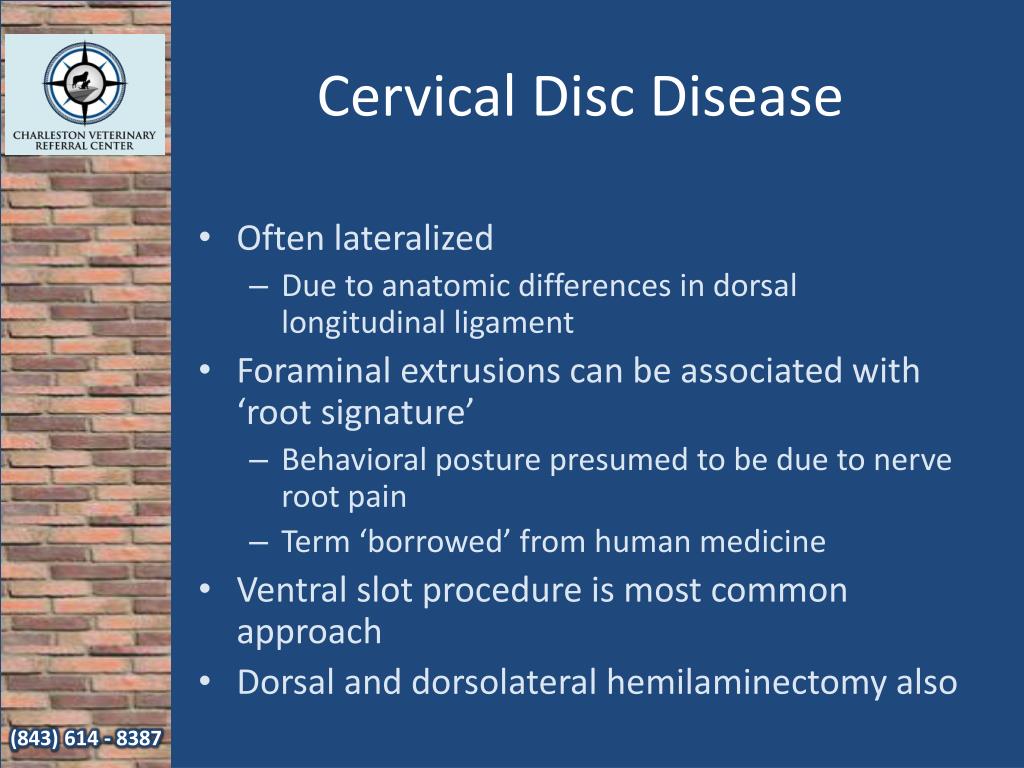

  7. Cervical Disc Disease • Often lateralized • Due to anatomic differences in dorsal longitudinal ligament • Foraminal extrusions can be associated with ‘root signature’ • Behavioral posture presumed to be due to nerve root pain • Term ‘borrowed’ from human medicine • Ventral slot procedure is most common approach • Dorsal and dorsolateral hemilaminectomy also

  8. Diagnosis • Clinical signs • Apparent pain • Paresis/plegia • Reflex deficits • Atrophy • Changes in muscle tone • Imaging

  9. Diagnostic ImagingMyelography • Injection of nonionic contrast medium into the subarachnoid space • Lumbar injection • Cisternal injection • Myelogram induced seizures • Potentially increased recovery times • Potential spinal cord damage • Allows imaging of entire vertebral column • Allows imaging of dynamic lesions • Can be used in conjunction with CT • Excellent technique for: • extradural vsintradural-extramedullary lesions • congenital instabilities • Vertebral column fractures +/- CT

  10. Diagnostic ImagingMyelography

  11. Diagnostic ImagingComputed Tomography • Advanced imaging in transverse plane • Median planar reformats into any other plane • 3d reconstructions • Superior bone contrast • Fast • Potentially reduced recovery times • Can be used in conjunction with myelography • Can distinguish disc from hemorrhage with good certainty

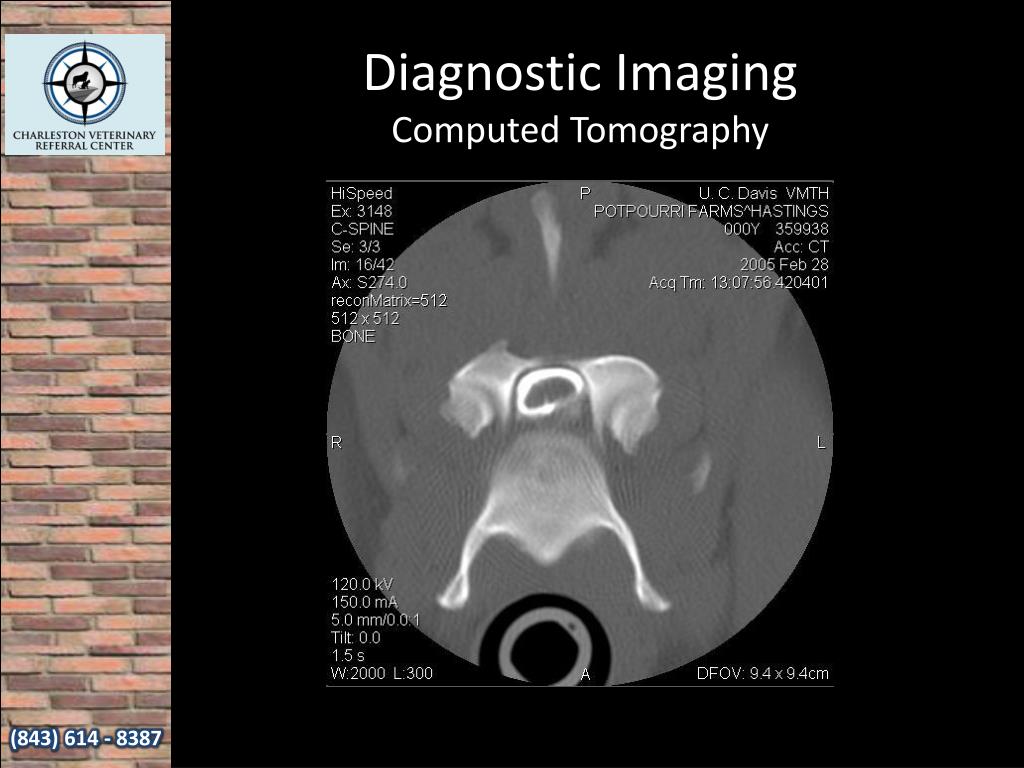

  12. Diagnostic ImagingComputed Tomography

  13. Diagnostic ImagingMagnetic Resonance Imaging • Advanced imaging in multiple planes • No radiation = increased patient and staff safety • Advanced sequences allow median plane reformatting • Superior soft tissue resolution • Potentially reduced recovery times over myelography • Increased anesthetic time required over CT • Specific sequences demonstrate different tissue characteristics (T1 vs T2 vs T2* vs FLAIR, etc.) • Specific expertise and experience needed to properly image and interpret

  14. Diagnostic ImagingMagnetic Resonance Imaging

  15. Prognosis • Entirely dependent on: • Level of neurologic function • Chosen treatment option

  16. Conservative vs SurgeryPrognosis * Within 24 hours of injury ‡ Analgesia of the tail may indicate worse prognosis

  17. Conservative vs SurgeryRecovery Times and Recurrence Rates † - if pain perception present within 2 weeks of injury likelihood of recovery is about 90%

  18. Disc Disease Metabolic Sequelae • Interruption of splanchnic innervation • Interference with autonomic innervation • Problems with micturition or defecation • Pain/discomfort • Muscular contraction/vertebral stabilization • Decubital ulcers • Pulmonary disease • Muscle contracture/atrophy • Nutritional/hydration support

  19. Type I / Disc ExtrusionConservative management • 2 injuries • Concussive spinal cord injury • Compressive spinal cord injury • Inflammation plays integral role • Dehydration of extruded material • Fibroblast proliferation and scar contracture • Scar formation and correction of anular defect • Prognosis dependent on degree of neurologic function!

  20. Type I / Disc ExtrusionSurgical Management • 2 injuries • Concussive spinal cord injury • Compressive spinal cord injury • Time and degree of compression are the important components • Scar formation and correction of anular defect • Disc Fenestration/pulpectomy • Fenestration of affected disc • Prophylactic fenestration T10-L2 • Prognosis dependent on degree of neurologic function!

  21. Anular Healing • Anulusfibrosus is a ligament • 6-8 weeks for mature scar formation and remodeling BONE LIGAMENT TENDON

  22. Conservative Management • STRICT Kennel Confinement • 6-8 weeks • Recheck at 4 weeks • Chest Harness vs Neck Lead for Cervical disease • Analgesia • NSAIDs/steroids? • Tramadol • BID-TID • Also provides some sedation • Gabapentin • Useful for foraminal extrusions/neurogenic pain • Nutritional support/hydration • IV fluids? • Regular feedings (high caloric demand vs fecal production)

  23. Conservative Management • Eliminations • Urinary catheter/Bladder Expression • Enemas • Decubital ulcers • Soft bedding • Regular rotations • Muscle atrophy/contractures • Physical therapy • Urine/fecal scald • Regular cleaning and good nursing care • Owner support group • Extremely emotionally and physically taxing!

  24. Surgical Decompression • Analgesia • Injectable opioids • Myelogram induced seizures • 24-48 hour ‘golden period’ • Infection • 3-4 day ‘golden period’ • Hemorrhage • Dehiscence • Worsening clinical signs • Surgical manipulation • Additional disc extrusion (same or new site) • Ascending/descending myelomalacic syndrome • Laminectomy scar formation (late sequelae) • Conservative Management!

  25. Cervical Disc DiseaseVentral Slot • Intervertebral venous plexus (venous sinus) bleeding can be life-threatening • Disc Fenestrations are MUCH easier! • Important structures identified on approach • Caudal thyroid vein • Vagosympathetic trunk • Common carotid artery • Recurrent laryngeal nerve • Trachea • Esophagus • Vertebral artery

  26. Cervical Disc DiseaseDorsal/Dorsolateral approach • Increased tissue trauma and dead space • Seroma formation is of great concern • Post-operative pain/discomfort greatly increased • Important anatomical structures • Nuchal ligament • Nerve roots • Vertebral artery • Venous sinus • Anatomic differences C1-3 vs caudal cervical vertebrae

  27. Thoracolumbar Disc DiseaseHemilaminectomy • Most common surgical approach to vertebral column • Important anatomical structures • Venous sinus • Nerve roots • Segmental spinal artery • Fenestrations difficult and blind procedure • Pleura visible around T10-12 • Aorta ventral to disc • Spinal cord dorsal to disc • MUST explore canal again after fenestration of affected disc!

  28. Disc Fenestration and Pulpectomy • Recommended to fenestrate the affected disc • Prophylactic fenestration not proven (yet!) • Routine prophylactic fenestrations: T10-L2

  29. Ascending/Descending Myelomalacia • Unknown pathophysiology • Untreatable • Can ascend/descend or both • Usually febrile • Often severe pain refractory to analgesics • Monitor reflexes • Especially cutaneous trunci mm. reflex!

  30. Ascending/Descending Myelomalacia • Ascending form is fatal due to respiratory mm. involvement • Reported in up to 10% deep pain negative Dachshunds • Prognosis is HOPELESS • Recommend euthanasia

  31. Methylprednisolone sodium succinate • Based on weight drop experiments in cats • Large dose of MPSS prior to injury • Free radical scavenging mechanism • North American Spinal Cord Injury Study • Beneficial outcome if given <8 hours after injury • Post hoc data analysis • Not functional outcomes • All studies showed negative results! • Increased hospital stay • Increased incidence of post-surgical complications • No changes in functional outcomes http://www.trauma.org/archive/spine/steroids.html

  32. CVRC Neurosurgery Service • Dr Jason King DACVIM (Neurology) • Dr Jason Balara DACVS • Service emergency surgery policy • Non-ambulatory paretic patients at specialists’ discretion • Plegic patients taken to imaging +/- surgery on an emergency basis • Imaging Services after hours • Myelography available • Computed Tomography available • MRI available on case-by-case basis

  33. CVRC Neurosurgery Service • Minimal post-op stay in hospital is 3 days • Transfer to regular veterinarian offered afterwards • Recheck appointment in 4 weeks with Neurosurgeon requested
