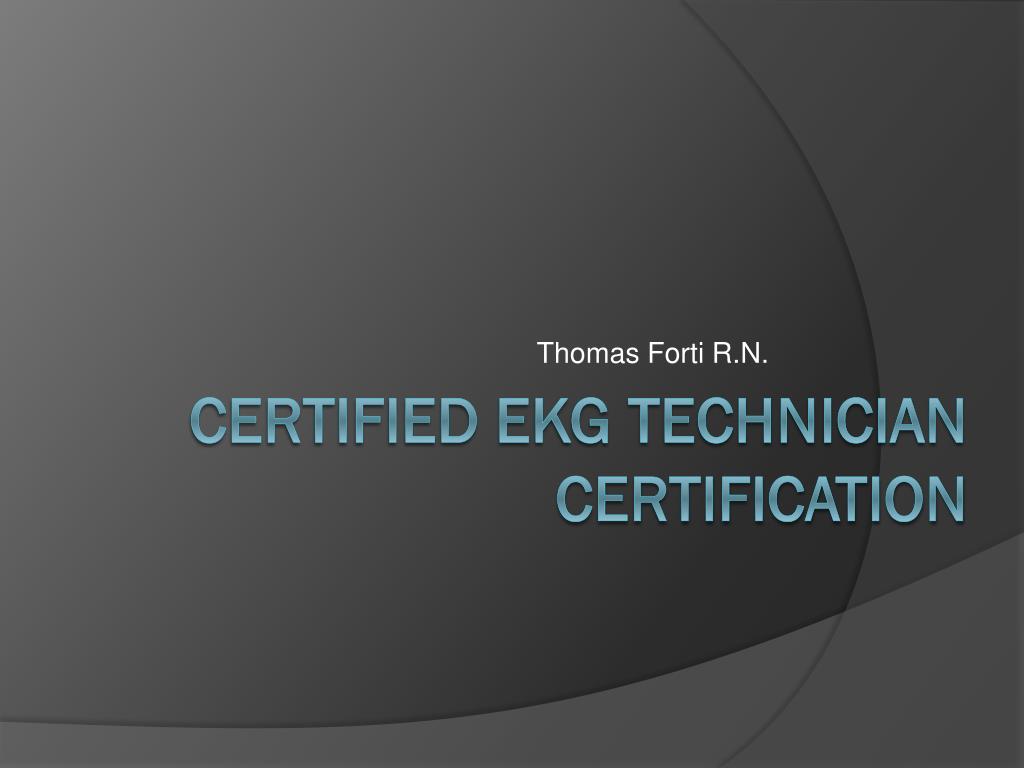

  1. Thomas Forti R.N. Certified EKG Technician Certification

  2. The EXAM • Certified EKG Technician • CET • GED and 60 HRs of training • 110 Questions (100 Scored) • 110 minuets Web exam • Score given following the exam • Don’t spend too much time on one question • Try and figure out the answers before reading the answers • Eliminate incorrect answer to try and figure out correct answer

  3. HIPAA • The Health Insurance Portability and Accountability Act of 1996 • Patient has right to confidentiality • Safeguards to ensure that an individual's health information is used only for purposes related to treatment, payment, or healthcare operations • You are responsible for this when at work.

  4. HIPAA • Medicinal information needs to be sent via secure (encrypted) pathways • Best way is to personally deliver the information (Handing the MD the EKG) • Not leaving it in a mail box where someone else could view it. • Keep work area clear of patient information when you walk away

  5. Protected Health information • Any information about • Health status • Health care services • Payment • Patient identifiers • Social security • Hone numbers • Address • Treatment • Assessment • Test results • Diagnoses • Medications • During • Direct contact • Phone calls • Faxes • Emails

  6. Anatomy and Physiology • 4 Chambers of the Heart • Right and Left Atria • Right and Left Ventricle • Sepal wall separate right from left sides • Three layers of the heart • Endocardium • Myocardium • Epicardium • Heart is in a sac called • Pericardium AKA Pericardial Sac • Provided protection and lubrication

  7. Anatomy and Physiology • Four Valves of the heart • Tricuspid and Mitral • Between the atria and ventricle • Pulmonary and Aortic • Blood exits heart • Chordae Tendineae • Provide support to A-V valves to prevent regurgitation (incompetence)

  8. Anatomy and Physiology • Coronary Arteries • Vessels that supply blood to the myocardium • Occur during ventricular diastole • Normal perfusion to body occurs during systole • RCA • Supply right ventricle and inferior wall of left ventricle (bottom) • Left Main Splits to • Circumflex • Supplies blood to posterior (back) and lateral (side) • LAD • Supplies blood to anterior and Left ventricle • Collateral circulation • Compensation for loss of O2 in other areas

  9. Conduction System • Controls the synchronous, rhythmic contraction of the heart muscle • SA Node • Sinoatrial node • 60-100 BPM • Primary pacemaker of heart • Right Atria • Initiates atria contraction • Shows as P wave on EKG tracing • Internodal Pathways • Tracts that the impulse takes from SA-AV node

  10. Conduction System • AV node • Atrioventricular node • 40-60 BPM • Connects Atria to Ventricle • Impulse pulses here before heading to ventricles • PR interval • Bundle of His • Splits impulse to RBBB and LBBB • Sits in the Interventricular septum • Purkinje Fibers • Initiates myocardial contraction • 20-40 BPM

  11. EKG Theory • Measures electrical energy as it travels through the heart • Records as energy over time • Millivolts and Seconds • EKG paper has small squares • 1mm x 1mm • 5 small boxes = 5mm = 1 large box • Tracings are made by a stylus • 1mm on y axis = 0.1mv • 1mm on x axis = 40ms or 0.04 seconds • 1ms = 0.001 seconds

  12. EKG Theory • EKG paper speed is 25 mm/sec • 50mm/sec if rhythm is too fast • Only change paper speed if ordered by MD • Standard Amplitude • Amplitude is change over a period of time • 10mm = 1mv • Gain is used to increase amplitude (size) • Calibration box • At beginning of lead • Speed and amplitude • Standard is 10mm tall and 5mm wide • Gain of 1 = 10mm, ½ = 5mm, 2 = 20mm • 25mm/sec = 5mm, 50mm/sec = 10mm

  13. EKG Theory • Refer to user manual and hospital policy • For paper type • Cleaning (keypad, wires machine) • Daily user test • Correct power supply • Bio-engineer will calibrate machine if needed

  14. EKG Theory • Einthoven’s triangle • Willem Einthoven • Discover everything basic of EKGs • Bi-Polar Leads • I, II, III • Unipolar leads • V1-V6 • Augmented leads • avF, avR, avF

  15. Calculating Heart Rates • 1500 method • Atria rate- count the P-P interval • Small boxes between the P waves • Ventricle rate- count the R-R interval • Small boxes between the R waves • 1500/boxes • Sequence method • AKA 300 method • Count the large boxes between the R-R waves and • 300/boxes • 300, 150, 100, 75, 60, 50

  16. Calculating Heart Rates • 6 second rule • Good for estimating rate if R-R intervals are not regular • Count QRS complexes in 6 second strip and multiply by 10 • Marks under tracing indicate 3 seconds

  17. Artifact • Wandering baseline • Most common cause is respirations • Move electrodes off torso and onto wrists and ankles • Have patient relax and breath slowly • Seizures • Large artifact • Seizures must be controlled before EKG can be done • Dry Skin • Electrodes might now adhere • Use Benzoin to promote adhesion • Abrade the skin

  18. Artifact • Wet Skin • Dry skin • Use Benzoin to promote adhesion • Cold patient • Warm patient with blanket • May have to do EKG with artifact • Dry Gel • Use new electrodes • Cell Phones • Turn them off, remove and place aside • Can look like p waves often like A-flutter • Medical devices • Turn off or move away from EKG patient • Be careful in the ER or ICU

  19. Lead Locations • 3 Lead • White- Right Shoulder or clavicle area • Black- left shoulder or clavicle area • Red- Left lower abdomen area • Green- Right lower abdomen area • 5 Lead • White- right sternum/clavicle area • Black- Left sternum/clavicle area • Red- Left lower thoracic area • Green- Right lower thoracic area • Brown- Just below and to the right of bottom of sternum

  20. Lead Locations • Precordial Leads • V1- 4th ICS, Right of Sternum • V2- 4th ICS, Left of sternum • V3- Between V2/V4 • V4- 5th ICS, midclavicular • V5- 5th ICS, between V4/V6 • V6- 5th ICS, midaxillary • Right precordial leads • Reverse V leads

  21. Lead Locations • Posterior Leads • V7- Left posterior axillary line • V8- Left midscapular line • V9- left of spine • Stress test • Limb electrodes go on torso

  22. Post EKG • Check leads for deflection direction • Check leads for artifact • Check that patient identifiers are on EKG • Name • DOB • Medical record number • Upload EKG Via hospital policy • Mount EKG or strip per hospital policy • Hole punch, scan or stick onto mounting paper

  23. Measuring EKG’s • Know how to be able to measure • P-P interval • Time between Atria contractions • R-R interval • Time between Ventricle contractions • PR interval • Time from SA to ventricles • 0.12-0.2 seconds • QRS • Time for ventricles to depolarize • 0.06-0.12 seconds

  24. Parts of Waves • Positive • Anything above isoelectric line • Negative • Anything below isoelectric line • PR segment • Time impulse travels through AV node • End or P to beginning of QRS • ST segment • Time it take for ventricles to repolarize • End of QRS to end of T wave

  25. Parts of Waves • J Point • Point when ventricles depolarize and ventricle repolarize • End of QRS • QT interval • Time it takes ventricles to depolarize and repolarize

  26. Sinus Rhythms • P wave resent • P wave upright and rounded • QRS complex narrow • 80-120 milliseconds • PR 120-200 milliseconds • Regular Sinus Rhythm • Rate 60-100 • Sinus Bradycardia • Rate less then 60 • Sinus Tachycardia • Rate greater then 100 • Sinus Arrhythmia • Rate around 60-100 • Rhythm is irregular

  27. Atria Rhythms • P waves abnormal shaped or absent • QRS complexes narrow • Atrial Fibrillations • No P waves, No PR interval • Rate 60-100 • Irregularly irregular • Atrial Fibrillation with Rapid Ventricular • No P waves, No PR interval • Rate greater then 100 • Irregularly irregular • Atrial Flutter • P waves = Flutter waves (abnormal P waves) • Rate varies • Regular • Supraventricular SVT • P waves often NOT seen • Regular • Premature Atrial Complex PAC • P wave abnormal • QRS follows P wave • NSR with PAC

  28. Junctional Rhythms • Starts at AV node or Bundle of His • P wave absent or abnormal (inverted) • QRS narrow or above 120 milliseconds • Junctional Rhythm • P-wave absent or abnormal • Rate 40-60 • JunctionalBradycardia • Rate less then 40 • Accelerated Junctional Rhythm • Rate 60-100 • Junctional Tachycardia • Rate above 100

  29. Ventricle Rhythms • QRS complex wide • Idioventricular Rhythm • Wide QRS complexes • Rate 20-40 • Ventricular tachycardia • Monomorphic • Wide QRS with rate above 120 • Complexes look identical • Polymorphic • Complexes have different amplitude

  30. Ventricular Rhythms • Ventricular Fibrillation • No identifiable waves • Asystole • Absence of electrical activity in the heart • Premature Ventricular Complex • Wide QRS, absent P waves • R wave opposite direction of T wave • NSR with PVC • Multifocal PVCs • Different shaped PVCs • Patterns – Bigeminy, Trigemity (every other or 3rd)

  31. Heart Blocks • Impulse is delayed or blocked as it travels to the ventricles • 1st degree • PR interval greater then 200 milliseconds • 2nd degree type 1 • PR interval elongates until dropped QRS complex • 2nd degree type 2 • PR interval normal if present • Dropped QRS complex without warning • 3rd degree • Complete lack of association between the atria and ventricles • P waves present at normal rate • QRS waves at rate of Junctional rate or idioventricle • Could be wide or narrow

  32. Injury • Ischemia • ST segment depression • T wave inversion • Injury • ST elevation • 1mm in limb leads • 2mm in precordial leads • Infarction • ST elevation will return to baseline • Pathological Q waves develop • Pathological Q waves can indicate MI

  33. Lead Locations for MI

  34. ST segment Morphology • Draw line from J point to top of T wave • Convex • ST segment is above line • Can be Ischemia STEMI • Concave • ST segment is below line • Can be ischemia but often benign

  35. ST segment sloping

  36. T Wave • T wave is peaked • T wave is Hyperacute • Hight is greater then ½ the QRS • T wave elongates

  37. Cardiac Compromise • Tachy or brady • Pallor • Diaphoresis • Decrease in BP • Breathing problems • Anxiety or confusion • Cyanosis • Chest pain or tightness • Back, arm, jaw pain • Nausea and vomiting • Lightheadedness • Weakness • Syncope

  38. Left-threating arrhythmias • Ventricular tachycardia • Check Pulse • Ventricular fibrillation • Call for help • Start CPR • Use AED • Asystole • Check in 2 leads • Call for help • Start CPR • Bradycardia • Call for help • Check Vitals • Prepare patient for pacing • Tachycardia • Call for help • Check vitals • Cardioversion

  39. Pacemakers • Paced Ventricular • Paced Atrial-Ventricular

  40. Patient Care • Responsible for knowing patients • Medical History • Smoking, alcohol, drugs, stress, exercise, nutrition, work environment, family history, marital status, children • Past medical conditions • Stroke, MI, Aneurysm, murmurs, PE, DVTs, Heart failure, hypertension, COPD, CHF • Current Complains • Pain, SOB, Edema, Palpitations, Fainting, Weakness • Surgical History • What, when, complications (more details if cardiac) • Medication List (also allergies) • Currently taking and recently stopped (last month or 2) • Include OTC medications, birth control, erectile dysfunction

  41. Patient Care • Explain procedures fully with easy to understand terms • Explain purpose, length, steps of procedure • Preparation if test isn’t for today • Allow them to ask questions

  42. Patient Care • EKG • Allow physician to assess the electrical activity of the heart • Non-invasive, Painless • Around 10 mins • What the electrodes are for • Empty pockets, relax, lay flat avoid moring or talking

  43. Patient Care • Holter • Monitors activity for 24-72 hours • Instruct patient to bathe rior to appointment • Pt can not remove electrodes or get device wet during time • Loose fitting clothing to help prevent artifact • Notify if irritation occurs from electrodes • Normal daily activity • Including work exercise and sleep • Journal with date time and duration of any symptoms • Lightheadedness, palpations, chest pain, SOB • Note when medications taken, physical activity and sleeping • Patient to call physician office if electrodes fall off • Electrodes get replaced by Tech NOT patient • Batteries get changed by Tech NOT patient • Electrodes get moved by Tech • Call 911 for serious symptoms

  44. Patient Care • Stress Test • Used to determine how the heart function under increased workload from exercise • Take about 10 mins • Electrodes and Blood pressure during test • Baseline EKG prior and end of test • Test goes until • Symptoms occur • Lightheadedness, dizziness, SOB, Chest pain • Target heart rate reached or physician orders test to end • Patient not to eat, drink or smoke 3 hours prior • Continue normal medication unless instructed by physician to hold medication • Wear clothing and shoes for exercising

  45. Patient Care • Stress Test • Monitor for • Vital Sings • Arrhythmias • Cardiopulmonary compromise • Heart rate • Complications • Most common is hypotension and arrhythmias • Stop and let patient rest • Lay patient down • Report change to physician

  46. Patient Care • Telemetry • Continuous monitoring of electrical system • Within hospital • Notify staff if symptoms occur

  47. Vitals • Check Pulse • Adult- Radial • Child- Brachial • Apex use stethoscope • 5th ICS midclavicular • Pulse oximeter • Used to determine amount of oxygen in blood • Normal is above 95% • Cant read if: cold hands, colored nails, edema, fake nails

  48. Vitals
