Graphical method to aid design and reporting of complex intervention trials

1. Graphical method to aid design and reporting of complex intervention trials Pat Yudkin Dept of Primary Health Care University of Oxford York 16 September 2009

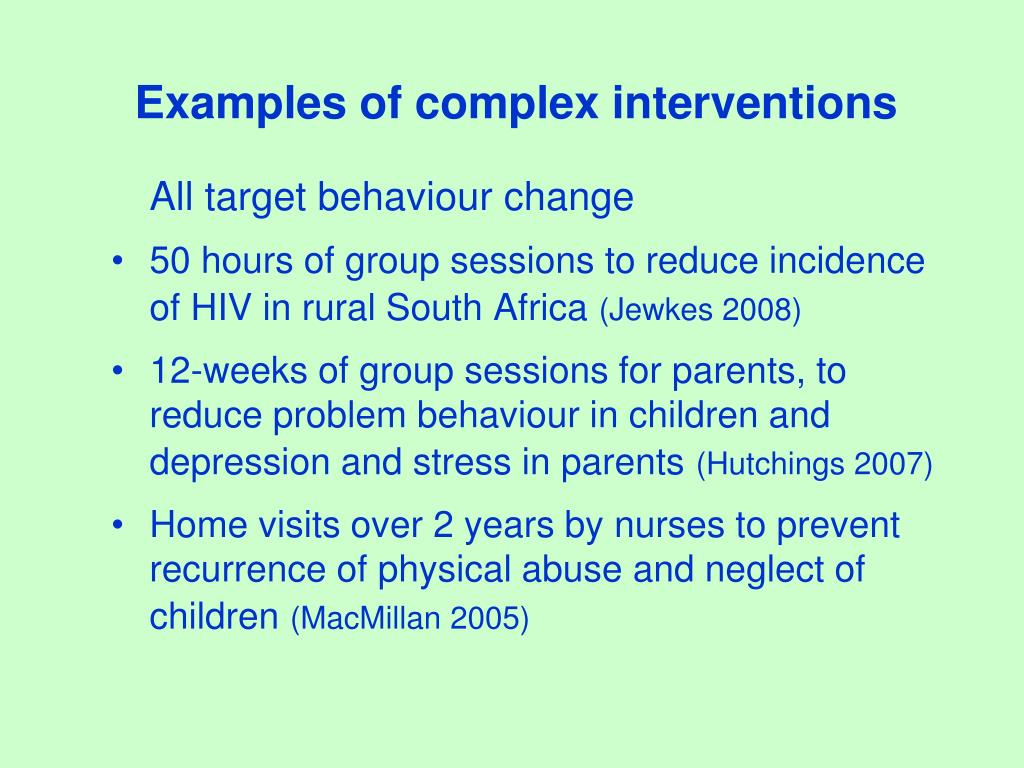

2. Examples of complex interventions • All target behaviour change • 50 hours of group sessions to reduce incidence of HIV in rural South Africa(Jewkes 2008) • 12-weeks of group sessions for parents, to reduce problem behaviour in children and depression and stress in parents(Hutchings 2007) • Home visits over 2 years by nurses to prevent recurrence of physical abuse and neglect of children(MacMillan 2005)

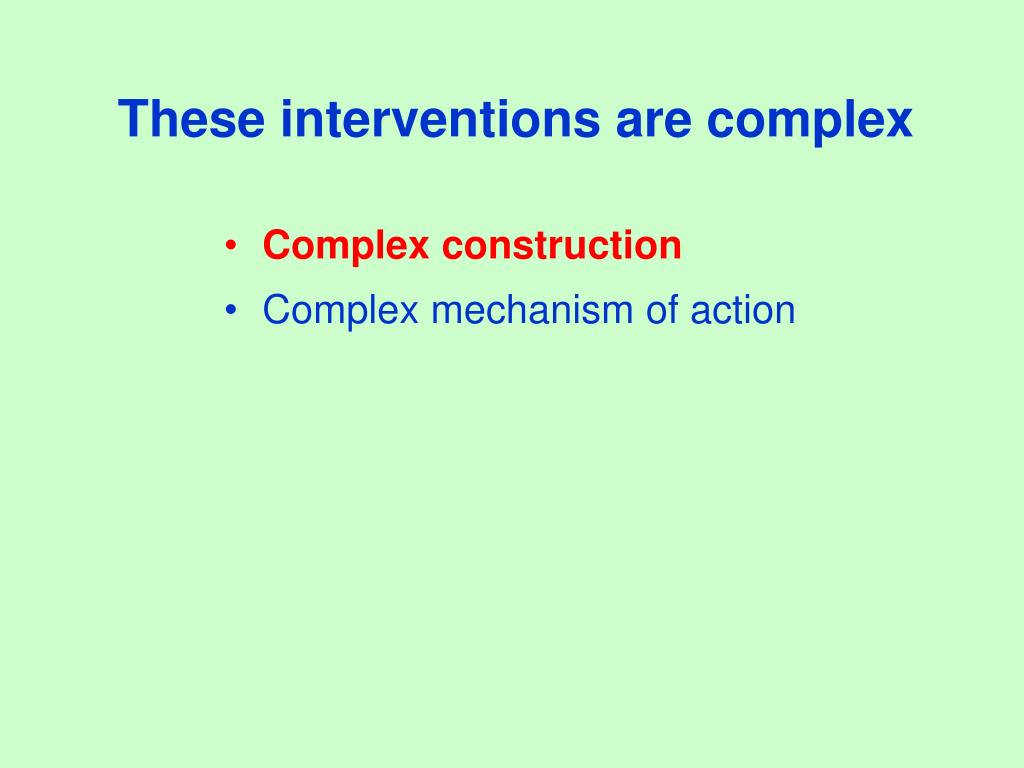

3. These interventions are complex • Complex construction • Complex mechanism of action

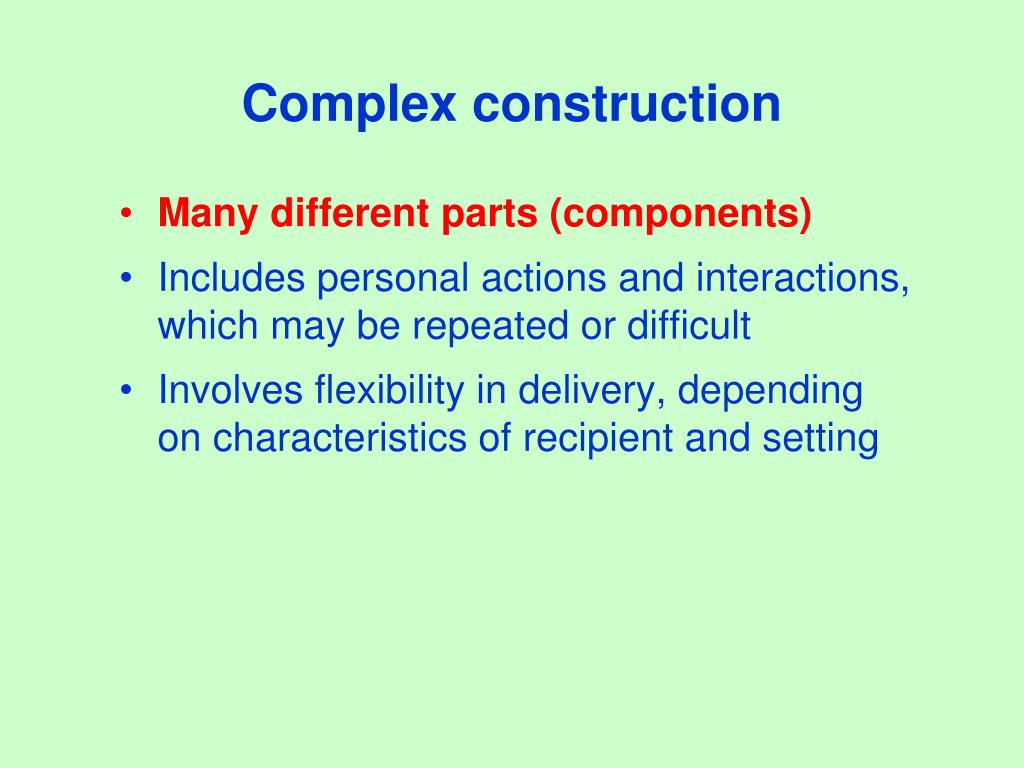

4. Complex construction • Many different parts (components) • Includes personal actions and interactions, which may be repeated or difficult • Involves flexibility in delivery, depending on characteristics of recipient and setting

5. Two levels of description needed • Simple, clear description at design stage and for readers of paper • Detailed and comprehensive description needed for those delivering the intervention to ensure reproducibility

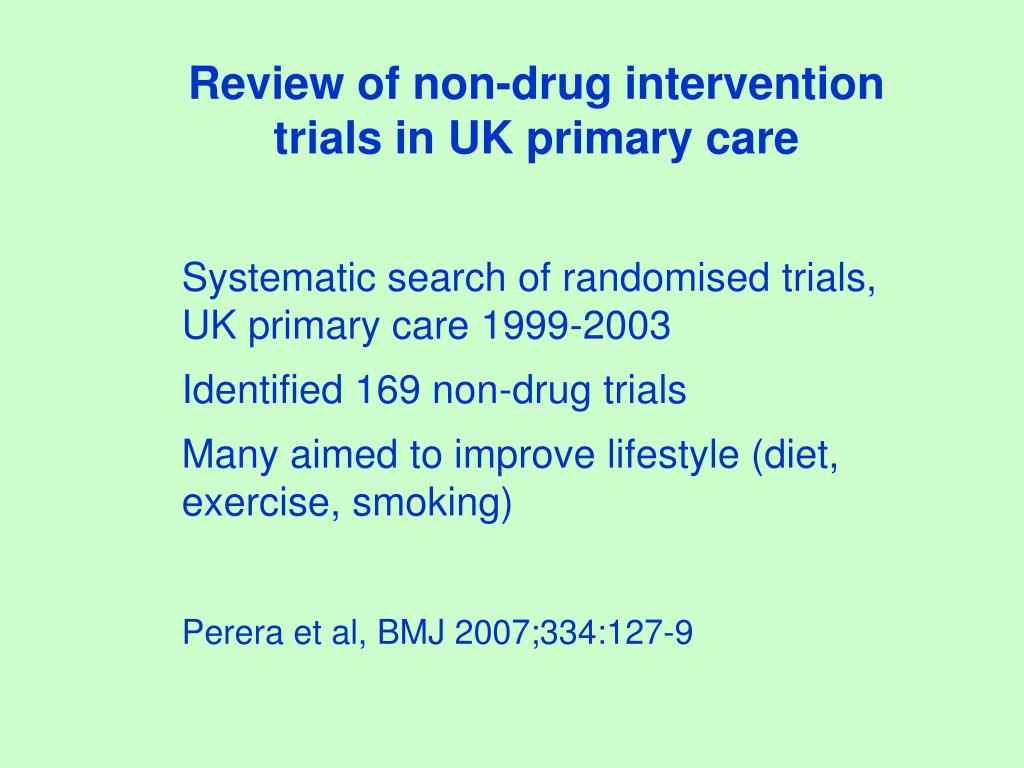

6. Review of non-drug interventiontrials in UK primary care • Systematic search of randomised trials, UK primary care 1999-2003 • Identified 169 non-drug trials • Many aimed to improve lifestyle (diet, exercise, smoking) • Perera et al, BMJ 2007;334:127-9

7. Problems identified in review • Descriptions of interventions long and wordy • Components of the intervention and its comparator not easy to identify • Missed crucial points like timing of delivery of some components • Difference between trial groups not clear • Timing of outcome not obvious

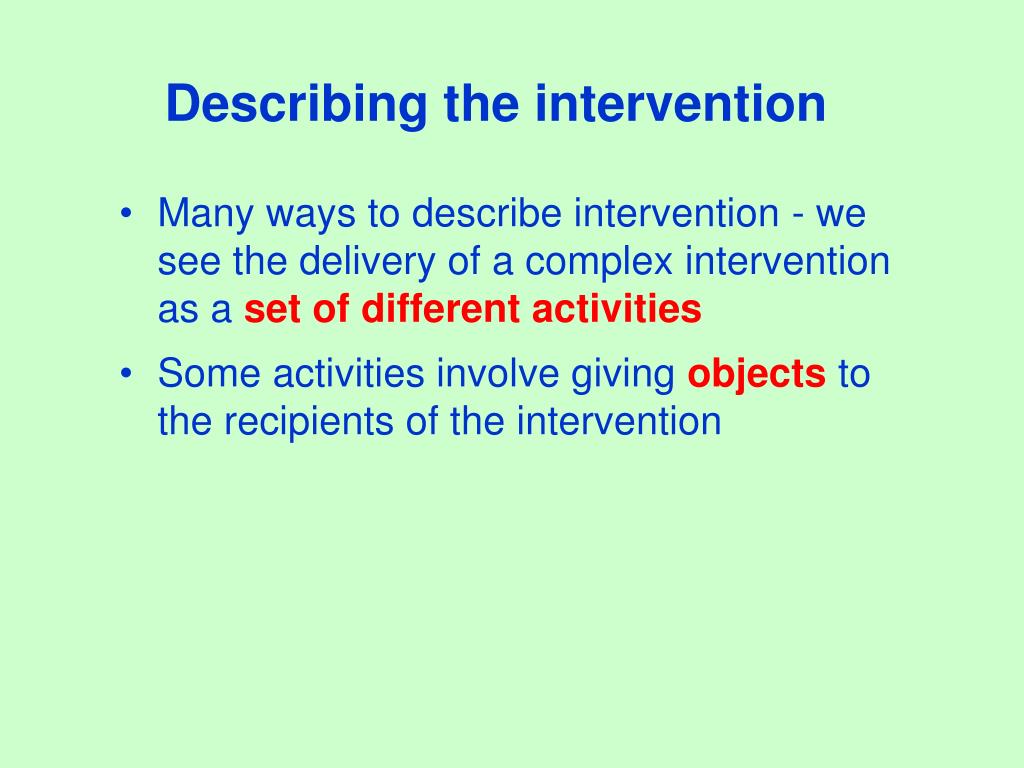

8. Describing the intervention • Many ways to describe intervention - we see the delivery of a complex intervention as a set of different activities • Some activities involve giving objects to the recipients of the intervention

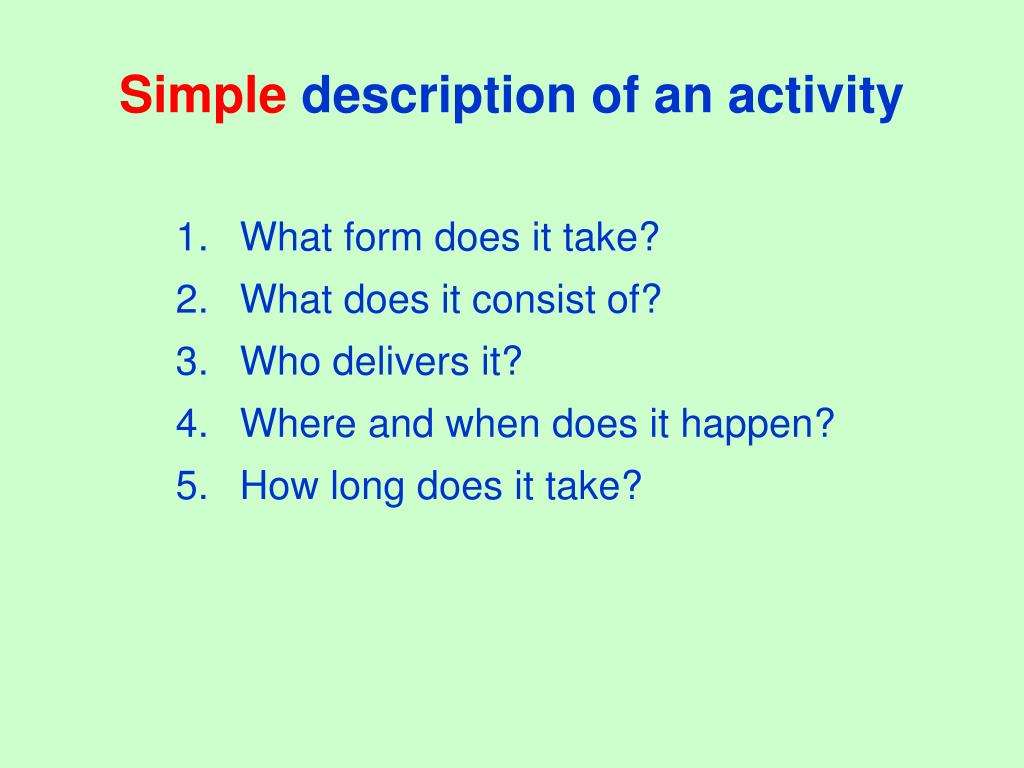

9. Simple description of an activity • What form does it take? • What does it consist of? • Who delivers it? • Where and when does it happen? • How long does it take?

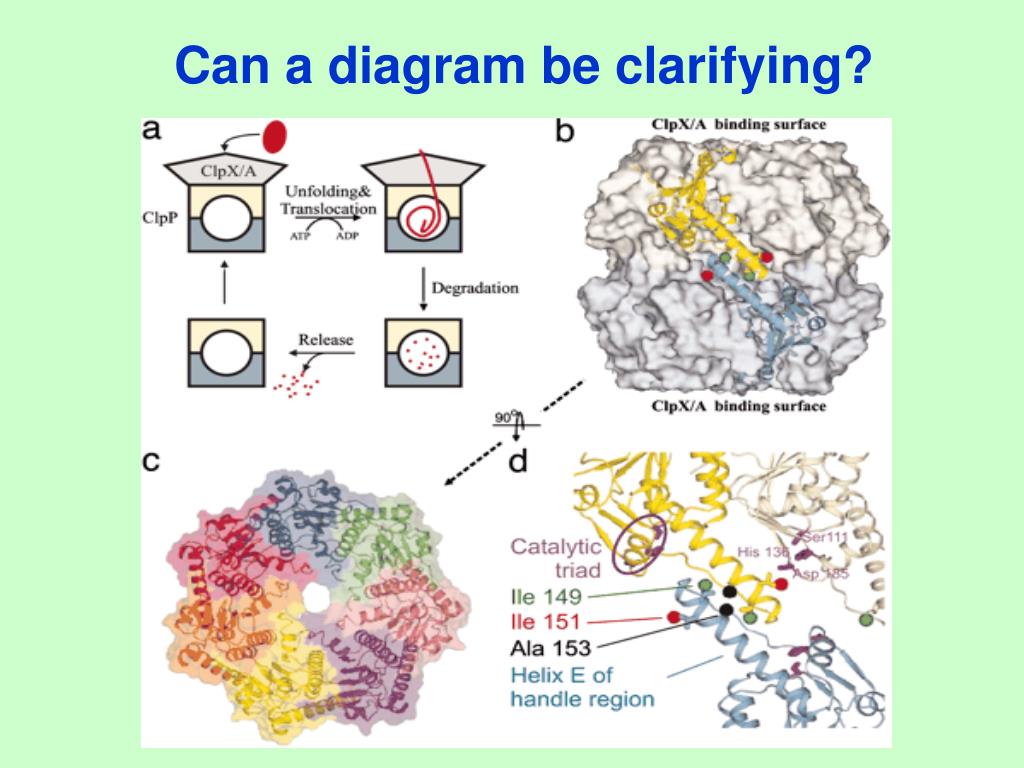

10. Can a diagram be clarifying?

11. b a Activity Object

12. The DIGEM trial in Type 2 diabetes • Does blood glucose self-monitoring, alone, or with training in interpretation to guide behaviour, improve glycaemic control? • No monitor, HbA1c measured 3-monthly by doctor • Int 1: Blood glucose monitor given with advice to contact doctor if readings persistently high • Int 2: Blood glucose monitor given with training in interpretation of results to guide behaviour

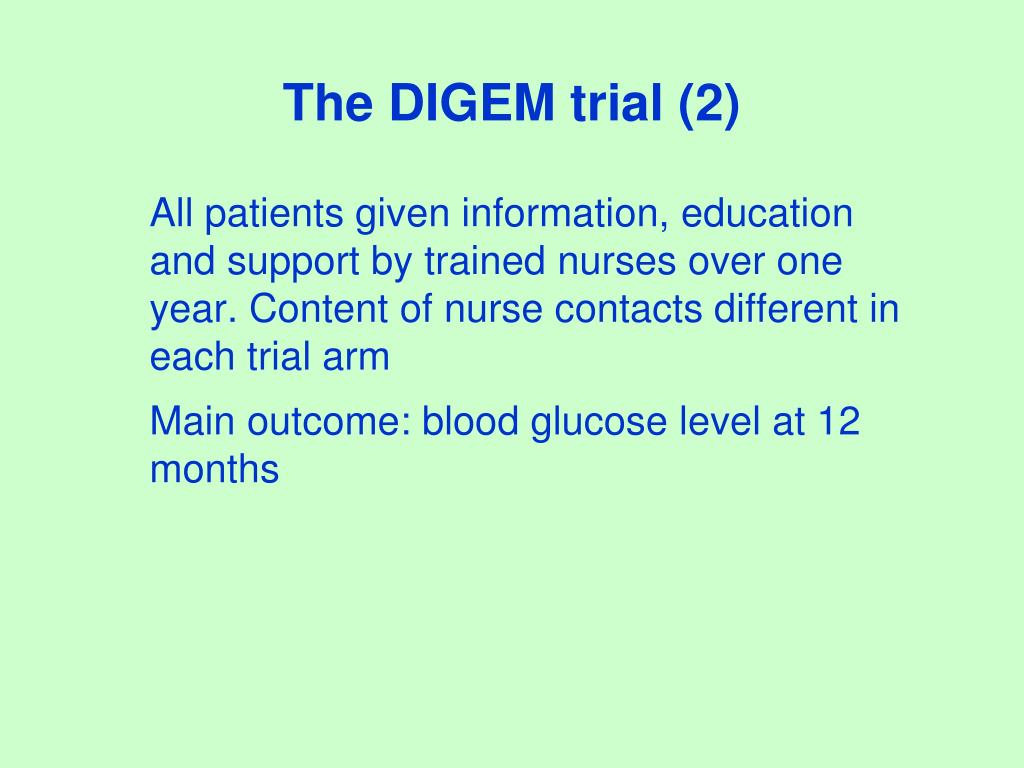

13. The DIGEM trial (2) • All patients given information, education and support by trained nurses over one year. Content of nurse contacts different in each trial arm • Main outcome: blood glucose level at 12 months

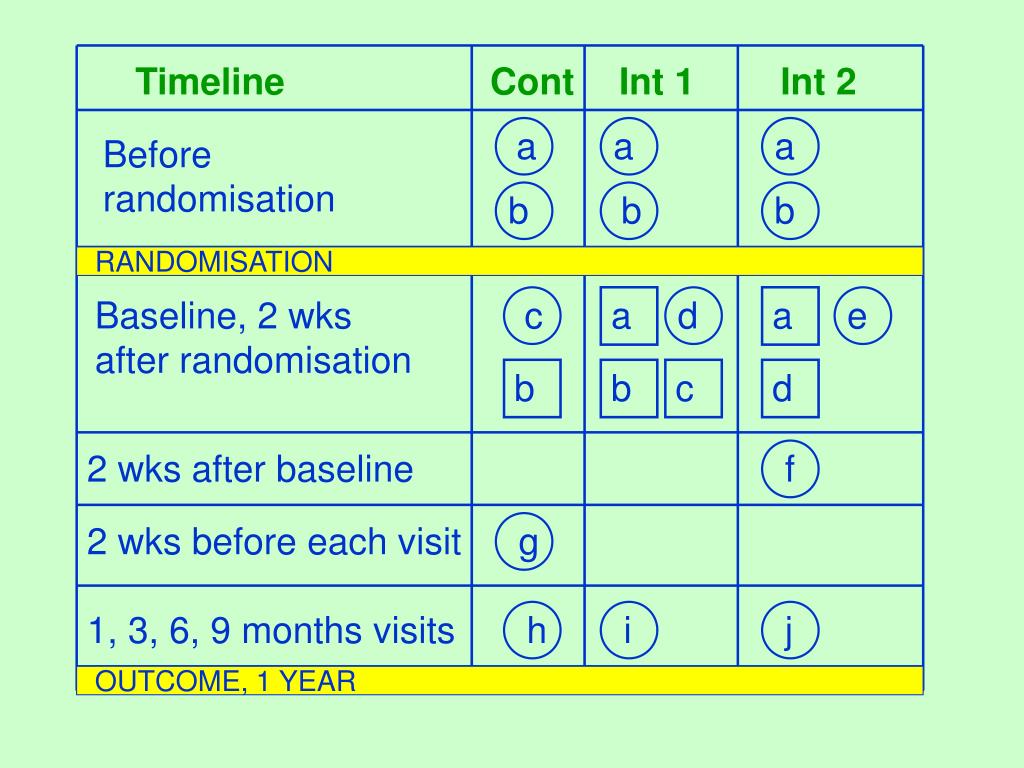

14. Timeline Cont Int 1 Int 2 a a a Before randomisation b b b RANDOMISATION Baseline, 2 wks after randomisation c a d a e b b c d 2 wks after baseline f 2 wks before each visit g 1, 3, 6, 9 months visits h i j OUTCOME, 1 YEAR

15. Symbol Description Nurse training: 6 days, based on manual. Behaviour change techniques, theory etc a 45 mins with nurse: roles of diet, exercise and drugs discussed, glucose control emphasised b 45 mins with nurse: review diet, exercise and drugs; set goals for behaviour change c 45 mins with nurse: instruct in using blood glucose meter; review and set goals d 45 mins with nurse: instruct in using meter and interpreting results; review and set goals e Blood glucose meter a Diary to record goals, strategies for achieving them, and whether achieved b

16. Symbol Description Diary to record blood glucose results c Diary to record blood glucose results and relate them to activities and diet d Phone call from nurse to reinforce use of meter and check for problems f Patient attends blood test at surgery to measure HbA1c g h 20 mins with nurse: HbA1c results reviewed 20 mins with nurse: blood glucose results reviewed i 20 mins with nurse: blood glucose results reviewed to show specific relation between self-care and glycaemic control j

17. Timeline Cont Int 1 Int 2 a a a Before randomisation b b b RANDOMISATION Baseline, 2 wks after randomisation c a d a e b b c d 2 wks after baseline f 2 wks before visits g 1, 3, 6, 9 months visits h i j OUTCOME, 1 YEAR

18. Advantages of diagram • Structure of intervention easy to grasp • Structure of comparator also made clear • Timing of components clarified • Difference between interventions obvious • Timing of outcome measures clear

19. A diagram can’t do everything • May not be helpful for all interventions • Still needfull material to describe interventions well enough for them to be reproduced

20. Acknowledgements • Rafael Perera • Andrew Farmer Ray Fitzpatrick • Paul Glasziou Carl Heneghan • David Mant Sasha Shepperd • Alison Ward Sue Ziebland • http://www.cebm.net/index.aspx?o=4200
