Remove, Inspect, and Install Distributor Cap and Ignition Rotor

Remove, Inspect, and Install Distributor Cap and Ignition Rotor. Section:A.8,A.6,8,P-2 T4Cap&Rotor/9-30-01/vdb. Materials Needed. 1.Eye protection 2.Basic hand tools 3.Vehicle (see instructor). Procedure. 1.Locate distributor cap 2.Mark and remove spark plug wires

moral
Télécharger la présentation

Remove, Inspect, and Install Distributor Cap and Ignition Rotor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Remove, Inspect, and Install Distributor Cap and Ignition Rotor Section:A.8,A.6,8,P-2 T4Cap&Rotor/9-30-01/vdb

  2. Materials Needed 1.Eye protection 2.Basic hand tools 3.Vehicle (see instructor)

  3. Procedure 1.Locate distributor cap 2.Mark and remove spark plug wires 3.take off clips on distributor cap 4.inspect condition of distributor cap 5.Inspect ignition rotor for :cracks,corrosion,and rust.

  4. WEAR EYE PROTECTION

  5. Locate Cap

  6. Remove and Mark Spark Plug Wires

  7. Locate and Remove Clips on Cap

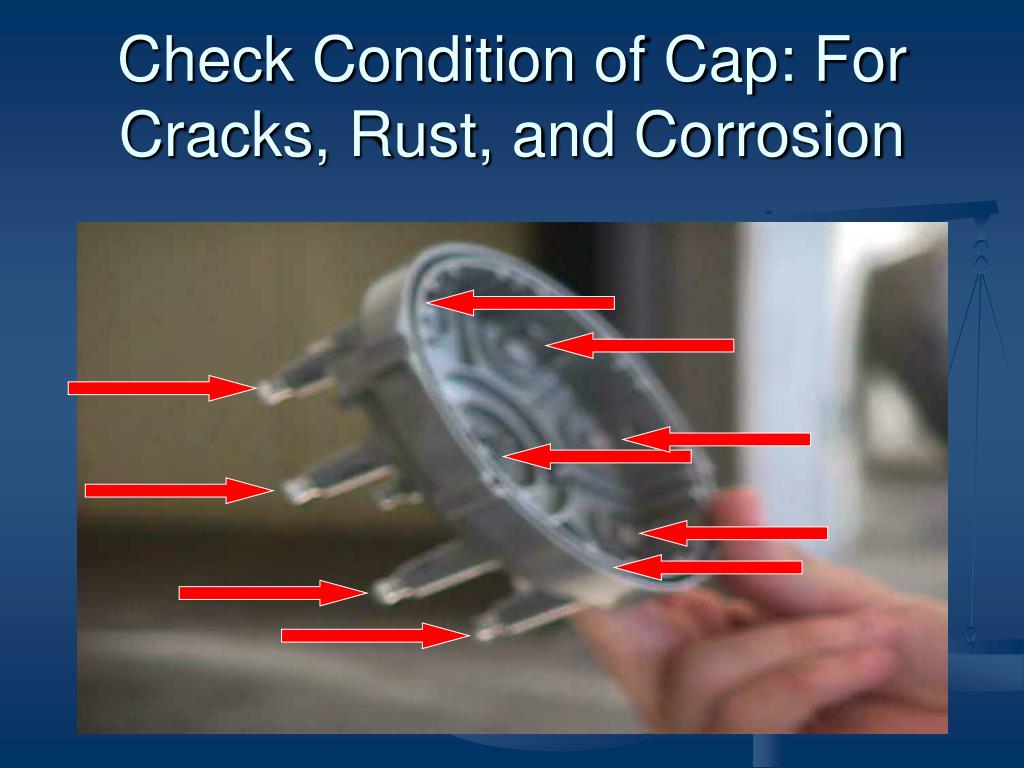

  8. Check Condition of Cap: For Cracks, Rust, and Corrosion

  9. Inspect Ignition Rotor For Cracks, Corrosion, and Rust

  10. By Xavier Ramirez, Chad Brehm-Steiner,Tony Carratello

  11. THE END
