  2. 14705 116 ave Edmonton, Ab T5m-3E8 www.irss.ca About IRSS Industrial Radiography Supplies and Services Inc. (IR), located in Edmonton Alberta, Canada, is in its first years of operations and has become the leading supplier of RT products in Western Canada. IR’s vision for the future will be to expand into other NDE disciplines and develop an educational center focusing on radiation safety and product training. IR will also become a leader in digital technology working with those companies that are willing to help us develop products that will perform under Western Canada’s unique climate and production techniques.

  3. Analog Vs Digital

  4. Displays Analog Digital DMC 2000-SOR/R PEN Dosimeter RDS 30 Canadian Admiral RadEye G

  5. Dosimeter Displays Different models have Different Ranges and are displayed using different scales Digital models have an easy to read display that goes from 0.1mR to 1000R and can with the push of a button can even display the rate as a double check to a survey meter

  6. Response Time Comparison

  7. Set Up Dose Rate = 600mR/hr Distance to Center of Detector = 11.79” D(inches) = 22.2(mCi/mRhr)ˆ½ Activity of reference Source Cs-137, s/n S1307 on October 27, 2008 = 168.88 mCi

  8. Analog Canadian Admiral Model CCD-100-10 S/N 02085 Display not scaled with proportional increments, makes it hard to read current field strength at a glance Jumps between 500mR/hr and 700mR/hr Meter set on high scale If on low, the scale range would have to be changed manually by the user Actually footage taken at IRSS using a Cs-137(NIST Traceable) source with current activity 168.89mCi

  9. RDS 30 S/N 270700 Digital Scale range is automatic and requires no user intervention Display easily read Stable Field Measurement Actually footage taken at IRSS using a Cs-137(NIST Traceable) source with current activity 168.89mCi

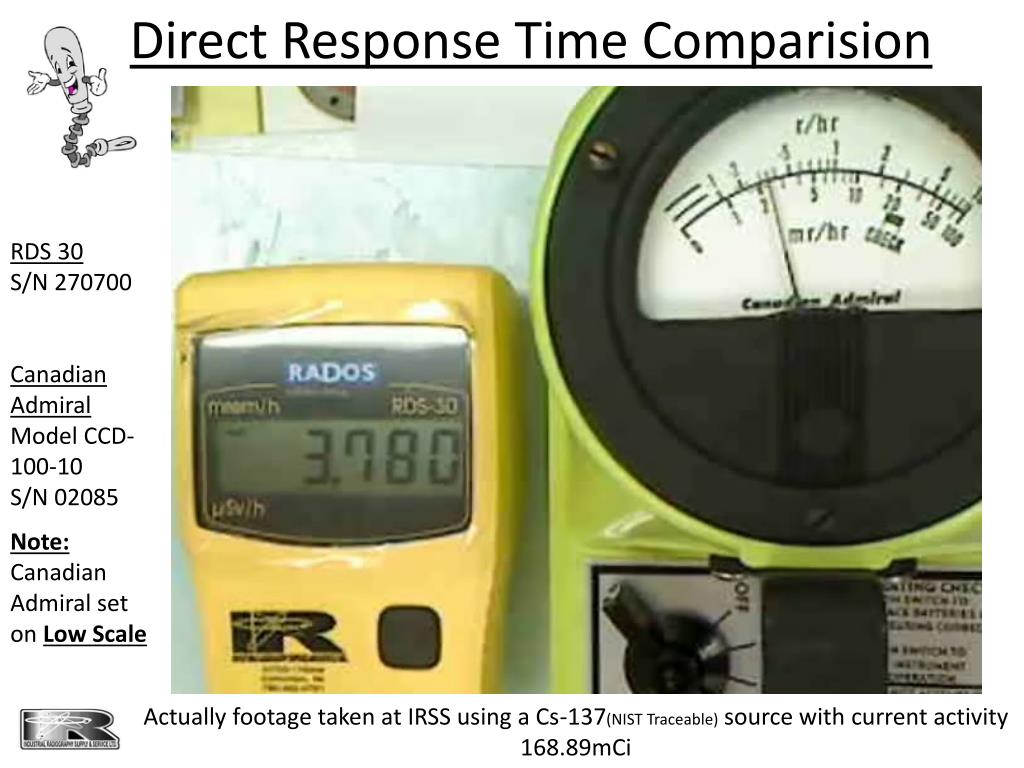

  10. Direct Response Time Comparision RDS 30 S/N 270700 Canadian Admiral Model CCD-100-10 S/N 02085 Note: Canadian Admiral set on Low Scale Actually footage taken at IRSS using a Cs-137(NIST Traceable) source with current activity 168.89mCi

  11. Direct Response Time Comparision RDS 30 S/N 270700 Canadian Admiral Model CCD-100-10 S/N 02085 Note: Canadian Admiral set on High Scale Actually footage taken at IRSS using a Cs-137(NIST Traceable) source with current activity 168.89mCi

  12. Meter Status Screenshot Dose Rate Alarm Set-Up Screen- Using Wireless IRDA Connection to Communicate with PC History Reading Screenshot Dose Alarm Set-Up Screen- Using Wireless IRDA Connection to Communicate with PC

  13. PC Interface Screenshot

  14. SOR/R Overview General Features • Solid State (silicon diode) detector • Personnel & Area Monitoring capability • Linear response to 1000 R/hr • Energy Range: 50 keV - 6 MeV • Self Testing/Diagnostics (battery, detector) • Internal Memory “Histogram” • Standard Calculator Battery - over 2000 hrs • Multi-Configuration: - Dose, Rate and Time Alarm/Warning - Satellite or Autonomous operation - Hands-Free communication

  15. SOR/R Overview General Features • Alarm Thresholds - Primary Alarm for Dose and Dose Rate - Pre-Alarms (warnings) for Dose and Dose Rate • Histogram – “Events History” - 700 intervals - 10 sec, 1 min, 10 min, 1 hr, 24 hr - Stamps dose increment, date, time at selected timeinterval; records alarm or error indication automatically

  16. SOR/R Overview General Features • Optical Detector Check - Expose diode to light source every 10 minutes - Three consecutive failures, detector fault alarm (def det) • Test-to-failure concept! • Background Radiation check - 10 uR/hr: one pulse ~ 10 minutes - No counts in pre-determined time: det. Fault • Battery (voltage)check every 10 minutes

  17. Display Messages – Internal Faults Defective Detector: Remove from service Return for repair/replacement Defective Calibration: Calibration data integrity problem; re-calibrate dosimeter Defective Component for Pulse Counting: Remove from service; return For repair/replacement Defective History: Start new histogram using Reader – Entry/Exit Defective Battery: Battery discharged/removed; Change battery, check for short Or defective ground wire Defective External Detector/Initialization: External detector calibration value corrupted; Data integrity suspect or corrupted; re-initialize calibration or system parameters. Contact MGPI for help Defective EEPROM: Problem accessing data in Memory; remove battery for 72 hrs,reinstall Drained Battery: Remove battery for 72 hrs; inspect for damage

  18. History Customizable Alarm/Alarm Warning Thresholds Audible Alarms and Warnings Have Different Tone Dose and Dose Rate thresholds Have Different Audible Tones History Time Stamp- Can be set to record down to an interval of every 10 seconds Detailed Graph- allows user to display and calculate dose increments down to an interval of every 10 seconds Records can be electronically saved or printed

  19. In Development New Designs to meet user preferences and demands New Technology can be used in traditional designs

  20. ALARA and Safety Advantages Digital Survey Meters Digital Survey Meters do not need to be adjusted by the user to change scales Customizable audible alarm thresholds Digital Dosimeters Digital Dosimeters display instantaneous, easy to read and accurate dose levels Digital Dosimeter History reports can be analyzed, saved electronically, and matched to TLD reports Customizable audible alarm thresholds Have a scale going up too 1000R, Dose will not run meter off scale
