  1. WG3Insertion/Extraction Testing Program R. Vuillermet

  2. What to test ? • Extraction of the beam pipe • Insertion of the IST with space frame • Extraction of LGT with space frame • Insertion of the IBL package

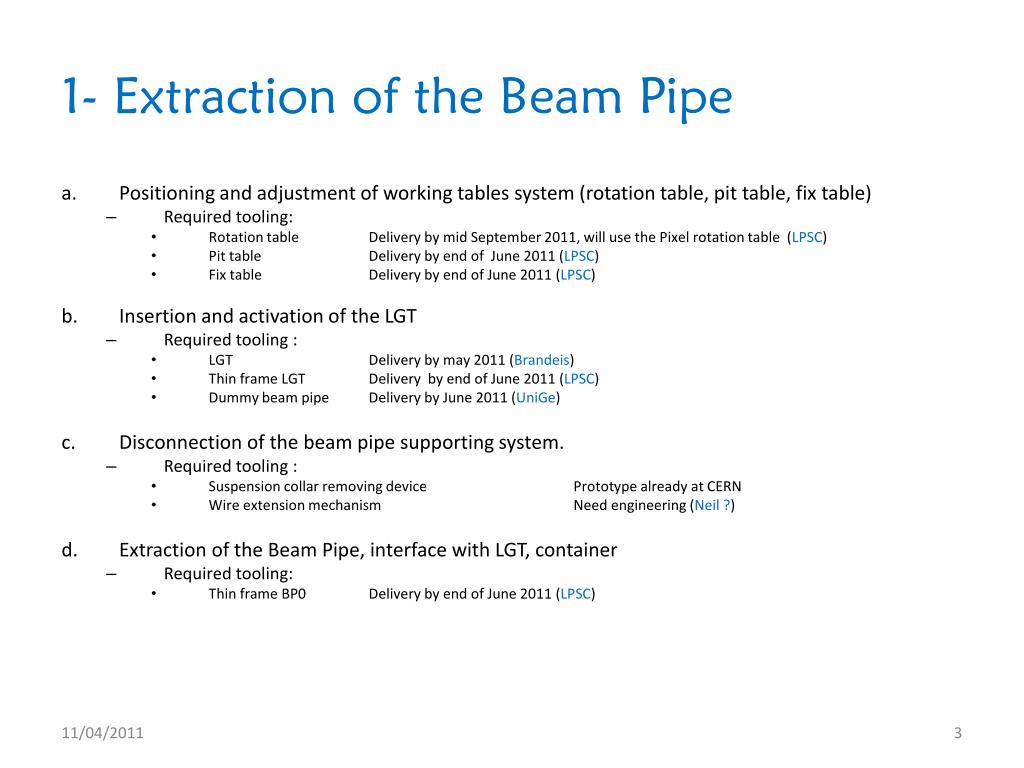

  3. 1- Extraction of the Beam Pipe • Positioning and adjustment of working tables system (rotation table, pit table, fix table) • Required tooling: • Rotation table Delivery by mid September 2011, will use the Pixel rotation table (LPSC) • Pit table Delivery by end of June 2011 (LPSC) • Fix table Delivery by end of June 2011 (LPSC) • Insertion and activation of the LGT • Required tooling : • LGT Delivery by may 2011 (Brandeis) • Thin frame LGT Delivery by end of June 2011 (LPSC) • Dummy beam pipe Delivery by June 2011 (UniGe) • Disconnection of the beam pipe supporting system. • Required tooling : • Suspension collar removing device Prototype already at CERN • Wire extension mechanism Need engineering (Neil ?) • Extraction of the Beam Pipe, interface with LGT, container • Required tooling: • Thin frame BP0 Delivery by end of June 2011 (LPSC)

  4. 2- Insertion of the IST with Space Frame • Insertion of the IST with space frame • Required tooling: • Dummy IST Delivery ? (UniGe ) • Space frame Not design yet ! • Thin frame for IST Delivery ? (LPSC) • Suspension mechanism Not design yet ! 3- Extraction of the LGT with space frame • Extraction of the LGT with space frame • Required tooling: • Thin frame for space frame Delivery ? (LPSC) 4- Insertion of the IBL Package • Insertion of the IBL package • Required tooling: • Thin frame for IBL Delivery ? (LPSC)

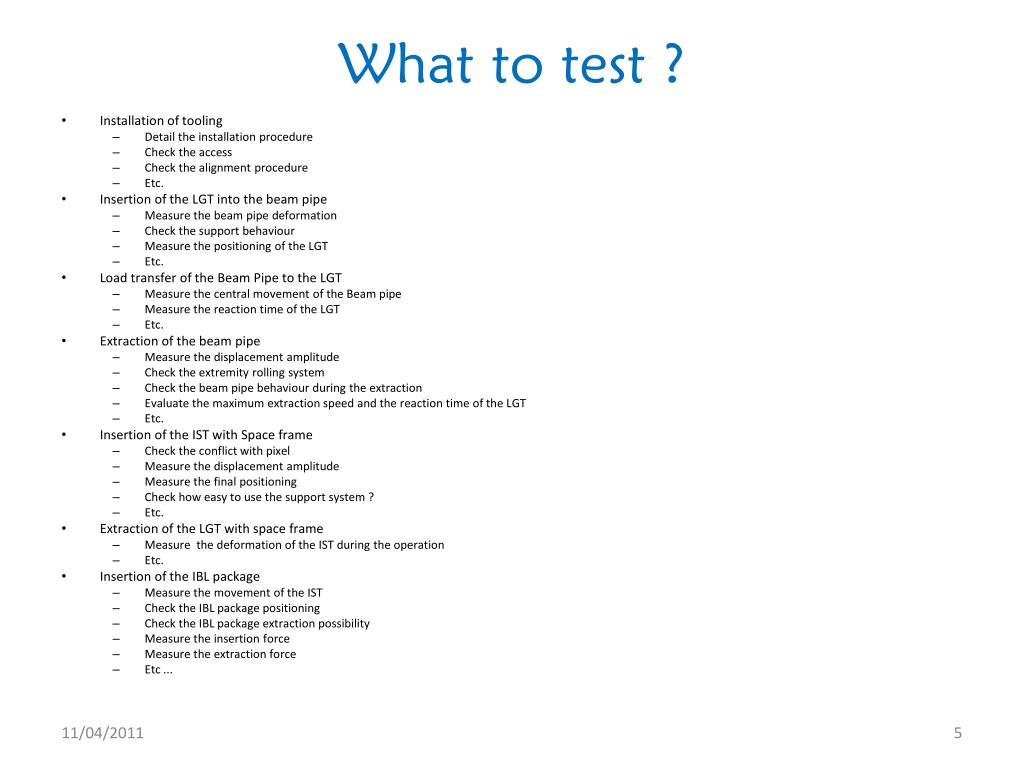

  5. What to test ? • Installation of tooling • Detail the installation procedure • Check the access • Check the alignment procedure • Etc. • Insertion of the LGT into the beam pipe • Measure the beam pipe deformation • Check the support behaviour • Measure the positioning of the LGT • Etc. • Load transfer of the Beam Pipe to the LGT • Measure the central movement of the Beam pipe • Measure the reaction time of the LGT • Etc. • Extraction of the beam pipe • Measure the displacement amplitude • Check the extremity rolling system • Check the beam pipe behaviour during the extraction • Evaluate the maximum extraction speed and the reaction time of the LGT • Etc. • Insertion of the IST with Space frame • Check the conflict with pixel • Measure the displacement amplitude • Measure the final positioning • Check how easy to use the support system ? • Etc. • Extraction of the LGT with space frame • Measure the deformation of the IST during the operation • Etc. • Insertion of the IBL package • Measure the movement of the IST • Check the IBL package positioning • Check the IBL package extraction possibility • Measure the insertion force • Measure the extraction force • Etc ...

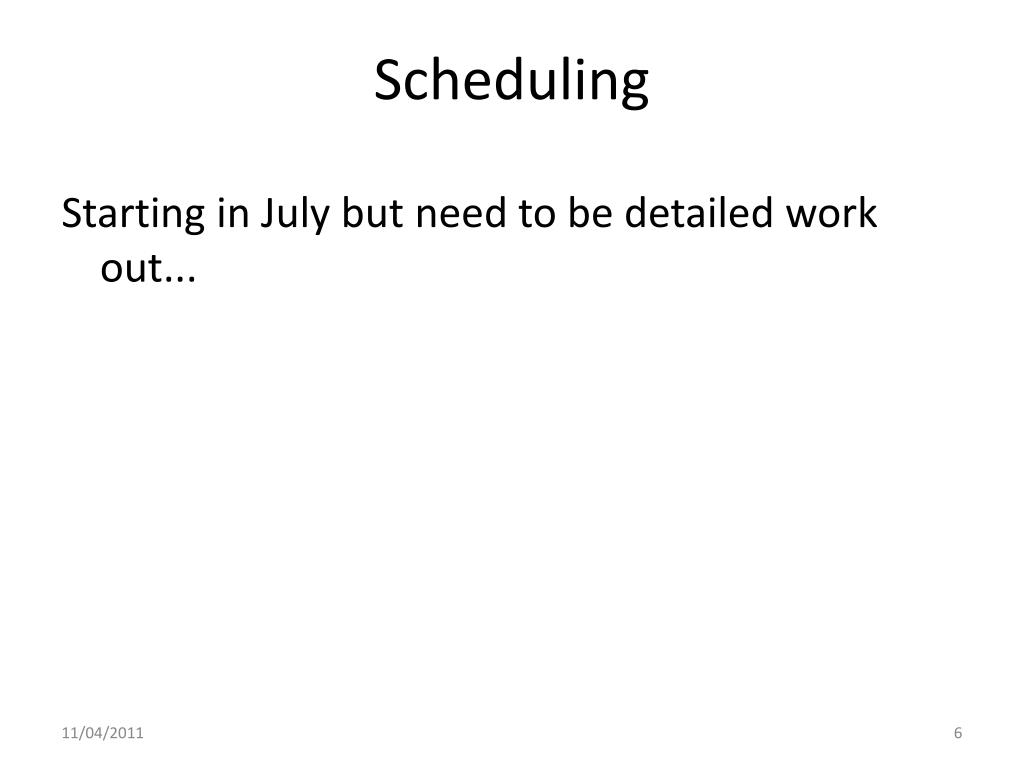

  6. Scheduling Starting in July but need to be detailed work out...
