  1. Estimate Area for Vinyl Siding

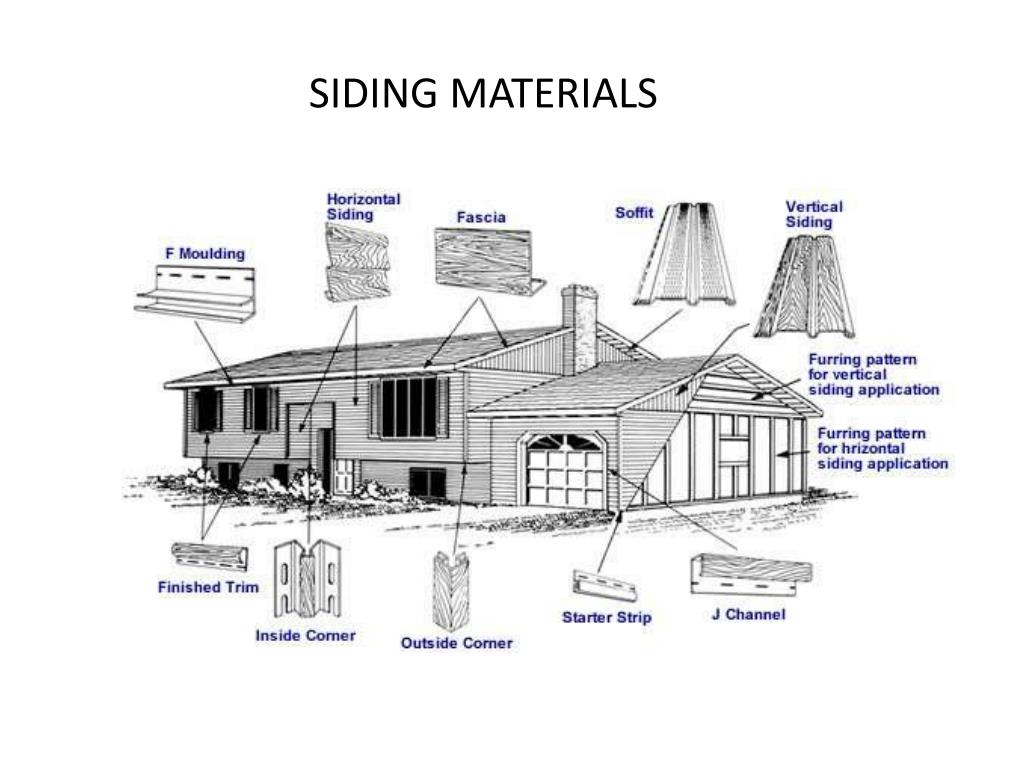

  2. SIDING MATERIALS

  3. ESTIMATING AREA • Shapes we will be using are rectangles and triangles • H x L = area of a rectangle • The rectangle formula will work with any variation of a rectangle. • (H x L) ÷ 2 = area of a triangle the triangle formula will work with any variation of a triangle.

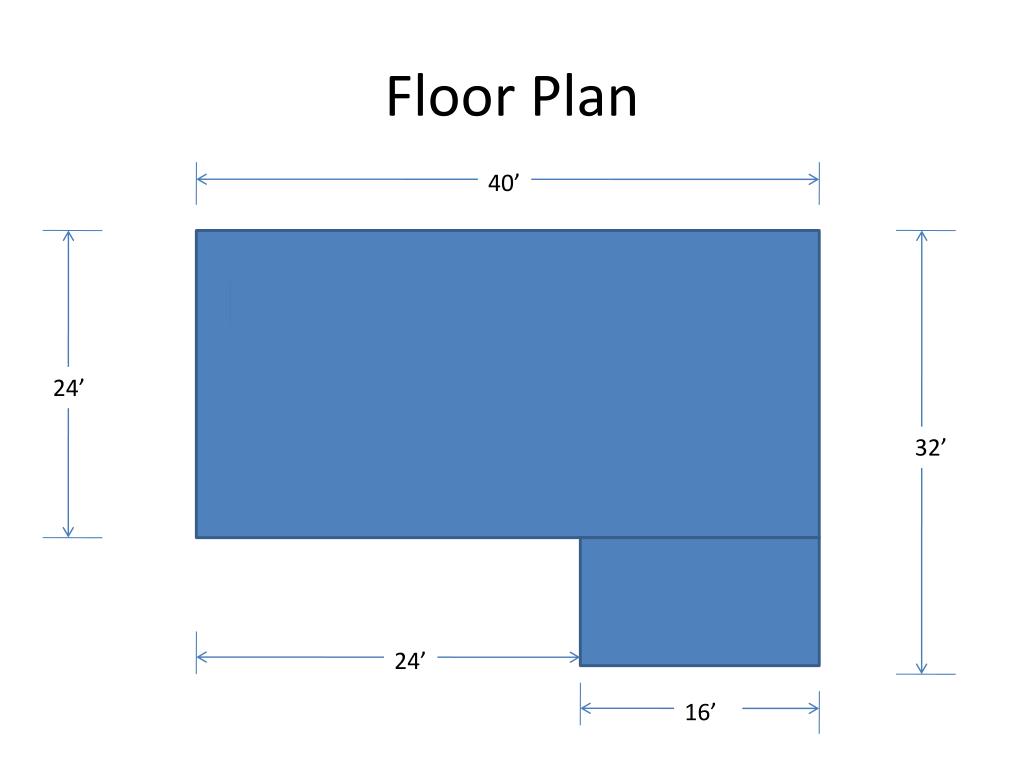

  4. Floor Plan 40’ 24’ 32’ 24’ 16’

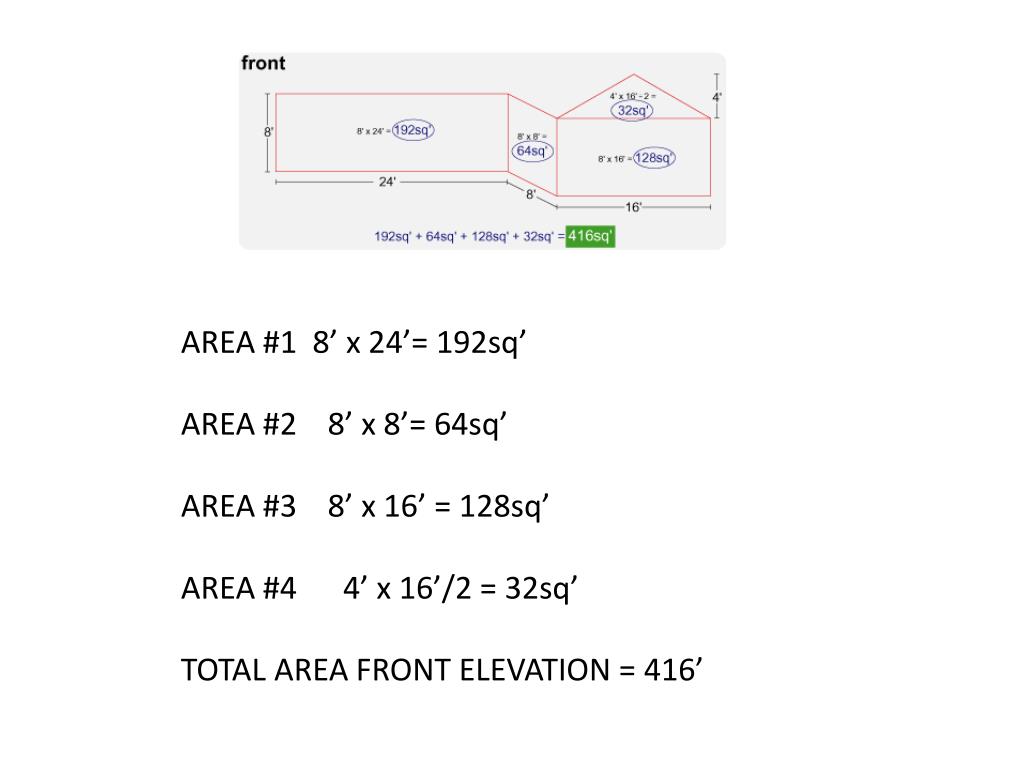

  5. AREA #1 8’ x 24’= 192sq’ AREA #2 8’ x 8’= 64sq’ AREA #3 8’ x 16’ = 128sq’ AREA #4 4’ x 16’/2 = 32sq’ TOTAL AREA FRONT ELEVATION = 416’

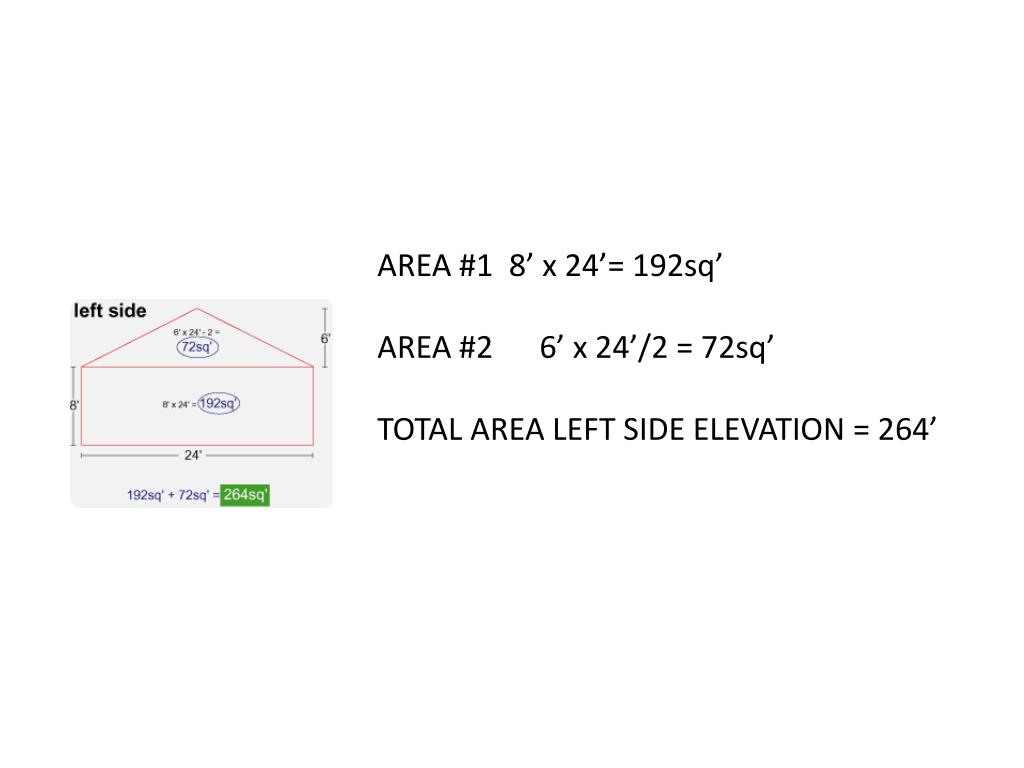

  6. AREA #1 8’ x 24’= 192sq’ AREA #2 6’ x 24’/2 = 72sq’ TOTAL AREA LEFT SIDE ELEVATION = 264’

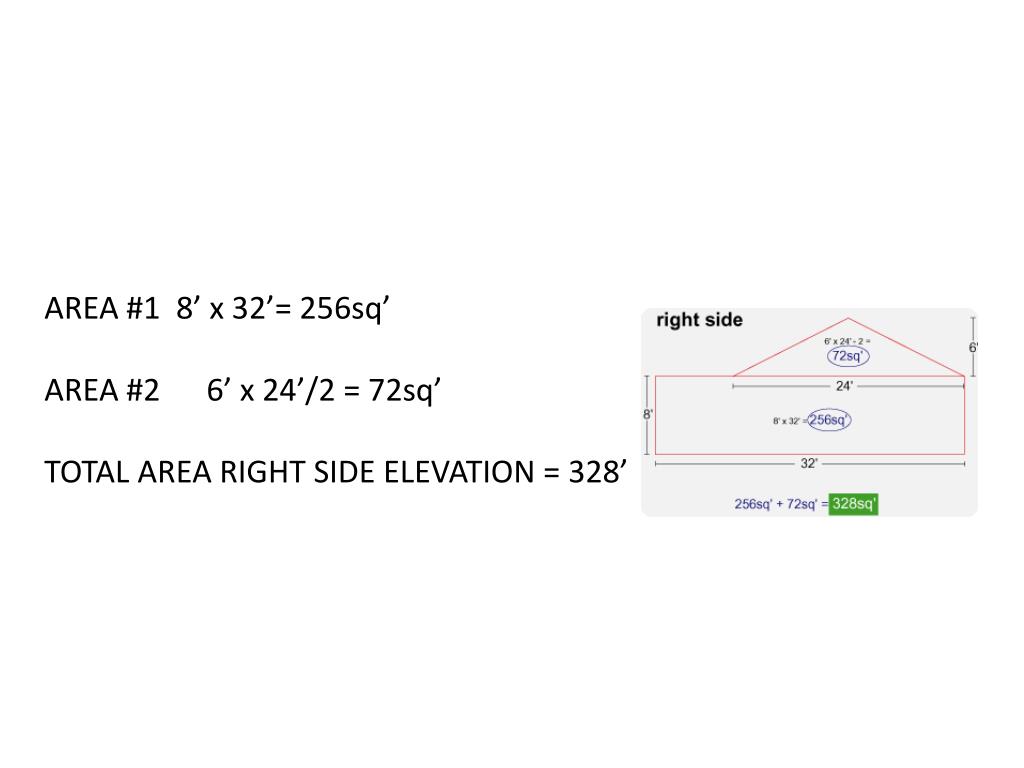

  7. AREA #1 8’ x 32’= 256sq’ AREA #2 6’ x 24’/2 = 72sq’ TOTAL AREA RIGHT SIDE ELEVATION = 328’

  8. AREA #1 8’ x 40’= 320sq’ TOTAL AREA BACK SIDE ELEVATION = 320’

  9. TOTAL AREA WORK SHEET • TOTAL AREA FRONT ELEVATION = 416’ • TOTAL AREA LEFT SIDE ELEVATION = 264’ • TOTAL AREA RIGHT SIDE ELEVATION = 328’ • TOTAL AREA BACK SIDE ELEVATION = 320’ • TOTAL AREA = 1328 • SQUARES OF SIDING NEEDED = 1328/100 = 13.28(round up to whole number) = 14 sq

  10. Estimating Area Problem #1 NOTE- All walls are 9’ high – house does not have any gable ends 40’ 8’ 20’ 10’ 30’

  11. Estimating Area Problem #2 NOTE: All walls are 8’6” high- the Rise of the Gable ends on the 18’span =8’ The rise of the gable end on the 7’and 8’ span = 4’ 40’ 3’ 7’ 8’ 20’ 7’ 12’ 18’

  12. WORKSHEET FORESTIMATING AREA FOR VINYL SIDING Practice problem #1 Front Elevation Left Elevation Right Elevation Back Elevation _________________ TOTAL AREA SQUARES OF SIDING NEEDED = /100 = (round up to whole number) = sq

  13. WORKSHEET FORESTIMATING AREA FOR VINYL SIDING Practice problem #2 Front Elevation Left Elevation Right Elevation Back Elevation _________________ TOTAL AREA • SQUARES OF SIDING NEEDED = /100 = (round up to whole number) = sq
