  1. Information Extractionand Integration: an Overview William W. Cohen Carnegie Mellon University April 26, 2004

  2. Example: The Problem Martin Baker, a person Genomics job Employers job posting form

  3. Example: A Solution

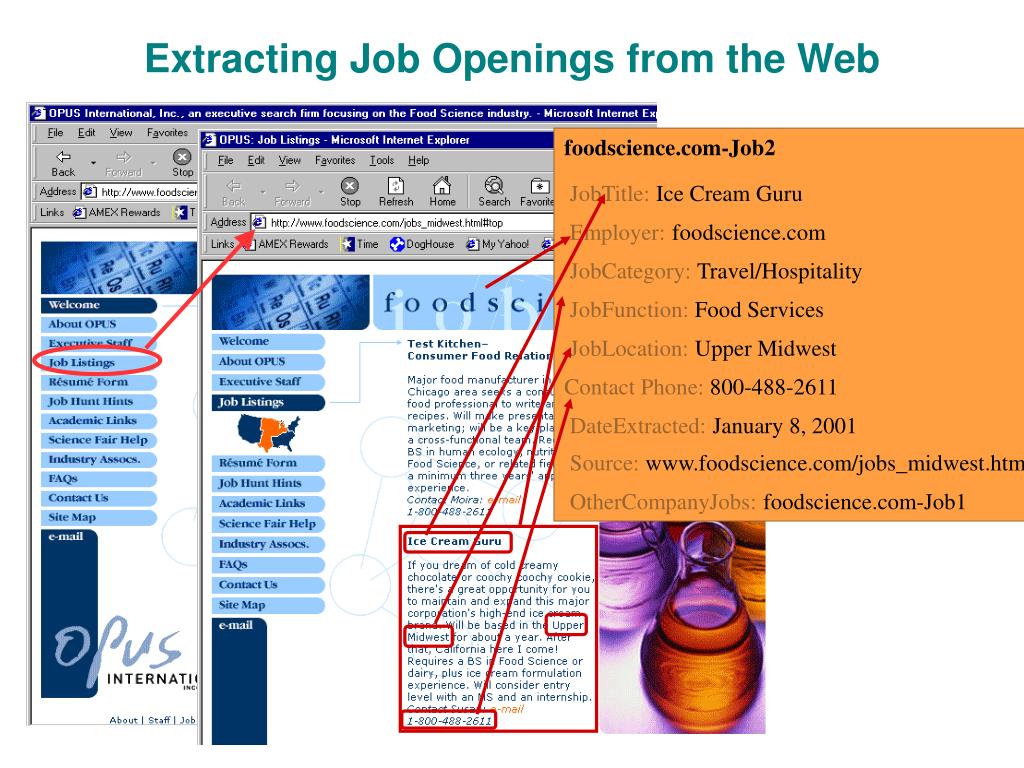

  4. foodscience.com-Job2 JobTitle: Ice Cream Guru Employer: foodscience.com JobCategory: Travel/Hospitality JobFunction: Food Services JobLocation: Upper Midwest Contact Phone: 800-488-2611 DateExtracted: January 8, 2001 Source: www.foodscience.com/jobs_midwest.html OtherCompanyJobs: foodscience.com-Job1 Extracting Job Openings from the Web

  5. Job Openings: Category = Food Services Keyword = Baker Location = Continental U.S.

  6. IE from Research Papers

  7. What is “Information Extraction” As a task: Filling slots in a database from sub-segments of text. October 14, 2002, 4:00 a.m. PT For years, Microsoft Corporation CEO Bill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a Microsoft VP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… NAME TITLE ORGANIZATION

  8. What is “Information Extraction” As a task: Filling slots in a database from sub-segments of text. October 14, 2002, 4:00 a.m. PT For years, Microsoft CorporationCEOBill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a MicrosoftVP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… IE NAME TITLE ORGANIZATION Bill GatesCEOMicrosoft Bill VeghteVPMicrosoft Richard StallmanfounderFree Soft..

  9. What is “Information Extraction” As a familyof techniques: Information Extraction = segmentation + classification + clustering + association October 14, 2002, 4:00 a.m. PT For years, Microsoft CorporationCEOBill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a MicrosoftVP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… Microsoft Corporation CEO Bill Gates Microsoft Gates Microsoft Bill Veghte Microsoft VP Richard Stallman founder Free Software Foundation aka “named entity extraction”

  10. What is “Information Extraction” As a familyof techniques: Information Extraction = segmentation + classification + association + clustering October 14, 2002, 4:00 a.m. PT For years, Microsoft CorporationCEOBill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a MicrosoftVP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… Microsoft Corporation CEO Bill Gates Microsoft Gates Microsoft Bill Veghte Microsoft VP Richard Stallman founder Free Software Foundation

  11. What is “Information Extraction” As a familyof techniques: Information Extraction = segmentation + classification+ association + clustering October 14, 2002, 4:00 a.m. PT For years, Microsoft CorporationCEOBill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a MicrosoftVP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… Microsoft Corporation CEO Bill Gates Microsoft Gates Microsoft Bill Veghte Microsoft VP Richard Stallman founder Free Software Foundation

  12. NAME TITLE ORGANIZATION Bill Gates CEO Microsoft Bill Veghte VP Microsoft Free Soft.. Richard Stallman founder What is “Information Extraction” As a familyof techniques: Information Extraction = segmentation + classification+ association+ clustering October 14, 2002, 4:00 a.m. PT For years, Microsoft CorporationCEOBill Gates railed against the economic philosophy of open-source software with Orwellian fervor, denouncing its communal licensing as a "cancer" that stifled technological innovation. Today, Microsoft claims to "love" the open-source concept, by which software code is made public to encourage improvement and development by outside programmers. Gates himself says Microsoft will gladly disclose its crown jewels--the coveted code behind the Windows operating system--to select customers. "We can be open source. We love the concept of shared source," said Bill Veghte, a MicrosoftVP. "That's a super-important shift for us in terms of code access.“ Richard Stallman, founder of the Free Software Foundation, countered saying… Microsoft Corporation CEO Bill Gates Microsoft Gates Microsoft Bill Veghte Microsoft VP Richard Stallman founder Free Software Foundation * * * *

  13. Tutorial Outline • IE History • Landscape of problems and solutions • Models for named entity recognition: • Sliding window • Boundary finding • Finite state machines • Overview of related problems and solutions • Association, Clustering • Integration with Data Mining

  14. IE History Pre-Web • Mostly news articles • De Jong’s FRUMP [1982] • Hand-built system to fill Schank-style “scripts” from news wire • Message Understanding Conference (MUC) DARPA [’87-’95], TIPSTER [’92-’96] • Early work dominated by hand-built models • E.g. SRI’s FASTUS, hand-built FSMs. • But by 1990’s, some machine learning: Lehnert, Cardie, Grishman and then HMMs: Elkan [Leek ’97], BBN [Bikel et al ’98] Web • AAAI ’94 Spring Symposium on “Software Agents” • Much discussion of ML applied to Web. Maes, Mitchell, Etzioni. • Tom Mitchell’s WebKB, ‘96 • Build KB’s from the Web. • Wrapper Induction • Initially hand-build, then ML: [Soderland ’96], [Kushmeric ’97],… • Citeseer; Cora; FlipDog; contEd courses, corpInfo, …

  15. IE History Biology • Gene/protein entity extraction • Protein/protein fact interaction • Automated curation/integration of databases • At CMU: SLIF (Murphy et al, subcellular information from images + text in journal articles) Email • EPCA, PAL, RADAR, CALO: intelligent office assistant that “understands” some part of email • At CMU: web site update requests, office-space requests; calendar scheduling requests; social network analysis of email.

  16. IE is different in different domains! Example: on web there is less grammar, but more formatting & linking Newswire Web www.apple.com/retail Apple to Open Its First Retail Store in New York City MACWORLD EXPO, NEW YORK--July 17, 2002--Apple's first retail store in New York City will open in Manhattan's SoHo district on Thursday, July 18 at 8:00 a.m. EDT. The SoHo store will be Apple's largest retail store to date and is a stunning example of Apple's commitment to offering customers the world's best computer shopping experience. "Fourteen months after opening our first retail store, our 31 stores are attracting over 100,000 visitors each week," said Steve Jobs, Apple's CEO. "We hope our SoHo store will surprise and delight both Mac and PC users who want to see everything the Mac can do to enhance their digital lifestyles." www.apple.com/retail/soho www.apple.com/retail/soho/theatre.html The directory structure, link structure, formatting & layout of the Web is its own new grammar.

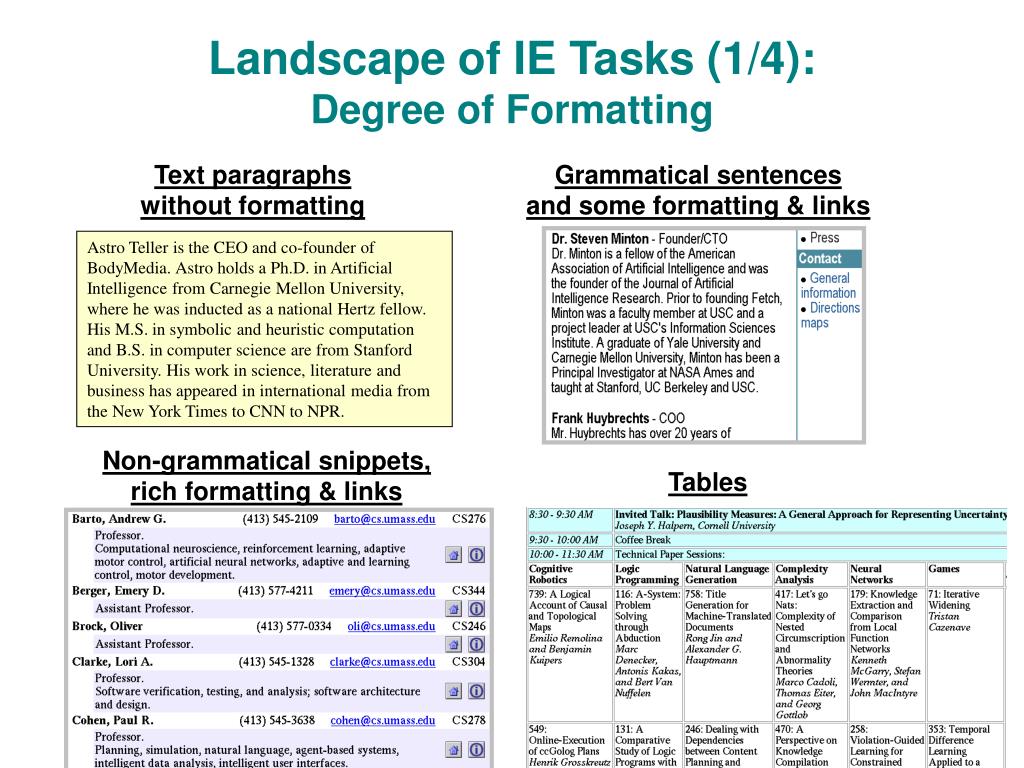

  17. Landscape of IE Tasks (1/4):Degree of Formatting Text paragraphs without formatting Grammatical sentencesand some formatting & links Astro Teller is the CEO and co-founder of BodyMedia. Astro holds a Ph.D. in Artificial Intelligence from Carnegie Mellon University, where he was inducted as a national Hertz fellow. His M.S. in symbolic and heuristic computation and B.S. in computer science are from Stanford University. His work in science, literature and business has appeared in international media from the New York Times to CNN to NPR. Non-grammatical snippets,rich formatting & links Tables

  18. Landscape of IE Tasks (2/4):Intended Breadth of Coverage Web site specific Genre specific Wide, non-specific Formatting Layout Language Amazon.com Book Pages Resumes University Names

  19. Landscape of IE Tasks (3/4):Complexity E.g. word patterns: Regular set Closed set U.S. phone numbers U.S. states Phone: (413) 545-1323 He was born in Alabama… The CALD main office can be reached at 412-268-1299 The big Wyoming sky… Ambiguous patterns,needing context andmany sources of evidence Complex pattern U.S. postal addresses Person names University of Arkansas P.O. Box 140 Hope, AR 71802 …was among the six houses sold by Hope Feldman that year. Pawel Opalinski, SoftwareEngineer at WhizBang Labs. Headquarters: 1128 Main Street, 4th Floor Cincinnati, Ohio 45210

  20. Landscape of IE Tasks (4/4):Single Field/Record Jack Welch will retire as CEO of General Electric tomorrow. The top role at the Connecticut company will be filled by Jeffrey Immelt. Single entity Binary relationship N-ary record Person: Jack Welch Relation: Person-Title Person: Jack Welch Title: CEO Relation: Succession Company: General Electric Title: CEO Out: Jack Welsh In: Jeffrey Immelt Person: Jeffrey Immelt Relation: Company-Location Company: General Electric Location: Connecticut Location: Connecticut “Named entity” extraction

  21. Classify Pre-segmentedCandidates Sliding Window Abraham Lincoln was born in Kentucky. Abraham Lincoln was born in Kentucky. Classifier Classifier which class? which class? Try alternatewindow sizes: Context Free Grammars Boundary Models Finite State Machines Abraham Lincoln was born in Kentucky. Abraham Lincoln was born in Kentucky. Abraham Lincoln was born in Kentucky. BEGIN Most likely state sequence? NNP NNP V V P NP Most likely parse? Classifier PP which class? VP NP VP BEGIN END BEGIN END S Landscape of IE Techniques (1/1):Models Lexicons Abraham Lincoln was born in Kentucky. member? Alabama Alaska … Wisconsin Wyoming Any of these models can be used to capture words, formatting or both.

  22. Sliding Windows

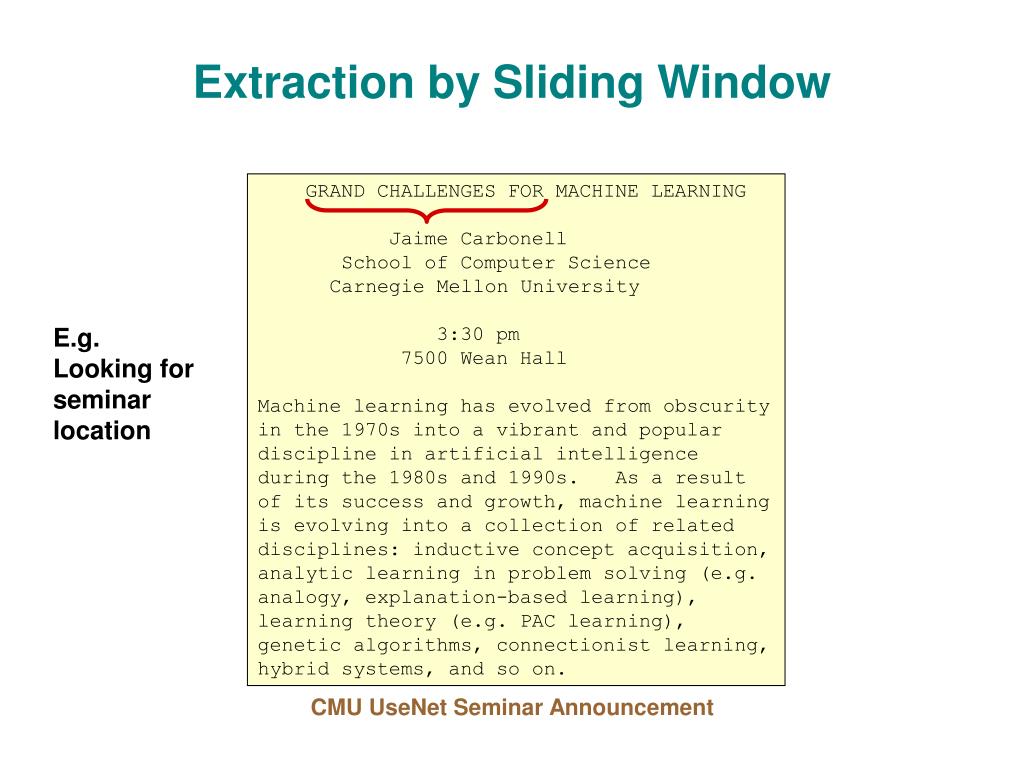

  23. Extraction by Sliding Window GRAND CHALLENGES FOR MACHINE LEARNING Jaime Carbonell School of Computer Science Carnegie Mellon University 3:30 pm 7500 Wean Hall Machine learning has evolved from obscurity in the 1970s into a vibrant and popular discipline in artificial intelligence during the 1980s and 1990s. As a result of its success and growth, machine learning is evolving into a collection of related disciplines: inductive concept acquisition, analytic learning in problem solving (e.g. analogy, explanation-based learning), learning theory (e.g. PAC learning), genetic algorithms, connectionist learning, hybrid systems, and so on. CMU UseNet Seminar Announcement

  24. Extraction by Sliding Window GRAND CHALLENGES FOR MACHINE LEARNING Jaime Carbonell School of Computer Science Carnegie Mellon University 3:30 pm 7500 Wean Hall Machine learning has evolved from obscurity in the 1970s into a vibrant and popular discipline in artificial intelligence during the 1980s and 1990s. As a result of its success and growth, machine learning is evolving into a collection of related disciplines: inductive concept acquisition, analytic learning in problem solving (e.g. analogy, explanation-based learning), learning theory (e.g. PAC learning), genetic algorithms, connectionist learning, hybrid systems, and so on. CMU UseNet Seminar Announcement

  25. Extraction by Sliding Window GRAND CHALLENGES FOR MACHINE LEARNING Jaime Carbonell School of Computer Science Carnegie Mellon University 3:30 pm 7500 Wean Hall Machine learning has evolved from obscurity in the 1970s into a vibrant and popular discipline in artificial intelligence during the 1980s and 1990s. As a result of its success and growth, machine learning is evolving into a collection of related disciplines: inductive concept acquisition, analytic learning in problem solving (e.g. analogy, explanation-based learning), learning theory (e.g. PAC learning), genetic algorithms, connectionist learning, hybrid systems, and so on. CMU UseNet Seminar Announcement

  26. Extraction by Sliding Window GRAND CHALLENGES FOR MACHINE LEARNING Jaime Carbonell School of Computer Science Carnegie Mellon University 3:30 pm 7500 Wean Hall Machine learning has evolved from obscurity in the 1970s into a vibrant and popular discipline in artificial intelligence during the 1980s and 1990s. As a result of its success and growth, machine learning is evolving into a collection of related disciplines: inductive concept acquisition, analytic learning in problem solving (e.g. analogy, explanation-based learning), learning theory (e.g. PAC learning), genetic algorithms, connectionist learning, hybrid systems, and so on. CMU UseNet Seminar Announcement

  27. A “Naïve Bayes” Sliding Window Model [Freitag 1997] 00 : pm Place : Wean Hall Rm 5409 Speaker : Sebastian Thrun … … w t-m w t-1 w t w t+n w t+n+1 w t+n+m prefix contents suffix Estimate Pr(LOCATION|window) using Bayes rule Try all “reasonable” windows (vary length, position) Assume independence for length, prefix words, suffix words, content words Estimate from data quantities like: Pr(“Place” in prefix|LOCATION) If P(“Wean Hall Rm 5409” = LOCATION)is above some threshold, extract it.

  28. “Naïve Bayes” Sliding Window Results Domain: CMU UseNet Seminar Announcements GRAND CHALLENGES FOR MACHINE LEARNING Jaime Carbonell School of Computer Science Carnegie Mellon University 3:30 pm 7500 Wean Hall Machine learning has evolved from obscurity in the 1970s into a vibrant and popular discipline in artificial intelligence during the 1980s and 1990s. As a result of its success and growth, machine learning is evolving into a collection of related disciplines: inductive concept acquisition, analytic learning in problem solving (e.g. analogy, explanation-based learning), learning theory (e.g. PAC learning), genetic algorithms, connectionist learning, hybrid systems, and so on. Field F1 Person Name: 30% Location: 61% Start Time: 98%

  29. BWI: Learning to detect boundaries [Freitag & Kushmerick, AAAI 2000] • Another formulation: learn three probabilistic classifiers: • START(i) = Prob( position i starts a field) • END(j) = Prob( position j ends a field) • LEN(k) = Prob( an extracted field has length k) • Then score a possible extraction (i,j) by START(i) * END(j) * LEN(j-i) • LEN(k) is estimated from a histogram

  30. BWI: Learning to detect boundaries Field F1 Person Name: 30% Location: 61% Start Time: 98%

  31. Problems with Sliding Windows and Boundary Finders • Decisions in neighboring parts of the input are made independently from each other. • Expensive for long entity names • Sliding Window may predict a “seminar end time” before the “seminar start time”. • It is possible for two overlapping windows to both be above threshold. • In a Boundary-Finding system, left boundaries are laid down independently from right boundaries, and their pairing happens as a separate step.

  32. Finite State Machines

  33. IE with Hidden Markov Models Given a sequence of observations: Yesterday Pedro Domingos spoke this example sentence. and a trained HMM: person name location name background Find the most likely state sequence: (Viterbi) YesterdayPedro Domingosspoke this example sentence. Any words said to be generated by the designated “person name” state extract as a person name: Person name: Pedro Domingos

  34. HMM for Segmentation • Simplest Model: One state per entity type

  35. HMM Example: “Nymble” [Bikel, et al 1998], [BBN “IdentiFinder”] Task: Named Entity Extraction Transitionprobabilities Observationprobabilities Person end-of-sentence P(ot | st , st-1) P(st | st-1, ot-1) start-of-sentence Org P(ot | st , ot-1) or (Five other name classes) Back-off to: Back-off to: P(st | st-1 ) P(ot | st ) Other P(st ) P(ot ) Train on ~500k words of news wire text. Results: Case Language F1 . Mixed English 93% Upper English 91% Mixed Spanish 90% Other examples of shrinkage for HMMs in IE: [Freitag and McCallum ‘99]

  36. Conditional Markov Models (CMMs) aka MEMMs aka Maxent Taggers vs HMMS St-1 St St+1 ... Ot-1 Ot Ot+1 St-1 St St+1 ... Ot-1 Ot Ot+1

  37. Label Bias Problem • Consider this MEMM, and enough training data to perfectly model it: Pr(0123|rib)=1 Pr(0453|rob)=1 Pr(0123|rob) = Pr(1|0,r)/Z1 * Pr(2|1,o)/Z2 * Pr(3|2,b)/Z3 = 0.5 * 1 * 1 Pr(0453|rib) = Pr(4|0,r)/Z1’ * Pr(5|4,i)/Z2’ * Pr(3|5,b)/Z3’ = 0.5 * 1 *1

  38. New model CMMs to CRFs

  39. Graphical comparison among HMMs, MEMMs and CRFs HMM MEMM CRF

  40. Combining Sliding Windows and Finite-State Models

  41. Problems with Tagging-based NER • Decisions are made token-by-token • Feature engineering can be awkward: • How long is the extracted name? • Does the extracted name appear in a dictionary? • Is the extracted name similar to (an acronym for, a short version of...) a name appearing earlier in the document? • “Tag engineering” is also crucial: • Do we use one state per entity? a special state for beginning an entity? a special state for end?

  42. Train on sequences of labeled segments, not labeled words. S=(start,end,label) Build probability model of segment sequences, not word sequences Define features f of segments (Approximately) optimize feature weights on training data Semi-Markov models for IE with Sunita Sarawagi, IIT Bombay f(S) = words xt...xu, length, previous words, case information, ..., distance to known name maximize:

  43. Results: varying history

  44. Results: changing the dictionary

  45. Results: vs CRF

  46. Results: vs CRF

  47. Broader Issues in IE

  48. Broader View Up to now we have been focused on segmentation and classification Create ontology Spider Filter by relevance IE Segment Classify Associate Cluster Database Load DB Documentcollection Train extraction models Query, Search Data mine Label training data

  49. Broader View Now touch on some other issues Create ontology 3 Spider Filter by relevance IE Tokenize Segment Classify Associate Cluster 1 2 Database Load DB Documentcollection Train extraction models Query, Search 4 Data mine 5 Label training data
