Fast Ion Transport Options in TRANSP

Fast Ion Transport Options in TRANSP. Presented at Energetic Particle SFG Meeting, PPPL June 16 2009 – D. McCune. Preliminary: TRANSP Web Documentation. TRANSP website: http://w3.pppl.gov/TRANSP “TRANSP HELP” web page: http://w3.pppl.gov/~pshare/help/transp.htm

morty
Télécharger la présentation

Fast Ion Transport Options in TRANSP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fast Ion Transport Options in TRANSP Presented at Energetic Particle SFG Meeting, PPPL June 16 2009 – D. McCune

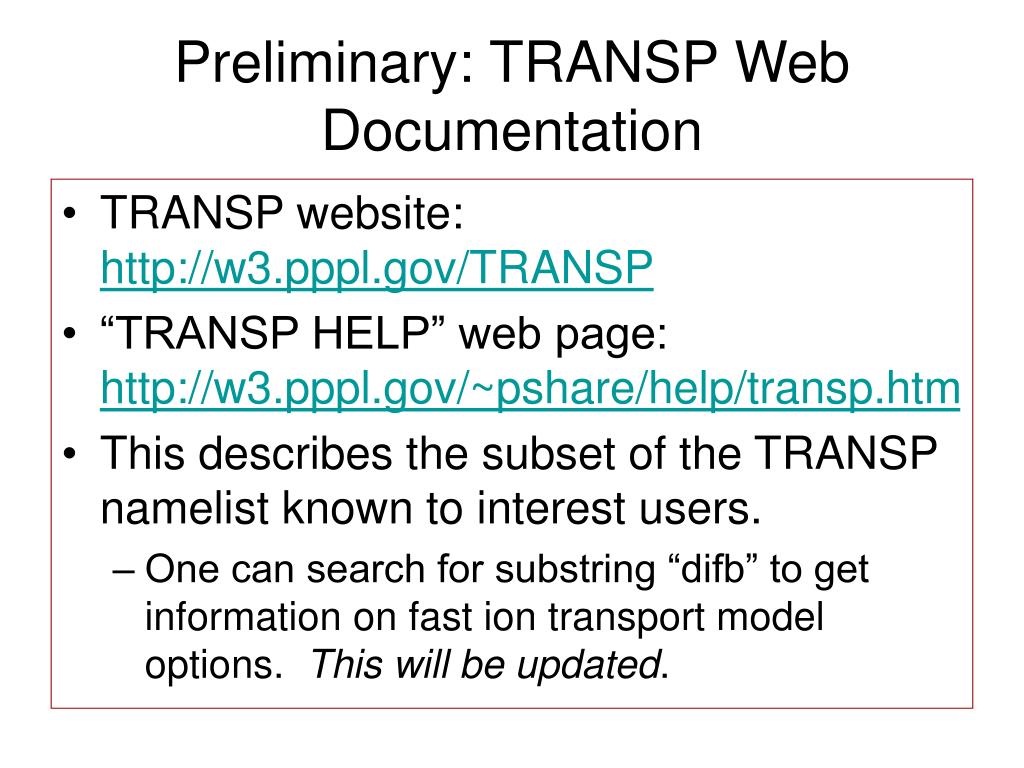

  2. Preliminary: TRANSP Web Documentation • TRANSP website: http://w3.pppl.gov/TRANSP • “TRANSP HELP” web page: http://w3.pppl.gov/~pshare/help/transp.htm • This describes the subset of the TRANSP namelist known to interest users. • One can search for substring “difb” to get information on fast ion transport model options. This will be updated.

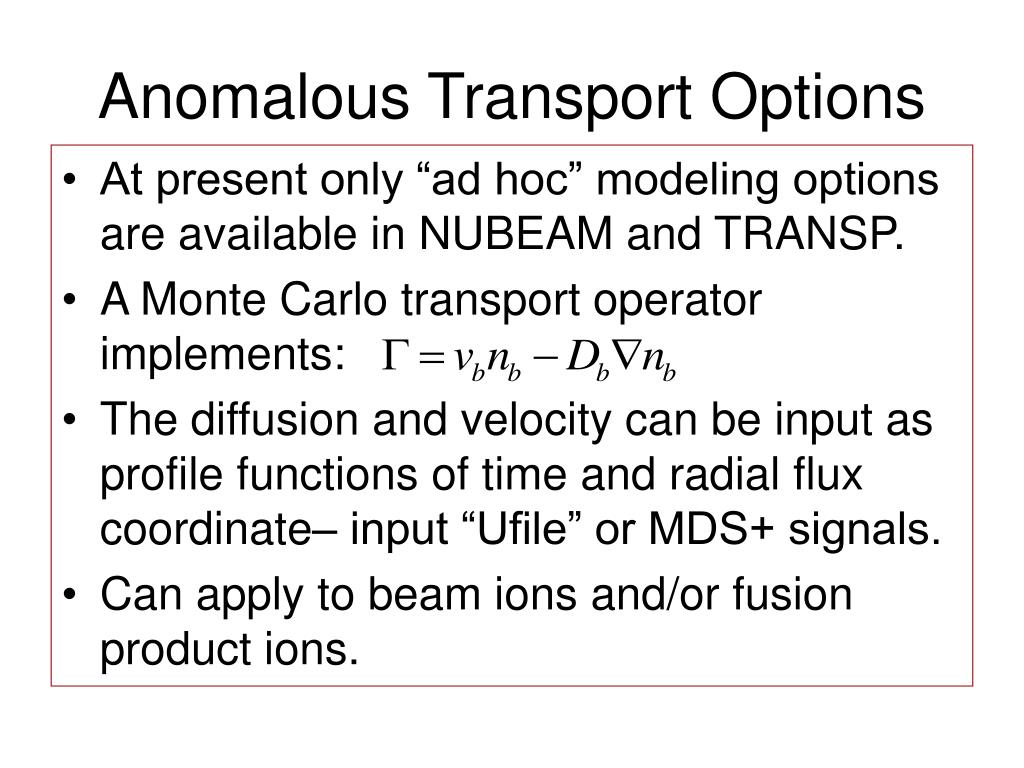

  3. Anomalous Transport Options • At present only “ad hoc” modeling options are available in NUBEAM and TRANSP. • A Monte Carlo transport operator implements: • The diffusion and velocity can be input as profile functions of time and radial flux coordinate– input “Ufile” or MDS+ signals. • Can apply to beam ions and/or fusion product ions.

  4. Transport Options (2) • If “Ufile” signals are not provided, the fast ion diffusivity can be set by namelist. • Usually a step function in time. • An assumption of proportionality to electron particle diffusivity exists– probably not useful. • Namelist controls allow introduction of energy dependence. • No pitch angle dependence • No spatial localization of energy dependence.

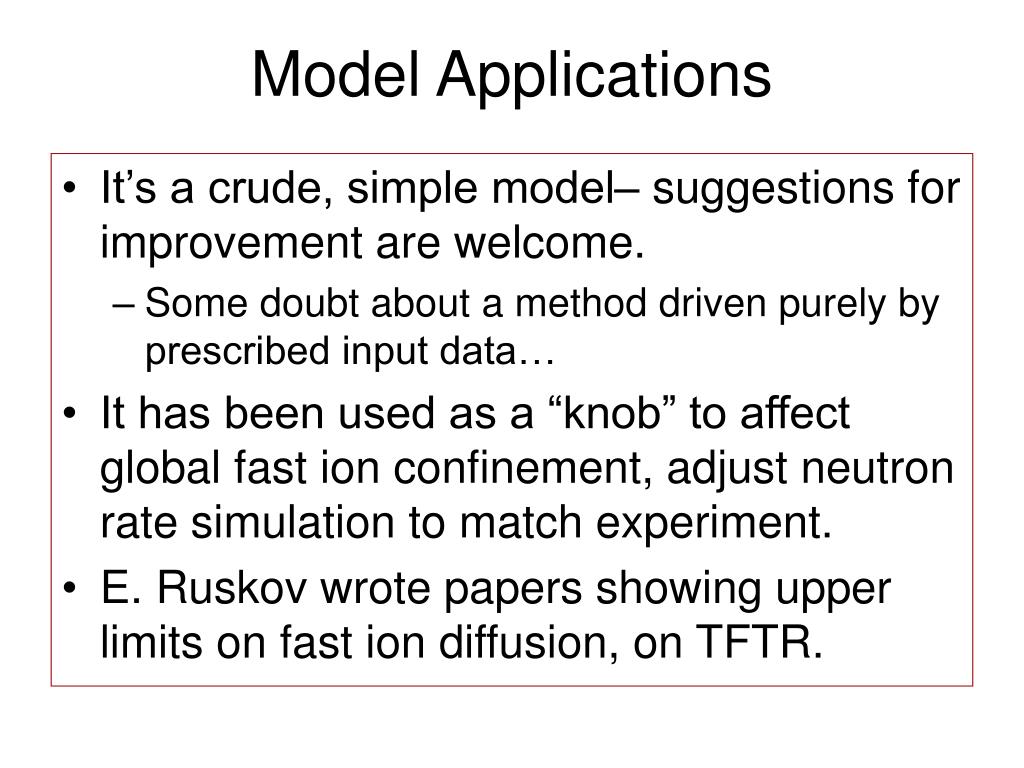

  5. Model Applications • It’s a crude, simple model– suggestions for improvement are welcome. • Some doubt about a method driven purely by prescribed input data… • It has been used as a “knob” to affect global fast ion confinement, adjust neutron rate simulation to match experiment. • E. Ruskov wrote papers showing upper limits on fast ion diffusion, on TFTR.
