  1. Routing Security in Ad Hoc Networks Justin Lomheim Shirshanka Das

  2. Outline • Ad Hoc Networks • DSR Review • AODV Review • Specific Attacks on DSR and AODV • ARAN Protocol (e.g. secure AODV) • Questions • References

  3. Ad Hoc Networks • infrastructureless • dynamic topologies (in mobile ad hoc nets) • variable capacity, limited bandwidth links • energy constrained operation • unicast, multicast, broadcast traffic • physical security considerations • currently AODV & DSR routing under consideration for IETF MANET specification

  4. Ad Hoc On Demand Distance Vector (AODV) Review • distance vector algorithm using sequence numbers for updates (based on DSDV) • generates routes on-demand, reducing total number of broadcasts required • classified as a pure on-demand scheme, since nodes not involved in routing do not maintain routing info or participate in table exchanges

  5. Dynamic Source Routing (DSR) Review • on-demand protocol based upon source routing • designed for scenarios where only a few source nodes flow to a few destination nodes • source and destination nodes gather routing info into caches, through exchange of flooded query and reply packets with full routing information • once discovered, routes are as needed until they fail due to lost message transmissions

  6. AODV and DSR Route Discovery No Route To D !! RREQ RREQ RREQ RREP D RREP RREP S RREP RREQ RREP I RREQ Cache Hit !!

  7. AODV Link Failure Mgmt • infinite metric assigned to broken links • if a node along a route moves, its upstream neighbor detects it and forwards a notification message (RREQ w/ infinite metric) • link breakage triggers notification back to users of formerly active links until source is reached, which may then re-initiate route discovery.

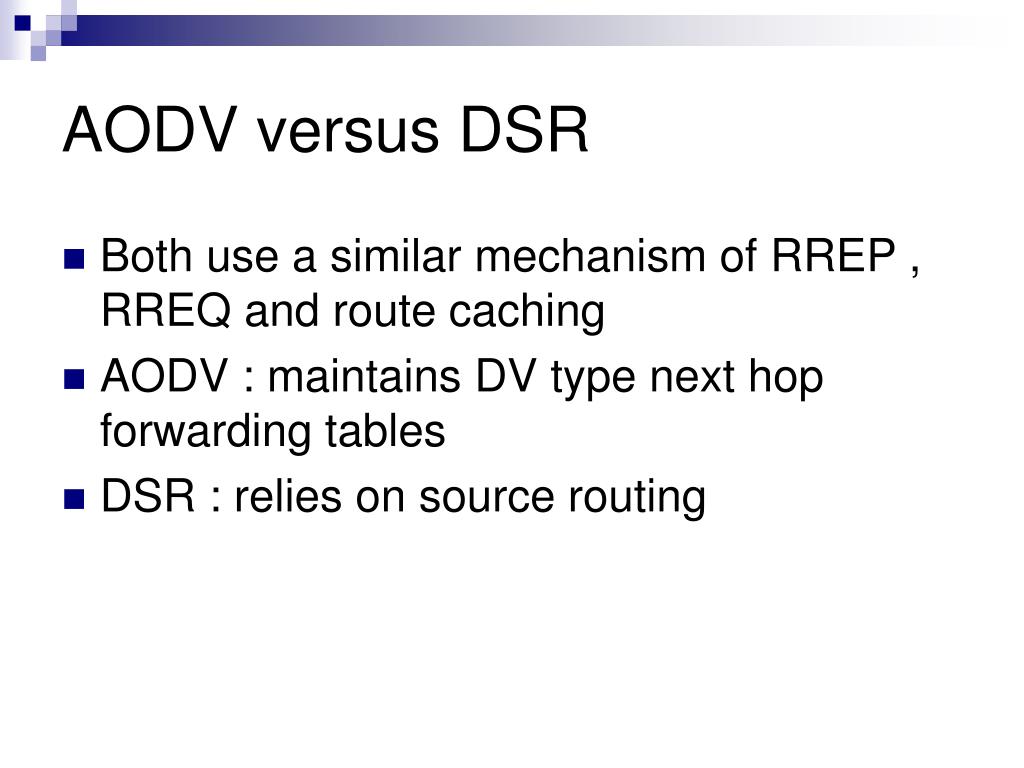

  8. AODV versus DSR • Both use a similar mechanism of RREP , RREQ and route caching • AODV : maintains DV type next hop forwarding tables • DSR : relies on source routing

  9. Specific Attacks on AODV & DSR • modification • sequence numbers • hop counts • source routes • tunneling • impersonation • fabrication • error messages • source routes (cache poisoning) • DoS • trivial DoS*

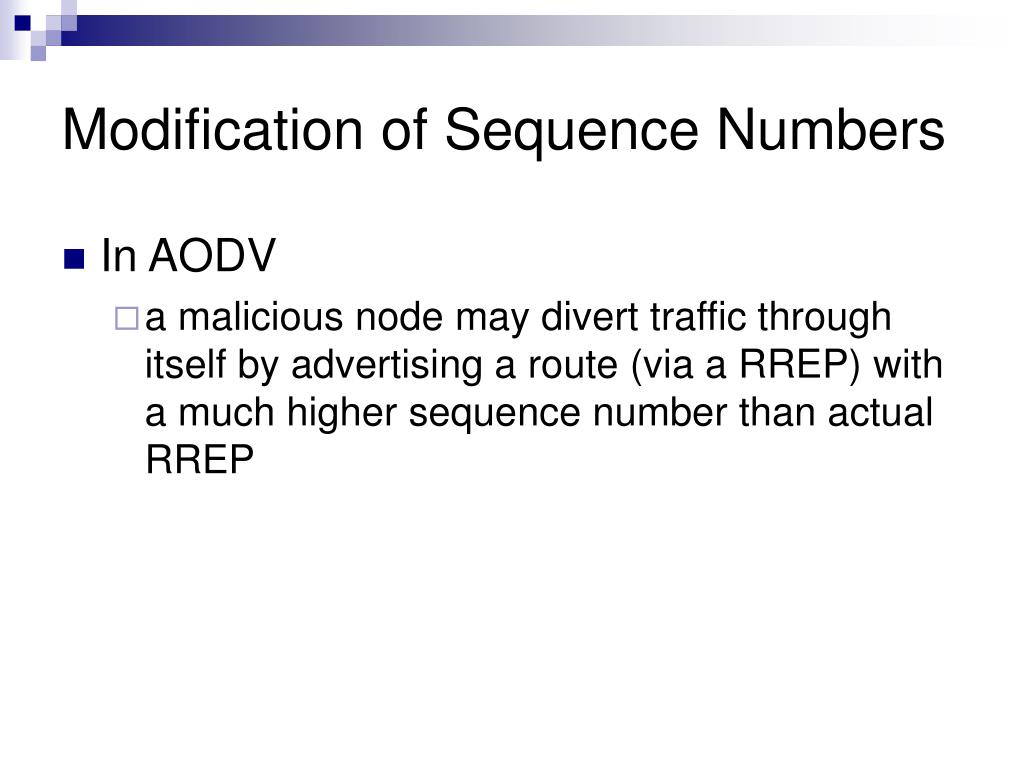

  10. Modification of Sequence Numbers • In AODV • a malicious node may divert traffic through itself by advertising a route (via a RREP) with a much higher sequence number than actual RREP

  11. Modification of Hop Counts • In AODV • since routing decisions can involve hop count metric, a malicious node can request the hop count to zero so make itself more likely to be chosen along the path to the destination • A selfish node could use a high hop count to ensure no one routes through it in case it wants to save power

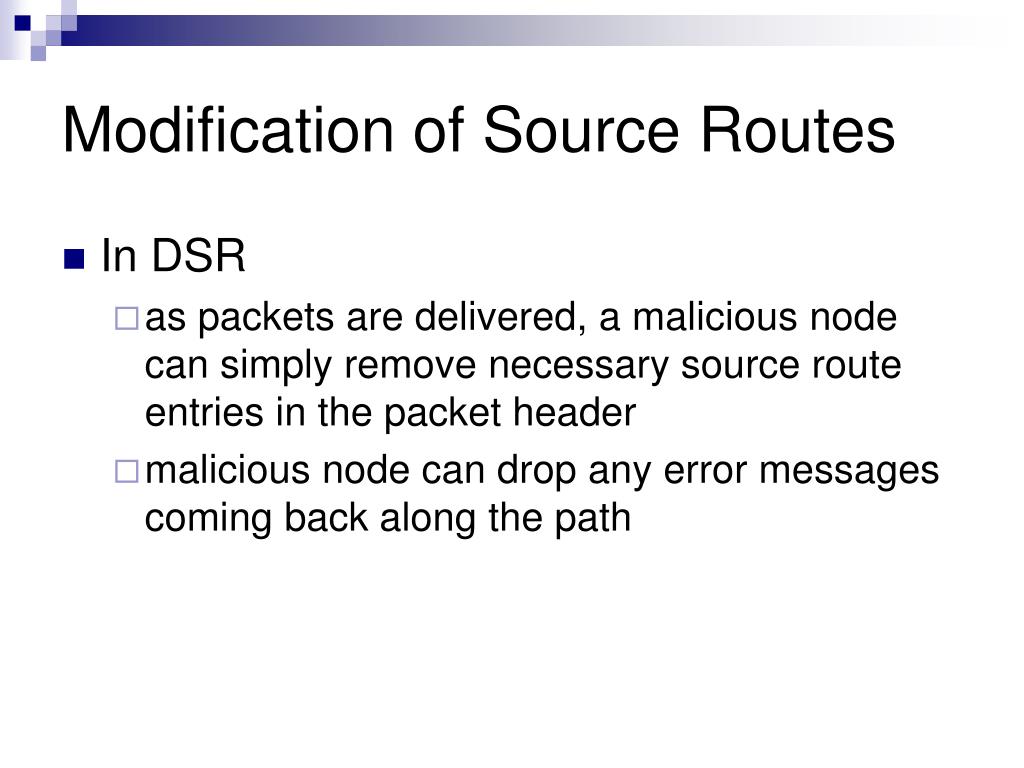

  12. Modification of Source Routes • In DSR • as packets are delivered, a malicious node can simply remove necessary source route entries in the packet header • malicious node can drop any error messages coming back along the path

  13. Tunneling Falsely tunneled path M2 M1 Decap Encap S D

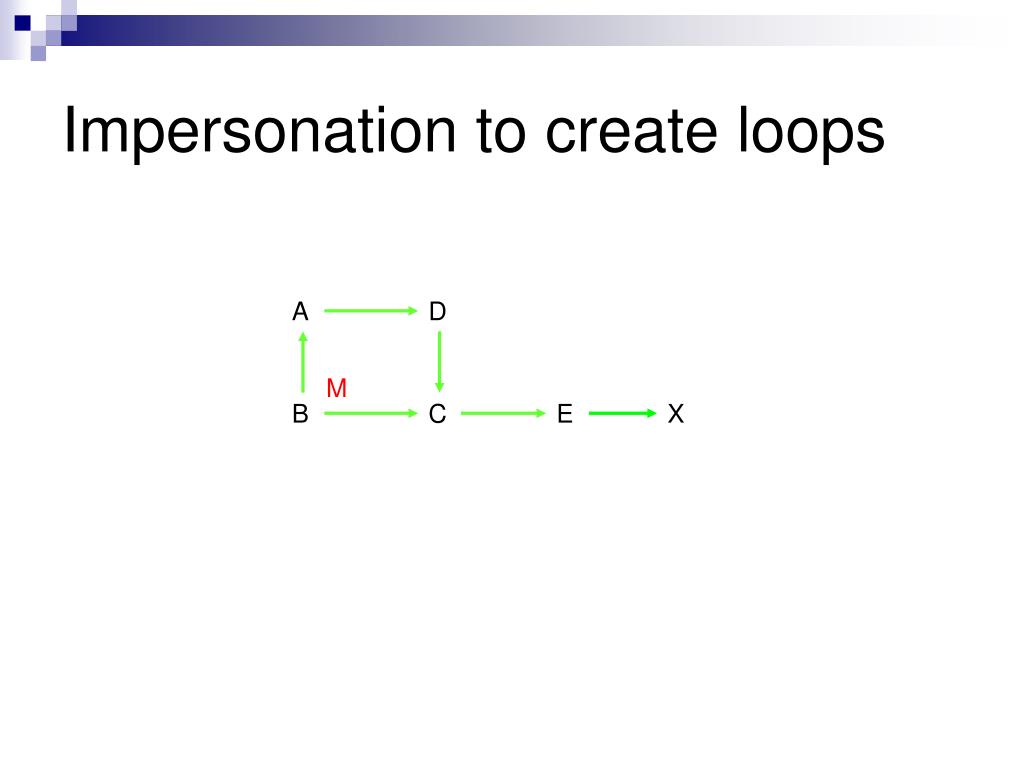

  14. Impersonation to create loops A D M B C E X

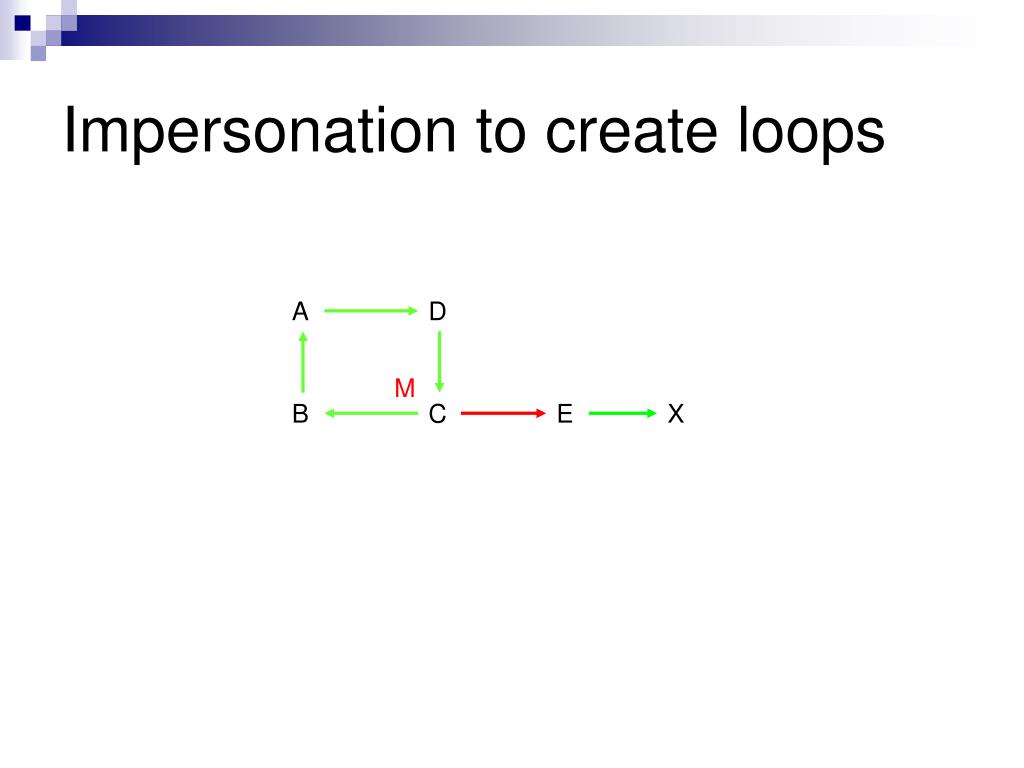

  15. Impersonation to create loops A D M B C E X

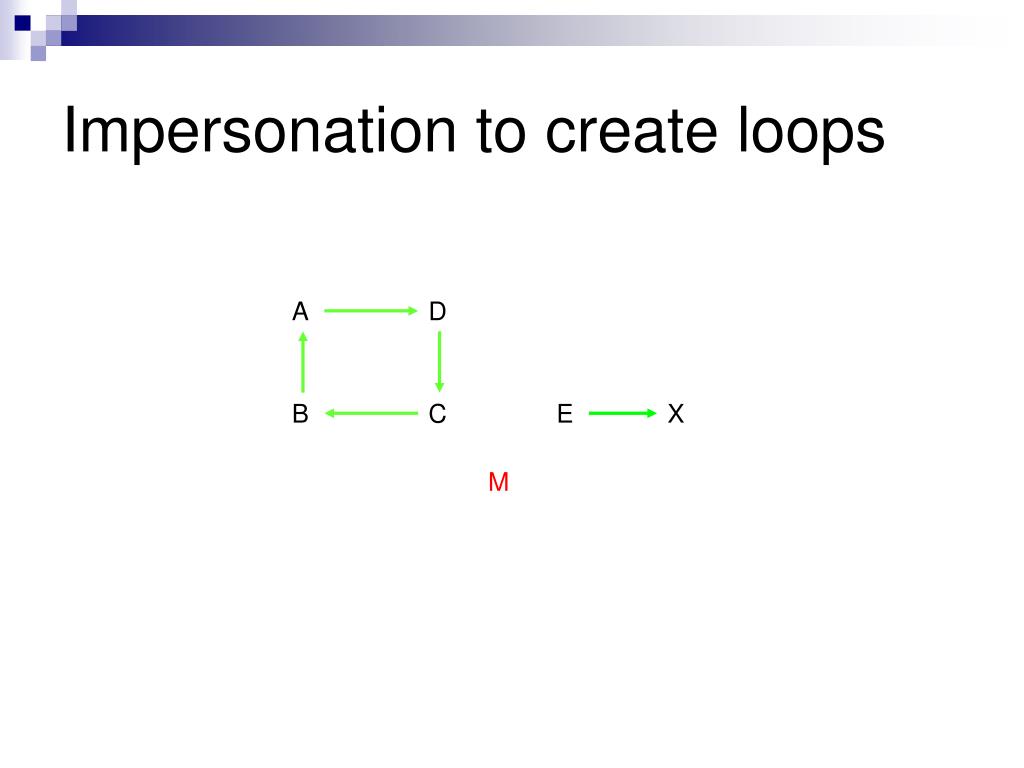

  16. Impersonation to create loops A D M B C E X

  17. Impersonation to create loops A D B C E X M

  18. Fabrication Attacks • False route error messages in AODV and DSR • Route Cache poisoning

  19. Challenges • No centrally administered secure routers • No strict security policies • Highly dynamic nature of mobile ad hoc networks • Current ad hoc routing protocols trust all participating nodes

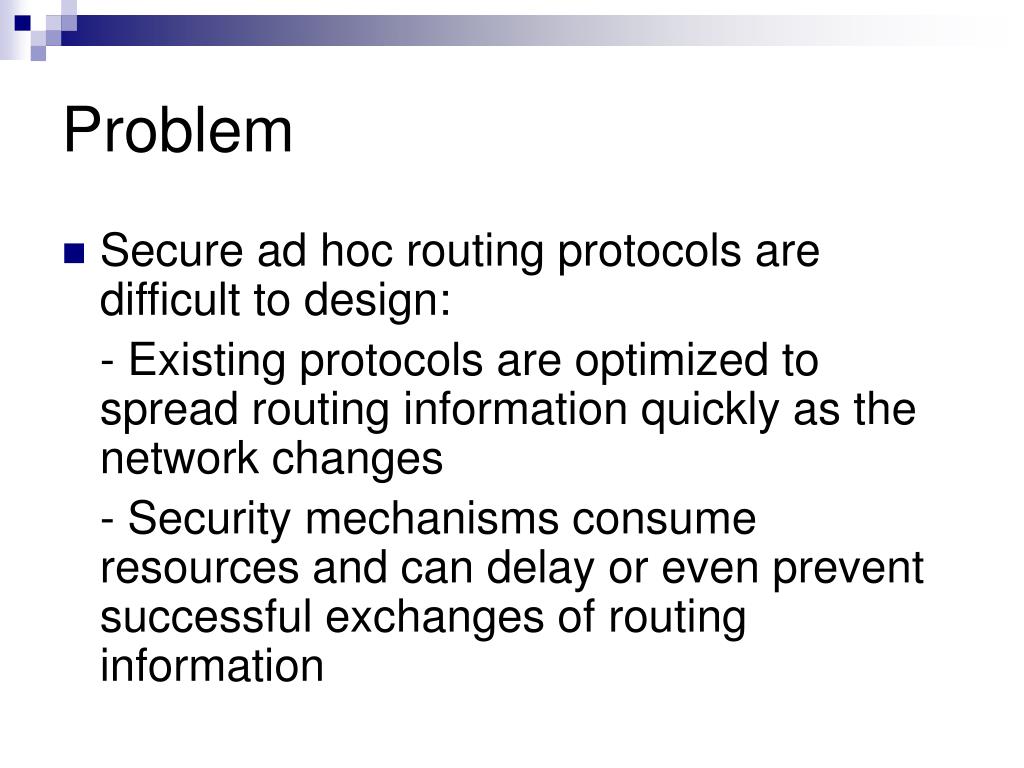

  20. Problem • Secure ad hoc routing protocols are difficult to design: - Existing protocols are optimized to spread routing information quickly as the network changes - Security mechanisms consume resources and can delay or even prevent successful exchanges of routing information

  21. Specific attacks • Location disclosure: reveals information regarding the location of nodes, or the structure of the network • Black hole: an attacker advertises a zero metric for all destinations causing all nodes around it to route packets towards it • Replay attack: an attacker sends old advertisements to a node causing it to update its routing table with stale routes • Wormhole: an attacker records packets at one location in the network, and tunnels them to another location, routing can be disrupted when only routing control messages are tunneled

  22. Requirements for a secure ad hoc routing protocol • Prevents the exploits discussed • Route signaling cannot be spoofed • Fabricated routing messages cannot be injected • Routing messages cannot be altered in transit except in accordance with the functionality of the routing protocol • Routing loops cannot be formed through malicious action • Routes cannot be redirected from the shortest path • Unauthorized nodes should be excluded from route computation and discovery • Network topology should not be exposed neither to adversaries not to authorized nodes

  23. Authenticated Routing for Ad Hoc Networks (ARAN) Protocol • Effectively basic AODV, except route discovery/setup/maintenance are authenticated • Utilizes public-key cryptography to verify hop-by-hop all route request “RDP” & route reply “REP” packets • Eliminates most routing security problems except for tunneling & trivial DoS attacks

  24. Certificate A Public Key A IP Address A Create Time Expiry Time Signature by T ARAN – Initial Setup Certificate B Certificate C Certificate D C B D A Trusted certificate server T

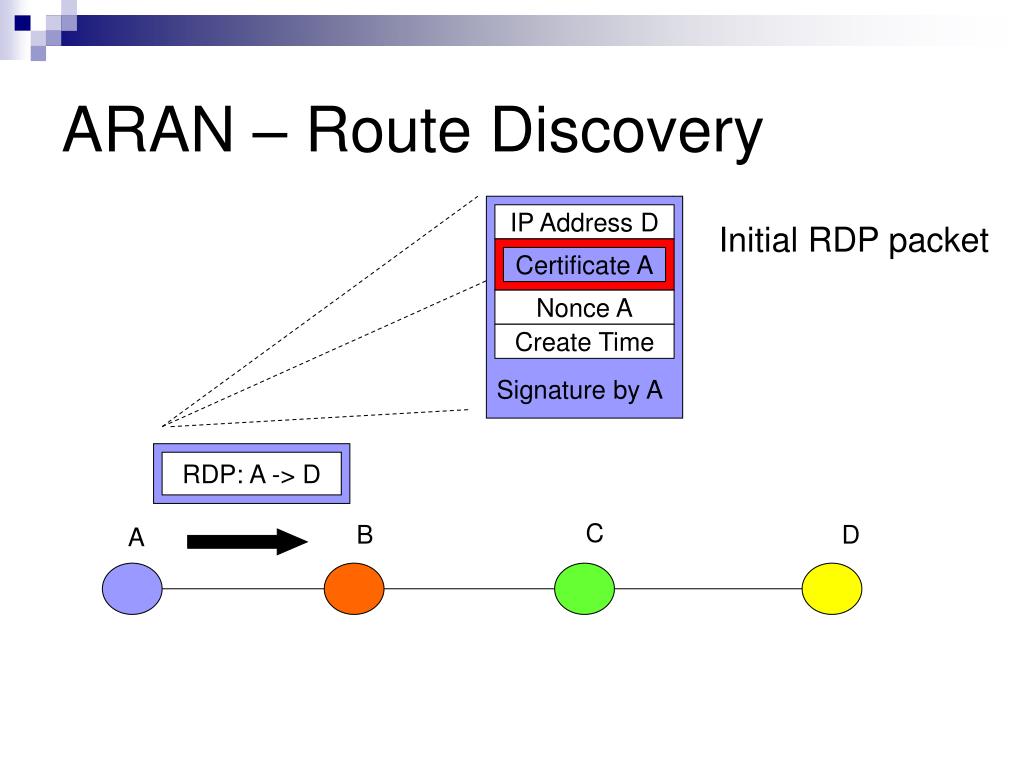

  25. IP Address D Certificate A Nonce A Create Time Signature by A RDP: A -> D ARAN – Route Discovery Initial RDP packet C B D A

  26. Signature by B Certificate B RDP: A -> D RDP: A -> D ARAN – Route Discovery Intermediate RDP Packet verified C B D A

  27. Certificate C RDP: A -> D RDP: A -> D ARAN – Route Discovery Signature by C verified verified C B D A

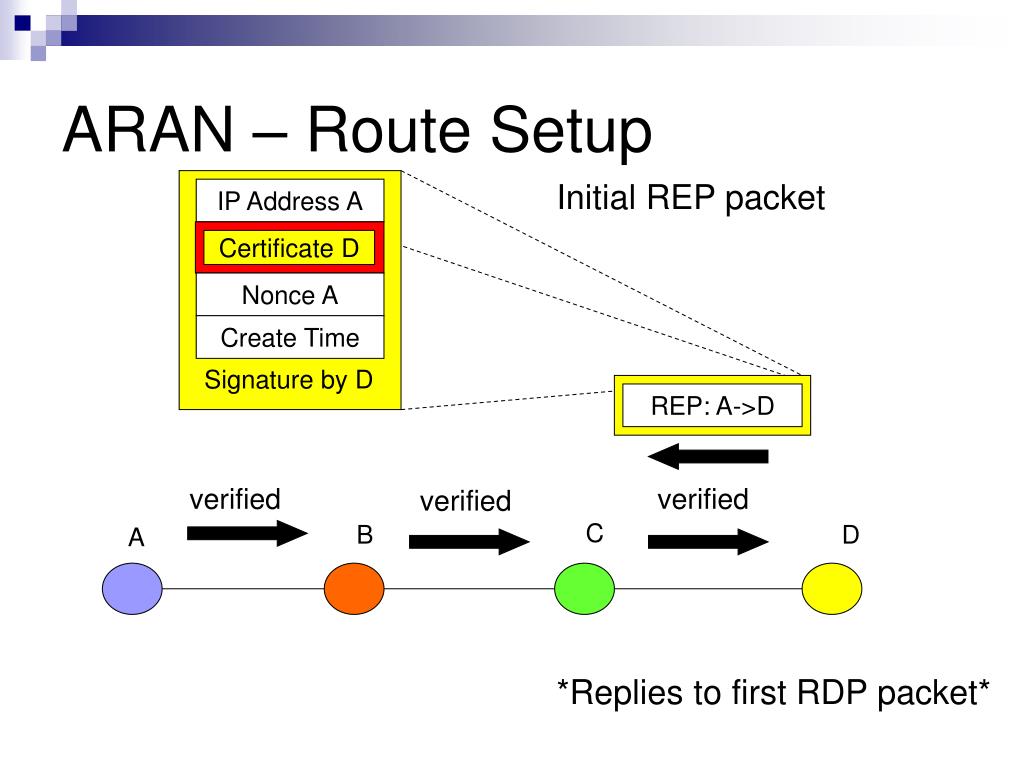

  28. IP Address A Certificate D Nonce A Create Time Signature by D ARAN – Route Setup Initial REP packet REP: A->D verified verified verified C B D A *Replies to first RDP packet*

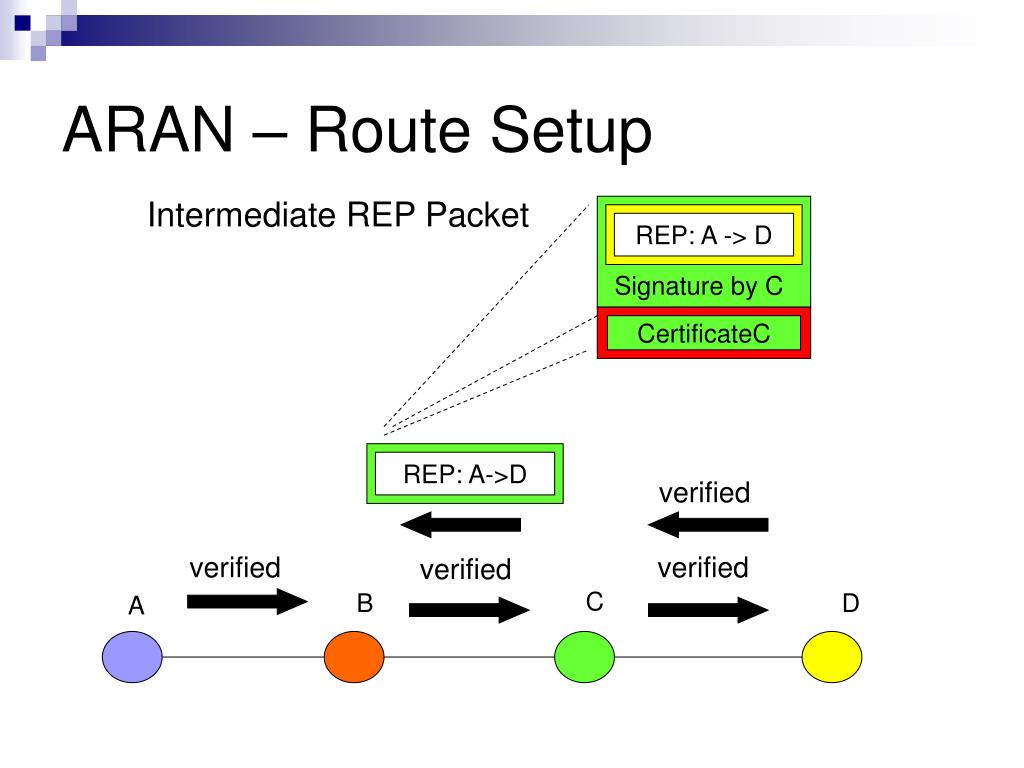

  29. ARAN – Route Setup Intermediate REP Packet REP: A -> D Signature by C CertificateC REP: A->D verified verified verified verified C B D A

  30. REP: A -> D Signature by B CertificateB ARAN – Route Setup REP: A->D verified verified verified verified verified C B D A

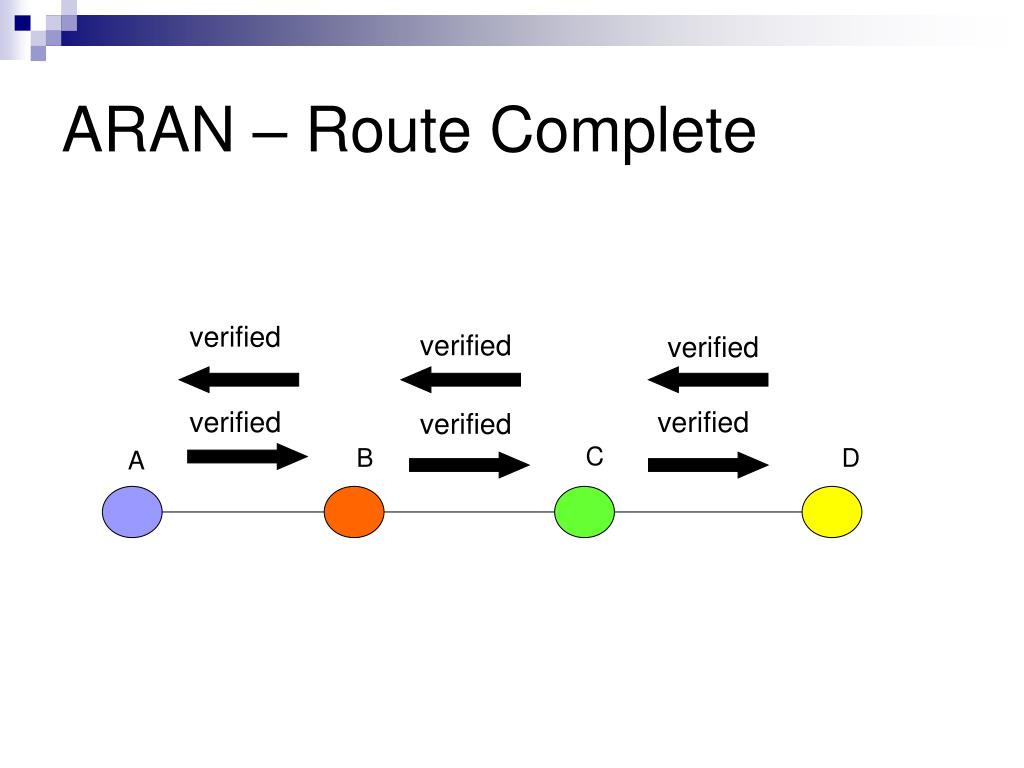

  31. ARAN – Route Complete verified verified verified verified verified verified C B D A

  32. IP Address A IP Address D Certificate C Nonce C Create Time Signature by C ARAN – Route Maintenance ERR: A->D C B D A Link broken!

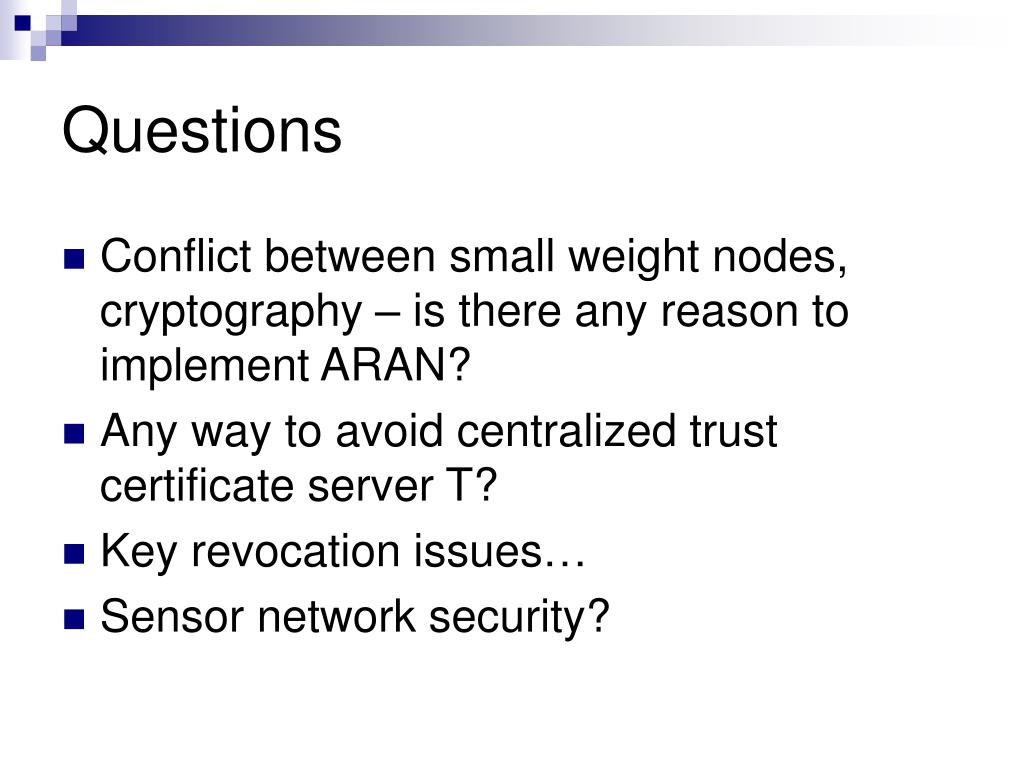

  33. Questions • Conflict between small weight nodes, cryptography – is there any reason to implement ARAN? • Any way to avoid centralized trust certificate server T? • Key revocation issues… • Sensor network security?
