  1. EasyPact EZC™ It’s so Easy and simple !

  2. Contents • Applications • The range • Accessories and auxiliaries • Conclusion

  3. Applications • Easy solution • A worldwide range • Low Voltage applications

  4. Easy solution • Easy to choose and buy: • from 15 A to 400 A, • up to 50 kA at 415 V, • in only 3 frame sizes, • with a complete range of auxiliaries and accessories, • unique worldwide catalogue number. • Easy to install: • fixed mounting, • plug-in mounting, • front connections, • bare cables connected through cable lugs, • field installable auxiliaries and accessories, • built-in earth-leakage protection, • interchangeable MCCB and ELCB. • Easy to use: • a thermal calibration suitable for MCCB use at 50°C without derating, • positive contact indication for safety and reliability.

  5. A worldwide range • EasyPact EZC™ complies with worldwide standards: • IEC 60947-1/2, • IEN EN60947-2 and the corresponding national standards, • NEMA AB1 (High Interrupting Capacity), • UL 508 / CSA 22-2, • JIS C 8370 Japanese standard, • GB14048-2 Chinese standard, • IACS for Merchant Marine (pending approvals), • EasyPact EZC™ is in full compliance with RoHS.

  6. Low Voltage applications Machine manufacturers Terminal distribution / housing Tertiary / industrial Motors Capacitors

  7. The range • EasyPact™in Schneider Electric breakers family • The EasyPact™range • Performances • EasyPact™250 ELCB

  8. EasyPact EZC™in Schneider Electric breakers family kA Industrial and high-end performances : Compact NSX 150 70 45 35 25/30 10/15 7,5 NSX400 NSX 100 NSX 160 NSX 250 Performances standard : EasyPact EZC EasyPact EZC 100 EasyPact EZC 250 EasyPact EZC 400 A 15 100 250 400

  9. The EasyPact EZC™range • In only 3 frame sizes: • from 15 A to 400 A, up to 50 kA at 415 V. EasyPact EZC 100 EasyPact EZC 400 EasyPact EZC 250 EasyPact EZC 250 ELCB

  10. Performances Breaking Capacity Icu kA at 415Vac 50 EZC400H 36 EZC250H EZCV250H EZC400N 30 EZC100H 25 EZC250N EZCV250N 18 EZC250F 15 EZC100N 10 EZC100F 7.5 Ratedcurrent In A EZC100B 15 60 100 400 250 EasyPact EZC100 EasyPact EZC 250 EasyPact EZC400

  11. Performances • Breaking capacities by standards. 250 AF 400 AF 100 AF kA B F N H N H F N H 550V IEC-JIS 2.5 5 5 10 20 5 10 15 15 400/415V 15 7.5 10 30 18 25 36 36 50 230/240V 10 25 25 100 25 50 85 85 100 480V Nema - - 10 18 15 18 25 25 35 240V - - 25 100 25 50 85 50 85

  12. EasyPact EZC™ 250 ELCB Integrated Earth-Leakage Circuit Breaker (ELCB) • Built-in ELCB function: • fully interchangeable with MCCB, • same MCCB foot print and panel cut. EZCV 250 EZC250

  13. Mechanical flag Electronic Toroid EasyPact EZC™ 250 ELCB Integrated Earth-Leakage Circuit Breaker (ELCB) • Built-in ELCB function: • 3 Poles and 4 Poles versions neutral on the left, • ratings from 63A to 250A, • adjustable ELCB settings: - IDn from 0.1A to 1A, - Dt from 0 to 1000 ms, • mechanical flag: - tripping indication on earth fault current. EZCV 250 – 3P

  14. EasyPact EZC™ 250 ELCB Safety as a key characteristics • Built-in earth-leakage function: • fully checked in the factory. • Electronics with power supply from the 3 phases: • ELCB protection is active, even if one phase is missing. • Dielectric tests: • electronics is disconnected by an internal switch, • dielectric switch forces breaker to trip. • Impossible to switch on the breaker: • when ELCB function is not active. • Test button checking the whole function: • from the earth fault to the tripping.

  15. Accessories and auxiliaries • Electrical and mechanical accessories overview • Plug-in version • Fishbone installation system • Field-installable auxiliaries • Direct and extended rotary handles • Isolation accessories • Upstream and downstream connections

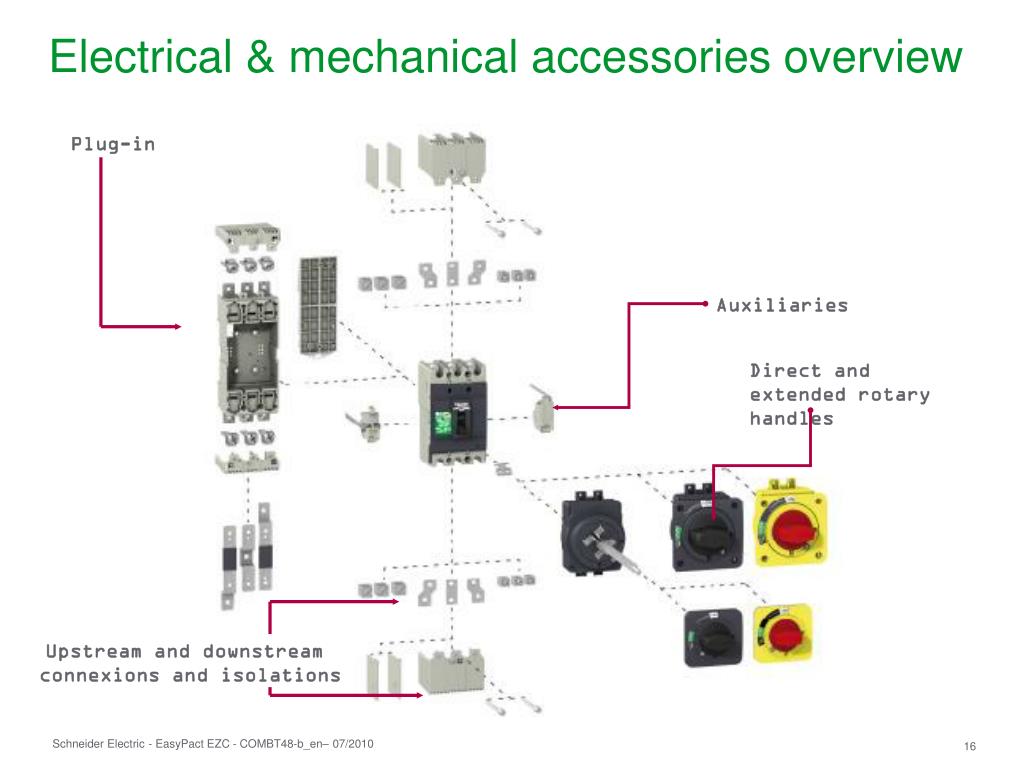

  16. Electrical & mechanical accessories overview Plug-in Auxiliaries Direct and extended rotary handles Upstream and downstream connexions and isolations

  17. Plug-in accessory • Specially dedicated toMarine market. • Available for 100A, 250A circuit breakers. • Reduces installation and maintenance time. • Brings more installationflexibilityto EasyPact EZC™ range. • Meets most of Marine standards: • ABS, BV, DNV, CCS, KRS, NK, RINA, GL, LR • Offers excellentelectrical, mechanical performance and vibration resistance. • Includesultra-reliable insulationbarring direct access to the inside for people safety.

  18. Fishbone accessory • Fishbone: • especially dedicated to Marine market, • available for 100A circuit breakers, • reduces connection time and installation space, • brings-in more installation flexibility to EasyPact EZC™range.

  19. Field-installable auxiliaries • Safe insulated accessory installation. • Snap-in: • auxiliary switch, • alarm switch, • earth alarm switch (EZCV), • combined auxiliaryand alarm switches, • shunt trip release, • undervoltage release. • Lead wire connections with specific guidance.

  20. Direct and extended rotary handles • Rotary handles: • direct, • extended, • emergency(red/yellow), • Padlock attachment: • locking in “OFF” position, • full compliance with IEC 60947-2(positive break indication).

  21. Isolation accessories • Phase barriers: maximum insulation • slide easily onto the circuit breaker. • Terminal shields: protection against direct contact with power circuits • suitable for cables and bars. Phase barriers Terminal shields

  22. Upstream and downstream connections • Multiple choices of connections: • crimp lugs, • bars with lugs, • cable lugs, • spreaders.

  23. Conclusion • 3 frame sizes (100, 250, 400) answering most of the applications • Full 4 poles offer (100, 250, 400) • Built-in ELCB for 250 AF • RoHS compliance with Directive • Worldwideavailability
