  1. Sun NFS Distributed File System Presentation by Jeff Graham and David Larsen

  2. Sun NFS Overview • OS Independence • NFS specification written with many UNIX file system similarities, but allows for OS agnostic implementation • Stateless server, statefulclient (Kind of……) • Simplicity in crash recovery • No need for server to maintain memory of past transactions (Kind of…..) • Implemented on UDP/IP (RPC) – though TCP may also be used. • TCP useful in that the transport layer can prevent duplicate requests • Transparency in Access • Sun’s NFS client written to allow network file access be transparent to user • Once mounted, using remote file system is just as easy as using local file system

  3. NFS Architecture Diagram

  4. Paper’s Comparison of Major v2 and v3 Differences Version 2 Version 3 64 Bit File Sizes Synchronous and Asynchronous Writes Allowed Introduction of pre-op and post-op attributes for weak cache consistency Provides support for directory contents and file attributes in a single operation • 32 Bit File Sizes • Synchronous Writes Only • No ability to check pre-op file attributes • Directory contents and file attributes requested individually

  5. Stateless Server • Simplified Crash Recovery • Idempotentcy • Many requests (such as reading data) idempotent by nature • Others, such as creating, moving,and deleting files are not • Servers maintain a duplicate request cache to prevent replays of recent requests • Most servers store this cache in RAM, so a server crash can lead to destructive request duplication • Implementations may store some other types of state • Read-ahead caching for expected read requests • File locking can be problematic (and inherently stateful) • Additional lock daemon necessary • Server crashes cause locks to be lost

  6. Stateful Clients • Client stores data not committed to server • Weak cache consistency • Client caches and compares file attributes (modified time) for cache invalidation • Compare pre-operation attribute to post-operation attribute • Based on result of comparison, client that updated the file knows if its cached data is correct or not • Saves client from having to re-download file from NFS server unnecessarily • Clients responsible for validating data after a server crash

  7. Crash Recovery • Unique 8-byte write verifier changed after server crash • Client uses this to know if it must re-commit data that would have been lost if server crashed • Client/Server contract: server may not discard uncommitted data without changing this identifier • Client re-sends uncommitted data upon detecting that a server crash occurred • Implementation question: update write verifier after a clean shutdown?

  8. Synchronous Writes • Client requests synchronous write • Server must commit data to stable storage before responding • Server sends confirmation to client once data is stored • Client does not need to track data that is confirmed as written

  9. Asynchronous Writes • Client requests asynchronous write • Server acknowledges write request • Acknowledgment means only that server has received request • Data may or may not be stored to stable storage • Client responsible for confirming (via a COMMIT request) • Once server responds to COMMIT request, data has been saved • Client is responsible for caching all data until COMMIT is verified.

  10. Paper’s Comparison of v2 and v3 Performance – Sequential Writes

  11. Critical Review of NFS Paper Presented Idea Potential Improvement While clearly meant to compare Version 2 to Version 3, some comparisons to performance of other network file systems would be helpful. • Paper focused on comparing NFS Version 3 to Version 2

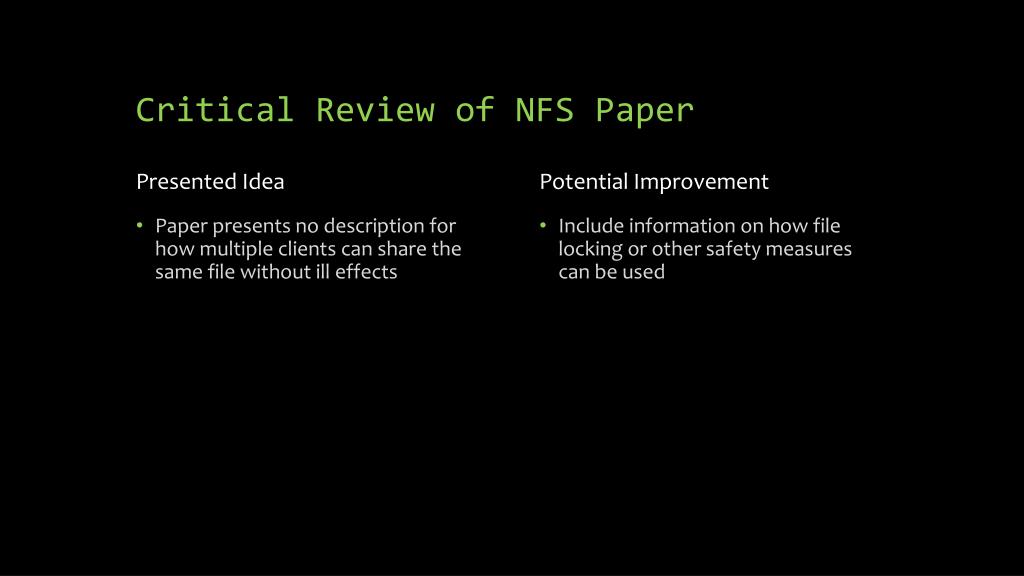

  12. Critical Review of NFS Paper Presented Idea Potential Improvement Include information on how file locking or other safety measures can be used • Paper presents no description for how multiple clients can share the same file without ill effects

  13. Sun NFS Drawbacks • Weak support for multiple users needing to modify the same file • Implementations can allow encryption, but it is not part of the protocol • Cross-implementation capability would be difficult, perhaps impossible, if not defined in the protocol

  14. Questions?
