flat flanges

http://www.mpjainco.com/pipe-flanges/ff-flat-flanges-manufacturer-exporter/<br><br>What is a Flat Flanges<br>The Flat flanges has a gasket surface in the same plane as the bolting circle face. It is also known as flat face flange. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting. Flat face flanges are used when the counter-flanges are flat face. This condition occurs mainly on connection to Cast Iron equipment, valves, and specialties. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required.<br><br>Why Choose M P Jain Tubing Solutions LLP<br>M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Flat Flanges according to drawings provided by customers.<br><br>An ISO / OHSAS / PED Certified Exporters and stockist of Flat Face Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.<br><br>M P JAIN TUBING SOLUTIONS LLP<br><br>Tel: 022-23465538 / 022-23460403<br><br>Email: exports@mpjainco.com<br><br>Visit Our site:http://www.mpjainco.com

mpjainco
Télécharger la présentation

flat flanges

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

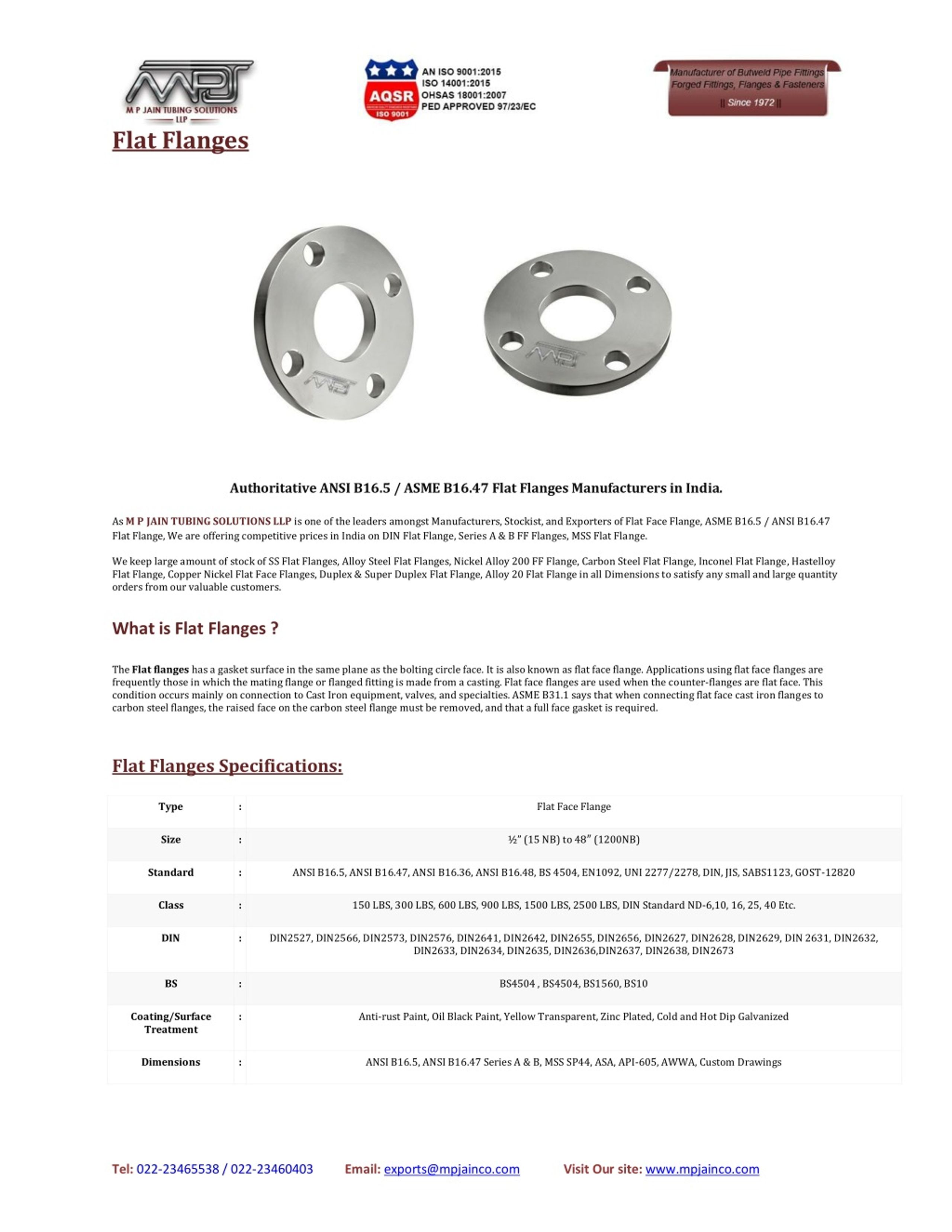

  1. Flat Flanges Authoritative ANSI B16.5 / ASME B16.47 Flat Flanges Manufacturers in India. As M P JAIN TUBING SOLUTIONS LLP is one of the leaders amongst Manufacturers, Stockist, and Exporters of Flat Face Flange, ASME B16.5 / ANSI B16.47 Flat Flange, We are offering competitive prices in India on DIN Flat Flange, Series A & B FF Flanges, MSS Flat Flange. We keep large amount of stock of SS Flat Flanges, Alloy Steel Flat Flanges, Nickel Alloy 200 FF Flange, Carbon Steel Flat Flange, Inconel Flat Flange, Hastelloy Flat Flange, Copper Nickel Flat Face Flanges, Duplex & Super Duplex Flat Flange, Alloy 20 Flat Flange in all Dimensions to satisfy any small and large quantity orders from our valuable customers. What is Flat Flanges ? The Flat flanges has a gasket surface in the same plane as the bolting circle face. It is also known as flat face flange. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting. Flat face flanges are used when the counter-flanges are flat face. This condition occurs mainly on connection to Cast Iron equipment, valves, and specialties. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. Flat Flanges Specifications: Type : Flat Face Flange Size : ½” (15 NB) to 48″ (1200NB) Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820 Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 BS : BS4504 , BS4504, BS1560, BS10 Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Tel: 022-23465538 / 022-23460403 Email: exports@mpjainco.com Visit Our site: www.mpjainco.com

  2. Flat Flanges Materials & Grades: Materials : Standard, Grades Stainless Steel Flat Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L Carbon Steel Flat Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 Alloy Steel Flat Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 Duplex Steel Flat Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 6% Moly / Super Duplex Flat Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 Low Temperature Steel Flat Flanges : ASTM A350 LF2, LF3, LF6 High Yield Flat Flanges : ASTM A694 F42, F52, F60, F65, F70 Nickel Alloys Flat Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) Copper Alloys Flat Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 Alloys Flat Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2 Other Grade of Flat Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy Why choose us for FLAT FLANGE ?        On-Time Delivery Competitive Prices High Quality Product Quick Response by Email & by Phone An ISO 9001:2015 Certified Company Small and Large quantity orders Specialize as per drawing Applications of Flat Flange         Chemicals Fertilizers Industries Heat Exchanger Instrumentation Nuclear Thermal Industries Oil Gas Industries Pharmacy Surgical Industries Refineries Petrochemicals Water Gas Piping Systems Tel: 022-23465538 / 022-23460403 Email: exports@mpjainco.com Visit Our site: www.mpjainco.com

  3. Flat Flange Price List Tel: 022-23465538 / 022-23460403 Email: exports@mpjainco.com Visit Our site: www.mpjainco.com
