ActiveSLA : A Profit-Oriented Admission Control Framework for Database-as-a-Service Providers

1. ActiveSLA: A Profit-Oriented Admission ControlFramework for Database-as-a-Service Providers PengchengXiong (Georgia Tech); Yun Chi (NEC Labs America); Shenghuo Zhu (NEC Labs America); Junichi Tatemura (NEC Labs America); CaltonPu (Georgia Tech); HakanHacigumus (NEC Labs America)

2. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

3. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

4. Database-as-a-service (DaaS) • DaaS provider consolidates multiple clients in shared infrastructures (multi-tenancy) • greater economies of scale • fixed cost distribution • Problem: system overload due to unpredictable and more bursty workloads • dynamic provisioning, • queuing and scheduling, and • admission control

5. Admission control related work None of them has well addressed the problem to directly maximize DaaS provider’s profits by satisfying different SLAs for their clients! Macro level (feedback based): keep the mean query execution time at a specific level by tuning the best multiple programming level (MPL) for a given workload, e.g., ICDE2006 Micro level (query-by-query based): estimate every single query’s execution time by query type and query mix, e.g., WWW2004, ICDE2010

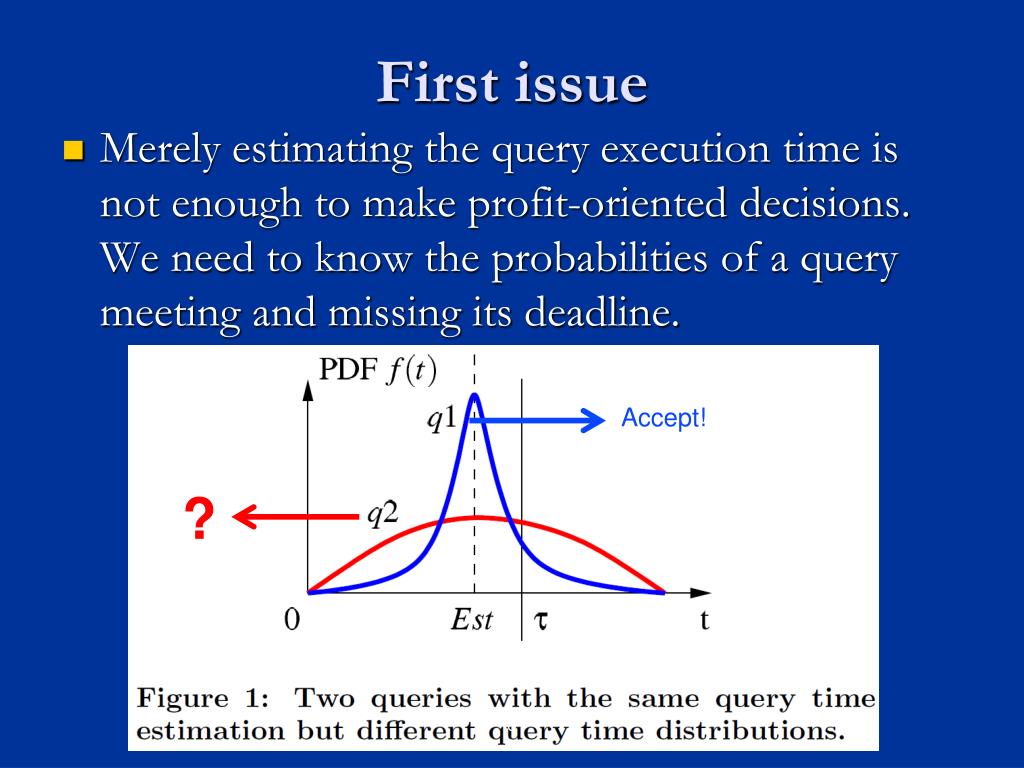

6. First issue Accept! ? Merely estimating the query execution time is not enough to make profit-oriented decisions. We need to know the probabilities of a query meeting and missing its deadline.

7. Second issue We may have to make different admission control decisions even when the queries have the same deadline and the same probability of meeting the deadline due to different SLAs.

8. System architecture of ActiveSLA

9. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

10. Prediction module design • What kind of models to use? • The model selection between linear and nonlinear models, between regression and classification models • What features to use? • The rich set of features for DaaS providers

11. Model selection • Linear vs. Nonlinear • The execution time of a query depends on many factors in a non-linear fashion, i.e., isolation levels and available buffer size • Regression vs. Classification • From the machine learning point of view, a direct model of classification usually outperforms a two-step regression based approach.

12. Feature collection • Query Type and Mix (TYPE, Q-Cop, ActiveSLA) • Query Features (ActiveSLA) • E.g., the estimated number of sequential I/O • Database and System Conditions (ActiveSLA) • Buffer cache: the fraction of pages of each table that are currently in the database buffer pool. • System cache: the fraction of pages of each table that are currently in the operating system cache. • Transaction isolation level: Read Committed(FALSE) or Serializable(TRUE). • CPU, memory, and disk status: the current status of CPU, memory, and disk in the operating system.

13. Summary

14. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

15. Prediction module evaluation False positive False negative Total number • Query Sets with PostgreSQL server • TPC-W1 (browsing queries) • TPC-W2 (mixture of browsing and administrative queries) • TPC-W3 (mixture of browsing, administrative, and updating queries) • Prediction error

16. Prediction module evaluation For different query sets(TPC-W2,3), different SLA settings (30s, 45s, 60s),we observe a steady decrease of errors when we use non-linear model, classification model, and include more features

17. Details on the Machine Learning Model Positive value->more likely to miss deadline Negative value->unlikely to miss deadline CPU waiting% for IO Q10 is the update query that needs exclusive lock Lots of lock contention Very likely to miss deadline

18. Details on the Machine Learning Model Query Plan B Query Plan A

19. Overhead and feature sensitivity • The more features, the better • The gain by using more features is less than the gain by using a better model. • Overhead • Training overhead. 72ms to build an initial model by using 12,000 samples. • Evaluation overhead. 8ms • Feature sensitivity

20. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

21. Decision module design General SLA and PDF of query execution time Step-wise SLA and PDF of query execution time The probability that the query can meet deadline

22. Multiple Query Decision Admitting qinto the database server may slow down the execution of other queries that are currently running in the server and make them miss deadline. Admitting qwill consume system resources and change the system status. This may result in the rejection of the next query, which may otherwise be admitted and bring in a higher profit. Model this as opportunity cost o.

23. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusions

24. Decision module evaluation • Result with stationary workload (static Poisson arrival rate) • Result with non-stationary workload (dynamic Poisson arrival rate according to 1998 World Cup Trace) • Single SLA • Multiple SLAs(service differentiation)

25. Result with stationary workload

26. Result with non-stationary workload

27. Single SLA summary Multiple SLAs summary

28. Overview Motivation Prediction module design Prediction module evaluation Decision module design Decision module evaluation Conclusion

29. Conclusion • We proposed a framework, ActiveSLA, for admission control in cloud database systems. • Prediction module to predict the possibility that a query can meet/miss deadline. • Decision module to make the profit-oriented decision. • Future work • Improve the inaccuracy for the query features such as the number of sequential I/O due to the incorrect statistics and cardinality estimates of a query execution plan. • Extend our prediction module by including the level of replication as one of the system variables. • Extend our ActiveSLA to deal with different types of database systems to manage data and serve queries, e.g., NoSQL databases.

30. Thank you! PengchengXiong is now on the job market E-mail: xiong@gatech.edu
