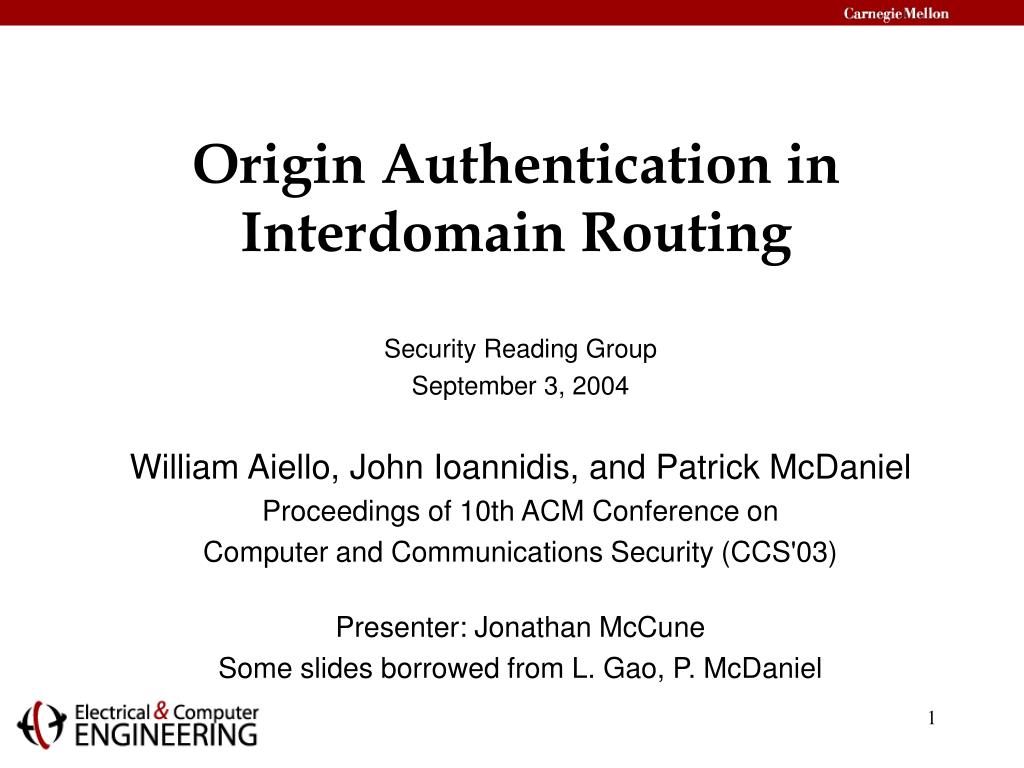

1. Origin Authentication inInterdomain Routing Security Reading Group September 3, 2004 William Aiello, John Ioannidis, and Patrick McDaniel Proceedings of 10th ACM Conference on Computer and Communications Security (CCS'03) Presenter: Jonathan McCune Some slides borrowed from L. Gao, P. McDaniel

2. Interdomain Routing Security Issues • We don’t authenticate ASes • How can we tell Sprint from somebody who claims to be Sprint? • We don’t authenticate paths • How do we know a malicious party is not changing the route our traffic takes? • We don’t authenticate addresses • How do we know that an enterprise uses only those addresses is has the right to? • Origin Authentication: validation of an AS’s claim of address ownership

3. Overview • Background • Formalization • Semantics of address delegation • Origin authentication proof systems • Modeling • Address delegation graph • Evaluating resource costs • Feasibility of an online Origin Authenticationsystem

4. Interdomain Routing • The Internet consists of many routing domains: • Routing inside a domain is determined by an intradomain routing protocol (e.g., OSPF) • Routing between domains is governed by an interdomain routing protocol (e.g., BGP) • Intradomain and interdomain routing decisions are largely made independently • Reasons: • Scale • Administrative autonomy

5. BGP (Border Gateway Protocol) • BGP: • The interdomain routing protocol used on the Internet • Routing domains are called Autonomous Systems (ASes), e.g. AT&T. • ASes: • Announce the prefixes that they own (IP address ranges, e.g. 12.1.1.0/24) to their neighboring ASes. • Exchange prefix announcements with all one-hop neighbors

6. Intra-AS and Inter-AS Routing: Example The route from A.d to B.b: intra-AS and inter-AS path segments. Source: Computer Networking: A Top-Down Approach Featuring the Internet

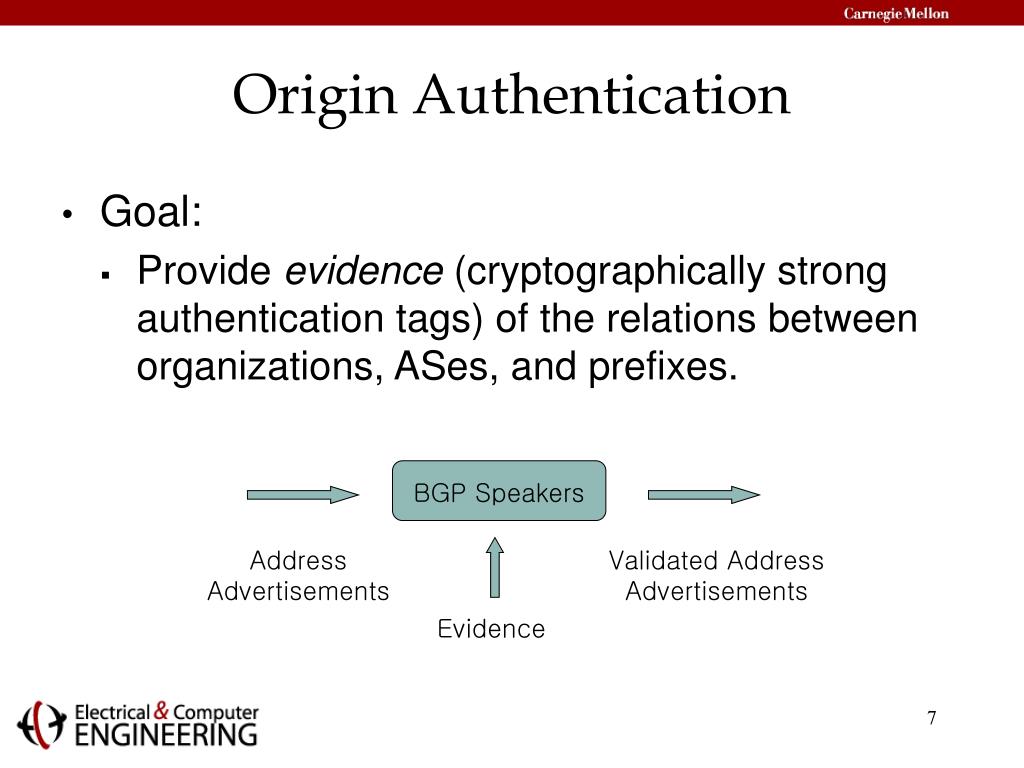

7. Origin Authentication • Goal: • Provide evidence (cryptographically strong authentication tags) of the relations between organizations, ASes, and prefixes. BGP Speakers Address Advertisements Validated Address Advertisements Evidence

8. Address Delegation • Registries – ISPs – Customers • The IPv4 address space is governed by IANA • IANA delegates parts of the global address space to organizations • Each organization may further • Delegate some or all of the received address space to any organization it desires • Assign its address space to the AS in which the addresses reside • Logistical nightmare: how space was retrieved, by whom, and when is not well documented

9. Address Delegation: Example • AT&T delegates 12.1.1.0/24 to ALPHA • AT&T assigns 12.0.0.0/8 to AS7018 • Longest prefix matching for 12.1.1.0/24 • Address announcements: ASes advertise the set of prefixes that they originate (prefix, ASN)

10. Definition: Organization • ASN = { 1, 2, …, K }, where currently K = 216 • E.g. AS7018, AS29987 • S = { all BGP speaking organizations } • E.g. AT&T, ARIN, ALPHA, BETA • ASN(C) = { AS # currently assigned to C } • E.g. for C = ALPHA, ASN(C) = { AS29987 } • O = S  { IANA }  { other prefix registries }

11. IPA = { 0, 1 }l, where l = 32/64 for IPv4/IPv6 Address Prefixes: x/j x is a j bit number, and j  [ 0, l ], e.g. 128/8 x/j = { xy | y is a (l-j) bit number } IPA = /0 Definition: Prefixes x/j x1/(j+1) x0/(j+1) Disjoint Union Superset Subprefix and superprefix

12. /0 0/1 1/1 00/2 01/2 10/2 11/2 00/32 11/32 Prefix Tree of IPA

13. Delegation Semantics • An organization C in O delegates/assigns y/k by (C, y/k, x) • Where: • x = C’ in O (organization delegation) or • x = n in ASN (AS assignment) or • x = R (RESERVED) or • x = (UNAUTHENTICATED) • P (C) = delegations made by C in O

14. Definition: delegation policy • For a given prefix y/k and an organization C: • (C, y/k, n): C assigns y/k to an ASN n • (C, y/k, C’): C delegates y/k to C’ • (C, y/k, R): C declares y/k as RESERVED • (C, y/k, U): C’s delegation or assignment of y/k is UNAUTHENTICATED • C may perform zero, one, or more of the above options • The set of triples is C’s delegation policy for y/k

15. Delegation Graphs • A directed graph G = (V, E) • V=O  ASN  R  U   • E={(x, y/k, z)} • Example: • V = { IANA, AT&T, … } • E = {(IANA,12.0.0.0/8,AT&T), … } • Definition: • Ownership Source • Assignment Edge • ASN-respecting

16. Valid & Faithful • A directed path is valid for y/k if: • The ownership source is IANA • The path is monotonic (with respect to subprefix) • The path is acyclic • The assignment edge is labeled y/k and is ASN-respecting • C’s delegation policy is faithful for y/k if there is at most one triple in the form: • (C, y/k, n) • (C, x/j, C’), (C, x/j, U), or (C, x/j, R), where x/j is a superprefix of y/k

17. Verification of Origin Announcements • OAs are verified by Origin Authentication Tags (OATs): • A delegation path • A set of delegation attestations • one for each edge in the path • An ASN Ownership Proof • Assumption: certificate infrastructure (PKI) • Attestations are proofs of edges in the graph

18. Delegation Schemes • Simple Delegation Attestation (SDA) • Authenticated Delegation List (ADL) • AS Authenticated Delegation List (AS ADL) • Authenticated Delegation Tree (ADT)

19. Simple Delegation Attestation • A signature by C for a prefix x/j: • { ( C, x/j, FC(x/j) ) }C • A signed statement (by C’s key) binding the prefix (x/j) to an organization identifier (FC(x/j)) • The simple delegation attestation for D(C): { ( C, x1/j1, FC(x1/j1) ) }C, { ( C, x2/j2, FC(x2/j2) ) }C, …, { ( C, xs/js, FC(xs/js) ) }C

20. The delegation path for 12.1.1.0/24 is: (IANA, AT&T, ALPHA, AS29987) The delegation attestation for the path are: [(IANA, 12.0.0.0/8, AT&T)]IANA, [(AT&T, 12.1.1.0/24, ALPHA)]AT&T, [(ALPHA, 12.1.1.0/24, AS29987)]ALPHA SDA: An Example

21. Authenticated Delegation List • C creates a single list of all of its delegations and sign that list [ { ( C, x1/j1, FC(x1/j1) ) }, { ( C, x2/j2, FC(x2/j2) ) }, …, { ( C, xs/js, FC(xs/js) ) } ]C • If C delegates xi/ji to B • C signs all of the delegations it makes to everyone. • B advertises xi/ji and provides this attestation

22. The delegation path for 12.1.1.0/24 is: (IANA, AT&T, ALPHA, AS29987) The delegation attestations for the path are: [(IANA, 12.0.0.0/8, AT&T), (IANA, 64.0.0.0/8, ARIN)]IANA, [(AT&T, 12.1.1.0/24, ALPHA), (AT&T, 64.1.0.0/16, AS7018), (AT&T, 12.0.0.0/8, AS7018)]AT&T, [(ALPHA, 12.1.1.0/24, AS29987)]ALPHA ADL: An Example

23. AS Authenticated Delegation List • C breaks up the entire list into several lists and signs each of the smaller lists. • The list is split according to those prefixes: • delegated to the same organization or • assigned to the same AS number • If C delegates xi/ji to B • C signs all of the delegations it makes to B. • B advertises xi/ji and provides this attestation

24. The delegation path for 12.0.0.0/8 is: (IANA, AT&T, AS7018) The delegation attestation for the path are: [(IANA, 12.0.0.0/8, AT&T)]IANA, [(AT&T, 64.1.0.0/16, AS7018), (AT&T, 12.0.0.0/8, AS7018)]AT&T AS ADL: An Example

25. Authenticated Delegation Tree • C creates a Merkle hash tree: • The values of the leaves: ( C, x/j, FC(x/j) ) • The values of each internal node: H(L, R) • If C delegates xi/ji to B • C only signs the root [h0]C • C provides the value of the children of all of the nodes on the path in the Merkel tree from the root to (C, xi/ji, B) • B advertises xi/ji and provides this attestation

26. The delegation attestation for (C, x2/j2, B): {H(L12, R34)}C, H(L3, R4), (C, x1/j1, A) ADT: An Example H(L12, R34) H(L1, R2) H(L3, R4) (C, x1/j1, A) (C, x2/j2, B) (C, x3/j3, D) (C, x4/j4, E)

27. User Dictionary Query Attestations Yes/No + Proof Directory Authenticated Delegation Dictionaries - 1 • The model for an authenticated dictionary • An Authenticated Dictionary for C: • Element: (C, y/k, FC(y/k)) • The search key: address prefixes • Data Structure: balanced 2-3 trees, with leaves sorted based on the search key

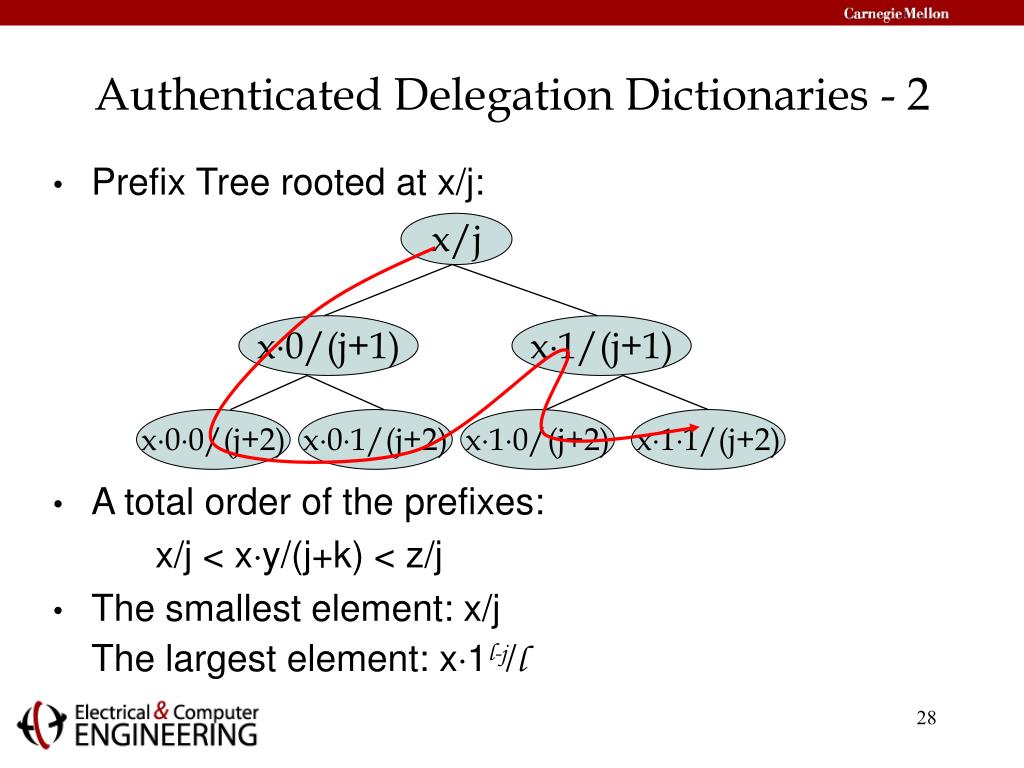

28. x/j x0/(j+1) x1/(j+1) x00/(j+2) x01/(j+2) x10/(j+2) x11/(j+2) Authenticated Delegation Dictionaries - 2 • Prefix Tree rooted at x/j: • A total order of the prefixes: x/j < xy/(j+k) < z/j • The smallest element: x/j The largest element: x1l-j/l

29. k0H(L123,R45) k1 k2H(L1,M2,R3) k3H(L4,R5) (C, x1/j1, A) (C, x2/j2, B) (C, x3/j3, D) (C, x4/j4, E) (C, x5/j5, F)) Authenticated Delegation Dictionaries - 3 • ADD for C: • The delegation attestation for (C, x2/j2, B): • The signed root: {k0H(L123, R45)}C • The value of the children of the nodes of the path:k3H(L4, R5), (C, x1/j1, A), (C, x3/j3, D) • The search tree path

30. Approximating IP Address Delegation • Goal: • To understand how and by whom delegation occurs • Sources: IANA and BGP announcements • What do we learn? • Dense (16 orgs delegate 80% address space) • Stable (10-30% movement in 5 months)

31. Approximation Example

32. Delegation in the ApproximateDelegation Graph • The overwhelming majority of delegations are being performed by a relatively few ASes/organizations

33. Trace-Based Simulation • The OAsim simulator: • Models the operation of a single BGP speaker • Accepts timed BGP UPDATE streams • Computes bandwidth/computational costs • Implements four service designs • Dataset: • Obtained from RouteViews • A trace of BGP updates over a 24 hour period

34. Computational Costs

35. Bandwidth Costs

36. Conclusions • OA is important in inter-domain routing • Trace and validate the delegation of address usage • Formalization • Semantics of address ads & proofs of delegation • Modeling • Current IPv4 address delegation is dense & static • Performance Evaluation • Tree-based proof system has best computation / bandwidth trade-offs • Online origin authentication is now in the realm of possibility
