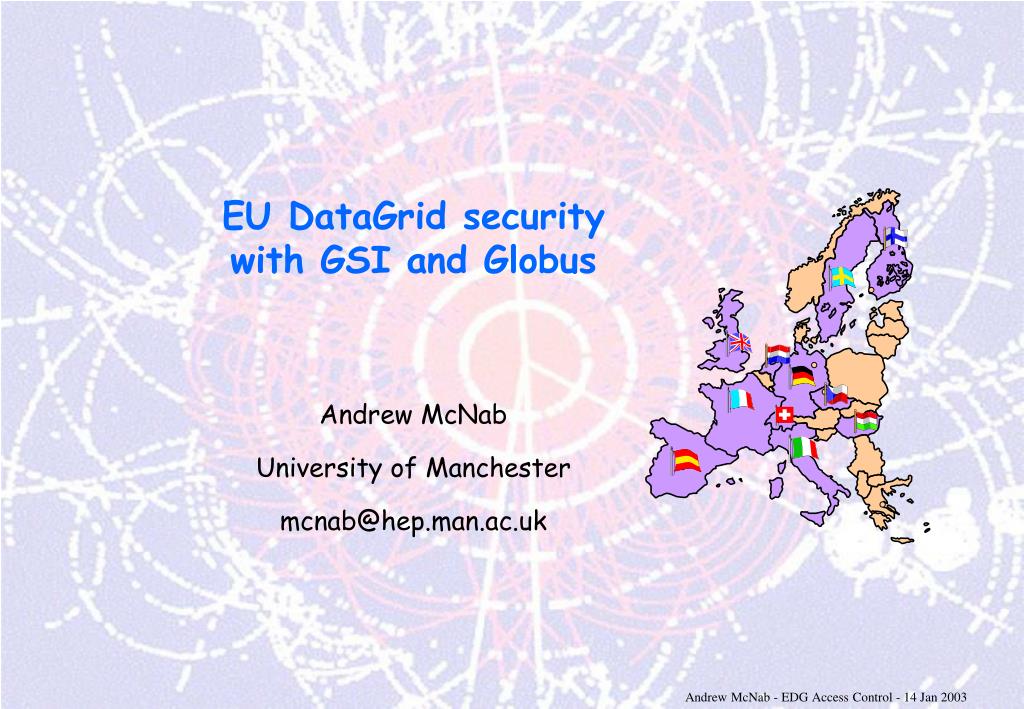

  1. EU DataGrid security with GSI and Globus Andrew McNab University of Manchester mcnab@hep.man.ac.uk

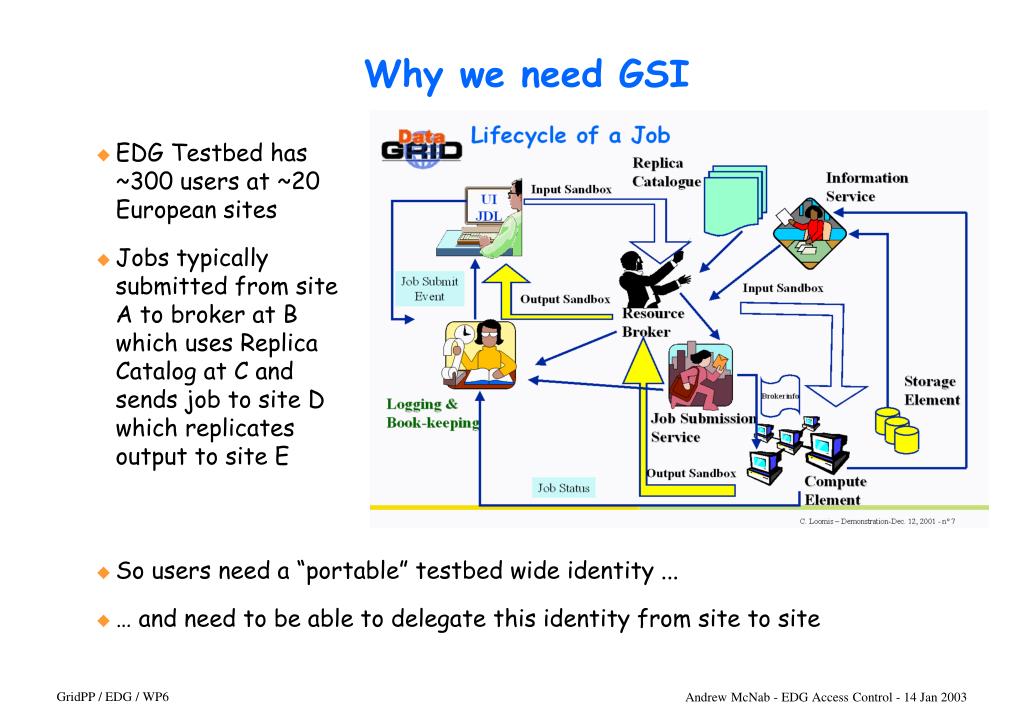

  2. Why we need GSI • EDG Testbed has ~300 users at ~20 European sites • Jobs typically submitted from site A to broker at B which uses Replica Catalog at C and sends job to site D which replicates output to site E • So users need a “portable” testbed wide identity ... • … and need to be able to delegate this identity from site to site

  3. Authentification / CA management • Since GSI built on X509, somehow need to get CA certificates for every CA to each site • EDG software, including bug fixes, distributed as binary packages • Information about Certificate Authorities part of this process • eg RPM for Linux that installs into /etc/grid-security/certificates CA ’s own certificate • Policy file and optional cert request configuration • Location of CRL: automatically found and used by fetcher run from cron • For a CA to be distributed as part of EDG software, it’s CPS must be accepted by EDG CA group. • Sites can still add other CA’s if they trust them

  4. Virtual Organisation membership • GSI provides a testbed-wide identity, but sites need lists of identities to accept • Manually, would have to email ~20 sites with new names every day • EDG currently uses VO authorisation servers: centrally maintained authorisation listings • published via LDAP (~300 users in ~10 VO ’s) • mkgridmap: automatically builds grid-mapfile with local choice of VO ’s. • GUI tools allow VO managers to manage VO membership • Users must also join Acceptable Use Policy VO by signing AUP • AUP defines relationship between all sites and all users in a single place

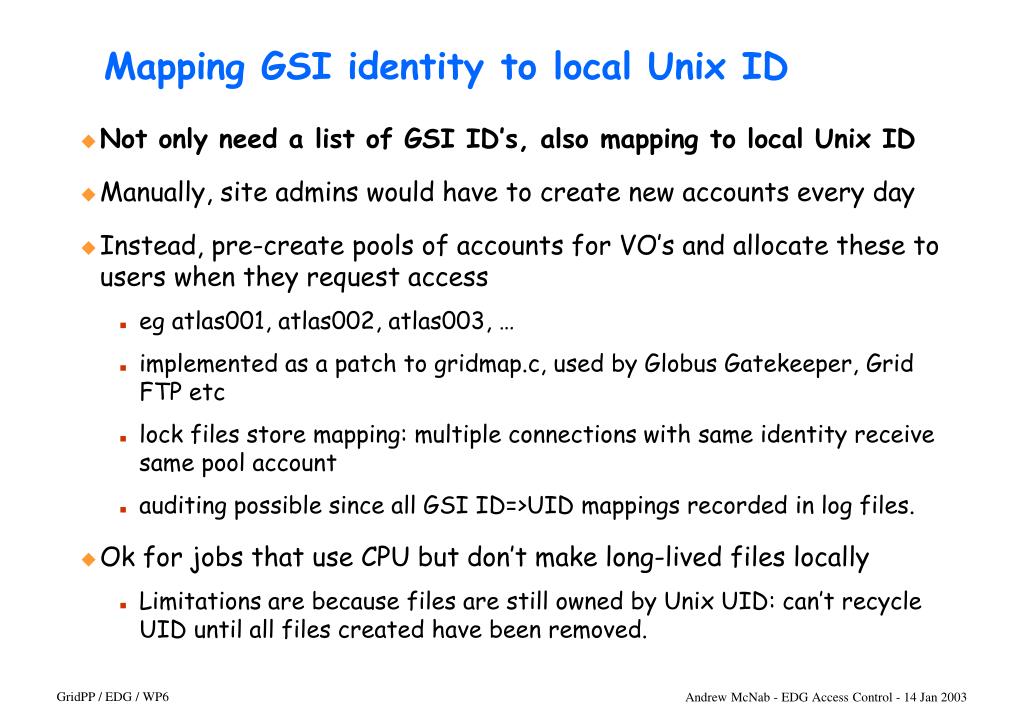

  5. Mapping GSI identity to local Unix ID • Not only need a list of GSI ID’s, also mapping to local Unix ID • Manually, site admins would have to create new accounts every day • Instead, pre-create pools of accounts for VO’s and allocate these to users when they request access • eg atlas001, atlas002, atlas003, … • implemented as a patch to gridmap.c, used by Globus Gatekeeper, Grid FTP etc • lock files store mapping: multiple connections with same identity receive same pool account • auditing possible since all GSI ID=>UID mappings recorded in log files. • Ok for jobs that use CPU but don’t make long-lived files locally • Limitations are because files are still owned by Unix UID: can’t recycle UID until all files created have been removed.

  6. GSI ID vs Unix ID file ownership • GSI gives testbed-wide identity, but local Unix ID still owns files • SlashGrid allows “Grid-aware” filesystems • different types of filesystem provided by plugins. • certfs.so plugin provides local storage governed by Access Control Lists based on GSI ID’s, VO groups, Globus CAS or VOMS. • Since new ACL’s just have creator’s GSI ID, this is equivalent to file ownership by GSI ID rather than UID. • solves admin worries about long lived files owned by pool accounts. • HTTP/HTTPS plugin (curlfs) ultimately aims to provide NFS/AFS-like functionality, again governed by Grid ACL’s.

  7. GridSite - Grid/Web crossovers • Since have invested in GSI identities for users, also want to use in web security • GridSite manages access to websites and HTTP(S) fileservers • Users and admins load GSI cert + key into unmodified web browsers • Grid ACL’s control level of read and write access • Write access either by HTML forms (interactive) or HTTP PUT (programmatic) • Website admins can define groups of users with specific rights • Can delegate administration of that group to one or more members. • Group membership can also be published in EDG VO LDAP format. • GridSite used by EDG Testbed website, and GridPP and e-Science support websites in the UK.

  8. Other EDG systems built on GSI • EDG WP2 (Data Management) has built a set of Java security modules • this includes modules for verifying GSI proxies, and enforcing ACL and grid-mapfile access control • can provide security handling for other Grid services • filtering of both plain HTTP and SOAP requests, and queries from service itself during processing • EDG WP4 (Fabric Management) site access system • LCAS - provides site-specific callouts to check authorisation based on user identity, what is requested, quotas, free-slots in batch system etc • LCMAPS - manages current mappings of Grid to local identities • similar to recent Globus proposal for authorisation callouts

  9. Summary • GSI is the security system that ties the EU DataGrid together • Implementing a grid using GSI requires mechanisms for: • distributing CA info to sites • distributing VO info to sites • managing GSI to local account mapping • EDG has demonstrated applying GSI security to filesystems and websites • GSI also provides the basis of Java information and LCAS site policy security systems • See http://www.gridpp.ac.uk/authz/ for links to source code and details of all tools mentioned in this talk
